Peugeot 508 RXH 2013 Owner's Manual

289
FREQUENTLY ASKED QUESTIONS
QUESTIONANSWER SOLUTION
Some characters in themedia information are not
displayed correctly while playing. The audio system does not display some types o
f characters. Use standard characters to name tracks andfolders.
Pla
ying of streaming fi lesdoes not start. The peripheral device connected does not support automatic play. Start the playback from the device.
Th
e names of tracks and
the track length are not
displayed on the screen
when streaming audio. The Bluetooth pro
fi le does not allow the transfer of this information.
The qualit
y of receptionof the radio station listened to graduallydeteriorates or the stored stations do not function(no sound, 87.5 Mhz is
displayed...). The vehicle is too far from the transmitter used b
y the station listened
to or there is no transmitter in the geographical area through which the
vehicle is travelling.
Activate the "RDS" function by means of theshort-cut menu to enable the system to check
whether there is a more powerful transmitter in thegeographical area.
The environment
(hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode. This phenomenon is normal and does not indicate
a fault with the audio system.
The aerial is absent or has been dama
ged (for example when goingthrough a car wash or into an underground car park). Have the aerial checked by a PEUGEOT dealer.
Th
e station is notreceived or its name has changed in the list.I
cannot fi nd some radio stations in the list of stations received.
Some radio stations send other information in place of their name (the title of the song for example).
The s
ystem interprets this information as the name of the station.
The name of the radio station changes.

290
FREQUENTLY ASKED QUESTIONS
QUESTIONANSWER SOLUTION
In changing the settingof treble and bass theequalizer setting isdeselected. The selection o
f an equalizer setting imposes the balance settings.
Modi
fying one without the other is not possible. Modi
fy the balance or equalizer settings to obtain
the desired musical ambience.
In chan
ging the equalizer setting, treble and bassreturn to zero.
When changing the
balance settin
gs, the
distribution setting is deselected. The selection o
f a distribution setting imposes the balance settings.
Modi
fying one without the other is not possible. Modi
fy the balance or distribution settings to obtain the desired musical ambience.

When changing an distribution setting,
the balance setting isdeselected.
Th
ere is a difference in sound quality between
the different audiosources (radio, CD...). For optimum sound qualit
y, the audio settings for Volume, Bass, Treble,
Equalizer and Loudness can be adapted to the different sound sources,
which ma
y result in audible differences when changing source (radio,CD...). Check that the audio settin
gs for (Volume, Bass,
Treble, Equalizer, Loudness) are adapted to
the sources listened to. It is advisable to set theAUDIO functions (Bass, Treble, Fr-Re balance,
Le-Ri balance) to the middle position, select the "None", musical ambience and set the loudness correction to the "Active" position in CD mode or
to the "Inactive" position in radio mode.

291
ANSWER SOLUTION
With the engine off, the system switches off after a few minutes of use.When the en
gine is switched off, the system's operating time depends on
the battery charge.
The switch-o
ff is normal: the system switches to economy mode and
switches off to prevent discharging of the vehicle's battery. Start the vehicle's en
gine to increase the batterycharge.
Pla
yback of my USB memory stick starts only
after a very long wait (around 2 to 3 minutes).Some fi les supplied with the memor
y stick may greatly slow down access
to reading the memory stick (multiplication by 10 of the catalogue time). Delete the fi les supplied with the memory stickand limit the number of sub-folders in the fi le structure on the memory stick.
When I connect m
yiPhone as telephone and
to the USB port at thesame time, I am unable
to play the music fi les. When the iPhone connects automaticall
y as a telephone, it forces the
streaming function. The streaming function takes the place of the USBfunction which is then not useable, there is a period without sound of the
track being played with AppleÆ players.Æ
Disconnect and reconnect to the USB port (the USB function takes priority over streaming).
When I connect m
yApple Æ
player or my Æ
BlackBerryÆ
to theÆ
USB port, I have alert messages on the currentconsumption by the USBport. When char
ging, the current consumption of these smartphones is greater
than the rating of the USB port, which is 500 mA.
FREQUENTLY ASKED QUESTIONS

292
Alphabetical index
ABS ...............................................................174Accessories ............................................27,218Accessory position.......................................... 27Accessory socket, 12 volt.............................101Adaptive lighting..............................................51Adjusting headlamps....................................154Adjusting head restraints................................94Adjusting seat belt height ..............................178Adjusting the steering wheel.........................100Airbags ............................................................60Airbags, cur tain .....................................182, 183Airbags, front......................................... 180, 183Airbags, lateral......................................182, 183Air conditioning...............................................40Air conditioning,
digital...................................111, 112,115, 120Air conditioning, manual ...............................111Air conditioning, quad-zone ..........115,118, 120Air filter..........................................................r227Air flow............................................................ 40Air vents ........................................................ 110Alarm...............................................................80Anti-lock braking system (ABS)....................174Anti-theft..........................................................27Armrest..........................................................101Armrest, rear.................................................r102ASR ...............................................................174Assistance, emergency braking...................174Assistance call ......................................173, 236Audible warning ............................................ 173Audio streaming (Bluetooth)..................................................279Automatic illumination
of headlamps.......................................147,151Automatic operation
of hazard warning lamps............................172Automatic rain sensitive
windscreen wipers ..............................156,158
Capacity, fuel tank..........................................89Central locking................................................74Changing a bulb...........................196,200, 202Changing a fuse ............................................203Changing a wheel.........................................190Changing a wiper blade........................159, 211Changing the date ...........................................69Changing the remote control battery ........77,78Changing the time...........................................69Checking levels.....................................224-226Checking the engine oil level..........................65Checking tyre pressures (using the kit)........184Checks..........................................223, 227-229Children.........................................166,169,170Child seats ...........................................162, 167Child seats, conventional ......................165, 166Closing the boot ..............................................84Closing the doors............................................74Cold climate screen......................................217Connectors, audio.........................................103Coolant level...........................................61,225
A
C
Coolant temperature indicator........................r61Courtesy lamps .............................................160Cruise control........................................ 137, 140Cup holder.....................................................r101
Backup starting .............................................208Backup switching off.......................................f28Battery.............4, 22, 43-45, 105, 207-209, 227Battery, charging...................................207,209Battery, remote control..............................77-79Bluetooth (hands-free)..................................262Bluetooth (telephone)....................................262Boot...........................................................84-86Boot (opening).................................................73Brake discs ...........................................228, 229Brake lamps ..................................................200Brake pads ........................................... 228, 229Brakes..................................................228, 229
B
Date (setting)...................................................69Daytime running lamps .........149, 196,197, 199Deactivating ESP .......................................... 176Deactivating the passenger airbag...............180Deadlocking....................................................75Defrosting................................................98, 120Diesel..................................................35,39, 52Diesel additive level......................................226Diesel engine pre-heat warning lamp .............52Dimensions...................................................233Dipped beam ............................51, 146,196-198Dipstick....................................................65, 224Directional lighting........................................155Direction indicators.......150,172, 196,199,200Driving positions (memorising).......................93Dynamic emergency braking........................123Dynamic stability control(DSC)......................................54, 58, 174, 176
D
EBA (Emergency braking assistance)..........174EBFD.............................................................174Eco-driving.....................................................40Economical driving .........................................40Economy mode .............................................210Eco off.............................................................f39Electronic brake force distribution (EBFD) ... 174
E

.
293
Alphabetical index
Filling with fuel..........................................89,91Fitting a wheel ...............................................191Fitting roof bars .............................................217Fittings, boot ................................................. 104
Flashing indicators ................................ 150, 172Flat bed lorry or trailer............................r48,214Foglamps, rear......................................r148, 200Folding the rear seats.....................................96Front foglamps..............................................148Front seats ................................................92, 93Fuel............................................................40,91Fuel consumption ......................................40,42Fuel consumption figures ............................... 42Fuel filler cap...................................................89Fuel filler flap...................................................89Fuel gauge......................................................89Fuel tank..........................................................89Fusebox, dashboard.....................................203Fuses.............................................................203
G.P.S. ............................................................248Gearbox, electronic gear control ..........130, 228Gear lever, electronic gear control gearbox.......................................................130Ground clearance...................................31, 233Guidance...............................................246,253Guide-me-home............................................151
Identification plates.......................................234Ignition.............................................................27Ignition on........................................................27Indicator lamps, status..............................52,57Indicators, direction......................................172Inflating accessories (using the kit)..............184Inflating tyres ..................................................40Instrument panel.............................................49Instrument panels...........................................50Instrument panel screen.................................50Instruments and controls................................12Intelligent Traction Control............................175Interior fittings ...............................................101Interior mood lighting ....................................161ISOFIX...........................................................169ISOFIX child seats .................................168-170ISOFIX mountings.........................................168
Jack ...............................................................190JBL (audio system)....................................9, 237
F
GI
J
Electronic engine immobiliser...................r27,79Emergency boot release .................................87Emergency call.....................................173, 236Emergency warning lamps ...................107, 172Energy economy mode .................................210Engine, Diesel.................91, 222, 223,231, 232Engine compartment...............................46,223Engine compar tment fusebox.......................203Engine oil level indicator.........................r65, 224Engines .................................................230-232Environment ..........................................5,40,78
Halogen headlamps ..............................196,198Hands-free kit................................................262Hazard warning lamps..........................107,172Head-up display............................135, 138,140Headlamp adjustment...................................154Headlamps, directional.........................155,196Headlamp wash ............................................157Headlamp wash reser voir.............................r225Head restraints, front......................................94Head restraints, rear.......................................r96Heated seats ...................................................94Heating............................................40, 118,121Height and reach adjustment, steering wheel............................................100High load retaining net..................................108High voltage ..............43-45,105, 179, 209, 221High voltage cable ..........................................44Hill start assist ...............................................134History .......................................................42, 67Hybrid .....................................4,22,29, 33,207Hybrid flow............................................4,22, 33Hybrid selector................................................r29Hybrid system..............................4, 22,23,243
H
Keeping children safe ........... 162,169,170, 180Key...........................................70-72,74, 77, 79Key, electronic...............................28, 70-74, 77Keyless Entry and Starting.................71,72, 79Key not recognised.........................................28Key with remote control..................................27
K

294
Alphabetical index
Labels, identification.....................................234Lamps, warning and indicator............r50,54, 55LED daytime running lamps..........................149Level, brake fluid ...........................................224Level, headlamp wash.......................... 157,225Level, power steering fluid............................224Levels and checks.................................223-226Lighting, guide-me home......................150,151Lighting, interior....................................r160,161Lighting bulbs (replacement).......196,200,202Lighting control stalk.............................146,150Lighting on reminder.....................................r148Loading.................................................... 40, 217Load reduction mode.................................... 210Load space cover..........................................r106Locating your vehicle......................................76Long objects, transpor ting............................103Luggage retaining strap................................104
L
Main beam...............................51, 146,196-199Maintenance....................................................40Map reading lamps.......................................160Markings, identification.................................234Massage function...........................................95Mat................................................................102Mini fuel level..................................................89Mirror, rear view ............................................ 100Mirrors, door..............................................r98,99Motorised boot..........................................85,86Motorway function(direction indicators)...................................172Mountings for ISOFIX seats.........................168Music media players .....................................275
Navigation.............................................245, 246Number plate lamps......................................202
Oil filter..........................................................r227Oil level....................................................65,224Opening the boot................................70,73,84Opening the doors..........................................70Opening the panoramic sunroof blind ............88Operation indicator lamps............50, 52, 54,57
Radio.....................................................272, 273Ready..............................................................29Ready lamp...............................................29,89Rear screen (demisting) ..........................98, 120Recharging the battery.........................207, 209Reduction of electrical load..........................210Regeneration of the particleemissions filter............................................r228Reinitialising the remote control...............77,78Remote control...............................70-72, 74,79Removable screen (snow shield)..........215, 217Removing a wheel........................................191Removing the mat.........................................102Repair kit, puncture .......................................184Replacing bulbs ...........................196,200, 202Replacing fuses ............................................203Replacing the air filter...................................r227Replacing the oil filter...................................r227Replacing the passenger compartment filter......................................r227Replacing wiper blades.........................159, 211Reset history .............................................42,67Resetting the service indicator.......................r64Reversing lamp.............................................200Risk areas (update).......................................250Roof bars.......................................................217Roof blind........................................................88Routine checks.....................................227-229Running out of fuel (Diesel)..........................222
Safety for children ................................. 166, 171Screen, colour and mapping.................243, 283Screen, instrument panel..........................50,66
M
N
O
R
S
Paint colour code..........................................234Panoramic glass sunroof................................f88Parking brake...............................126,228, 229Parking brake, electric..................................123Parking lamps...............................................150Parking sensors, front...................................143Parking sensors, rear....................................r142Parking space sensor ..................................144Particle emission filter.........................r226, 228Passenger compartment filter......................r227PEUGEOT CONNECT ASSISTA NCE..........236Peugeot Connect Navigation (RT6)..............239PEUGEOT CONNECT SOS.........................236Port, USB......................................................103Power..............................................................r32Priming the fuel system ................................222Programmable heating (Webasto)................121Protecting children........ 162,166, 168-170, 180Puncture........................................................184
P

.
295
Alphabetical index
Screen-wash reser voir..................................225Screen menu map.........................................283Screenwash, front ......................................... 157Screenwash fluid level..........................157,225Seat adjustment..............................................92Seat belts...............................................177-179Seats, rear.......................................................r96Serial number, vehicle ..................................234Ser vice indicator.............................................r63Service warning light ......................................56Servicing .........................................................40Setting the clock .............................................69Short-cut menus...........................................244Sidelamps............146, 149,150, 196,199,200Side repeater.................................................199Ski flap..........................................................103Snow chain ............................................195, 234Spare wheel ..................................................190Speed limiter.........................................r137, 138Speedometer............................................r32, 49Spotlamps, side ....................................153, 199Start.........................................................25, 208Starting the engine..............................28, 29,35Starting the vehicle.................................25,130Steering mounted controls,audio...........................................................242Stopping the vehicle.........................25,28,130Stop & Start....113,116,120, 207, 221-224,227Storage..........................................101,102,104Storage wells................................................. 104Storing driving positions.................................93Stowing rings................................................104Switching off the engine...........................28, 29Switch off........................................................f25Synchronising the remotecontrol .....................................................77,78Synthesiser, voice.........................................256System, navigation ........................................246
Table of weights ............................................232Ta b l e s of engines..................................230-232Tables of fuses..............................................203Te c hnical data.......................................230-232Te l e p h o ne............................................262, 264Te m p e r a t u r e , c o o l a nt......................................61Temperature control for heated seats............94Te m p o r a ry tyre repair kit...............................184Third brake lamp ...........................................202TMC (Tr affic info)..........................................259To o l s..............................................................190To w b a r...........................................................r215Towed loads..................................................232To w i ng another vehicle...................48, 212, 214Tr a c t i o n c o n t r o l (ASR) ......................54, 58, 174Traffic information (TA) .........................260, 274Traffic information (TMC)......................259,260Tr a i l e r............................................................r215Tr i p c o m p u t e r............................................r66, 68Tyre pressures..............................................234Tyres................................................................40
Unlocking..................................................70,71Unlocking the boot..........................................73Update risk areas..........................................250Updating the date............................................69Updating the time ............................................69USB (Peugeot Connect)...............................103
U
T
Warning lamps ....................................52, 55,57Warning triangle ............................................107Wash-wipe, rear............................................r157Washing (advice).............................................47Weights.........................................................232Welcome function...........................................93Welcome lighting...........................................153Wiper, rear.....................................................r157Wiper control stalk .................................156-158Wipers .............................................53, 156, 158
W
Vehicle identification.....................................234Ventilation...............................45, 105, 110,111
X
Xenon headlamps.........................................196
V

296
Visual search

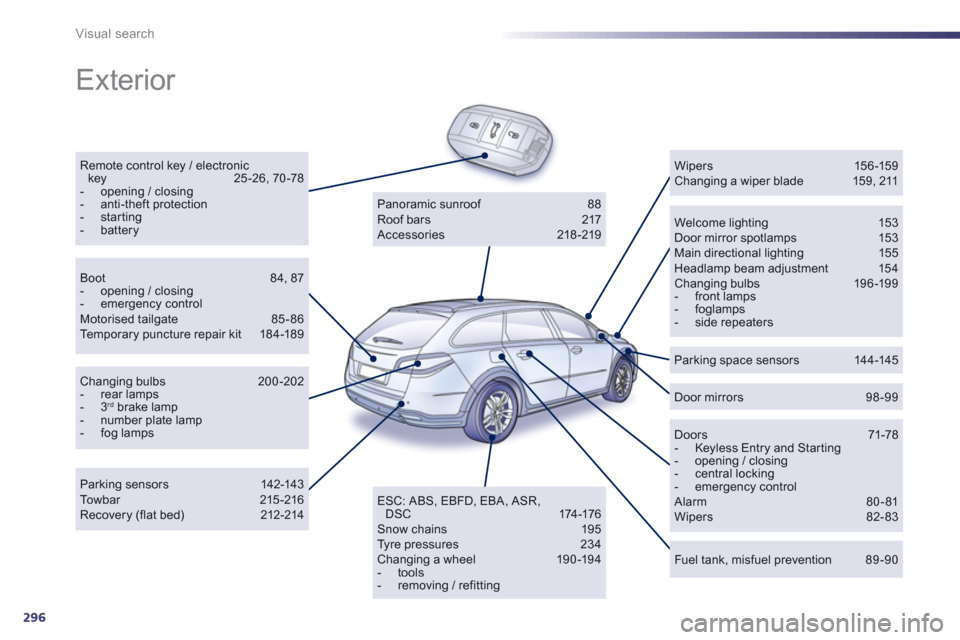

Exterior
Remote control key / electronickey 25 -26, 70 -78 - opening / closing - anti-theft protection - starting - batteryWelcome lighting 153 Door mirror spotlamps 153 Main directional lighting 155 Headlamp beam adjustment 154 Changing bulbs 196 -199 - front lamps - foglamps- side repeaters

Wipers 15 6 -159 Changing a wiper blade 159, 211
Door mirrors 98-99

Doors 71-78 - Keyless Entry and Star ting - opening / closing- central locking- emergency control
Alarm 80-81 Wipers 82-83
Fuel tank, misfuel prevention 89 -90

Boot 84, 87 - opening / closing - emergency controlMotorised tailgate 85 -86 Te m p o r a ry puncture repair kit 184-189

Changing bulbs 200 -202 - rear lamps- 3 rd
brake lamp - number plate lamp- fog lamps

Parking sensors 142-143 Towbar 215-216 Recovery (flat bed) 212-214


Panoramic sunroof 88
Roof bars 217 Accessories 218-219


ESC: ABS, EBFD, EBA, ASR, DSC 174 -176 Snow chains 195
Tyre pressures 234
Changing a wheel 190 -194


- tools

- removing / refitting
Parking space sensors 144-145

.
297

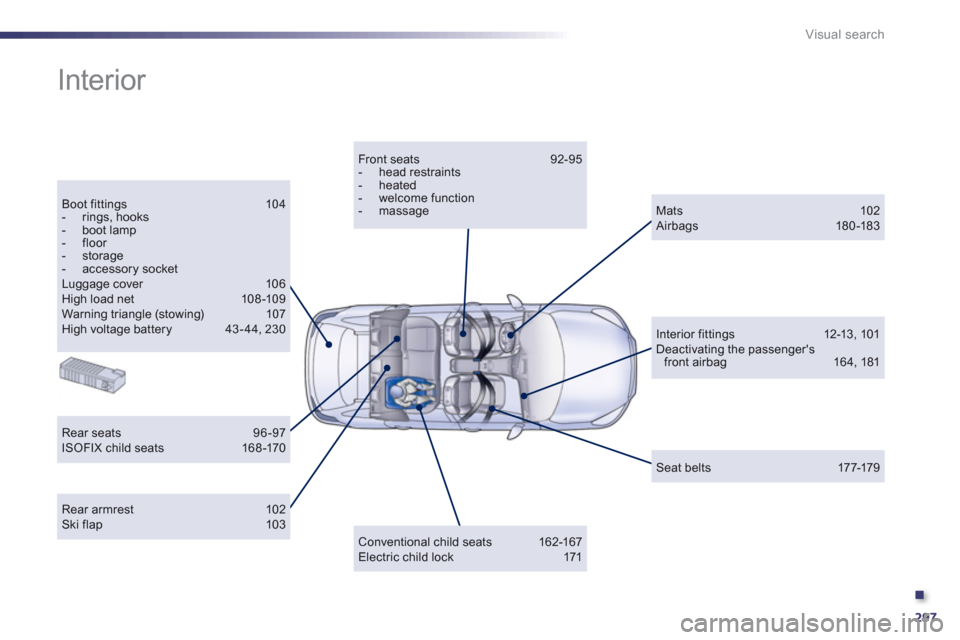

Visual search
Interior
Boot fittings 104 - rings, hooks- boot lamp- floor - storage- accessory socket Luggage cover 10 6High load net 108 -109 Warning triangle (stowing) 107High voltage battery 43-44, 230

Conventional child seats 162-167
Electric child lock 171


Front seats 92-95


- head restraints

- heated

- welcome function

- massage
Rear armrest 102Ski flap 103
Mats 102 Airbags 18 0-183

Interior fittings 12-13, 101 Deactivating the passenger's front airbag 164, 181
Seat belts 177-179

Rear seats 96-97ISOFIX child seats 168-170

298
Visual search

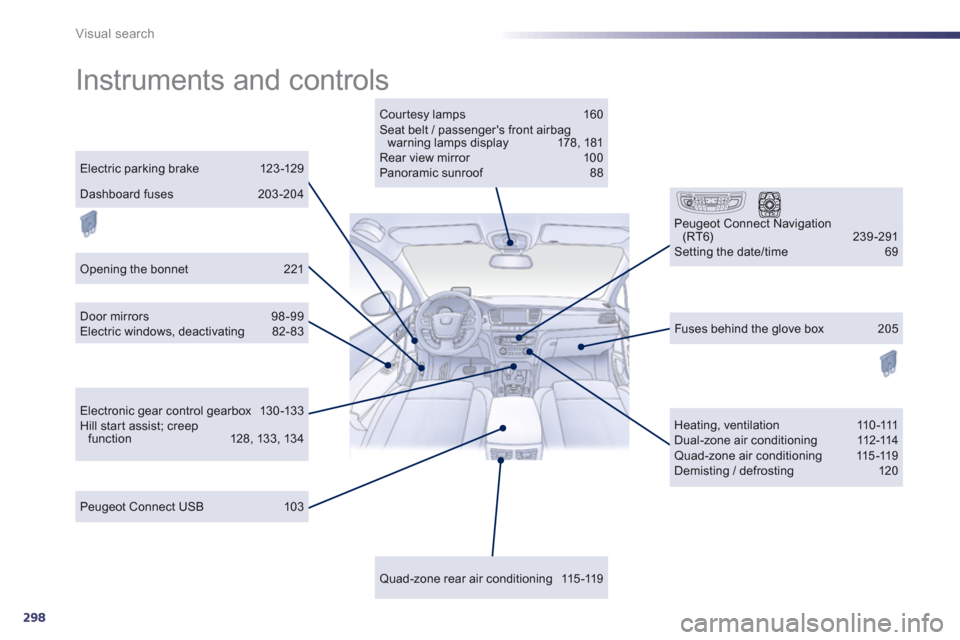

Instruments and controls
Courtesy lamps 160 Seat belt / passenger's front airbag warning lamps display 178, 181 Rear view mirror 10 0 Panoramic sunroof 88

Door mirrors 98-99 Electric windows, deactivating 82-83
Heating, ventilation 110 -111 Dual-zone air conditioning 112-114 Quad-zone air conditioning 115 -11 9 Demisting / defrosting 120

Peugeot Connect USB 103
Electric parking brake 123 -129
Electronic gear control gearbox 130-133 Hill star t assist; creep function 128, 133, 134
Fuses behind the glove box 205
Quad-zone rear air conditioning 115 -11 9
Peugeot Connect Navigation(RT6) 239-291 Setting the date/time 69
Opening the bonnet 221
Dashboard fuses 203-204
