Peugeot 508 RXH 2013 Owner's Manual

269
07 DIRECTORY - ADDR BOOK

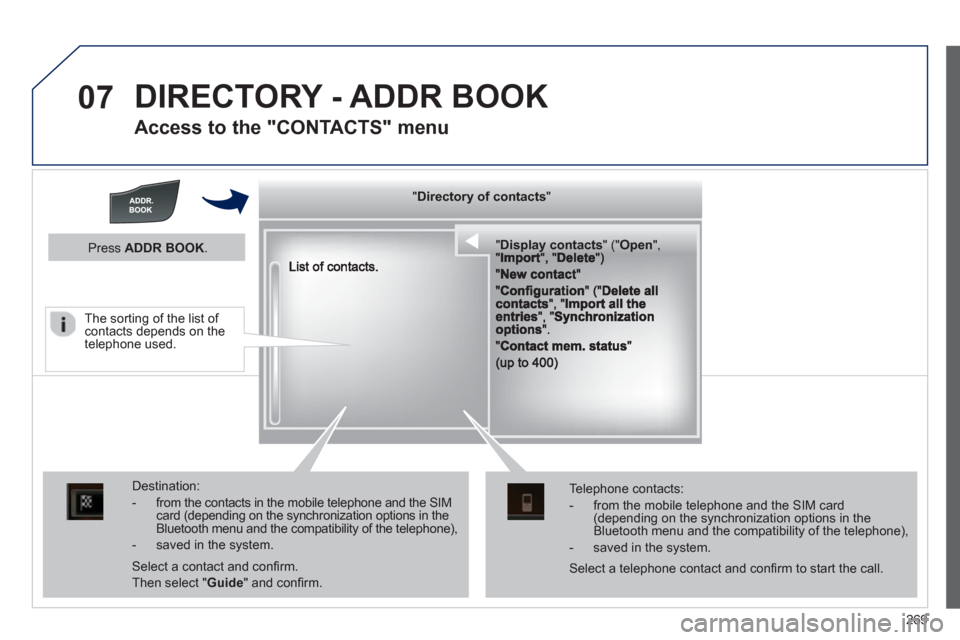

Access to the "CONTACTS" menu

""""""""yyyyyDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDi t f t tDi t f t tDi t f t tDi t f t tDi f """"""""
""""""""""pypypypypypypysp ay co tactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDi l t tDi l t tDi l t tDi l t tDi l t tDi l t tDi l(((((((( ( (((((((((((((((("(""(""(""(""(""(""(""(""(""("pppppppOpeOpenOpenOpenOpenOpenOpenOpenOpenOpenOpenOpenOpenOpenOpenOpenOpenOpenOpenOpenOpenOOOOOOO,,,,, , ,,,""""""""""""""ItItItIt""""""""DltDltDltDlt")")")"))
Destination:
- from the contacts in the mobile telephone and the SIMcard (depending on the synchronization options in the Bluetooth menu and the compatibility of the telephone),
- saved in the system.

Select a contact and confi rm.
Then select "Guide
" and confi rm.
Telephone contacts:
- from the mobile telephone and the SIM card(depending on the synchronization options in the Bluetooth menu and the compatibility of the telephone),
- saved in the system.


Press ADDR BOOK.
Select a telephone contact and confi rm to start the call.

The sorting of the list of contacts depends on the telephone used.

270
07

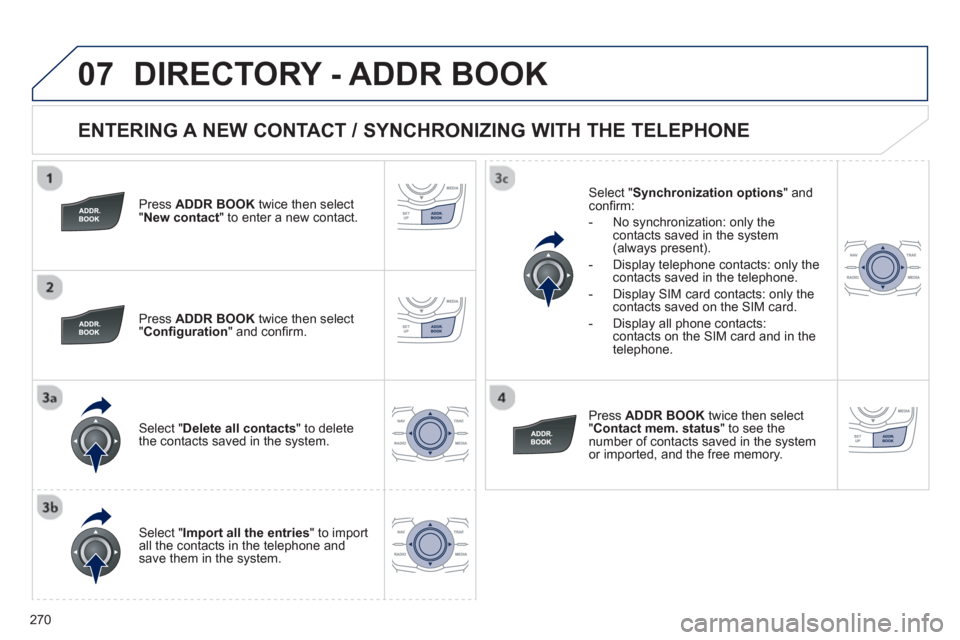

ENTERING A NEW CONTACT / SYNCHRONIZING WITH THE TELEPHONE


Press ADDR BOOKtwice then select "New contact" to enter a new contact.

Pr
ess ADDR BOOKtwice then select
" Confi guration" and confi rm.

Select "Delete all contacts" to delete
the contacts saved in the system.

Select "Import all the entries
" to import
all the contacts in the telephone and
save them in the system.
Select "Synchronization options
" and confi rm:


- No s
ynchronization: only the contacts saved in the system (always present).

-
Display telephone contacts: only the contacts saved in the telephone.

- Display
SIM card contacts: only thecontacts saved on the SIM card.

- Displa
y all phone contacts: contacts on the SIM card and in the
telephone.




Pr
ess ADDR BOOKtwice then select
" Contact mem. status
" to see the number of contacts saved in the systemor imported, and the free memory.
DIRECTORY - ADDR BOOK

271
07

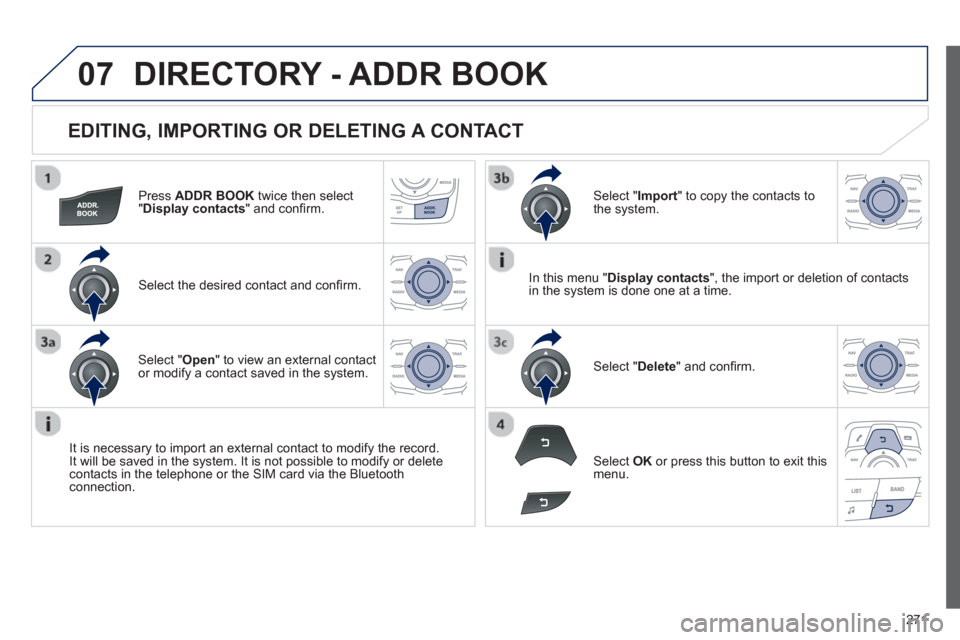

EDITING, IMPORTING OR DELETING A CONTACT
Press ADDR BOOK
twice then select"Display contacts
" and confi rm.
Select the desired contact and confi rm.
It is necessar
y to import an external contact to modify the record. It will be saved in the system. It is not possible to modify or deletecontacts in the telephone or the SIM card via the Bluetooth connection.
Select OK
or press this button to exit this
menu.

DIRECTORY - ADDR BOOK

In this menu " Display contacts
", the import or deletion of contacts
in the system is done one at a time.
Select "Import" to copy the contacts to
the system.

Select "Delete
" and confi rm. Select "Open " to view an external contact or modify a contact saved in the system.

272
08 RADIO

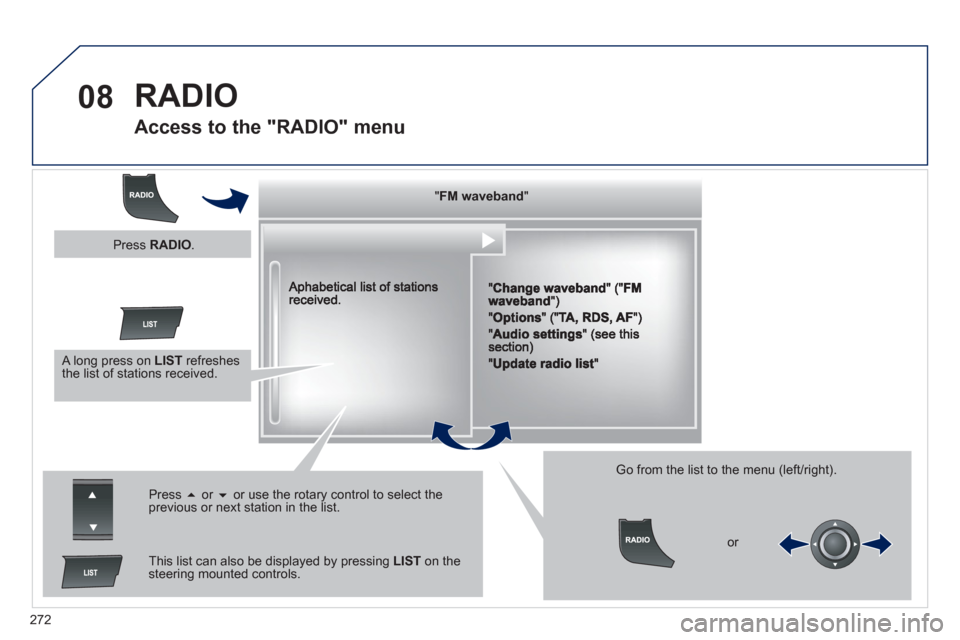

Access to the "RADIO" menu
""""""""FMFMFMFMFMFMFMFMFMFMFMFMFMFMFMFMFMFMFMwavebandwavebandwavebandwavebandwavebandwavebandwavebandwavebandwavebandwavebandwavebandwavebandwavebandwavebandbdbdbdbdbd""""""""


Press
or
or use the rotary control to select theprevious or next station in the list.

This list can also be displayed by pressing LISTon thesteering mounted controls.

Go from the list to the menu (left/right).
or




A long press on LIST
refreshesthe list of stations received.


Press RADIO.

273
08RADIO
By alphabetical list
Pr
ess RADIOor LIST , select the station
of your choice and confi rm.
B
y automatic frequency search
Press or for the automatic searchfor a lower or higher radio frequency.
Or turn the thumb wheel at the steeringmounted controls.
B
y manual frequency search
Pr
ess or to adjust the radiofrequency step by step.
Pr
ess the button on the numericalkeypad to recall a preset station.

Or press then turn the thumb wheel at
the steering mounted controls.

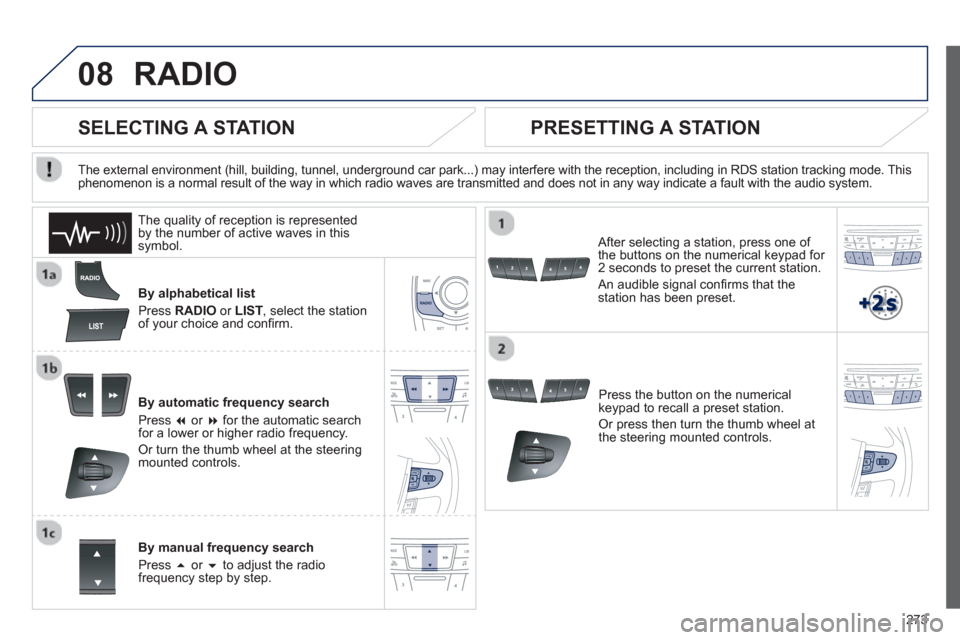

SELECTING A STATION


The external environment (hill, building, tunnel, underground car park...) may interfere with the reception, including in RDS station tracking mode. Thisphenomenon is a normal result of the way in which radio waves are transmitted and does not in any way indicate a fault with the audio system.


PRESETTING A STATION


After selecting a station, press one of
the buttons on the numerical keypad for 2 seconds to preset the current station.
An audible si
gnal confi rms that the
station has been preset. The qualit
y of reception is represented by the number of active waves in this
symbol.

274
08

Press RADIO .

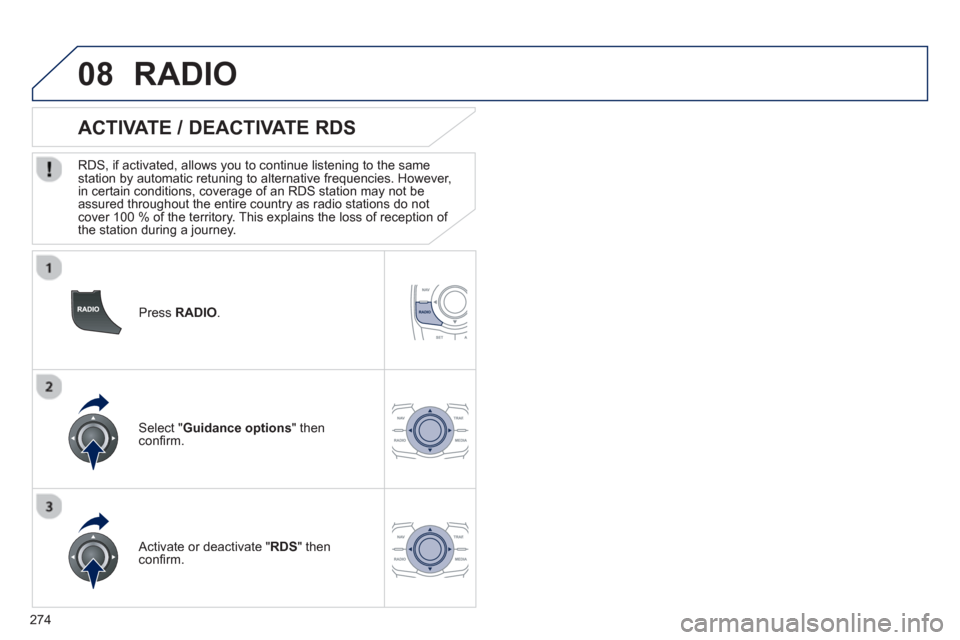

ACTIVATE / DEACTIVATE RDS


RDS, if activated, allows you to continue listening to the same station by automatic retuning to alternative frequencies. However,
in certain conditions, coverage of an RDS station may not be
assured throughout the entire country as radio stations do not cover 100 % of the territory. This explains the loss of reception of
the station during a journey.

Select "Guidance options" thenconfi rm.

Activate or deactivate " RDS" thenconfi rm.
RADIO

275
09 MUSIC MEDIA PLAYERS







Access to the "MUSIC MEDIA PLAYER" menu
""""""""MEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIA""""""""
This list can also be displayed by pressing LISTat the steering mounted controls.

Go from the list to the menu (left/right).
or


Press MEDIA.

276
09MUSIC MEDIA PLAYERS

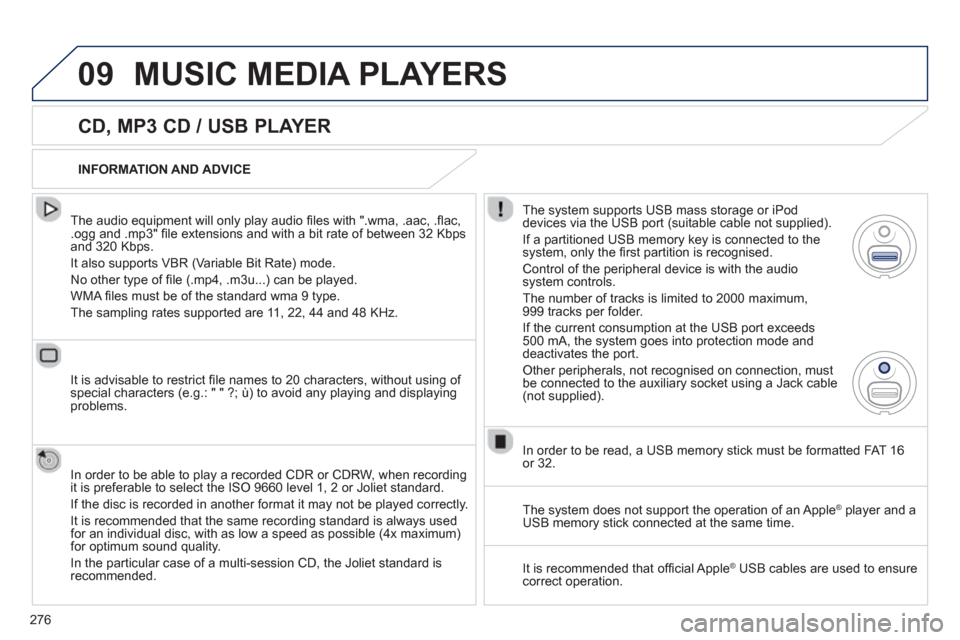

CD, MP3 CD / USB PLAYER


The audio equipment will only play audio fi les with ".wma, .aac, .fl ac, .ogg and .mp3" fi le extensions and with a bit rate of between 32 Kbps
and 320 Kbps.
It also supports VBR
(Variable Bit Rate) mode.
No other t
ype of fi le (.mp4, .m3u...) can be played.
WMA fi les must be of the standard wma 9 t
ype.
The samplin
g rates supported are 11, 22, 44 and 48 KHz.

It is advisable to restrict fi le names to 20 characters, without usin
g of special characters (e.g.: " " ?; ù) to avoid any playing and displayingproblems.

In order to be able to play a recorded
CDR or CDRW, when recording
it is preferable to select the ISO 9660 level 1, 2 or Joliet standard.
I
f the disc is recorded in another format it may not be played correctly.
It is recommended that the same recordin
g standard is always used
for an individual disc, with as low a speed as possible (4x maximum)for optimum sound quality.
In the particular case of a multi-session CD, the Joliet standard is
recommended.
INFORMATION AND ADVICE
The s
ystem supports USB mass storage or iPod
devices via the USB port (suitable cable not supplied).
I
f a partitioned USB memory key is connected to the system, only the fi rst partition is recognised.

Control of the peripheral device is with the audiosystem controls.
The number of tracks is limited to 2000 maximum,
999 tracks per folder.
If the current consumption at the USB port exceeds
500 mA, the system goes into protection mode and deactivates the port.

Other peripherals, not recognised on connection, must
be connected to the auxiliary socket using a Jack cable (not supplied).
In order to be read, a U
SB memory stick must be formatted FAT 16
or 32.
The s
ystem does not support the operation of an AppleÆ
player and aÆ
USB memory stick connected at the same time.
It is recommended that o
ffi cial AppleÆ
USB cables are used to ensureÆ
correct operation.

277
09MUSIC MEDIA PLAYERS

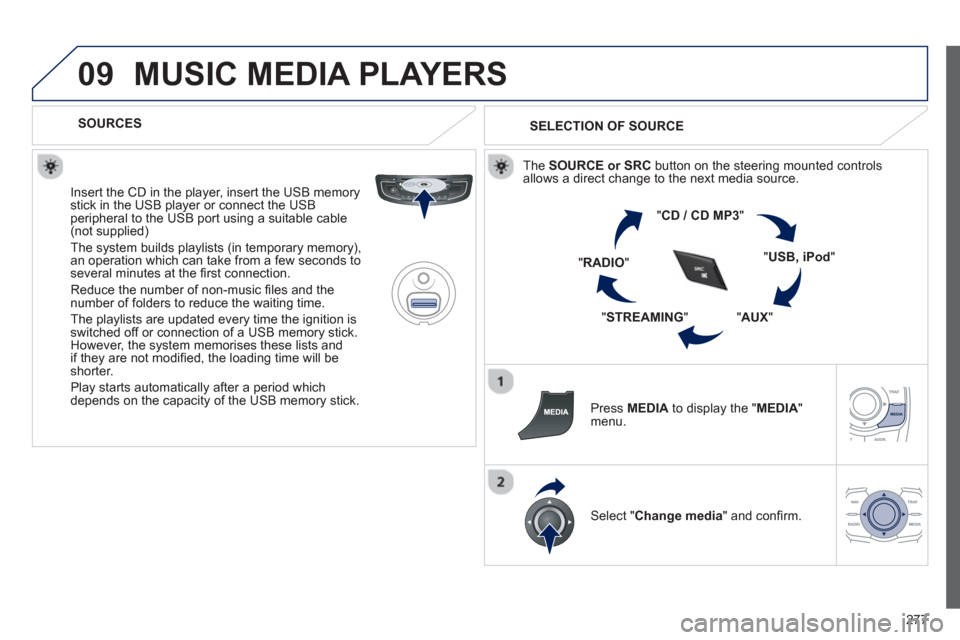

SOURCES

Insert the
CD in the player, insert the USB memorystick in the USB player or connect the USBperipheral to the USB port using a suitable cable (not supplied)

The system builds playlists (in temporary memory),
an operation which can take from a few seconds to several minutes at the fi rst connection.
R
educe the number of non-music fi les and the number of folders to reduce the waiting time.

The playlists are updated every time the ignition isswitched off or connection of a USB memory stick. However, the system memorises these lists and
if they are not modifi ed, the loading time will be shorter.
Pla
y starts automatically after a period which
depends on the capacity of the USB memory stick.

SELECTION OF SOURCE
Th
e SOURCE or SRCbutton on the steering mounted controlsallows a direct change to the next media source.
"CD / CD MP
3
"
"
USB, iPod"
"AUX
" "
STREAMING
" "RADIO
"

Pr
ess MEDIA
to display the " MEDIA"menu.

Select "Change media" and confi rm.

278
09
/
/
//
//
/ +/

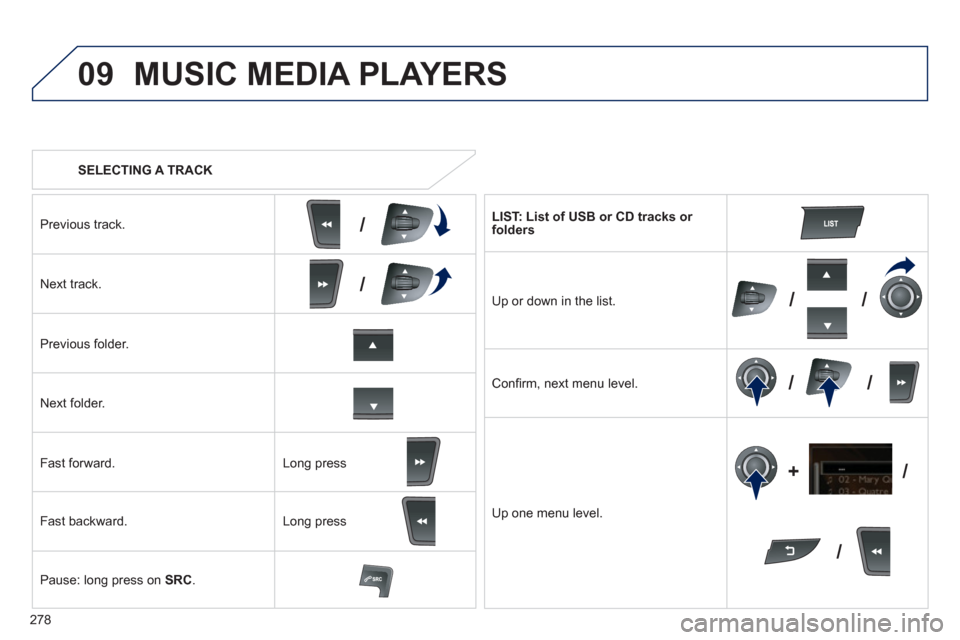

SELECTING A TRACK
MUSIC MEDIA PLAYERS
Previous track.
Next track.
Pr
evious folder.
N
ext folder.
F
ast forward.
F
ast backward.
Pause: lon
g press on SRC.


LI
ST: List of USB or CD tracks or folders

Up or down in the list.

Confi rm, next menu level.
U
p one menu level.
Lon
g press
Lon
g press
