Page 11 of 182
1. Driver's automatic comfort
programme.
2. Passenger automatic
comfort programme.
3. Driver's temperature
adjustment.
4. Passenger temperature
adjustment.
5. A i r fl o w a d j u s t m e n t .
6. System off.
7. Driver's air distribution
adjustment.
8. Passenger air distribution
adjustment.
9. Automatic visibility
programme (demisting).
10. Air intake/Air recirculation.
11. Rear screen and exterior
mirrors demisting.
12. Air conditioning On/Off (A/C).
40

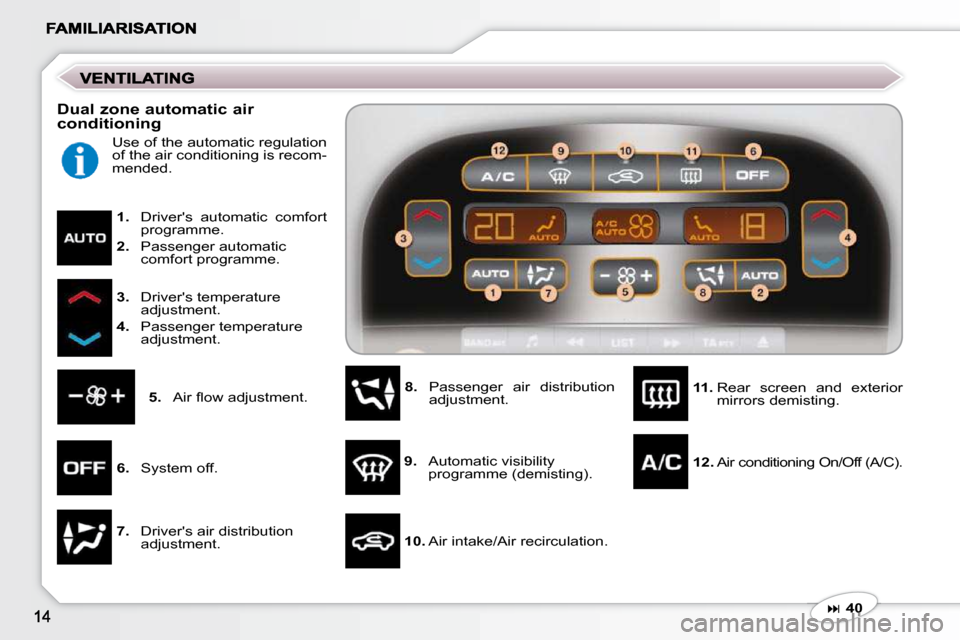

Dual zone automatic air conditioning
Use of the automatic regulation
of the air conditioning is recom-
mended.
Page 12 of 182

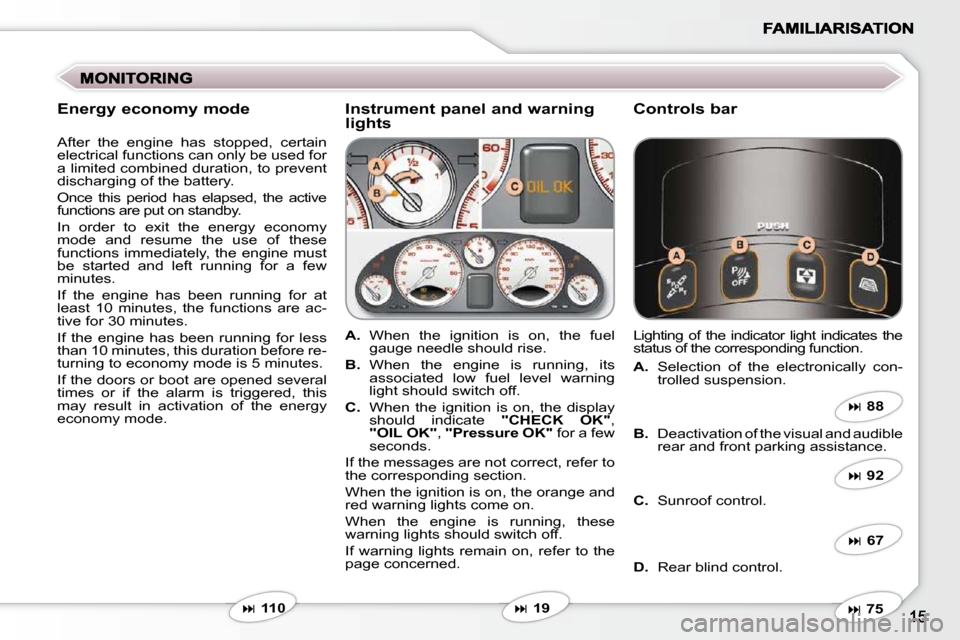

Instrument panel and warning lights Controls bar
A. When the ignition is on, the fuel
gauge needle should rise.
B. When the engine is running, its
associated low fuel level warning
light should switch off.
C. When the ignition is on, the display
should indicate "CHECK OK" ,
"OIL OK" , "Pressure OK" for a few
seconds.
If the messages are not correct, refer to
the corresponding section.
When the ignition is on, the orange and
red warning lights come on.
When the engine is running, these
warning lights should switch off.
If warning lights remain on, refer to the
page concerned. Lighting of the indicator light indicates the
status of the corresponding function.
19
88
A. Selection of the electronically con-
trolled suspension.
B. Deactivation of the visual and audible
rear and front parking assistance.
C. Sunroof control.
D. Rear blind control.
92
67
75
Energy economy mode
110 110
After the engine has stopped, certain
electrical functions can only be used for
a limited combined duration, to prevent
discharging of the battery.
Once this period has elapsed, the active
functions are put on standby.
In order to exit the energy economy
mode and resume the use of these
functions immediately, the engine must
be started and left running for a few
minutes.
If the engine has been running for at
least 10 minutes, the functions are ac-
tive for 30 minutes.
If the engine has been running for less
than 10 minutes, this duration before re-
turning to economy mode is 5 minutes.
If the doors or boot are opened several
times or if the alarm is triggered, this
may result in activation of the energy
economy mode.
Page 13 of 182

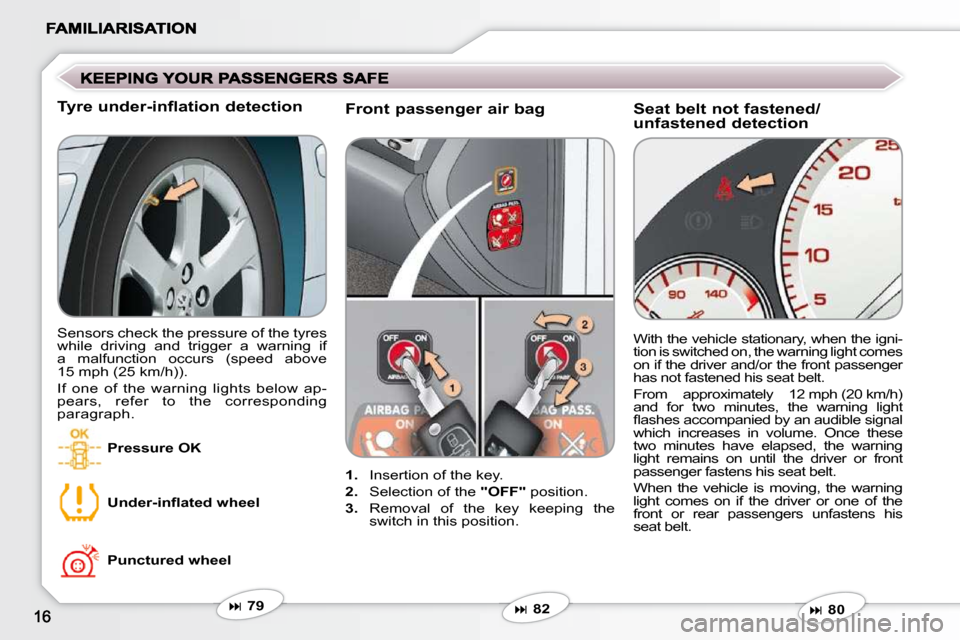

Front passenger air bag
1. Insertion of the key.
2. Selection of the "OFF" position.
3. Removal of the key keeping the
switch in this position. With the vehicle stationary, when the igni-
tion is switched on, the warning light comes
on if the driver and/or the front passenger
has not fastened his seat belt.
From approximately 12 mph (20 km/h)
and for two minutes, the warning light
fl a s h e s a c c o m p a n i e d b y a n a u d i b l e s i g n a l
which increases in volume. Once these
two minutes have elapsed, the warning
light remains on until the driver or front
passenger fastens his seat belt.
When the vehicle is moving, the warning
light comes on if the driver or one of the
front or rear passengers unfastens his
seat belt.
Seat belt not fastened/unfastened detection
82 80
Tyre under-inflation detection
Sensors check the pressure of the tyres
while driving and trigger a warning if
a malfunction occurs (speed above
15 mph (25 km/h)).
If one of the warning lights below ap-
pears, refer to the corresponding
paragraph.
79
Pressure OK
U n d e r - i n fl a t e d w h e e l
Punctured wheel
Page 14 of 182

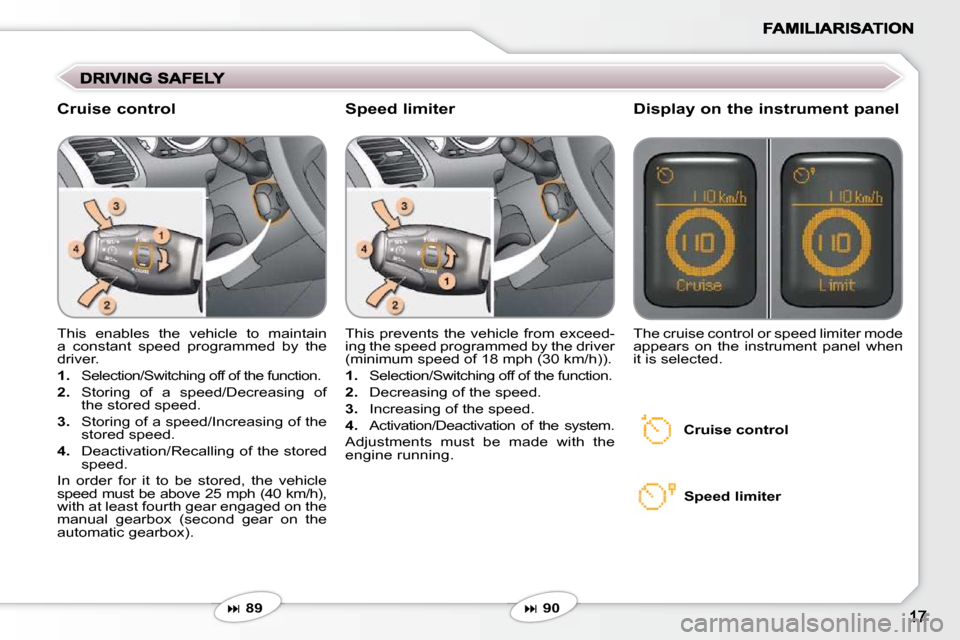

This enables the vehicle to maintain
a constant speed programmed by the
driver.
1. Selection/Switching off of the function.
2. Storing of a speed/Decreasing of
the stored speed.
3. Storing of a speed/Increasing of the
stored speed.
4. Deactivation/Recalling of the stored
speed.
In order for it to be stored, the vehicle
speed must be above 25 mph (40 km/h),
with at least fourth gear engaged on the
manual gearbox (second gear on the
automatic gearbox). This prevents the vehicle from exceed-
ing the speed programmed by the driver
(minimum speed of 18 mph (30 km/h)).
1. Selection/Switching off of the function.
2. Decreasing of the speed.
3. Increasing of the speed.
4. Activation/Deactivation of the system.
Adjustments must be made with the
engine running.
89 90
Cruise control Display on the instrument panel
The cruise control or speed limiter mode
appears on the instrument panel when
it is selected.
Speed limiter
Cruise control
Speed limiter
Page 15 of 182

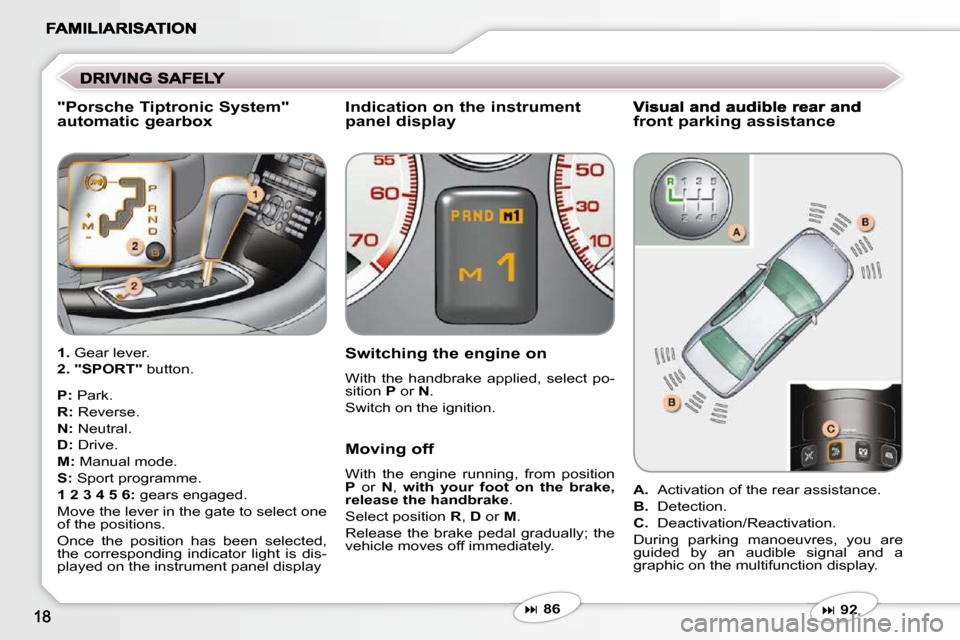

"Porsche Tiptronic System" automatic gearbox Indication on the instrument panel display
Switching the engine on
With the handbrake applied, select po-
sition P or N .
Switch on the ignition.
1. Gear lever.
2. "SPORT" button.
P: Park.
R: Reverse.
N: Neutral.
D: Drive.
M: Manual mode.
S: Sport programme.
1 2 3 4 5 6: gears engaged.
Move the lever in the gate to select one
of the positions.
Once the position has been selected,
the corresponding indicator light is dis-
played on the instrument panel display
Moving off
With the engine running, from position
P or N , with your foot on the brake,
release the handbrake .
Select position R , D or M .
Release the brake pedal gradually; the
vehicle moves off immediately.
front parking assistance
86 92
A. Activation of the rear assistance.
B. Detection.
C. Deactivation/Reactivation.
During parking manoeuvres, you are
guided by an audible signal and a
graphic on the multifunction display.
Page 16 of 182
1
19

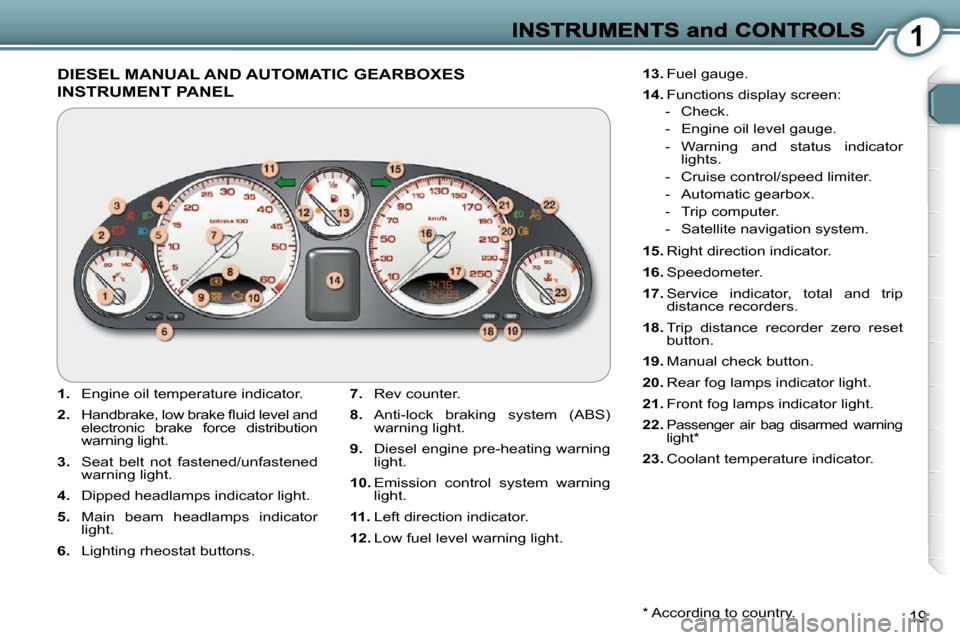

DIESEL MANUAL AND AUTOMATIC GEARBOXES
INSTRUMENT PANEL
1. Engine oil temperature indicator.
2. H a n d b r a k e , l o w b r a k e fl u i d l e v e l a n d
electronic brake force distribution
warning light.
3. Seat belt not fastened/unfastened
warning light.
4. Dipped headlamps indicator light.
5. Main beam headlamps indicator
light.
6. Lighting rheostat buttons.
7. R e v c o u n t e r .
8. Anti-lock braking system (ABS)
warning light.
9. Diesel engine pre-heating warning
light.
10. Emission control system warning
light.
11. Left direction indicator.
12. L o w f u e l l e v e l w a r n i n g l i g h t .
13. Fuel gauge.
14. Functions display screen:
- Check.
- E n g i n e o i l l e v e l g a u g e .
- Warning and status indicator lights.
- Cruise control/speed limiter.
- Automatic gearbox.
- Trip computer.
- S a t e l l i t e n a v i g a t i o n s y s t e m .
15. Right direction indicator.
16. Speedometer.
17. S e r v i c e i n d i c a t o r , t o t a l a n d t r i p
distance recorders.
18. Trip distance recorder zero reset
button.
19. Manual check button.
20. Rear fog lamps indicator light.
21. Front fog lamps indicator light.
22.
Passenger air bag disarmed warning light *
23. Coolant temperature indicator.
* According to country.
Page 17 of 182
1
20

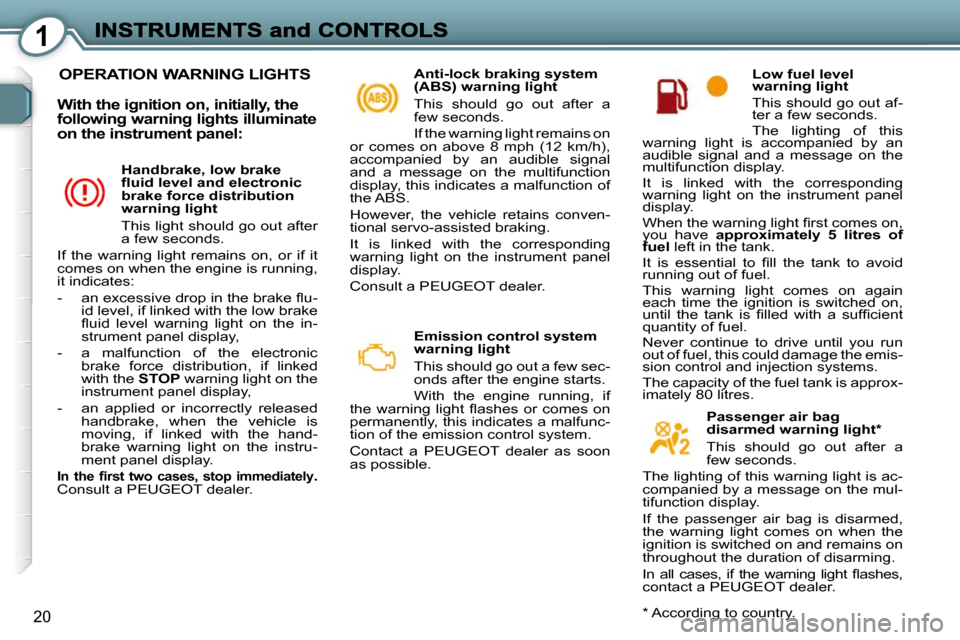

OPERATION WARNING LIGHTS Anti-lock braking system
(ABS) warning light
This should go out after a
few seconds.
If the warning light remains on
o r c o m e s o n a b o v e 8 m p h ( 1 2 k m / h ) ,
accompanied by an audible signal
and a message on the multifunction
display, this indicates a malfunction of
the ABS.
H o w e v e r , t h e v e h i c l e r e t a i n s c o n v e n -
t i o n a l s e r v o - a s s i s t e d b r a k i n g .
It is linked with the corresponding
warning light on the instrument panel
display.
Consult a PEUGEOT dealer.
Emission control system
warning light
This should go out a few sec-
onds after the engine starts.
With the engine running, if
t h e w a r n i n g l i g h t fl a s h e s o r c o m e s o n
permanently, this indicates a malfunc-
tion of the emission control system.
Contact a PEUGEOT dealer as soon
as possible. Passenger air bag
disarmed warning light *
This should go out after a
few seconds.
The lighting of this warning light is ac-
companied by a message on the mul-
tifunction display.
If the passenger air bag is disarmed,
the warning light comes on when the
ignition is switched on and remains on
throughout the duration of disarming.
I n a l l c a s e s , i f t h e w a r n i n g l i g h t fl a s h e s ,
contact a PEUGEOT dealer. Low fuel level
warning light
This should go out af-
ter a few seconds.
The lighting of this
warning light is accompanied by an
audible signal and a message on the
multifunction display.
It is linked with the corresponding
warning light on the instrument panel
display.
W h e n t h e w a r n i n g l i g h t fi r s t c o m e s o n ,
y o u h a v e approximately 5 litres of
fuel left in the tank.
I t i s e s s e n t i a l t o fi l l t h e t a n k t o a v o i d
running out of fuel.
This warning light comes on again
each time the ignition is switched on,
u n t i l t h e t a n k i s fi l l e d w i t h a s u f fi c i e n t
quantity of fuel.
N e v e r c o n t i n u e t o d r i v e u n t i l y o u r u n
out of fuel, this could damage the emis-
sion control and injection systems.
The capacity of the fuel tank is approx-
i m a t e l y 8 0 l i t r e s .
Handbrake, low brake
fl u i d l e v e l a n d e l e c t r o n i c
brake force distribution
warning light
This light should go out after
a few seconds.
If the warning light remains on, or if it
comes on when the engine is running,
it indicates:
- a n e x c e s s i v e d r o p i n t h e b r a k e fl u - i d l e v e l , i f l i n k e d w i t h t h e l o w b r a k e
fl u i d l e v e l w a r n i n g l i g h t o n t h e i n -
strument panel display,
- a malfunction of the electronic brake force distribution, if linked
with the STOP warning light on the
instrument panel display,
- an applied or incorrectly released h a n d b r a k e , w h e n t h e v e h i c l e i s
m o v i n g , i f l i n k e d w i t h t h e h a n d -
brake warning light on the instru-
ment panel display.
I n t h e fi r s t t w o c a s e s , s t o p i m m e d i a t e l y.
Consult a PEUGEOT dealer.
* According to country.
With the ignition on, initially, the following warning lights illuminate on the instrument panel:
Page 18 of 182
1
21

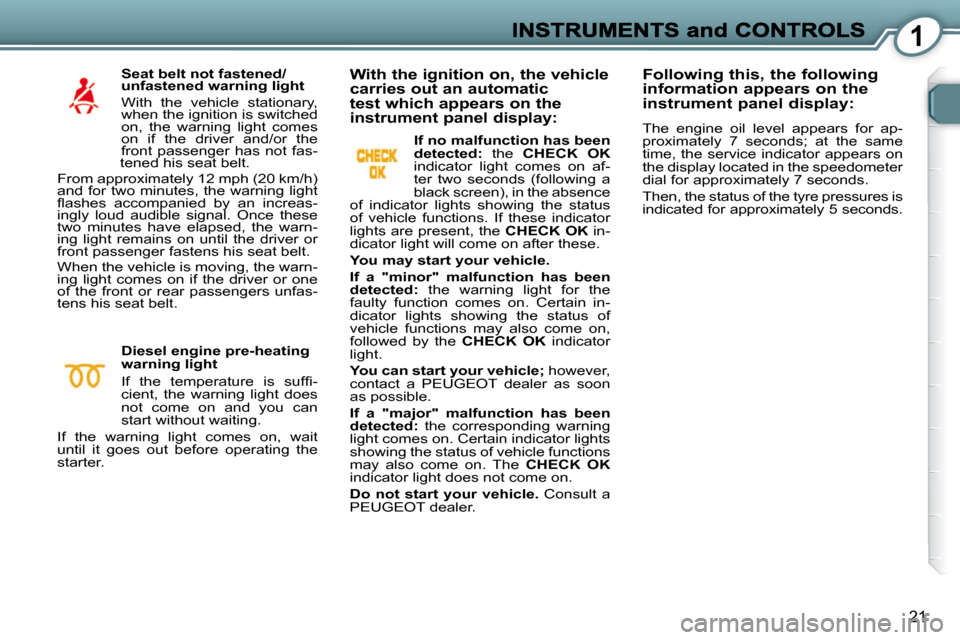

Seat belt not fastened/
unfastened warning light
W i t h t h e v e h i c l e s t a t i o n a r y ,
when the ignition is switched
on, the warning light comes
o n i f t h e d r i v e r a n d / o r t h e
front passenger has not fas-
tened his seat belt.
From approximately 12 mph (20 km/h)
and for two minutes, the warning light
fl a s h e s a c c o m p a n i e d b y a n i n c r e a s -
ingly loud audible signal. Once these
t w o m i n u t e s h a v e e l a p s e d , t h e w a r n -
i n g l i g h t r e m a i n s o n u n t i l t h e d r i v e r o r
front passenger fastens his seat belt.
W h e n t h e v e h i c l e i s m o v i n g , t h e w a r n -
i n g l i g h t c o m e s o n i f t h e d r i v e r o r o n e
of the front or rear passengers unfas-
tens his seat belt.
Diesel engine pre-heating
warning light
I f t h e t e m p e r a t u r e i s s u f fi -
cient, the warning light does
not come on and you can
start without waiting.
If the warning light comes on, wait
until it goes out before operating the
starter.
If no malfunction has been
detected: the CHECK OK
indicator light comes on af-
ter two seconds (following a
black screen), in the absence
of indicator lights showing the status
o f v e h i c l e f u n c t i o n s . I f t h e s e i n d i c a t o r
lights are present, the CHECK OK in-
dicator light will come on after these.
You may start your vehicle.
If a "minor" malfunction has been
detected: the warning light for the
faulty function comes on. Certain in-
dicator lights showing the status of
v e h i c l e f u n c t i o n s m a y a l s o c o m e o n ,
followed by the CHECK OK indicator
light.
You can start your vehicle; h o w e v e r ,
contact a PEUGEOT dealer as soon
as possible.
If a "major" malfunction has been
detected: the corresponding warning
light comes on. Certain indicator lights
s h o w i n g t h e s t a t u s o f v e h i c l e f u n c t i o n s
may also come on. The CHECK OK
indicator light does not come on.
Do not start your vehicle. Consult a
PEUGEOT dealer.
Following this, the following information appears on the instrument panel display:
T h e e n g i n e o i l l e v e l a p p e a r s f o r a p -
proximately 7 seconds; at the same
t i m e , t h e s e r v i c e i n d i c a t o r a p p e a r s o n
the display located in the speedometer
dial for approximately 7 seconds.
Then, the status of the tyre pressures is
indicated for approximately 5 seconds.
With the ignition on, the vehicle carries out an automatic test which appears on the instrument panel display:
Page 19 of 182
1
22

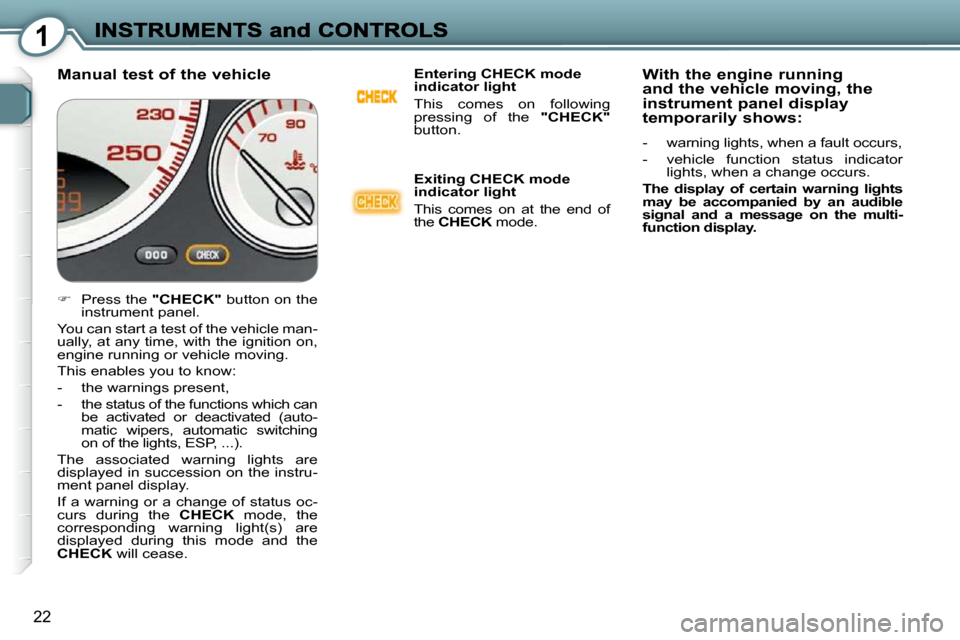

Manual test of the vehicle Entering CHECK mode
indicator light
This comes on following
pressing of the "CHECK"
button.
Exiting CHECK mode
indicator light
This comes on at the end of
the CHECK mode. With the engine running and the vehicle moving, the instrument panel display temporarily shows:
- warning lights, when a fault occurs,
- v e h i c l e f u n c t i o n s t a t u s i n d i c a t o r
lights, when a change occurs.
The display of certain warning lights
may be accompanied by an audible
signal and a message on the multi-
function display.
Press the "CHECK" button on the
instrument panel.
Y o u c a n s t a r t a t e s t o f t h e v e h i c l e m a n -
ually, at any time, with the ignition on,
e n g i n e r u n n i n g o r v e h i c l e m o v i n g .
This enables you to know:
- the warnings present,
- the status of the functions which can b e a c t i v a t e d o r d e a c t i v a t e d ( a u t o -
matic wipers, automatic switching
on of the lights, ESP, ...).
The associated warning lights are
displayed in succession on the instru-
ment panel display.
If a warning or a change of status oc-
curs during the CHECK mode, the
corresponding warning light(s) are
displayed during this mode and the
CHECK will cease .
Page 20 of 182
1
23

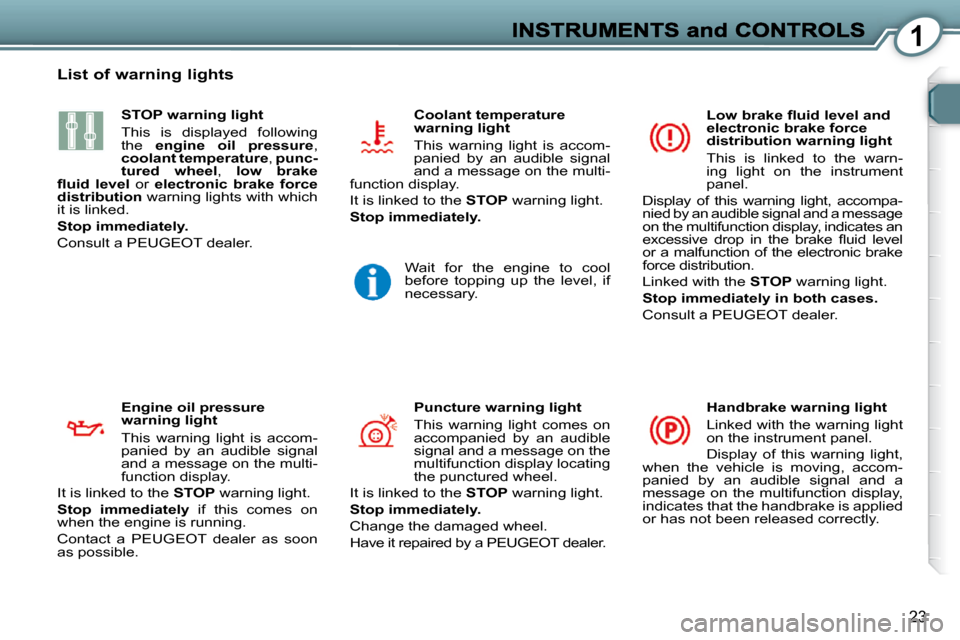

L o w b r a k e fl u i d l e v e l a n d
electronic brake force
distribution warning light
This is linked to the warn-
ing light on the instrument
panel.
Display of this warning light, accompa-
nied by an audible signal and a message
on the multifunction display, indicates an
e x c e s s i v e d r o p i n t h e b r a k e fl u i d l e v e l
or a malfunction of the electronic brake
force distribution.
Linked with the STOP warning light.
Stop immediately in both cases.
Consult a PEUGEOT dealer.
Handbrake warning light
Linked with the warning light
on the instrument panel.
Display of this warning light,
w h e n t h e v e h i c l e i s m o v i n g , a c c o m -
panied by an audible signal and a
message on the multifunction display,
indicates that the handbrake is applied
or has not been released correctly.
Coolant temperature
warning light
This warning light is accom-
panied by an audible signal
and a message on the multi-
function display.
It is linked to the STOP warning light.
Stop immediately.
Puncture warning light
This warning light comes on
accompanied by an audible
signal and a message on the
multifunction display locating
the punctured wheel.
It is linked to the STOP warning light.
Stop immediately.
Change the damaged wheel.
H a v e i t r e p a i r e d b y a P E U G E O T d e a l e r .
STOP warning light
This is displayed following
the
engine oil pressure ,
coolant temperature , punc-
tured wheel , low brake
fl u i d l e v e l or electronic brake force
distribution warning lights with which
it is linked.
Stop immediately.
Consult a PEUGEOT dealer.
Engine oil pressure
warning light
This warning light is accom-
panied by an audible signal
and a message on the multi-
function display.
It is linked to the STOP warning light.
Stop immediately if this comes on
when the engine is running.
Contact a PEUGEOT dealer as soon
as possible.
List of warning lights
Wait for the engine to cool
b e f o r e t o p p i n g u p t h e l e v e l , i f
necessary.
