Peugeot 607 Dag 2009 Owner's Guide
Manufacturer: PEUGEOT, Model Year: 2009, Model line: 607 Dag, Model: Peugeot 607 Dag 2009Pages: 182, PDF Size: 10.7 MB
Page 21 of 182
1
24
Dynamic stability control
(ESP/ASR) warning light
Display of this warning light,
accompanied by an audible
signal and a message on
the multifunction display, indicates an
ESP/ASR system malfunction.
Consult a PEUGEOT dealer.
Battery charge warning
light
Display of this warning light,
when the engine is running,
accompanied by an audible signal
and a message on the multifunction
display, indicates:
- faulty operation of the charging cir- cuit,
- loose battery or starter terminals,
- a cut or slack alternator belt,
- an alternator fault.
Consult a PEUGEOT dealer.
T y r e u n d e r - i n fl a t i o n
warning light
Display of this warning light
is accompanied by an audi-
ble signal and a message on
the multifunction display locating the
u n d e r - i n fl a t e d w h e e l .
H a v e t h e t y r e p r e s s u r e c h e c k e d a s
soon as possible. Engine oil level warning
light
Display of this warning light
is accompanied by an audi-
ble signal and a message on
the multifunction display.
I t i n d i c a t e s t h a t t h e o i l l e v e l i s t o o l o w .
C h e c k t h e l e v e l u s i n g t h e d i p s t i c k .
I f t h e l e v e l i s t o o l o w , r e m o v e t h e c a p
and top it up.
Low coolant level warning
light
Display of this warning light
is accompanied by an audi-
ble signal and a message on
the multifunction display.
Stop immediately.
Warning: wait for the engine to cool
before topping up, if necessary.
The cooling system is pressurised.
I n t h e e v e n t o f b r e a k d o w n a n d t o p r e -
v e n t t h e r i s k o f s c a l d i n g , u n s c r e w t h e
cap by two notches to allow the pres-
sure to drop.
When the pressure has dropped, re-
m o v e t h e c a p a n d t o p u p t h e l e v e l .
Consult a PEUGEOT dealer. Electronic immobiliser
warning light
Display of this warning light
is accompanied by an audi-
ble signal and a message on
the multifunction display.
It indicates a malfunction of the elec-
tronic immobiliser system.
Consult a PEUGEOT dealer.
W a t e r i n d i e s e l fi l t e r
warning light **
Display of this warning light
is accompanied by an audi-
ble signal and a message on
the multifunction display.
There is a risk of damage to the injec-
tion system.
Contact a PEUGEOT dealer as soon
as possible.
*** According to engine. Power steering warning
light ***
This indicates a power steering
fault.
It is linked with the STOP warning
light.
Stop immediately.
Consult a PEUGEOT dealer.
** According to country.
Page 22 of 182
1
25

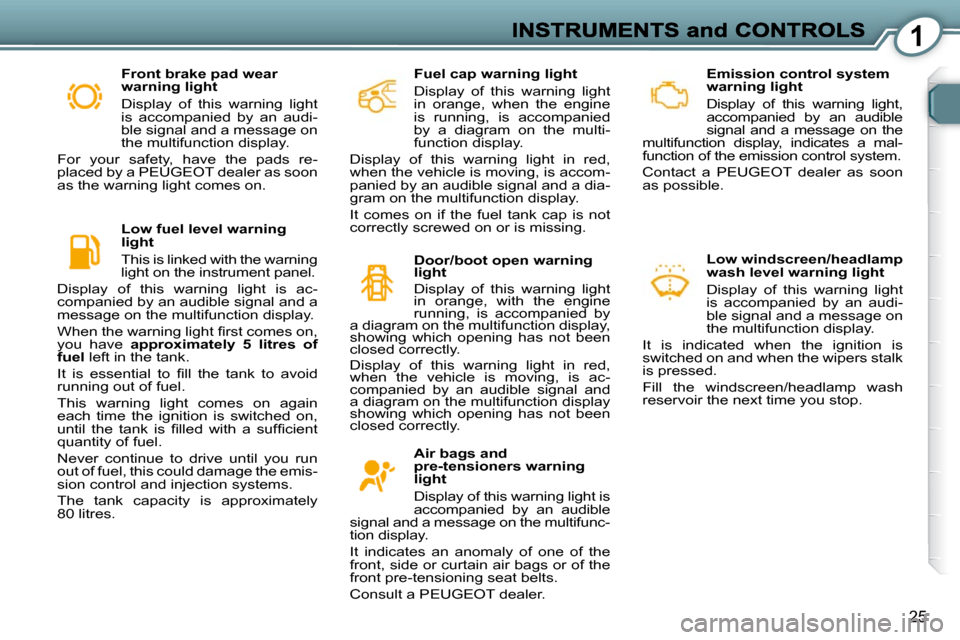

Emission control system
warning light
Display of this warning light,
accompanied by an audible
signal and a message on the
multifunction display, indicates a mal-
function of the emission control system.
Contact a PEUGEOT dealer as soon
as possible.
Low windscreen/headlamp
wash level warning light
Display of this warning light
is accompanied by an audi-
ble signal and a message on
the multifunction display.
It is indicated when the ignition is
switched on and when the wipers stalk
is pressed.
Fill the windscreen/headlamp wash
r e s e r v o i r t h e n e x t t i m e y o u s t o p .
Door/boot open warning
light
Display of this warning light
in orange, with the engine
running, is accompanied by
a diagram on the multifunction display,
showing which opening has not been
closed correctly.
Display of this warning light in red,
w h e n t h e v e h i c l e i s m o v i n g , i s a c -
companied by an audible signal and
a diagram on the multifunction display
showing which opening has not been
closed correctly.
Air bags and
pre-tensioners warning
light
Display of this warning light is
accompanied by an audible
signal and a message on the multifunc-
tion display.
It indicates an anomaly of one of the
front, side or curtain air bags or of the
front pre-tensioning seat belts.
Consult a PEUGEOT dealer.
Front brake pad wear
warning light
Display of this warning light
is accompanied by an audi-
ble signal and a message on
the multifunction display.
F o r y o u r s a f e t y , h a v e t h e p a d s r e -
placed by a PEUGEOT dealer as soon
as the warning light comes on.
Low fuel level warning
light
This is linked with the warning
light on the instrument panel.
Display of this warning light is ac-
companied by an audible signal and a
message on the multifunction display.
W h e n t h e w a r n i n g l i g h t fi r s t c o m e s o n ,
y o u h a v e approximately 5 litres of
fuel left in the tank.
I t i s e s s e n t i a l t o fi l l t h e t a n k t o a v o i d
running out of fuel.
This warning light comes on again
each time the ignition is switched on,
u n t i l t h e t a n k i s fi l l e d w i t h a s u f fi c i e n t
quantity of fuel.
N e v e r c o n t i n u e t o d r i v e u n t i l y o u r u n
out of fuel, this could damage the emis-
sion control and injection systems.
The tank capacity is approximately
8 0 l i t r e s . Fuel cap warning light
Display of this warning light
in orange, when the engine
is running, is accompanied
by a diagram on the multi-
function display.
Display of this warning light in red,
w h e n t h e v e h i c l e i s m o v i n g , i s a c c o m -
panied by an audible signal and a dia-
gram on the multifunction display.
It comes on if the fuel tank cap is not
correctly screwed on or is missing.
Page 23 of 182
1
26

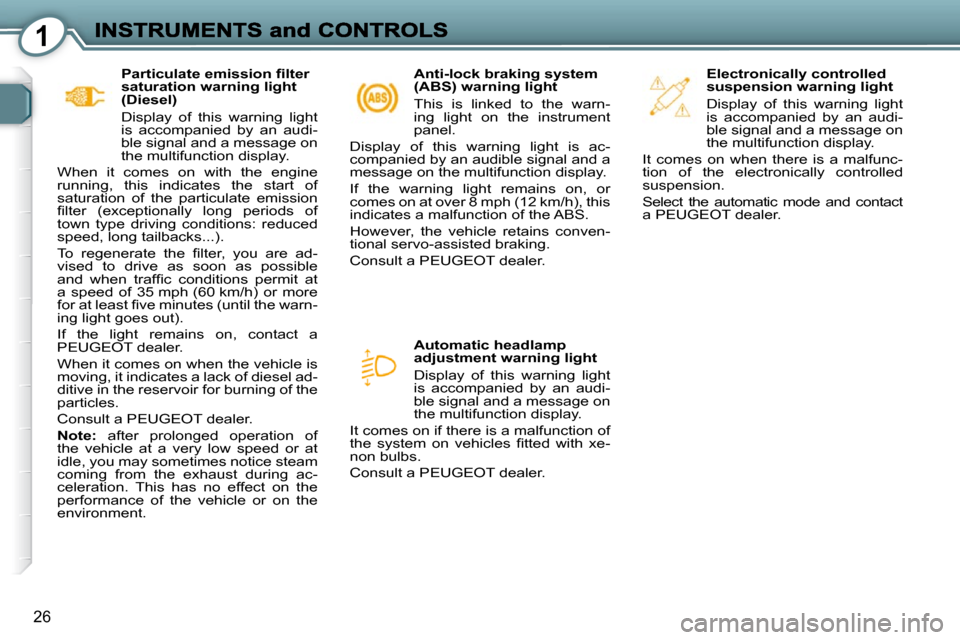

Anti-lock braking system
(ABS) warning light
This is linked to the warn-
ing light on the instrument
panel.
Display of this warning light is ac-
companied by an audible signal and a
message on the multifunction display.
If the warning light remains on, or
c o m e s o n a t o v e r 8 m p h ( 1 2 k m / h ) , t h i s
indicates a malfunction of the ABS.
H o w e v e r , t h e v e h i c l e r e t a i n s c o n v e n -
t i o n a l s e r v o - a s s i s t e d b r a k i n g .
Consult a PEUGEOT dealer.
Automatic headlamp
adjustment warning light
Display of this warning light
is accompanied by an audi-
ble signal and a message on
the multifunction display.
It comes on if there is a malfunction of
t h e s y s t e m o n v e h i c l e s fi t t e d w i t h x e -
non bulbs.
Consult a PEUGEOT dealer. Electronically controlled
suspension warning light
Display of this warning light
is accompanied by an audi-
ble signal and a message on
the multifunction display.
It comes on when there is a malfunc-
tion of the electronically controlled
suspension.
Select the automatic mode and contact
a PEUGEOT dealer.
P a r t i c u l a t e e m i s s i o n fi l t e r
saturation warning light
(Diesel)
Display of this warning light
is accompanied by an audi-
ble signal and a message on
the multifunction display.
When it comes on with the engine
running, this indicates the start of
saturation of the particulate emission
fi l t e r ( e x c e p t i o n a l l y l o n g p e r i o d s o f
t o w n t y p e d r i v i n g c o n d i t i o n s : r e d u c e d
speed, long tailbacks...).
T o r e g e n e r a t e t h e fi l t e r , y o u a r e a d -
v i s e d t o d r i v e a s s o o n a s p o s s i b l e
a n d w h e n t r a f fi c c o n d i t i o n s p e r m i t a t
a speed of 35 mph (60 km/h) or more
f o r a t l e a s t fi v e m i n u t e s ( u n t i l t h e w a r n -
ing light goes out).
If the light remains on, contact a
PEUGEOT dealer.
W h e n i t c o m e s o n w h e n t h e v e h i c l e i s
m o v i n g , i t i n d i c a t e s a l a c k o f d i e s e l a d -
d i t i v e i n t h e r e s e r v o i r f o r b u r n i n g o f t h e
particles.
Consult a PEUGEOT dealer.
Note: after prolonged operation of
t h e v e h i c l e a t a v e r y l o w s p e e d o r a t
idle, you may sometimes notice steam
coming from the exhaust during ac-
celeration. This has no effect on the
p e r f o r m a n c e o f t h e v e h i c l e o r o n t h e
e n v i r o n m e n t .
Page 24 of 182
1
27

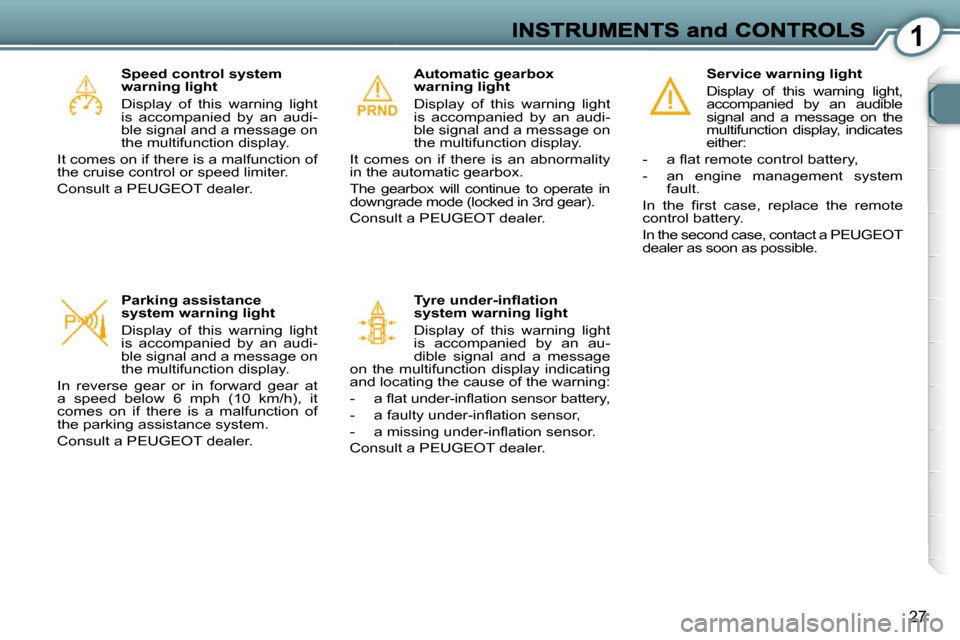

Service warning light
Display of this warning light,
accompanied by an audible
signal and a message on the
multifunction display, indicates
either:
- a fl a t r e m o t e c o n t r o l b a t t e r y ,
- an engine management system fault.
I n t h e fi r s t c a s e , r e p l a c e t h e r e m o t e
control battery.
In the second case, contact a PEUGEOT
dealer as soon as possible.
T y r e u n d e r - i n fl a t i o n
system warning light
Display of this warning light
is accompanied by an au-
dible signal and a message
on the multifunction display indicating
and locating the cause of the warning:
- a fl a t u n d e r - i n fl a t i o n s e n s o r b a t t e r y ,
- a f a u l t y u n d e r - i n fl a t i o n s e n s o r ,
- a m i s s i n g u n d e r - i n fl a t i o n s e n s o r .
Consult a PEUGEOT dealer. Automatic gearbox
warning light
Display of this warning light
is accompanied by an audi-
ble signal and a message on
the multifunction display.
It comes on if there is an abnormality
in the automatic gearbox.
The gearbox will continue to operate in
downgrade mode (locked in 3rd gear).
Consult a PEUGEOT dealer.
Speed control system
warning light
Display of this warning light
is accompanied by an audi-
ble signal and a message on
the multifunction display.
It comes on if there is a malfunction of
the cruise control or speed limiter.
Consult a PEUGEOT dealer.
Parking assistance
system warning light
Display of this warning light
is accompanied by an audi-
ble signal and a message on
the multifunction display.
I n r e v e r s e g e a r o r i n f o r w a r d g e a r a t
a speed below 6 mph (10 km/h), it
comes on if there is a malfunction of
the parking assistance system.
Consult a PEUGEOT dealer.
Page 25 of 182
1
2 8

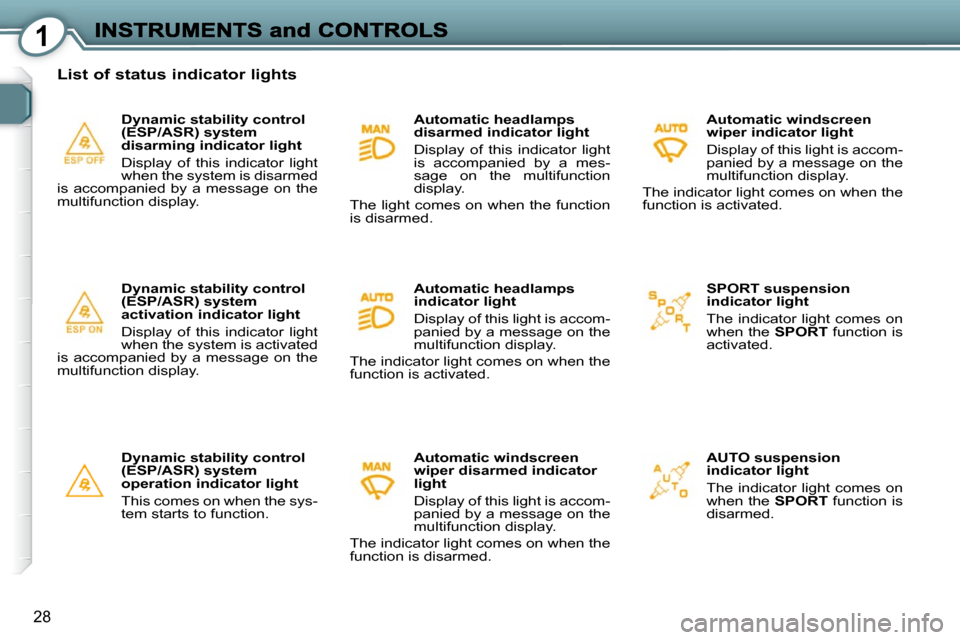

Dynamic stability control
(ESP/ASR) system
activation indicator light
Display of this indicator light
w h e n t h e s y s t e m i s a c t i v a t e d
is accompanied by a message on the
multifunction display. Dynamic stability control
(ESP/ASR) system
disarming indicator light
Display of this indicator light
when the system is disarmed
is accompanied by a message on the
multifunction display. Automatic headlamps
disarmed indicator light
Display of this indicator light
is accompanied by a mes-
sage on the multifunction
display.
The light comes on when the function
is disarmed.
Automatic headlamps
indicator light
Display of this light is accom-
panied by a message on the
multifunction display.
The indicator light comes on when the
f u n c t i o n i s a c t i v a t e d .
List of status indicator lights
Dynamic stability control
(ESP/ASR) system
operation indicator light
This comes on when the sys-
tem starts to function. Automatic windscreen
wiper disarmed indicator
light
Display of this light is accom-
panied by a message on the
multifunction display.
The indicator light comes on when the
function is disarmed. Automatic windscreen
wiper indicator light
Display of this light is accom-
panied by a message on the
multifunction display.
The indicator light comes on when the
f u n c t i o n i s a c t i v a t e d .
SPORT suspension
indicator light
The indicator light comes on
when the SPORT function is
a c t i v a t e d .
AUTO suspension
indicator light
The indicator light comes on
when the SPORT function is
disarmed.
Page 26 of 182
1
29

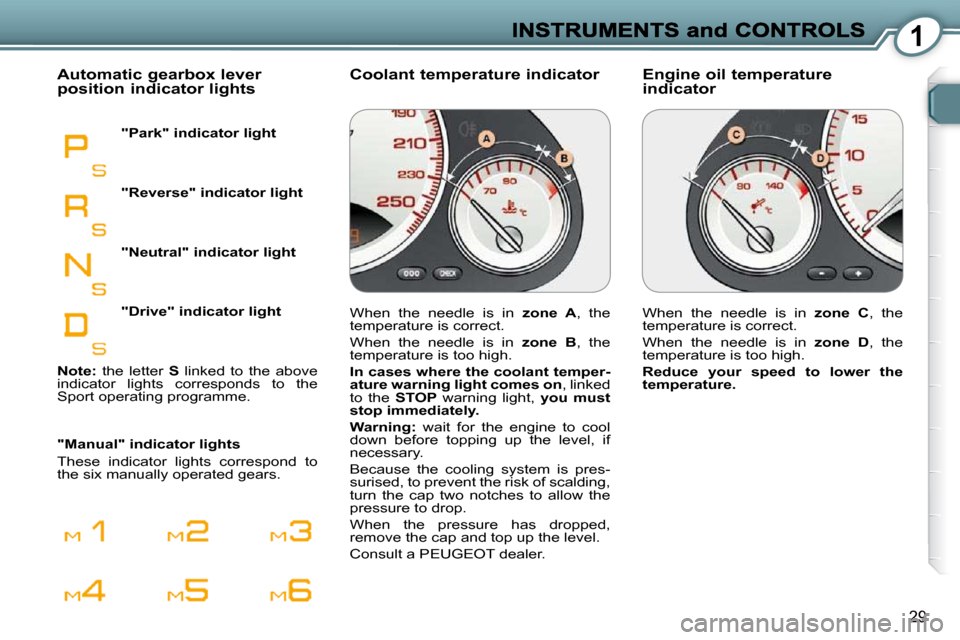

Engine oil temperature indicator Coolant temperature indicator Automatic gearbox lever position indicator lights
"Park" indicator light
"Manual" indicator lights
These indicator lights correspond to
the six manually operated gears. "Reverse" indicator light
"Neutral" indicator light
"Drive" indicator light
Note: the letter S l i n k e d t o t h e a b o v e
indicator lights corresponds to the
Sport operating programme. When the needle is in
zone A , the
temperature is correct.
When the needle is in zone B , the
temperature is too high.
In cases where the coolant temper-
ature warning light comes on , linked
to the STOP warning light, you must
stop immediately.
Warning: wait for the engine to cool
d o w n b e f o r e t o p p i n g u p t h e l e v e l , i f
necessary.
Because the cooling system is pres-
s u r i s e d , t o p r e v e n t t h e r i s k o f s c a l d i n g ,
turn the cap two notches to allow the
pressure to drop.
When the pressure has dropped,
r e m o v e t h e c a p a n d t o p u p t h e l e v e l .
Consult a PEUGEOT dealer. When the needle is in
zone C , the
temperature is correct.
When the needle is in zone D , the
temperature is too high.
Reduce your speed to lower the
temperature.
Page 27 of 182
1
29
Engine oil temperature indicator Coolant temperature indicator Automatic gearbox lever position indicator lights
"Park" indicator light
"Manual" indicator lights
These indicator lights correspond to
the six manually operated gears. "Reverse" indicator light
"Neutral" indicator light
"Drive" indicator light
Note: the letter S l i n k e d t o t h e a b o v e
indicator lights corresponds to the
Sport operating programme. When the needle is in
zone A , the
temperature is correct.
When the needle is in zone B , the
temperature is too high.
In cases where the coolant temper-
ature warning light comes on , linked
to the STOP warning light, you must
stop immediately.
Warning: wait for the engine to cool
d o w n b e f o r e t o p p i n g u p t h e l e v e l , i f
necessary.
Because the cooling system is pres-
s u r i s e d , t o p r e v e n t t h e r i s k o f s c a l d i n g ,
turn the cap two notches to allow the
pressure to drop.
When the pressure has dropped,
r e m o v e t h e c a p a n d t o p u p t h e l e v e l .
Consult a PEUGEOT dealer. When the needle is in
zone C , the
temperature is correct.
When the needle is in zone D , the
temperature is too high.
Reduce your speed to lower the
temperature.
Page 28 of 182
1
30

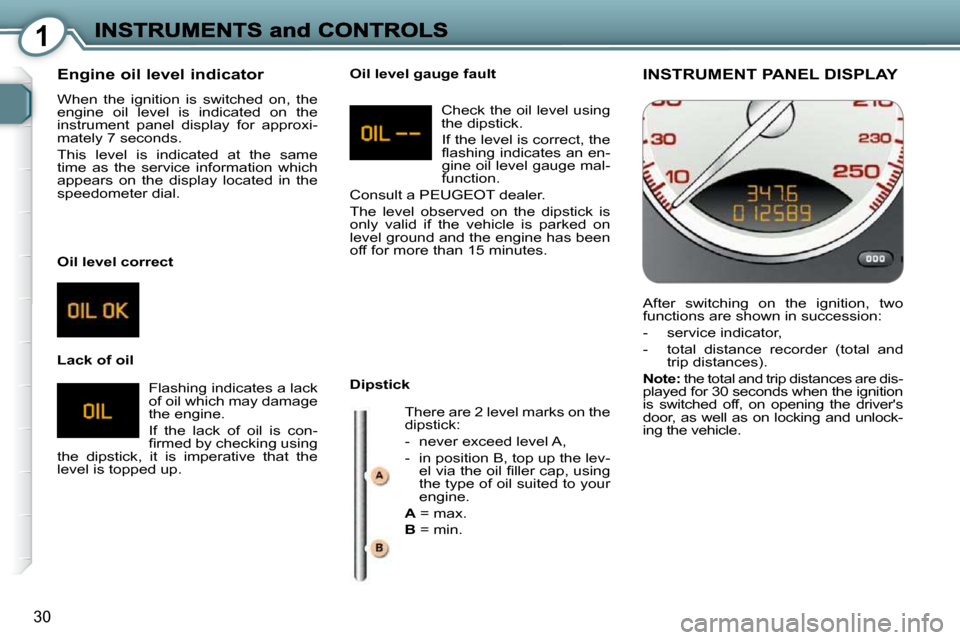

INSTRUMENT PANEL DISPLAY
After switching on the ignition, two
functions are shown in succession:
- s e r v i c e i n d i c a t o r ,
- total distance recorder (total and trip distances).
Note: the total and trip distances are dis-
played for 30 seconds when the ignition
i s s w i t c h e d o f f , o n o p e n i n g t h e d r i v e r ' s
door, as well as on locking and unlock-
i n g t h e v e h i c l e .
Engine oil level indicator
When the ignition is switched on, the
e n g i n e o i l l e v e l i s i n d i c a t e d o n t h e
instrument panel display for approxi-
mately 7 seconds.
T h i s l e v e l i s i n d i c a t e d a t t h e s a m e
t i m e a s t h e s e r v i c e i n f o r m a t i o n w h i c h
appears on the display located in the
speedometer dial.
Oil level correct
Lack of oil
Flashing indicates a lack
of oil which may damage
the engine.
If the lack of oil is con-
fi r m e d b y c h e c k i n g u s i n g
t h e d i p s t i c k , i t i s i m p e r a t i v e t h a t t h e
l e v e l i s t o p p e d u p . C h e c k t h e o i l l e v e l u s i n g
the dipstick.
I f t h e l e v e l i s c o r r e c t , t h e
fl a s h i n g i n d i c a t e s a n e n -
g i n e o i l l e v e l g a u g e m a l -
function.
Consult a PEUGEOT dealer.
T h e l e v e l o b s e r v e d o n t h e d i p s t i c k i s
o n l y v a l i d i f t h e v e h i c l e i s p a r k e d o n
l e v e l g r o u n d a n d t h e e n g i n e h a s b e e n
off for more than 15 minutes.
Dipstick
T h e r e a r e 2 l e v e l m a r k s o n t h e
dipstick:
- n e v e r e x c e e d l e v e l A ,
- i n p o s i t i o n B , t o p u p t h e l e v - e l v i a t h e o i l fi l l e r c a p , u s i n g
the type of oil suited to your
engine.
A = max.
B = min.
Oil level gauge fault
Page 29 of 182
1
30
INSTRUMENT PANEL DISPLAY
After switching on the ignition, two
functions are shown in succession:
- s e r v i c e i n d i c a t o r ,
- total distance recorder (total and trip distances).
Note: the total and trip distances are dis-
played for 30 seconds when the ignition
i s s w i t c h e d o f f , o n o p e n i n g t h e d r i v e r ' s
door, as well as on locking and unlock-
i n g t h e v e h i c l e .
Engine oil level indicator
When the ignition is switched on, the
e n g i n e o i l l e v e l i s i n d i c a t e d o n t h e
instrument panel display for approxi-
mately 7 seconds.
T h i s l e v e l i s i n d i c a t e d a t t h e s a m e
t i m e a s t h e s e r v i c e i n f o r m a t i o n w h i c h
appears on the display located in the
speedometer dial.
Oil level correct
Lack of oil
Flashing indicates a lack
of oil which may damage
the engine.
If the lack of oil is con-
fi r m e d b y c h e c k i n g u s i n g
t h e d i p s t i c k , i t i s i m p e r a t i v e t h a t t h e
l e v e l i s t o p p e d u p . C h e c k t h e o i l l e v e l u s i n g
the dipstick.
I f t h e l e v e l i s c o r r e c t , t h e
fl a s h i n g i n d i c a t e s a n e n -
g i n e o i l l e v e l g a u g e m a l -
function.
Consult a PEUGEOT dealer.
T h e l e v e l o b s e r v e d o n t h e d i p s t i c k i s
o n l y v a l i d i f t h e v e h i c l e i s p a r k e d o n
l e v e l g r o u n d a n d t h e e n g i n e h a s b e e n
off for more than 15 minutes.
Dipstick
T h e r e a r e 2 l e v e l m a r k s o n t h e
dipstick:
- n e v e r e x c e e d l e v e l A ,
- i n p o s i t i o n B , t o p u p t h e l e v - e l v i a t h e o i l fi l l e r c a p , u s i n g
the type of oil suited to your
engine.
A = max.
B = min.
Oil level gauge fault
Page 30 of 182
1
31

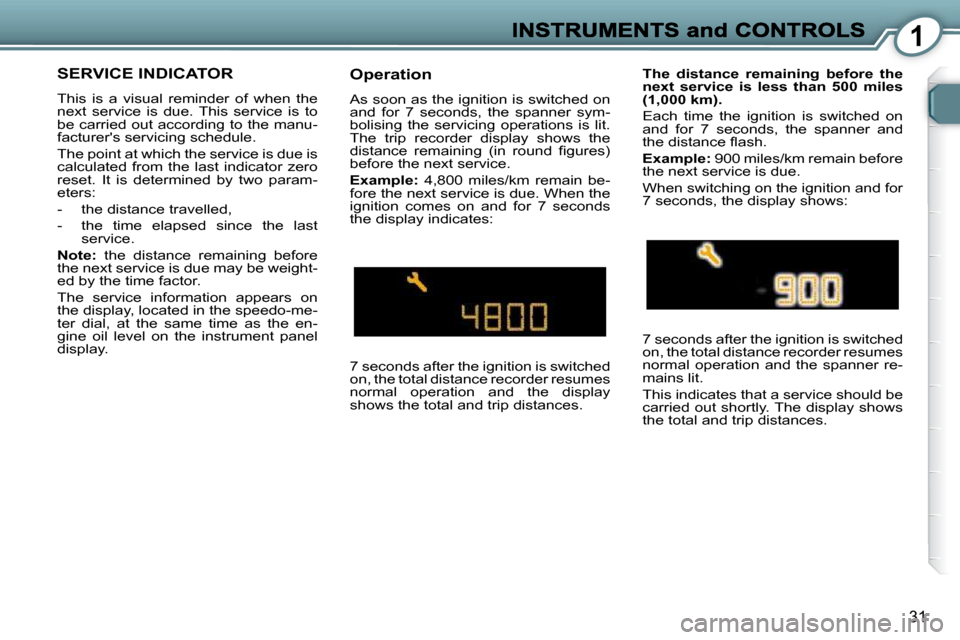

SERVICE INDICATOR
T h i s i s a v i s u a l r e m i n d e r o f w h e n t h e
n e x t s e r v i c e i s d u e . T h i s s e r v i c e i s t o
be carried out according to the manu-
f a c t u r e r ' s s e r v i c i n g s c h e d u l e .
T h e p o i n t a t w h i c h t h e s e r v i c e i s d u e i s
calculated from the last indicator zero
reset. It is determined by two param-
eters:
- t h e d i s t a n c e t r a v e l l e d ,
- the time elapsed since the last s e r v i c e .
Note: the distance remaining before
t h e n e x t s e r v i c e i s d u e m a y b e w e i g h t -
ed by the time factor.
T h e s e r v i c e i n f o r m a t i o n a p p e a r s o n
the display, located in the speedo-me-
ter dial, at the same time as the en-
g i n e o i l l e v e l o n t h e i n s t r u m e n t p a n e l
display.
Operation
As soon as the ignition is switched on
and for 7 seconds, the spanner sym-
b o l i s i n g t h e s e r v i c i n g o p e r a t i o n s i s l i t .
The trip recorder display shows the
d i s t a n c e r e m a i n i n g ( i n r o u n d fi g u r e s )
b e f o r e t h e n e x t s e r v i c e .
Example: 4 , 8 0 0 m i l e s / k m r e m a i n b e -
f o r e t h e n e x t s e r v i c e i s d u e . W h e n t h e
ignition comes on and for 7 seconds
the display indicates:
7 seconds after the ignition is switched
on, the total distance recorder resumes
normal operation and the display
shows the total and trip distances.
The distance remaining before the
next service is less than 500 miles
(1,000 km).
Each time the ignition is switched on
and for 7 seconds, the spanner and
t h e d i s t a n c e fl a s h .
Example: 900 miles/km remain before
t h e n e x t s e r v i c e i s d u e .
When switching on the ignition and for
7 seconds, the display shows:
7 seconds after the ignition is switched
on, the total distance recorder resumes
normal operation and the spanner re-
mains lit.
T h i s i n d i c a t e s t h a t a s e r v i c e s h o u l d b e
carried out shortly. The display shows
the total and trip distances.
