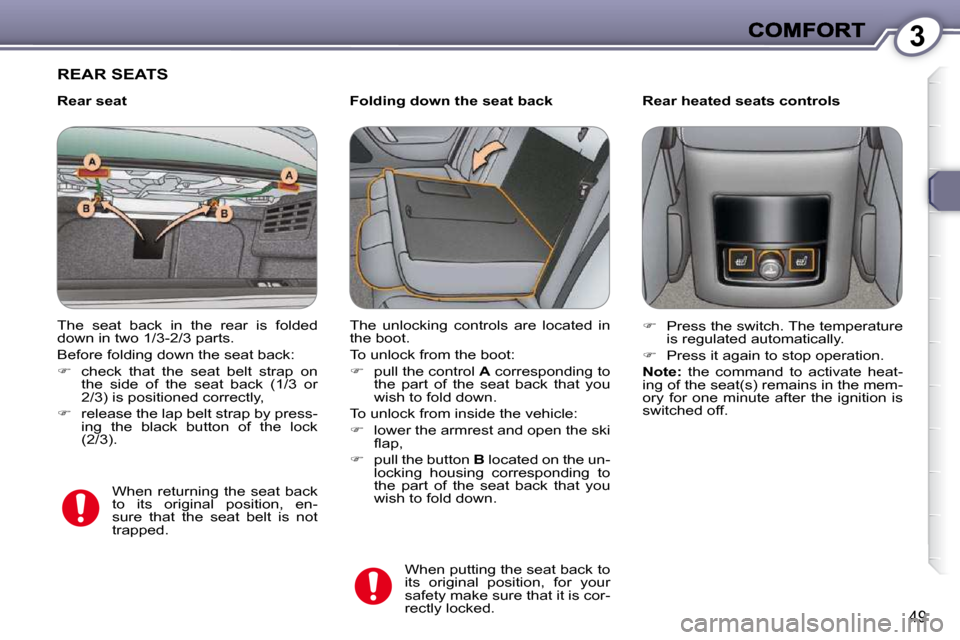

REAR SEATS
Folding down the seat back Rear heated seats controls
The seat back in the rear is folded
down in two 1/3-2/3 parts.
Before folding down the seat back:
check that the seat belt strap on
the side of the seat back (1/3 or
2/3) is positioned correctly,
release the lap belt strap by press-
ing the black button of the lock
(2/3).
Press the switch. The temperature
is regulated automatically.
Press it again to stop operation.
Note: the command to activate heat-
ing of the seat(s) remains in the mem-
ory for one minute after the ignition is
switched off.
The unlocking controls are located in
the boot.
To unlock from the boot:
pull the control A corresponding to
the part of the seat back that you
wish to fold down.
To unlock from inside the vehicle:
lower the armrest and open the ski
fl a p ,
pull the button B located on the un-
locking housing corresponding to
the part of the seat back that you
wish to fold down.
Rear seat
When returning the seat back
to its original position, en-
sure that the seat belt is not
trapped. When putting the seat back to
its original position, for your
safety make sure that it is cor-
rectly locked.
Page 52 of 182
3
50
"Forwards-facing"
INSTALLING A CHILD SEAT USING A THREE POINT SEAT BELT
GENERAL POINTS RELATING
TO CHILD SEATS
* The rules for transporting children are s p e c i fi c t o e a c h c o u n t r y . R e f e r t o t h e
current legislation in your country. Intermediate longitudinal
position
When a "rearwards-facing"
child seat is installed on the
front passenger seat , it is
essential that the passenger
airbag is deactivated. Otherwise, the
c h i l d w o u l d r i s k b e i n g s e r i o u s l y i n -
jured or killed if the airbag were to
i n fl a t e . When a "forwards-facing" child seat
is installed on the
front passenger
seat , adjust the vehicle's seat to the
intermediate longitudinal position with
the seat back upright and leave the
passenger airbag activated.
For maximum safety, please
follow these precautions:
- in accordance with European reg- ulations, all children under the
age of 12 or less than one and
a half metres tall must travel in
approved child seats suited to
their weight , o n s e a t s fi t t e d w i t h a
seat belt or ISOFIX mountings * ,
- s t a t i s t i c a l l y , t h e s a f e s t s e a t s i n
y o u r v e h i c l e f o r t h e t r a n s p o r -
tation of children are the rear
seats,
- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.
PEUGEOT recommends that children
should travel in the rear seats of your
vehicle:
-
"rearwards-facing" up to the age of 2,
-
"forwards-facing" over the age of 2.
Although one of PEUGEOT's main cri-
teria when designing your vehicle, the
safety of your children also depends
on you. "Rearwards-facing"
Page 53 of 182
3
51
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are secured
using a three point seat belt :
Passenger air bag OFF
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position.
Groups 1, 2 and 3: from 9 to 36 kg
L2
"KIDDY Life"
The use of the restraining cushion is compulsory for transporting young children (from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start''.
L4
"KLIPPAN Optima" From the age of 6 years
(approximately
22 kg), the booster is used on its own.
Page 54 of 182
3
52

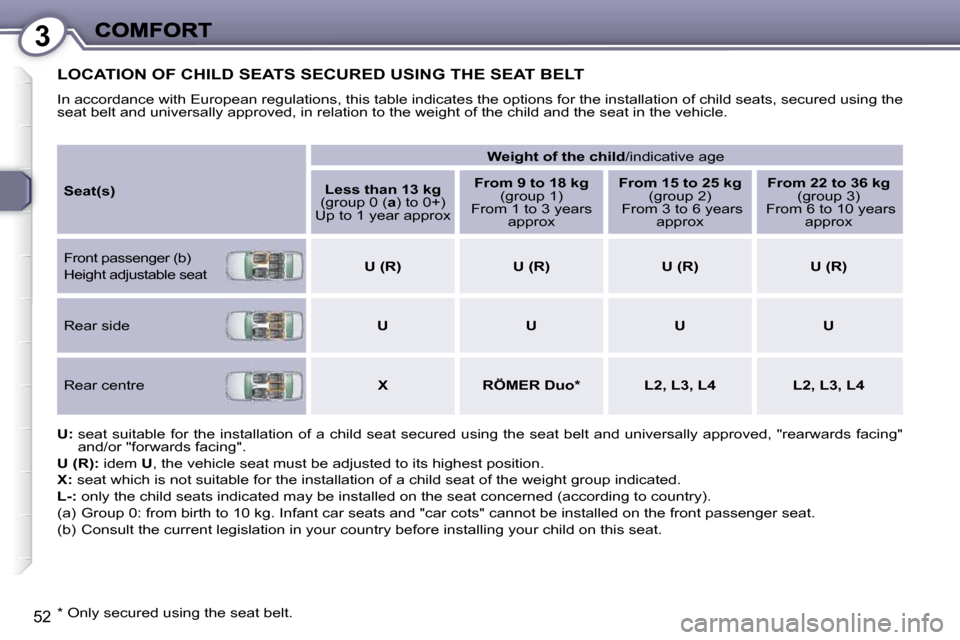

LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for the installation of child seats, secured using the
seat belt and universally approved, in relation to the weig ht of the child and the seat in the vehicle.
Seat(s)
Weight of the child /indicative age
Less than 13 kg
(group 0 ( a ) to 0+)
Up to 1 year approx
From 9 to 18 kg
(group 1)
From 1 to 3 years approx
From 15 to 25 kg
(group 2)
From 3 to 6 years approx
From 22 to 36 kg
(group 3)
From 6 to 10 years approx
Front passenger (b)
H e i g h t a d j u s t a b l e s e a t
U (R) U (R) U (R) U (R)
Rear side U U U U
Rear centre X RÖMER Duo * L2, L3, L4 L2, L3, L4
U
: seat suitable for the installation of a child seat secured using the seat belt and universally approved, "rearwards facing"
and/or "forwards facing".
U (R)
: idem U , the vehicle seat must be adjusted to its highest position .
X : seat which is not suitable for the installation of a chil d seat of the weight group indicated.
L-
: only the child seats indicated may be installed on the seat concerned (according to country).
(a) Group 0: from birth to 10 kg. Infant car seats and "car cots" ca nnot be installed on the front passenger seat.
(b) Consult the current legislation in your country before insta lling your child on this seat.
* Only secured using the seat belt.
Page 55 of 182
3
53

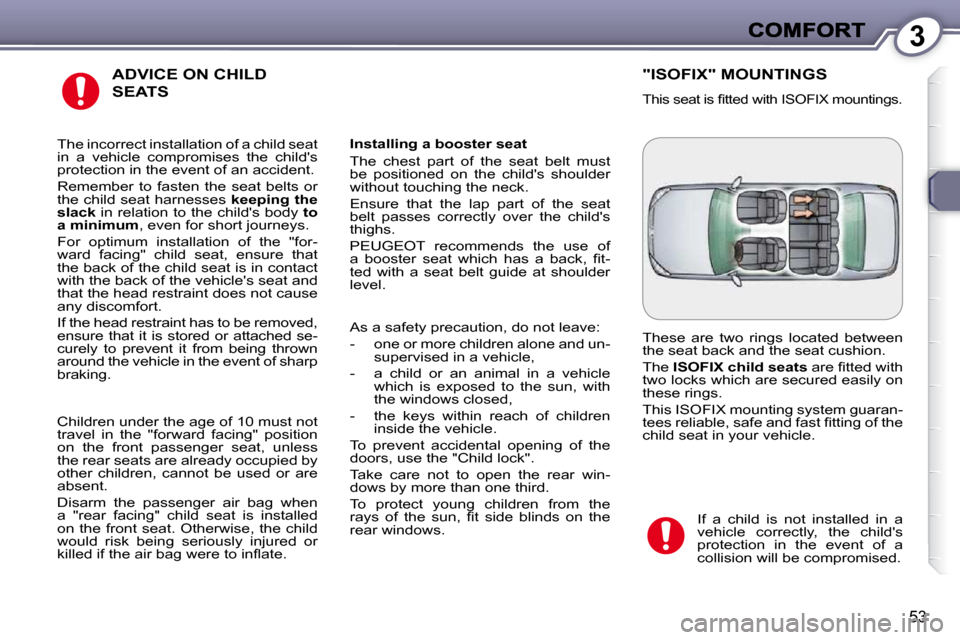

ADVICE ON CHILD
SEATS
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of
a b o o s t e r s e a t w h i c h h a s a b a c k , fi t -
ted with a seat belt guide at shoulder
level.
As a safety precaution, do not leave:
- one or more children alone and un-supervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
doors, use the "Child lock".
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
r a y s o f t h e s u n , fi t s i d e b l i n d s o n t h e
rear windows.
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
Remember to fasten the seat belts or
the child seat harnesses
keeping the
slack in relation to the child's body to
a minimum , even for short journeys.
For optimum installation of the "for-
ward facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat and
that the head restraint does not cause
any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached se-
curely to prevent it from being thrown
around the vehicle in the event of sharp
braking.
"ISOFIX" MOUNTINGS
T h i s s e a t i s fi t t e d w i t h I S O F I X m o u n t i n g s .
These are two rings located between
the seat back and the seat cushion.
The ISOFIX child seats a r e fi t t e d w i t h
two locks which are secured easily on
these rings.
This ISOFIX mounting system guaran-
t e e s r e l i a b l e , s a f e a n d f a s t fi t t i n g o f t h e
child seat in your vehicle.
If a child is not installed in a
vehicle correctly, the child's
protection in the event of a
collision will be compromised.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
absent.
Disarm the passenger air bag when
a "rear facing" child seat is installed
on the front seat. Otherwise, the child
would risk being seriously injured or
k i l l e d i f t h e a i r b a g w e r e t o i n fl a t e .
Page 56 of 182
3
53
ADVICE ON CHILD
SEATS
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of
a b o o s t e r s e a t w h i c h h a s a b a c k , fi t -
ted with a seat belt guide at shoulder
level.
As a safety precaution, do not leave:
- one or more children alone and un-supervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
doors, use the "Child lock".
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
r a y s o f t h e s u n , fi t s i d e b l i n d s o n t h e
rear windows.
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
Remember to fasten the seat belts or
the child seat harnesses
keeping the
slack in relation to the child's body to
a minimum , even for short journeys.
For optimum installation of the "for-
ward facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat and
that the head restraint does not cause
any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached se-
curely to prevent it from being thrown
around the vehicle in the event of sharp
braking.
"ISOFIX" MOUNTINGS
T h i s s e a t i s fi t t e d w i t h I S O F I X m o u n t i n g s .
These are two rings located between
the seat back and the seat cushion.
The ISOFIX child seats a r e fi t t e d w i t h
two locks which are secured easily on
these rings.
This ISOFIX mounting system guaran-
t e e s r e l i a b l e , s a f e a n d f a s t fi t t i n g o f t h e
child seat in your vehicle.
If a child is not installed in a
vehicle correctly, the child's
protection in the event of a
collision will be compromised.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
absent.
Disarm the passenger air bag when
a "rear facing" child seat is installed
on the front seat. Otherwise, the child
would risk being seriously injured or
k i l l e d i f t h e a i r b a g w e r e t o i n fl a t e .
Page 57 of 182
3
54

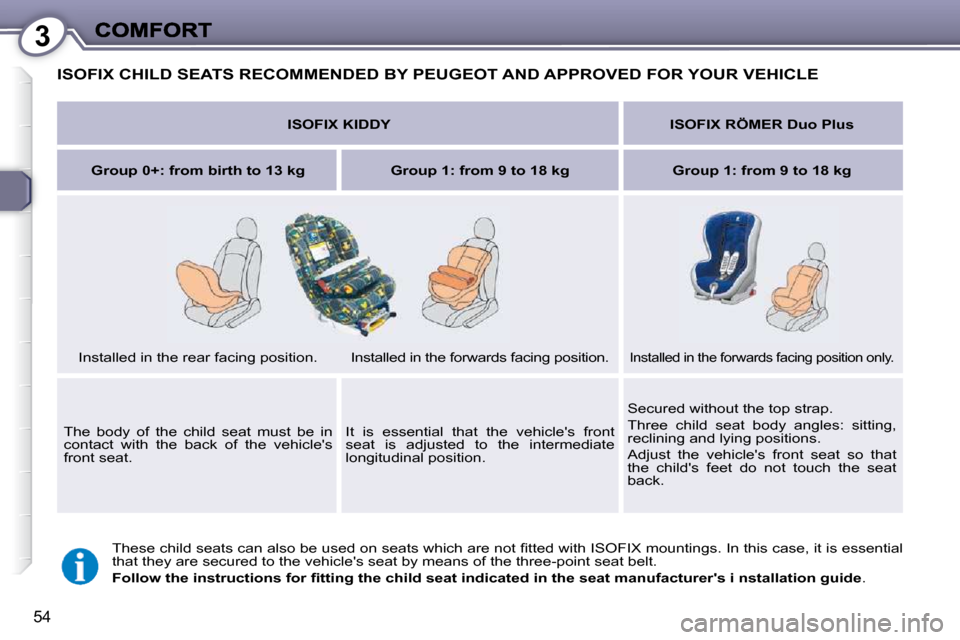

ISOFIX CHILD SEATS RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
T h e s e c h i l d s e a t s c a n a l s o b e u s e d o n s e a t s w h i c h a r e n o t fi t t e d w i t h I S O F I X m o u n t i n g s . I n t h i s c a s e , i t i s e s s e n t i a l
that they are secured to the vehicle's seat by means of the thre e-point seat belt.
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g t h e c h i l d s e a t i n d i c a t e d i n t h e s e a t
manufacturer
's i nstallation guide .
ISOFIX KIDDY
ISOFIX RÖMER Duo Plus
Group 0+: from birth to 13 kg Group 1: from 9 to 18 kg Group 1: from 9 to 18 kg
Installed in the rear facing position. Installed in th e forwards facing position.
Installed in the forwards facing position only.
The body of the child seat must be in
contact with the back of the vehicle's
front seat. It is essential that the vehicle's front
seat is adjusted to the intermediate
longitudinal position. Secured without the top strap.
Three child seat body angles: sitting,
reclining and lying positions.
Adjust the vehicle's front seat so that
the child's feet do not touch the seat
back.
Page 58 of 182
4
55

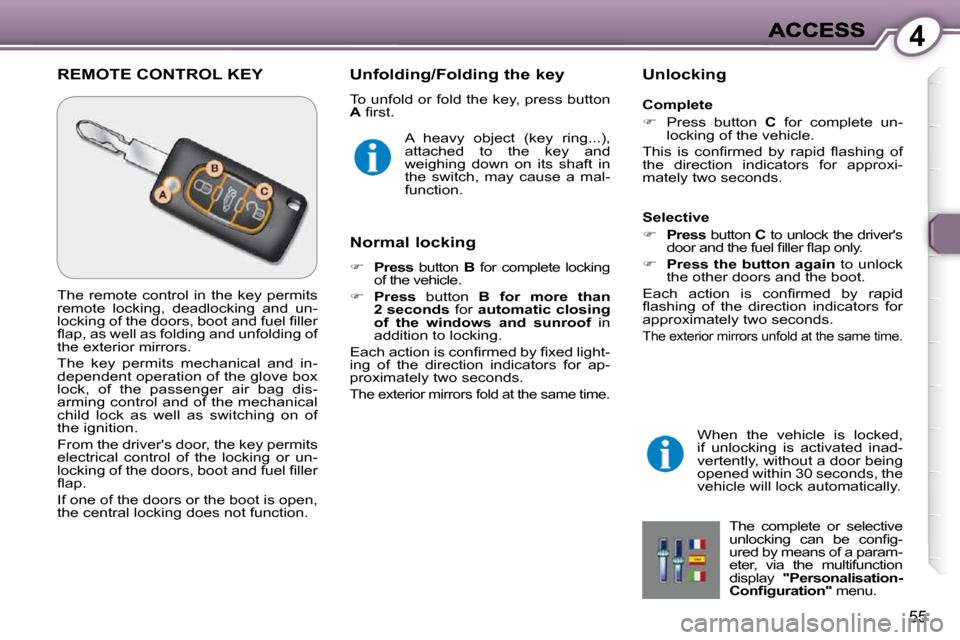

REMOTE CONTROL KEY Unfolding/Folding the key
To unfold or fold the key, press button
A fi r s t .
Unlocking
Normal locking
Press button B for complete locking
o f t h e v e h i c l e .
Press button B for more than
2 seconds for automatic closing
of the windows and sunroof in
a d d i t i o n t o l o c k i n g .
E a c h a c t i o n i s c o n fi r m e d b y fi x e d l i g h t -
i n g o f t h e d i r e c t i o n i n d i c a t o r s f o r a p -
p r o x i m a t e l y t w o s e c o n d s .
T h e e x t e r i o r m i r r o r s f o l d a t t h e s a m e t i m e .
Complete
Press button C f o r c o m p l e t e u n -
l o c k i n g o f t h e v e h i c l e .
T h i s i s c o n fi r m e d b y r a p i d fl a s h i n g o f
t h e d i r e c t i o n i n d i c a t o r s f o r a p p r o x i -
m a t e l y t w o s e c o n d s .
The complete or selective
u n l o c k i n g c a n b e c o n fi g -
u r e d b y m e a n s o f a p a r a m -
eter, via the multifunction
display "Personalisation-
C o n fi g u r a t i o n " m e n u .
The remote control in the key permits
r e m o t e l o c k i n g , d e a d l o c k i n g a n d u n -
l o c k i n g o f t h e d o o r s , b o o t a n d f u e l fi l l e r
fl a p , a s w e l l a s f o l d i n g a n d u n f o l d i n g o f
t h e e x t e r i o r m i r r o r s .
T h e k e y p e r m i t s m e c h a n i c a l a n d i n -
d e p e n d e n t o p e r a t i o n o f t h e g l o v e b o x
l o c k , o f t h e p a s s e n g e r a i r b a g d i s -
arming control and of the mechanical
c h i l d l o c k a s w e l l a s s w i t c h i n g o n o f
t h e i g n i t i o n .
From the driver's door, the key permits
e l e c t r i c a l c o n t r o l o f t h e l o c k i n g o r u n -
l o c k i n g o f t h e d o o r s , b o o t a n d f u e l fi l l e r
fl a p .
If one of the doors or the boot is open,
t h e c e n t r a l l o c k i n g d o e s n o t f u n c t i o n .
When the vehicle is locked,
i f u n l o c k i n g i s a c t i v a t e d i n a d -
v e r t e n t l y , w i t h o u t a d o o r b e i n g
o p e n e d w i t h i n 3 0 s e c o n d s , t h e
v e h i c l e w i l l l o c k a u t o m a t i c a l l y .
Selective
Press button C to unlock the driver's
d o o r a n d t h e f u e l fi l l e r fl a p o n l y .
Press the button again to unlock
t h e o t h e r d o o r s a n d t h e b o o t .
E a c h a c t i o n i s c o n fi r m e d b y r a p i d
fl a s h i n g o f t h e d i r e c t i o n i n d i c a t o r s f o r
a p p r o x i m a t e l y t w o s e c o n d s .
T h e e x t e r i o r m i r r o r s u n f o l d a t t h e s a m e t i m e .
A h e a v y o b j e c t ( k e y r i n g . . . ) ,
attached to the key and
w e i g h i n g d o w n o n i t s s h a f t i n
t h e s w i t c h , m a y c a u s e a m a l -
f u n c t i o n .
Page 59 of 182
4
56

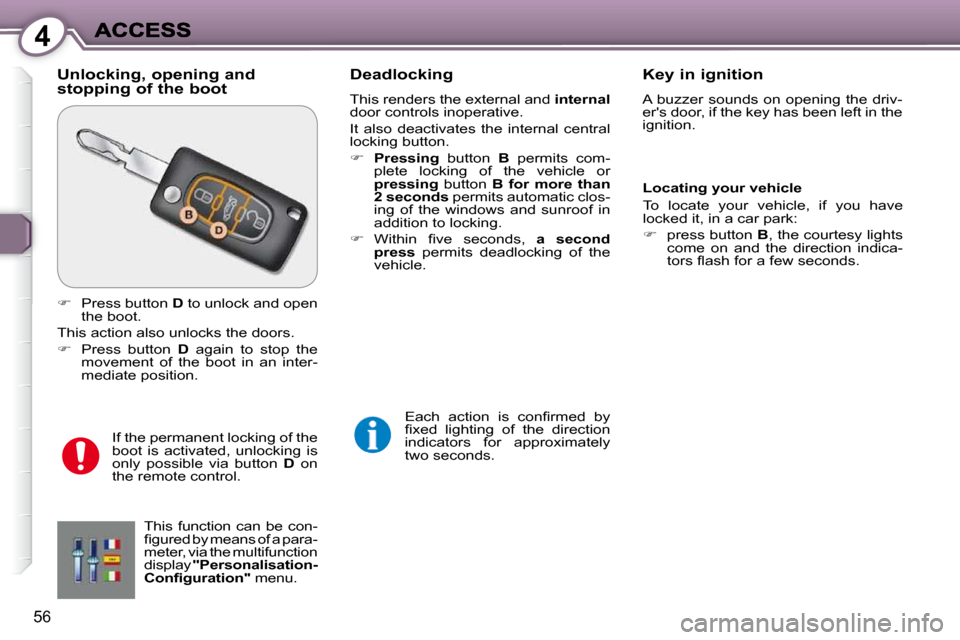

Unlocking, opening and stopping of the boot Deadlocking
T h i s r e n d e r s t h e e x t e r n a l a n d internal
d o o r c o n t r o l s i n o p e r a t i v e .
It also deactivates the internal central
l o c k i n g b u t t o n .
Pressing button B p e r m i t s c o m -
plete locking of the vehicle or
pressing button B for more than
2 seconds p e r m i t s a u t o m a t i c c l o s -
i n g o f t h e w i n d o w s a n d s u n r o o f i n
a d d i t i o n t o l o c k i n g .
W i t h i n fi v e s e c o n d s , a second
press permits deadlocking of the
v e h i c l e .
T h i s f u n c t i o n c a n b e c o n -
fi g u r e d b y m e a n s o f a p a r a -
meter, via the multifunction
display "Personalisation-
C o n fi g u r a t i o n " m e n u . E a c h a c t i o n i s c o n fi r m e d b y
fi x e d l i g h t i n g o f t h e d i r e c t i o n
i n d i c a t o r s f o r a p p r o x i m a t e l y
t w o s e c o n d s .
Key in ignition
A b u z z e r s o u n d s o n o p e n i n g t h e d r i v -
er's door, if the key has been left in the
i g n i t i o n .
Locating your vehicle
To locate your vehicle, if you have
locked it, in a car park:
press button B , the courtesy lights
c o m e o n a n d t h e d i r e c t i o n i n d i c a -
t o r s fl a s h f o r a f e w s e c o n d s .
If the permanent locking of the
boot is activated, unlocking is
only possible via button D on
t h e r e m o t e c o n t r o l .
Press button D to unlock and open
t h e b o o t .
T h i s a c t i o n a l s o u n l o c k s t h e d o o r s .
Press button D again to stop the
m o v e m e n t o f t h e b o o t i n a n i n t e r -
m e d i a t e p o s i t i o n .
Page 60 of 182
4
57
Changing the remote control battery Reprogramming the remote control
F o l l o w i n g d i s c o n n e c t i o n o f t h e v e h i c l e ' s
b a t t e r y , r e p l a c e m e n t o f t h e r e m o t e c o n -
trol battery or in the event of a remote
control malfunction, the remote control
m u s t b e r e i n i t i a l i s e d .
S w i t c h o f f t h e i g n i t i o n .
S w i t c h t h e i g n i t i o n o n a g a i n .
P r e s s t h e r e m o t e c o n t r o l l o c k i n g b u t -
t o n i m m e d i a t e l y f o r a f e w s e c o n d s .
S w i t c h o f f t h e i g n i t i o n a n d r e m o v e
t h e r e m o t e c o n t r o l k e y f r o m t h e i g -
n i t i o n l o c k .
T h e r e m o t e c o n t r o l i s n o w w o r k i n g
a g a i n .
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control system
a f e w m o m e n t s a f t e r t h e i g n i t i o n h a s
b e e n s w i t c h e d o f f a n d t h e r e f o r e p r e -
vents starting of the vehicle by anyone
w h o d o e s n o t h a v e t h e k e y .
The ignition key has an electronic chip
w h i c h h a s a s p e c i a l c o d e . W h e n t h e
i g n i t i o n i s s w i t c h e d o n , t h e c o d e i s r e c -
o g n i s e d a n d s t a r t i n g i s p o s s i b l e .
B a t t e r y r e f . : C R 1 6 2 0 / 3 v o l t s .
T h e i n f o r m a t i o n " b a t t e r y fl a t " i s g i v e n b y
d i s p l a y i n g o f t h e s e r v i c e w a r n i n g l i g h t ,
accompanied by an audible signal and a
m e s s a g e o n t h e m u l t i - f u n c t i o n d i s p l a y .
To replace the battery, unclip the casing
u s i n g a c o i n a t t h e n o t c h .
I f t h e r e m o t e c o n t r o l d o e s n o t w o r k a f t e r
t h e b a t t e r y h a s b e e n c h a n g e d , r e p r o -
g r a m m e t h e r e m o t e c o n t r o l . Do not discard the batteries,
t h e y c o n t a i n m e t a l s w h i c h a r e
h a r m f u l t o t h e e n v i r o n m e n t .
T a k e t h e m t o a n a p p r o v e d c o l -
l e c t i o n p o i n t .
Lost keys
V i s i t a P E U G E O T d e a l e r w i t h t h e v e h i c l e ' s
V 5 r e g i s t r a t i o n c e r t i fi c a t e a n d y o u r p e r -
s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
A P E U G E O T d e a l e r w i l l b e a b l e t o r e -
trieve the key code and the transponder
code required to order a replacement
k e y .
If the system does not function cor-
rectly, t h e s e r v i c e w a r n i n g l i g h t c o m e s
on, accompanied by an audible signal
and a message on the multifunction
d i s p l a y .
I n t h i s c a s e , y o u r v e h i c l e w i l l n o t s t a r t .
C o n t a c t a P E U G E O T d e a l e r a s s o o n
a s p o s s i b l e .
