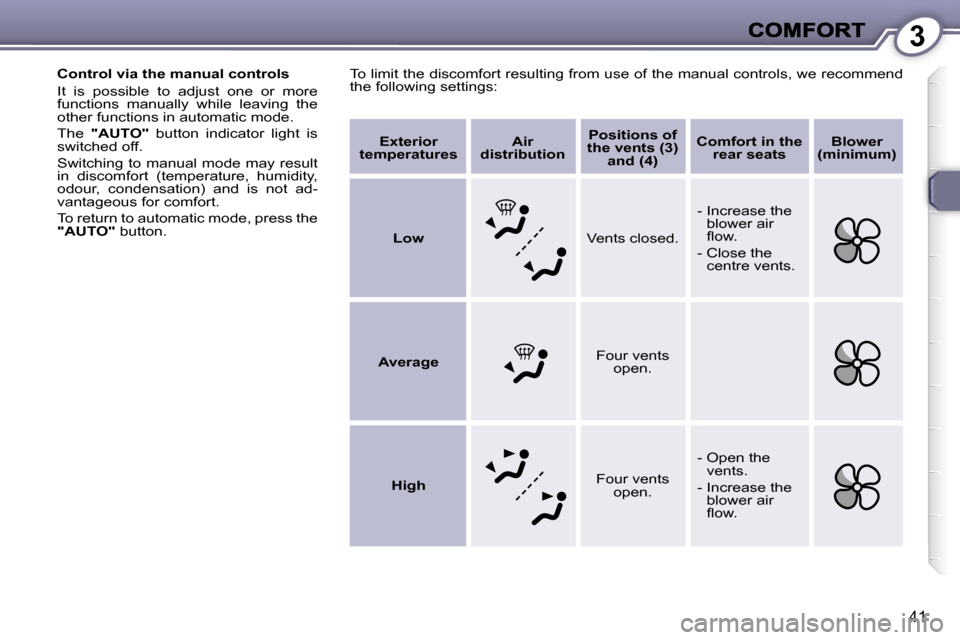

To limit the discomfort resulting from use of the manual controls, we recommend
the following settings:
Control via the manual controls
It is possible to adjust one or more
functions manually while leaving the
other functions in automatic mode.
The
"AUTO" button indicator light is
switched off.
Switching to manual mode may result
in discomfort (temperature, humidity,
odour, condensation) and is not ad-
vantageous for comfort.
To return to automatic mode, press the

"AUTO" button.
Exterior
temperatures
Air
distribution
Positions of
the vents (3) and (4)
Comfort in the
rear seats
Blower
(minimum)

Low
Vents closed. - Increase the
blower air
fl ow.
- Close the centre vents.

Average Four vents
open.

High Four vents
open. - Open the
vents.
- Increase the blower air
fl ow.

3
42

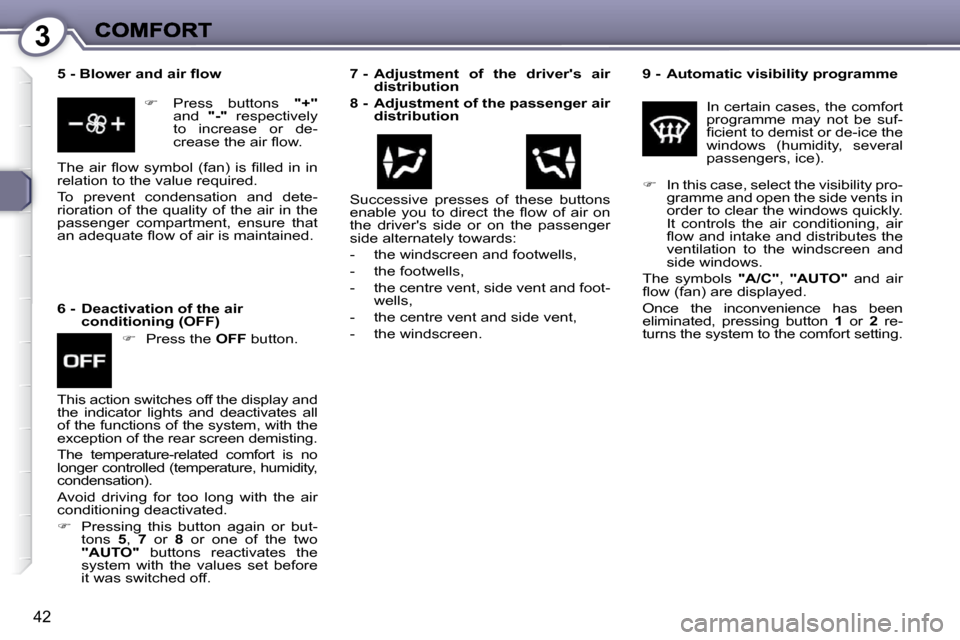

9 - Automatic visibility programme
In certain cases, the comfort
programme may not be suf-
fi cient to demist or de-ice the
windows (humidity, several
passengers, ice).

 In this case, select the visibility pro-
gramme and open the side vents in
order to clear the windows quickly.
It controls the air conditioning, air
fl ow and intake and distributes the
ventilation to the windscreen and
side windows.
The symbols "A/C" , "AUTO" and air
fl ow (fan) are displayed.
Once the inconvenience has been
eliminated, pressing button 1 or 2 re-
turns the system to the comfort setting.

 Press the OFF button.
7 - Adjustment of the driver's air
distribution

8 - Adjustment of the passenger air
distribution
Successive presses of these buttons
enable you to direct the fl ow of air on
the driver's side or on the passenger
side alternately towards:
- the windscreen and footwells,
- the footwells,
- the centre vent, side vent and foot- wells,
- the centre vent and side vent,
- the windscreen.

6 - Deactivation of the air
conditioning (OFF)

5 - Blower and air fl ow

 Press buttons "+"
and "-" respectively
to increase or de-
crease the air fl ow.
The air fl ow symbol (fan) is fi lled in in
relation to the value required.
To prevent condensation and dete-
rioration of the quality of the air in the
passenger compartment, ensure that
an adequate fl ow of air is maintained.
This action switches off the display and
the indicator lights and deactivates all
of the functions of the system, with the
exception of the rear screen demisting.
The temperature-related comfort is no
longer controlled (temperature, humidity,
condensation).
Avoid driving for too long with the air
conditioning deactivated.

 Pressing this button again or but-
tons 5 , 7 or 8 or one of the two

"AUTO" buttons reactivates the
system with the values set before
it was switched off.

3
43

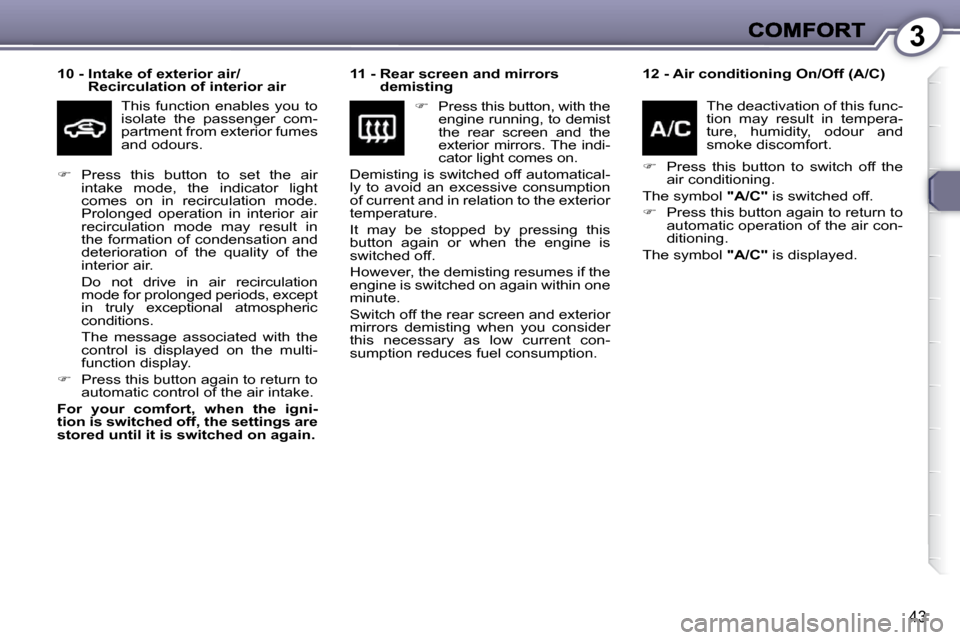

10 - Intake of exterior air/
Recirculation of interior air
This function enables you to
isolate the passenger com-
partment from exterior fumes
and odours.
11 - Rear screen and mirrors
demisting

 Press this button, with the
engine running, to demist
the rear screen and the
exterior mirrors. The indi-
cator light comes on.
Demisting is switched off automatical-
ly to avoid an excessive consumption
of current and in relation to the exterior
temperature.
It may be stopped by pressing this
button again or when the engine is
switched off.
However, the demisting resumes if the
engine is switched on again within one
minute.
Switch off the rear screen and exterior
mirrors demisting when you consider
this necessary as low current con-
sumption reduces fuel consumption.
12 - Air conditioning On/Off (A/C)
The deactivation of this func-
tion may result in tempera-
ture, humidity, odour and
smoke discomfort.

 Press this button to switch off the
air conditioning.
The symbol "A/C" is switched off.

 Press this button again to return to
automatic operation of the air con-
ditioning.
The symbol "A/C" is displayed.

 Press this button to set the air
intake mode, the indicator light
comes on in recirculation mode.
Prolonged operation in interior air
recirculation mode may result in
the formation of condensation and
deterioration of the quality of the
interior air.
Do not drive in air recirculation mode for prolonged periods, except
in truly exceptional atmospheric
conditions.
The message associated with the control is displayed on the multi-
function display.

 Press this button again to return to
automatic control of the air intake.

For your comfort, when the igni-
tion is switched off, the settings are
stored until it is switched on again.

3
44

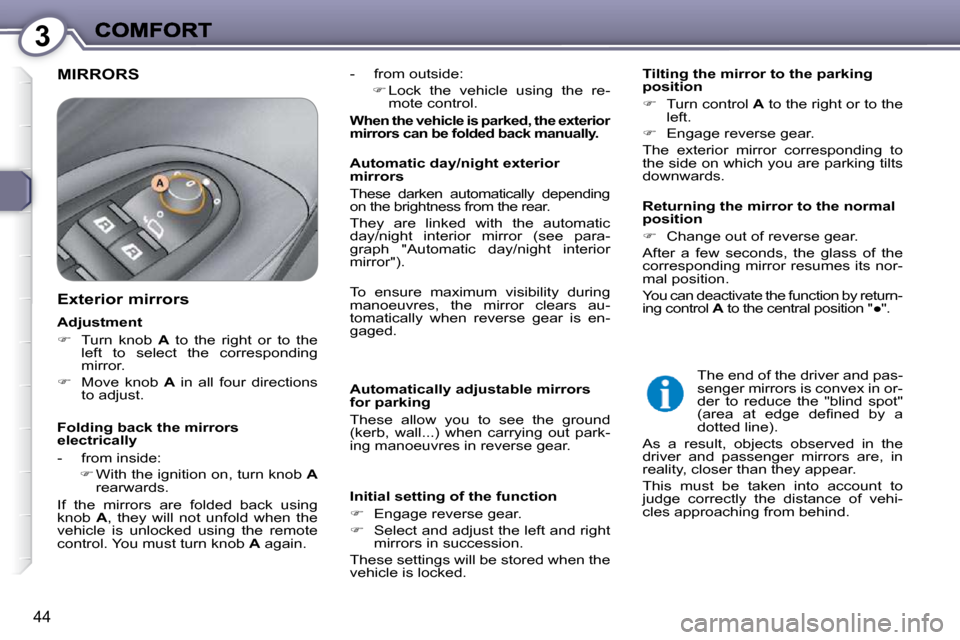

MIRRORS
Automatically adjustable mirrors
for parking
These allow you to see the ground
(kerb, wall...) when carrying out park-
ing manoeuvres in reverse gear. The end of the driver and pas-
senger mirrors is convex in or-
der to reduce the "blind spot"
(area at edge defi ned by a
dotted line).
As a result, objects observed in the
driver and passenger mirrors are, in
reality, closer than they appear.
This must be taken into account to
judge correctly the distance of vehi-
cles approaching from behind.
Tilting the mirror to the parking
position

 Turn control A to the right or to the
left.

 Engage reverse gear.
The exterior mirror corresponding to
the side on which you are parking tilts
downwards.
Exterior mirrors
- from outside:
 Lock the vehicle using the re-
mote control.

When the vehicle is parked, the exterior
mirrors can be folded back manually.
Adjustment

 Turn knob A to the right or to the
left to select the corresponding
mirror.

 Move knob A in all four directions
to adjust.
Folding back the mirrors
electrically
- from inside:
 With the ignition on, turn knob A
rearwards.
If the mirrors are folded back using
knob A , they will not unfold when the
vehicle is unlocked using the remote
control. You must turn knob A again. Automatic day/night exterior
mirrors
These darken automatically depending
on the brightness from the rear.
They are linked with the automatic
day/night interior mirror (see para-
graph "Automatic day/night interior
mirror").
To ensure maximum visibility during
manoeuvres, the mirror clears au-
tomatically when reverse gear is en-
gaged.
Initial setting of the function

 Engage reverse gear.

 Select and adjust the left and right
mirrors in succession.
These settings will be stored when the
vehicle is locked. Returning the mirror to the normal
position

 Change out of reverse gear.
After a few seconds, the glass of the
corresponding mirror resumes its nor-
mal position.
You can deactivate the function by return-
ing control A to the central position "

3
45

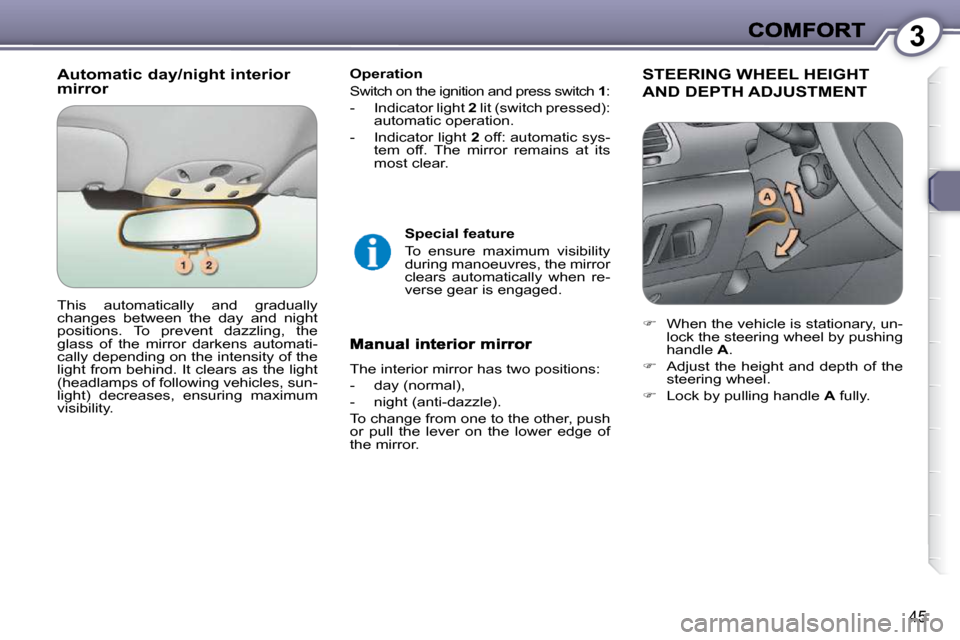

Automatic day/night interior mirror Operation
Switch on the ignition and press switch 1 :
- Indicator light 2 lit (switch pressed):
automatic operation.
- Indicator light 2 off: automatic sys-
tem off. The mirror remains at its
most clear.
Special feature
To ensure maximum visibility
during manoeuvres, the mirror
clears automatically when re-
verse gear is engaged.
The interior mirror has two positions:
- day (normal),
- night (anti-dazzle).
To change from one to the other, push
or pull the lever on the lower edge of
the mirror.
STEERING WHEEL HEIGHT
AND DEPTH ADJUSTMENT
This automatically and gradually
changes between the day and night
positions. To prevent dazzling, the
glass of the mirror darkens automati-
cally depending on the intensity of the
light from behind. It clears as the light
(headlamps of following vehicles, sun-
light) decreases, ensuring maximum
visibility.
 When the vehicle is stationary, un-
lock the steering wheel by pushing
handle A .

 Adjust the height and depth of the
steering wheel.

 Lock by pulling handle A fully.

3
45
Automatic day/night interior mirror Operation
Switch on the ignition and press switch 1 :
- Indicator light 2 lit (switch pressed):
automatic operation.
- Indicator light 2 off: automatic sys-
tem off. The mirror remains at its
most clear.
Special feature
To ensure maximum visibility
during manoeuvres, the mirror
clears automatically when re-
verse gear is engaged.
The interior mirror has two positions:
- day (normal),
- night (anti-dazzle).
To change from one to the other, push
or pull the lever on the lower edge of
the mirror.
STEERING WHEEL HEIGHT
AND DEPTH ADJUSTMENT
This automatically and gradually
changes between the day and night
positions. To prevent dazzling, the
glass of the mirror darkens automati-
cally depending on the intensity of the
light from behind. It clears as the light
(headlamps of following vehicles, sun-
light) decreases, ensuring maximum
visibility.
 When the vehicle is stationary, un-
lock the steering wheel by pushing
handle A .

 Adjust the height and depth of the
steering wheel.

 Lock by pulling handle A fully.

3
46

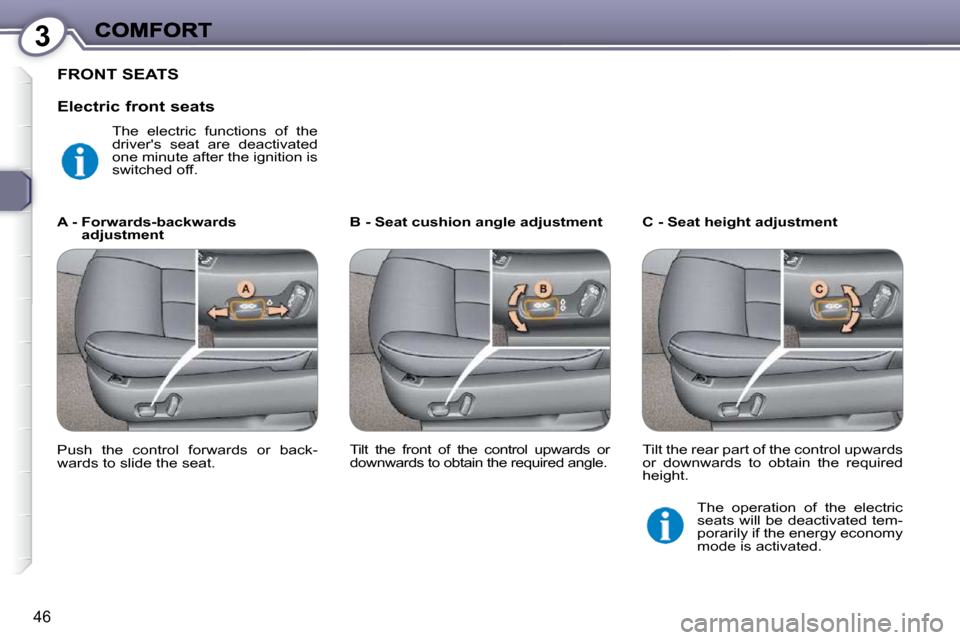

FRONT SEATS
B - Seat cushion angle adjustment C - Seat height adjustment
A - Forwards-backwards
adjustment
Push the control forwards or back-
wards to slide the seat. Tilt the front of the control upwards or
downwards to obtain the required angle.
Tilt the rear part of the control upwards
or downwards to obtain the required
height.
Electric front seats
The electric functions of the
driver's seat are deactivated
one minute after the ignition is
switched off.
The operation of the electric
seats will be deactivated tem-
porarily if the energy economy
mode is activated.

3
47

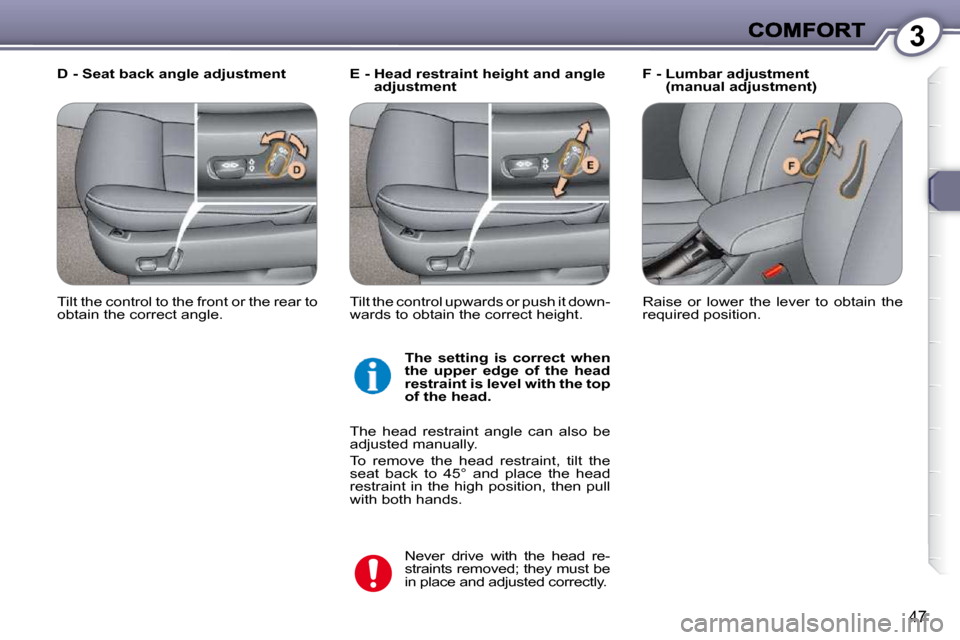

E - Head restraint height and angle adjustment F - Lumbar adjustment
(manual adjustment)
D - Seat back angle adjustment
Never drive with the head re-
straints removed; they must be
in place and adjusted correctly.
Tilt the control to the front or the rear to
obtain the correct angle.
Tilt the control upwards or push it down-
wards to obtain the correct height. Raise or lower the lever to obtain the
required position.

The setting is correct when
the upper edge of the head
restraint is level with the top
of the head.
The head restraint angle can also be
adjusted manually.
To remove the head restraint, tilt the
seat back to 45° and place the head
restraint in the high position, then pull
with both hands.

3
48
Memorising driving and mirror positions
Memorising using the controls on
the driver's door
To memorise:

 Place the key in the ignition on po-
sition,

 Adjust your seat and mirrors,

 Press button M , then button 1 "fi rst
driving position" or button 2 "sec-
ond driving position" within four
seconds.
An audible signal confi rms that a position
has been memorised.
Memorising a new position cancels
the previous one. Recalling a memorised driving
position
Ignition on, vehicle stationary

 Briefl y press button 1 or 2 to recall
the corresponding memorised po-
sition. The end of the setting is in-
dicated by a bleep.
After recalling a memorised position
a few times in succession, the func-
tion will be cancelled until the engine
is started.

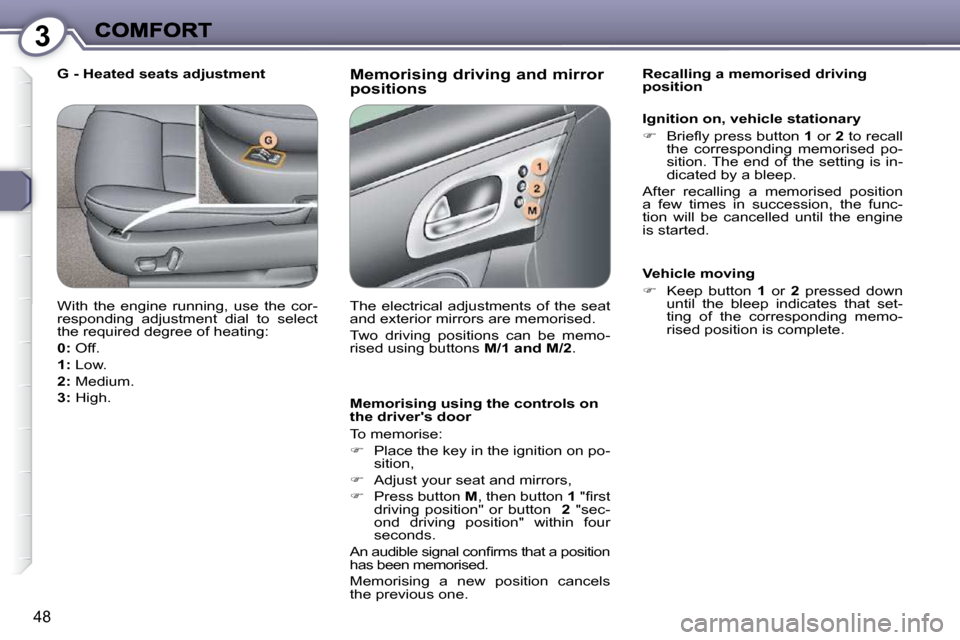

G - Heated seats adjustment
With the engine running, use the cor-
responding adjustment dial to select
the required degree of heating:

0
: Off.

1
: Low.

2
: Medium.

3
: High. The electrical adjustments of the seat
and exterior mirrors are memorised.
Two driving positions can be memo-
rised using buttons
M/1 and M/2 . Vehicle moving

 Keep button 1 or 2 pressed down
until the bleep indicates that set-
ting of the corresponding memo-
rised position is complete.

3
48
Memorising driving and mirror positions
Memorising using the controls on
the driver's door
To memorise:

 Place the key in the ignition on po-
sition,

 Adjust your seat and mirrors,

 Press button M , then button 1 "fi rst
driving position" or button 2 "sec-
ond driving position" within four
seconds.
An audible signal confi rms that a position
has been memorised.
Memorising a new position cancels
the previous one. Recalling a memorised driving
position
Ignition on, vehicle stationary

 Briefl y press button 1 or 2 to recall
the corresponding memorised po-
sition. The end of the setting is in-
dicated by a bleep.
After recalling a memorised position
a few times in succession, the func-
tion will be cancelled until the engine
is started.
G - Heated seats adjustment
With the engine running, use the cor-
responding adjustment dial to select
the required degree of heating:

0
: Off.

1
: Low.

2
: Medium.

3
: High. The electrical adjustments of the seat
and exterior mirrors are memorised.
Two driving positions can be memo-
rised using buttons
M/1 and M/2 . Vehicle moving

 Keep button 1 or 2 pressed down
until the bleep indicates that set-
ting of the corresponding memo-
rised position is complete.
