Contents
4. SAFETY 85-102
Driving safety 86
Handbrake 86
Hazard warning lights 86
Parking assistance 87
ABS and EBFD 88
Horn 88
Emergency braking
assistance 88
ASR and ESP 89
Tyre under-infl ation
detection 90
Seat belts 91
Airbags 93
Passenger air bag
disarming 93
Child seats 97
Isofi x seats 99
Recommended seats 100
Monitoring mirror 102 Steering wheel
controls 43
Lighting 43
Windscreen wipers 46
Cruise control 48
Speed limiter 51
Ventilation 54
De-icing and demisting 55
Seats 59
Front 59
Rear 64
Bench seat 69
Modularity 71
Comfort and safety 75
Layout 75
Courtesy lights 80
Sun visor 81
Mirrors and windows 82
3. EASE OF USE and
COMFORT 43-84
Presentation 4
Communication 4
Exterior 6
Interior 8
Identifi cation features 17
1. FAMILIARISATION 4-17
Accesses 18
Keys 18
Alarm 22
Doors 23
Child safety 25
Tailgate 25
Sunroofs 26
Instruments and controls 27
Control block 27
Instrument panels 28
Warning lights 29
Indicators, Display 34
Gearbox
Automatic 37
Manual 41
Steering
wheel adjustment 41
Starting and stopping 42
2. READY
TO SET OFF 18-42

9
1
FAMILIARISATIO
N


Interior


13.
Battery / Fuse box.

14.
Passenger airbag.

15.
Passenger's lower glove box / Fuse
box / RCA sockets.

16.
Air conditioning controls.

17.
Lighter /
12 V accessories socket.

18.
Hazard warning lights switch.

19.
Storage compartment or additional
telematics control.

20.
Cooled compartment.

21.
Ashtray / Can holder.

22.
Seat adjustment control.

23.
Storage compartment.

24.
Handbrake - on the left.

1.
Electric mirror controls.


- Electric window controls.

- Deactivation of the rear electric
controls.

2.
Driver's upper glove box.

3.
Central adjustable vents.

4.
Audio equipment or GPS
multimedia audio equipment with
fl ap.

5.
Instrument panel / Large colour
display.

6.
Sunshine and passenger
compartment temperature sensor.

7.
Passenger's upper glove box.
25.
Bonnet release under cover - on
the left.

26.
Acoustic windscreen.





INTERIOR OVERVIEW

SETTING THE DATE AND
TIME
For more information about
this adjustment, refer to the
"Setting the date and time" section of
the "In-car technology" chapter.


ADDITIONAL HEATER

With the engine at idle
or when the vehicle is
stationary, it is normal
to notice a high-pitched
whistling and a slight emission of
smoke and odour.
Bluetooth.

8.
Windscreen demisting vents.

9.
Speaker (tweeter).

10.
Front window demisting vents.

11 .
Passenger airbag disarming switch,
if fi tted on your vehicle.

12.
Side adjustable vent.

3
3
16
Interior

VENTILATION

65 - 73

56



ADAPT CORRECTLY


Automatic with separate adjustment

Press, AUTO is displayed, this is the
usual mode.
Details of the modularity of the seats
are indicated in chapter 3.
Good practice when moving a seat.
Observe the order of the steps referred
to in the document, place the head
restraint in the lowest position, fold
the seat back onto the seat cushion,
ensure that the refi tting position is
compatible with the type of seat, offer
up the front feet of the seat directly
above the slides or retaining hooks on
the fl oor before triggering the refi tting
of the rear feet.
Air conditioning

Access

20

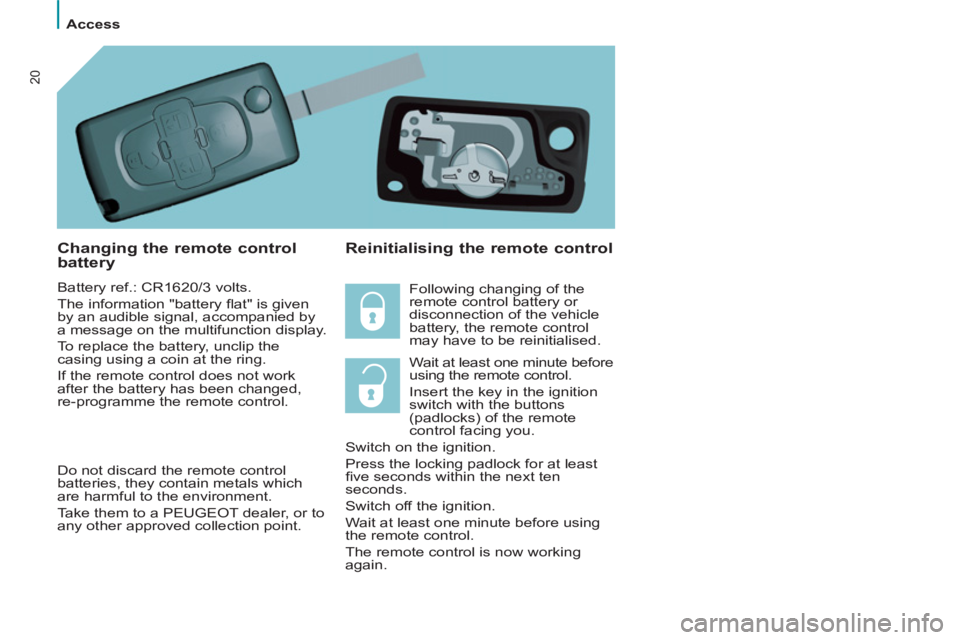

Changing the remote control
battery
Battery ref.: CR1620/3 volts.
The information "battery fl at" is given
by an audible signal, accompanied by
a message on the multifunction display.
To replace the battery, unclip the
casing using a coin at the ring.
If the remote control does not work
after the battery has been changed,
re-programme the remote control.

Reinitialising the remote control

Following changing of the
remote control battery or
disconnection of the vehicle
battery, the remote control
may have to be reinitialised.
Do not discard the remote control
batteries, they contain metals which
are harmful to the environment.
Take them to a PEUGEOT dealer, or to
any other approved collection point. Wait at least one minute before
using the remote control.

Insert the key in the ignition
switch with the buttons
(padlocks) of the remote
control facing you.
Switch on the ignition.
Press the locking padlock for at least
fi ve seconds within the next ten
seconds.
Switch off the ignition.
Wait at least one minute before using
the remote control.
The remote control is now working
again.

Access

READY TO SET OFF
2
23

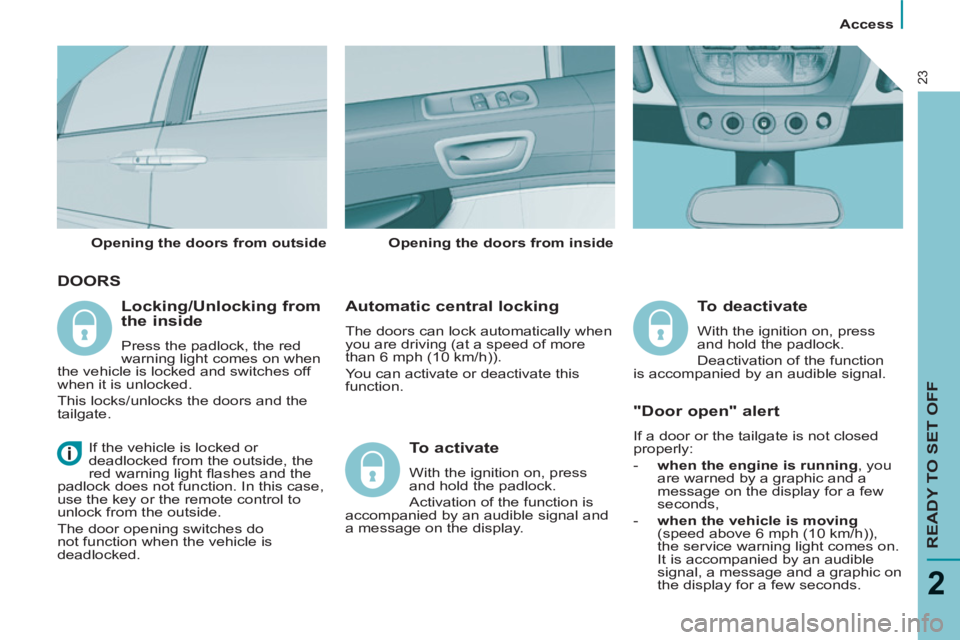

DOORS


Automatic central locking

The doors can lock automatically when
you are driving (at a speed of more
than 6 mph (10 km/h)).
You can activate or deactivate this
function.


To deactivate

With the ignition on, press
and hold the padlock.
Deactivation of the function
is accompanied by an audible signal.

Opening the doors from outside
Opening the doors from inside

If the vehicle is locked or
deadlocked from the outside, the
red warning light fl ashes and the
padlock does not function. In this case,
use the key or the remote control to
unlock from the outside.
The door opening switches do
not function when the vehicle is
deadlocked.


Locking/Unlocking from
the inside
Press the padlock, the red
warning light comes on when
the vehicle is locked and switches off
when it is unlocked.
This locks/unlocks the doors and the
tailgate.

To activate

With the ignition on, press
and hold the padlock.
Activation of the function is
accompanied by an audible signal and
a message on the display
.


"Door open" alert

If a door or the tailgate is not closed
properly:


- when the engine is running
, you
are warned by a graphic and a
message on the display for a few
seconds,

- when the vehicle is moving

(speed above 6 mph (10 km/h)),
the service warning light comes on.
It is accompanied by an audible
signal, a message and a graphic on
the display for a few seconds.

Access

READY TO SET OFF
2
25

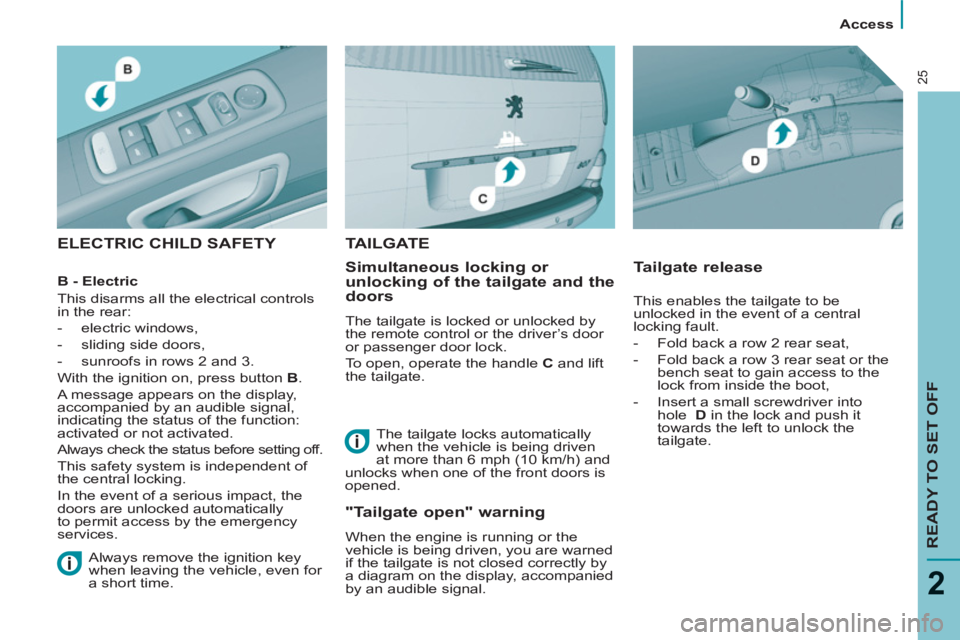

ELECTRIC CHILD SAFETY

Simultaneous locking or
unlocking of the tailgate and the
doors
The tailgate is locked or unlocked by
the remote control or the driver’s door
or passenger door lock.
To open, operate the handle C
and lift
the tailgate.

Tailgate release

The tailgate locks automatically
when the vehicle is being driven
at more than 6 mph (10 km/h) and
unlocks when one of the front doors is
opened.
TAILGATE

"Tailgate open" warning

When the engine is running or the
vehicle is being driven, you are warned
if the tailgate is not closed correctly by
a diagram on the display, accompanied
by an audible signal. This enables the tailgate to be
unlocked in the event of a central
locking fault.


- Fold back a row 2 rear seat,

- Fold back a row 3 rear seat or the
bench seat to gain access to the
lock from inside the boot,

- Insert a small screwdriver into
hole D
in the lock and push it
towards the left to unlock the
tailgate.
B - Electric
This disarms all the electrical controls
in the rear:


- electric windows,

- sliding side doors,

- sunroofs in rows 2 and 3.
With the ignition on, press button B
.
A message appears on the display,
accompanied by an audible signal,
indicating the status of the function:
activated or not activated.
Always check the status before setting off.
This safety system is independent of
the central locking.
In the event of a serious impact, the
doors are unlocked automatically
to permit access by the emergency
services.
Always remove the ignition key
when leaving the vehicle, even for
a short time.

Instruments and controls

READY TO SET OFF
2
27

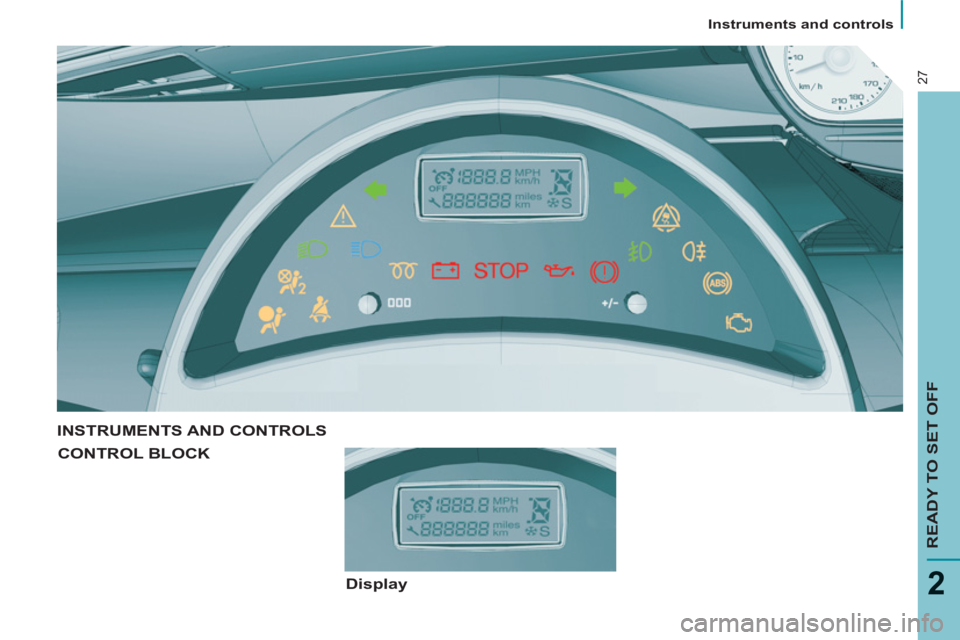

INSTRUMENTS AND CONTROLS
CONTROL BLOCK

Display

Instruments and controls

28

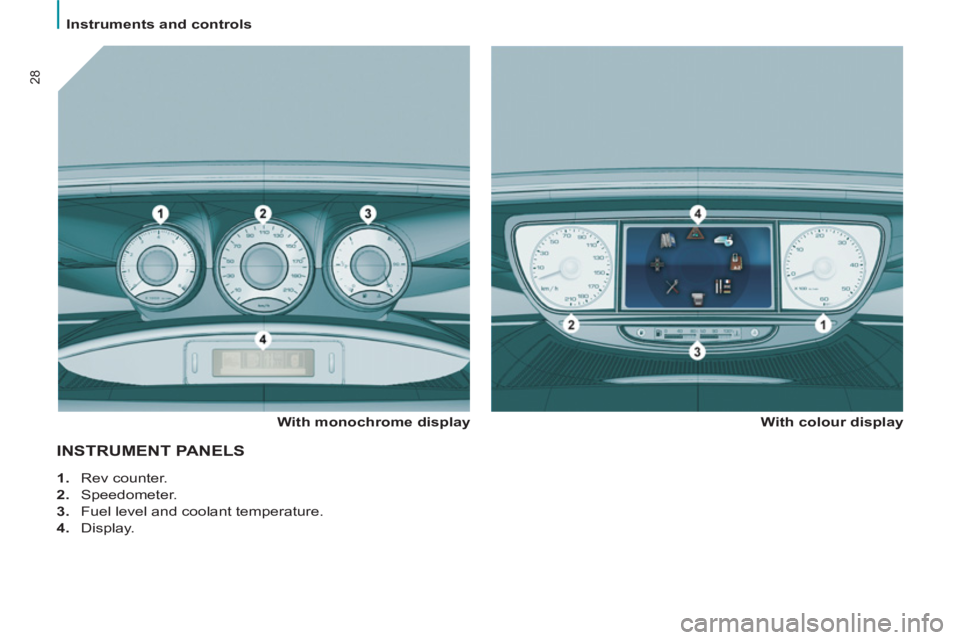

INSTRUMENT PANELS


With monochrome display
With colour display


1.
Rev counter.

2.
Speedometer.

3.
Fuel level and coolant temperature.

4.
Display.

Instruments and controls

READY TO SET OFF
2
29

WARNING LIGHTS

Each time the engine is started: a series of warning lights comes on applying a self-test check. They switch off almost
immediately. With the engine running: the warning light becomes a warning if it remains on continuously or fl ashes. This
initial warning may be accompanied by an audible signal and a message which appears on the display. "Do not ignore
these warnings."
Warning light is indicates Solution - action

STOP
lit, associated
with another
warning
light and
accompanied
by a message
on the display. major faults linked with the
"Brake fl uid level", "Engine
oil pressure", "Coolant
temperature", "Electronic
brake force distribution",
"Power steering" and
"Punctured tyre" warning
lights.
You must stop, park, switch off the ignition
and call a PEUGEOT dealer.


Handbrake/
Brake fl uid
level/EBFD
lit. handbrake applied or not
released correctly. Releasing the handbrake switches off the warning
light. Chapter 2, "Starting and stopping" section.
lit. low brake fl uid level. Top up using a fl uid recommended by PEUGEOT.

remaining on,
even though the
level is correct and
associated with the
ABS warning light.
failure of the electronic
brake force distribution.
You must stop, park, switch off the ignition
and call a PEUGEOT dealer.


Engine oil
pressure
lit while driving. insuffi cient pressure. Park, switch off the ignition and allow to cool.
Visually check the level. Chapter 6, "Levels"
section.
remaining on,
even though
the level is
correct. major fault. Call a PEUGEOT dealer.

Instruments and controls

30

Warning light is indicates Solution - action

Coolant
temperature
and level
lit. an abnormal increase in
the temperature. Park and switch off the ignition then allow to cool.
Visually check the level. Chapter 2, "Instruments
and controls" section.
fl ashing. a drop in the coolant level. Chapter 6, "Levels" section. Contact a PEUGEOT
dealer.

Service
lit temporarily. minor faults or warnings. Consult the warnings log on the display or on the
screen. See chapter 9 In-car Technology, "Audio
equipment - Trip computer" section, depending on
the seriousness of the fault, contact a PEUGEOT
dealer.
In the case of a low diesel additive level, see
chapter 6 "Levels" section. remaining on. major faults.

Row 1 seat
belt not
fastened
lit. the driver or a front
passenger has not fastened
his seat belt. Pull the strap then insert the tongue in the buckle.
fl ashing,
accompanied
by an audible
signal of
increasing
volume. the vehicle is moving with
the driver or front passenger
seat belt not fastened. Check that the seat belt is fastened by pulling the
strap. Chapter 4, "Seat belts" section.
The driver must ensure that all passengers fasten
and use the seat belts correctly.

Front/side/
curtain airbag fl ashing or
remaining on. failure of an airbag. Have the system checked by a PEUGEOT dealer
without delay. Chapter 4 "Airbags" section.

Front
passenger
airbag
disarmed
lit. intentional disarming of this
airbag in the presence of a
rear facing child seat. Chapter 4, "Airbags-children on board" section.
