fuses Peugeot 807 2013 Owner's Manual

124

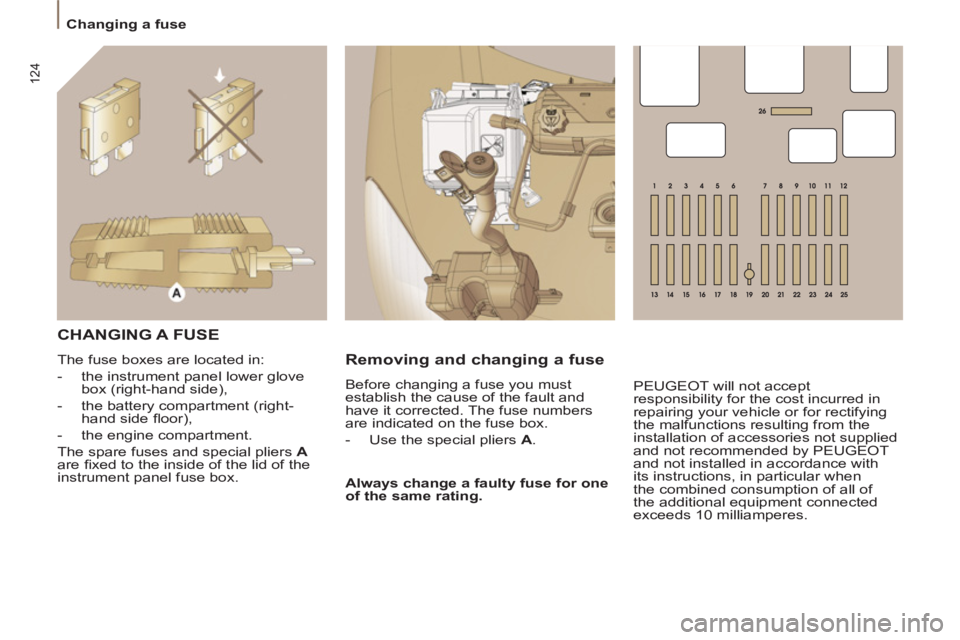

Changing a fuse


CHANGING A FUSE

The fuse boxes are located in:


- the instrument panel lower glove
box (right-hand side),

- the battery compartment (right-
hand side fl oor),

- the engine compartment.
The spare fuses and special pliers A

are fi xed to the inside of the lid of the
instrument panel fuse box. Before changing a fuse you must
establish the cause of the fault and
have it corrected. The fuse numbers
are indicated on the fuse box.


- Use the special pliers A
.

Always change a faulty fuse for one
of the same rating.


Removing and changing a fuse

PEUGEOT will not accept
responsibility for the cost incurred in
repairing your vehicle or for rectifying
the malfunctions resulting from the
installation of accessories not supplied
and not recommended by PEUGEOT
and not installed in accordance with
its instructions, in particular when
the combined consumption of all of
the additional equipment connected
exceeds 10 milliamperes.

125
QUICK HELP
7

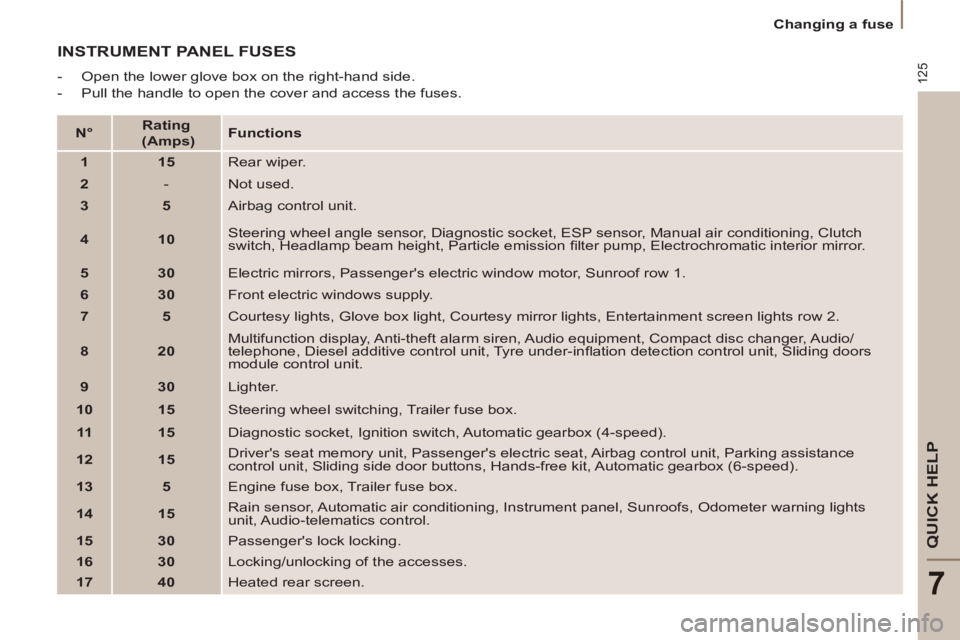

Changing a fuse


INSTRUMENT PANEL FUSES



- Open the lower glove box on the right-hand side.

- Pull the handle to open the cover and access the fuses.


N°



Rating
(Amps)


Functions



1



15

Rear wiper.


2


- Not used.


3



5

Airbag control unit.


4



10

Steering wheel angle sensor, Diagnostic socket, ESP sensor, Manual air conditioning, Clutch
switch, Headlamp beam height, Particle emission fi lter pump, Electrochromatic interior mirror.


5



30

Electric mirrors, Passenger's electric window motor, Sunroof row 1.


6



30

Front electric windows supply.


7



5

Courtesy lights, Glove box light, Courtesy mirror lights, Entertainment screen lights row 2.


8



20

Multifunction display, Anti-theft alarm siren, Audio equipment, Compact disc changer, Audio/
telephone, Diesel additive control unit, Tyre under-infl ation detection control unit, Sliding doors
module control unit.


9



30

Lighter.


10



15

Steering wheel switching, Trailer fuse box.


11



15

Diagnostic socket, Ignition switch, Automatic gearbox (4-speed).


12



15

Driver's seat memory unit, Passenger's electric seat, Airbag control unit, Parking assistance
control unit, Sliding side door buttons, Hands-free kit, Automatic gearbox (6-speed).


13



5

Engine fuse box, Trailer fuse box.


14



15

Rain sensor, Automatic air conditioning, Instrument panel, Sunroofs, Odometer warning lights
unit, Audio-telematics control.


15



30

Passenger's lock locking.


16



30

Locking/unlocking of the accesses.


17



40

Heated rear screen.

126


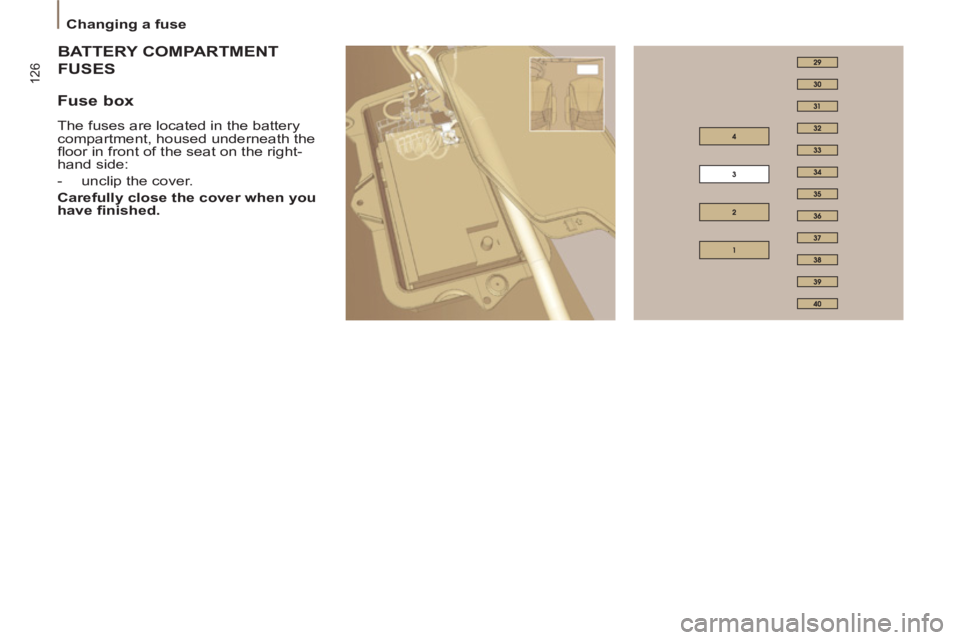

Changing a fuse

TERY COMPARTMENT
BATT
USESFUS


Fuse box

The fuses are located in the battery
compartment, housed underneath the
fl oor in front of the seat on the right-
hand side:


- unclip the cover.

Carefully close the cover when you
have fi nished.

127
QUICK HELP

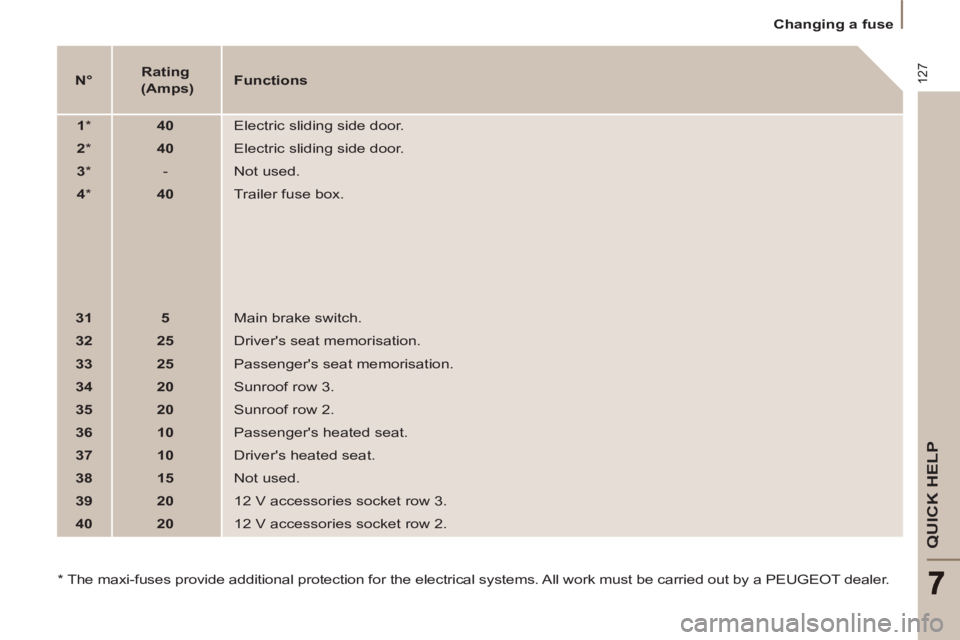

Changing a fuse



N°



Rating
(Amps)


Functions



1

*


40

Electric sliding side door.


2

*


40

Electric sliding side door.


3

*

- Not used.


4

*


40

Trailer fuse box.


31



5

Main brake switch.


32



25

Driver's seat memorisation.


33



25

Passenger's seat memorisation.


34



20

Sunroof row 3.


35



20

Sunroof row 2.


36



10

Passenger's heated seat.


37



10

Driver's heated seat.


38



15

Not used.


39



20

12 V accessories socket row 3.


40



20

12 V accessories socket row 2.

*
The maxi-fuses provide additional protection for the electrical systems. All work must be carried out by a PEUGEOT dealer.

128


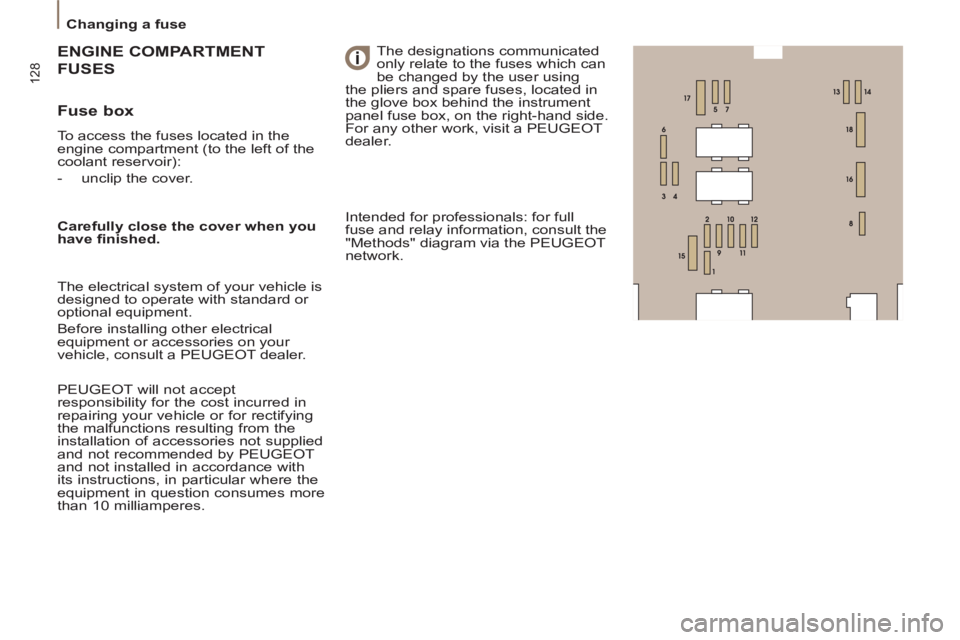

Changing a fuse



Fuse box

To access the fuses located in the
engine compartment (to the left of the
coolant reservoir):


- unclip the cover.
GINE COMPARTMENT
ENGIN
USES FUS

The designations communicated
only relate to the fuses which can
be changed by the user using
the pliers and spare fuses, located in
the glove box behind the instrument
panel fuse box, on the right-hand side.
For any other work, visit a PEUGEOT
dealer.

Carefully close the cover when you
have fi nished.

The electrical system of your vehicle is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, consult a PEUGEOT dealer.


PEUGEOT will not accept
responsibility for the cost incurred in
repairing your vehicle or for rectifying
the malfunctions resulting from the
installation of accessories not supplied
and not recommended by PEUGEOT
and not installed in accordance with
its instructions, in particular where the
equipment in question consumes more
than 10 milliamperes. Intended for professionals: for full
fuse and relay information, consult the
"Methods" diagram via the PEUGEOT
network.

140


Interior


Rear fi ttings 78-79


- stowing rings,

- storage tray,

- load space cover,

- hooks,

- luggage retaining net,

- grab handle,

- coat hook,

- bottle/can holder,

- accessories socket. Boot, tailgate 25
Rear windows 84
Side blinds 81 Front seats 59-63, 75


- head restraint,

- electric controls,

- manual controls. Courtesy lamp, interior lighting 80
Seat belts 91-92
Airbags 93-96
Battery 116
Battery fuses 126-127
Economy mode 116
Front fi ttings 76-77


- storage tray,

- glove box,

- cooled compartment,

- bottle/cup holder,

- accessories socket,

- mat,

- storage compartment.
Isofi x mountings 98-99
Electric child lock 25


Rear seats, bench seat 64-70


- head restraint,

- writing table.
Child seats 97-102
Confi guration, modularity 71-73

INTERIOR

141
VISUAL SEARC
H
10

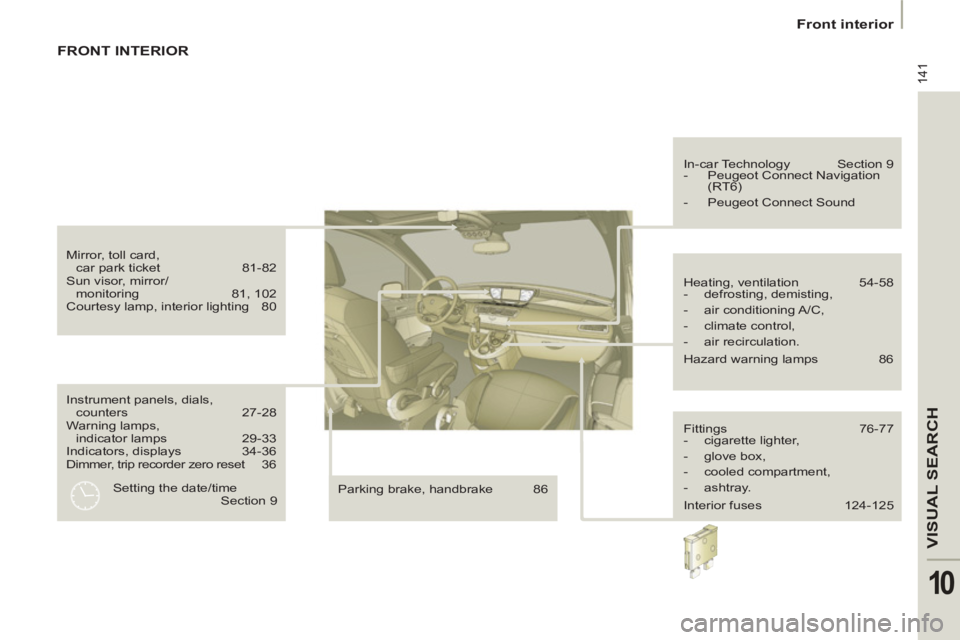

Front interior


Instrument panels, dials,
counters 27-28
Warning lamps,
indicator lamps 29-33
Indicators, displays 34-36
Dimmer, trip recorder zero reset 36
Parking brake, handbrake 86 Heating, ventilation 54-58


- defrosting, demisting,

- air conditioning A/C,

- climate control,

- air recirculation.
Hazard warning lamps 86 In-car Technology Section 9


- Peugeot Connect Navigation
(RT6)

- Peugeot Connect Sound
Fittings 76-77


- cigarette lighter,

- glove box,

- cooled compartment,

- ashtray.
Interior fuses 124-125

Mirror, toll card,
car park ticket 81-82
Sun visor, mirror/
monitoring 81, 102
Courtesy lamp, interior lighting 80
Setting the date/time
Section 9
FRONT INTERIOR

143
VISUAL SEARC
H
10

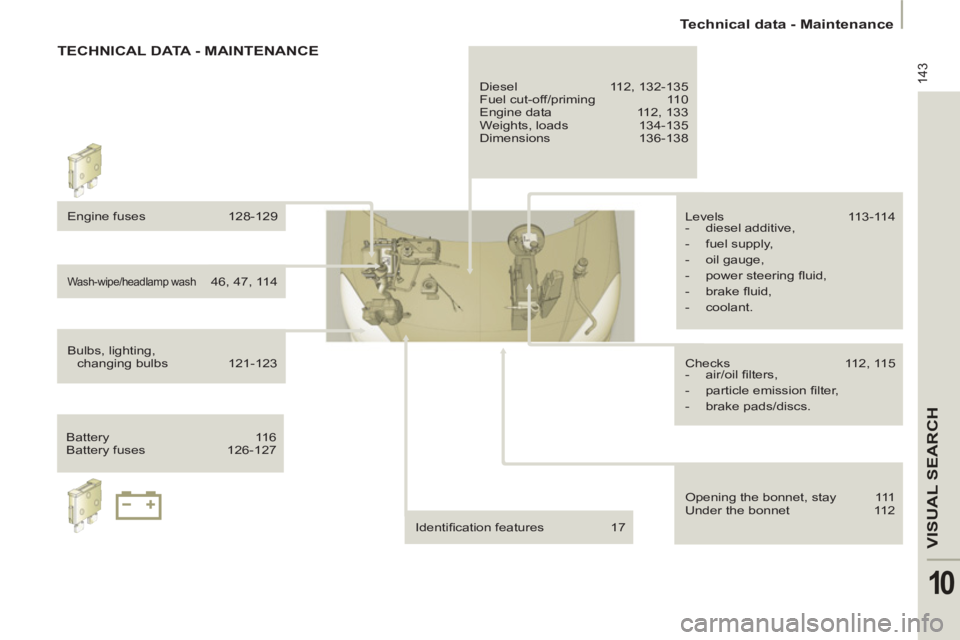

Technical data - Maintenance
TECHNICAL DATA - MAINTENANCE

Engine fuses 128-129

Wash-wipe/headlamp wash 46, 47, 114
Bulbs, lighting,
changing bulbs 121-123
Battery 116
Battery fuses 126-127 Checks 112, 115


- air/oil fi lters,

- particle emission fi lter,

- brake pads/discs. Levels 113-114


- diesel additive,

- fuel supply,

- oil gauge,

- power steering fl uid,

- brake fl uid,

- coolant. Diesel 112, 132-135
Fuel cut-off/priming 110
Engine data 112, 133
Weights, loads 134-135
Dimensions 136-138
Identifi cation features 17 Opening the bonnet, stay 111
Under the bonnet 112
