Interior


13.
Battery / Fuse box.

14.
Passenger airbag.

15.
Passenger's lower glove box / Fuse
box / RCA sockets.

16.
Air conditioning controls.

17.
Lighter /
12 V accessories socket.

18.
Hazard warning lights switch.

19.
Storage compartment or additional
telematics control.

20.
Cooled compartment.

21.
Ashtray / Can holder.

22.
Seat adjustment control.

23.
Storage compartment.

24.
Handbrake - on the left.

1.
Electric mirror controls.


- Electric window controls.

- Deactivation of the rear electric
controls.

2.
Driver's upper glove box.

3.
Central adjustable vents.

4.
Audio equipment or GPS
multimedia audio equipment with
fl ap.

5.
Instrument panel / Large colour
display.

6.
Sunshine and passenger
compartment temperature sensor.

7.
Passenger's upper glove box.
25.
Bonnet release under cover - on
the left.

26.
Acoustic windscreen.





INTERIOR OVERVIEW

SETTING THE DATE AND
TIME
For more information about
this adjustment, refer to the
"Setting the date and time" section of
the "In-car technology" chapter.


ADDITIONAL HEATER

With the engine at idle
or when the vehicle is
stationary, it is normal
to notice a high-pitched
whistling and a slight emission of
smoke and odour.
Bluetooth.

8.
Windscreen demisting vents.

9.
Speaker (tweeter).

10.
Front window demisting vents.

11 .
Passenger airbag disarming switch,
if fi tted on your vehicle.

12.
Side adjustable vent.

10
Interior

5.
Control block.

6.
Steering wheel audio equipment
controls.

7.
Wipers / wash-wipe / trip computer
controls.

8.
Gear lever.

9.
Ignition.

1.
Interior protection alarm
deactivation button.

2.
Speed limiter / cruise control
switches.

3.
Lights and direction indicators
controls.

4.
Driver's airbag.
Horn.
10.
Headlamp height adjustment.

11 .
a- Dynamic stability control button
(ESP/ASR).
b- Parking assistance button.

12.
Steering wheel adjustment control.



INSTRUMENTS AND CONTROLS

43
3
3
14
Interior
91

Repositioning


SIT COMFORTABLY
SEE CLEARLY

Adjust the height
and depth of the
steering wheel.
Electric exterior mirrors.
Selection
Seat belts
Height adjustment.
Fastening. Lights off
Side lights
Main beam headlamps (blue)
Dipped headlamps (green)

Wipers stalk
2 fast.
1 normal.
I intermittent.
0 off.
È
single wipe.
AUTO, press the stalk down. AUTO, automatic switching
on of the lights
Adjustment

82
43
46

Access

READY TO SET OFF
2
19
Pressing one of the buttons
opens or closes the
corresponding rear door
(right or left).

Locating your vehicle






Key in ignition

A buzzer sounds on opening the
driver's door, if the key has been left in
the ignition.

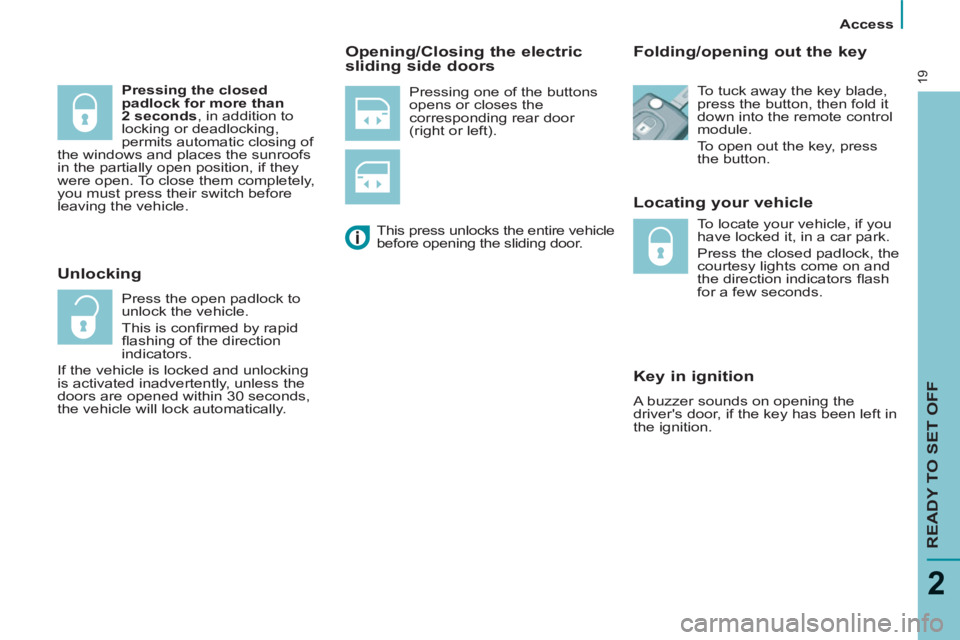

Folding/opening out the key

Unlocking

Press the open padlock to
unlock the vehicle.
This is confi rmed by rapid
fl ashing of the direction
indicators.
If the vehicle is locked and unlocking
is activated inadvertently, unless the
doors are opened within 30 seconds,
the vehicle will lock automatically. This press unlocks the entire vehicle
before opening the sliding door.


Opening/Closing the electric
sliding side doors
To tuck away the key blade,
press the button, then fold it
down into the remote control
module.
To open out the key, press
the button.
To locate your vehicle, if you
have locked it, in a car park.

Press the closed padlock, the
courtesy lights come on and
the direction indicators fl ash
for a few seconds.
Pressing the closed
padlock for more than
2 seconds
, in addition to
locking or deadlocking,
permits automatic closing of
the windows and places the sunroofs
in the partially open position, if they
were open. To close them completely,
you must press their switch before
leaving the vehicle.

Access

22

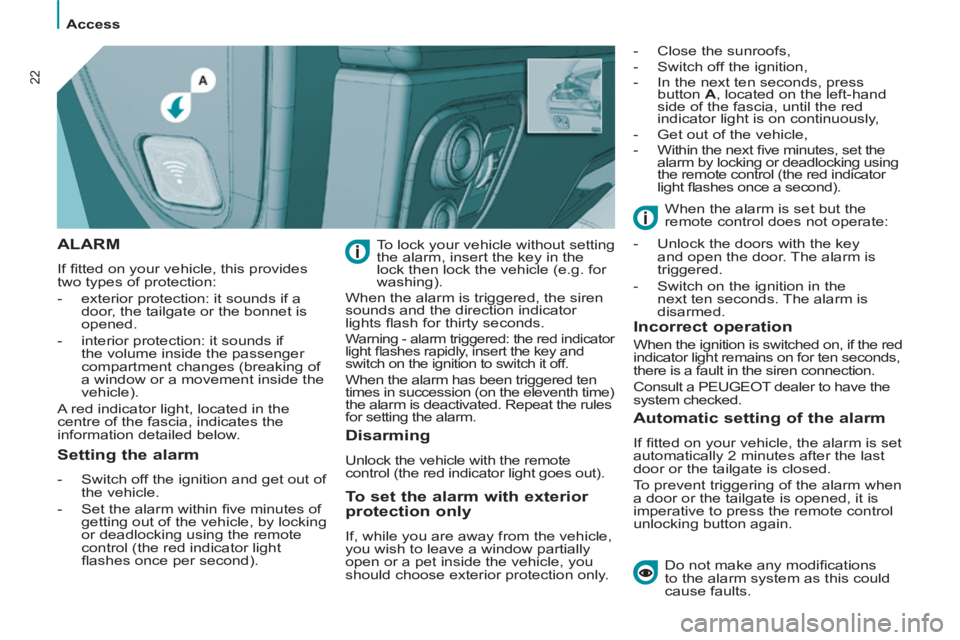

ALARM

If fi tted on your vehicle, this provides
two types of protection:


- exterior protection: it sounds if a
door, the tailgate or the bonnet is
opened.

- interior protection: it sounds if
the volume inside the passenger
compartment changes (breaking of
a window or a movement inside the
vehicle).
A red indicator light, located in the
centre of the fascia, indicates the
information detailed below. To lock your vehicle without setting
the alarm, insert the key in the
lock then lock the vehicle (e.g. for
washing).
When the alarm is triggered, the siren
sounds and the direction indicator
lights fl ash for thirty seconds.

Warning - alarm triggered: the red indicator
light fl ashes rapidly, insert the key and
switch on the ignition to switch it off.
When the alarm has been triggered ten
times in succession (on the eleventh time)
the alarm is deactivated. Repeat the rules
for setting the alarm.

- Close the sunroofs,

- Switch off the ignition,

- In the next ten seconds, press
button A
, located on the left-hand
side of the fascia, until the red
indicator light is on continuously,

- Get out of the vehicle,

- Within the next fi ve minutes, set the
alarm by locking or deadlocking using
the remote control (the red indicator
light fl ashes once a second).
Do not make any modifi cations
to the alarm system as this could
cause faults.


Setting the alarm



- Switch off the ignition and get out of
the vehicle.

- Set the alarm within fi ve minutes of
getting out of the vehicle, by locking
or deadlocking using the remote
control (the red indicator light
fl ashes once per second).


Disarming

Unlock the vehicle with the remote
control (the red indicator light goes out).


To set the alarm with exterior
protection only
If, while you are away from the vehicle,
you wish to leave a window partially
open or a pet inside the vehicle, you
should choose exterior protection only.

Incorrect operation

When the ignition is switched on, if the red
indicator light remains on for ten seconds,
there is a fault in the siren connection.
Consult a PEUGEOT dealer to have the
system checked.


Automatic setting of the alarm

If fi tted on your vehicle, the alarm is set
automatically 2 minutes after the last
door or the tailgate is closed.
To prevent triggering of the alarm when
a door or the tailgate is opened, it is
imperative to press the remote control
unlocking button again. When the alarm is set but the
remote control does not operate:


- Unlock the doors with the key
and open the door. The alarm is
triggered.

- Switch on the ignition in the
next ten seconds. The alarm is
disarmed.

Instruments and controls

READY TO SET OFF
2
29

WARNING LIGHTS

Each time the engine is started: a series of warning lights comes on applying a self-test check. They switch off almost
immediately. With the engine running: the warning light becomes a warning if it remains on continuously or fl ashes. This
initial warning may be accompanied by an audible signal and a message which appears on the display. "Do not ignore
these warnings."
Warning light is indicates Solution - action

STOP
lit, associated
with another
warning
light and
accompanied
by a message
on the display. major faults linked with the
"Brake fl uid level", "Engine
oil pressure", "Coolant
temperature", "Electronic
brake force distribution",
"Power steering" and
"Punctured tyre" warning
lights.
You must stop, park, switch off the ignition
and call a PEUGEOT dealer.


Handbrake/
Brake fl uid
level/EBFD
lit. handbrake applied or not
released correctly. Releasing the handbrake switches off the warning
light. Chapter 2, "Starting and stopping" section.
lit. low brake fl uid level. Top up using a fl uid recommended by PEUGEOT.

remaining on,
even though the
level is correct and
associated with the
ABS warning light.
failure of the electronic
brake force distribution.
You must stop, park, switch off the ignition
and call a PEUGEOT dealer.


Engine oil
pressure
lit while driving. insuffi cient pressure. Park, switch off the ignition and allow to cool.
Visually check the level. Chapter 6, "Levels"
section.
remaining on,
even though
the level is
correct. major fault. Call a PEUGEOT dealer.

Instruments and controls

32

Warning light is indicates Solution - action

ESP/ASR
fl ashing. wheel skid avoided. The system optimises the traction and improves
the directional stability of the vehicle. Chapter 4,
"Driving safety" section.
remaining on.

a malfunction of the system.
E.g.: under-infl ation of the tyres.
Check the pressure of the tyres. Call a PEUGEOT
dealer.
remaining on with
the button (below
the steering
wheel on the left)
pressed.
deactivation of the system. The operation of the system has been
deactivated. Chapter 4, "Driving safety" section.

Diesel
pre-heating
lit. climatic conditions requiring
pre-heating. Wait until the warning light is switched off before
operating the starter.

Dipped
headlamps/
Daytime
lights
lit. manual selection or
automatic lighting. Rotate the ring on the lights stalk to the second
position.
lighting of the dipped headlamps
from the time the ignition is switched
on - daytime lights. Depending on the
country in which the vehicle is sold.
Chapter 3, "Steering wheel controls" section.

Main beam
headlamps
pulling of the stalk towards
you. Pull the stalk to return to dipped headlamps.
and with an
audible signal,
ignition off. opening of the driver's door
with the lights still on. Rotate the ring on the lights stalk to position 0.

Direction
indicators
fl ashing with
buzzer. change of direction via the
lights stalk, to the left of the
steering wheel. To the Right: control to be pushed upwards.
To the Left: control to be pushed downwards.

Instruments and controls

READY TO SET OFF
2
33

Warning light is indicates Solution - action

Front fog
lamps
lit. manual selection. The fog lamps only operate if the side lights or
dipped headlamps are on.

Rear fog
lamps
lit. manual selection. The fog lamps only operate if the side lights or
dipped headlamps are on. In conditions of normal
visibility, take care to switch them off on penalty of
being booked. "This light is a dazzling red."
Display is indicates Solution - action

Cruise control
lit. cruise control selected. Manual selection. Chapter 3, "Steering wheel
controls" section.

Speed limiter
lit. speed limiter selected. Manual selection. Chapter 3, "Steering wheel
controls" section.

Service
spanner
lit. service due shortly. Refer to the list of checks in the servicing booklet.
Have the service carried out by a PEUGEOT
dealer.

Automatic
gearbox
displayed. gear lever position selected. Chapter 2, "Instruments and controls" section.

Particle
emission fi lter
saturation
warning
displayed and
associated with
the service
warning light. malfunction of the particle
emission fi lter (diesel
additive level, risk of
clogging, …). Have the fi lter checked by a PEUGEOT dealer.
Chapter 6, "Levels" section.

Instruments and controls

READY TO SET OFF
2
35


Service indicator

The display, located in the control
block, informs you when the next
service will be due in accordance
with the "Manufacturer’s" servicing
schedule indicated in the servicing
booklet. This information is determined
in relation to the distance travelled
since the previous service.
A few seconds after the ignition is
switched on, the oil level is displayed,
then the total distance recorder
resumes normal operation showing the
total and trip distances.

The distance remaining before
the next service is less than
500 miles/1 000 km
Each time the ignition is switched on
and for a few seconds, the spanner
fl ashes and the number of miles/
kilometres remaining is displayed: A few seconds after the ignition is
switched on, the oil level is displayed,
then the total distance recorder
resumes normal operation and the
spanner remains lit. This indicates that
a service should be carried out shortly.



The service is overdue
Each time the ignition is switched on
and for a few seconds, the spanner
fl ashes and the excess distance is
displayed.
With the engine running the
spanner remains lit until the
service has been carried out.

Example:
4 800 miles/km remain
before the next service is due. When
the ignition is switched on and for a
few seconds, the display shows:
Refer to the list of checks in the
servicing booklet which was given
to you on delivery of the vehicle.

Operation
A few moments after the ignition
has been switched on, the spanner
indicating a service operation lights
up; the display for the total distance
recorder tells you (in round fi gures)
the distance remaining before the next
service.
The points at which a service is due
are calculated from the last indicator
zero reset.
The point at which a service is due is
determined by the distance travelled.
For further information, consult the
internet site at the address:

http://public.servicebox.peugeot.com
