Peugeot Bipper 2011 Owner's Manual - RHD (UK, Australia)

11
9
5
SAFETY

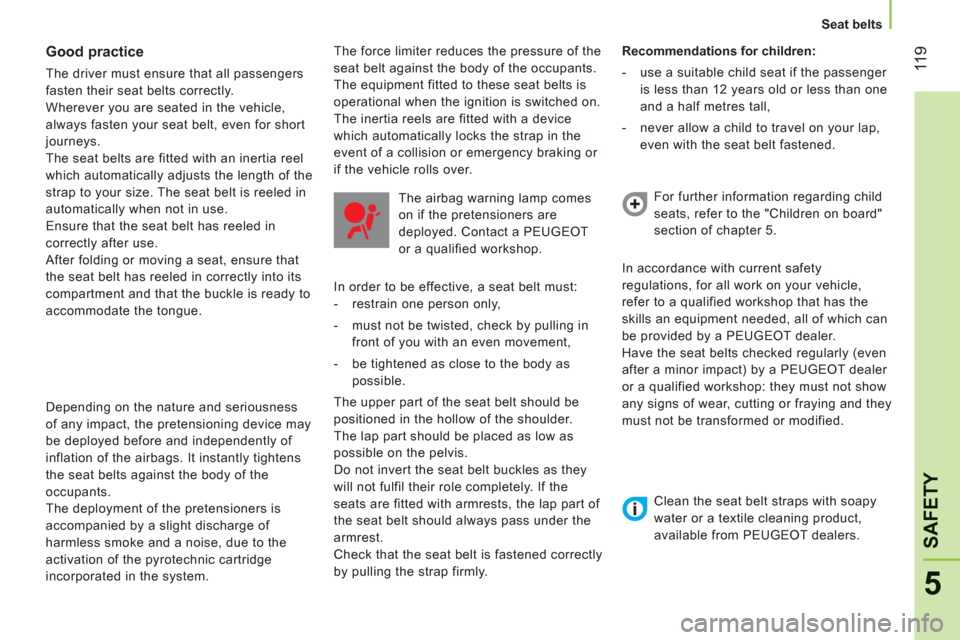

Seat belts



Good practice

The driver must ensure that all passengers
fasten their seat belts correctly.
Wherever you are seated in the vehicle,
always fasten your seat belt, even for short
journeys.
The seat belts are fitted with an inertia reel
which automatically adjusts the length of the
strap to your size. The seat belt is reeled in
automatically when not in use.
Ensure that the seat belt has reeled in
correctly after use.
After folding or moving a seat, ensure that
the seat belt has reeled in correctly into its
compartment and that the buckle is ready to
accommodate the tongue. The force limiter reduces the pressure of the
seat belt against the body of the occupants.
The equipment fitted to these seat belts is
operational when the ignition is switched on.
The inertia reels are fitted with a device
which automatically locks the strap in the
event of a collision or emergency braking or
if the vehicle rolls over.
The airbag warning lamp comes
on if the pretensioners are
deployed. Contact a PEUGEOT
or a qualified workshop.
Depending on the nature and seriousness
of any impact, the pretensioning device may
be deployed before and independently of
inflation of the airbags. It instantly tightens
the seat belts against the body of the
occupants.
The deployment of the pretensioners is
accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system. In order to be effective, a seat belt must:


- restrain one person only,

- must not be twisted, check by pulling in
front of you with an even movement,

- be tightened as close to the body as
possible.
The upper part of the seat belt should be
positioned in the hollow of the shoulder.
The lap part should be placed as low as
possible on the pelvis.
Do not invert the seat belt buckles as they
will not fulfil their role completely. If the
seats are fitted with armrests, the lap part of
the seat belt should always pass under the
armrest.
Check that the seat belt is fastened correctly
by pulling the strap firmly.
Recommendations for children:


- use a suitable child seat if the passenger
is less than 12 years old or less than one
and a half metres tall,

- never allow a child to travel on your lap,
even with the seat belt fastened.
For further information regarding child
seats, refer to the "Children on board"
section of chapter 5.
In accordance with current safety
regulations, for all work on your vehicle,
refer to a qualified workshop that has the
skills an equipment needed, all of which can
be provided by a PEUGEOT dealer.
Have the seat belts checked regularly (even
after a minor impact) by a PEUGEOT dealer
or a qualified workshop: they must not show
any signs of wear, cutting or fraying and they
must not be transformed or modified.

Clean the seat belt straps with soapy
water or a textile cleaning product,
available from PEUGEOT dealers.

12
0





Airbags

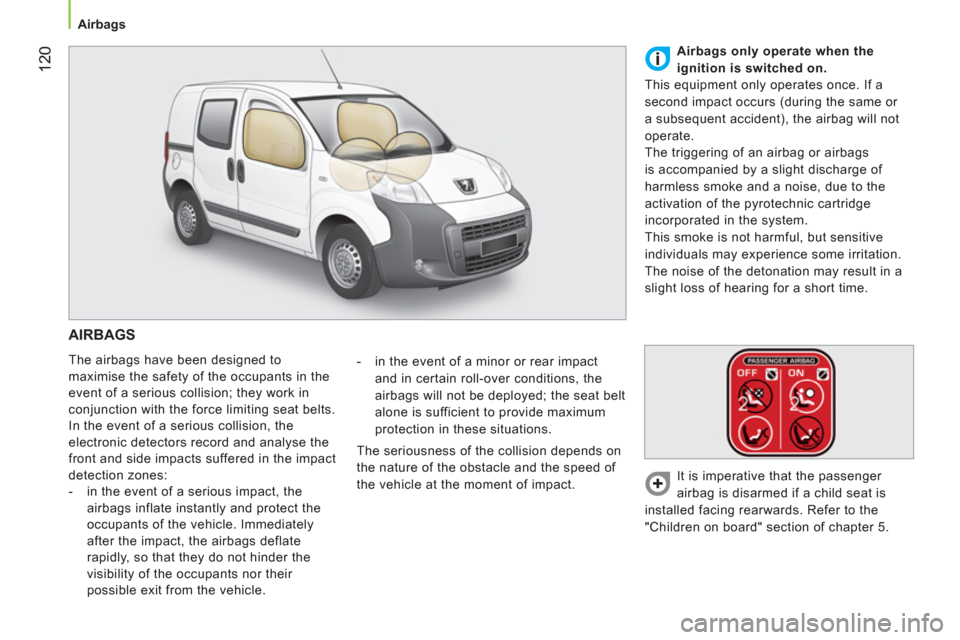

AIRBAGS

The airbags have been designed to
maximise the safety of the occupants in the
event of a serious collision; they work in
conjunction with the force limiting seat belts.
In the event of a serious collision, the
electronic detectors record and analyse the
front and side impacts suffered in the impact
detection zones:


- in the event of a serious impact, the
airbags inflate instantly and protect the
occupants of the vehicle. Immediately
after the impact, the airbags deflate
rapidly, so that they do not hinder the
visibility of the occupants nor their
possible exit from the vehicle.
- in the event of a minor or rear impact
and in certain roll-over conditions, the
airbags will not be deployed; the seat belt
alone is sufficient to provide maximum
protection in these situations.
The seriousness of the collision depends on
the nature of the obstacle and the speed of
the vehicle at the moment of impact.
Airbags only operate when the
ignition is switched on.
This equipment only operates once. If a
second impact occurs (during the same or
a subsequent accident), the airbag will not
operate.
The triggering of an airbag or airbags
is accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.
This smoke is not harmful, but sensitive
individuals may experience some irritation.
The noise of the detonation may result in a
slight loss of hearing for a short time.
It is imperative that the passenger
airbag is disarmed if a child seat is
installed facing rearwards. Refer to the
"Children on board" section of chapter 5.

12
1
5
SAFETY


Airbags

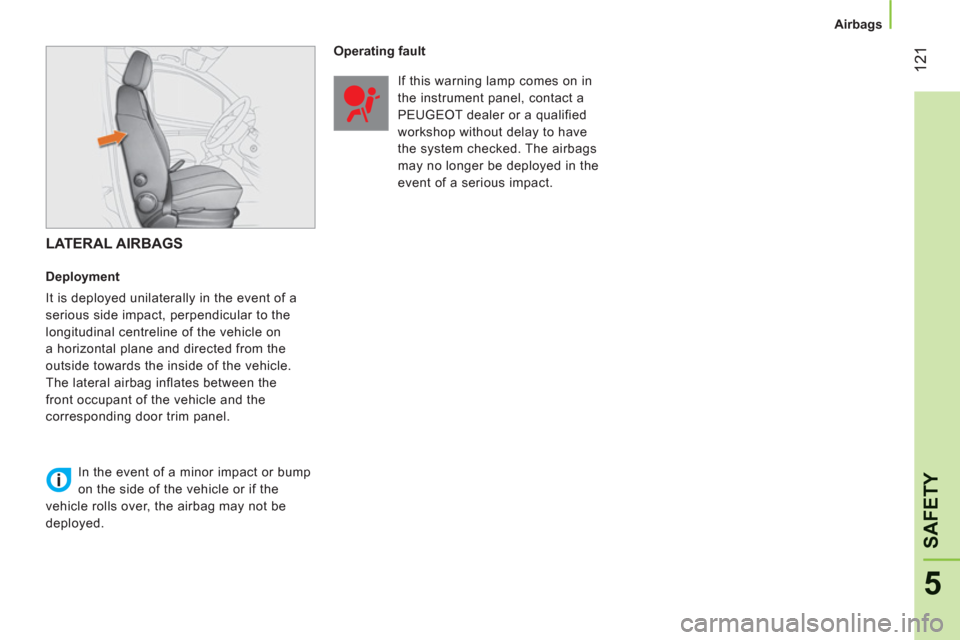

LATERAL AIRBAGS


Deployment
It is deployed unilaterally in the event of a
serious side impact, perpendicular to the
longitudinal centreline of the vehicle on
a horizontal plane and directed from the
outside towards the inside of the vehicle.
The lateral airbag inflates between the
front occupant of the vehicle and the
corresponding door trim panel.

In the event of a minor impact or bump
on the side of the vehicle or if the
vehicle rolls over, the airbag may not be
deployed.
Operating fault
If this warning lamp comes on in
the instrument panel, contact a
PEUGEOT dealer or a qualified
workshop without delay to have
the system checked. The airbags
may no longer be deployed in the
event of a serious impact.

122





Airbags

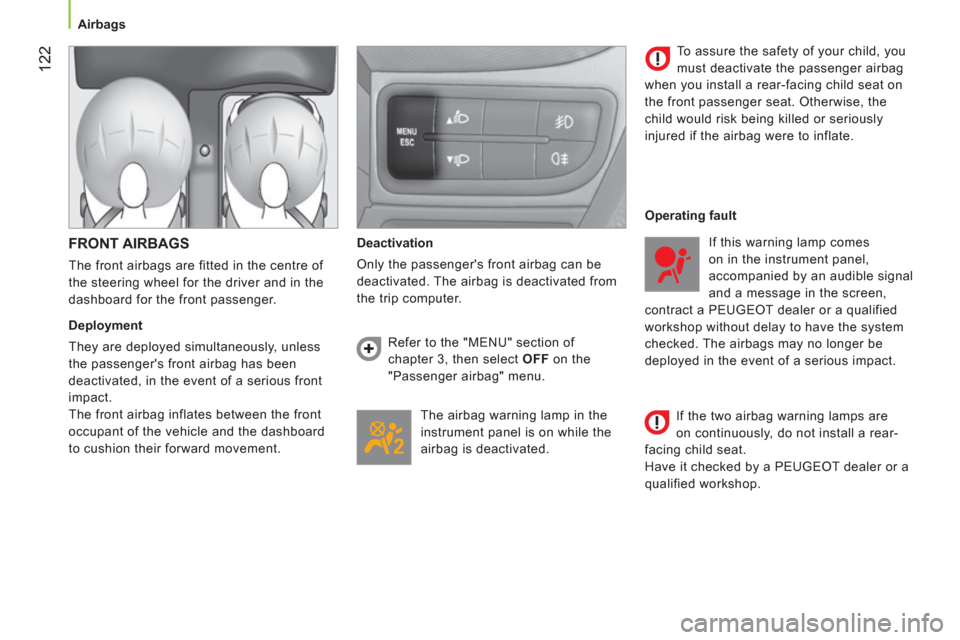

FRONT AIRBAGS

The front airbags are fitted in the centre of
the steering wheel for the driver and in the
dashboard for the front passenger.

Deployment
They are deployed simultaneously, unless
the passenger's front airbag has been
deactivated, in the event of a serious front
impact.
The front airbag inflates between the front
occupant of the vehicle and the dashboard
to cushion their forward movement.
Deactivation
Only the passenger's front airbag can be
deactivated. The airbag is deactivated from
the trip computer.
The airbag warning lamp in the
instrument panel is on while the
airbag is deactivated. To assure the safety of your child, you
must deactivate the passenger airbag
when you install a rear-facing child seat on
the front passenger seat. Otherwise, the
child would risk being killed or seriously
injured if the airbag were to inflate.

Refer to the "MENU" section of
chapter 3, then select OFF
on the
"Passenger airbag" menu.
Operating fault

If the two airbag warning lamps are
on continuously, do not install a rear-
facing child seat.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
If this warning lamp comes
on in the instrument panel,
accompanied by an audible signal
and a message in the screen,
contract a PEUGEOT dealer or a qualified
workshop without delay to have the system
checked. The airbags may no longer be
deployed in the event of a serious impact.

12
3
5
SAFETY


Airbags

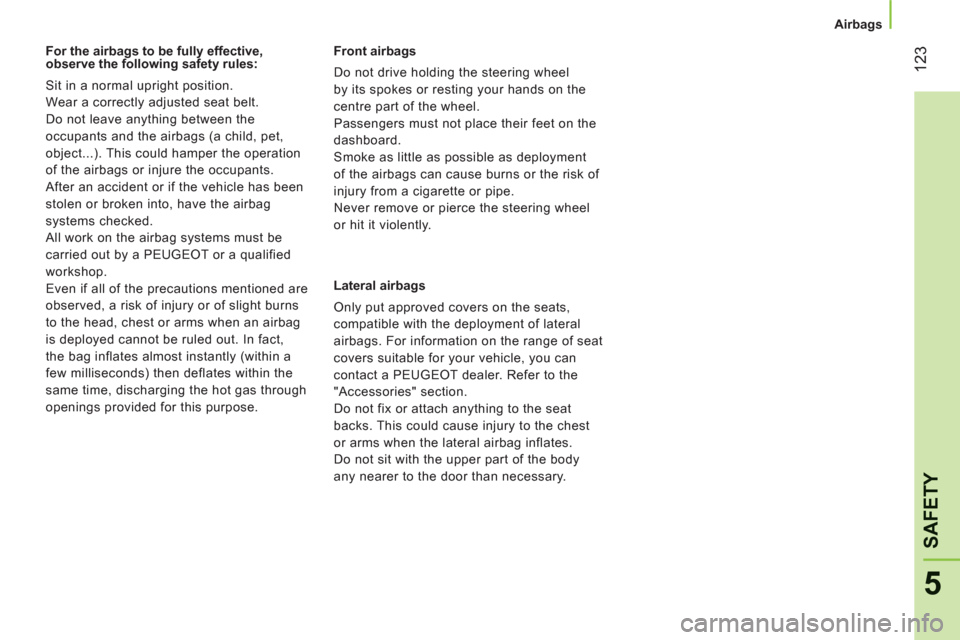

For the airbags to be fully effective,
observe the following safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child, pet,
object...). This could hamper the operation
of the airbags or injure the occupants.
After an accident or if the vehicle has been
stolen or broken into, have the airbag
systems checked.
All work on the airbag systems must be
carried out by a PEUGEOT or a qualified
workshop.
Even if all of the precautions mentioned are
observed, a risk of injury or of slight burns
to the head, chest or arms when an airbag
is deployed cannot be ruled out. In fact,
the bag inflates almost instantly (within a
few milliseconds) then deflates within the
same time, discharging the hot gas through
openings provided for this purpose.
Front airbags
Do not drive holding the steering wheel
by its spokes or resting your hands on the
centre part of the wheel.
Passengers must not place their feet on the
dashboard.
Smoke as little as possible as deployment
of the airbags can cause burns or the risk of
injury from a cigarette or pipe.
Never remove or pierce the steering wheel
or hit it violently.

Lateral airbags
Only put approved covers on the seats,
compatible with the deployment of lateral
airbags. For information on the range of seat
covers suitable for your vehicle, you can
contact a PEUGEOT dealer. Refer to the
"Accessories" section.
Do not fix or attach anything to the seat
backs. This could cause injury to the chest
or arms when the lateral airbag inflates.
Do not sit with the upper part of the body
any nearer to the door than necessary.

124

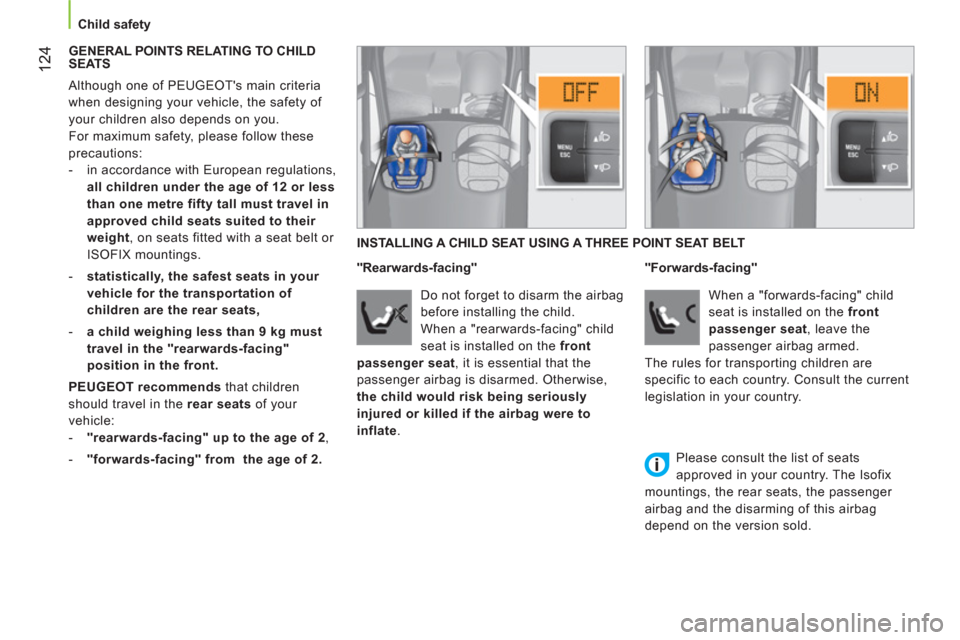

Child safety



GENERAL POINTS RELATING TO CHILD
SEATS
Although one of PEUGEOT's main criteria
when designing your vehicle, the safety of
your children also depends on you.
For maximum safety, please follow these
precautions:


- in accordance with European regulations,
all children under the age of 12 or less
than one metre fifty tall must travel in
approved child seats suited to their
weight , on seats fitted with a seat belt or
ISOFIX mountings.

- statistically, the safest seats in your
vehicle for the transportation of
children are the rear seats,

- a child weighing less than 9 kg must
travel in the "rearwards-facing"
position in the front.


PEUGEOT recommends that children
should travel in the rear seats of your
vehicle:


- "rearwards-facing" up to the age of 2 ,

- "forwards-facing" from the age of 2.


INSTALLING A CHILD SEAT USING A THREE POINT SEAT BELT

"Rearwards-facing"


Do not forget to disarm the airbag
before installing the child.
When a "rearwards-facing" child
seat is installed on the front
passenger seat , it is essential that the
passenger airbag is disarmed. Otherwise,
the child would risk being seriously
injured or killed if the airbag were to
inflate .
"Forwards-facing"
When a "forwards-facing" child
seat is installed on the front
passenger seat , leave the
passenger airbag armed.
The rules for transporting children are
specific to each country. Consult the current
legislation in your country.
Please consult the list of seats
approved in your country. The Isofix
mountings, the rear seats, the passenger
airbag and the disarming of this airbag
depend on the version sold.

5
SAFETY


Child safety

To disarm or activate the passenger
airbag, refer to Chapter 3, "MENU".

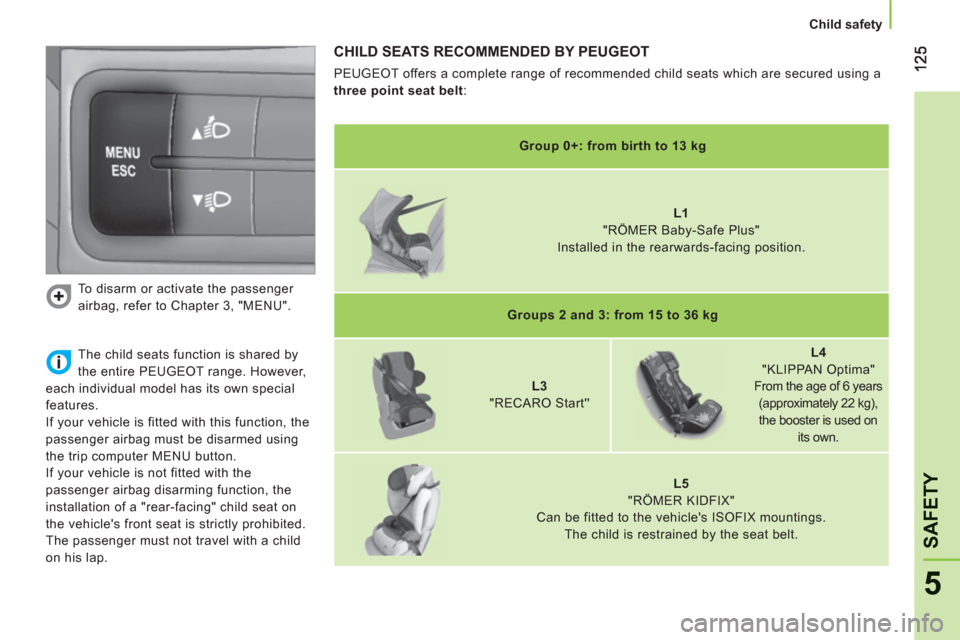

CHILD SEATS RECOMMENDED BY PEUGEOT

PEUGEOT offers a complete range of recommended child seats which are secured using a
three point seat belt
:
The child seats function is shared by
the entire PEUGEOT range. However,
each individual model has its own special
features.
If your vehicle is fitted with this function, the
passenger airbag must be disarmed using
the trip computer MENU button.
If your vehicle is not fitted with the
passenger airbag disarming function, the
installation of a "rear-facing" child seat on
the vehicle's front seat is strictly prohibited.
The passenger must not travel with a child
on his lap.

Group 0+: from birth to 13 kg





L1
"RÖMER Baby-Safe Plus"
Installed in the rearwards-facing position.


Groups 2 and 3: from 15 to 36 kg





L3
"RECARO Start''



L4
"KLIPPAN Optima"
From the age of 6 years
(approximately 22 kg),
the booster is used on
its own.




L5
"RÖMER KIDFIX"
Can be fitted to the vehicle's ISOFIX mountings.
The child is restrained by the seat belt.

12
6


Child safety

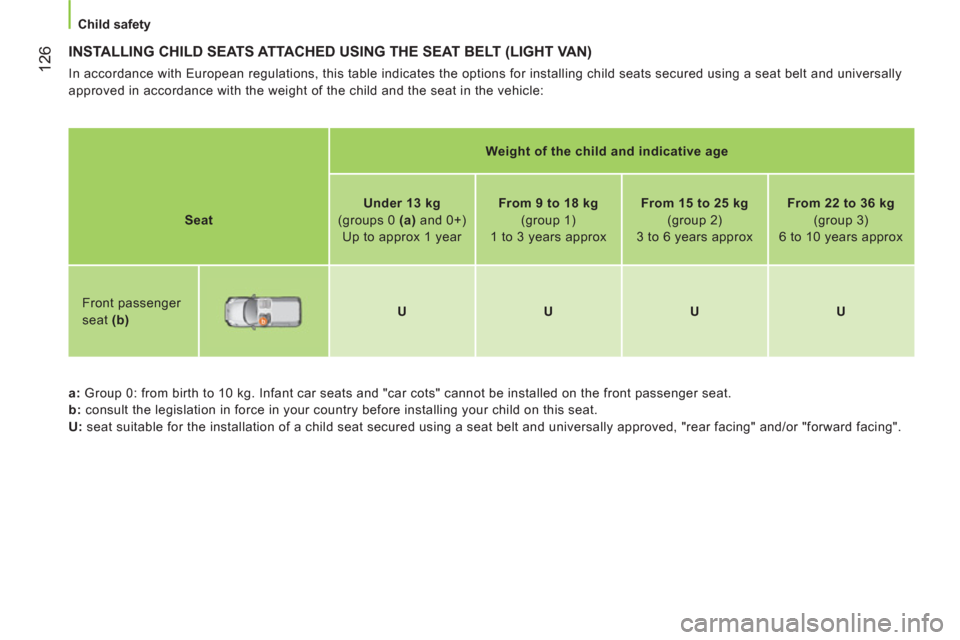

INSTALLING CHILD SEATS ATTACHED USING THE SEAT BELT (LIGHT VAN)

In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt and universally
approved in accordance with the weight of the child and the seat in the vehicle:


Weight of the child and indicative age



Seat


Under 13 kg
(groups 0 ( a ) and 0+)
Up to approx 1 year

From 9 to 18 kg
(group 1)
1 to 3 years approx

From 15 to 25 kg
(group 2)
3 to 6 years approx

From 22 to 36 kg
(group 3)
6 to 10 years approx
Front passenger
seat ( b )

U


U


U


U


a
: Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.

b
:
consult the legislation in force in your country before installing your child on this seat.

U
:
seat suitable for the installation of a child seat secured using a seat belt and universally approved, "rear facing" and/or "forward facing".

5
SAFETY


Child safety

INSTALLING CHILD SEATS ATTACHED USING THE SEAT BELT (COMBI)

In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt and universally
approved in accordance with the weight of the child and the seat in the vehicle:


Weight of the child and indicative age



Seat


Under 13 kg
(groups 0 ( a
) and 0+)
Up to approx 1 year

From 9 to 18 kg
(group 1)
1 to 3 years approx

From 15 to 25 kg
(group 2)
3 to 6 years approx

From 22 to 36 kg
(group 3)
6 to 10 years approx
Front passenger
seat ( b
)

U


U


U


U

Rear side seats

U


U


U


U

Rear centre seat

U


U


U


U


a
: Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.

b
: consult the legislation in force in your country before installing your child on this seat.

U
: seat suitable for the installation of a child seat secured using a seat belt and universally approved, "rear facing" and/or "forward facing".

12
8


Child safety

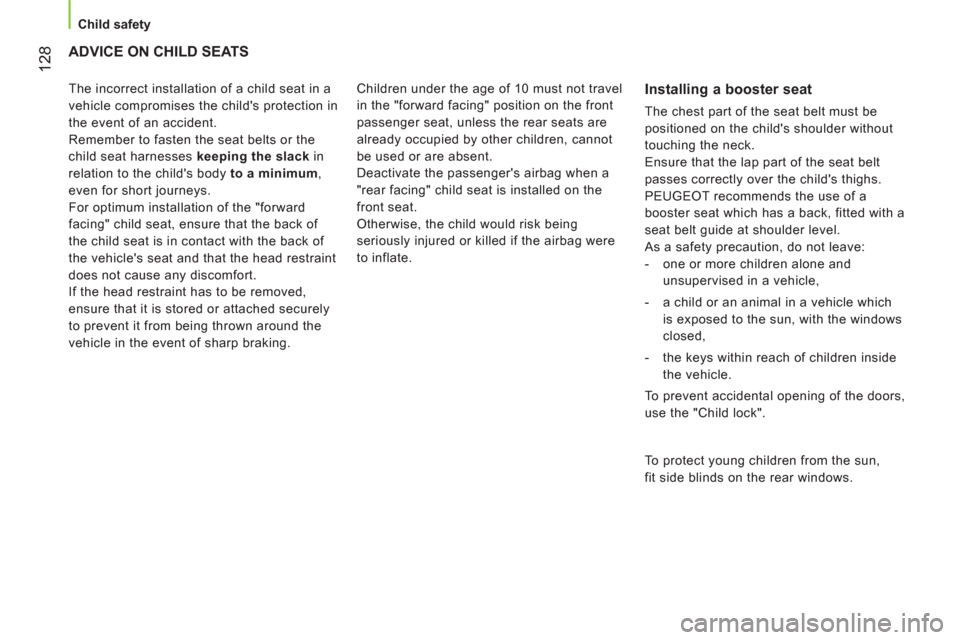

ADVICE ON CHILD SEATS

Installing a booster seat

The chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
PEUGEOT recommends the use of a
booster seat which has a back, fitted with a
seat belt guide at shoulder level.
As a safety precaution, do not leave:


- one or more children alone and
unsupervised in a vehicle,

- a child or an animal in a vehicle which
is exposed to the sun, with the windows
closed,

- the keys within reach of children inside
the vehicle.

To prevent accidental opening of the doors,
use the "Child lock". Children under the age of 10 must not travel
in the "forward facing" position on the front
passenger seat, unless the rear seats are
already occupied by other children, cannot
be used or are absent.
Deactivate the passenger's airbag when a
"rear facing" child seat is installed on the
front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag were
to inflate. The incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack
in
relation to the child's body to a minimum
,
even for short journeys.
For optimum installation of the "forward
facing" child seat, ensure that the back of
the child seat is in contact with the back of
the vehicle's seat and that the head restraint
does not cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached securely
to prevent it from being thrown around the
vehicle in the event of sharp braking.
To protect young children from the sun,
fit side blinds on the rear windows.
