Peugeot Bipper 2011 Owner's Manual - RHD (UK, Australia)

169
8
VISUAL SEARCH


Interior

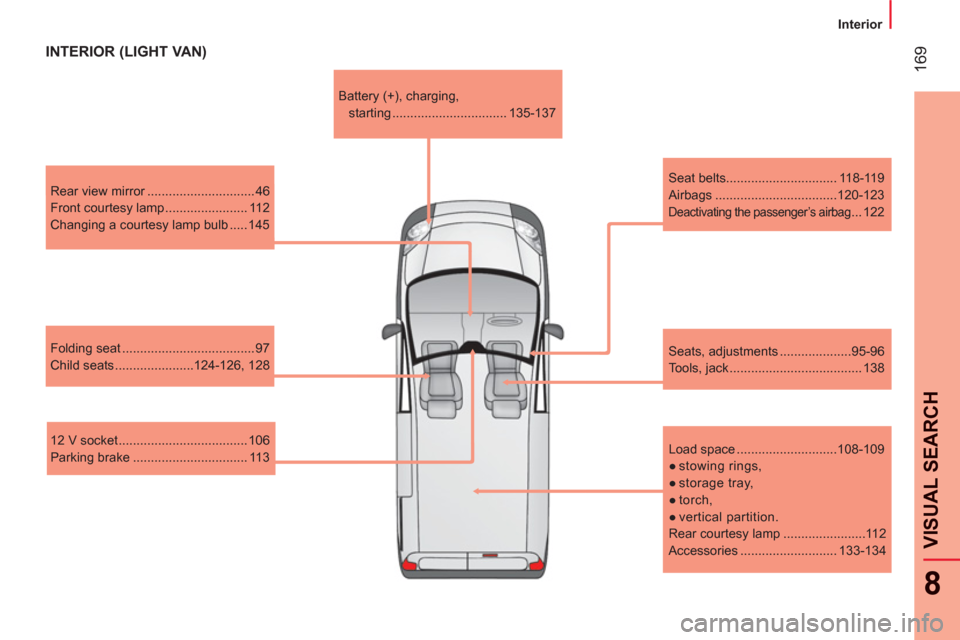

INTERIOR (LIGHT VAN)

Rear view mirror .............................. 46
Front courtesy lamp ....................... 112
Changing a courtesy lamp bulb ..... 145
Folding seat ..................................... 97
Child seats ......................124-126, 128
12 V socket .................................... 106
Parking brake ................................ 113 Battery (+), charging,
starting ................................ 135-137
Seat belts............................... 118-119
Airbags ..................................120-123

Deactivating the passenger’s airbag ... 122
Seats, adjustments ....................95-96
Tools, jack ..................................... 138
Load space ............................108-109


●
stowing rings,

●
storage tray,

●
torch,

●
vertical partition.
Rear courtesy lamp .......................112
Accessories ........................... 133-134

17
0


Interior

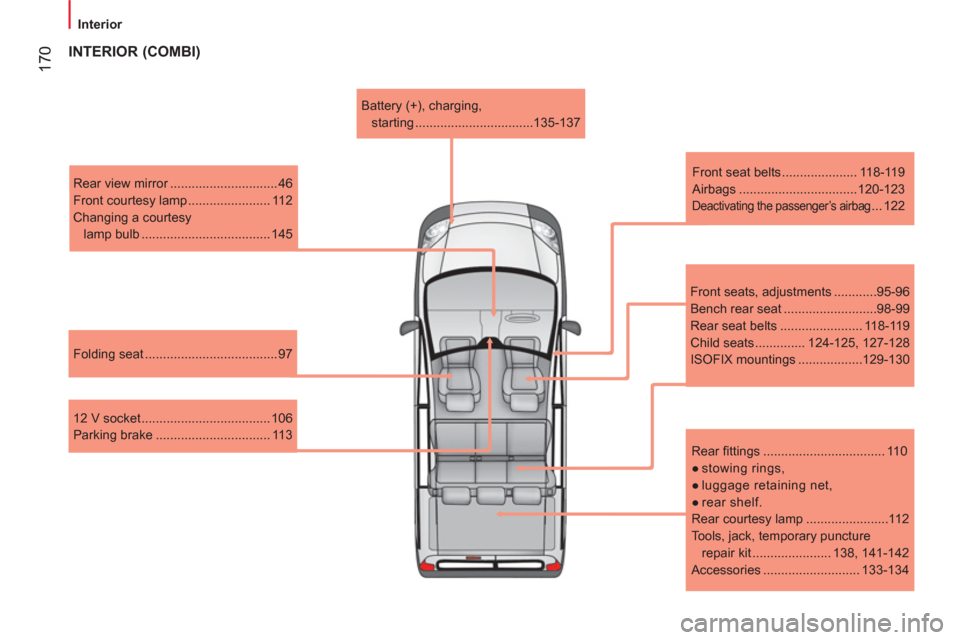

INTERIOR (COMBI)

Rear view mirror .............................. 46
Front courtesy lamp ....................... 112
Changing a courtesy
lamp bulb .................................... 145
Folding seat ..................................... 97
12 V socket .................................... 106
Parking brake ................................ 113 Battery (+), charging,
starting .................................135-137
Front seat belts ..................... 118-119
Airbags .................................120-123

Deactivating the passenger’s airbag ... 122
Front seats, adjustments ............95-96
Bench rear seat ..........................98-99
Rear seat belts ....................... 118-119
Child seats .............. 124-125, 127-128
ISOFIX mountings ..................129-130
Rear fi ttings .................................. 110


●
stowing rings,

●
luggage retaining net,

●
rear shelf.
Rear courtesy lamp .......................112
Tools, jack, temporary puncture
repair kit ...................... 138, 141-142
Accessories ........................... 133-134

17
1
8
VISUAL SEARCH


Interior

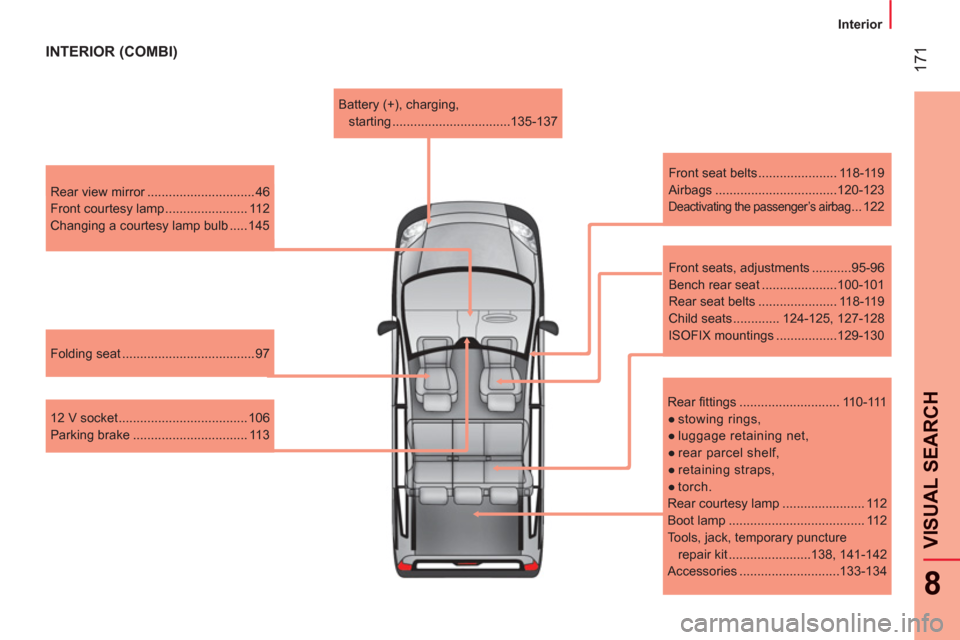

INTERIOR (COMBI)

Rear view mirror .............................. 46
Front courtesy lamp ....................... 112
Changing a courtesy lamp bulb ..... 145
Folding seat ..................................... 97
12 V socket .................................... 106
Parking brake ................................ 113 Battery (+), charging,
starting .................................135-137
Front seat belts ...................... 118-119
Airbags ..................................120-123
Deactivating the passenger’s airbag ... 122
Front seats, adjustments ...........95-96
Bench rear seat .....................100-101
Rear seat belts ...................... 118-119
Child seats ............. 124-125, 127-128
ISOFIX mountings .................129-130
Rear fi ttings ............................ 110-111


●
stowing rings,

●
luggage retaining net,

●
rear parcel shelf,

●
retaining straps,

●
torch.
Rear courtesy lamp ....................... 112
Boot lamp ...................................... 112
Tools, jack, temporary puncture
repair kit .......................138, 141-142
Accessories ............................133-134

172


Instruments and controls

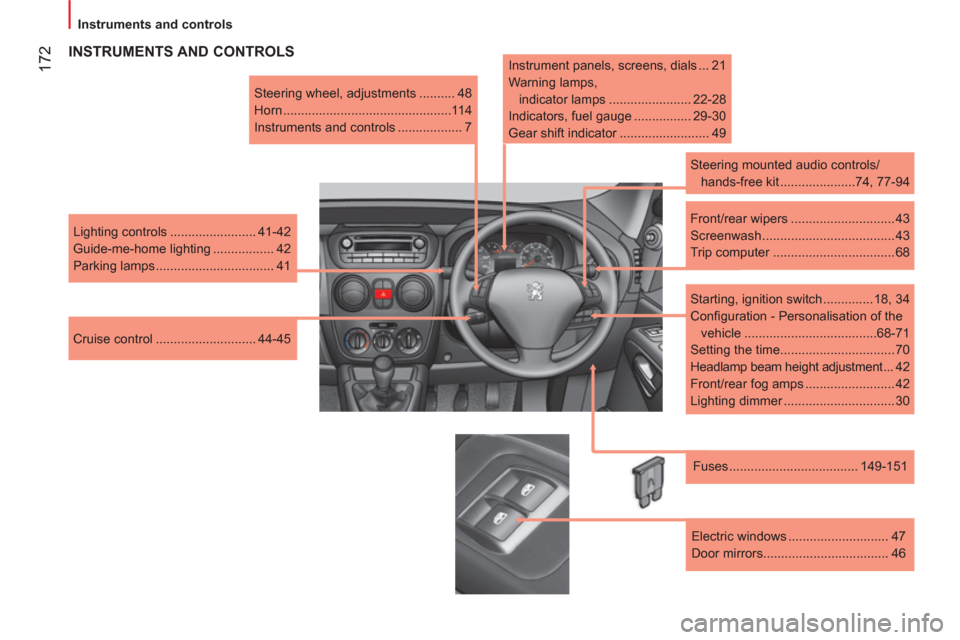

INSTRUMENTS AND CONTROLS

Steering wheel, adjustments .......... 48
Horn ...............................................114
Instruments and controls .................. 7
Lighting controls ........................ 41-42
Guide-me-home lighting ................. 42
Parking lamps ................................. 41
Cruise control ............................ 44-45 Instrument panels, screens, dials ... 21
Warning lamps,
indicator lamps ....................... 22-28
Indicators, fuel gauge ................ 29-30
Gear shift indicator ......................... 49
Steering mounted audio controls/
hands-free kit .....................74, 77-94
Front/rear wipers ............................. 43
Screenwash ..................................... 43
Trip computer .................................. 68
Starting, ignition switch .............. 18, 34
Confi guration - Personalisation of the
vehicle .....................................68-71
Setting the time................................ 70
Headlamp beam height adjustment ... 42
Front/rear fog amps ......................... 42
Lighting dimmer ............................... 30
Fuses .................................... 149-151
Electric windows ............................ 47
Door mirrors ................................... 46

17
3
8
VISUAL SEARCH

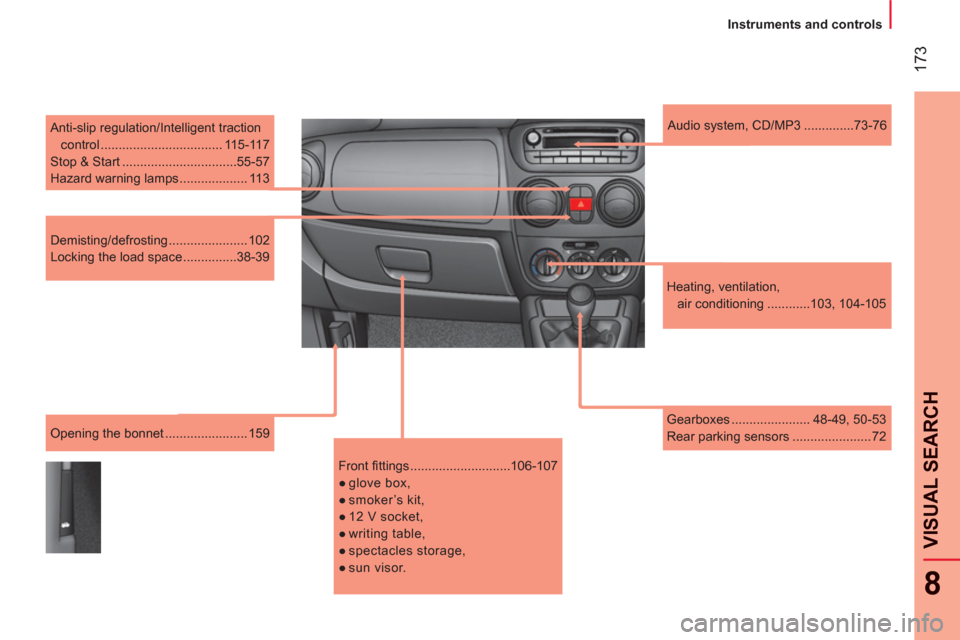

Instruments and controls
Anti-slip regulation/Intelligent traction
control .................................. 115-117
Stop & Start ................................55-57
Hazard warning lamps ................... 113
Demisting/defrosting ...................... 102
Locking the load space ...............38-39
Opening the bonnet ....................... 159
Front fi ttings ............................106-107


●
glove box,

●
smoker’s kit,

●
12 V socket,

●
writing table,

●
spectacles storage,

●
sun visor. Audio system, CD/MP3 ..............73-76
Gearboxes ...................... 48-49, 50-53
Rear parking sensors ...................... 72 Heating, ventilation,
air conditioning ............103, 104-105

174
Technical data - Maintenance

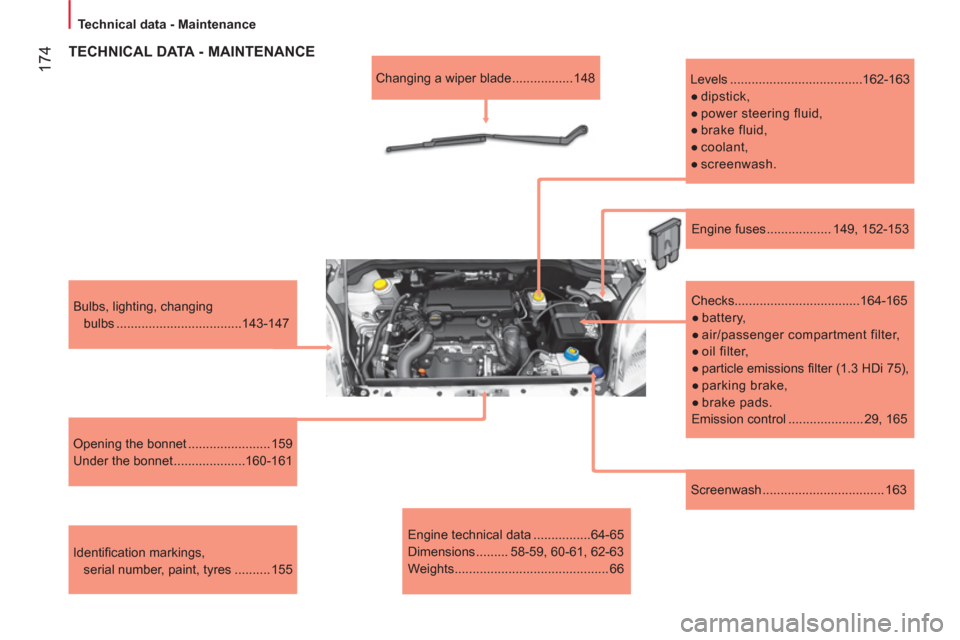

TECHNICAL DATA - MAINTENANCE

Screenwash .................................. 163 Bulbs, lighting, changing
bulbs ...................................143-147
Opening the bonnet ....................... 159
Under the bonnet ....................160-161
Identifi cation markings,
serial number, paint, tyres .......... 155 Changing a wiper blade ................. 148
Engine technical data ................64-65
Dimensions ......... 58-59, 60-61, 62-63
Weights ........................................... 66 Levels .....................................162-163


●
dipstick,

●
power steering fluid,

●
brake fluid,

●
coolant,

●
screenwash.
Checks...................................164-165


●
battery,

●
air/passenger compartment filter,

●
oil filter,

●
particle emissions fi lter (1.3 HDi 75),

●
parking brake,

●
brake pads.
Emission control ..................... 29, 165 Engine fuses .................. 149, 152-153

01-11
I 04-11
This handbook describes all of the
equipment available in the whole range.
Your vehicle will be fi tted with some
of this equipment described in this
document, depending on its trim level,
version and the specifi cation for the
country in which it is sold.
The descriptions and illustrations are
given without any obligation. Automobiles
PEUGEOT reserves the right to modify the
technical specifi cations, equipment and
accessories without having to update the
current handbook.
For any work on your vehicle, use
a qualifi ed workshop that has the
technical information, competence and
equipment required, which a PEUGEOT
dealer is able to provide. This document is an integral part of your
vehicle. It should be passed on to the
new user in the event of sale or transfer.
Automobiles PEUGEOT declares, by
application of the provisions of the
European regulation (Directive 2000/53)
relating to End of Life Vehicles, that
it achieves the objectives set by this
regulation and that recycled materials
are used in the manufacture of the
products that it sells. Reproduction or translation of all or part
of this handbook is prohibited without
written authorisation from Automobiles
PEUGEOT.
Printed in the EU
