Peugeot Bipper 2011 Owner's Manual - RHD (UK, Australia)

7
QUICK HEL
P

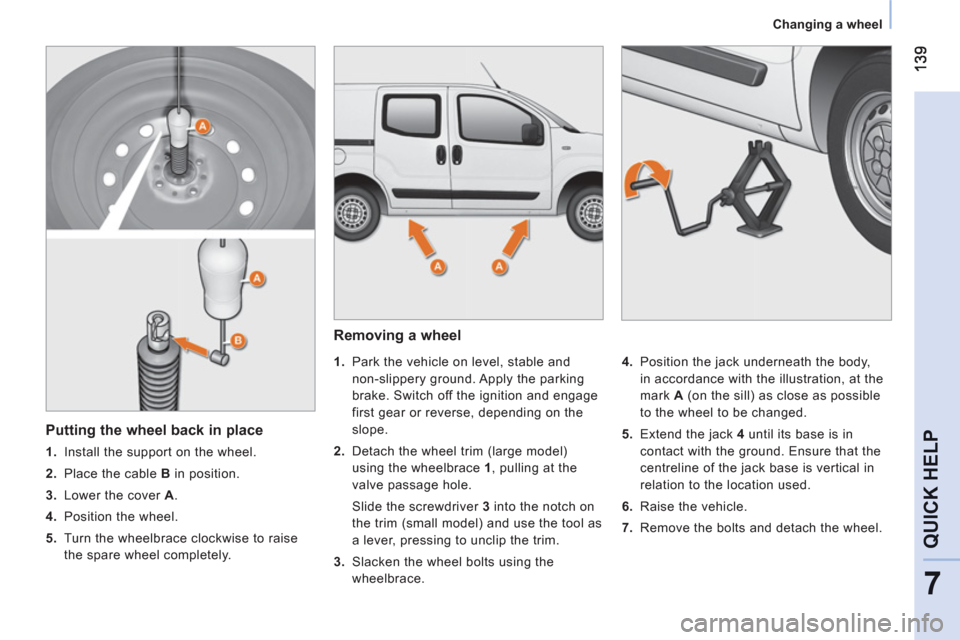

Changing a wheel

Removing a wheel




1.
Park the vehicle on level, stable and
non-slippery ground. Apply the parking
brake. Switch off the ignition and engage
first gear or reverse, depending on the
slope.

2.
Detach the wheel trim (large model)
using the wheelbrace 1
, pulling at the
valve passage hole.
Slide the screwdriver 3
into the notch on
the trim (small model) and use the tool as
a lever, pressing to unclip the trim.

3.
Slacken the wheel bolts using the
wheelbrace.
4.
Position the jack underneath the body,
in accordance with the illustration, at the
mark A
(on the sill) as close as possible
to the wheel to be changed.

5.
Extend the jack 4
until its base is in
contact with the ground. Ensure that the
centreline of the jack base is vertical in
relation to the location used.

6.
Raise the vehicle.

7.
Remove the bolts and detach the wheel.




Putting the wheel back in place



1.
Install the support on the wheel.

2.
Place the cable B
in position.

3.
Lower the cover A
.

4.
Position the wheel.

5.
Turn the wheelbrace clockwise to raise
the spare wheel completely.

14
0
Changing a wheel

Refitting a wheel


6.
Put the trim back in place, starting by
placing its notch facing the valve, and
press with the palm of your hand.

7.
Stow the tools and the wheel.

8.
Check the wheel inflation pressure
(see "Identification") and have the
balance checked. Refer to the "Identifi cation markings"
section of chapter 8 to locate the tyre label.
Have the tightening of the bolts and the
pressure of the spare wheel checked by a
PEUGEOT dealer or a qualified workshop
without delay.


1.
Put the wheel in place using the centring
guide 2
to assist you.

2.
Screw in the 3 bolts by hand and remove
the centring guide. Position the 4th bolt.

3.
Pre-tighten using the wheelbrace 1
.

4.
Fold the jack 4
and detach it.

5.
Tighten the wheel bolts using the
wheelbrace. Also, have the original wheel repaired
and refitted by a PEUGEOT dealer
or a qualified workshop as soon as
possible.

14
1
7
QUICK HEL
P
Changing a wheel

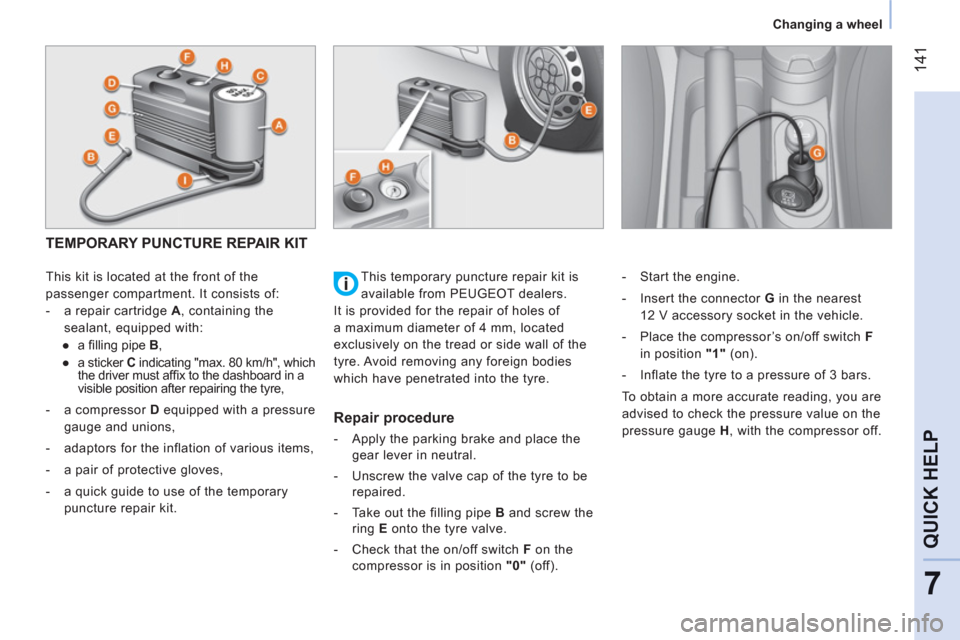

TEMPORARY PUNCTURE REPAIR KIT

This kit is located at the front of the
passenger compartment. It consists of:


- a repair cartridge A
, containing the
sealant, equipped with:


●
a fi lling pipe B
,

●
a sticker C
indicating "max. 80 km/h", which
the driver must affi x to the dashboard in a
visible position after repairing the tyre,

- a compressor D
equipped with a pressure
gauge and unions,

- adaptors for the inflation of various items,

- a pair of protective gloves,

- a quick guide to use of the temporary
puncture repair kit.


Repair procedure



- Apply the parking brake and place the
gear lever in neutral.

- Unscrew the valve cap of the tyre to be
repaired.

- Take out the filling pipe B
and screw the
ring E
onto the tyre valve.

- Check that the on/off switch F
on the
compressor is in position "0"
(off).
- Start the engine.

- Insert the connector G
in the nearest
12 V accessory socket in the vehicle.

- Place the compressor’s on/off switch F
in position "1"
(on).

- Inflate the tyre to a pressure of 3 bars.
To obtain a more accurate reading, you are
advised to check the pressure value on the
pressure gauge H
, with the compressor off. This temporary puncture repair kit is
available from PEUGEOT dealers.
It is provided for the repair of holes of
a maximum diameter of 4 mm, located
exclusively on the tread or side wall of the
tyre. Avoid removing any foreign bodies
which have penetrated into the tyre.

142
Changing a wheel

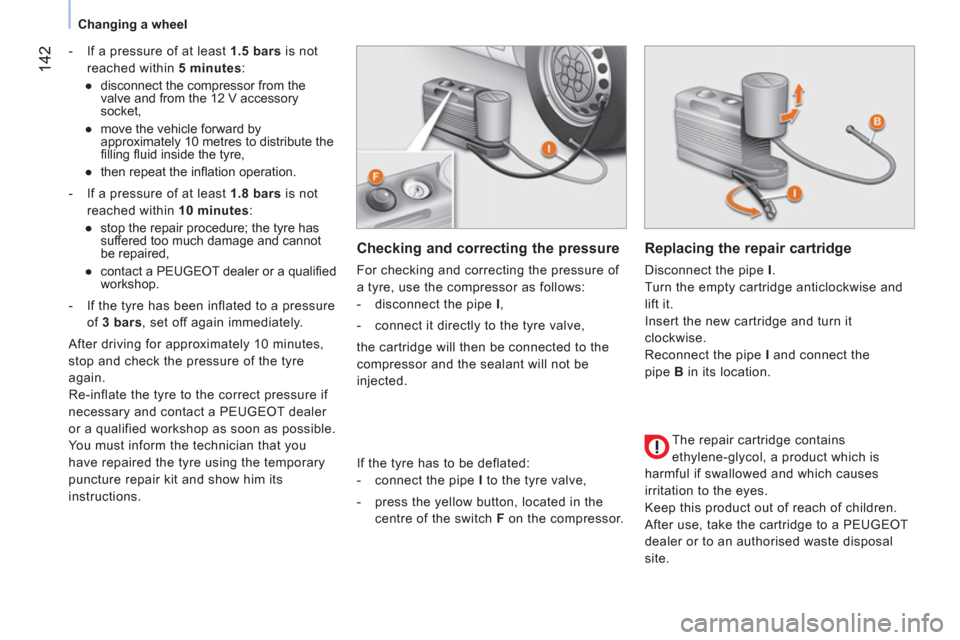

- If a pressure of at least 1.5 bars
is not
reached within 5 minutes
:


●
disconnect the compressor from the
valve and from the 12 V accessory
socket,

●
move the vehicle forward by
approximately 10 metres to distribute the
fi lling fl uid inside the tyre,

●
then repeat the infl ation operation.



- If a pressure of at least 1.8 bars
is not
reached within 10 minutes
:


●
stop the repair procedure; the tyre has
suffered too much damage and cannot
be repaired,

●
contact a PEUGEOT dealer or a qualifi ed
workshop.



- If the tyre has been inflated to a pressure
of 3 bars
, set off again immediately.
After driving for approximately 10 minutes,
stop and check the pressure of the tyre
again.
Re-inflate the tyre to the correct pressure if
necessary and contact a PEUGEOT dealer
or a qualified workshop as soon as possible.
You must inform the technician that you
have repaired the tyre using the temporary
puncture repair kit and show him its
instructions.


Checking and correcting the pressure

For checking and correcting the pressure of
a tyre, use the compressor as follows:


- disconnect the pipe I
,

- connect it directly to the tyre valve,
the cartridge will then be connected to the
compressor and the sealant will not be
injected.

Replacing the repair cartridge

Disconnect the pipe I
.
Turn the empty cartridge anticlockwise and
lift it.
Insert the new cartridge and turn it
clockwise.
Reconnect the pipe I
and connect the
pipe B
in its location.

The repair cartridge contains
ethylene-glycol, a product which is
harmful if swallowed and which causes
irritation to the eyes.
Keep this product out of reach of children.
After use, take the cartridge to a PEUGEOT
dealer or to an authorised waste disposal
site. If the tyre has to be deflated:


- connect the pipe I
to the tyre valve,

- press the yellow button, located in the
centre of the switch F
on the compressor.

14
3
7
QUICK HEL
P
Changing a bulb

Front lamps

Open the bonnet. To access the bulbs, reach
behind the headlamp unit.
Remove the protective covers to gain
access to the bulbs.
Carry out the operations in reverse order to
refit each bulb.

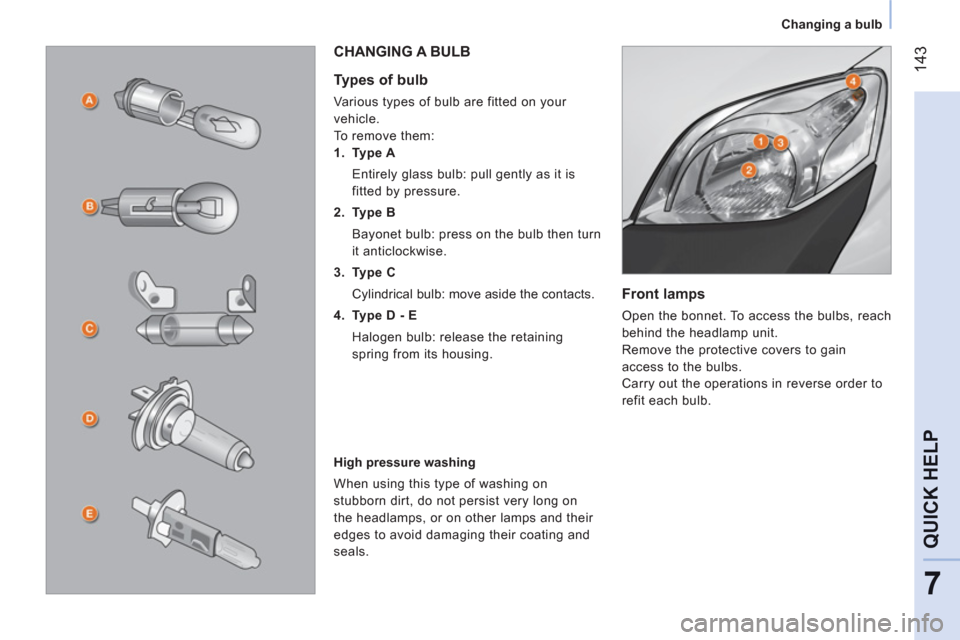

CHANGING A BULB

Types of bulb

Various types of bulb are fitted on your
vehicle.
To remove them:


1.
Type A
Entirely glass bulb: pull gently as it is
fitted by pressure.

2.
Type B
Bayonet bulb: press on the bulb then turn
it anticlockwise.

3.
Type C
Cylindrical bulb: move aside the contacts.

4.
Type D - E
Halogen bulb: release the retaining
spring from its housing.

High pressure washing
When using this type of washing on
stubborn dirt, do not persist very long on
the headlamps, or on other lamps and their
edges to avoid damaging their coating and
seals.

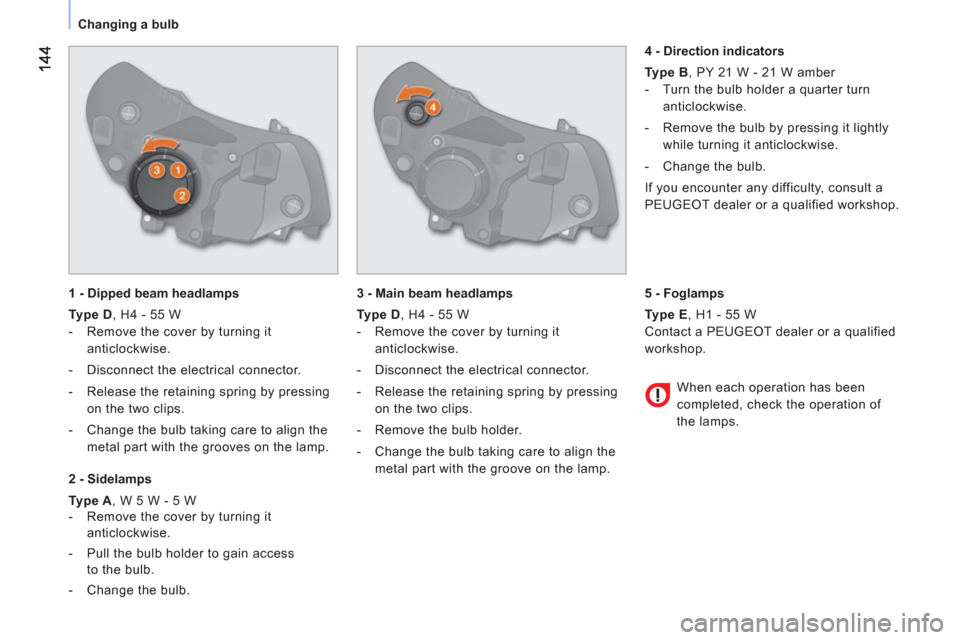

Changing a bulb

1 - Dipped beam headlamps

Type D
, H4 - 55 W


- Remove the cover by turning it
anticlockwise.

- Disconnect the electrical connector.

- Release the retaining spring by pressing
on the two clips.

- Change the bulb taking care to align the
metal part with the grooves on the lamp.


2 - Sidelamps

Type A
, W 5 W - 5 W


- Remove the cover by turning it
anticlockwise.

- Pull the bulb holder to gain access
to the bulb.

- Change the bulb.

3 - Main beam headlamps

Type D
, H4 - 55 W


- Remove the cover by turning it
anticlockwise.

- Disconnect the electrical connector.

- Release the retaining spring by pressing
on the two clips.

- Remove the bulb holder.

- Change the bulb taking care to align the
metal part with the groove on the lamp.

4 - Direction indicators

Type B
, PY 21 W - 21 W amber


- Turn the bulb holder a quarter turn
anticlockwise.

- Remove the bulb by pressing it lightly
while turning it anticlockwise.

- Change the bulb.
If you encounter any difficulty, consult a
PEUGEOT dealer or a qualified workshop.

When each operation has been
completed, check the operation of
the lamps.

5 - Foglamps

Type E
, H1 - 55 W
Contact a PEUGEOT dealer or a qualified
workshop.

14
5
7
QUICK HEL
P
Changing a bulb

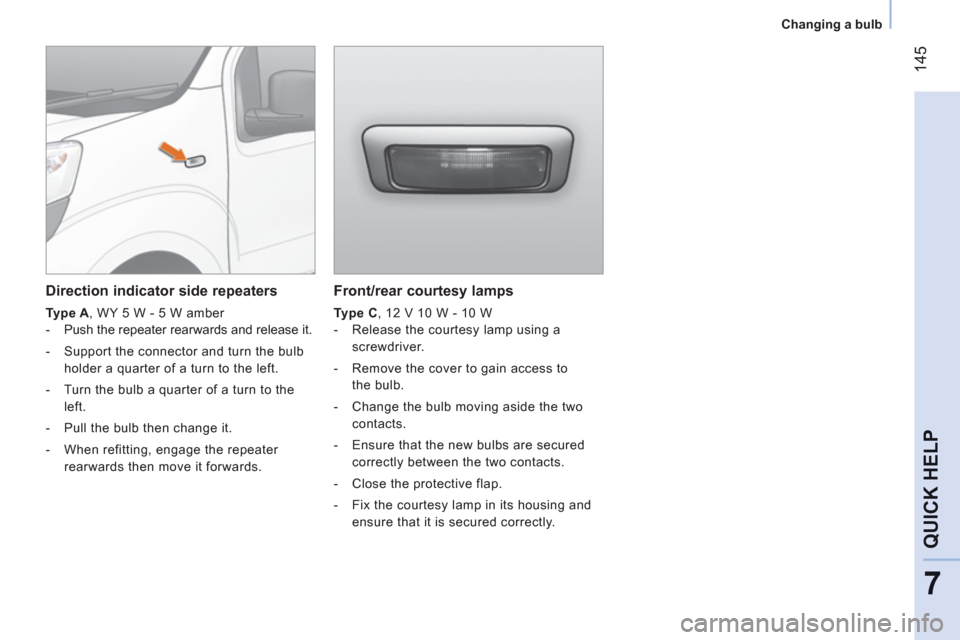

Front/rear courtesy lamps


Type C
, 12 V 10 W - 10 W


- Release the courtesy lamp using a
screwdriver.

- Remove the cover to gain access to
the bulb.

- Change the bulb moving aside the two
contacts.

- Ensure that the new bulbs are secured
correctly between the two contacts.

- Close the protective flap.

- Fix the courtesy lamp in its housing and
ensure that it is secured correctly.



Direction indicator side repeaters


Type A
, WY 5 W - 5 W amber


- Push the repeater rearwards and release it.

- Support the connector and turn the bulb
holder a quarter of a turn to the left.

- Turn the bulb a quarter of a turn to the
left.

- Pull the bulb then change it.

- When refitting, engage the repeater
rearwards then move it forwards.

14
6
Changing a bulb

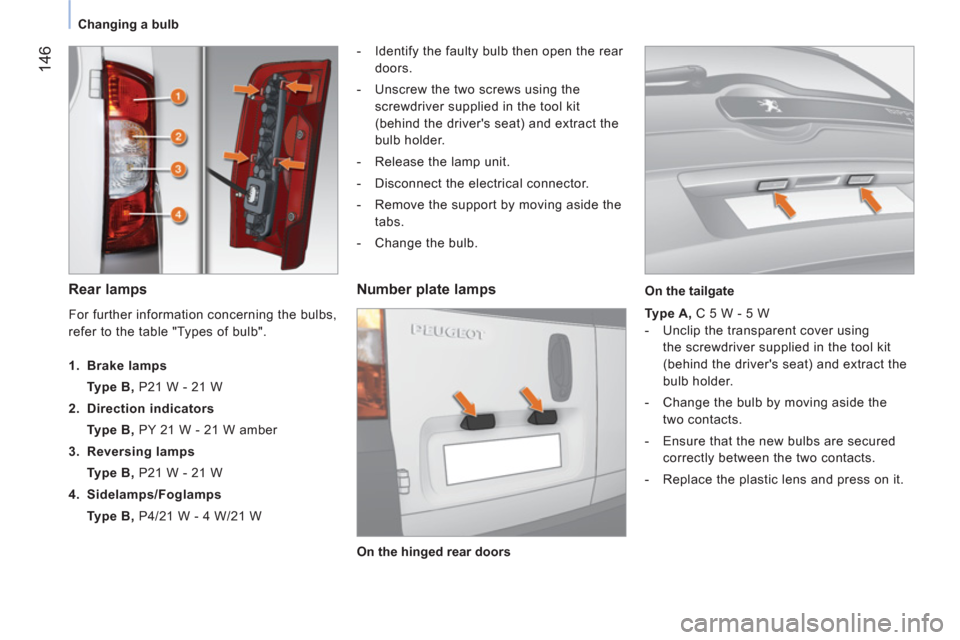

Rear lamps



- Identify the faulty bulb then open the rear
doors.

- Unscrew the two screws using the
screwdriver supplied in the tool kit
(behind the driver's seat) and extract the
bulb holder.

- Release the lamp unit.

- Disconnect the electrical connector.

- Remove the support by moving aside the
tabs.

- Change the bulb.


Number plate lamps


Type A, C 5 W - 5 W


- Unclip the transparent cover using
the screwdriver supplied in the tool kit
(behind the driver's seat) and extract the
bulb holder.

- Change the bulb by moving aside the
two contacts.

- Ensure that the new bulbs are secured
correctly between the two contacts.

- Replace the plastic lens and press on it.
For further information concerning the bulbs,
refer to the table "Types of bulb".



1. Brake lamps
Type B, P21 W - 21 W

2. Direction indicators
Type B, PY 21 W - 21 W amber

3. Reversing lamps
Type B, P21 W - 21 W

4. Sidelamps/Foglamps
Type B, P4/21 W - 4 W/21 W

On the hinged rear doors
On the tailgate

14
7
7
QUICK HEL
P
Changing a bulb

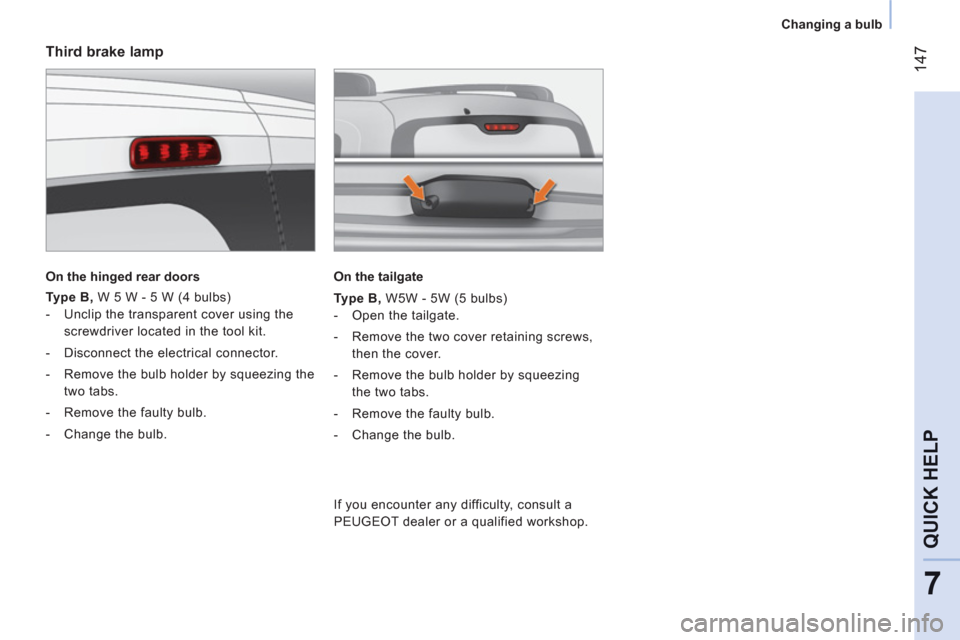

Third brake lamp


On the hinged rear doors


Type B,
W 5 W - 5 W (4 bulbs)


- Unclip the transparent cover using the
screwdriver located in the tool kit.

- Disconnect the electrical connector.

- Remove the bulb holder by squeezing the
two tabs.

- Remove the faulty bulb.

- Change the bulb.

On the tailgate

Type B,
W5W - 5W (5 bulbs)


- Open the tailgate.

- Remove the two cover retaining screws,
then the cover.

- Remove the bulb holder by squeezing
the two tabs.

- Remove the faulty bulb.

- Change the bulb.


If you encounter any difficulty, consult a
PEUGEOT dealer or a qualified workshop.

14
8
Changing a wiper blade

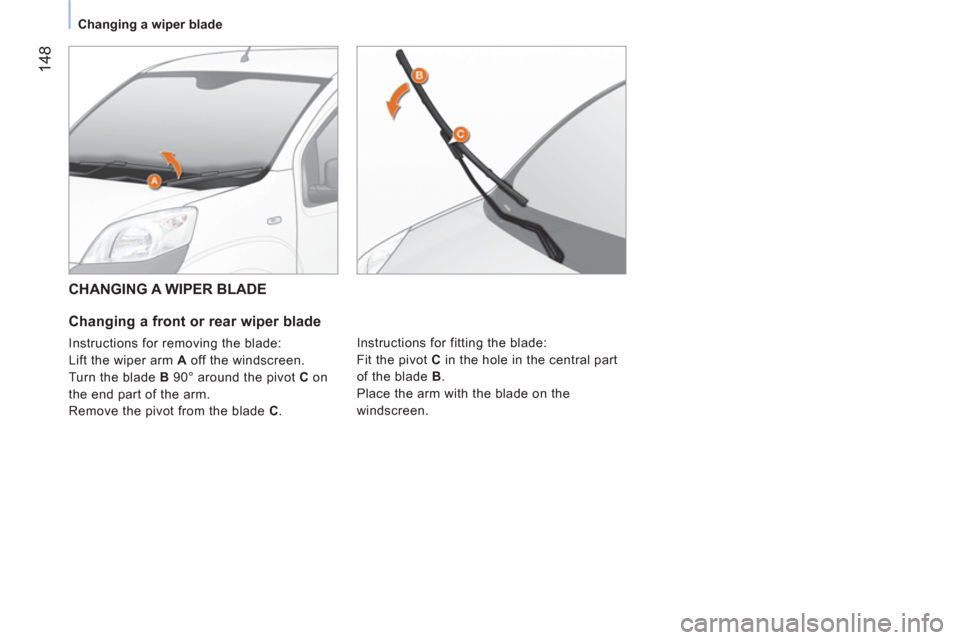

CHANGING A WIPER BLADE

Changing a front or rear wiper blade

Instructions for removing the blade:
Lift the wiper arm A off the windscreen.
Turn the blade B 90° around the pivot C on
the end part of the arm.
Remove the pivot from the blade C . Instructions for fitting the blade:
Fit the pivot C in the hole in the central part
of the blade B .
Place the arm with the blade on the
windscreen.
