Peugeot Bipper 2011 - RHD (UK, Australia) User Guide

9
FAMILIARISATIO
N
Familiarisation

REAR FITTINGS (COMBI)




110


With side-hinged rear doors



1.
Stowing rings.

2.
Luggage retaining net.

3.
Tool kit.

4.
Rear parcel shelf.


With tailgate



1.
Stowing rings.

2.
Luggage retaining net.

3.
Rear parcel shelf.

4.
Retaining straps/Tool kit.

5.
Torch/Boot lamp.

10
Familiarisation

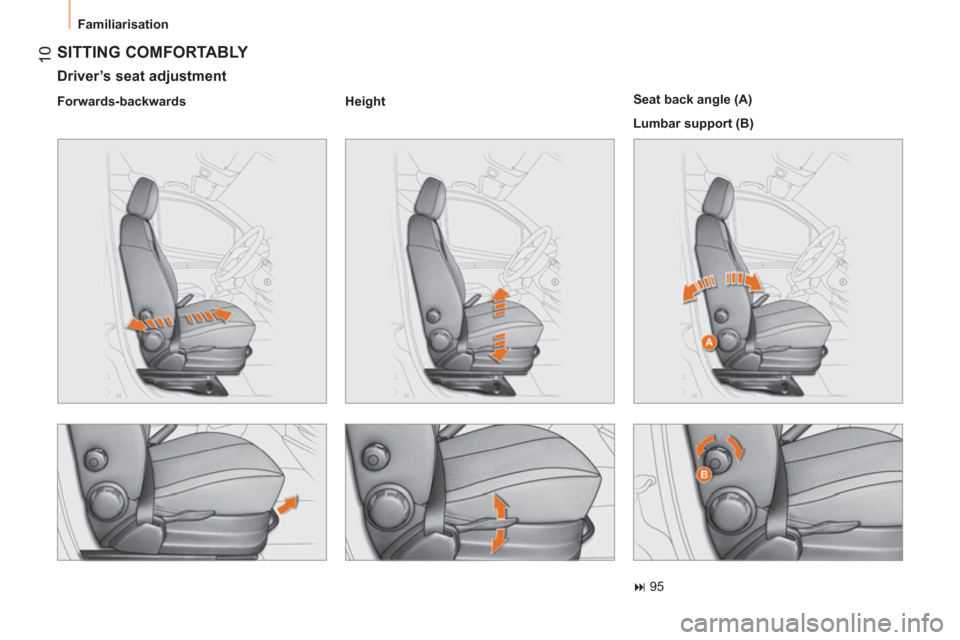

SITTING COMFORTABLY


Driver’s seat adjustment


Forwards-backwards
Height


Seat back angle (A)
Lumbar support (B)



95

11
FAMILIARISATIO
N
Familiarisation


Front seat belts



A.
Fastening.



118


SITTING COMFORTABLY


Steering wheel adjustment



1.
Release the adjustment mechanism.

2.
Adjust for the height and reach.

3.
Lock the adjustment mechanism.
As a safety precaution, these operations
must be carried out while stationary.



48



Electric door mirror adjustment


A.
Selection of the driver’s mirror.

B.
Selection of the passenger’s mirror.

C.
Adjustment of the position of the mirror.



46





Rear view mirror adjustment



1.
Selection of the "day/night" position of the
mirror.

2.
Adjustment of the position of the mirror.



46

12
Familiarisation

SEEING CLEARLY


Ring
Lighting off.
Sidelamps.
Dipped/main beam headlamps.

Foglamps
Rear foglamp.
or
Front and rear foglamps.



41




Direction indicators


"Motorway" function
Press the lighting control stalk up or down
once, without passing the point of resistance;
the corresponding direction indicators will fl ash
three times.



41




Wipers


Ring A: windscreen wipers



43


Ring B: rear wiper



43

Single wipe.
Intermittent wipe.
Screenwash. Screenwash.
Park.


Lighting

Park.
Intermittent.
Slow continuous.
Rapid continuous. Raise or lower the lighting control stalk past
the point of resistance; the corresponding
direction indicators will fl ash until the control is
moved out of this position.

13
FAMILIARISATIO
N
Familiarisation



103

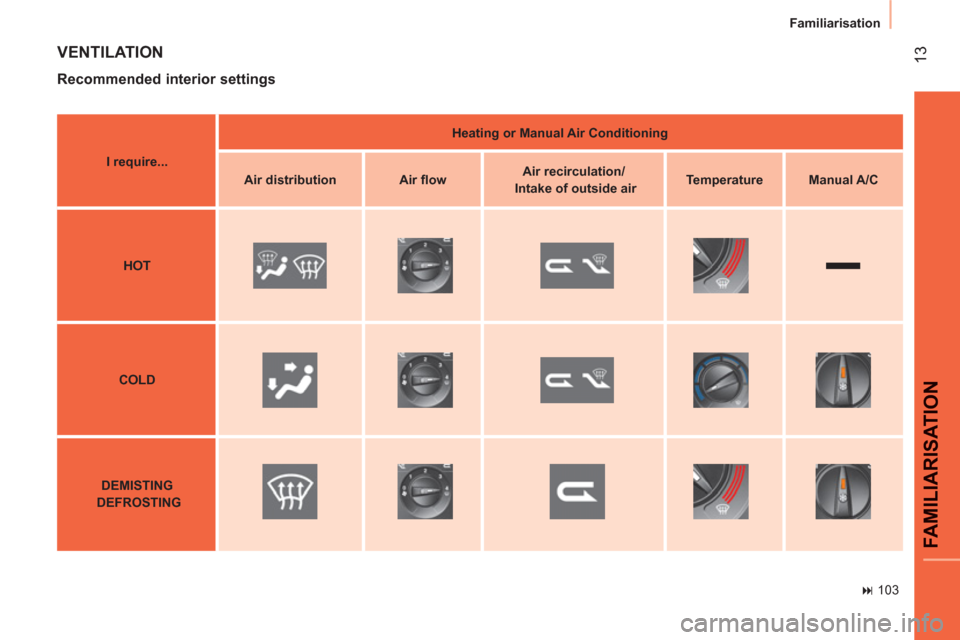

VENTILATION


Recommended interior settings



I require...



Heating or Manual Air Conditioning




Air distribution



Air fl ow



Air recirculation/


Intake of outside air



Temperature



Manual A/C




HOT





COLD





DEMISTING

DEFROSTING

14
Familiarisation

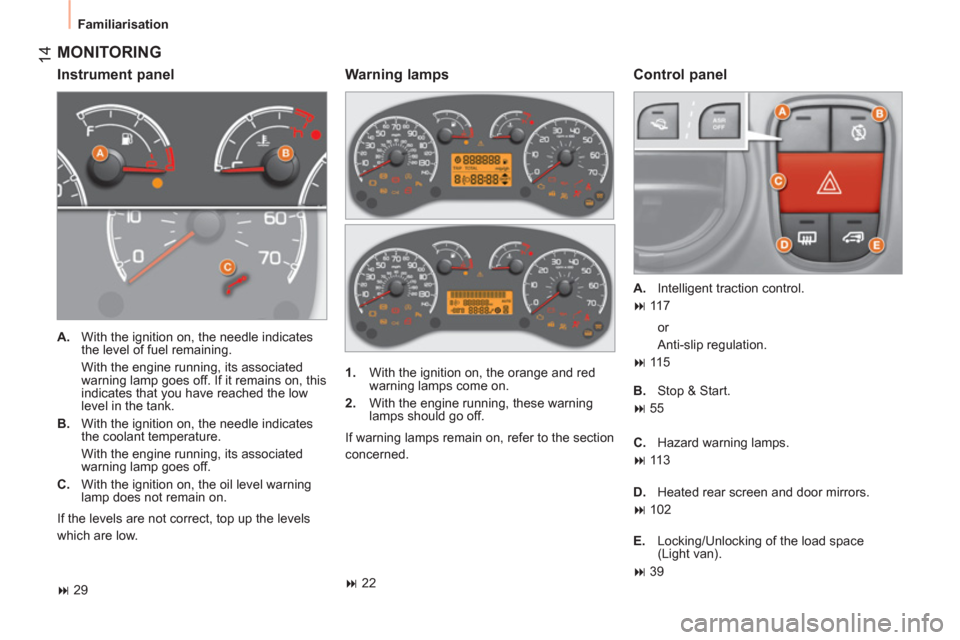

MONITORING


Instrument panel
Control panel



A.
With the ignition on, the needle indicates
the level of fuel remaining.
With the engine running, its associated
warning lamp goes off. If it remains on, this
indicates that you have reached the low
level in the tank.

B.
With the ignition on, the needle indicates
the coolant temperature.
With the engine running, its associated
warning lamp goes off.

C.
With the ignition on, the oil level warning
lamp does not remain on.
If the levels are not correct, top up the levels
which are low.

A.
Intelligent traction control.

117


1.
With the ignition on, the orange and red
warning lamps come on.

2.
With the engine running, these warning
lamps should go off.
If warning lamps remain on, refer to the section
concerned.

Warning lamps




29
or
Anti-slip regulation.

115

B.
Stop & Start.

55

C.
Hazard warning lamps.

113

D.
Heated rear screen and door mirrors.


102

E.
Locking/Unlocking of the load space
(Light van).


39





22

FAMILIARISATIO
N
Familiarisation

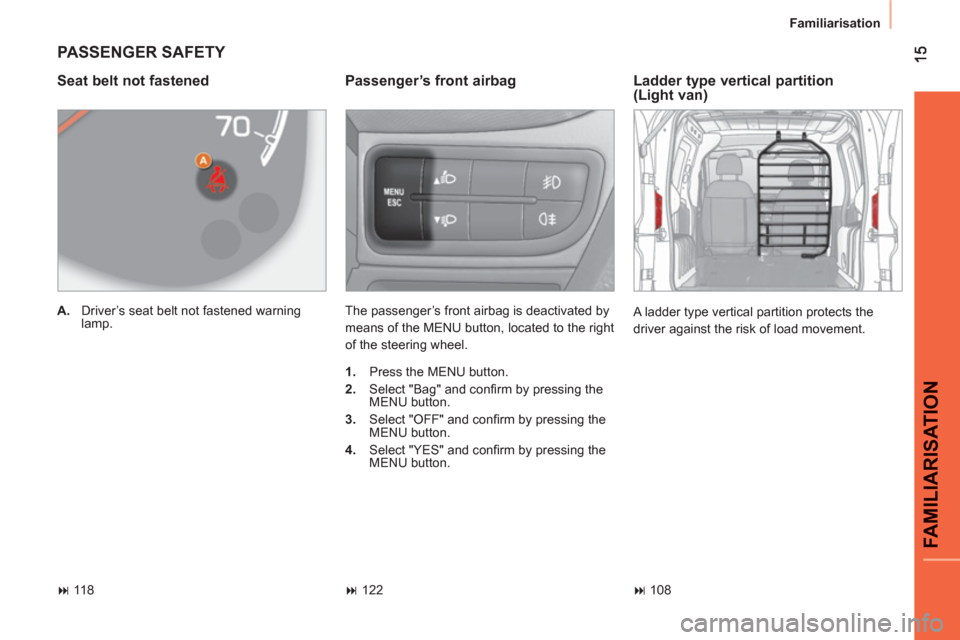

PASSENGER SAFETY


Passenger’s front airbag

The passenger’s front airbag is deactivated by
means of the MENU button, located to the right
of the steering wheel.

Seat belt not fastened



A.
Driver’s seat belt not fastened warning
lamp.



118



122



Ladder type vertical partition
(Light van)
A ladder type vertical partition protects the
driver against the risk of load movement.



108


1.
Press the MENU button.

2.
Select "Bag" and confi rm by pressing the
MENU button.

3.
Select "OFF" and confi rm by pressing the
MENU button.

4.
Select "YES" and confi rm by pressing the
MENU button.

16
Familiarisation

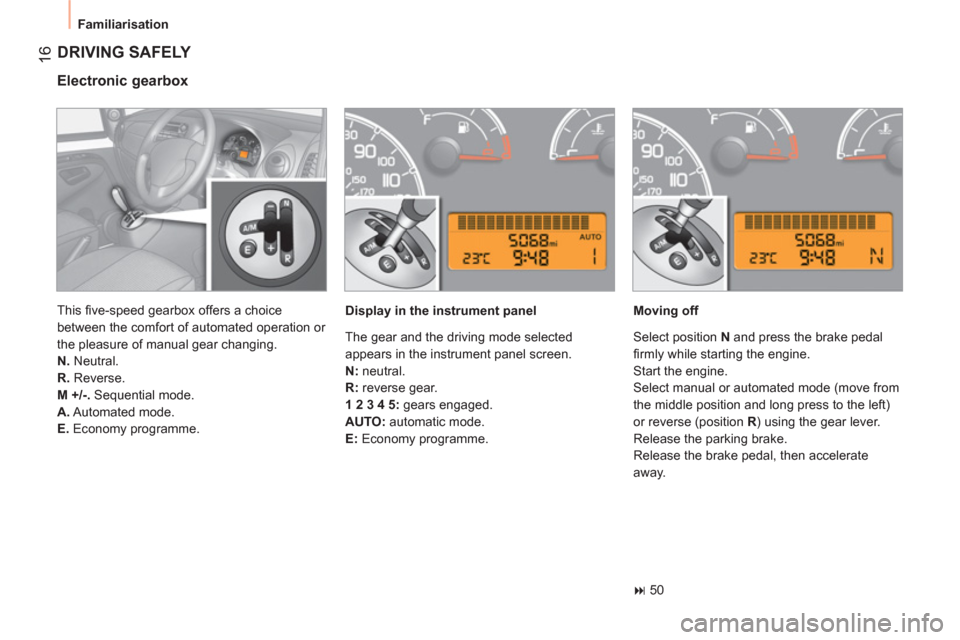

DRIVING SAFELY


Electronic gearbox


Display in the instrument panel
Moving off



50
This fi ve-speed gearbox offers a choice
between the comfort of automated operation or
the pleasure of manual gear changing.

N.
Neutral.

R.
Reverse.

M +/-.
Sequential mode.

A.
Automated mode.

E.
Economy programme. The gear and the driving mode selected
appears in the instrument panel screen.

N:
neutral.

R:
reverse gear.

1 2 3 4 5:
gears engaged.

AUTO:
automatic mode.

E:
Economy programme. Select position N
and press the brake pedal
fi rmly while starting the engine.
Start the engine.
Select manual or automated mode (move from
the middle position and long press to the left)
or reverse (position R
) using the gear lever.
Release the parking brake.
Release the brake pedal, then accelerate
away.

FAMILIARISATIO
N
Familiarisation

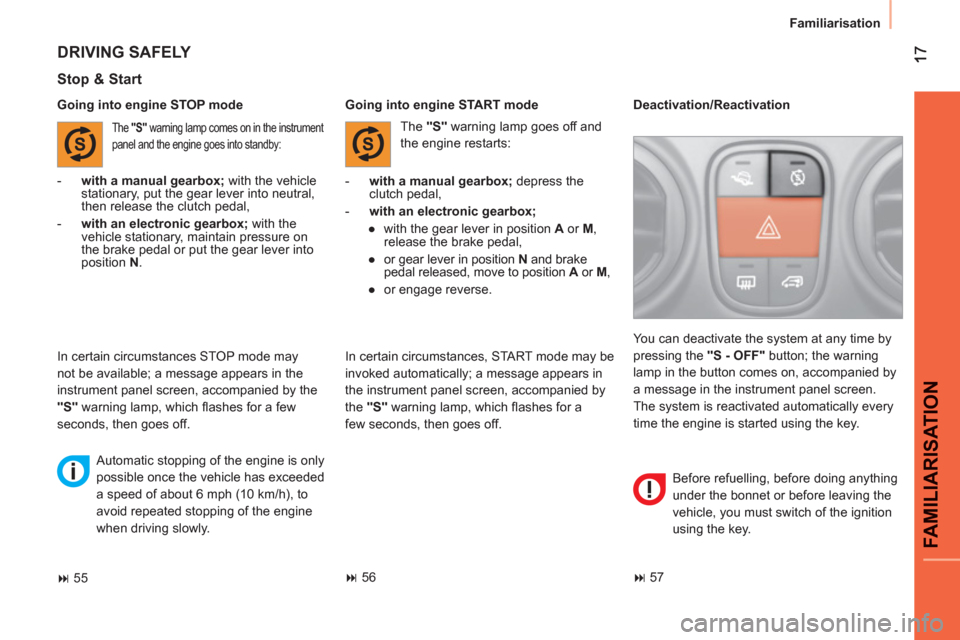

Going into engine STOP mode


Stop & Start



- with a manual gearbox;
depress the
clutch pedal,

- with an electronic gearbox;



●
with the gear lever in position A
or M
,
release the brake pedal,

●
or gear lever in position N
and brake
pedal released, move to position A
or M
,

●
or engage reverse.

Going into engine START mode

DRIVING SAFELY


Deactivation/Reactivation


- with a manual gearbox;
with the vehicle
stationary, put the gear lever into neutral,
then release the clutch pedal,

- with an electronic gearbox;
with the
vehicle stationary, maintain pressure on
the brake pedal or put the gear lever into
position N
.
You can deactivate the system at any time by
pressing the "S - OFF"
button; the warning
lamp in the button comes on, accompanied by
a message in the instrument panel screen.
The system is reactivated automatically every
time the engine is started using the key. In certain circumstances, START mode may be
invoked automatically; a message appears in
the instrument panel screen, accompanied by
the "S"
warning lamp, which fl ashes for a
few seconds, then goes off.
Before refuelling, before doing anything
under the bonnet or before leaving the
vehicle, you must switch of the ignition
using the key. In certain circumstances STOP mode may
not be available; a message appears in the
instrument panel screen, accompanied by the
"S"
warning lamp, which fl ashes for a few
seconds, then goes off.



55



56




57



The "S"
warning lamp comes on in the instrument
panel and the engine goes into standby: The "S"
warning lamp goes off and
the engine restarts:
Automatic stopping of the engine is only
possible once the vehicle has exceeded
a speed of about 6 mph (10 km/h), to
avoid repeated stopping of the engine
when driving slowly.
1717

18
Familiarisation

DRIVING SAFELY

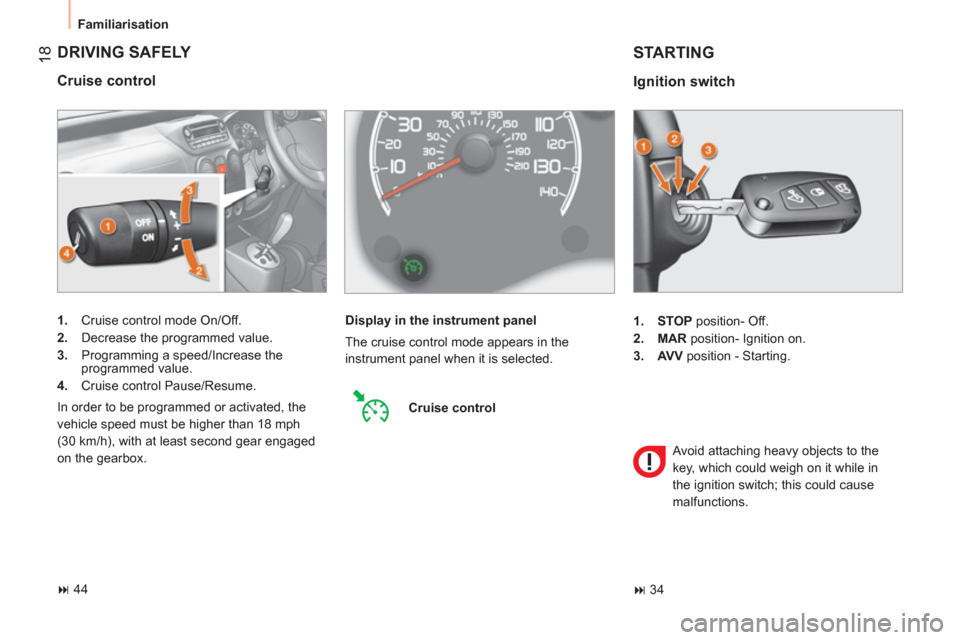

Cruise control



1.
Cruise control mode On/Off.

2.
Decrease the programmed value.

3.
Programming a speed/Increase the
programmed value.

4.
Cruise control Pause/Resume.
In order to be programmed or activated, the
vehicle speed must be higher than 18 mph
(30 km/h), with at least second gear engaged
on the gearbox.

Display in the instrument panel
The cruise control mode appears in the
instrument panel when it is selected.

1.
STOP
position- Off.

2.
MAR
position- Ignition on.

3.
AV V
position - Starting.


Ignition switch
STARTING

Avoid attaching heavy objects to the
key, which could weigh on it while in
the ignition switch; this could cause
malfunctions.



34

Cruise control




44
