Peugeot Bipper 2011 - RHD (UK, Australia) Owner's Guide

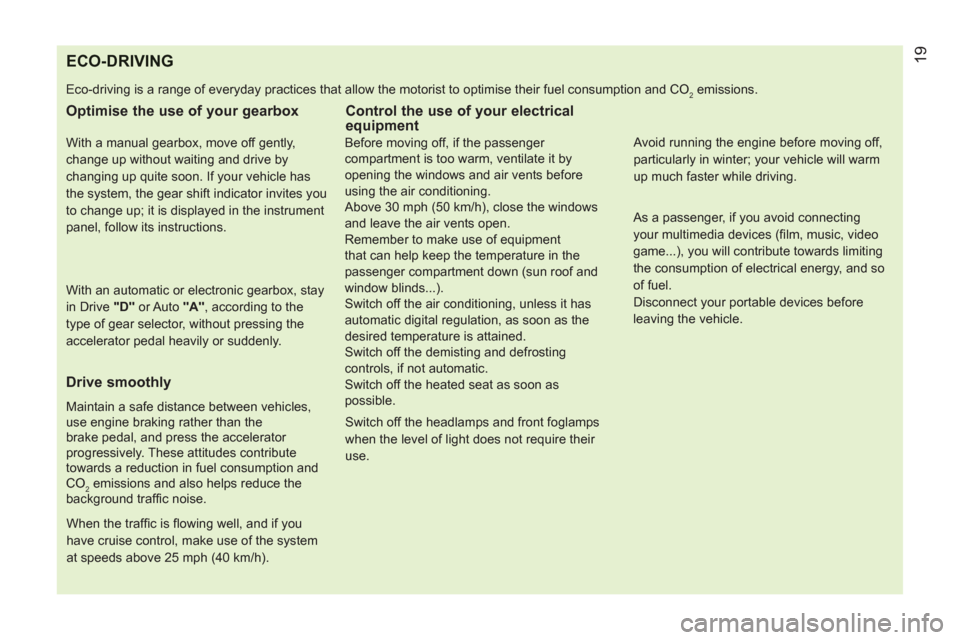

ECO-DRIVING
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.


Optimise the use of your gearbox


With a manual gearbox, move off gently,
change up without waiting and drive by
changing up quite soon. If your vehicle has
the system, the gear shift indicator invites you
to change up; it is displayed in the instrument
panel, follow its instructions.

With an automatic or electronic gearbox, stay
in Drive "D"
or Auto "A"
, according to the
type of gear selector, without pressing the
accelerator pedal heavily or suddenly.



Drive smoothly


Maintain a safe distance between vehicles,
use engine braking rather than the
brake pedal, and press the accelerator
progressively. These attitudes contribute
towards a reduction in fuel consumption and
CO
2 emissions and also helps reduce the
background traffi c noise.

When the traffi c is fl owing well, and if you
have cruise control, make use of the system
at speeds above 25 mph (40 km/h).



Control the use of your electrical
equipment

Before moving off, if the passenger
compartment is too warm, ventilate it by
opening the windows and air vents before
using the air conditioning.
Above 30 mph (50 km/h), close the windows
and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature in the
passenger compartment down (sun roof and
window blinds...).
Switch off the air conditioning, unless it has
automatic digital regulation, as soon as the
desired temperature is attained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.
19


Switch off the headlamps and front foglamps
when the level of light does not require their
use.
Avoid running the engine before moving off,
particularly in winter; your vehicle will warm
up much faster while driving.

As a passenger, if you avoid connecting
your multimedia devices (fi lm, music, video
game...), you will contribute towards limiting
the consumption of electrical energy, and so
of fuel.
Disconnect your portable devices before
leaving the vehicle.

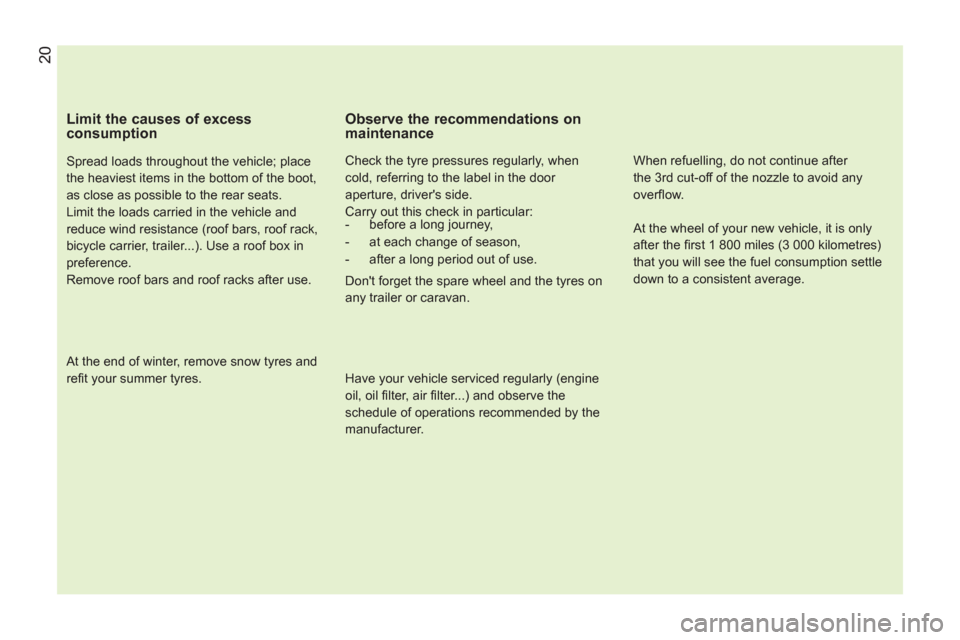

Limit the causes of excess
consumption

Spread loads throughout the vehicle; place
the heaviest items in the bottom of the boot,
as close as possible to the rear seats.
Limit the loads carried in the vehicle and
reduce wind resistance (roof bars, roof rack,
bicycle carrier, trailer...). Use a roof box in
preference.
Remove roof bars and roof racks after use.

At the end of winter, remove snow tyres and
refi t your summer tyres.



Observe the recommendations on
maintenance

Check the tyre pressures regularly, when
cold, referring to the label in the door
aperture, driver's side.
Carry out this check in particular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the tyres on
any trailer or caravan.

Have your vehicle serviced regularly (engine
oil, oil fi lter, air fi lter...) and observe the
schedule of operations recommended by the
manufacturer.


When refuelling, do not continue after
the 3 rd cut-off of the nozzle to avoid any
overfl ow.

At the wheel of your new vehicle, it is only
after the fi rst 1 800 miles (3 000 kilometres)
that you will see the fuel consumption settle
down to a consistent average.

20

21
1
READY TO SET OFF

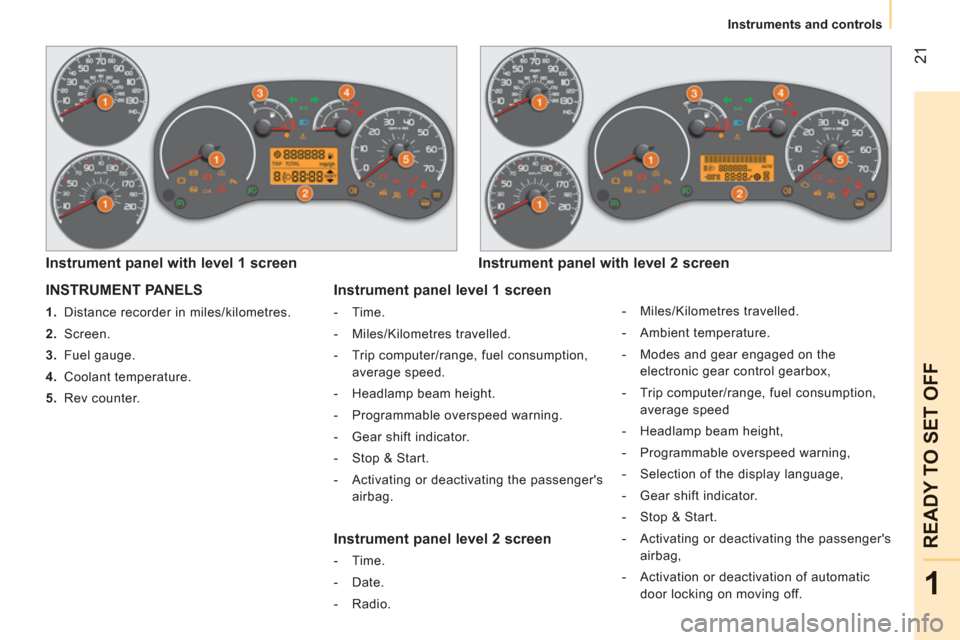

Instruments and controls
INSTRUMENT PANELS



1.
Distance recorder in miles/kilometres.

2.
Screen.

3.
Fuel gauge.

4.
Coolant temperature.

5.
Rev counter.


Instrument panel with level 1 screen
Instrument panel with level 2 screen

Instrument panel level 1 screen



- Time.

- Miles/Kilometres travelled.

- Trip computer/range, fuel consumption,
average speed.

- Headlamp beam height.

- Programmable overspeed warning.

- Gear shift indicator.

- Stop & Start.

- Activating or deactivating the passenger's
airbag.



Instrument panel level 2 screen



- Time.

- Date.

- Radio.
- Miles/Kilometres travelled.

- Ambient temperature.

- Modes and gear engaged on the
electronic gear control gearbox,

- Trip computer/range, fuel consumption,
average speed

- Headlamp beam height,

- Programmable overspeed warning,

- Selection of the display language,

- Gear shift indicator.

- Stop & Start.

- Activating or deactivating the passenger's
airbag,

- Activation or deactivation of automatic
door locking on moving off.

22


Instruments and controls

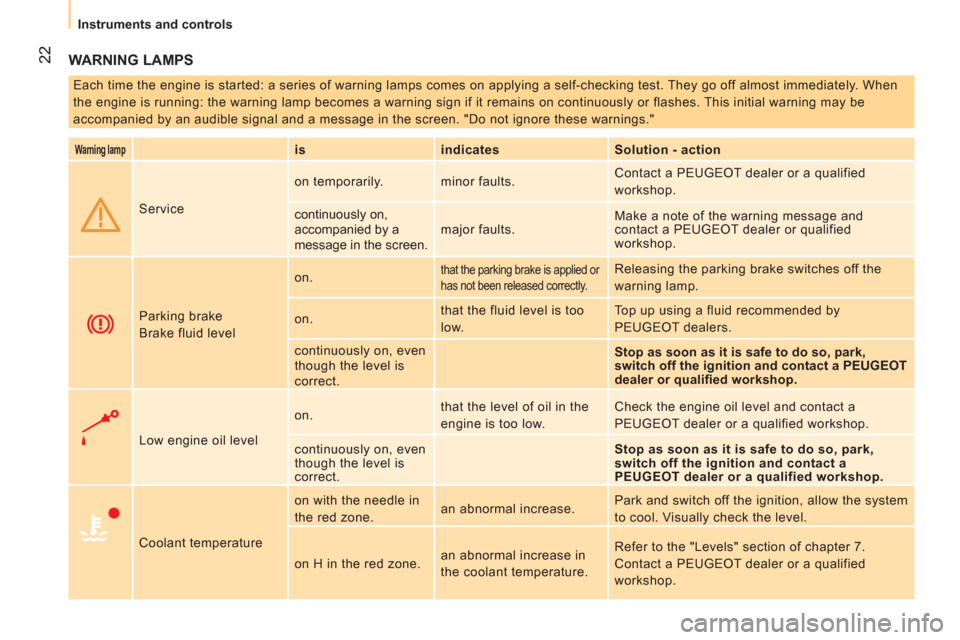

WARNING LAMPS

Each time the engine is started: a series of warning lamps comes on applying a self-checking test. They go off almost immediately. When
the engine is running: the warning lamp becomes a warning sign if it remains on continuously or flashes. This initial warning may be
accompanied by an audible signal and a message in the screen. "Do not ignore these warnings."

Warning lamp


is
indicates
Solution - action
Service on temporarily. minor faults. Contact a PEUGEOT dealer or a qualified
workshop.
continuously on,
accompanied by a
message in the screen. major faults. Make a note of the warning message and
contact a PEUGEOT dealer or qualified
workshop.
Parking brake
Brake fluid level on.

that the parking brake is applied or
has not been released correctly. Releasing the parking brake switches off the
warning lamp.
on. that the fluid level is too
low. Top up using a fluid recommended by
PEUGEOT dealers.
continuously on, even
though the level is
correct.
Stop as soon as it is safe to do so, park,
switch off the ignition and contact a
PEUGEOT
dealer or qualifi ed workshop.
Low engine oil level on. that the level of oil in the
engine is too low. Check the engine oil level and contact a
PEUGEOT dealer or a qualified workshop.
continuously on, even
though the level is
correct.
Stop as soon as it is safe to do so, park,
switch off the ignition and contact a
PEUGEOT dealer or a qualified workshop.
Coolant temperature on with the needle in
the red zone. an abnormal increase. Park and switch off the ignition, allow the system
to cool. Visually check the level.
on H in the red zone. an abnormal increase in
the coolant temperature. Refer to the "Levels" section of chapter 7.
Contact a PEUGEOT dealer or a qualified
workshop.

23
1
READY TO SET OFF


Instruments and controls

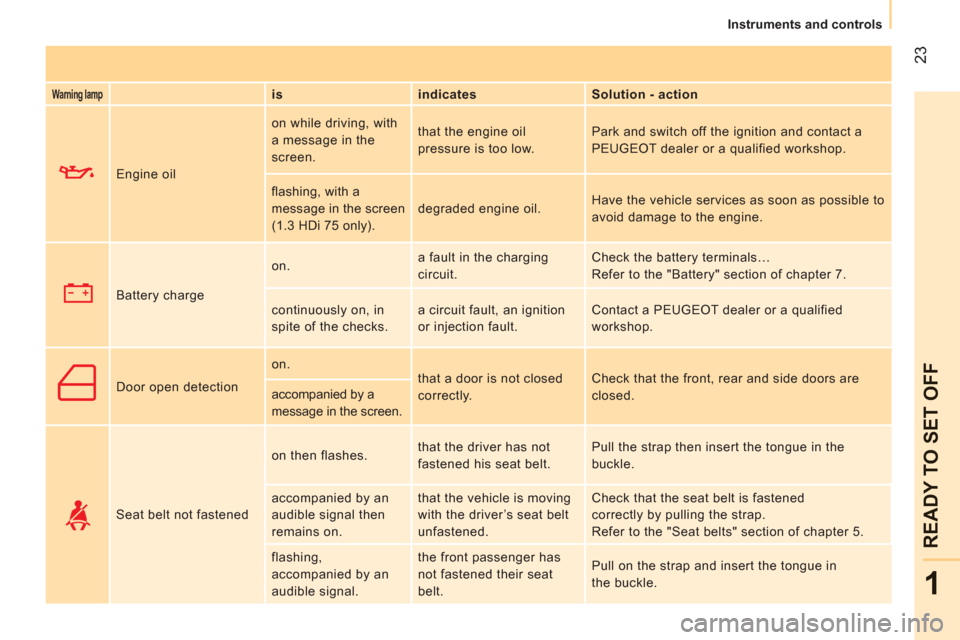

Warning lamp


is
indicates
Solution - action
Engine oil on while driving, with
a message in the
screen. that the engine oil
pressure is too low. Park and switch off the ignition and contact a
PEUGEOT dealer or a qualified workshop.
fl ashing, with a
message in the screen
(1.3 HDi 75 only). degraded engine oil. Have the vehicle services as soon as possible to
avoid damage to the engine.
Battery charge on. a fault in the charging
circuit. Check the battery terminals…
Refer to the "Battery" section of chapter 7.
continuously on, in
spite of the checks. a circuit fault, an ignition
or injection fault. Contact a PEUGEOT dealer or a qualified
workshop.
Door open detection on.
that a door is not closed
correctly. Check that the front, rear and side doors are
closed. accompanied by a
message in the screen.
Seat belt not fastened on then flashes. that the driver has not
fastened his seat belt. Pull the strap then insert the tongue in the
buckle.
accompanied by an
audible signal then
remains on. that the vehicle is moving
with the driver’s seat belt
unfastened. Check that the seat belt is fastened
correctly by pulling the strap.
Refer to the "Seat belts" section of chapter 5.
flashing,
accompanied by an
audible signal . the front passenger has
not fastened their seat
belt. Pull on the strap and insert the tongue in
the buckle.

24

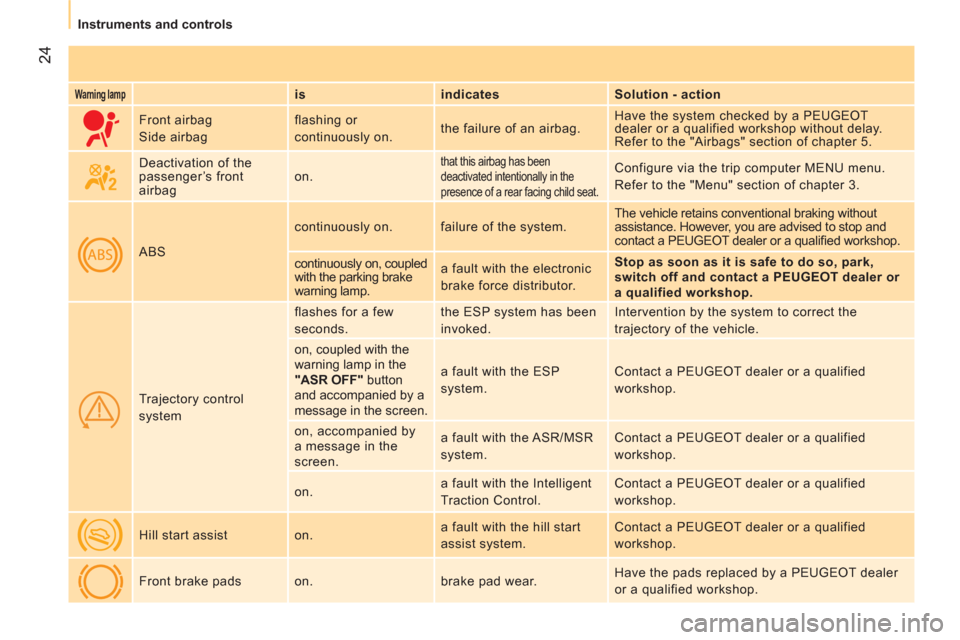

Instruments and controls


Warning lamp


is
indicates
Solution - action
Front airbag
Side airbag flashing or
continuously on. the failure of an airbag. Have the system checked by a PEUGEOT
dealer or a qualified workshop without delay.
Refer to the "Airbags" section of chapter 5.
Deactivation of the
passenger’s front
airbag on.

that this airbag has been
deactivated intentionally in the
presence of a rear facing child seat. Configure via the trip computer MENU menu.
Refer to the "Menu" section of chapter 3.
ABS continuously on. failure of the system. The vehicle retains conventional braking without
assistance. However, you are advised to stop and
contact a PEUGEOT dealer or a qualifi ed workshop.
continuously on, coupled
with the parking brake
warning lamp. a fault with the electronic
brake force distributor.
Stop as soon as it is safe to do so, park,
switch off and contact a
PEUGEOT dealer or
a qualified workshop.
Trajectory control
system flashes for a few
seconds. the ESP system has been
invoked. Intervention by the system to correct the
trajectory of the vehicle.
on, coupled with the
warning lamp in the
"ASR OFF"
button
and accompanied by a
message in the screen. a fault with the ESP
system. Contact a PEUGEOT dealer or a qualified
workshop.
on, accompanied by
a message in the
screen. a fault with the ASR/MSR
system. Contact a PEUGEOT dealer or a qualified
workshop.
on. a fault with the Intelligent
Traction Control. Contact a PEUGEOT dealer or a qualified
workshop.
Hill start assist on. a fault with the hill start
assist system. Contact a PEUGEOT dealer or a qualified
workshop.
Front brake pads on. brake pad wear. Have the pads replaced by a PEUGEOT dealer
or a qualified workshop.

1
READY TO SET OFF

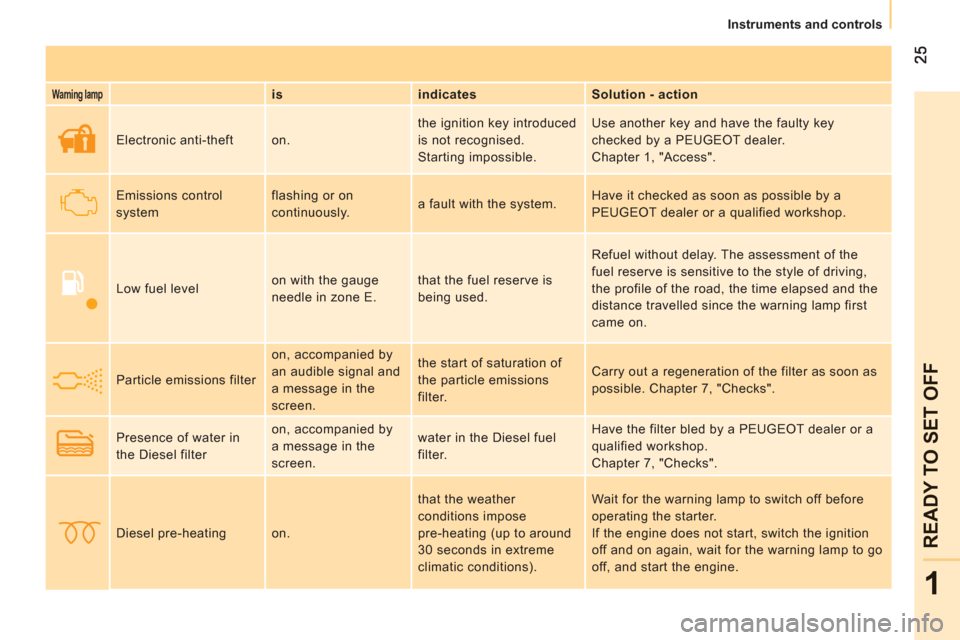

Instruments and controls


Warning lamp


is
indicates
Solution - action
Electronic anti-theft on. the ignition key introduced
is not recognised.
Starting impossible. Use another key and have the faulty key
checked by a PEUGEOT dealer.
Chapter 1, "Access".
Emissions control
system flashing or on
continuously. a fault with the system. Have it checked as soon as possible by a
PEUGEOT dealer or a qualified workshop.
Low fuel level on with the gauge
needle in zone E. that the fuel reserve is
being used. Refuel without delay. The assessment of the
fuel reserve is sensitive to the style of driving,
the profile of the road, the time elapsed and the
distance travelled since the warning lamp first
came on.
Particle emissions filter on, accompanied by
an audible signal and
a message in the
screen. the start of saturation of
the particle emissions
filter. Carry out a regeneration of the filter as soon as
possible. Chapter 7, "Checks".
Presence of water in
the Diesel filter on, accompanied by
a message in the
screen. water in the Diesel fuel
filter. Have the filter bled by a PEUGEOT dealer or a
qualified workshop.
Chapter 7, "Checks".
Diesel pre-heating on. that the weather
conditions impose
pre-heating (up to around
30 seconds in extreme
climatic conditions). Wait for the warning lamp to switch off before
operating the starter.
If the engine does not start, switch the ignition
off and on again, wait for the warning lamp to go
off, and start the engine.

26

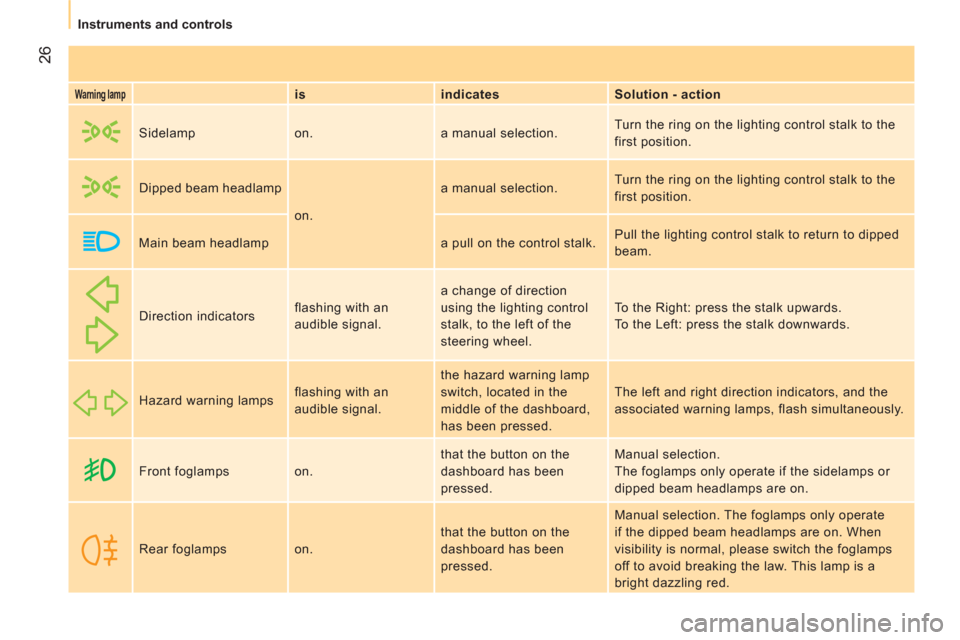

Instruments and controls


Warning lamp


is
indicates
Solution - action
Sidelamp on. a manual selection. Turn the ring on the lighting control stalk to the
first position.
Dipped beam headlamp
on. a manual selection. Turn the ring on the lighting control stalk to the
first position.
Main beam headlamp a pull on the control stalk. Pull the lighting control stalk to return to dipped
beam.
Direction indicators flashing with an
audible signal. a change of direction
using the lighting control
stalk, to the left of the
steering wheel. To the Right: press the stalk upwards.
To the Left: press the stalk downwards.
Hazard warning lamps flashing with an
audible signal. the hazard warning lamp
switch, located in the
middle of the dashboard,
has been pressed. The left and right direction indicators, and the
associated warning lamps, flash simultaneously.
Front foglamps on. that the button on the
dashboard has been
pressed. Manual selection.
The foglamps only operate if the sidelamps or
dipped beam headlamps are on.
Rear foglamps on. that the button on the
dashboard has been
pressed. Manual selection. The foglamps only operate
if the dipped beam headlamps are on. When
visibility is normal, please switch the foglamps
off to avoid breaking the law. This lamp is a
bright dazzling red.

1
READY TO SET OFF

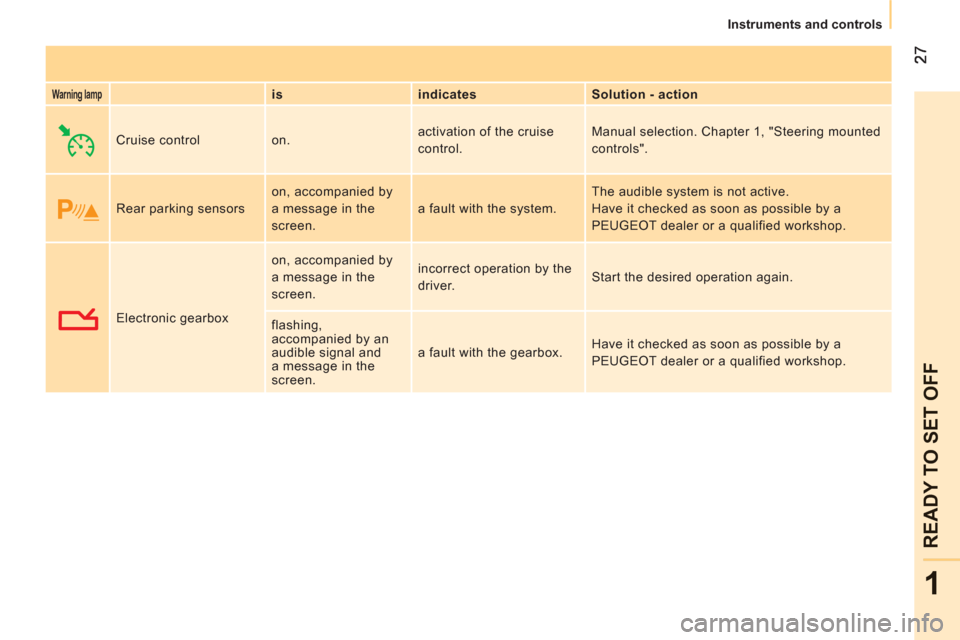

Instruments and controls


Warning lamp


is
indicates
Solution - action
Cruise control on. activation of the cruise
control. Manual selection. Chapter 1, "Steering mounted
controls".
Rear parking sensors on, accompanied by
a message in the
screen. a fault with the system. The audible system is not active.
Have it checked as soon as possible by a
PEUGEOT dealer or a qualified workshop.
Electronic gearbox on, accompanied by
a message in the
screen. incorrect operation by the
driver. Start the desired operation again.
flashing,
accompanied by an
audible signal and
a message in the
screen. a fault with the gearbox. Have it checked as soon as possible by a
PEUGEOT dealer or a qualified workshop.

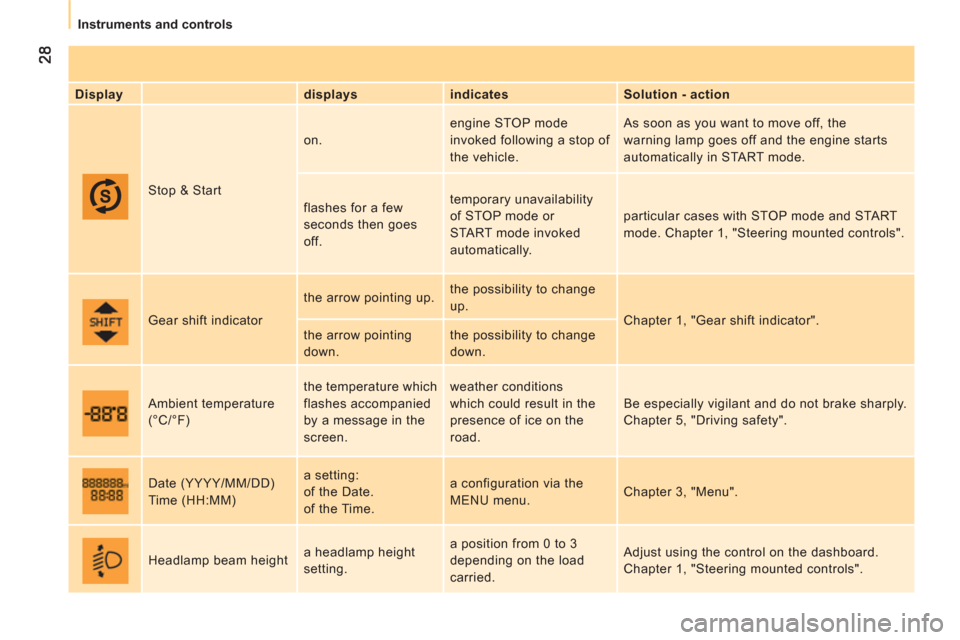

Instruments and controls

Display
displays
indicates
Solution - action
Stop & Start on. engine STOP mode
invoked following a stop of
the vehicle. As soon as you want to move off, the
warning lamp goes off and the engine starts
automatically in START mode.
flashes for a few
seconds then goes
off. temporary unavailability
of STOP mode or
START mode invoked
automatically. particular cases with STOP mode and START
mode. Chapter 1, "Steering mounted controls".
Gear shift indicator the arrow pointing up. the possibility to change
up.
Chapter 1, "Gear shift indicator".
the arrow pointing
down. the possibility to change
down.
Ambient temperature
(°C/°F) the temperature which
flashes accompanied
by a message in the
screen. weather conditions
which could result in the
presence of ice on the
road. Be especially vigilant and do not brake sharply.
Chapter 5, "Driving safety".
Date (YYYY/MM/DD)
Time (HH:MM) a setting:
of the Date.
of the Time. a configuration via the
MENU menu. Chapter 3, "Menu".
Headlamp beam height a headlamp height
setting. a position from 0 to 3
depending on the load
carried. Adjust using the control on the dashboard.
Chapter 1, "Steering mounted controls".
