Peugeot Bipper 2011 - RHD (UK, Australia) Repair Manual

2

Dimensions


TECHNICAL DAT
A

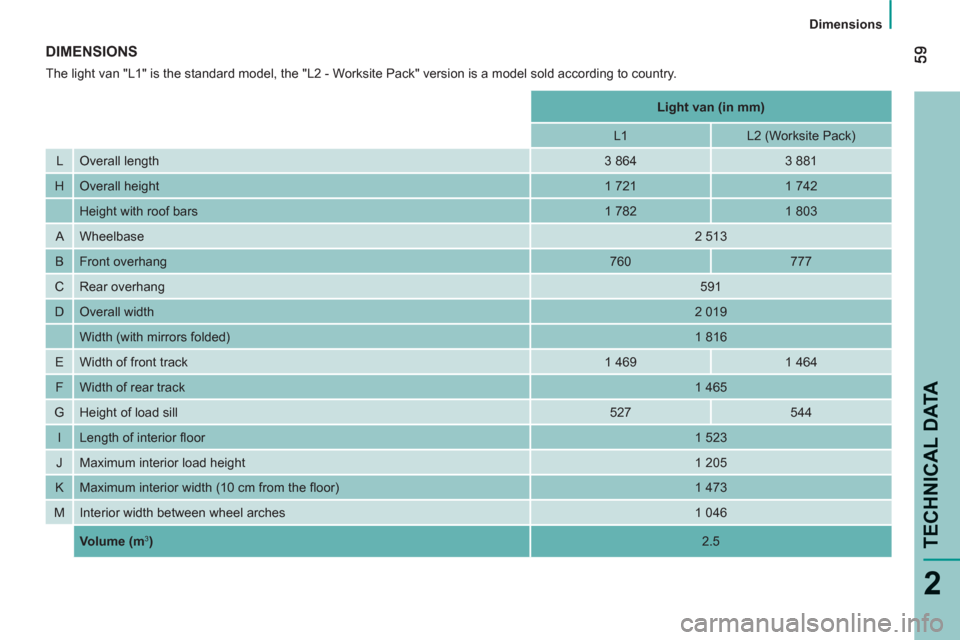

DIMENSIONS

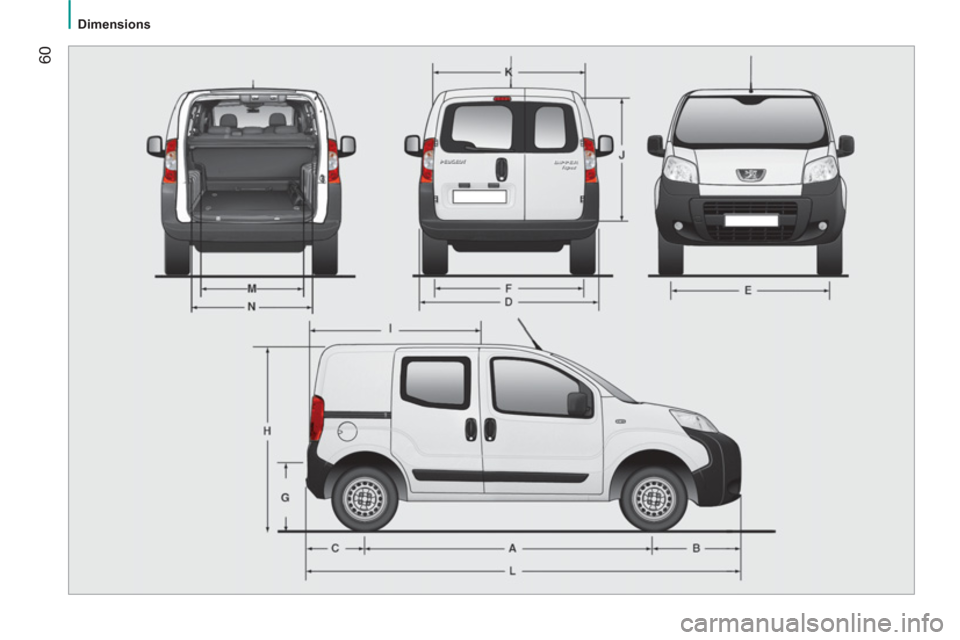

The light van "L1" is the standard model, the "L2 - Worksite Pack" version is a model sold according to country.




Light van (in mm)




L1
L2 (Worksite Pack)
L Overall length

3 864
3 881
H Overall height

1 721
1 742


Height with roof bars
1 782
1 803
A Wheelbase

2 513
B Front overhang

760
777
C Rear overhang

591
D Overall width

2 019
Width (with mirrors folded)

1 816
E Width of front track

1 469
1 464
F Width of rear track

1 465
G Height of load sill

527
544
I Length of interior fl oor

1 523
J Maximum interior load height

1 205
K Maximum interior width (10 cm from the fl oor)
1 473
M Interior width between wheel arches
1 046


Volume
(m
3 )

2.5

60

Dimensions

61
2

Dimensions


TECHNICAL DAT
A

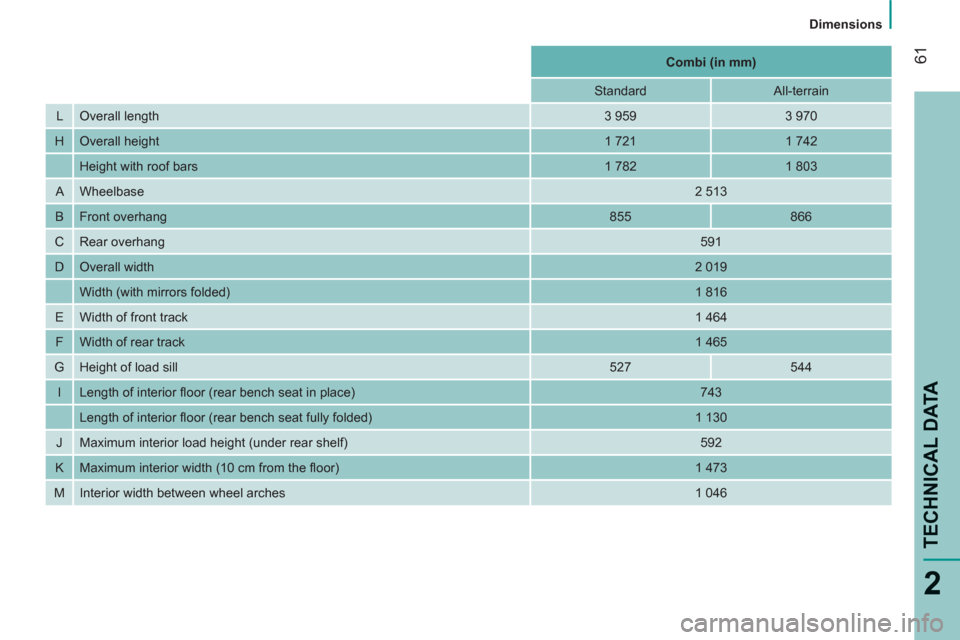

Combi (in mm)


Standard
All-terrain
L Overall length

3 959
3 970
H Overall height

1 721
1 742
Height with roof bars
1 782
1 803
A Wheelbase

2 513
B Front overhang

855
866
C Rear overhang

591
D Overall width

2 019
Width (with mirrors folded)

1 816
E Width of front track

1 464
F Width of rear track

1 465
G Height of load sill

527
544
I Length of interior fl oor (rear bench seat in place)
743
Length of interior fl oor (rear bench seat fully folded)
1 130
J Maximum interior load height (under rear shelf)
592
K Maximum interior width (10 cm from the fl oor)
1 473
M Interior width between wheel arches
1 046

62

Dimensions

63
2

Dimensions


TECHNICAL DAT
A

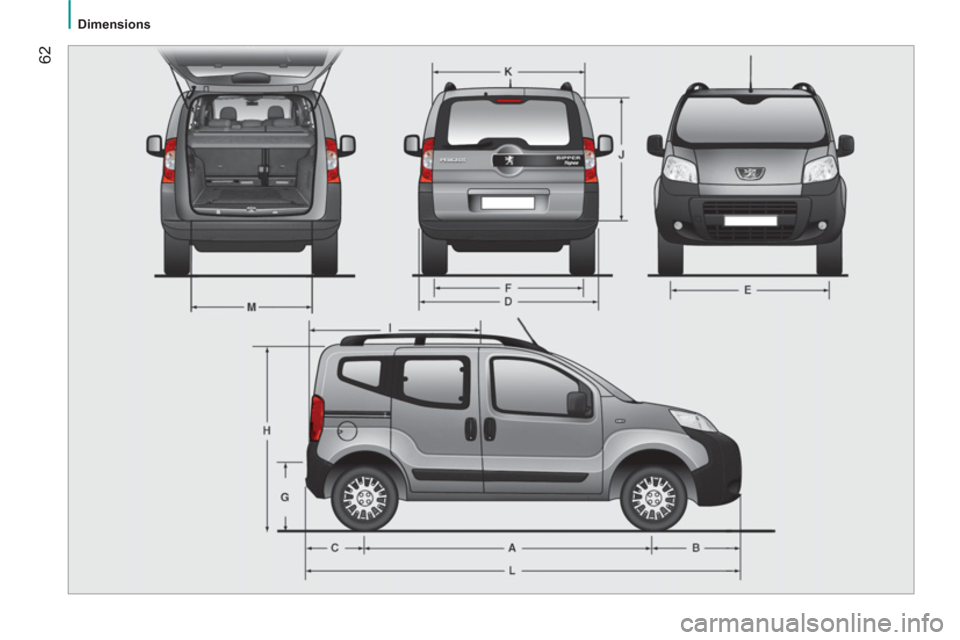

Combi (in mm)


Standard
All-terrain
L Overall length

3 959
3 970
H Overall height

1 721
1 742
Height with roof bars
1 794
1 803
A Wheelbase

2 513
B Front overhang

855
866
C Rear overhang

591
D Overall width

2 019
Width (with mirrors folded)

1 816
E Width of front track

1 464
F Width of rear track

1 465
G Height of load sill

527
544
I Length of interior fl oor (rear bench seat in place)
743
Length of interior fl oor (rear bench seat fully folded)
1 130
J Maximum interior load height (under rear shelf)
592
K Maximum interior width (10 cm from the fl oor)
1 473
M Interior width between wheel arches
1 046

Engines


DIESEL

ENGINE
S




1.4 litre HDi 70 hp



1.3 litre HDi 75 hp



Gearboxes


Manual



Manual



Electronic


Gears
5
5
5
EU standard maximum power (kW)
50
55
Cubic capacity (cc)
1 399
1 248
Bore x stroke (mm)
73.7 x 82
69.6 x 82
Max power engine speed (rpm)
4 000
3 750
EU standard max torque (Nm)
160
190
Max torque engine speed (rpm)
2 750
1 750
Fuel
Diesel
Diesel
Catalytic converter
Yes
Yes
Particle emissions fi lter (PEF)
No
Yes
Stop & Start
No
Yes
Engine oil capacity with fi lter replacement (litres)
3.8
3.0

65
2
Engines
TECHNICAL DATA

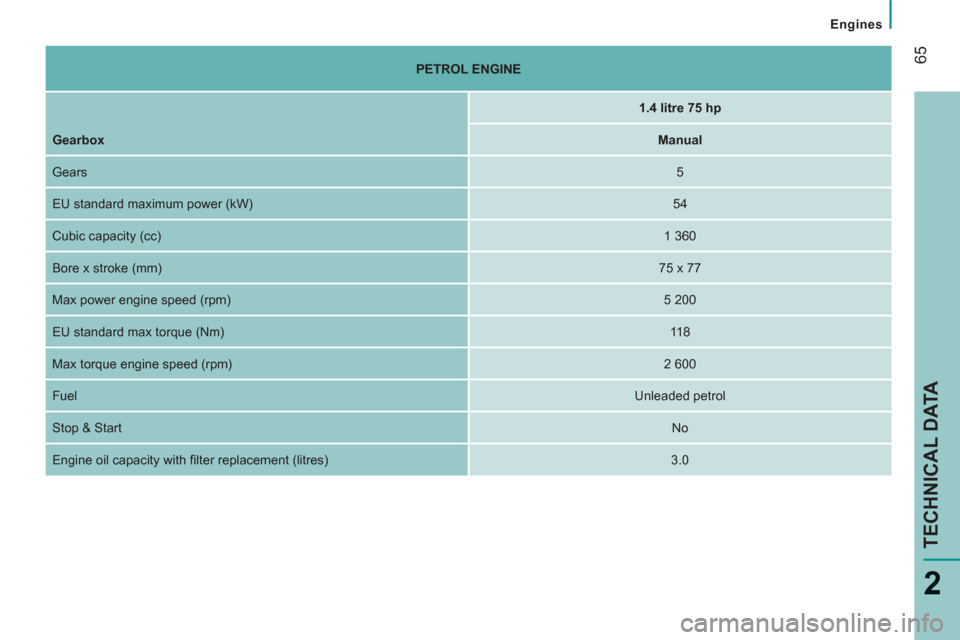

PETROL ENGINE






1.4 litre 75 hp



Gearbox


Manual
Gears

5
EU standard maximum power (kW)

54
Cubic capacity (cc)

1 360
Bore x stroke (mm)

75 x 77
Max power engine speed (rpm)

5 200
EU standard max torque (Nm)

11 8
Max torque engine speed (rpm)

2 600
Fuel

Unleaded petrol
Stop & Start

No
Engine oil capacity with fi lter replacement (litres)
3.0

66

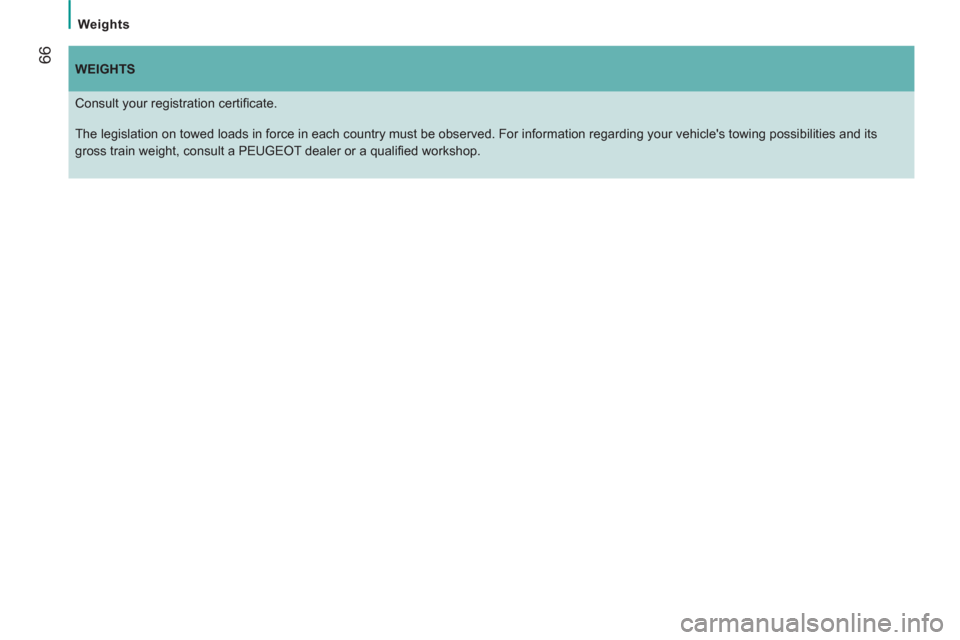

Weights


WEIGHTS


Consult your registration certifi cate.
The legislation on towed loads in force in each country must be observed. For information regarding your vehicle's towing possibilities and its
gross train weight, consult a PEUGEOT dealer or a qualifi ed workshop.

67

68

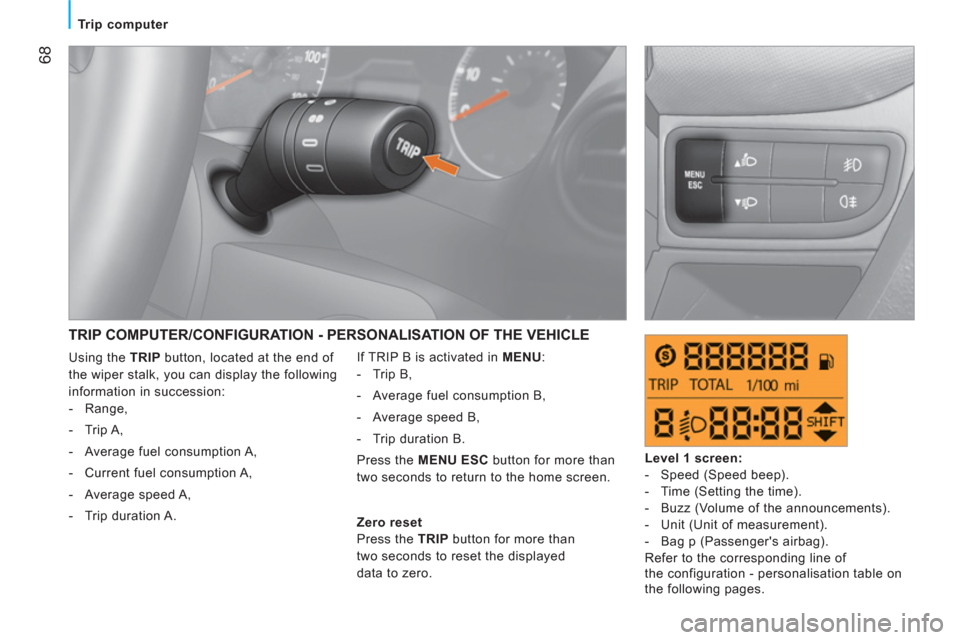

Trip computer


TRIP COMPUTER/CONFIGURATION - PERSONALISATION OF THE VEHICLE

If TRIP B is activated in MENU
:


- Trip B,

- Average fuel consumption B,

- Average speed B,

- Trip duration B.
Press the MENU ESC
button for more than
two seconds to return to the home screen.
Level 1 screen:


- Speed (Speed beep).

- Time (Setting the time).

- Buzz (Volume of the announcements).

- Unit (Unit of measurement).

- Bag p (Passenger's airbag).
Refer to the corresponding line of
the configuration - personalisation table on
the following pages.
Zero reset
Press the TRIP
button for more than
two seconds to reset the displayed
data to zero. Using the TRIP
button, located at the end of
the wiper stalk, you can display the following
information in succession:


- Range,

- Trip A,

- Average fuel consumption A,

- Current fuel consumption A,

- Average speed A,

- Trip duration A.
