Peugeot Bipper 2014 Owner's Manual

159
7
QUICK HELP



Changing a fuse



Mark
ing


Rating


Functions


F01
60 A Control unit

F02
40 A Passenger compartment fan.

F03
20 A Starter motor supply

F04
40 A ABS hydraulic block pump supply

F06
30 A Single speed cooling fan control

F07
40 A High speed cooling fan control

F08
30 A Air conditioning compressor

F09
15 A Towbar harness.

F10
10 A Horn

F11
10 A Engine management secondary load supply

F14
15 A Main beam headlamps

F15
15 A 12 V accessory socket.


Table of fuses in the engine
compartment

160



Changing a fuse



Marking


Rating


Functions


F16
7.5 A Engine management control unit - electronic gearbox control unit and gear lever -
T20 relay coil

F17
15 A Supply for ignition coil - injectors - engine management control unit (1.3 HDi)

F18
7.5 A Engine management control unit (1.3 HDi) - T09 relay coil

F19
7.5 A Air conditioning compressor

F20
30 A Supply for heated rear screen, electric door mirrors heater elements

F21
15 A Fuel pump (1.4 petrol and 1.3 HDi)

F22
20 A Engine management control unit (1.3 HDi)

F23
20 A ABS hydraulic block electrovalves supply

F24
7.5 A ABS

F30
15 A Foglamps

F81
60 A Pre-heat unit (1.3 HDi)

F82
30 A Electronic gearbox pump - electronic gearbox supply

F84
10 A Electronic gearbox control unit and electrovalves

F85
30 A Cigar lighter - 12 V accessory socket

F87


7.5 A Reversing lamps - water in Diesel sensor - airflow sensor - T02, T05, T14, T17 and T19 relay coils
(except 1.3 HDi)

5 A Reversing lamps - water in Diesel sensor - airflow sensor - T02, T05, T14, T17 and T19 relay coils -
battery state of charge sensor (except 1.3 HDi)

161
7
QUICK HELP



Having your vehicle towed


BEING TOWED


The removable towing eye is located in the
tool kit behind the driver's seat (Light van) or
behind the rear bench seat (Combi).


From the front

In the front bumper, unclip the cover on the
right using a flat tool.
Screw the removable towing eye in fully.
Then hook the towbar on the towing eye.
Unlock the steering by turning the the
ignition key one notch and release the
parking brake.
Switch on the hazard warning lamps on both
vehicles.
Move off gently and drive slowly, towing for
a short distance only.
On the towed vehicle, the gear
lever must be put in neutral; failure
to observe this special condition
may result in damage to certain braking
components (brakes, transmission...) and
the absence of braking assistance when the
engine is started.


From the rear

In the rear bumper, unclip the cover at the
bottom using a flat tool.
Screw the removable towing eye in fully.
Then hook the towbar on the towing eye.
Switch on the hazard warning lamps on both
vehicles.
Move off gently and drive slowly, towing for
a short distance only.


General recommendations

Observe the legislation in force in your
country.
Ensure that the weight of the towing vehicle
is higher than that of the towed vehicle.
The driver must remain at the wheel of the
towed vehicle and must have a valid driving
licence.
When towing a vehicle with all four wheels
on the ground, always use an approved
towing bar; rope and straps are prohibited.
When towing a vehicle with the engine off,
there is no longer any power assistance for
braking or steering.
In the following cases, you must always call
on a professional recovery service:


- vehicle broken down on a motorway or
fast road,

- 4 wheel drive vehicle,

- when it is not possible to put the gearbox
into neutral, unlock the steering, or
release the parking brake,

- towing with only two wheels on the
ground,

- where there is no approved towing bar
available...

162



Identifi cation markings


IDENTIFICATION MARKINGS



A. Manufacturer's plate


1. VF Type serial number.

2. Gross vehicle weight (GVW).

3. Gross train weight (GTW).

4. Maximum weight on front axle.

5. Maximum weight on rear axle.
B. Serial number on the body

C. Paint code

D. Serial number on the dashboard

E. Tyre pressures

163
7
QUICK HELP



Fuel



FILLING WITH FUEL

Capacity of the fuel tank: approximately
45 litres.


Low fuel level

When the minimum fuel tank level
is reached, this warning lamp
comes on. When it first comes on,
you have approximately
6 litres
of fuel remaining. Refuel without delay to
avoid running out of fuel. Refuelling must be done with the engine
off.


- Open the fuel filler flap.

- Hold the filler cap with one hand.

- With the other hand, insert the key, then
turn it a third of a turn.

- Remove the filler cap and hang it on the
hook, located on the inside of the filler
flap.

FUEL CUT-OFF

In the event of a serious collision, a device
automatically cuts off the fuel supply to the
engine and the vehicle's electrical supply.
It also automatically unlocks the doors
and switches on of the courtesy lamps.
A message appears in the instrument panel
screen according to version.
Turn the key to the STOP position to prevent
discharging of the battery.
Check that there is no smell or leak of fuel
outside the vehicle.






With Stop & Start, never refuel with the
system in STOP mode; you must switch
off the ignition with the key.
When the fuel filler flap is open,
a safety system prevents sliding
of the side door (Combi).
A label affixed to the inside of the flap
reminds you of the type of fuel to be used.
Opening the filler cap may cause a noise
resulting from the inrush of air. This vacuum
is quite normal and results from the sealing
of the fuel system.
When filling the fuel tank, do not continue
after the 3rd cut-off of the nozzle; this could
cause malfunctions.
After filling the fuel tank, lock the filler cap
and close the flap.

164



Fuel




Resetting

To set off again, restore the fuel supply and
the electrical supply manually:


- with the key in the STOP position, turn
the key to the RUNNING position,

- push the direction indicator control stalk
fully upwards,

- place it in the "Off" position,

- press the direction indicator control stalk
fully downwards,

- return it to the "Off" position,

- push it fully upwards again,

- return it to the "Off" position,

- press it fully downwards again,

- return it to the "Off" position,

- turn the key to the STOP position.












Quality of the fuel used for petrol
engines

The petrol engines are perfectly compatible
with E10 type petrol biofuels (containing
10% ethanol), conforming to European
standards EN 228 and EN 15376.
E85 type fuels (containing up to 85%
ethanol) are reserved exclusively for
vehicles marketed for the use of this type
of fuel (BioFlex vehicles). The quality of
the ethanol must comply with European
standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up to
100% ethanol (E100 type).














Quality of the fuel used for Diesel
engines

The Diesel engines are perfectly compatible
with biofuels which conform to current
and future European standards (Diesel
fuel which complies with standard EN 590
mixed with a biofuel which complies with
standard EN 14214) available at the pumps
(containing up to 7 % Fatty Acid Methyl
Ester).
The B30 biofuel can be used in certain
Diesel engines; however, this use is subject
to strict application of the special servicing
conditions. Contact a PEUGEOT dealer or a
qualified workshop.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or diluted,
domestic fuel...) is strictly prohibited (risk of
damage to the engine and fuel system).

165
7
QUICK HELP

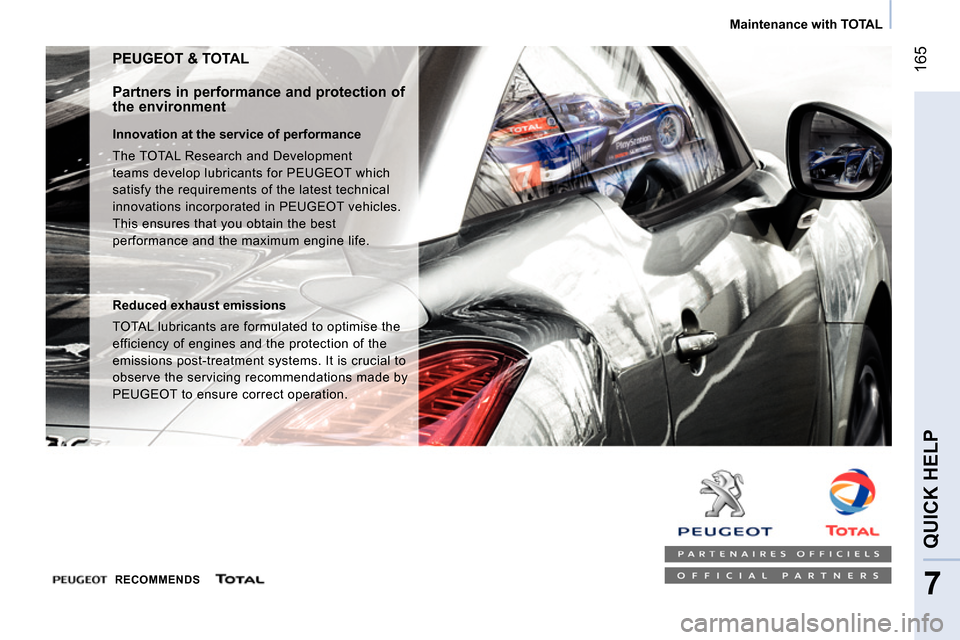

Maintenance with TOTAL


PEUGEOT & TOTAL


Partners in performance and protection of
the environment

Innovation at the service of performance
The TOTAL Research and Development
teams develop lubricants for PEUGEOT which
satisfy the requirements of the latest technical
innovations incorporated in PEUGEOT vehicles.
This ensures that you obtain the best
performance and the maximum engine life.

Reduced exhaust emissions
TOTAL lubricants are formulated to optimise the
efficiency of engines and the protection of the
emissions post-treatment systems. It is crucial to
observe the servicing recommendations made by
PEUGEOT to ensure correct operation.



RECOMMENDS

166



Opening the bonnet




OPENING THE BONNET


On the inside
Pull the release lever below the dashboard
towards you.

On the outside

Raise the bonnet slightly, placing your hand
flat under the bonnet to make the operation
easier.
Push the safety catch lever to the left, then
open the bonnet fully.
While holding the bonnet open, check that the
locking control A is engaged by pressing it.


To close

Lift the bonnet slightly and pull the release
control A to release it.
Lower the bonnet and release it at the end
of its travel. Check that the bonnet is fully
latched.
Avoid opening the bonnet in strong winds.





Before doing anything under the
bonnet, switch off the ignition with the
key to avoid any risk of injury resulting from
an automatic change to START mode.
Because of the presence of electrical
equipment under the bonnet, it is
recommended that exposure to water (rain,
washing, ...) be limited.

167
7
QUICK HELP



Under the bonnet



Diesel engine

UNDER THE BONNET




1. Screenwash reservoir.

2. Fusebox.

3. Engine coolant header tank.


4. Brake and clutch fluid reservoir.

5. Air filter.

6. Dipstick.

7. Engine oil filler cap.

8. Power steering fluid reservoir.

168



Under the bonnet



Petrol engine

UNDER THE BONNET




1. Screenwash reservoir.

2. Fusebox.

3. Engine coolant header tank.

4. Brake and clutch fluid reservoir.

5. Air filter.

6. Dipstick.

7. Engine oil filler cap.

8. Power steering fluid reservoir.
