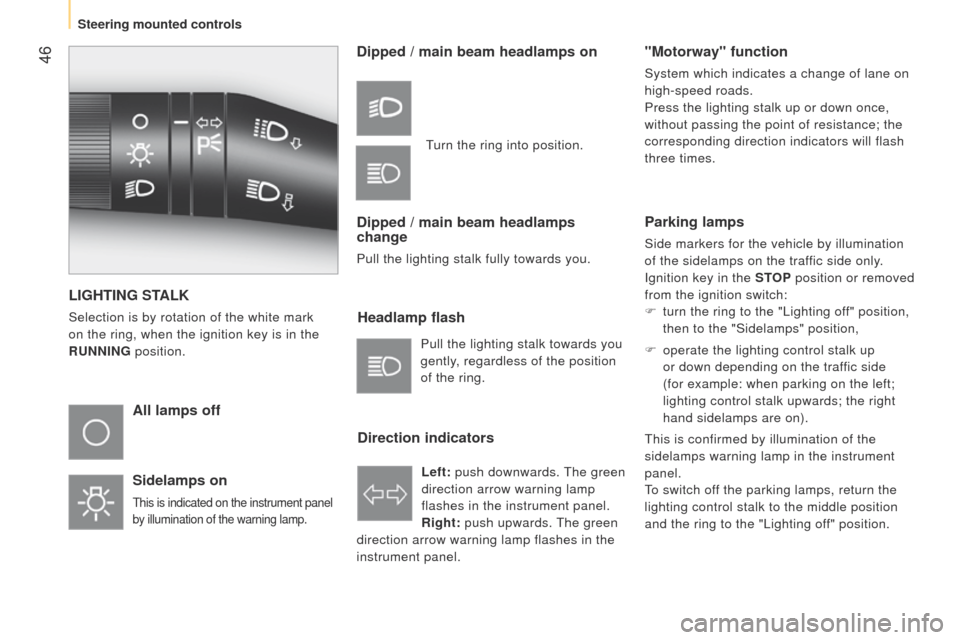

LIGHTING STALK
Selection is by rotation of the white mark
on the ring, when the ignition key is in the
RUNNING position.
All lamps off
Sidelamps on
this is indicated on the instrument panel
by illumination of the warning lamp.
Dipped / main beam headlamps on
Dipped / main beam headlamps
change
Pull the lighting stalk fully towards you.
Headlamp flash
Direction indicators "Motorway" function
System which indicates a change of lane on
high-speed roads.
Press the lighting stalk up or down once,
without passing the point of resistance; the
corresponding direction indicators will flash
three times.
Pull the lighting stalk towards you
gently, regardless of the position
of the ring. Left: push downwards.
t

he green
direction arrow warning lamp
flashes in the instrument panel.
Right: push upwards.
t

he green
direction arrow warning lamp flashes in the
instrument panel.
turn the ring into position.
Parking lamps
Side markers for the vehicle by illumination
of the sidelamps on the traffic side only.
Ignition key in the STOP position or removed
from the ignition switch:
F
turn the ring to the "

l ighting off" position,
then to the "Sidelamps" position,
F
operate the lighting control stalk up


or down depending on the traffic side
(for example: when parking on the left;
lighting control stalk upwards; the right
hand sidelamps are on).
t

his is confirmed by illumination of the
sidelamps warning lamp in the instrument
panel.
to switch of

f the parking lamps, return the
lighting control stalk to the middle position
and the ring to the "
l ighting off" position.
Steering mounted controls

47
Bipper_en_Chap03_pret-a-partir_ed02-2014

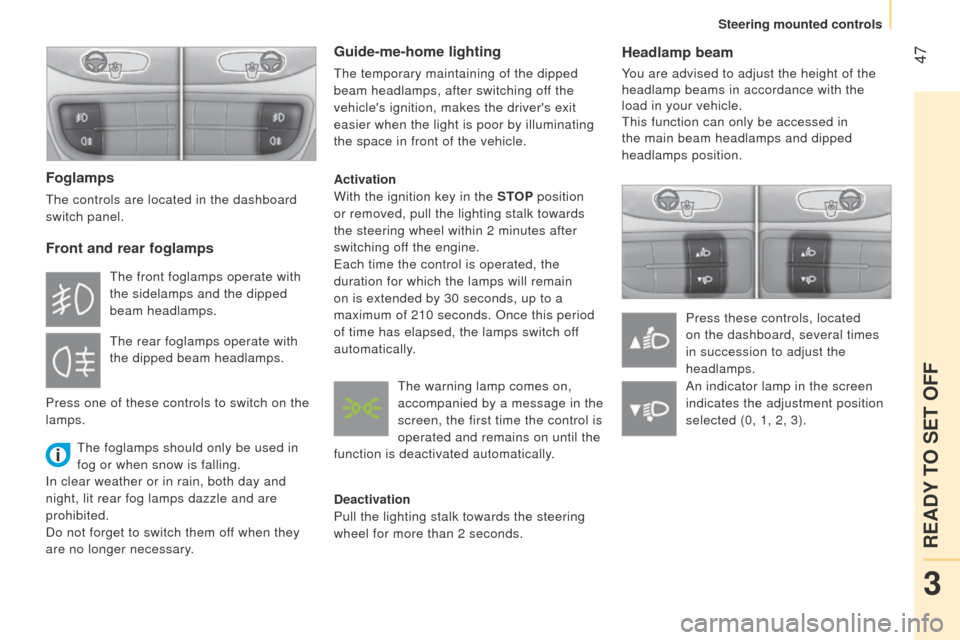

Headlamp beam
You are advised to adjust the height of the
headlamp beams in accordance with the
load in your vehicle.
t
his function can only be accessed in
the main beam headlamps and dipped
headlamps position.
Press these controls, located
on the dashboard, several times
in succession to adjust the
headlamps.
Foglamps
the controls are located in the dashboard
switch panel.
Front and rear foglamps
the foglamps should only be used in
fog or when snow is falling.
In clear weather or in rain, both day and

night, lit rear fog lamps dazzle and are
prohibited.
Do not forget to switch them off when they
are no longer necessary.
Guide-me-home lighting
the temporary maintaining of the dipped
beam headlamps, after switching of f the
vehicle's ignition, makes the driver's exit
easier when the light is poor by illuminating
the space in front of the vehicle.
Activation
With the ignition key in the STOP position
or removed, pull the lighting stalk towards
the steering wheel within 2 minutes after
switching off the engine.
e

ach time the control is operated, the
duration for which the lamps will remain
on is extended by 30 seconds, up to a
maximum of 210 seconds. Once this period
of time has elapsed, the lamps switch off
automatically.
Deactivation
Pull the lighting stalk towards the steering
wheel for more than 2 seconds.
t

he front foglamps operate with
the sidelamps and the dipped
beam headlamps.
t

he rear foglamps operate with
the dipped beam headlamps.
Press one of these controls to switch on the
lamps.
t

he warning lamp comes on,
accompanied by a message in the
screen, the first time the control is
operated and remains on until the
function is deactivated automatically. An indicator lamp in the screen
indicates the adjustment position
selected (0, 1, 2, 3).
3
READY TO SET OFF
Steering mounted controls

161
Bipper_en_Chap09_aide-rapide_ed02-2014

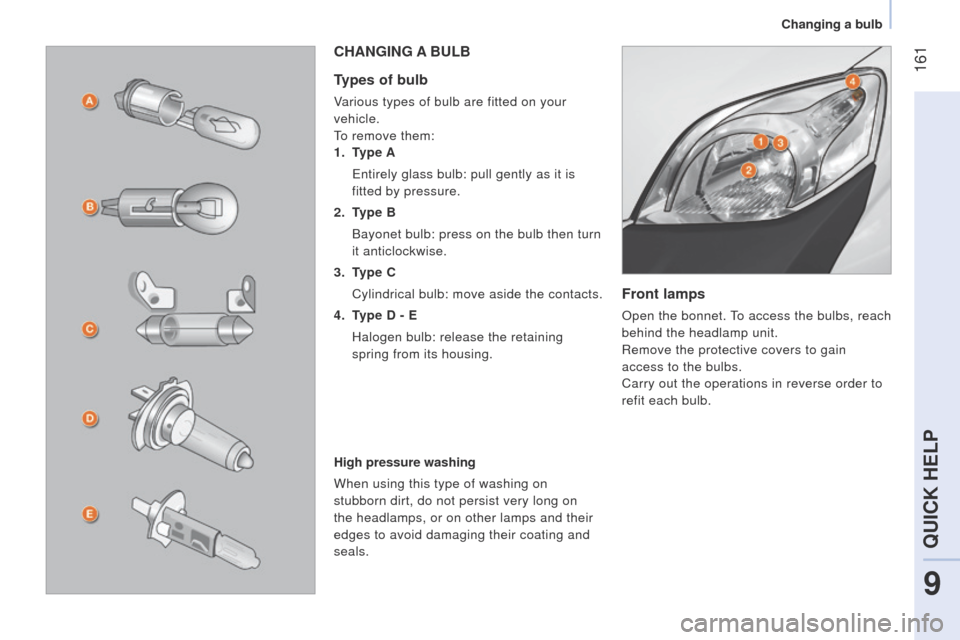

Front lamps
Open the bonnet. to access the bulbs, reach
behind the headlamp unit.
Remove the protective covers to gain
access to the bulbs.
Carry out the operations in reverse order to
refit each bulb.
CHANGING A BULB
Types of bulb
Various types of bulb are fitted on your
vehicle.
to remove them:
1.


T
ype A


e ntirely glass bulb: pull gently as it is
fitted by pressure.
2.

T
ype B
Bayonet bulb: press on the bulb then turn


it anticlockwise.
3.

T
ype C
Cylindrical bulb: move aside the contacts.
4.


T
ype D - E
Halogen bulb: release the retaining


spring from its housing.
High pressure washing
When using this type of washing on
stubborn dirt, do not persist very long on
the headlamps, or on other lamps and their
edges to avoid damaging their coating and
seals.
9
QUICK HELP
Changing a bulb

162
Bipper_en_Chap09_aide-rapide_ed02-2014

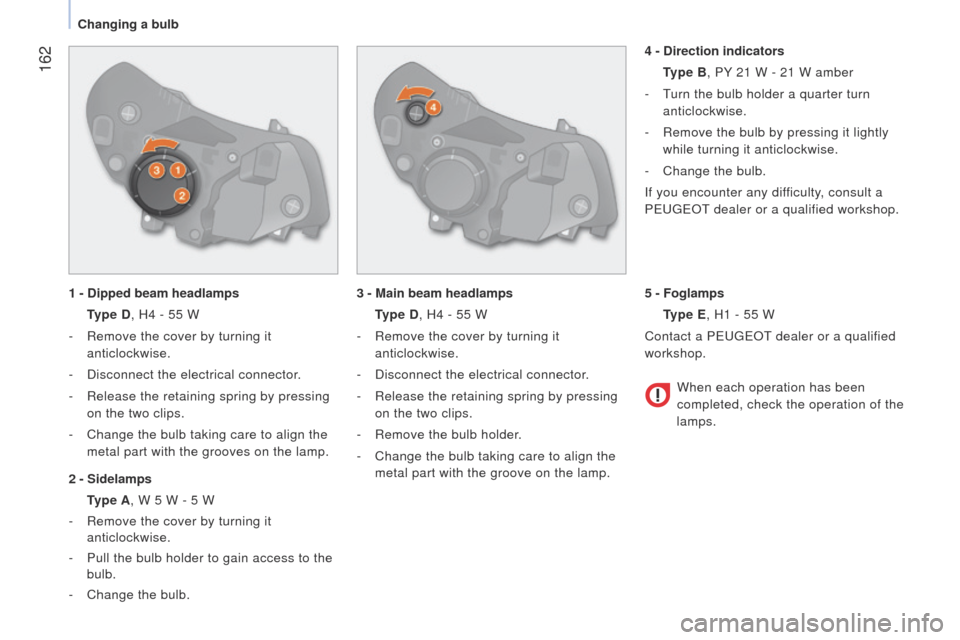

1 - Dipped beam headlamps
T
ype D, H4 - 55 W
-

Remove the cover by turning it

anticlockwise.
-

Disconnect the electrical connector
.
-

Release the retaining spring by pressing

on the two clips.
-

Change the bulb taking care to align the

metal part with the grooves on the lamp.
2 - Sidelamps
T

ype A, W 5 W - 5 W
-

Remove the cover by turning it

anticlockwise.
-

Pull the bulb holder to gain access to the

bulb.
-

Change the bulb. 3 - Main beam headlamps
T

ype D, H4 - 55 W
-

Remove the cover by turning it

anticlockwise.
-

Disconnect the electrical connector
.
-

Release the retaining spring by pressing

on the two clips.
-

Remove the bulb holder
.
-

Change the bulb taking care to align the

metal part with the groove on the lamp. 4 - Direction indicators
T

ype B, PY 21 W - 21 W amber
- t
urn the bulb holder a quarter turn

anticlockwise.
-
Remove the bulb by pressing it lightly

while turning it anticlockwise.
-
Change the bulb.
If you encounter any dif
ficulty, consult a
P euge O t
dealer or a qualified workshop.
When each operation has been

completed, check the operation of the
lamps.
5 - Foglamps
T

ype E, H1 - 55 W
Contact a P
euge O t
dealer or a qualified

workshop.
Changing a bulb

167
Bipper_en_Chap09_aide-rapide_ed02-2014
CHANGING A FUSE
the two fuseboxes are placed on the
dashboard on the driver ’s side and under
the bonnet.
Removing and fitting a fuse
Before changing a fuse, the cause of the
fault must be found and rectified.
t
he fuse
numbers are indicated on the fusebox.
Always use the special tweezer to extract
the fuse from its housing and check the
condition of its filament.
Always replace a faulty fuse with a fuse
of the same rating.
If a fuse fails again soon after replacement,
have the electrical system of your vehicle
checked by a P
euge O t
dealer or a

qualified workshop. Access to fuses in the dashboard
-
t
o gain access to the dashboard fuses,

remove the 2 screws using the ignition
key and tilt the housing.
P
euge
O
t
will not accept responsibility


for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
P
euge
O
t
dealers and not installed in


accordance with its instructions, in particular
when the combined consumption of all of
the additional equipment connected exceeds
10

milliamperes.
A.
Good.
B.

Failed.
C.

T
weezer.
Access to fuses in the engine
compartment
-
For access to the fuses in the engine

compartment, remove the left hand front
headlamp connector, then unclip the
fusebox cover.
9
QUICK HELP
Changing a fuse

168
Bipper_en_Chap09_aide-rapide_ed02-2014
Table of dashboard fuses, driver’s
sideMarking RatingFunctions
F12 7.5 ARight-hand dipped beam headlamp supply
F13 7.5 A
l

eft-hand dipped beam headlamp supply - headlamp height
adjuster
F31 5 A
e

ngine control unit supply switch
F32 7.5 AFront lamp - front courtesy lamp - rear courtesy light lamp
F36 10 AAudio system - mobile telephone pre-equipment -

air conditioning control panel -
e ODB diagnostic socket
F37 5 ABrake lamp - instrument panel
F38 20 ADoor locking
F43 15 AScreenwash pump
F47 20 ADriver’s electric window motor supply
F48 20 APassenger’s electric window motor supply
F49 5 AParking sensors control unit - rear lighting switch -

electric door mirrors - volumetric alarm
control unit
F50 7.5 AAirbags control unit
F51 7.5 ASwitch on brake pedal - switch on clutch pedal -

door mirror controls - central Bluetooth
system
F53 5 AInstrument panel - rear foglamps
Changing a fuse

170
Bipper_en_Chap09_aide-rapide_ed02-2014

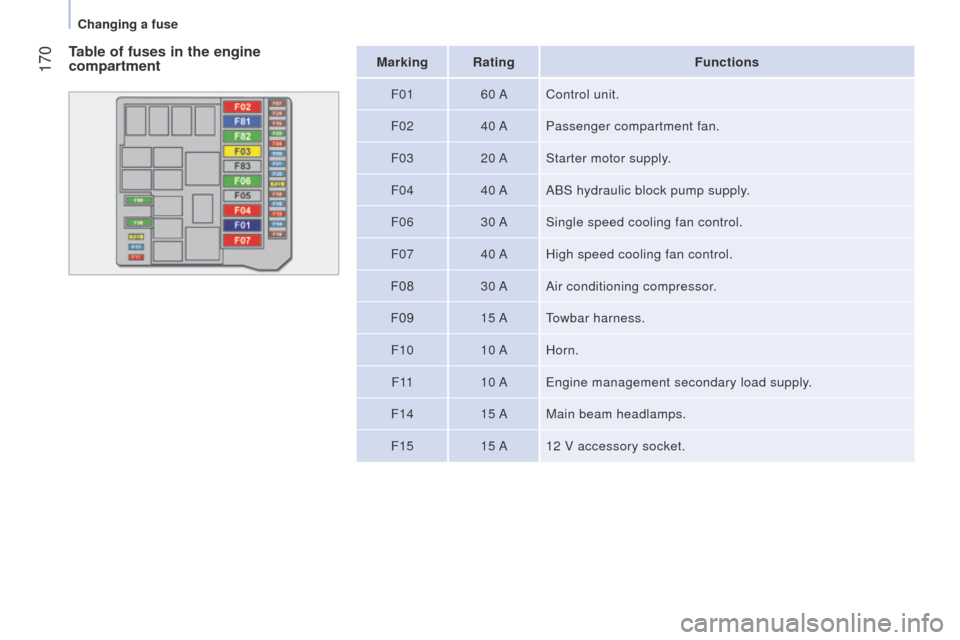

Marking RatingFunctions
F01 60 AControl unit.
F02 40 APassenger compartment fan.
F03 20 AStarter motor supply.
F04 40 AABS hydraulic block pump supply.
F06 30 ASingle speed cooling fan control.
F07 40 AHigh speed cooling fan control.
F08 30 AAir conditioning compressor.
F09 15 A
towbar harness.
F10 10 AHorn.
F

11 10 A
e

ngine management secondary load supply.
F14 15 AMain beam headlamps.
F15 15 A12 V accessory socket.Table of fuses in the engine
compartment
Changing a fuse
