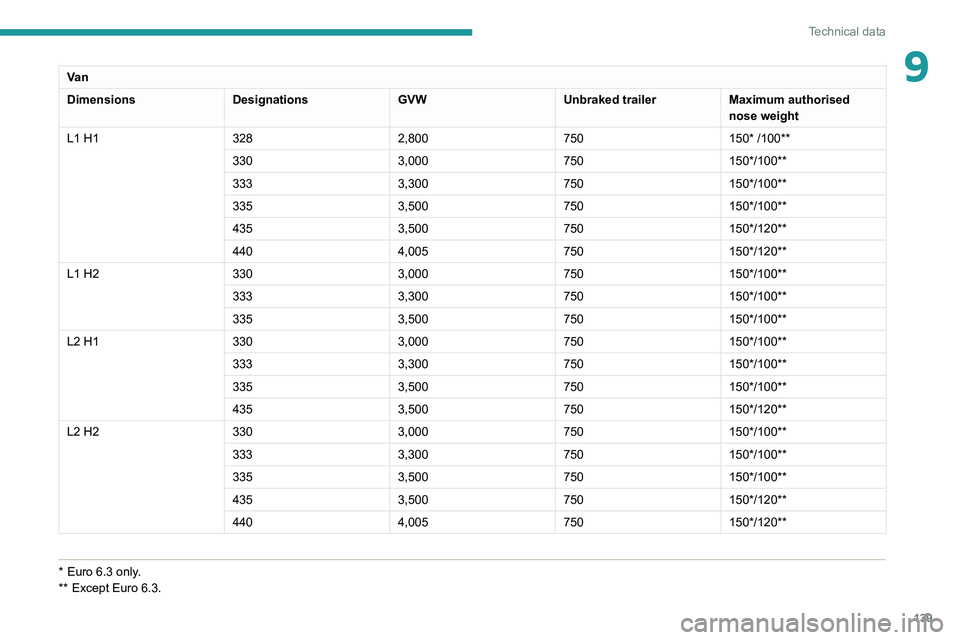

Page 141 of 212

PEUGEOT BOXER 2021  Owners Manual 139
Technical data
9Va n
DimensionsDesignationsGVWUnbraked trailerMaximum authorised
nose weight
L1 H1 3282,800750150*
  /100**
330 3,000750150*/100**
333 3,300750150*/100**
335 3,500750150*/100**
43

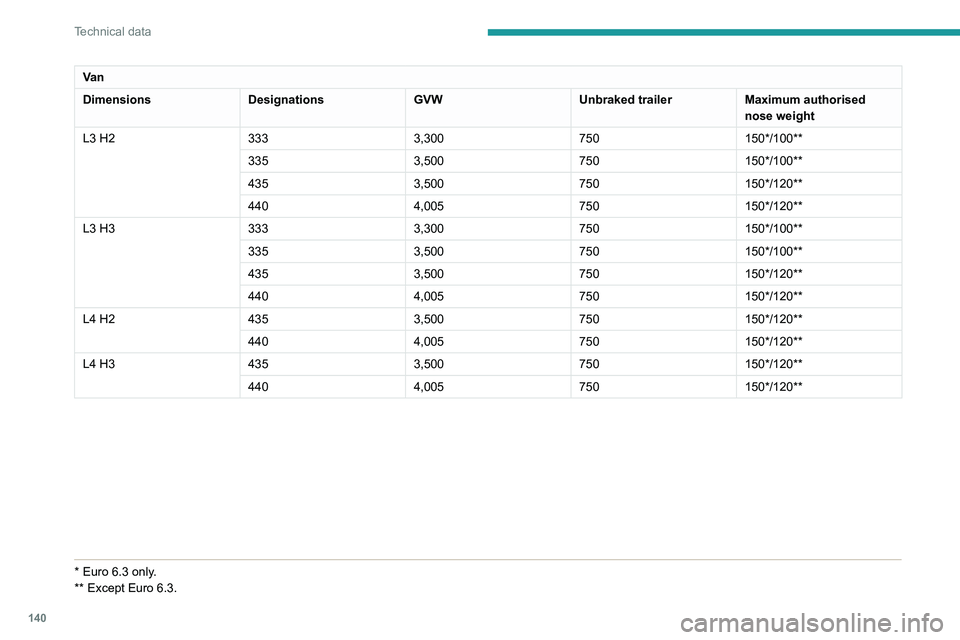

Page 142 of 212

PEUGEOT BOXER 2021  Owners Manual 140
Technical data
Va n
DimensionsDesignationsGVWUnbraked trailerMaximum authorised
nose weight
L3 H2 3333,300750150*/100**
335 3,500750150*/100**
435 3,500750150*/120**
440 4,005750150*/120**
L3 H3

Page 143 of 212

PEUGEOT BOXER 2021  Owners Manual 141
Technical data

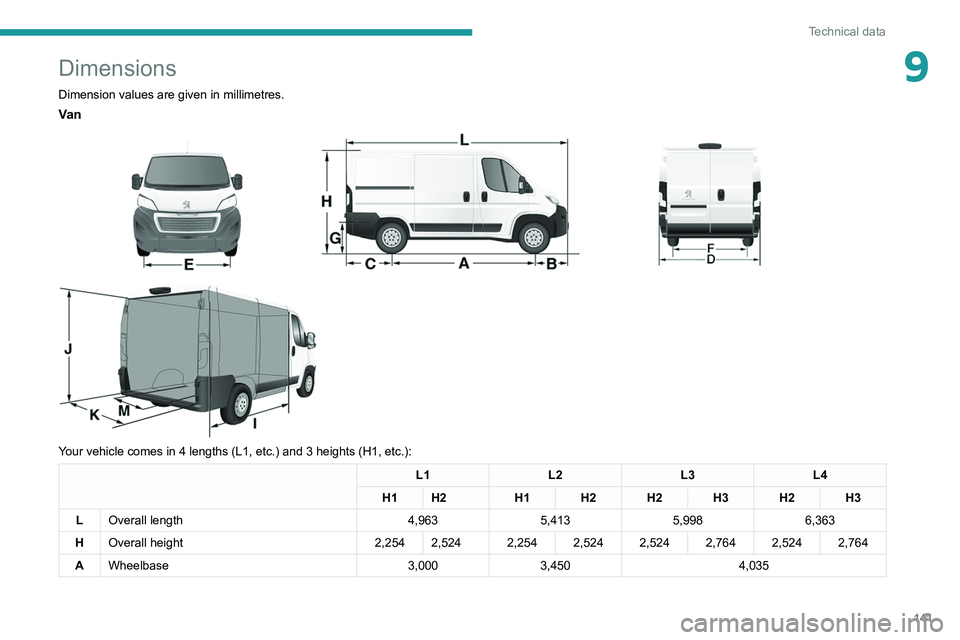

9Dimensions
Dimension values are given in millimetres.
Va n



Your vehicle comes in 4 lengths (L1, etc.) and 3 heights (H1, etc.):
L1 L2L3L4
H1 H2 H1 H2 H2 H3 H2 H3
L Overall l

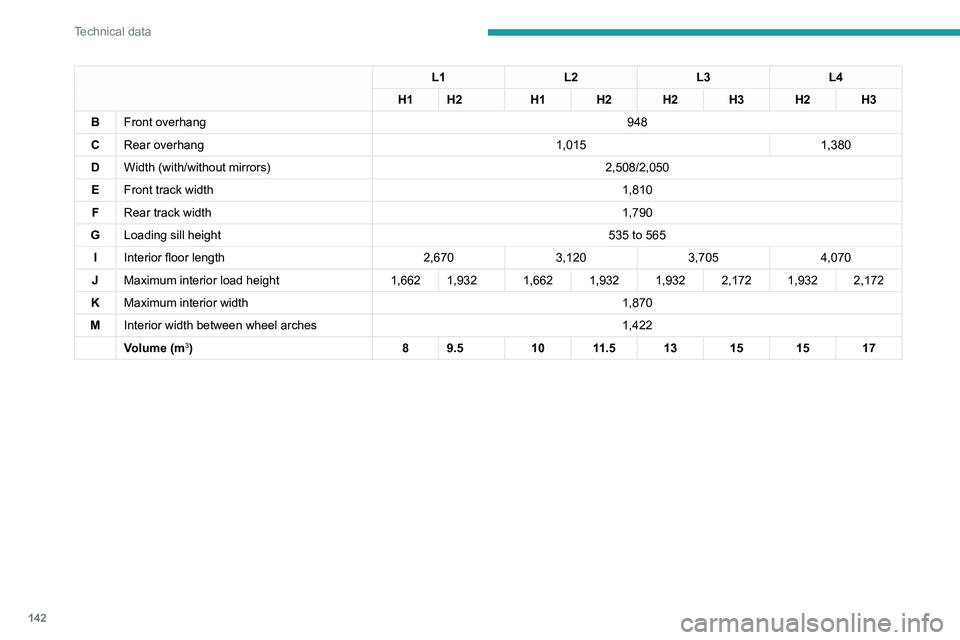

Page 144 of 212

PEUGEOT BOXER 2021  Owners Manual 142
Technical data
L1L2L3L4
H1 H2 H1 H2 H2 H3 H2 H3
B Front overhang 948
C Rear overhang 1,0151,380
D Width (with/without mirrors) 2,508/2,050
E Front track width 1,810
F Rear track

width 1,790
G Lo

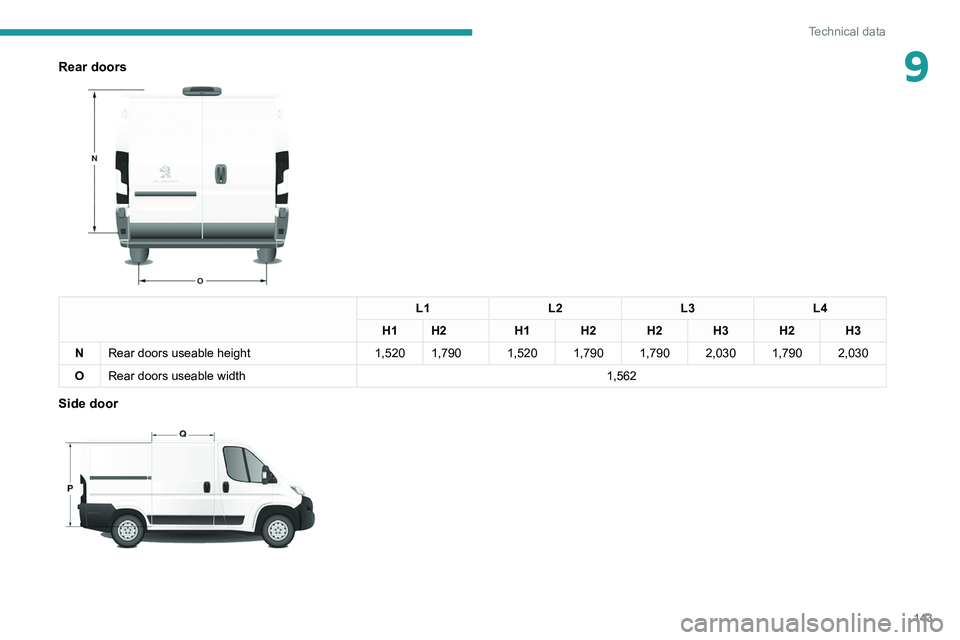

Page 145 of 212

PEUGEOT BOXER 2021  Owners Manual 143
Technical data
9Rear doors

L1L2L3L4
H1 H2 H1 H2 H2 H3 H2 H3
N Rear doors useable height 1,520 1,790 1,520 1,790  1,790 2,030 1,790 2,030
O Rear doors useable width 1,562
Side door

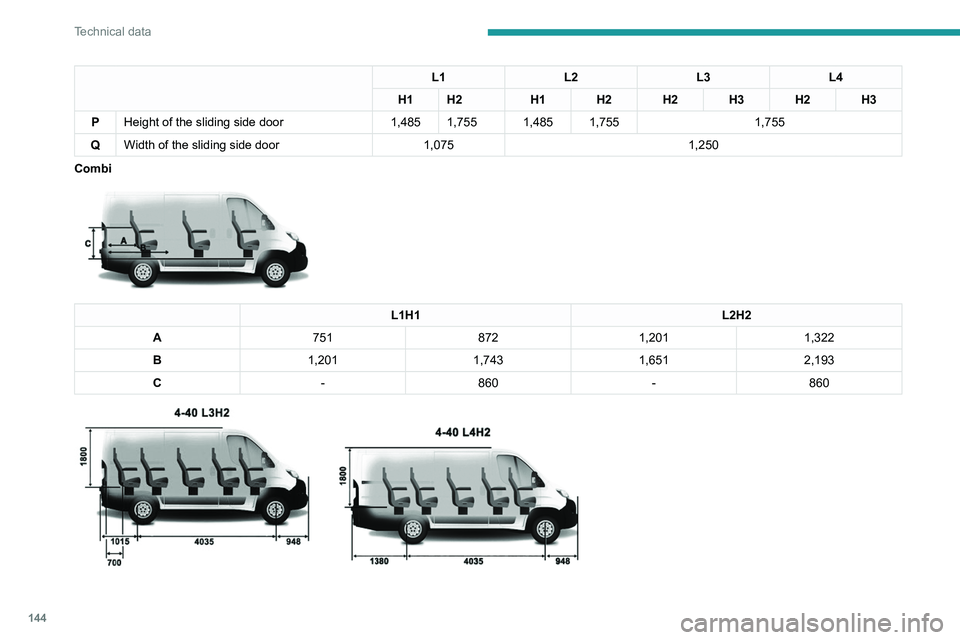

Page 146 of 212

PEUGEOT BOXER 2021  Owners Manual 144
Technical data
L1L2L3L4
H1 H2 H1 H2 H2  H3 H2 H3
P Height of the sliding side door 1,485 1,755 1,485 1,755 1,755
Q Width of the sliding side door 1,0751,250
Combi


L1H1 L2H2
A 751 8721,201 1,32

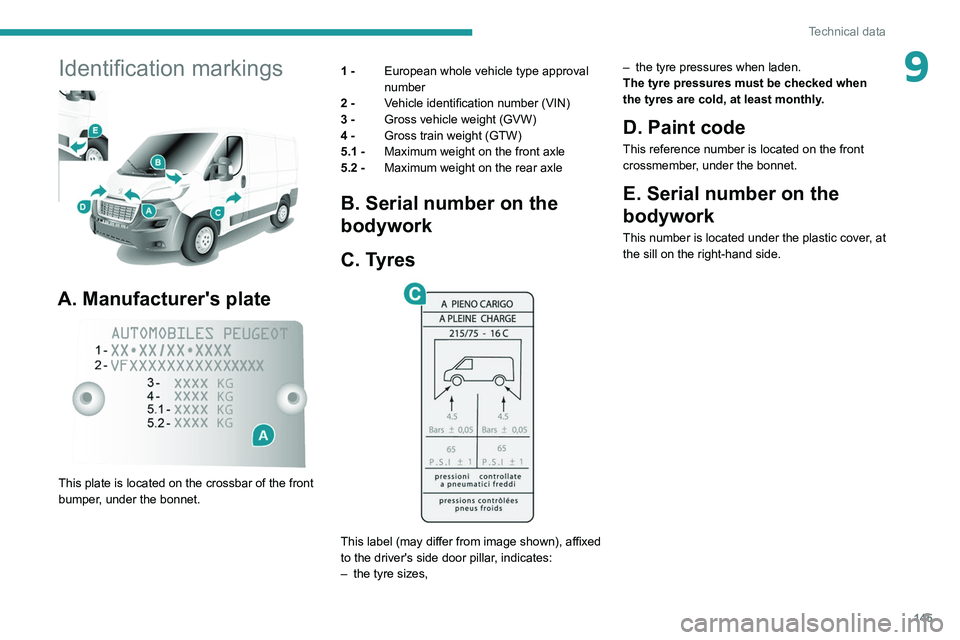

Page 147 of 212

PEUGEOT BOXER 2021  Owners Manual 145
Technical data
9Identification markings

A. Manufacturer's plate

This plate is located on the crossbar of the front
bumper, under the bonnet.1 -
European whole vehicle type approval
nu

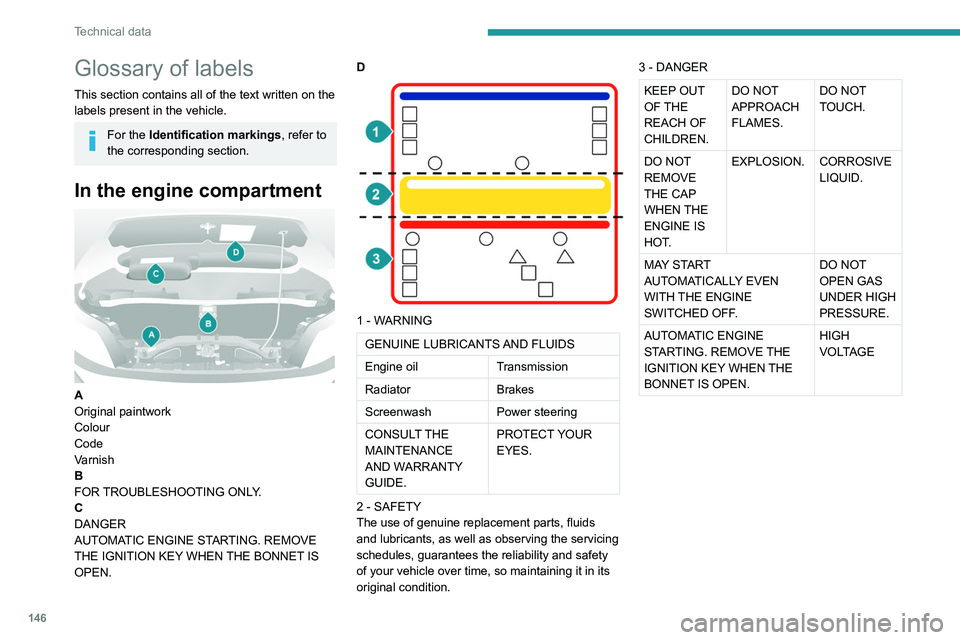

Page 148 of 212

PEUGEOT BOXER 2021  Owners Manual 146
Technical data
Glossary of labels
This section contains all of the text written on the
labels present in the vehicle.
For the Identification markings, refer to
the corresponding section.
In the

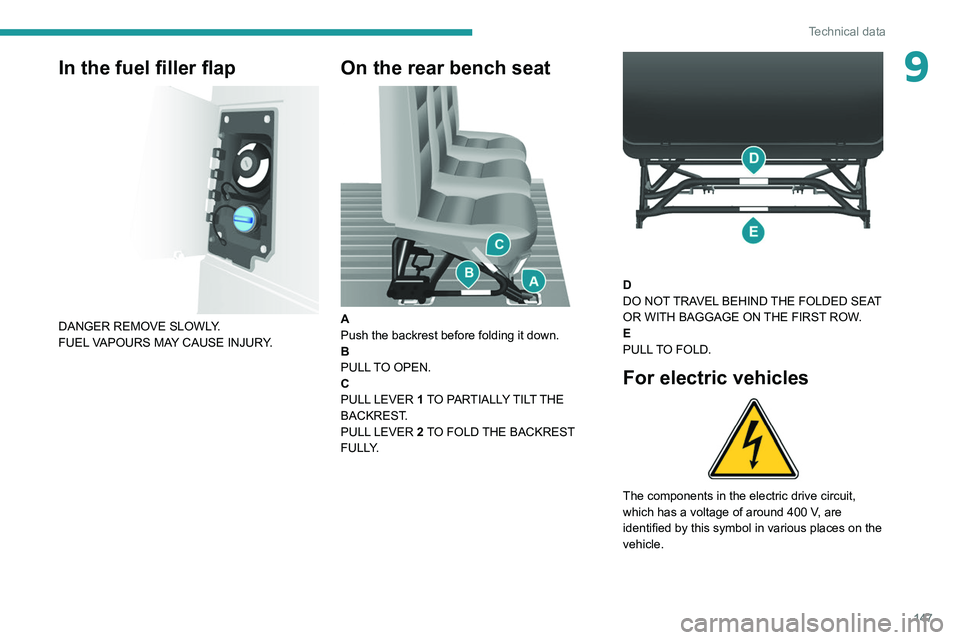

Page 149 of 212

PEUGEOT BOXER 2021  Owners Manual 147
Technical data
9In the fuel filler flap

DANGER REMOVE SLOWLY.
FUEL VAPOURS MAY CAUSE INJURY.
On the rear bench seat

A
Push the backrest before folding it down.
B
PULL TO OPEN.
C
PULL LEVER 1

Page 150 of 212

PEUGEOT BOXER 2021  Owners Manual 148
Special features

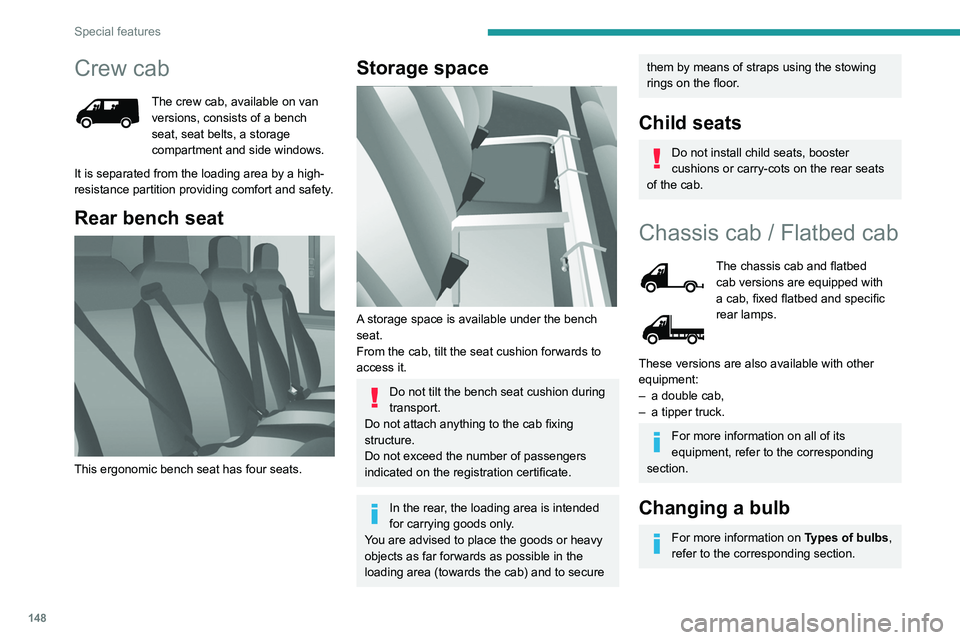

Crew cab
The crew cab, available on van
versions, consists of a bench
seat, seat belts, a storage
compartment and side windows.
It is separated from the loading area by a high-
