PEUGEOT BOXER 2021 Owners Manual

149
Special features

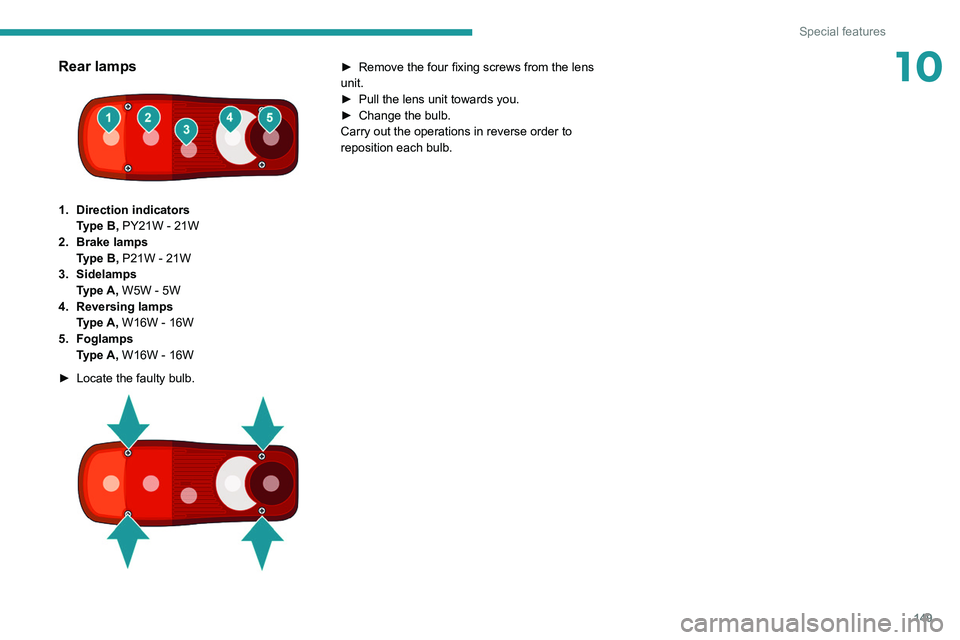

10Rear lamps

1. Direction indicatorsType B, PY21W - 21W
2. Brake lamps Type B, P21W - 21W
3. Sidelamps Type A, W5W - 5W
4. Reversing lamps Type A, W16W - 16W
5. Foglamps Type A, W16W - 16W
►

Locate the faulty bulb.

► Remove the four fixing screws from the lens
unit.
►

Pull the lens unit towards you.
►


Change the bulb.
Carry out the operations in reverse order to
reposition each bulb.

150
Special features

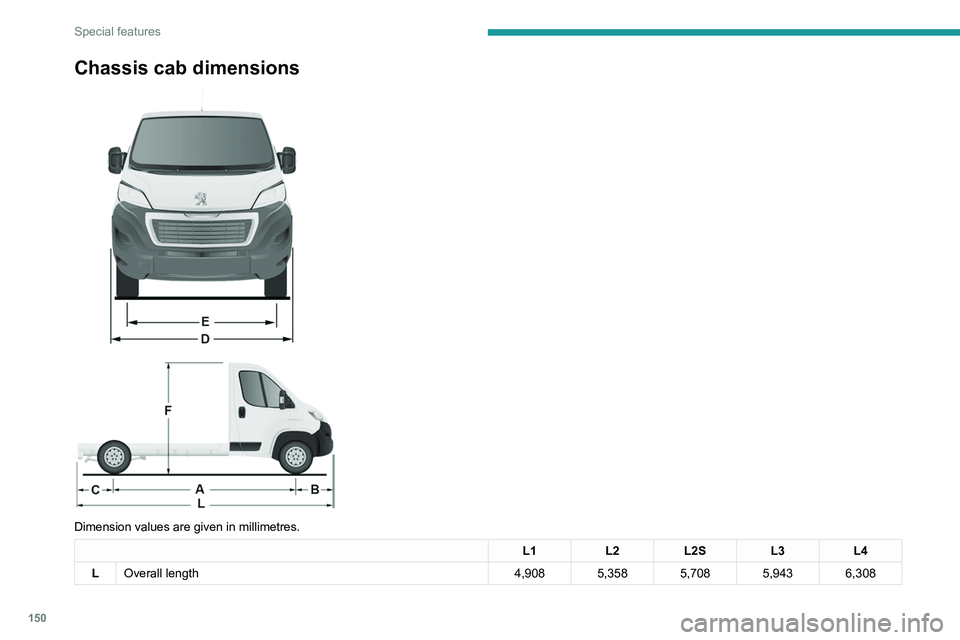

Chassis cab dimensions



Dimension values are given in millimetres.
L1 L2L2S L3L4
L Overall length 4,908 5,358 5,708 5,943 6,308

151
Special features

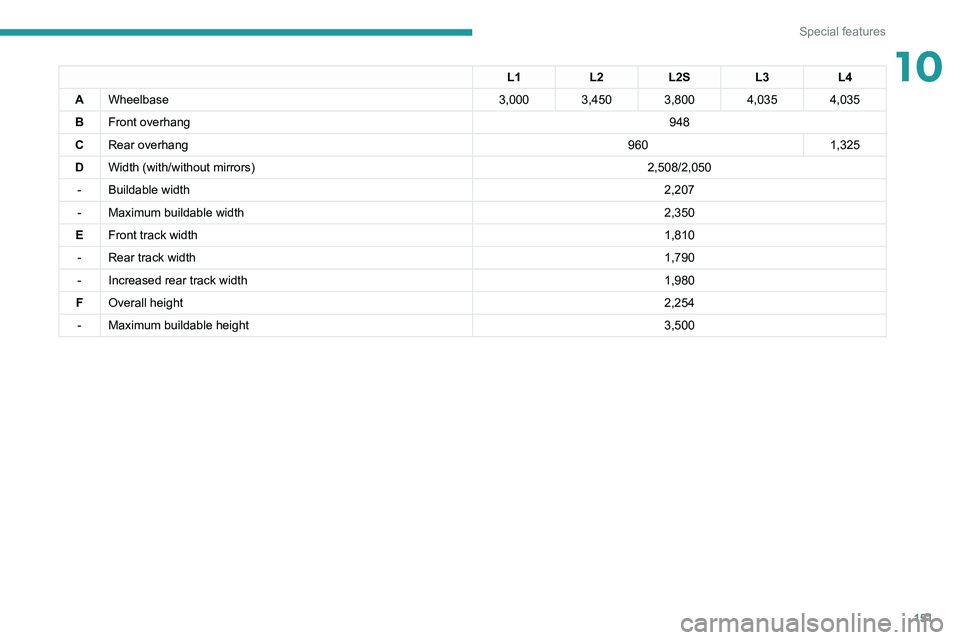

10L1L2L2S L3L4
A Wheelbase 3,000 3,450 3,800 4,035 4,035
B Front overhang 948
C Rear overhang 9601,325
D Width (with/without mirrors) 2,508/2,050
- Buildable width 2,207
- Maximum buildable width 2,350
E Front track width 1,810
- Rear track

width 1,790
- Increased rear track width 1,980
F Overall height 2,254
- Maximum buildable height 3,500

152
Special features
Platform cab dimensions



Dimension values are given in millimetres.
L1 L2L2SL3L4
L Overall length 5,293 5,743 6,093 6,328 6,693

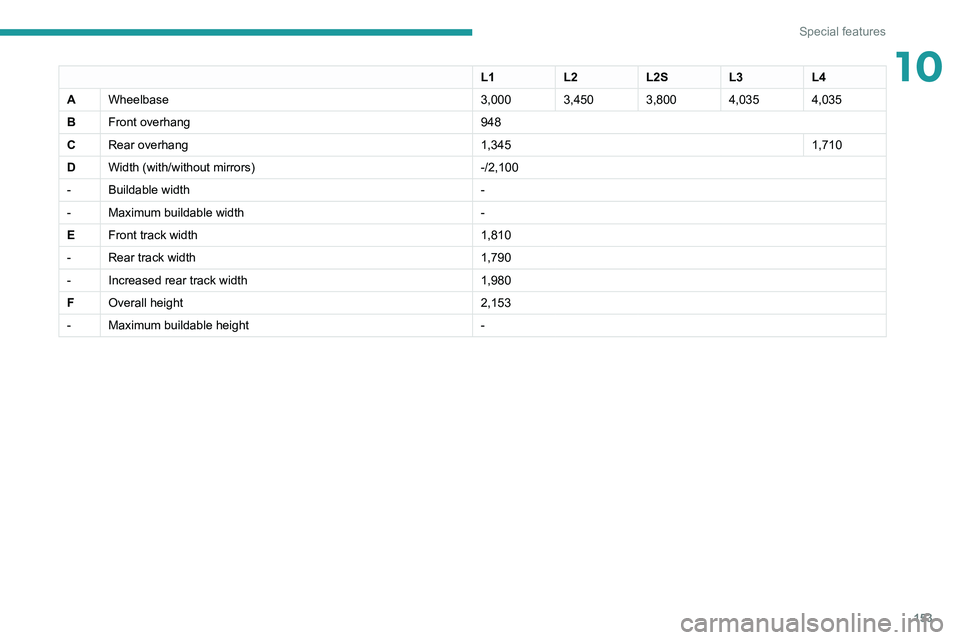

153
Special features
10L1L2L2SL3L4
A Wheelbase 3,000 3,450 3,800 4,035 4,035
B Front overhang 948
C Rear overhang 1,3451,710
D Width (with/without mirrors) -/2,100
- Buildable width -
- Maximum buildable width -
E Front track width 1,810
- Rear track

width 1,790
- Increased rear track

width 1,980
F Overall height 2,153
- Maximum buildable height -

154
Special features

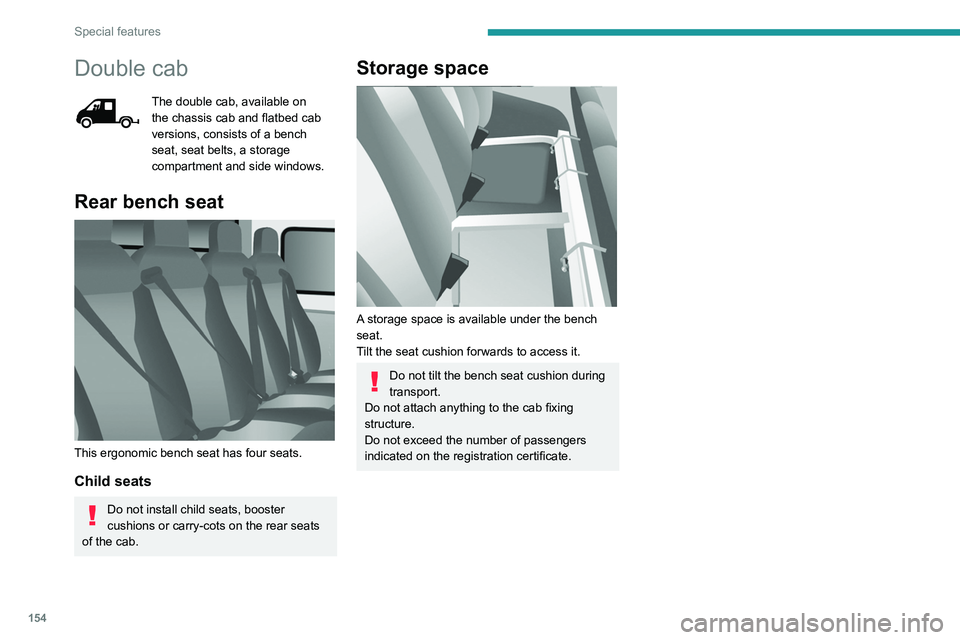

Double cab
The double cab, available on
the chassis cab and flatbed cab
versions, consists of a bench
seat, seat belts, a storage
compartment and side windows.
Rear bench seat

This ergonomic bench seat has four seats.
Child seats
Do not install child seats, booster
cushions or carry-cots on the rear seats
of the cab.
Storage space

A storage space is available under the bench
seat.
Tilt the seat cushion forwards to access it.
Do not tilt the bench seat cushion during
transport.
Do not attach anything to the cab fixing
structure.
Do not exceed the number of passengers
indicated on the registration certificate.

155
Special features

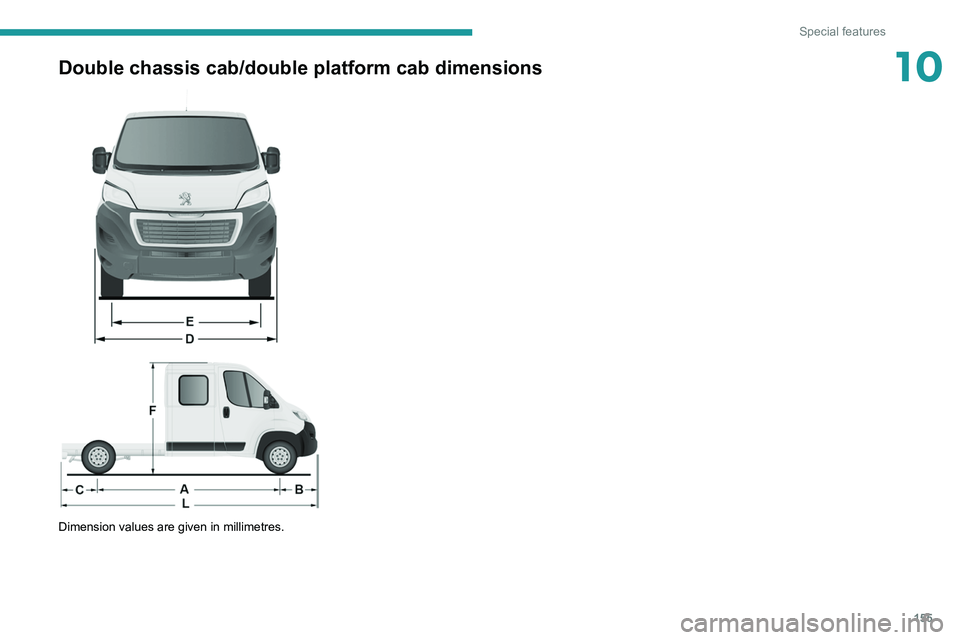

10Double chassis cab/double platform cab dimensions



Dimension values are given in millimetres.

156
Special features

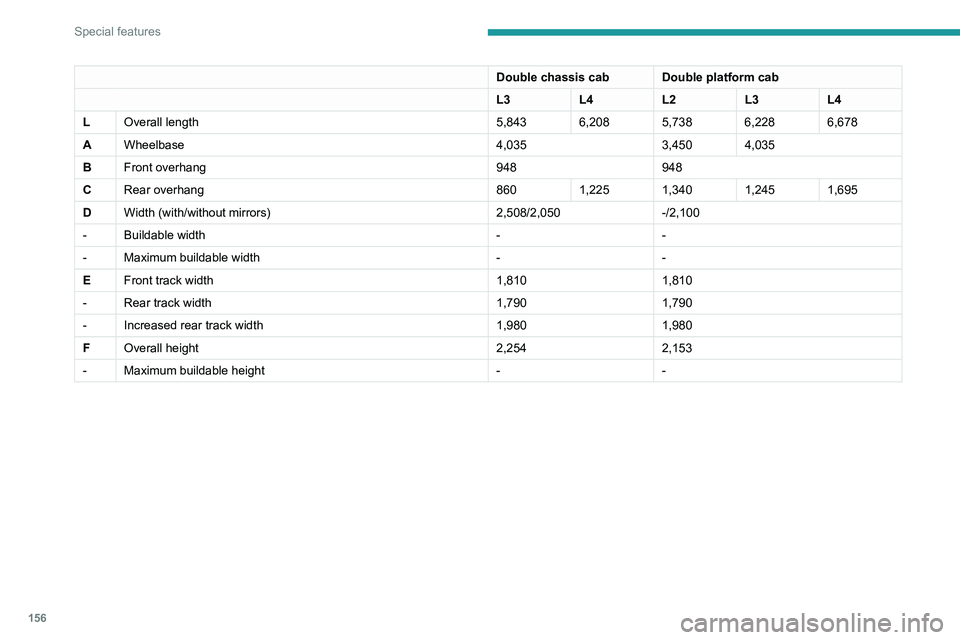

Double chassis cab Double platform cab
L3L4L2L3L4
L Overall length 5,843 6,208 5,738 6,228 6,678
A Wheelbase 4,0353,450 4,035
B Front overhang 948948
C Rear overhang 8601,225 1,340 1,245 1,695
D Width (with/without mirrors) 2,508/2,050-/2,100
- Buildable width --
- Maximum buildable width --
E Front track width 1,8101,810
- Rear track

width 1,7901,790
- Increased rear track

width 1,9801,980
F Overall height 2,2542,153
- Maximum buildable height --

157
Special features

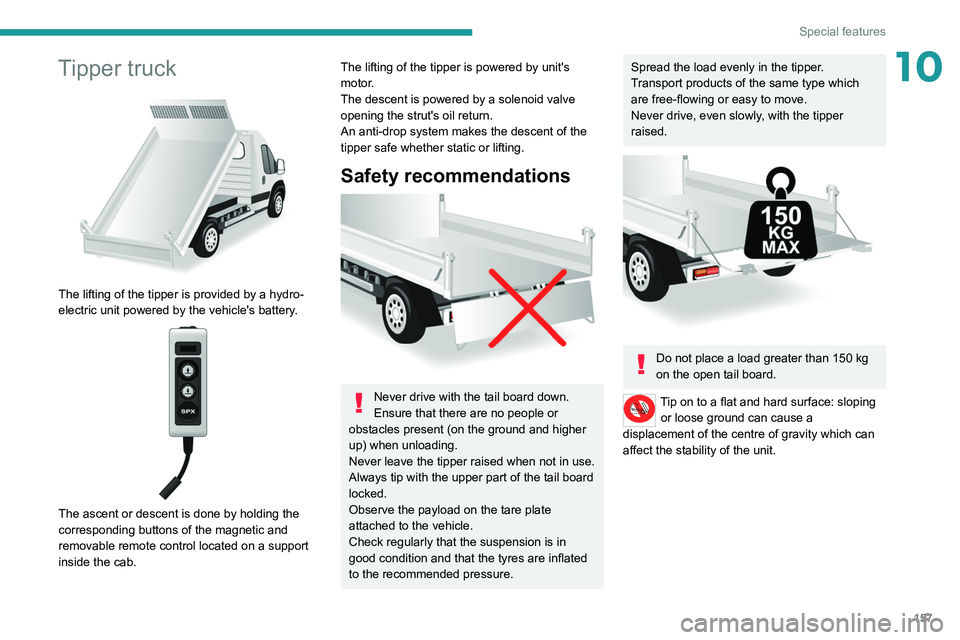

10Tipper truck

The lifting of the tipper is provided by a hydro-
electric unit powered by the vehicle's battery.


The ascent or descent is done by holding the
corresponding buttons of the magnetic and
removable remote control located on a support
inside the cab.
The lifting of the tipper is powered by unit's
motor.
The descent is powered by a solenoid valve
opening the strut's oil return.
An anti-drop system makes the descent of the
tipper safe whether static or lifting.
Safety recommendations

Never drive with the tail board down.
Ensure that there are no people or
obstacles present (on the ground and higher
up) when unloading.
Never leave the tipper raised when not in use.
Always tip with the upper part of the tail board
locked.
Observe the payload on the tare plate
attached to the vehicle.
Check regularly that the suspension is in
good condition and that the tyres are inflated
to the recommended pressure.
Spread the load evenly in the tipper.
Transport products of the same type which
are free-flowing or easy to move.
Never drive, even slowly, with the tipper
raised.


Do not place a load greater than 150 kg
on the open tail board.
Tip on to a flat and hard surface: sloping or loose ground can cause a
displacement of the centre of gravity which can
affect the stability of the unit.

158
Special features

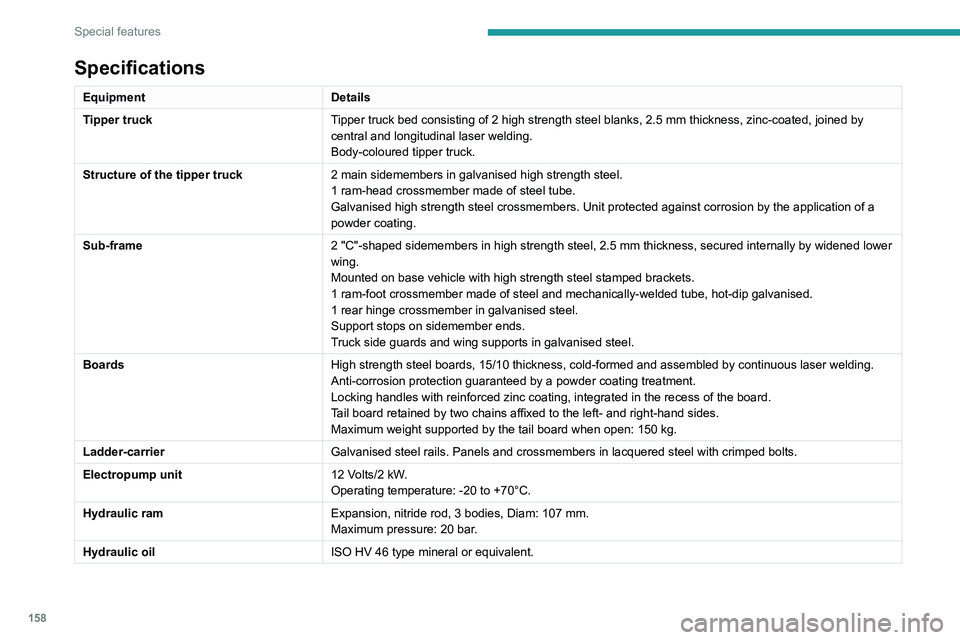

Specifications
EquipmentDetails
Tipper truck Tipper truck bed consisting of 2 high strength steel blanks, 2.5 mm thickness, zinc-coated, joined by
central and longitudinal laser welding.
Body-coloured tipper truck.
Structure of the tipper truck 2 main sidemembers in galvanised high strength steel.
1 ram-head crossmember made of steel tube.
Galvanised high strength steel crossmembers. Unit protected against corrosion by the application of a
powder coating.
Sub-frame 2 "C"-shaped sidemembers in high strength steel, 2.5 mm thickness, secured internally by widened lower
wing.
Mounted on base vehicle with high strength steel stamped brackets.
1 ram-foot crossmember made of steel and mechanically-welded tube, hot-dip galvanised.
1 rear hinge crossmember in galvanised steel.
Support stops on sidemember ends.
Truck side guards and wing supports in galvanised steel.
Boards High strength steel boards, 15/10 thickness, cold-formed and assembled by continuous laser welding.
Anti-corrosion protection guaranteed by a powder coating treatment.
Locking handles with reinforced zinc coating, integrated in the recess of the board.
Tail board retained by two chains affixed to the left- and right-hand sides.
Maximum weight supported by the tail board when open: 150 kg.
Ladder-carrier Galvanised steel rails. Panels and crossmembers in lacquered steel with crimped bolts.
Electropump unit 12 Volts/2 kW.
Operating temperature: -20 to +70°C.
Hydraulic ram Expansion, nitride rod, 3 bodies, Diam: 107 mm.
Maximum pressure: 20 bar.
Hydraulic oil ISO HV 46 type mineral or equivalent.
