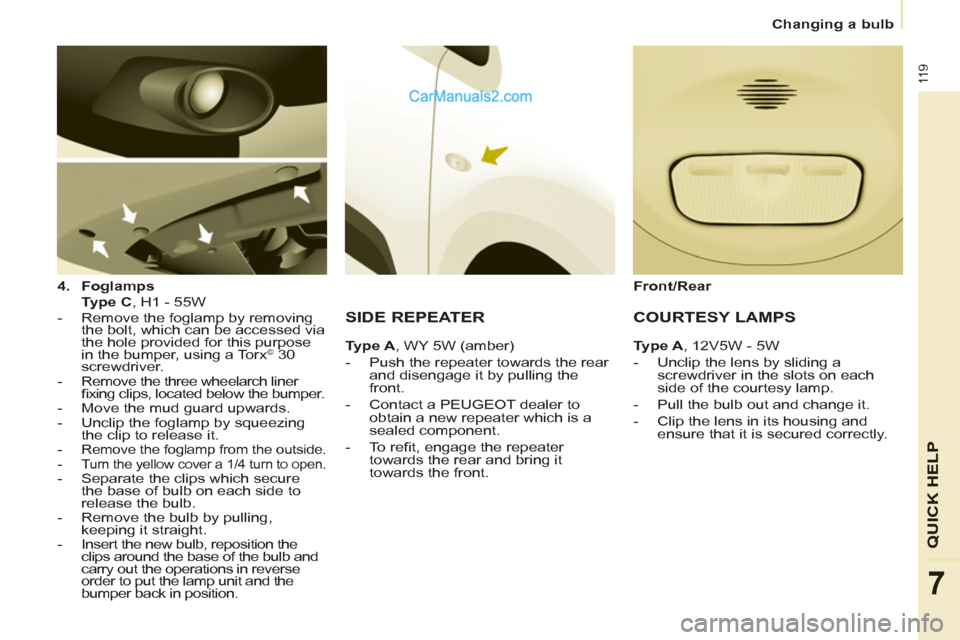

Changing a bulb

4.
Foglamps


Type C
, H1 - 55W


- Remove the foglamp by removing
the bolt, which can be accessed via
the hole provided for this purpose
in the bumper, using a Torx
© 30
screwdriver.

- Remove the three wheelarch liner
fi xing clips, located below the bumper.

- Move the mud guard upwards.

- Unclip the foglamp by squeezing
the clip to release it.

-
Remove the foglamp from the outside.
- Turn the yellow cover a 1/4 turn to open.
- Separate the clips which secure
the base of bulb on each side to
release the bulb.

- Remove the bulb by pulling,
keeping it straight.

- Insert the new bulb, reposition the
clips around the base of the bulb and
carry out the operations in reverse
order to put the lamp unit and the
bumper back in position.



SIDE REPEATER


Ty p e A
, WY 5W (amber)


- Push the repeater towards the rear
and disengage it by pulling the
front.

- Contact a PEUGEOT dealer to
obtain a new repeater which is a
sealed component.

- To refi t, engage the repeater
towards the rear and bring it
towards the front.
Front/Rear




COURTESY LAMPS


Type A
, 12V5W - 5W


- Unclip the lens by sliding a
screwdriver in the slots on each
side of the courtesy lamp.

- Pull the bulb out and change it.

- Clip the lens in its housing and
ensure that it is secured correctly.

120


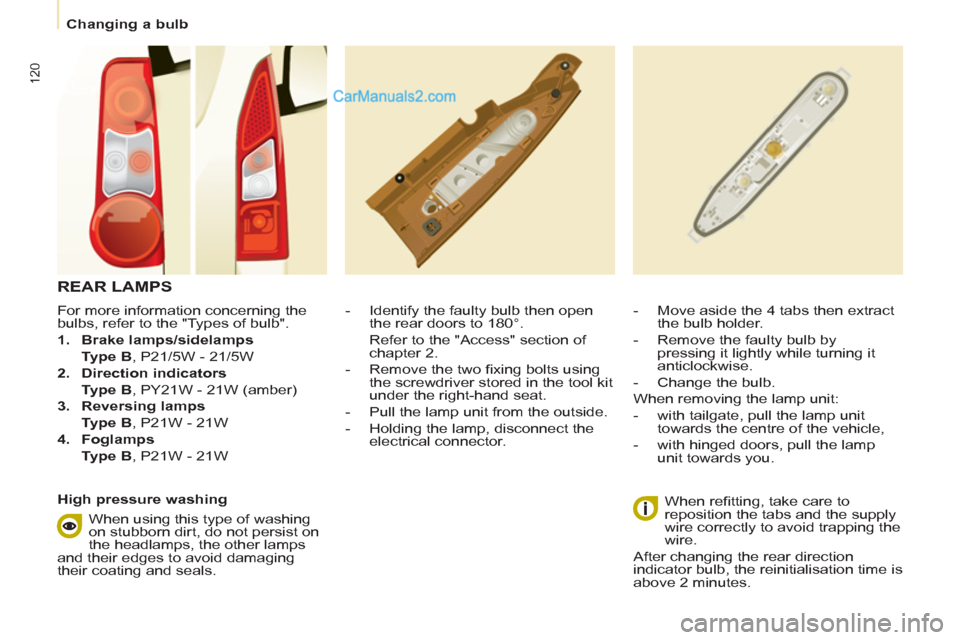

Changing a bulb


For more information concerning the
bulbs, refer to the "Types of bulb".


1.
Brake lamps/sidelamps


Type B
, P21/5W - 21/5W

2.
Direction indicators


Type B
, PY21W - 21W (amber)

3.
Reversing lamps


Type B
, P21W - 21W

4.
Foglamps


Type B
, P21W - 21W


- Identify the faulty bulb then open
the rear doors to 180°.
Refer to the "Access" section of
chapter 2.

- Remove the two fi xing bolts using
the screwdriver stored in the tool kit
under the right-hand seat.

- Pull the lamp unit from the outside.

- Holding the lamp, disconnect the
electrical connector.
- Move aside the 4 tabs then extract
the bulb holder.

- Remove the faulty bulb by
pressing it lightly while turning it
anticlockwise.

- Change the bulb.


When removing the lamp unit:


- with tailgate, pull the lamp unit
towards the centre of the vehicle,

- with hinged doors, pull the lamp
unit towards you.


When refi tting, take care to
reposition the tabs and the supply
wire correctly to avoid trapping the
wire.
After changing the rear direction
indicator bulb, the reinitialisation time is
above 2 minutes.


REAR LAMPS


High pressure washing
When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the other lamps
and their edges to avoid damaging
their coating and seals.

121
QUICK HELP
7

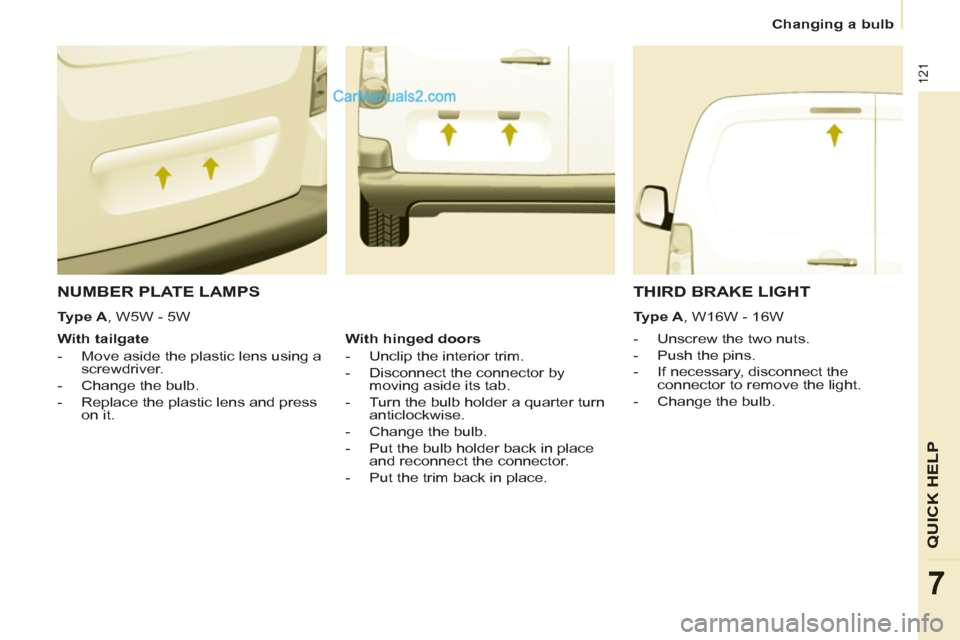

Changing a bulb

NUMBER PLATE LAMPS




- Unscrew the two nuts.

- Push the pins.

- If necessary, disconnect the
connector to remove the light.

- Change the bulb.


With tailgate


- Move aside the plastic lens using a
screwdriver.

- Change the bulb.

- Replace the plastic lens and press
on it.


THIRD BRAKE LIGHT


Ty p e A
, W16W - 16W

With hinged doors


- Unclip the interior trim.

- Disconnect the connector by
moving aside its tab.

- Turn the bulb holder a quarter turn
anticlockwise.

- Change the bulb.

- Put the bulb holder back in place
and reconnect the connector.

- Put the trim back in place.



Type A
, W5W - 5W

122


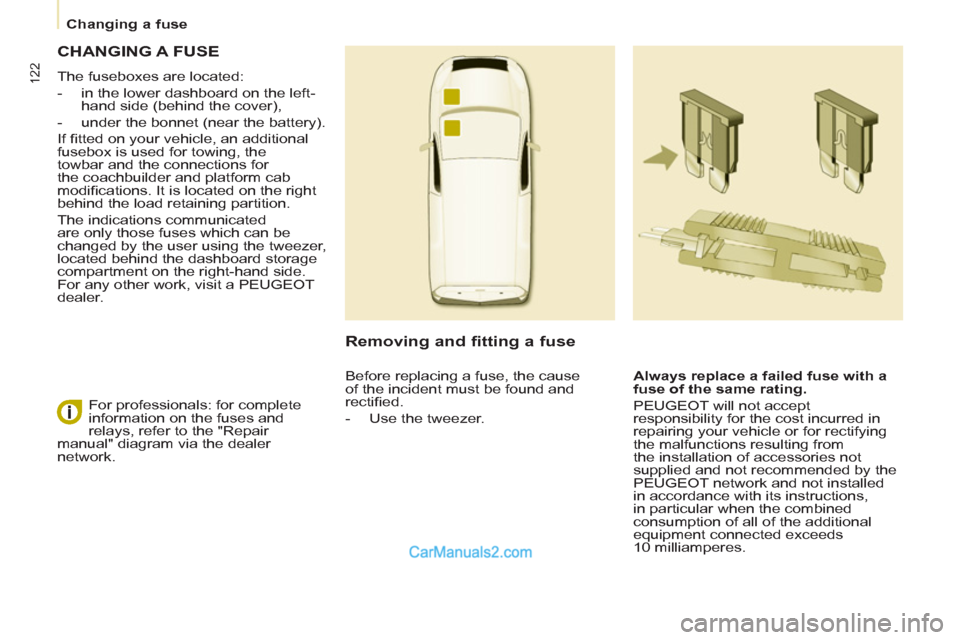

Changing a fuse


CHANGING A FUSE

The fuseboxes are located:


- in the lower dashboard on the left-
hand side (behind the cover),

- under the bonnet (near the battery).
If fi tted on your vehicle, an additional
fusebox is used for towing, the
towbar and the connections for
the coachbuilder and platform cab
modifi cations. It is located on the right
behind the load retaining partition.
The indications communicated
are only those fuses which can be
changed by the user using the tweezer,
located behind the dashboard storage
compartment on the right-hand side.
For any other work, visit a PEUGEOT
dealer.

Removing and fitting a fuse


Always replace a failed fuse with a
fuse of the same rating.

PEUGEOT will not accept
responsibility for the cost incurred in
repairing your vehicle or for rectifying
the malfunctions resulting from
the installation of accessories not
supplied and not recommended by the
PEUGEOT network and not installed
in accordance with its instructions,
in particular when the combined
consumption of all of the additional
equipment connected exceeds
10 milliamperes. For professionals: for complete
information on the fuses and
relays, refer to the "Repair
manual" diagram via the dealer
network. Before replacing a fuse, the cause
of the incident must be found and
rectifi ed.


- Use the tweezer.

123
QUICK HEL
P
7

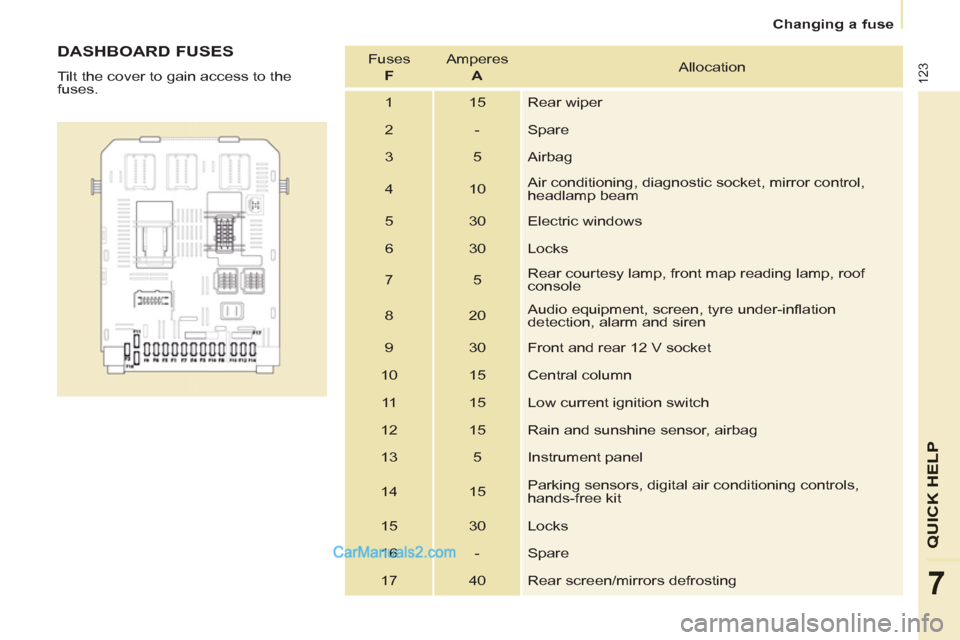

DASHBOARD FUSES

Tilt the cover to gain access to the
fuses. Fuses
F
Amperes
A
Allocation
1 15 Rear wiper
2 - Spare
3 5 Airbag
4 10 Air conditioning, diagnostic socket, mirror control,
headlamp beam
5 30 Electric windows
6 30 Locks
7 5 Rear courtesy lamp, front map reading lamp, roof
console
8 20 Audio equipment, screen, tyre under-infl ation
detection, alarm and siren
9 30 Front and rear 12 V socket
10 15 Central column
11 15 Low current ignition switch
12 15 Rain and sunshine sensor, airbag
13 5 Instrument panel
14 15 Parking sensors, digital air conditioning controls,
hands-free kit
15 30 Locks
16 - Spare
17 40 Rear screen/mirrors defrosting

Changing a fuse

124


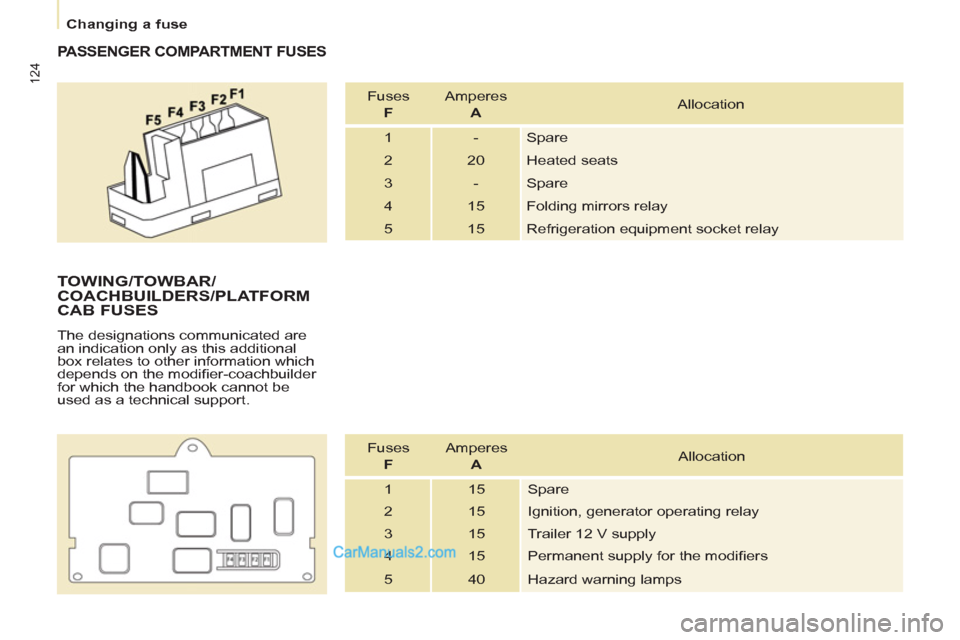

Changing a fuse



PASSENGER COMPARTMENT FUSES

Fuses
F
Amperes
A
Allocation
1 - Spare
2 20 Heated seats
3 - Spare
4 15 Folding mirrors relay
5 15 Refrigeration equipment socket relay


TOWING/TOWBAR/
COACHBUILDERS/PLATFORM
CAB FUSES
The designations communicated are
an indication only as this additional
box relates to other information which
depends on the modifi er-coachbuilder
for which the handbook cannot be
used as a technical support.
Fuses
F
Amperes
A
Allocation
1 15 Spare
2 15 Ignition, generator operating relay
3 15 Trailer 12 V supply
4 15 Permanent supply for the modifi ers
5 40 Hazard warning lamps

125
QUICK HEL
P
7


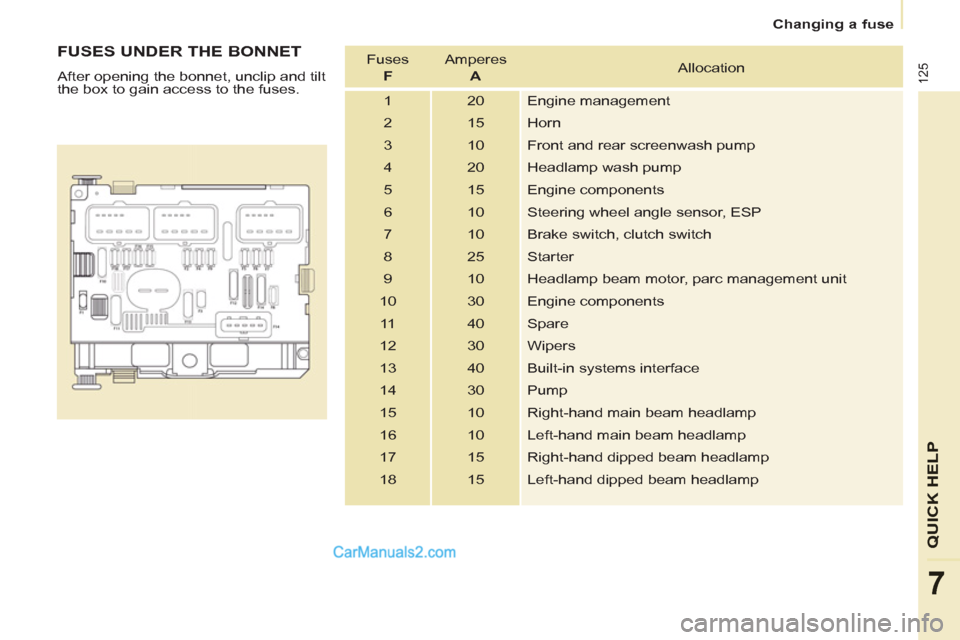

Changing a fuse



FUSES UNDER THE BONNET

After opening the bonnet, unclip and tilt
the box to gain access to the fuses. Fuses
F
Amperes
A
Allocation
1 20 Engine management
2 15 Horn
3 10 Front and rear screenwash pump
4 20 Headlamp wash pump
5 15 Engine components
6 10 Steering wheel angle sensor, ESP
7 10 Brake switch, clutch switch
8 25 Starter
9 10 Headlamp beam motor, parc management unit
10 30 Engine components
11 40 Spare
12 30 Wipers
13 40 Built-in systems interface
14 30 Pump
15 10 Right-hand main beam headlamp
16 10 Left-hand main beam headlamp
17 15 Right-hand dipped beam headlamp
18 15 Left-hand dipped beam headlamp

126


Changing a wiper blade



Placing the wiper blades
in the special position


- Less than a minute after switching
off the ignition, press the wipers
stalk downwards to position the
wiper blades along the windscreen
uprights (special position).
Changing a front wiper blade


- Lift the wiper arm.

- Unclip the blade and remove it.

- Fit the new blade.

- Push back the wiper arm.
To return the windscreen wipers to their
normal position, switch on the ignition
and operate the wipers stalk.
Changing the rear wiper blade


- Lift the wiper arm, then unclip the
blade and remove it.

- Fit the new blade and push back
the wiper arm.

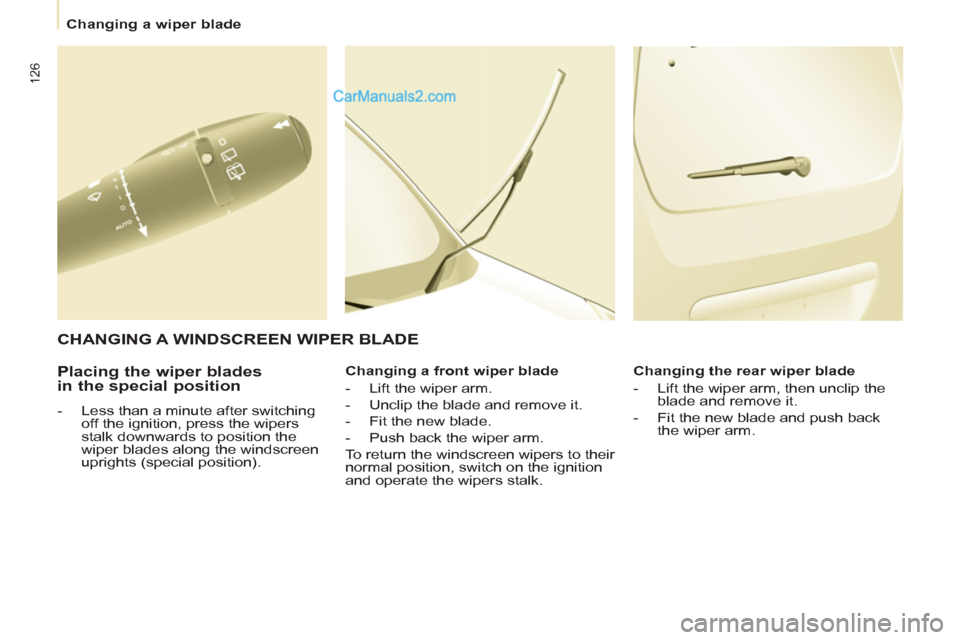

CHANGING A WINDSCREEN WIPER BLADE

127
QUICK HELP
7

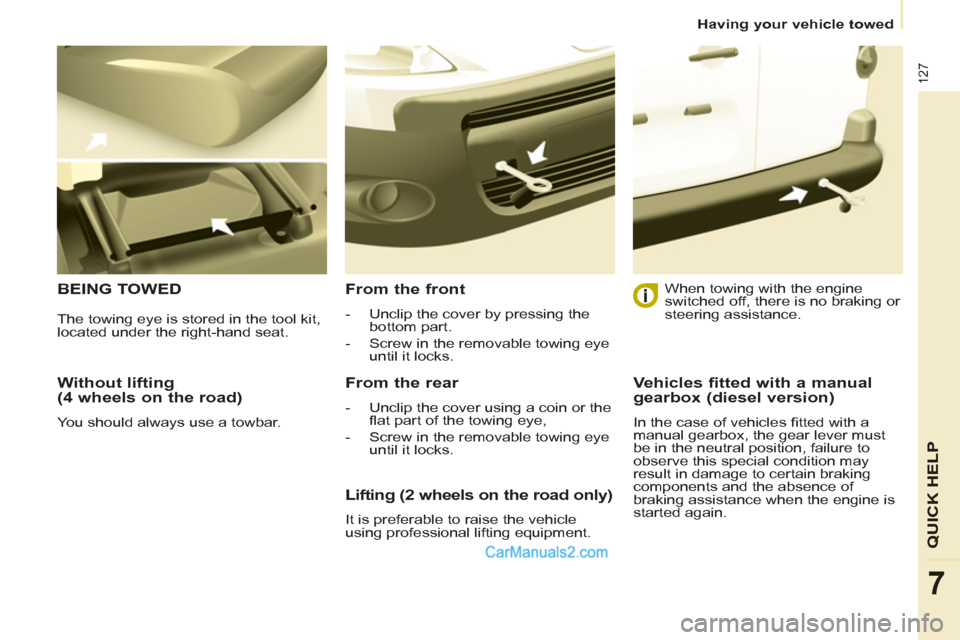

Having your vehicle towed


Without lifting
(4 wheels on the road)
You should always use a towbar.

BEING TOWED
From the front



- Unclip the cover by pressing the
bottom part.

- Screw in the removable towing eye
until it locks.



From the rear



- Unclip the cover using a coin or the
fl at part of the towing eye,

- Screw in the removable towing eye
until it locks.

When towing with the engine
switched off, there is no braking or
steering assistance.


Lifting (2 wheels on the road only)

It is preferable to raise the vehicle
using professional lifting equipment. The towing eye is stored in the tool kit,
located under the right-hand seat.

Vehicles fitted with a manual
gearbox (diesel version)
In the case of vehicles fi tted with a
manual gearbox, the gear lever must
be in the neutral position, failure to
observe this special condition may
result in damage to certain braking
components and the absence of
braking assistance when the engine is
started again.
