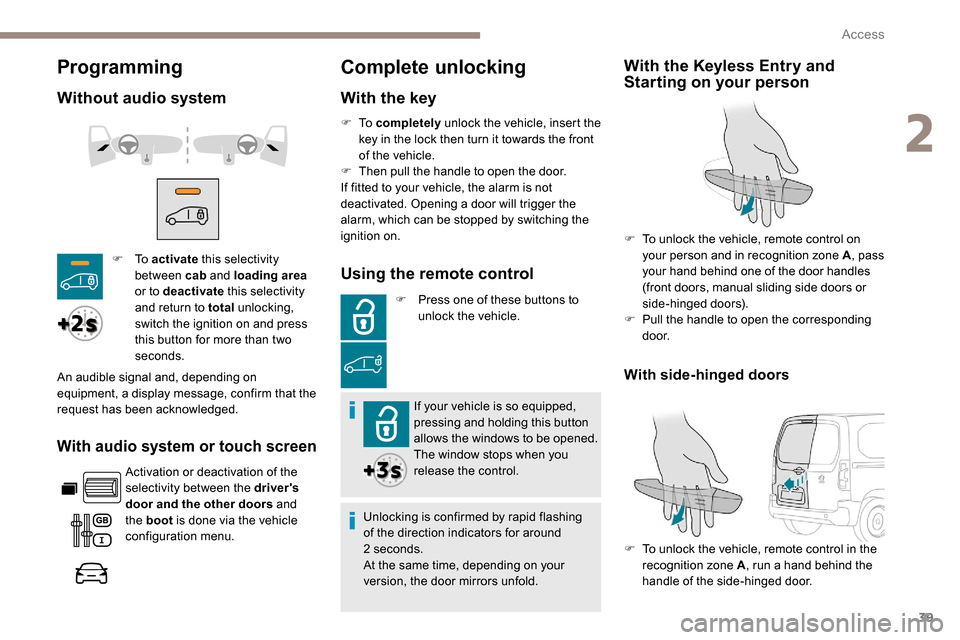

Page 41 of 312
39
Programming
Without audio system
With audio system or touch screen
Activation or deactivation of the
selectivity between the driver's
door and the other doors and
the boot is done via the vehicle
configuration menu.
Complete unlocking
With the key
F To activate this selectivity
between cab and loading area
or to deactivate this selectivity
and return to total unlocking,
switch the ignition on and press
this button for more than two
seconds.
An audible signal and, depending on
equipment, a display message, confirm that the
request has been acknowledged. F
To
completely unlock the vehicle, insert the
key in the lock then turn it towards the front
of the vehicle.
F
T
hen pull the handle to open the door.
If fitted to your vehicle, the alarm is not
deactivated. Opening a door will trigger the
alarm, which can be stopped by switching the
ignition on.Using the remote control
F Press one of these buttons to unlock the vehicle.
If your vehicle is so equipped,
pressing and holding this button
allows the windows to be opened.
The window stops when you
release the control.
Unlocking is confirmed by rapid flashing
of the direction indicators for around
2
seconds.
At the same time, depending on your
version, the door mirrors unfold.
With the Keyless Entry and
Starting on your person
F To unlock the vehicle, remote control on your person and in recognition zone A , pass
your hand behind one of the door handles
(front doors, manual sliding side doors or
side-hinged doors).
F
P
ull the handle to open the corresponding
d o o r.
F
T
o unlock the vehicle, remote control in the
recognition zone A , run a hand behind the
handle of the side-hinged door.
With side-hinged doors
2
Access

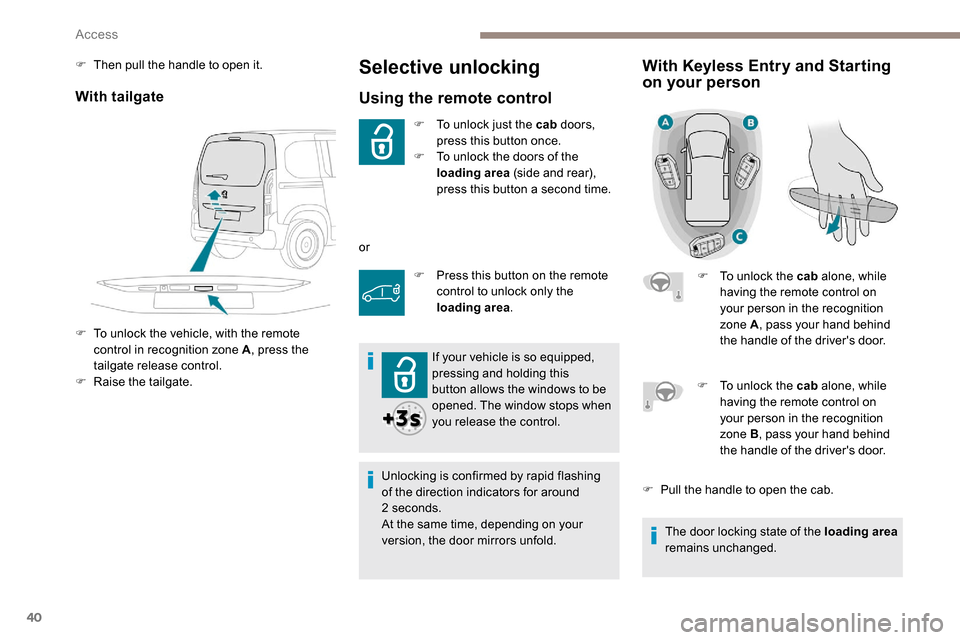

Page 42 of 312
40
Selective unlocking
Using the remote control
F To unlock just the cab doors,
press this button once.
F
T
o unlock the doors of the
loading area (side and rear),
press this button a second time.
or F
P
ress this button on the remote
control to unlock only the
loading area .
If your vehicle is so equipped,
pressing and holding this
button allows the windows to be
opened. The window stops when
you release the control.
Unlocking is confirmed by rapid flashing
of the direction indicators for around
2
seconds.
At the same time, depending on your
version, the door mirrors unfold.
With Keyless Entry and Starting
on your person
F To unlock the cab alone, while
having the remote control on
your person in the recognition
zone A , pass your hand behind
the handle of the driver's door.
With tailgate
F To unlock the vehicle, with the remote control in recognition zone A , press the
tailgate release control.
F
Ra
ise the tailgate.
F
T
hen pull the handle to open it.
F
T
o unlock the cab alone, while
having the remote control on
your person in the recognition
zone B , pass your hand behind
the handle of the driver's door.
F
P
ull the handle to open the cab.
The door locking state of the loading area
remains unchanged.
Access

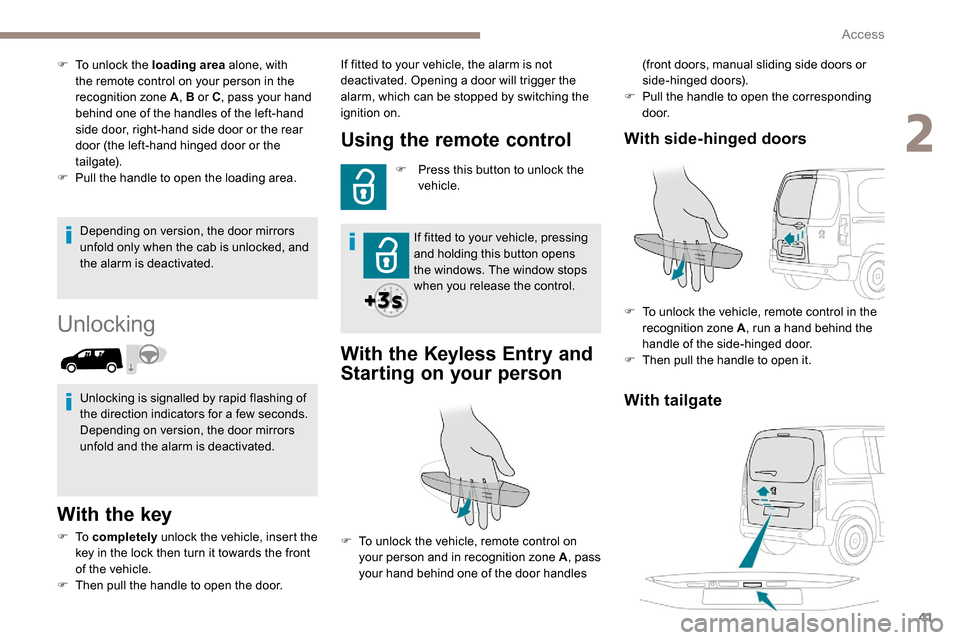

Page 43 of 312
41
Depending on version, the door mirrors
unfold only when the cab is unlocked, and
the alarm is deactivated.
Unlocking
With the key
F To completely unlock the vehicle, insert the
key in the lock then turn it towards the front
of the vehicle.
F
T
hen pull the handle to open the door.
Using the remote control
F Press this button to unlock the vehicle.
If fitted to your vehicle, pressing
and holding this button opens
the windows. The window stops
when you release the control.
With the K eyless Entry and
Starting on your person
(front doors, manual sliding side doors or
side-hinged doors).
F
P
ull the handle to open the corresponding
d o o r.
With tailgate
With side-hinged doors
F To unlock the vehicle, remote control in the
recognition zone A , run a hand behind the
handle of the side-hinged door.
F
T
hen pull the handle to open it.
F
T
o unlock the loading area
alone, with
the remote control on your person in the
recognition zone A , B or C, pass your hand
behind one of the handles of the left-hand
side door, right-hand side door or the rear
door (the left-hand hinged door or the
tailgate).
F
P
ull the handle to open the loading area.
Unlocking is signalled by rapid flashing of
the direction indicators for a few seconds.
Depending on version, the door mirrors
unfold and the alarm is deactivated. If fitted to your vehicle, the alarm is not
deactivated. Opening a door will trigger the
alarm, which can be stopped by switching the
ignition on.
F
T
o unlock the vehicle, remote control on
your person and in recognition zone A , pass
your hand behind one of the door handles
2
Access

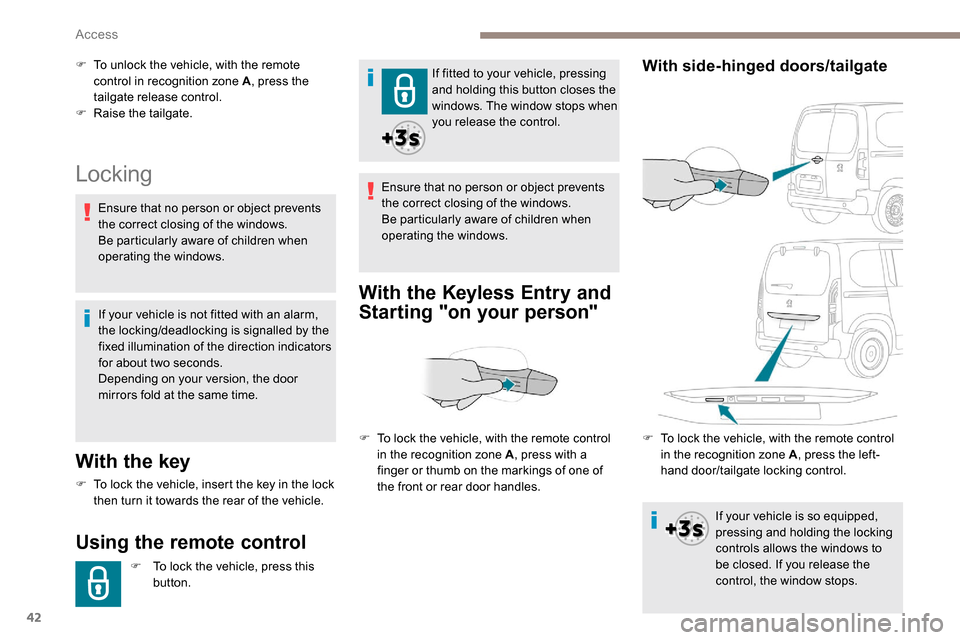

Page 44 of 312
42
Locking
With the key
F To lock the vehicle, insert the key in the lock then turn it towards the rear of the vehicle.
Using the remote control
F To lock the vehicle, press this button. If fitted to your vehicle, pressing
and holding this button closes the
windows. The window stops when
you release the control.
Ensure that no person or object prevents
the correct closing of the windows.
Be particularly aware of children when
operating the windows.
If your vehicle is not fitted with an alarm,
the locking/deadlocking is signalled by the
fixed illumination of the direction indicators
for about two seconds.
Depending on your version, the door
mirrors fold at the same time.
With the K eyless Entry and
Starting "on your person"
F To unlock the vehicle, with the remote
control in recognition zone A , press the
tailgate release control.
F
Ra
ise the tailgate.
F
T
o lock the vehicle, with the remote control
in the recognition zone A , press with a
finger or thumb on the markings of one of
the front or rear door handles.With side-hinged doors/tailgate
Ensure that no person or object prevents
the correct closing of the windows.
Be particularly aware of children when
operating the windows.
F
T
o lock the vehicle, with the remote control
in the recognition zone A , press the left-
hand door/tailgate locking control.
If your vehicle is so equipped,
pressing and holding the locking
controls allows the windows to
be closed. If you release the
control, the window stops.
Access

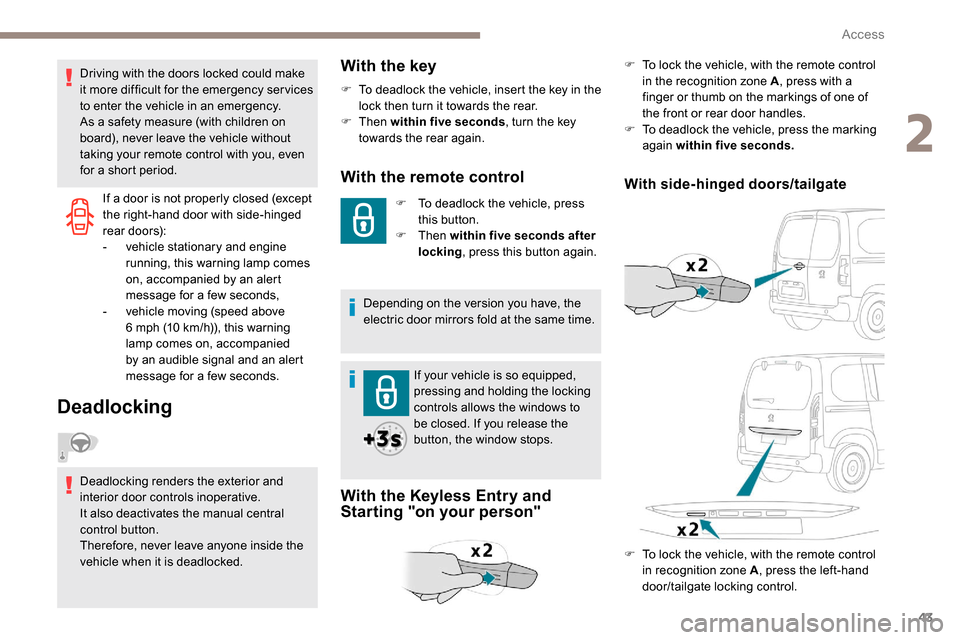

Page 45 of 312
43
If a door is not properly closed (except
the right-hand door with side-hinged
rear doors):
-
v
ehicle stationary and engine
running, this warning lamp comes
on, accompanied by an alert
message for a few seconds,
-
v
ehicle moving (speed above
6
mph (10 km/h)), this warning
lamp comes on, accompanied
by an audible signal and an alert
message for a few seconds.
Deadlocking
With the key
F To deadlock the vehicle, insert the key in the lock then turn it towards the rear.
F
Then within five seconds , turn the key
towards the rear again.
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
control button.
Therefore, never leave anyone inside the
vehicle when it is deadlocked.
With the remote control
F To deadlock the vehicle, press this button.
F
Then within five seconds after
locking , press this button again.
Depending on the version you have, the
electric door mirrors fold at the same time.
With the Keyless Entry and
Starting "on your person"
With side-hinged doors/tailgate
F To lock the vehicle, with the remote control in the recognition zone A , press with a
finger or thumb on the markings of one of
the front or rear door handles.
F
T
o deadlock the vehicle, press the marking
again within five seconds.
If your vehicle is so equipped,
pressing and holding the locking
controls allows the windows to
be closed. If you release the
button, the window stops.
Driving with the doors locked could make
it more difficult for the emergency ser vices
to enter the vehicle in an emergency.
As a safety measure (with children on
board), never leave the vehicle without
taking your remote control with you, even
for a short period.
F
T
o lock the vehicle, with the remote control
in recognition zone A , press the left-hand
door/tailgate locking control.
2
Access

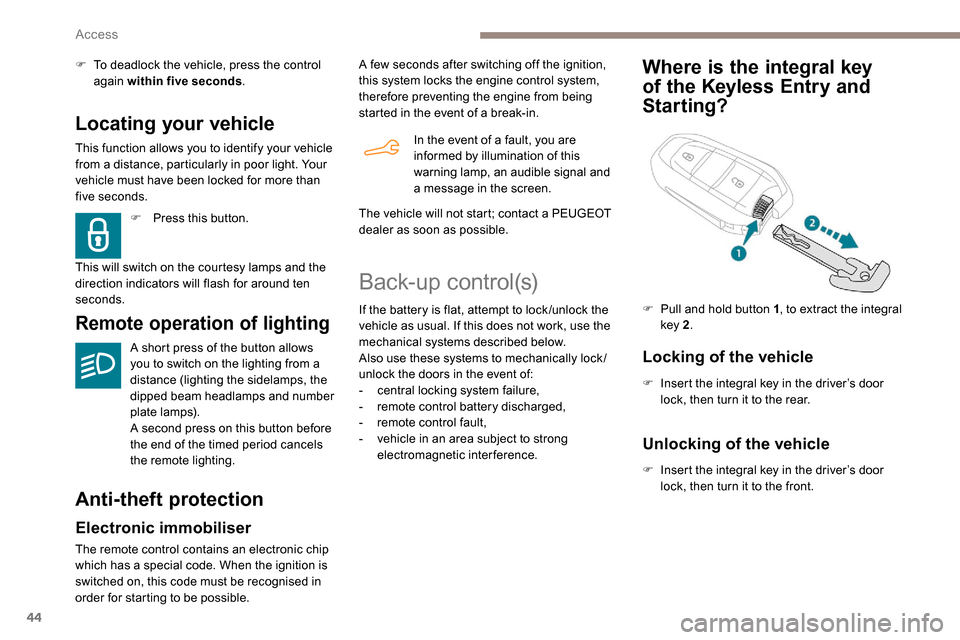

Page 46 of 312
44
Locating your vehicle
This function allows you to identify your vehicle
from a distance, particularly in poor light. Your
vehicle must have been locked for more than
five seconds.
Remote operation of lighting
A short press of the button allows
you to switch on the lighting from a
distance (lighting the sidelamps, the
dipped beam headlamps and number
plate lamps).
A second press on this button before
the end of the timed period cancels
the remote lighting. F
P
ress this button.
This will switch on the courtesy lamps and the
direction indicators will flash for around ten
seconds.
Anti-theft protection
Electronic immobiliser
The remote control contains an electronic chip
which has a special code. When the ignition is
switched on, this code must be recognised in
order for starting to be possible. F
T
o deadlock the vehicle, press the control
again within five seconds .
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal and
a message in the screen.
The vehicle will not start; contact a PEUGEOT
dealer as soon as possible. A few seconds after switching off the ignition,
this system locks the engine control system,
therefore preventing the engine from being
started in the event of a break-in.
Back-up control(s)
If the battery is flat, attempt to lock /unlock the
vehicle as usual. If this does not work, use the
mechanical systems described below.
Also use these systems to mechanically lock /
unlock the doors in the event of:
-
c
entral locking system failure,
-
r
emote control battery discharged,
-
r
emote control fault,
-
v
ehicle in an area subject to strong
electromagnetic interference.
Where is the integral key
of the
K
eyless Entry and
Starting?
Locking of the vehicle
F Insert the integral key in the driver’s door
lock, then turn it to the rear.
F
P
ull and hold button 1
, to extract the integral
key 2 .
Unlocking of the vehicle
F Insert the integral key in the driver’s door
lock, then turn it to the front.
Access
Page 47 of 312
45
If your vehicle has an alarm, it will not be
deactivated/activated on unlocking/locking
the vehicle.
Opening a door will trigger the alarm,
which can be stopped by switching the
ignition on.
To deadlock the vehicle, turn the key again
within five seconds of locking.
Locking of one part of the vehicle
(front passenger door/sliding
side door/side-hinged doors)
Changing the battery
If the battery is flat, you will be
informed by lighting of this warning
lamp in the instrument panel, an
audible signal and a message in the
screen.
F
W
ith a sliding side door
or side-hinged
doors , if fitted to your vehicle, check that
the electric child lock is not activated.
F
O
pen the door.
Front passenger door Sliding side door F
R
emove the cap located on the edge of the
d o o r.
F
I
nsert the integral key into the latch (without
forcing) and then turn the assembly.
F
R
emove the key and refit the cap.
F
C
lose the door(s) and check from the
outside that the vehicle is locked correctly.
Side-hinged doors
Unlocking of one part of the
vehicle (front passenger door/
sliding side door/side-hinged
doors)
F Use the interior opening handle.
or
F
With side-hinged doors , insert the integral
key in the (left-hand) door lock, then turn it.
For more information on the Child lock
on a sliding side door or side-hinged
doors , refer to the corresponding section.
Unlocking the tailgate
If the battery is flat and your vehicle is
equipped with a tailgate and a Multi-Flex
bench seat, you cannot access the inside
of the loading area.
You have to replace the battery in order to
be able to access it again.
For more information on the 12
V batter y,
refer to the corresponding section.
F
F
rom inside the vehicle, insert a small
screwdriver into hole A of the lock to unlock
the tailgate.
F
M
ove the latch to the left.
2
Access
Page 48 of 312
46
The replacement battery is available from a
PEUGEOT dealer or a qualified workshop.
With remote control key
Battery type: CR 1620/3 volts.
With Keyless Entry and Starting
Battery type: CR 2032/3 volts.The remote control must be reinitialised after
replacing the battery.
For more information on reinitialising the
remote control, refer to the corresponding
section.
Do not throw away the remote control
batteries, they contain metals which are
harmful to the environment.
Take them to an approved collection
point.Reinitialising the remote
control
Following replacement of the battery or in
the event of a remote control fault, it may be
necessary to reinitialise the remote control.If the problem persists, contact a
PEUGEOT dealer or a qualified workshop
as soon as possible.
F
U
nclip the cover by inserting a small
screwdriver in the slot. F
R
emove the cover.
F
R
emove the flat battery from its
compartment.
F
F
it the new battery into its compartment
observing the original fitting direction.
F
C
lip the cover onto the casing.
With remote control key
With Keyless Entry and Starting
F Place the key in the lock to open your
vehicle.
F
S
witch off the ignition.
F
T
urn the key to position 2 (Ignition)
.
F
I
mmediately press the closed padlock
button for a few seconds.
F
S
witch off the ignition and remove the key
from the switch.
The remote control is fully operational again.
Access
Page 49 of 312
47

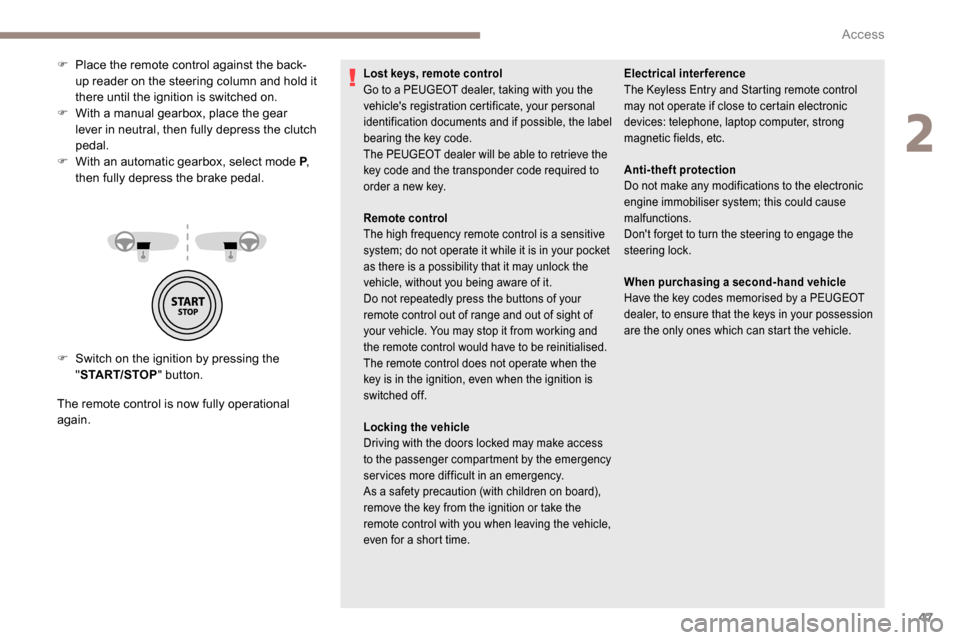

F Switch on the ignition by pressing the "START/STOP " button.
The remote control is now fully operational
again. F
P
lace the remote control against the back-
up reader on the steering column and hold it
there until the ignition is switched on.
F
W
ith a manual gearbox, place the gear
lever in neutral, then fully depress the clutch
pedal.
F
W
ith an automatic gearbox, select mode P
,
then fully depress the brake pedal.
Lost keys, remote control
Go to a PEUGEOT dealer, taking with you the
vehicle's registration certificate, your personal
identification documents and if possible, the label
bearing the key code.
The PEUGEOT dealer will be able to retrieve the
key code and the transponder code required to
order a new key. Electrical interference
The
K eyless Entry and Starting remote control
may not operate if close to certain electronic
devices: telephone, laptop computer, strong
magnetic fields, etc.
Remote control
The high frequency remote control is a sensitive
system; do not operate it while it is in your pocket
as there is a possibility that it may unlock the
vehicle, without you being aware of it.
Do not repeatedly press the buttons of your
remote control out of range and out of sight of
your vehicle. You may stop it from working and
the remote control would have to be reinitialised.
The remote control does not operate when the
key is in the ignition, even when the ignition is
switched off.
Locking the vehicle
Driving with the doors locked may make access
to the passenger compartment by the emergency
services more difficult in an emergency.
As a safety precaution (with children on board),
remove the key from the ignition or take the
remote control with you when leaving the vehicle,
even for a short time. Anti-theft protection
Do not make any modifications to the electronic
engine immobiliser system; this could cause
malfunctions.
Don't forget to turn the steering to engage the
steering lock.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT
dealer, to ensure that the keys in your possession
are the only ones which can start the vehicle.
2
Access
Page 50 of 312
48
Accumulations (water, dust, grime, salt,
etc.) on the inner sur face of the door
handle may affect detection.
If cleaning the inner sur face of the door
handle using a cloth does not restore
detection, contact a PEUGEOT dealer or a
qualified workshop.
A sudden splash of water (stream of water,
high pressure jet washer, …) may be
identified by the system as the desire to
open the vehicle.
Central locking/unlocking
This function allows the doors to be locked
or unlocked simultaneously from inside the
vehicle.
Manual mode
F Press this button to lock /unlock the vehicle.
Driving with the doors locked could make
it difficult for the emergency ser vices to
enter the vehicle in an emergency.
If one of the doors is open, the central
locking from the inside does not function.
This is signalled by a mechanical noise
from the locks.
If the boot is open, only the locking of the
other doors is carried out. The indicator
lamp in the button remains off. When locking from inside, the door mirrors
do not fold.
The indicator lamp also goes off when
unlocking one or more accesses.
Automatic mode
This is the automatic central locking of the
vehicle when driving, also called anti-intrusion
s e c u r i t y.
For more information on Anti-intrusion
security
, refer to the corresponding section.
Locking/unlocking the
loading area
When locking/deadlocking from the
outside
When the vehicle is locked or deadlocked
from the outside, the red indicator lamp
flashes and the button is inactive.
F
A
fter normal locking, pull one of the
interior door controls to unlock the
vehicle.
F
A
fter deadlocking, it is necessary to
use the remote control,
K
eyless Entry
and Starting or the integral key to
unlock the vehicle.
Access
