Instrument panel display screen
When stationary, use the left-hand dial on
the steering wheel or the " SET" button in
the instrument panel to navigate through the
menus to configure certain vehicle settings.
Operation of the dial:
-

P
ress: go to the Main menu , confirm the
selection.
-

R
otate (other than in a menu): scroll through
the list of active functions available.
-

R
otate (in a menu): move up or down in the
menu.
Distance recorders
The total and trip distances are displayed for
thirty seconds when the ignition is switched off,
when the driver's door is opened and when the
vehicle is locked or unlocked.
Total distance recorder
It measures the total distance travelled by the
vehicle since its first registration.
Trip distance recorder
It measures the distance travelled since it was
reset by the driver.
Engine coolant temperature
With the engine running, when the needle or
bar graph (depending on version) is:
-

i
n zone A , the temperature of the engine
coolant is correct,
-

i
n zone B , the temperature of the engine
coolant is too high; the maximum
temperature and central STOP warning
lamps come on, accompanied by an audible
signal and a warning message.
Resetting the trip recorder
F

W
ith the ignition on, press the button until
zeros appear.
1
Instruments

30
You must stop as soon as it is safe to do so.
Wait a few minutes before switching off the
engine.
Contact a PEUGEOT dealer or a qualified
workshop.

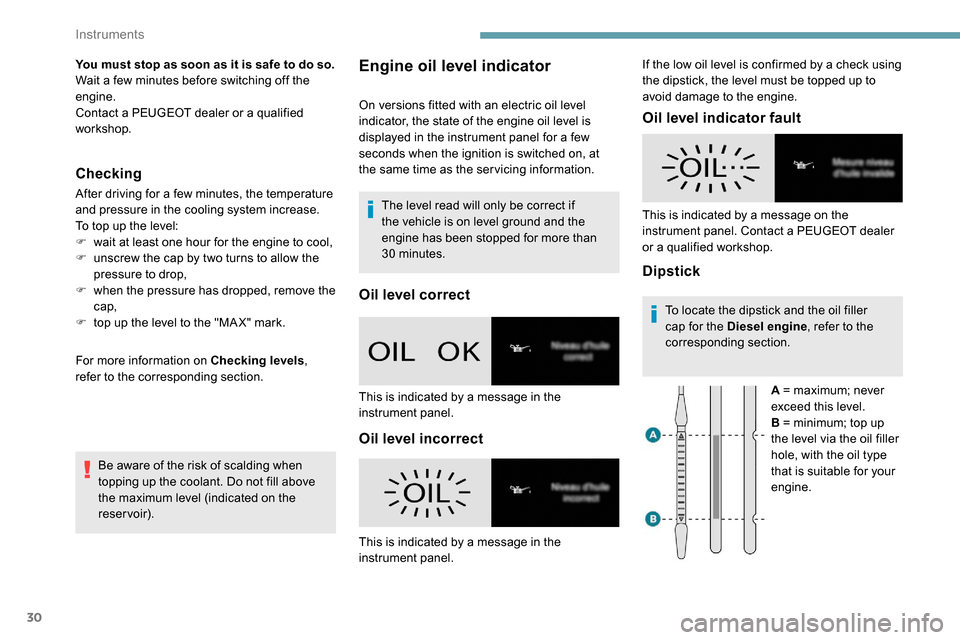

Checking
After driving for a few minutes, the temperature
and pressure in the cooling system increase.
To top up the level:
F
w
ait at least one hour for the engine to cool,
F

u
nscrew the cap by two turns to allow the
pressure to drop,
F

w
hen the pressure has dropped, remove the
cap,
F

t
op up the level to the "MA X" mark.
For more information on Checking levels ,
refer to the corresponding section.
Be aware of the risk of scalding when
topping up the coolant. Do not fill above
the maximum level (indicated on the
reservoir).
Engine oil level indicator
On versions fitted with an electric oil level
indicator, the state of the engine oil level is
displayed in the instrument panel for a few
seconds when the ignition is switched on, at
the same time as the ser vicing information.The level read will only be correct if
the vehicle is on level ground and the
engine has been stopped for more than
30


minutes.
Oil level correct
Oil level incorrect Oil level indicator fault
DipstickTo locate the dipstick and the oil filler
cap for the Diesel engine
, refer to the
corresponding section.
A = maximum; never
exceed this level.
B = minimum; top up
the level via the oil filler
hole, with the oil type
that is suitable for your
engine.
This is indicated by a message in the
instrument panel.
This is indicated by a message in the
instrument panel. This is indicated by a message on the
instrument panel. Contact a PEUGEOT dealer
or a qualified workshop. If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
avoid damage to the engine.
Instruments

31
These range indicators are present only on
BlueHDi Diesel versions.
Once the AdBlue
® tank is on reser ve or after
detection of a fault with the SCR emissions
control system, when the ignition is switched
on, an indicator displays an estimate of the
distance that can be covered, the range, before
engine starting is prevented.
In the event of the risk of non-
starting related to a lack of
AdBlue
®
The engine starting prevention system
required by regulations is activated
automatically once the AdBlue
® tank is
e m pt y.

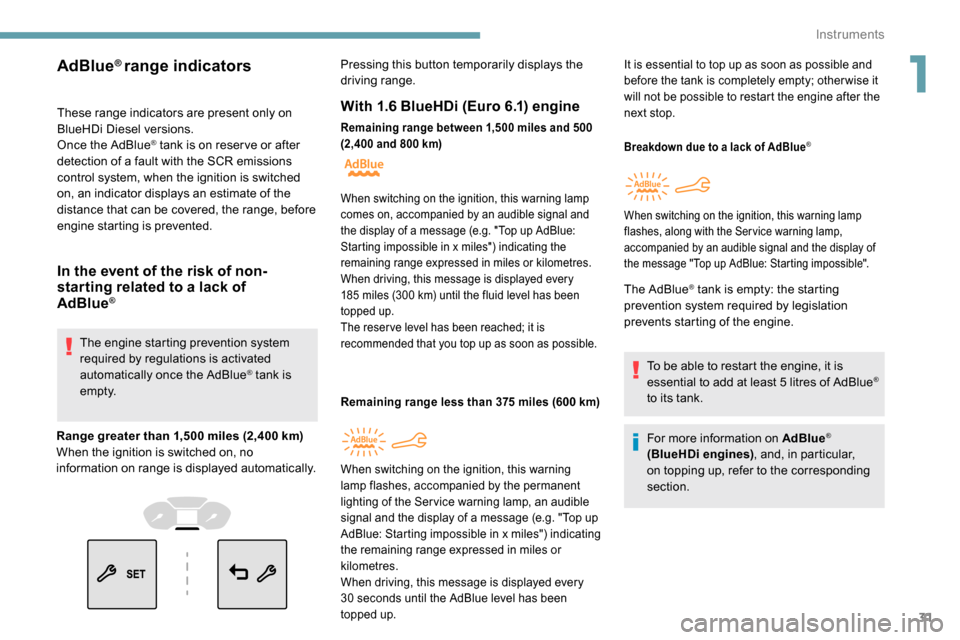

AdBlue® range indicators
Range greater than 1,500 miles (2,400 km)
W hen the ignition is switched on, no
information on range is displayed automatically. Pressing this button temporarily displays the
driving range.
With 1.6 BlueHDi (Euro 6.1) engine
Remaining range between 1,500 miles and 500
( 2,400 and 800 km)
Remaining range less than 375 miles (600 km)
Breakdown due to a lack of AdBlue®
The AdBlue® tank is empty: the starting
prevention system required by legislation
prevents starting of the engine.
To be able to restart the engine, it is
essential to add at least 5
litres of AdBlue
®
to its tank.
For more information on AdBlue
®
(BlueHDi engines) , and, in particular,
on topping up, refer to the corresponding
section.
When switching on the ignition, this warning lamp
c omes on, accompanied by an audible signal and
the display of a message (e.g. "Top up AdBlue:
Starting impossible in x miles") indicating the
remaining range expressed in miles or kilometres.
When driving, this message is displayed every
185
miles (300 km) until the fluid level has been
topped up.
The reser ve level has been reached; it is
recommended that you top up as soon as possible.
When switching on the ignition, this warning
lam p flashes, accompanied by the permanent
lighting of the Ser vice warning lamp, an audible
signal and the display of a message (e.g. "Top up
AdBlue: Starting impossible in x miles") indicating
the remaining range expressed in miles or
kilometres.
When driving, this message is displayed every
30
seconds until the AdBlue level has been
topped up. It is essential to top up as soon as possible and
before the tank is completely empty; other wise it
will not be possible to restart the engine after the
next stop.
When switching on the ignition, this warning lamp
flashes, along with the Service warning lamp,
accompanied by an audible signal and the display of
the message "Top up AdBlue: Starting impossible".
1
Instruments

32

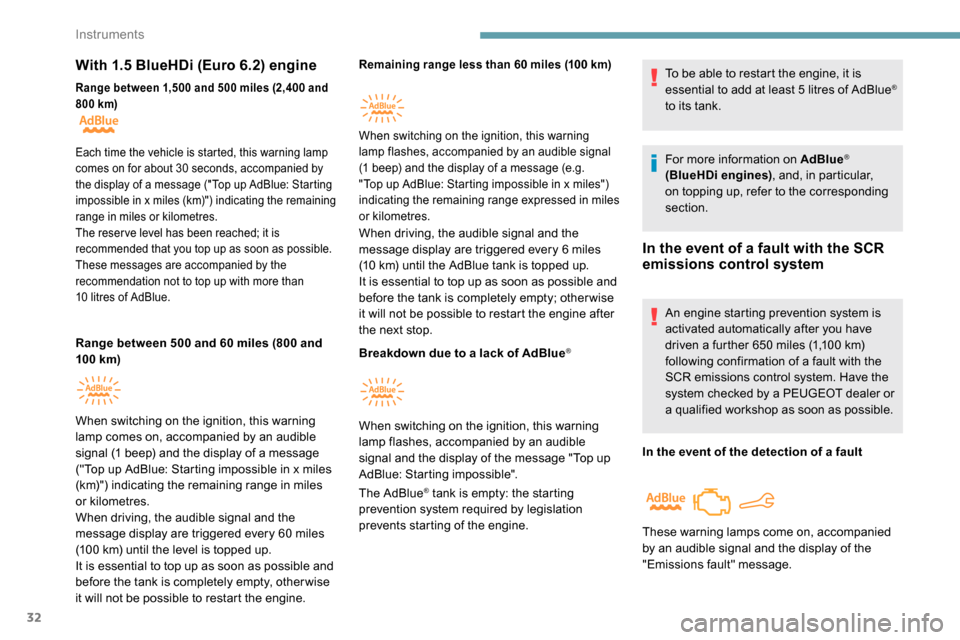

With 1.5 BlueHDi (Euro 6.2) engine
Range between 1,500 and 500 miles (2,400 and
8 00 km)
Range between 500 and 60 miles (800 and
10 0 km)
Remaining range less than 60 miles (100 km)
When driving, the audible signal and the
message display are triggered every 6 miles
(10
km) until the AdBlue tank is topped up.
It is essential to top up as soon as possible and
before the tank is completely empty; other wise
it will not be possible to restart the engine after
the next stop.
Breakdown due to a lack of AdBlue
®
The AdBlue® tank is empty: the starting
prevention system required by legislation
prevents starting of the engine. To be able to restart the engine, it is
essential to add at least 5
litres of AdBlue
®
to its tank.
For more information on AdBlue
®
(BlueHDi engines) , and, in particular,
on topping up, refer to the corresponding
section.
In the event of a fault with the SCR
emissions control system
An engine starting prevention system is
activated automatically after you have
driven a further 650
miles (1,100 km)
following confirmation of a fault with the
SCR emissions control system. Have the
system checked by a PEUGEOT dealer or
a qualified workshop as soon as possible.
In the event of the detection of a fault
Each time the vehicle is started, this warning lamp
c omes on for about 30 seconds, accompanied by
the display of a message ("Top up AdBlue: Starting
impossible in x miles (km)") indicating the remaining
range in miles or kilometres.
The reser ve level has been reached; it is
recommended that you top up as soon as possible.
These messages are accompanied by the
recommendation not to top up with more than
10
litres of AdBlue.
When switching on the ignition, this warning
l amp comes on, accompanied by an audible
signal (1 beep) and the display of a message
("Top up AdBlue: Starting impossible in x miles
(km)") indicating the remaining range in miles
or kilometres.
When driving, the audible signal and the
message display are triggered every 60
miles
(100
km) until the level is topped up.
It is essential to top up as soon as possible and
before the tank is completely empty, other wise
it will not be possible to restart the engine.
When switching on the ignition, this warning
lam p flashes, accompanied by an audible signal
(1 beep) and the display of a message (e.g.
"Top up AdBlue: Starting impossible in x miles")
indicating the remaining range expressed in miles
or kilometres.
When switching on the ignition, this warning
lamp flashes, accompanied by an audible
signal and the display of the message "Top up
AdBlue: Starting impossible".
These warning lamps come on, accompanied
by an audible signal and the display of the
"Emissions fault" message.
Instruments

33
Lighting dimmer
Permits manual adjustment of the brightness
of the instrument panel to suit the exterior light
level.
Touch screen lighting
dimmer
The alert is triggered while driving as soon
as the fault is detected for the first time, then
when switching on the ignition for subsequent
journeys, while the fault persists.If it is a temporary fault, the alert
disappears during the next journey,
after self-diagnostic checks of the SCR
emissions control system.
During the permitted driving phase (between
650 and 0 miles (1,100 km and 0 km))
While driving, the message is displayed every
30 seconds while the fault with the SCR emission
control system persists.
The alert is repeated when switching on the ignition.
You should go to a PEUGEOT dealer or a qualified
workshop as soon as possible.
Other wise you will not be able to restart the vehicle.
Starting prevented
You have exceeded the authorised driving
limit: the starting prevention system does
not allow the engine to be started.
To be able to restart the engine, you must call
on a PEUGEOT dealer or a qualified workshop.
If a fault with the SCR system is confirmed (after
30 miles (50 km) covered with the permanent
display of the message signalling a fault), these
warning lamps come on and the AdBlue warning
lamp flashes, associated with an audible signal
and the display of a message (e.g.: "Emissions
fault: Starting prevented in 300
km") indicating
the remaining range expressed in miles or
kilometres.
Each time the ignition is switched on, these
warning lamps come on and the AdBlue
warning lamp flashes, accompanied by an
audible signal and the display of the message
"Emissions fault: Starting prevented". lighting or button B to reduce it.
Release the button when the desired level is
reached.
F

I
n the Settings menu, select " Brightness".
Or select " OPTIONS", "Screen
configuration " then "Brightness ".
F

A
djust the brightness by pressing the
arrows or moving the slider.
The brightness can be adjusted differently
for day mode and night mode.
Trip computer
Information displayed about the current journey
(range, fuel consumption, average speed, etc.).
With the lamps on (not in the AUTO position),
press button A to increase the brightness of the
1
Instruments

34
Display of information
It is displayed successively.
- T rip mileage.
-


Range.
-

C
urrent fuel consumption.
-
A

verage speed.
-

S
top & Start time counter.
-

I
nformation from the speed limit recognition
system.
F

P
ress this button, located on the end of the
wiper control stalk .
F

O
r press the dial on the steering wheel.
Reset trip
The reset is per formed when the trip is
displayed. F

P
ress this button, located on the end of
the wiper control stalk , for more than two
seconds.
F
P
ress the dial on the steering wheel for
more than two seconds.
A few definitions…
Range
(miles or km)
The distance which can still be
travelled with the fuel remaining in the
tank (depending on the average fuel
consumption over the last few miles
(kilometres) travelled).
This value may vary following a change in
the style of driving or the terrain, resulting
in a significant change in the current fuel
consumption. After filling with at least 5
litres of fuel, the
range is recalculated and is displayed if it
exceeds 62 miles (100 km).
If dashes instead of figures continue to
be displayed when driving, contact a
PEUGEOT dealer or a qualified workshop.
Current fuel consumption
(mpg or l/100 km or km/l)
C alculated during the last few
seconds.
This function is only displayed from
19
mph (30 km/h).
Average fuel consumption
(mpg or l/100 km or km/l)
C alculated since the last trip
computer reset.
Average speed
(mph or km/h)
Calculated since the last trip
computer reset.
F

P

ress this button for more than two
seconds.
When the range falls below 19

miles (30

km),
dashes are displayed.
Instruments

35
Distance travelled
(miles or km)Calculated since the last trip
computer reset.
Stop & Start time counter
(minutes/seconds or hours/minutes)
If your vehicle is fitted with Stop & Start, a time
counter calculates the time spent in STOP mode
during a journey.
It resets to zero every time the ignition is switched on.
Setting the time and date
Without audio system
You can adjust the date and time in the
instrument panel display.F

H
old this button down.
F

P
ress one of these buttons to
select the setting to be changed.
F

P
ress this button briefly to
confirm.
F

P
ress one of these buttons to
change the setting and confirm
again to register the change.
With audio system
F Press the MENU button for access to the
main menu.
F

P
ress the " 7" or " 8" button to select the
"Personalisation-configuration" menu, then
press OK.
F

P
ress the " 5" or " 6" button to select the
"Display configuration" menu, then press
OK.
F

P
ress the " 5" or " 6" button to select the
"Date and time adjustment" button, then
press OK.
F

P
ress the " 7" or " 8" button to select the
setting to modify. Confirm by pressing the
OK button. F

A
djust the settings one by one, confirming
with the OK button.
F
P
ress the "
5" or " 6" button, then the OK
button to select the OK box and confirm or
the Back button to cancel.
With PEUGEOT Connect
Radio
F Select the Settings menu in
the upper banner of the touch
screen.
F

Sel

ect " System configuration ".
F

Sel
ect "Date and time ".
F

Sel

ect " Date " or "Time ".
F

C

hoose the display formats.
F

C

hange the date and/or time using the
numeric keypad.
F

C

onfirm with " OK".
With PEUGEOT Connect
Nav
Setting of the time and date is only available if
synchronisation with the GPS is deactivated.
F

Sel
ect the Settings menu in the
upper or side banner of the touch
screen.
1
Instruments

36

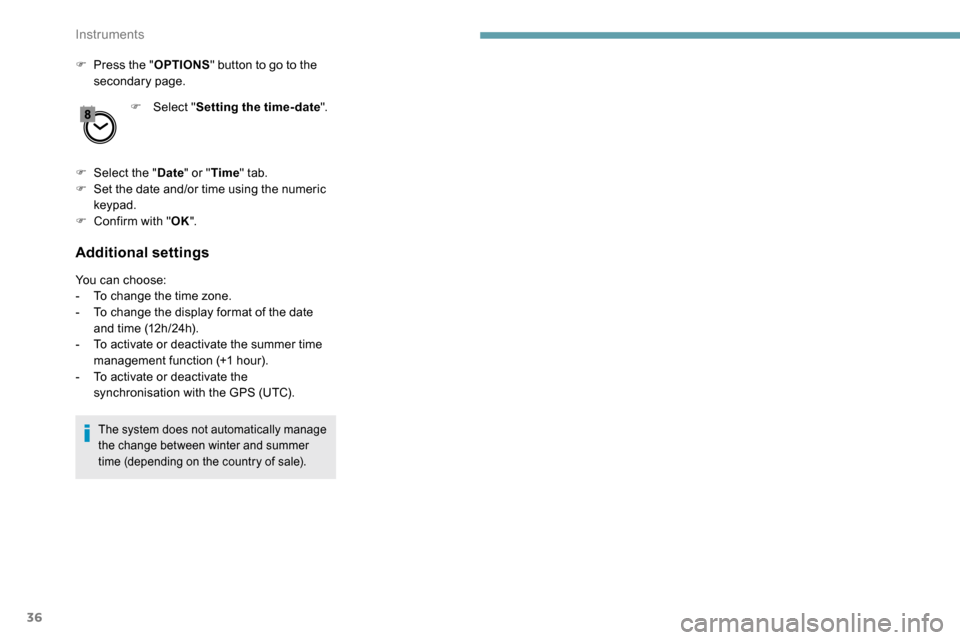

F Press the "OPTIONS" button to go to the
secondary page.
F

Sel
ect "Setting the time- date".
F

Sel
ect the " Date" or "Time " tab.
F

S
et the date and/or time using the numeric
keypad.
F

C
onfirm with " OK".
Additional settings
You can choose:
-
T o change the time zone.
-

T
o change the display format of the date
and time (12h/24h).
-

T
o activate or deactivate the summer time
management function (+1
hour).
-

T
o activate or deactivate the
synchronisation with the GPS (UTC).
The system does not automatically manage
the change between winter and summer
time (depending on the country of sale).
Instruments

37

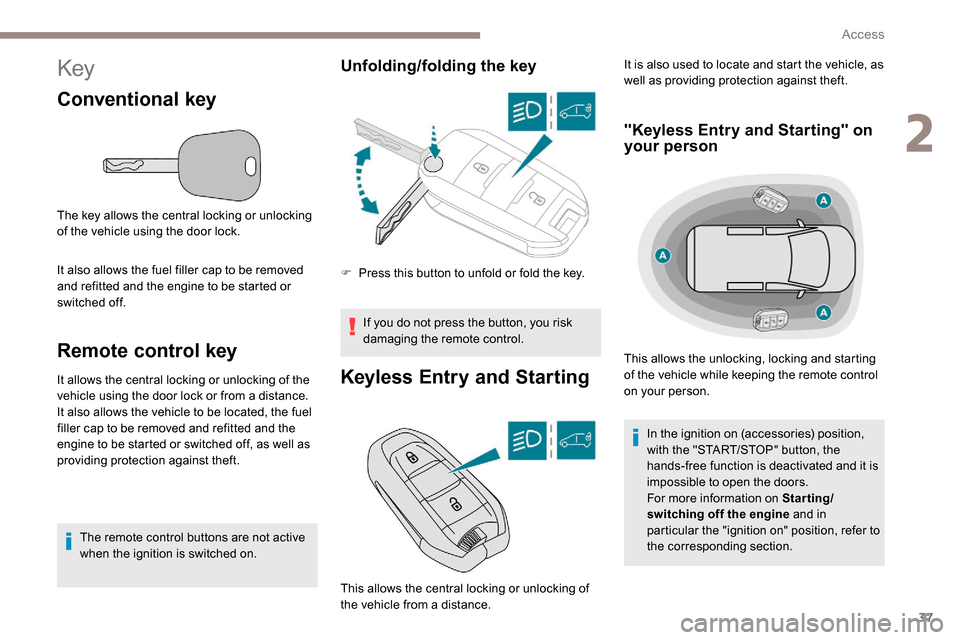

Key
Conventional key
The key allows the central locking or unlocking
of the vehicle using the door lock.
It also allows the fuel filler cap to be removed
and refitted and the engine to be started or
switched off.
Remote control key
It allows the central locking or unlocking of the
vehicle using the door lock or from a distance.
It also allows the vehicle to be located, the fuel
filler cap to be removed and refitted and the
engine to be started or switched off, as well as
providing protection against theft.The remote control buttons are not active
when the ignition is switched on.
Unfolding/folding the key
If you do not press the button, you risk
damaging the remote control.
Keyless Entry and Starting
F Press this button to unfold or fold the key. It is also used to locate and start the vehicle, as
well as providing protection against theft.
"Keyless Entry and Starting" on
your person
This allows the unlocking, locking and starting
of the vehicle while keeping the remote control
on your person.
In the ignition on (accessories) position,
with the "START/STOP" button, the
hands-free function is deactivated and it is
impossible to open the doors.
For more information on Starting/
switching off the engine and in
particular the "ignition on" position, refer to
the corresponding section.
This allows the central locking or unlocking of
the vehicle from a distance.
2
Access

38

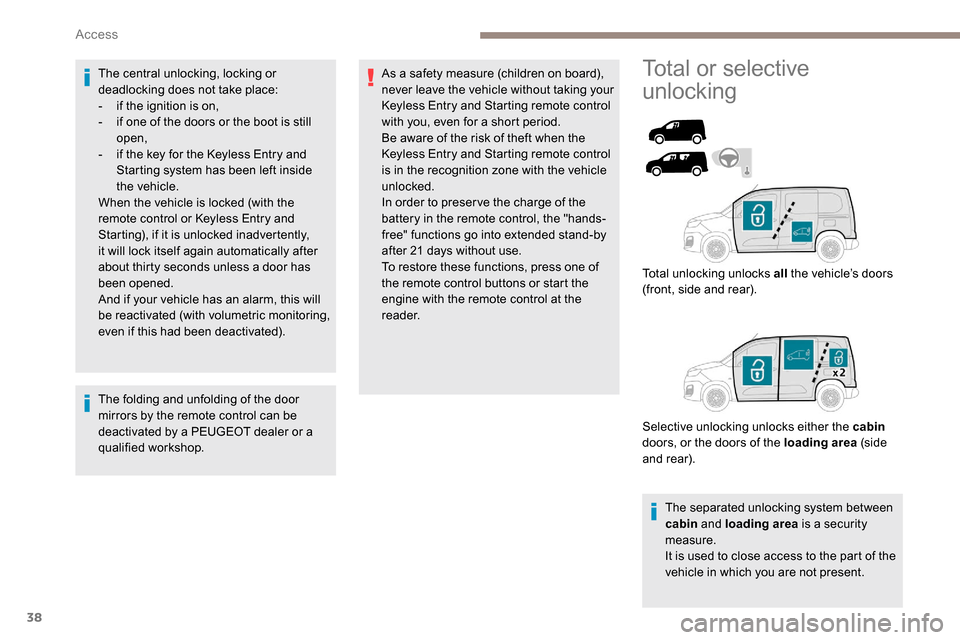

The central unlocking, locking or
deadlocking does not take place:
-
i
f the ignition is on,
-

i
f one of the doors or the boot is still
open,
-

i
f the key for the
K
eyless Entry and
Starting system has been left inside
the vehicle.
When the vehicle is locked (with the
remote control or

K
eyless Entry and
Starting), if it is unlocked inadvertently,
it will lock itself again automatically after
about thirty seconds unless a door has
been opened.
And if your vehicle has an alarm, this will
be reactivated (with volumetric monitoring,
even if this had been deactivated).
The folding and unfolding of the door
mirrors by the remote control can be
deactivated by a PEUGEOT dealer or a
qualified workshop. As a safety measure (children on board),
never leave the vehicle without taking your K

eyless Entry and Starting remote control
with you, even for a short period.
Be aware of the risk of theft when the

K

eyless Entry and Starting remote control
is in the recognition zone with the vehicle
unlocked.
In order to preser ve the charge of the
battery in the remote control, the "hands-
free" functions go into extended stand-by
after 21 days without use.
To restore these functions, press one of
the remote control buttons or start the
engine with the remote control at the
reader.Total or selective
unlocking
The separated unlocking system between
cabin and loading area is a security
measure.
It is used to close access to the part of the
vehicle in which you are not present.
Total unlocking unlocks all
the vehicle’s doors
(front, side and rear).
Selective unlocking unlocks either the cabin
doors, or the doors of the loading area (side
and rear).
Access
