Peugeot Partner 2019 Owner's Guide

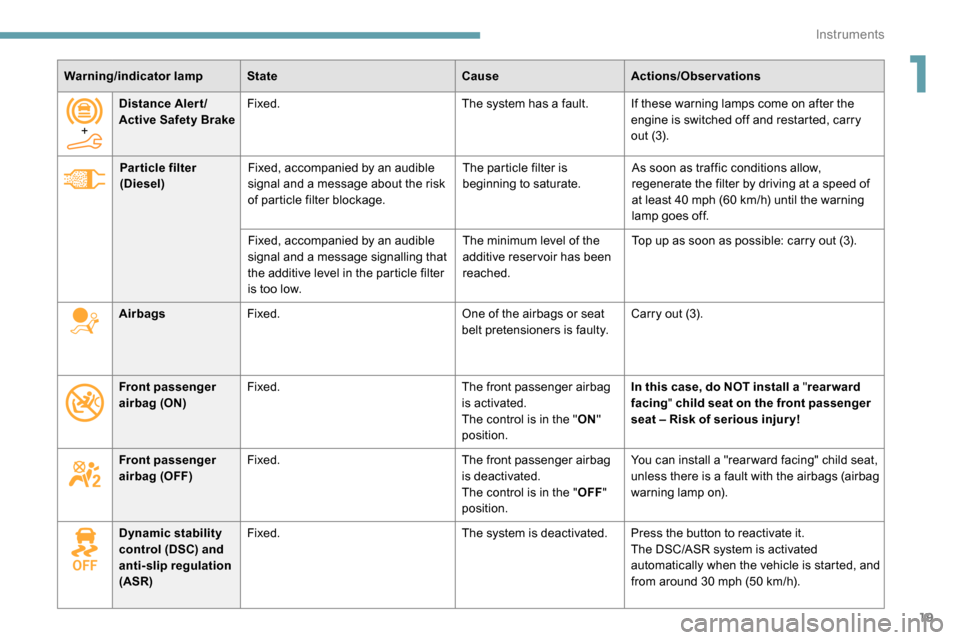

19
Warning/indicator lampState CauseActions/Observations
Par ticle filter
(Diesel) Fixed, accompanied by an audible
signal and a message about the risk
of particle filter blockage. The particle filter is
beginning to saturate.
As soon as traffic conditions allow,
regenerate the filter by driving at a speed of
at least 40
mph (60 km/h) until the warning
lamp goes off.
Fixed, accompanied by an audible
signal and a message signalling that
the additive level in the particle filter
is too low. The minimum level of the
additive reservoir has been
reached.
Top up as soon as possible: carry out (3).
Airbags Fixed. One of the airbags or seat
belt pretensioners is faulty.Carry out (3).
Front passenger
airbag (ON) Fixed.
The front passenger airbag
is activated.
The control is in the "ON"
position. In this case, do NOT install a "
rearward
facing " child seat on the front passenger
seat – Risk of serious injur y!
Front passenger
airbag (OFF) Fixed.
The front passenger airbag
is deactivated.
The control is in the "OFF"
position. You can install a "rear ward facing" child seat,
unless there is a fault with the airbags (airbag
warning lamp on).
Dynamic stability
control (DSC) and
anti-slip regulation
(ASR) Fixed.
The system is deactivated. Press the button to reactivate it.
The DSC/ASR system is activated
automatically when the vehicle is started, and
from around 30
mph (50 km/h).
+
Distance Alert/
Active Safety Brake
Fixed.
The system has a fault. If these warning lamps come on after the
engine is switched off and restarted, carry
out (3).
1
Instruments

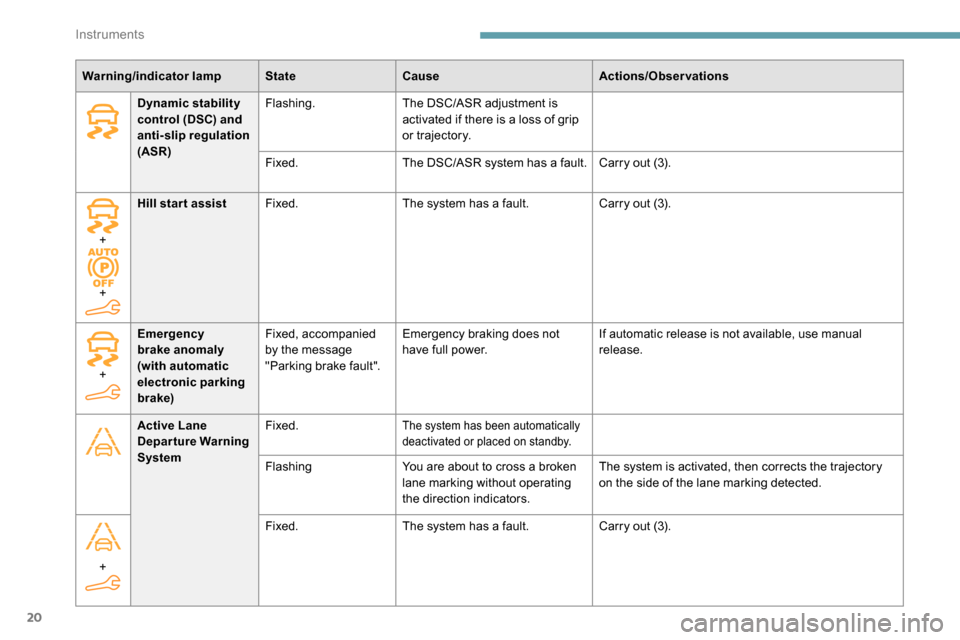

20
Warning/indicator lampStateCause Actions/Observations
Dynamic stability
control (DSC) and
anti-slip regulation
(ASR) Flashing.
The DSC/ASR adjustment is
activated if there is a loss of grip
or trajectory.
Fixed. The DSC/ASR system has a fault. Carry out (3).
+
+ Hill start assist
Fixed. The system has a fault. Carry out (3).
Active Lane
Departure Warning
System Fixed.
The system has been automatically
deactivated or placed on standby.
Flashing
You are about to cross a broken
lane marking without operating
the direction indicators. The system is activated, then corrects the trajectory
on the side of the lane marking detected.
+
Emergency
brake anomaly
(with automatic
electronic parking
brake) Fixed, accompanied
by the message
"Parking brake fault".
Emergency braking does not
have full power.
If automatic release is not available, use manual
release.
+ Fixed.
The system has a fault. Carry out (3).

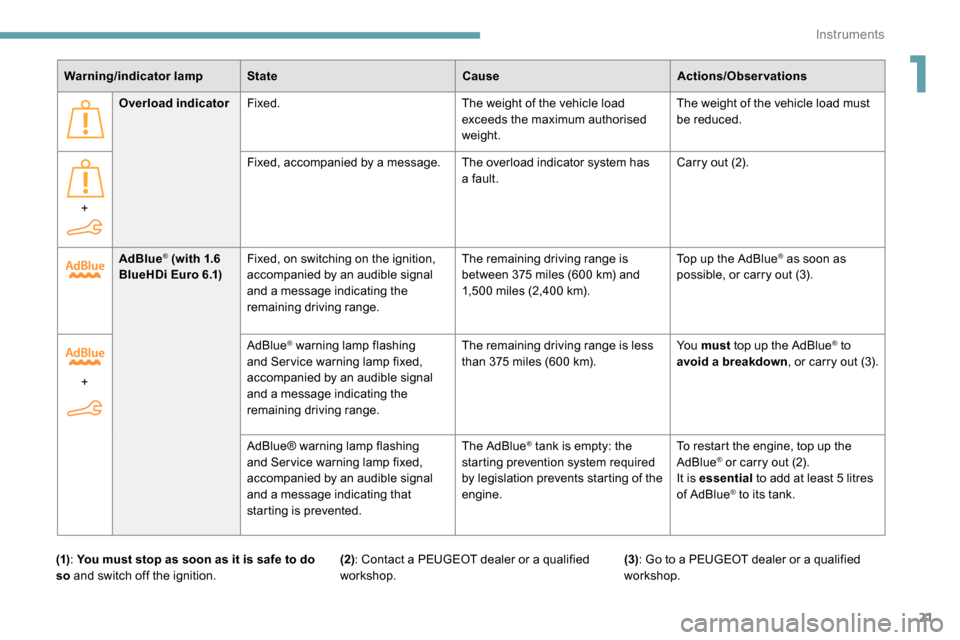

Instruments

21
AdBlue® (with 1.6
BlueHDi Euro 6.1) Fixed, on switching on the ignition,
accompanied by an audible signal
and a message indicating the
remaining driving range. The remaining driving range is
between 375
miles (600 km) and
1,500
miles (2,400 km).Top up the AdBlue® as soon as
possible, or carry out (3).
+ AdBlue
® warning lamp flashing
and Ser vice warning lamp fixed,
accompanied by an audible signal
and a message indicating the
remaining driving range. The remaining driving range is less
than 375
miles (600 km).Yo u must
top up the AdBlue® to
avoid a breakdown , or carry out (3).
AdBlue® warning lamp flashing
and Service warning lamp fixed,
accompanied by an audible signal
and a message indicating that
starting is prevented. The AdBlue
® tank is empty: the
starting prevention system required
by legislation prevents starting of the
engine. To restart the engine, top up the
AdBlue® or carry out (2).
It is essential to add at least 5
litres
of AdBlue
® to its tank.
Overload indicator
Fixed. The weight of the vehicle load
exceeds the maximum authorised
weight.The weight of the vehicle load must
be reduced.
+ Fixed, accompanied by a message.
The overload indicator system has
a fault.Carry out (2).
Warning/indicator lamp
State CauseActions/Observations
(1) : You must stop as soon as it is safe to do
so and switch off the ignition. (2): Contact a PEUGEOT dealer or a qualified
workshop. (3)
: Go to a PEUGEOT dealer or a qualified
workshop.
1
Instruments

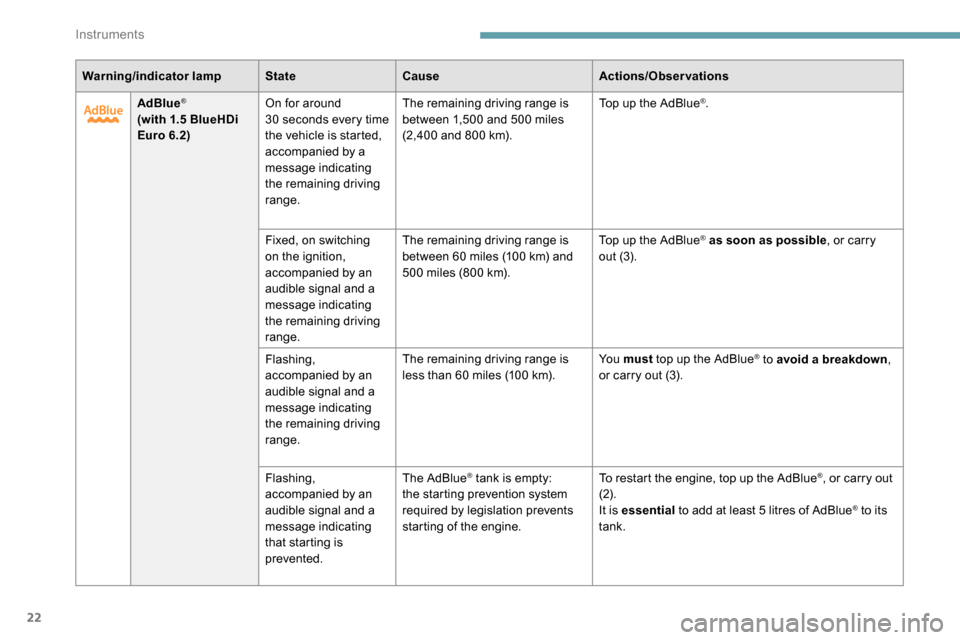

22
Warning/indicator lampStateCause Actions/Observations
AdBlue
®
(with 1.5 BlueHDi
Euro 6.2) On for around
30
seconds every time
the vehicle is started,
accompanied by a
message indicating
the remaining driving
range. The remaining driving range is
between 1,500 and 500
miles
(2,400 and 800 km).Top up the AdBlue
®.
Fixed, on switching
on the ignition,
accompanied by an
audible signal and a
message indicating
the remaining driving
range. The remaining driving range is
between 60

miles (100

km) and
500

miles (800

km). Top up the AdBlue
® as soon as possible
, or carry
out (3).
Flashing,
accompanied by an
audible signal and a
message indicating
the remaining driving
range. The remaining driving range is
less than 60

miles (100

km). Yo u must
top up the AdBlue
® to avoid a breakdown ,
or carry out (3).
Flashing,
accompanied by an
audible signal and a
message indicating
that starting is
prevented. The AdBlue
® tank is empty:
the starting prevention system
required by legislation prevents
starting of the engine. To restart the engine, top up the AdBlue®, or carry out
(2).
It is essential to add at least 5

litres of AdBlue
® to its
tank.
Instruments

23
Warning/indicator lampStateCause Actions/Observations
+
+ SCR emissions
control system
Fixed when the
ignition is switched on,
accompanied by an
audible signal and a
message. A fault with the SCR emissions
control system has been
detected.
This alert disappears once the exhaust emissions
return to normal levels.
AdBlue
® warning
lamp flashing, on
switching on the
ignition, associated
with the fixed Ser vice
and engine diagnostic
warning lamps,
accompanied by an
audible signal and a
message indicating
the remaining driving
range. Depending on the message
displayed, you can continue
driving for up to 650
miles
(1,100
km) before the engine
starting prevention system is
triggered. Carry out (3) as soon as possible to avoid running
out of fuel
.
AdBlue
® warning
lamp flashing, on
switching on the
ignition, associated
with the fixed Ser vice
and engine diagnostic
warning lamps,
accompanied by an
audible signal and a
message. A starting prevention system
prevents the engine from
restarting (over the authorised
driving limit after confirmation of
a fault with the emissions control
syste m).
To start the engine, carry out (2).
1
Instruments

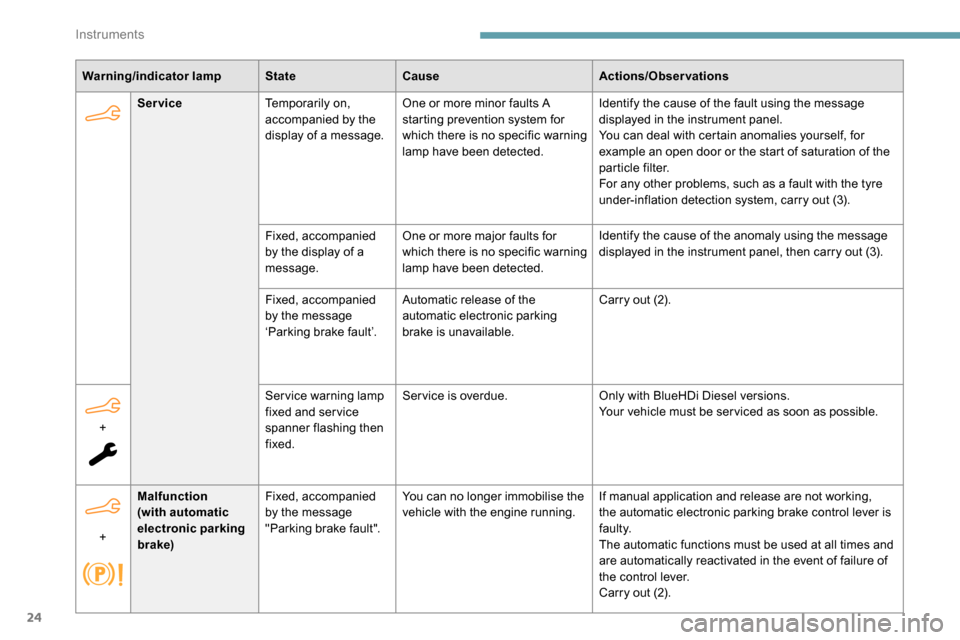

24
Warning/indicator lampStateCause Actions/Observations
Service Temporarily on,
accompanied by the
display of a message. One or more minor faults A
starting prevention system for
which there is no specific warning
lamp have been detected. Identify the cause of the fault using the message
displayed in the instrument panel.
You can deal with certain anomalies yourself, for
example an open door or the start of saturation of the
particle filter.
For any other problems, such as a fault with the tyre
under-inflation detection system, carry out (3).
Fixed, accompanied
by the display of a
message. One or more major faults for
which there is no specific warning
lamp have been detected. Identify the cause of the anomaly using the message
displayed in the instrument panel, then carry out (3).
+ Service warning lamp
fixed and ser vice
spanner flashing then
fixed.Service is overdue.
Only with BlueHDi Diesel versions.
Your vehicle must be ser viced as soon as possible.
Fixed, accompanied
by the message
‘Parking brake fault’.
Automatic release of the
automatic electronic parking
brake is unavailable. Carry out (2).
+ Malfunction
(with automatic
electronic parking
brake) Fixed, accompanied
by the message
"Parking brake fault".
You can no longer immobilise the
vehicle with the engine running.
If manual application and release are not working,
the automatic electronic parking brake control lever is
faulty.
The automatic functions must be used at all times and
are automatically reactivated in the event of failure of
the control lever.
Carry out (2).
Instruments

25
Warning/indicator lampStateCause Actions/Observations
+
+ Malfunction
(with automatic
electronic parking
brake)
Fixed, accompanied
by the message
"Parking brake fault".
The parking brake is faulty:
manual and automatic functions
may not be working. When stationary, to immobilise your vehicle:
F

P
ull and hold the control lever for approximately 7
to 15
seconds, until the warning lamp comes on in
the instrument panel.
If this procedure does not work, make your vehicle
safe:
F

P
ark on a level sur face.
F

W
ith a manual gearbox, engage a gear.
F

W
ith an automatic gearbox, select P, then put the
supplied chocks against one of the wheels.
Then carry out (2).
Rear foglamp Fixed. The lamp is on.
+
Malfunction of the
braking systems
(with Post Collision
Safety Brake
(APCB)) Fixed.
Carry out (3) quickly.
+ Fault concerning
the airbags or
pyrotechnic
pretensioning
systems (with Post
Collision Safety
Brake (APCB)) Fixed.
Carry out (3) quickly.
1
Instruments

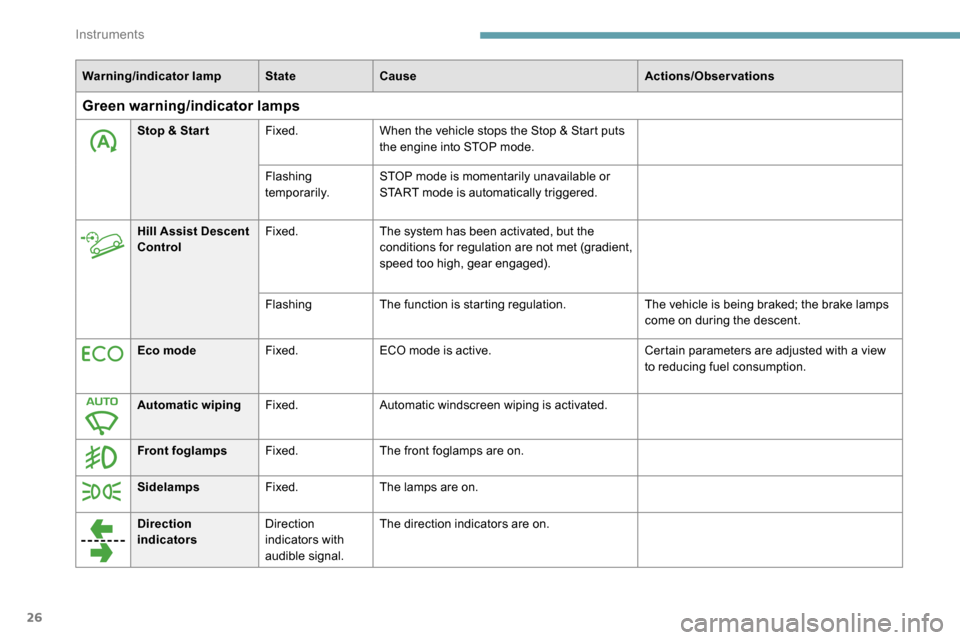

26
Warning/indicator lampStateCause Actions/Observations
Green warning/indicator lamps
Stop & Star tFixed.When the vehicle stops the Stop & Start puts
the engine into STOP mode.
Flashing
temporarily. STOP mode is momentarily unavailable or
START mode is automatically triggered.
Hill Assist Descent
Control Fixed.
The system has been activated, but the
conditions for regulation are not met (gradient,
speed too high, gear engaged).
Flashing The function is starting regulation. The vehicle is being braked; the brake lamps
come on during the descent.
Eco mode Fixed.ECO mode is active. Certain parameters are adjusted with a view
to reducing fuel consumption.
Automatic wiping Fixed.Automatic windscreen wiping is activated.
Front foglamps Fixed.The front foglamps are on.
Sidelamps Fixed.The lamps are on.
Direction
indicators Direction
indicators with
audible signal.The direction indicators are on.
Instruments

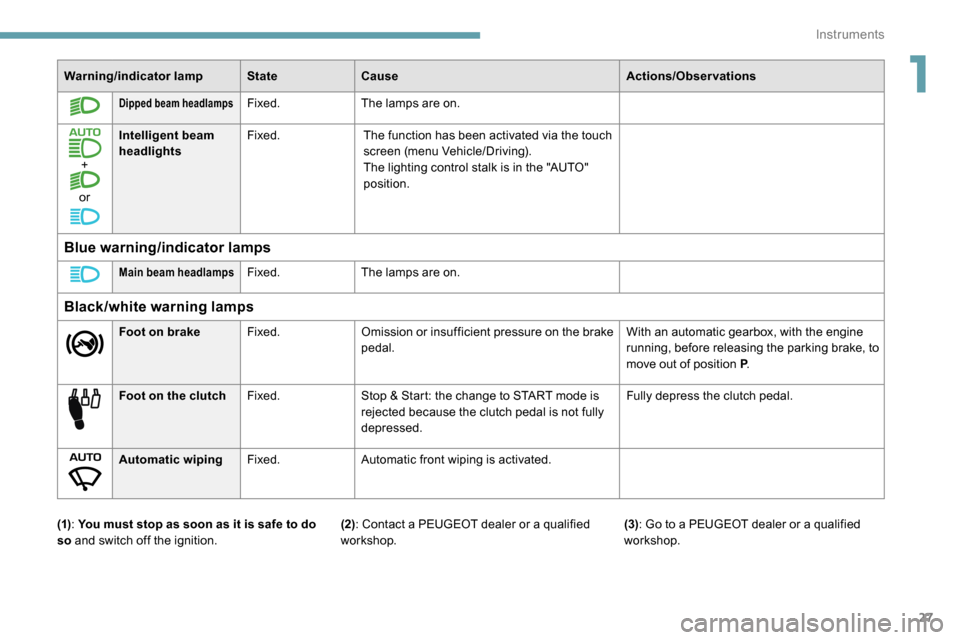

27
Warning/indicator lampStateCause Actions/Observations
Dipped beam headlampsFixed.The lamps are on.
+
or Intelligent beam
headlights
Fixed.
The function has been activated via the touch
screen (menu Vehicle/Driving).
The lighting control stalk is in the "AUTO"
position.
Blue warning/indicator lamps
Main beam headlampsFixed.The lamps are on.
Black/white warning lamps
Foot on brake Fixed.Omission or insufficient pressure on the brake
pedal. With an automatic gearbox, with the engine
running, before releasing the parking brake, to
move out of position P
.
Foot on the clutch Fixed.Stop & Start: the change to START mode is
rejected because the clutch pedal is not fully
depressed. Fully depress the clutch pedal.
Automatic wiping Fixed.Automatic front wiping is activated.
(1) : You must stop as soon as it is safe to do
so and switch off the ignition. (3)
: Go to a PEUGEOT dealer or a qualified
workshop.
(2): Contact a PEUGEOT dealer or a qualified
workshop.
1
Instruments

28
Indicators
Service indicator
The ser vice indicator is displayed on the
instrument panel. Depending on the vehicle
version:
-
t
he distance recorder display line indicates
the distance remaining before the next
ser vice is due, or the distance travelled
since it was due preceded by the sign “-”.
Warning/indicator lamp StateCauseActions/
Observations
The distance indicated (in miles or
kilometres) is calculated according to the
distance covered and the time elapsed
since the last ser vice.
The alert may be triggered close to a due
date.
Service spanner Lights up temporarily
when the ignition is
switched on.
Between 1,800 miles
( 3,000 km) and
600
miles (1,000 km)
remain before the
next ser vice is due.
Fixed, when the
ignition is switched on. The service
is due in less
than 600
miles
(1,000
km).Have your vehicle
serviced very soon.
+ Service spanner
flashing
Flashing then fixed,
when the ignition is
switched on.
(For BlueHDi Diesel
versions, associated
with the ser vice
warning lamp). The servicing
inter val has been
exceeded.
Have your vehicle
ser viced as soon
as possible.
-

a
n alert message indicates the distance
remaining, as well as the period before the
next ser vice is due or how long it is overdue.
Resetting the service indicator
The ser vice indicator must be reset after each
service.
F

S
witch off the ignition.
F

P
ress and hold this button.
F

S
witch on the ignition; the distance recorder
display begins a countdown,
F

R
elease the button when =0 is displayed;
the spanner disappears.
If you have to disconnect the battery
following this operation, lock the vehicle
and wait at least five minutes for the reset
to be registered.
Retrieving the service information
You can access the ser vice information at any
time.
F
P
ress this button.
The ser vice information is displayed for a few
seconds, then disappears.
Instruments
