PORSCHE 911 CARRERA 2007 5.G Owners Manual

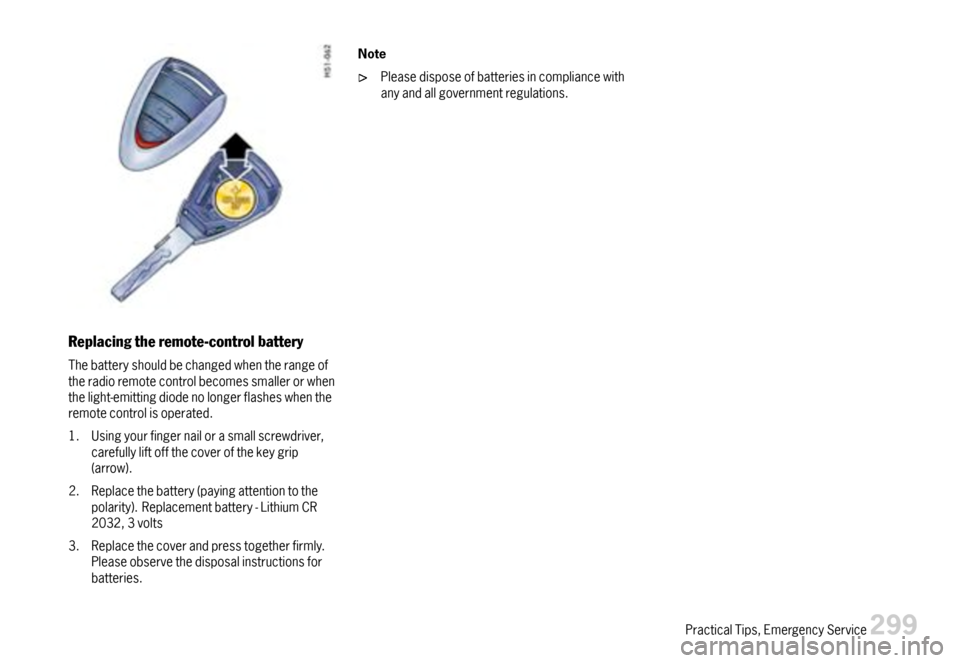

Replacingtheremote-controlbattery
Thebatteryshouldbechangedwhentherangeoftheradioremotecontrolbecomessmallerorwhenthelight-emittingdiodenolongerflasheswhentheremotecontrolisoperated.
1.Usingyourfingernailorasmallscrewdriver,carefullyliftoffthecoverofthekeygrip(arrow).
2.Replacethebattery(payingattentiontothepolarity).Replacementbattery-LithiumCR2032,3volts
3.Replacethecoverandpresstogetherfirmly.Pleaseobservethedisposalinstructionsforbatteries.
Note
Pleasedisposeofbatteriesincompliancewithanyandallgovernmentregulations.
PracticalTips,EmergencyService299

EmergencyStartingwithJumper
Cables
Generalinformation
Ifthebatteryisdischarged,e.g.inwinterorafterthecarhasbeenparkedforalongtime,thebatteryofanothercarcanbeusedforstartingwiththehelpofjumpercables.Makesurethevoltageofbothbatteriesisthesame.Bothbatteriesmustbe12volttypes.Thecapacity(Amperehours,Ah)oftheboosterbatterymustnotbesubstantiallylessthanthatofthedischargedbattery.Thedischargedbatterymustbecorrectlyconnectedtothevehicle’selectricalsystem.
Pleaseobservethechapter”BATTERY”onpage295.
Pleaseobservethechapter”EMERGENCYUNLOCKINGOFTHELUGGAGECOMPART-MENTLID”onpage294.
Note
Donottrytostartthecarbypushingortowing.Damagetothecatalyticconvertersandothercomponentsofthecarmayresult.
Warning!
Riskofshortcircuit,damageandexplosion,resultinginseriouspersonalinjuryordeath.
Useonlyjumpercablesofadequatediametercross-sectionandfittedwithcompletelyinsulatedalligatorclips.
Followallwarningsandinstructionsofthejumpercablemanufacturer.
Whenconnectingjumpercables,makesurethattheycannotgetcaughtinanymovingpartsintheenginecompartment.Thejumpercablesmustbelongenoughsothatneithervehiclesnorcablestouchanother.
Thevehiclesmustnotbeincontact,otherwisecurrentmightflowassoonasthepositiveterminalsareconnected.
Thecableclampsmustnotbeallowedtocontacteachotherwhenoneendofthejumpercablesareconnectedtoabattery.
Ensurethattoolsorconductivejewelry(rings,chains,watchstraps)donotcomeintocontactwiththepositivejumpercableorthepositivebatterypost.
Improperhook-upofjumpercablescanruinthealternator.
Warning!
Dangerofcausticburns.
Donotleanoverthebattery.
Warning!
Dangerofgasexplosion.
Improperuseofboosterbatterytostartavehiclemaycauseanexplosion,resultinginseriouspersonalinjuryordeath.
Keepsourcesofignitionawayfromthebattery,e.g.openflame,burningcigarettesorsparkingduetocablecontactorweldingwork.
Adischargedbatterycanfreezeevenat23°F/-5°C.Beforeconnectingjumpercables,afrozenbatterymustbethawedout.
Connectjumpercablesinthefollowing
sequence:
Alwaysobservethesequencebelow:
1.Connectthepositivelead(red)tothepositiveterminalofthedischargedbatteryfirst,thenconnectittothepositiveterminalofthedonorbattery.
300PracticalTips,EmergencyService

2.Firstconnectthenegativecable(black)tothenegativeterminalofthedonorbattery,thenconnectittoasuitablegroundingpointonthevehiclewiththedischargedbattery.Thisgroundingpointmustlieasfaraspossiblefromthebattery.Forexample,asolidmetalpartortheengineblockaresuitablegroundingpoints.Ifnosuitablegroundingpointsaretobefoundoneithervehicle,thenegativecablemustcarefullybeconnecteddirectlytothenegativeterminalofthebattery.Ifasuitablegroundingpointistobefoundonlyonthedonorvehicle,thenegativecablemustfirstbeconnectedtotheterminalofthedischargedbattery,thentothegroundingpointofthedonorvehicle.
3.Runtheengineofthedonorcaratahigherspeed.
4.Starttheengine.Anattemptedstartusingjumpercablesshouldnotlastmorethan15seconds.Thenallowawaitingperiodofatleastoneminute.
Note
Beforedisconnectingthejumpercables,electricalloadssuchastheheatedrearwindowandtheheatingfanblowershouldbeswitchedon(thevehicle’slightsmustnotbeswitchedon).Thisreducesvoltagepeakswhichmayoccurwhendisconnectingthejumpercables.
Withtheenginerunning,removebothjumpercablesinreverseorder.
PracticalTips,EmergencyService301

Lights,ReplacingBulbs
Generalinformation
Warning!
Riskofshortcircuit.
Alwaysswitchofftherelevantcomponentswhenchangingbulbs.
Warning!
Riskofseriouspersonalinjuryordeath.TheBiXenonheadlightsareunderhighvoltagewheninstalled.
BecarefulduringallworkintheareaoftheBiXenonheadlights.
Caution!
Riskofdamage.Bulbsofahigherwattagecandamagethelamphousing.
Onlythebulbsshowninthechartmaybeused.
Newbulbsmustbecleanandfreefromoil,greaseandfingerprints.Therefore,nevertouchbulbswithyourbarehands.Useaclothorsoftpaperwhilereplacingbulbs.
Caution!
Riskofdamagetoheadlightsduetoexcessivetemperaturesandabrasion.
Attachnocoverings(e.g.films,“stoneguards”)intheareaoftheheadlights.
Usesoapywateronlytocleanlightlensesandplasticheadlightlenses.Innocasemaychemicalcleanersorothervolatilecleaningfluidsbeused.
Topreventscratches,donotrubwithadryormerelymoistcloth,tissueorinsectsponges.
302PracticalTips,EmergencyService

Bulbchart
Type,rating
HalogenlowbeamH7,55W
LowbeamwithBi-XenonheadlightPhilips,D2S35W
HalogenhighbeamH9,65W
AdditionalhighbeamwithBi-XenonheadlightH11,55W
FoglightH8,35W
Taillight,rearfoglightP21/4W
Brakelight/taillightP21/4W
Taillight,reflectorP21/5W
Make-upmirrorlightK3W
ReversinglightP21
Turnsignalindicatorlight,frontandrearPY21W
Turnsignalindicatorlight,sideWY5W
SidemarkerlightW3W
Doorguard-/CurblightW5W
Parkinglight,frontW5WBlue-Vision
LicenseplatelightC5W
Luggagecompartment-/enginecompartmentlight,interiorlightK10W
Readinglight6WXenon
PracticalTips,EmergencyService303

Headlights
Generalinformation
Caution!
Riskofdamagetoheadlightsduetoabrasionandexcessivetemperatures.
Donotaffixanycoverings(e.g.“stoneguards”orfilms)intheareaoftheheadlights.
Note
Theheadlightscanmistupdependingonthetemperatureandhumidity.
Toensureoptimumventilation,donotcoverthegapbetweenheadlightandbody(e.g.“stoneguards”orfilms).Removingheadlights

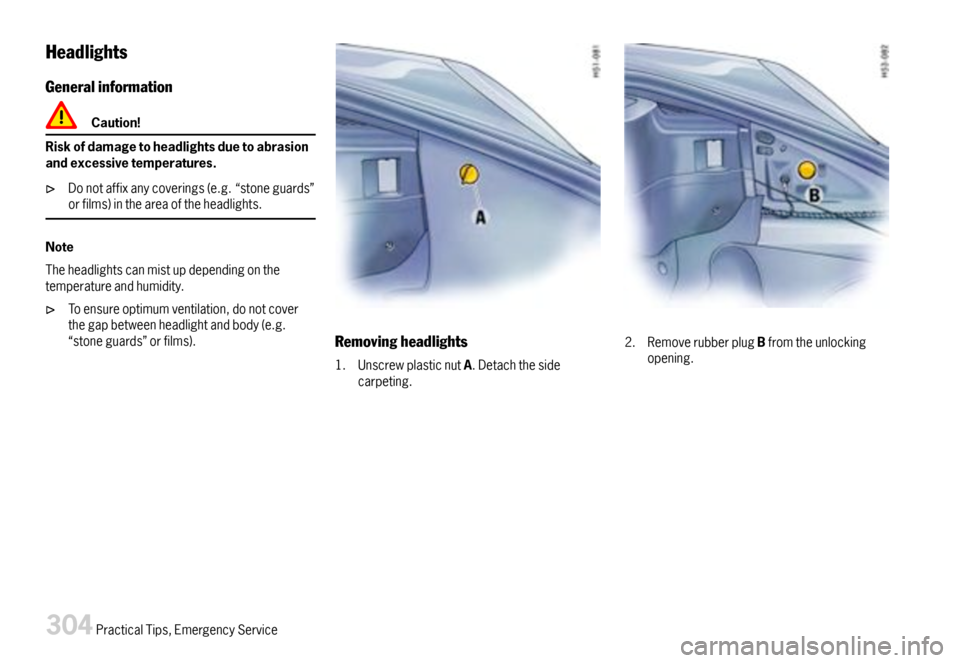

1.UnscrewplasticnutA.Detachthesidecarpeting.
2.RemoverubberplugBfromtheunlockingopening.
304PracticalTips,EmergencyService

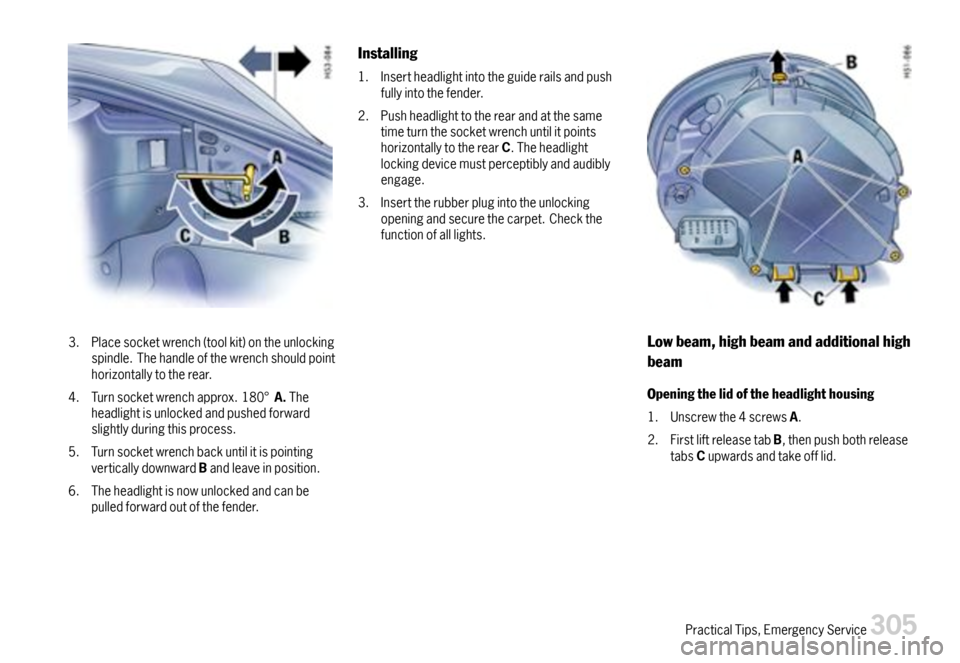

3.Placesocketwrench(toolkit)ontheunlockingspindle.Thehandleofthewrenchshouldpointhorizontallytotherear.
4.Turnsocketwrenchapprox.180°A.Theheadlightisunlockedandpushedforwardslightlyduringthisprocess.
5.TurnsocketwrenchbackuntilitispointingverticallydownwardBandleaveinposition.
6.Theheadlightisnowunlockedandcanbepulledforwardoutofthefender.
Installing
1.Insertheadlightintotheguiderailsandpushfullyintothefender.
2.PushheadlighttotherearandatthesametimeturnthesocketwrenchuntilitpointshorizontallytotherearC.Theheadlightlockingdevicemustperceptiblyandaudiblyengage.
3.Inserttherubberplugintotheunlockingopeningandsecurethecarpet.Checkthefunctionofalllights.
Lowbeam,highbeamandadditionalhigh
beam
Openingthelidoftheheadlighthousing
1.Unscrewthe4screwsA.
2.FirstliftreleasetabB,thenpushbothreleasetabsCupwardsandtakeofflid.
PracticalTips,EmergencyService305

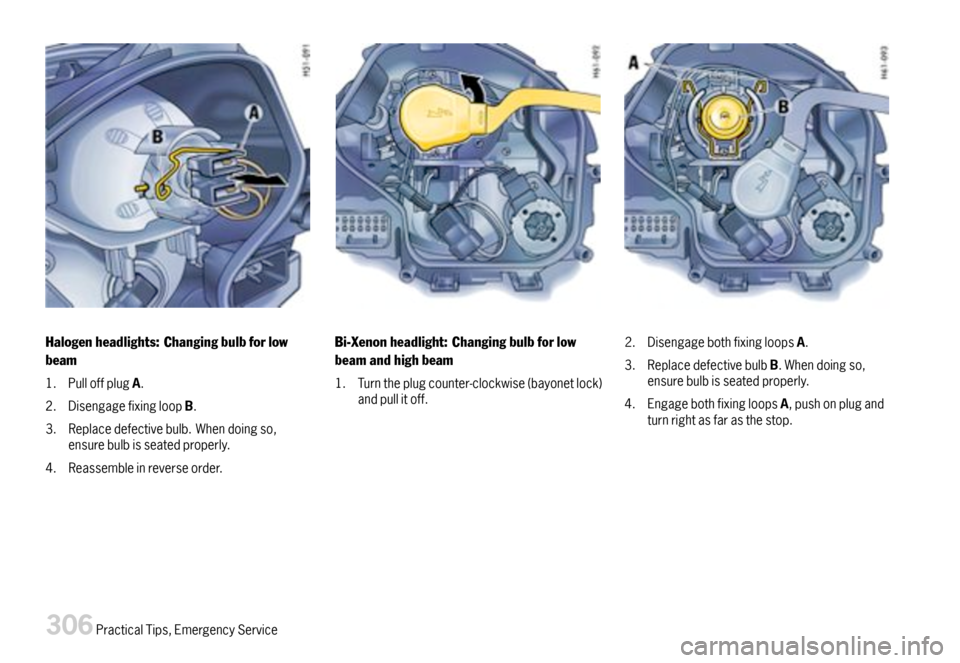

Halogenheadlights:Changingbulbforlow
beam
1.PulloffplugA.
2.DisengagefixingloopB.
3.Replacedefectivebulb.Whendoingso,ensurebulbisseatedproperly.
4.Reassembleinreverseorder.
Bi-Xenonheadlight:Changingbulbforlow
beamandhighbeam
1.Turntheplugcounter-clockwise(bayonetlock)andpullitoff.
2.DisengagebothfixingloopsA.
3.ReplacedefectivebulbB.Whendoingso,ensurebulbisseatedproperly.
4.EngagebothfixingloopsA,pushonplugandturnrightasfarasthestop.
306PracticalTips,EmergencyService

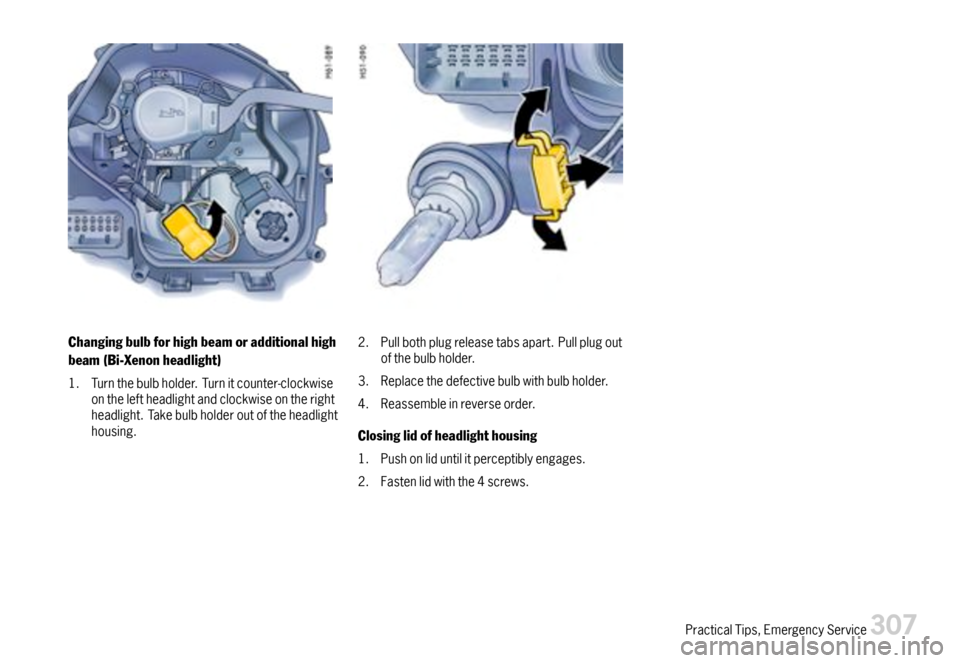

Changingbulbforhighbeamoradditionalhigh
beam(Bi-Xenonheadlight)
1.Turnthebulbholder.Turnitcounter-clockwiseontheleftheadlightandclockwiseontherightheadlight.Takebulbholderoutoftheheadlighthousing.
2.Pullbothplugreleasetabsapart.Pullplugoutofthebulbholder.
3.Replacethedefectivebulbwithbulbholder.
4.Reassembleinreverseorder.
Closinglidofheadlighthousing
1.Pushonliduntilitperceptiblyengages.
2.Fastenlidwiththe4screws.
PracticalTips,EmergencyService307

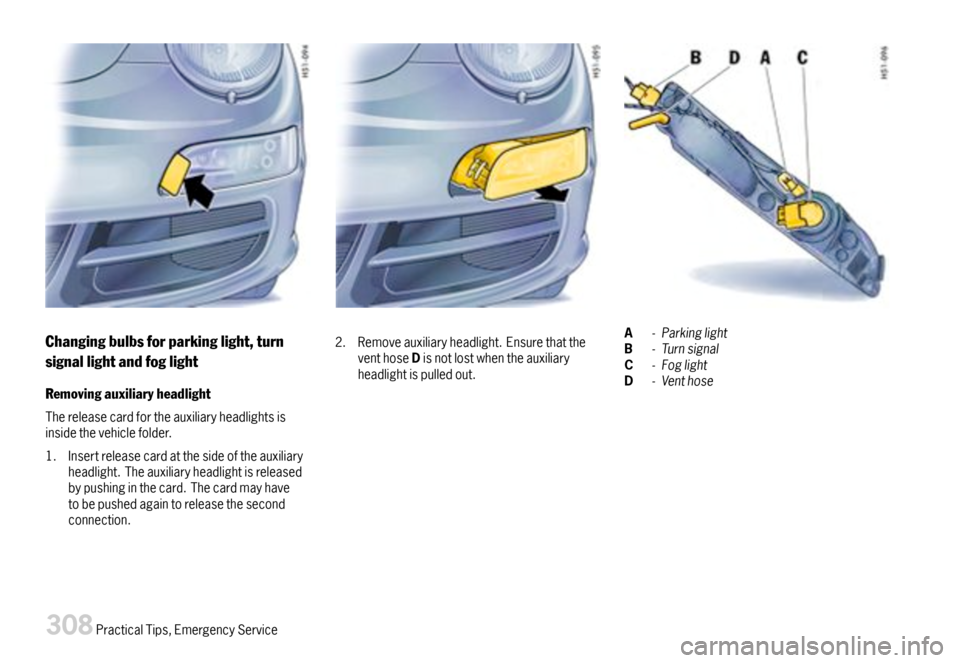

Changingbulbsforparkinglight,turn
signallightandfoglight
Removingauxiliaryheadlight
Thereleasecardfortheauxiliaryheadlightsisinsidethevehiclefolder.
1.Insertreleasecardatthesideoftheauxiliaryheadlight.Theauxiliaryheadlightisreleasedbypushinginthecard.Thecardmayhavetobepushedagaintoreleasethesecondconnection.
2.Removeauxiliaryheadlight.EnsurethattheventhoseDisnotlostwhentheauxiliaryheadlightispulledout.
A-ParkinglightB-TurnsignalC-FoglightD-Venthose
