BulbforparkinglightA
1.Turnholdertowardstheleftandpullitouttotherear.
2.Pulloutandreplacedefectivebulb.
3.Pushholderbackinandturntowardstheright.
BulbforturnsignalB
1.Turnholdercounter-clockwise(bayonetlock)andremoveit.
2.Turnthedefectivebulbcounter-clockwise(bayonetlock)andreplaceit.
3.Insertholderandturntowardstheright.
BulbforfoglightC
1.Pressthereleasetaboftheplugandpullplugoff.
2.Turnbulbofthedefectiveleftfoglighttowardstheleftandthebulboftherightfoglighttowardstheright(bayonetlock)andreplacethem.
3.Pushonplug.
PracticalTips,EmergencyService309

Installingauxiliaryheadlight
Ensurethatthecablesareinsidetheguide(arrows)properly.
Caution!
Riskofpaintdamageiftheauxiliaryheadlightisinsertedintothefrontapronwhentilted.
Exercisecautionwheninsertingtheauxiliaryheadlightintotheguidesofthefrontapron.
EnsurethattheguideofthehousingisinsertedintotheguideAofthefrontapron.
Pushauxiliaryheadlightintothefrontapronuntilitisfelttoengage.
310PracticalTips,EmergencyService

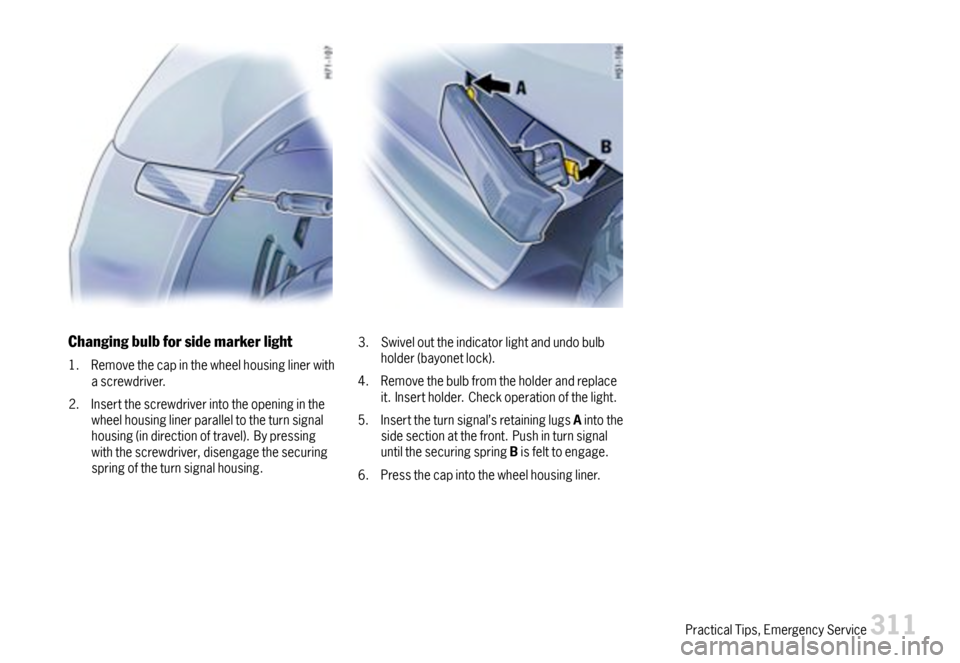

Changingbulbforsidemarkerlight
1.Removethecapinthewheelhousinglinerwithascrewdriver.
2.Insertthescrewdriverintotheopeninginthewheelhousinglinerparalleltotheturnsignalhousing(indirectionoftravel).Bypressingwiththescrewdriver,disengagethesecuringspringoftheturnsignalhousing.
3.Swivelouttheindicatorlightandundobulbholder(bayonetlock).
4.Removethebulbfromtheholderandreplaceit.Insertholder.Checkoperationofthelight.
5.Inserttheturnsignal’sretaininglugsAintothesidesectionatthefront.PushinturnsignaluntilthesecuringspringBisfelttoengage.
6.Pressthecapintothewheelhousingliner.
PracticalTips,EmergencyService311

TailLight
Changingbulb
1.Opentheenginecompartmentlid.
2.CompletelyunscrewfasteningscrewA.
3.Pulltaillightouttowardstheback.
A-ReversinglightB-TurnsignalC-Taillight/brakelightD-Taillight/reectorE-Rearfoglight/sidemarkerlight
4.Turnthebulbholderinthetaillighthousingcounter-clockwiseandpullitout.
5.Turnthedefectivebulbcounter-clockwise(bayonetlock)andreplaceit.
6.Insertthebulbholderandturnitclockwise.
7.Inserttaillightintothesidesection.Ensurethattheretaininglughasbeeninsertedintothemountingguideproperly.
8.TightenfasteningscrewAonthetaillight.
9.Checkoperationofthelight.
312PracticalTips,EmergencyService

Additionalbrakelights
Thelight-emittingdiodesoftheadditionalbrakelightscannotbereplacedindividually.
HavethedefectivebrakelightreplacedatanauthorizedPorschedealer.
PracticalTips,EmergencyService313

LicensePlateLight
Changingbulb

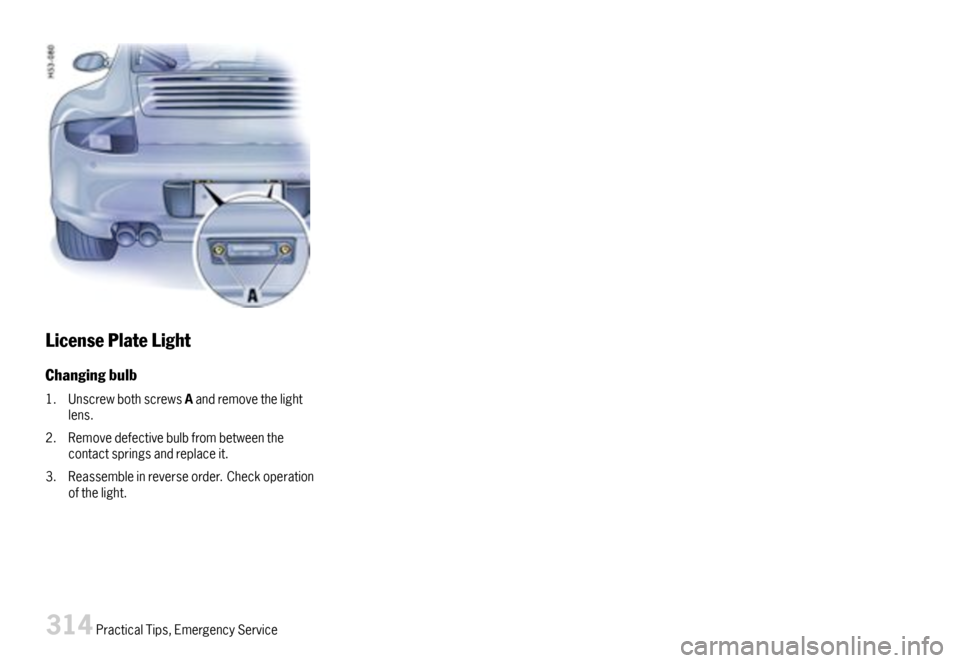

1.UnscrewbothscrewsAandremovethelightlens.
2.Removedefectivebulbfrombetweenthecontactspringsandreplaceit.
3.Reassembleinreverseorder.Checkoperationofthelight.
314PracticalTips,EmergencyService

Example:Luggagecompartmentlight
LuggageCompartment-/Engine
Compartment-/FootwellLight
Changingbulb

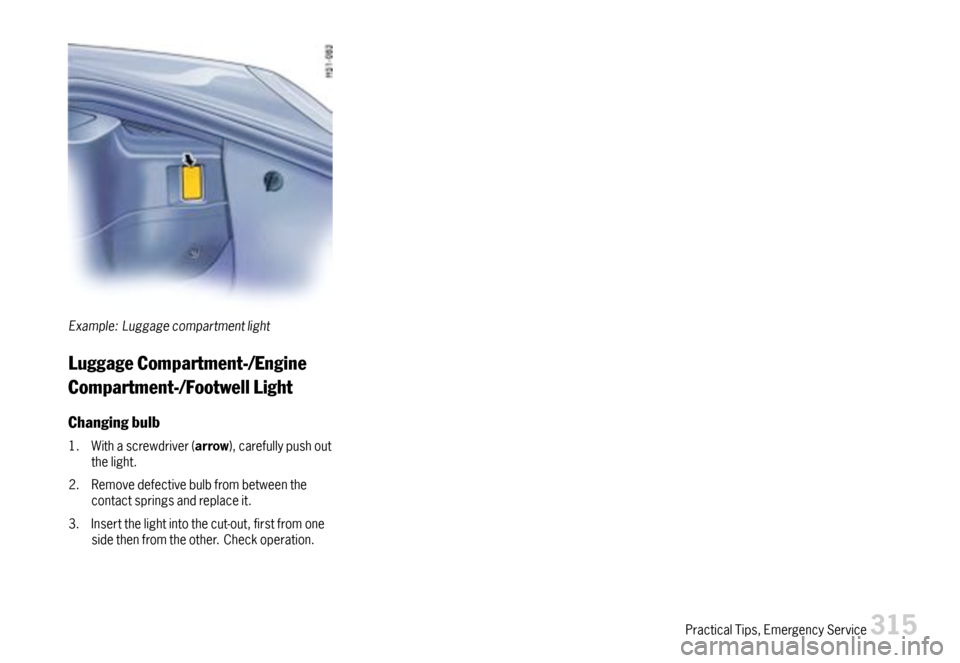

1.Withascrewdriver(arrow),carefullypushoutthelight.
2.Removedefectivebulbfrombetweenthecontactspringsandreplaceit.
3.Insertthelightintothecut-out,firstfromonesidethenfromtheother.Checkoperation.
PracticalTips,EmergencyService315

DoorGuard-/CurbLight
Changingbulb

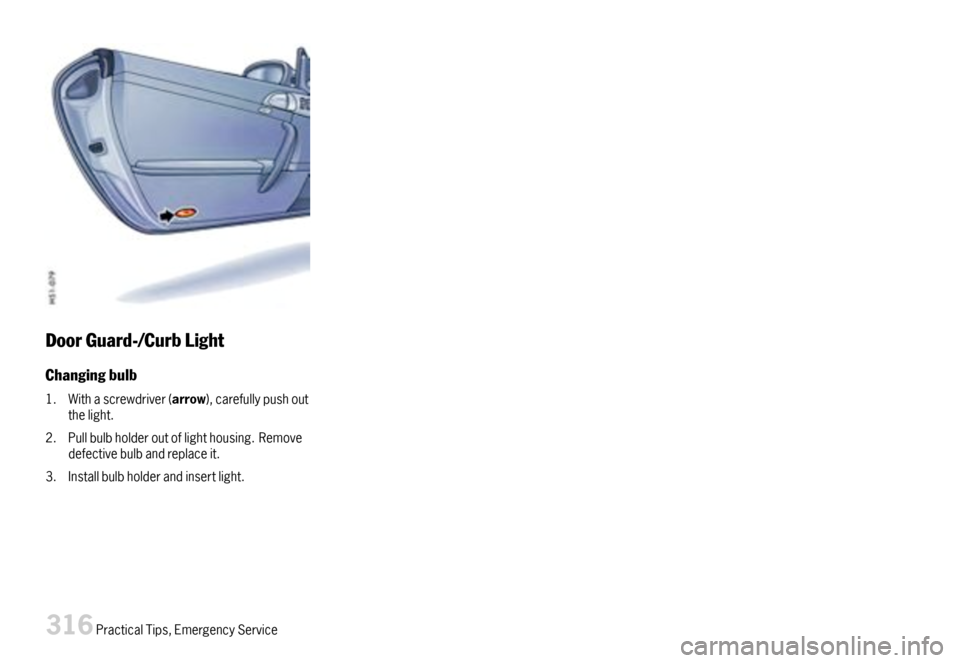

1.Withascrewdriver(arrow),carefullypushoutthelight.
2.Pullbulbholderoutoflighthousing.Removedefectivebulbandreplaceit.
3.Installbulbholderandinsertlight.
316PracticalTips,EmergencyService

InteriorLight,ReadingLights
Changingbulb

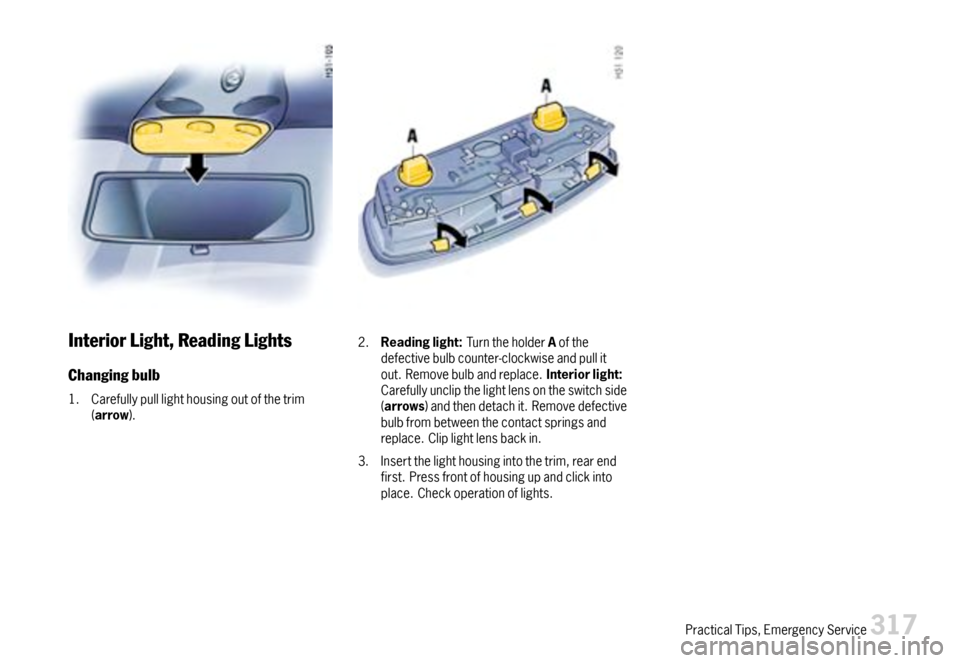

1.Carefullypulllighthousingoutofthetrim(arrow).
2.Readinglight:TurntheholderAofthedefectivebulbcounter-clockwiseandpullitout.Removebulbandreplace.Interiorlight:Carefullyunclipthelightlensontheswitchside(arrows)andthendetachit.Removedefectivebulbfrombetweenthecontactspringsandreplace.Cliplightlensbackin.
3.Insertthelighthousingintothetrim,rearendfirst.Pressfrontofhousingupandclickintoplace.Checkoperationoflights.
PracticalTips,EmergencyService317

AdjustingHeadlights
Adjustment
Pleaseobservethechapter”LIGHTS,REPLAC-INGBULBS”onpage302.
Theadjustmentismadewiththevehiclereadytodriveandthefueltankcompletelyfilled.
Thedriver’sseatmustbeloadedbyapersonora165lbs.(75kg)weightandthetirepressuresmustmeettheprescribedvalues.Afterbeingloaded,thecarmustberolledafewmeterssothatthesuspensioncansettle.

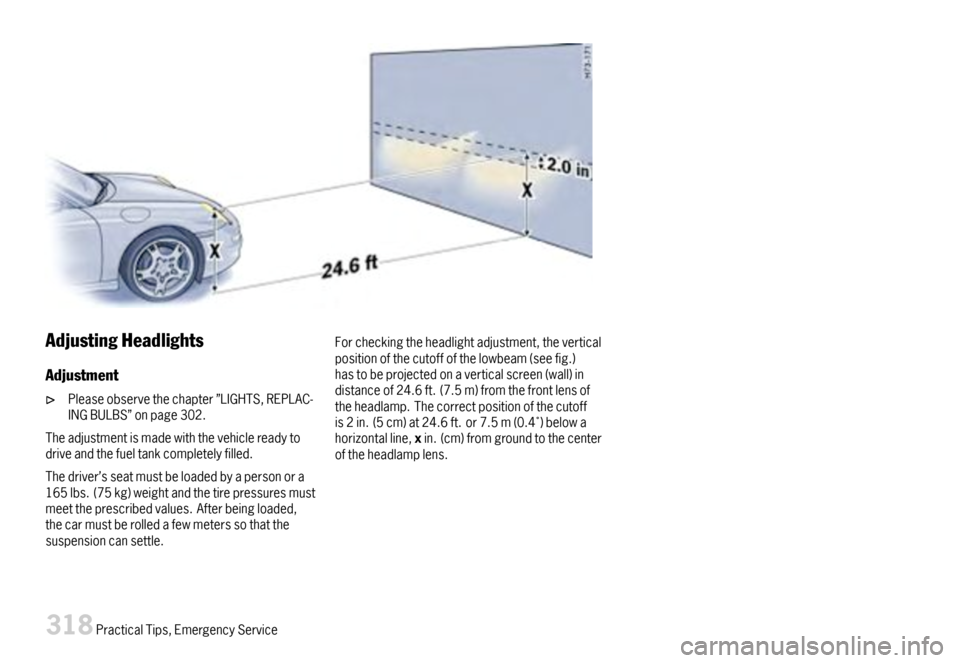

Forcheckingtheheadlightadjustment,theverticalpositionofthecutoffofthelowbeam(seefig.)hastobeprojectedonaverticalscreen(wall)indistanceof24.6ft.(7.5m)fromthefrontlensoftheheadlamp.Thecorrectpositionofthecutoffis2in.(5cm)at24.6ft.or7.5m(0.4)belowahorizontalline,xin.(cm)fromgroundtothecenteroftheheadlamplens.
