If the sunroof does not operate properly after per-
forming the procedure above, have your vehicle
checked by an approved dealer or qualified work-
shop. CAUTION
• Turn off the lights when you leave the vehicle.
• Do not use the lights for extended periods of
time with the engine stopped. This could re-
sult in
adischarged battery.
INTERIOR LIGHT SWITCH
(where fitted)
➀ The interior light can be turned ON regardless
of door position. The light will go off after a
period of time unless the ignition switch is
placed in the ON position when any door is
opened.
➁ The interior lights can be set to operate when
the doors are opened. To turn off the interior
lights when
adoor open, push the switch, the
interior lights will not illuminate, regardless of
door position. The lights will go off when the
ignition switch is placed in the ON position, or
the driver’s door is closed and locked. The lights will also go off after
aperiod of time
when the doors are open.
CONSOLE LIGHT (where fitted)
The console light will turn on whenever the clear-
ance lights or headlights are illuminated.
MAP LIGHTS
Push the button to turn the map lights on. To turn
them off, push the button again. JVI1037XZ JVI1038XZ
JVI1039XZ
INTERIOR LIGHTS
Instruments and controls2-43

MAP LIGHT CONTROL SWITCH
(where fitted)
The map lights control switch has three positions:
ON ➀,O
FF
➁ and centre.
ON position
When the switch is in the ON position ➀,t
he map
lights will illuminate.
OFF position
When the switch is in the OFF position ➁,t
he map
lights will not illuminate, regardless of any other con-
dition.
Centre position
When the switch is in the centre position, the map
lights will illuminate under the following conditions:
• the key is removed from the ignition switch
–r emain on for aperiod of time. •
doors are unlocked by pushing the
UNLOCK button (model with remote key-
less entry system) with the ignition switch in the
LOCK position
–r emain on for aperiod of time.
• any door is opened
–r
emain on while the door is opened. When
the door is closed, the lights go off.
ROOM LIGHT (where fitted)
The room light has athree-position switch.
When the switch is in the ON position ➁,t
he room
light illuminates.
When the switch is in the ( Door) position
➀,
the room light illuminates when adoor is opened. The interior light timer will keep the room light on for
ap
eriod of time when:
• The key is removed from the ignition switch with
all doors closed (models without Remote Con-
trol Key).
• The ignition switch is placed in the OFF position
with all doors closed (models with Remote Con-
trol Key).
• The driver’s door is unlocked without the key in
the ignition switch (models without Remote Con-
trol Key).
• The driver’s door is unlocked when the ignition
switch is in the LOCK position (models with Re-
mote Control Key).
• The doors are unlocked with the UNLOCK button (model with remote keyless entry system).
• The last door is closed without the key in the
ignition switch (models without Remote Control
Key).
The interior light timer will be cancelled when:
• The driver’s door is locked.
• The ignition switch is placed in the ON position.
When the switch is in the OFF position ➂,t
he
room light does not illuminate, regardless of any
condition. SIC4573Z
SIC2489Z
2-44 Instruments and controls

REAR PERSONAL LIGHT (where fitted)
To turn the rear personal lights on, push the switch.
To turn them off, push the switch again.
VANITY MIRROR LIGHTS
(where fitted)
To access the vanity mirror, pull the sun visor down
and flip open the mirror cover. The vanity mirror light illuminates when the vanity
mirror cover is opened. When the cover is closed,
the light will turn off.
BATTERY SAVER SYSTEM
The lights will turn off after aperiod of time when the
lights remain illuminated to prevent the battery from
becoming discharged. SIC3250Z
SIC3869Z
Instruments and controls
2-45

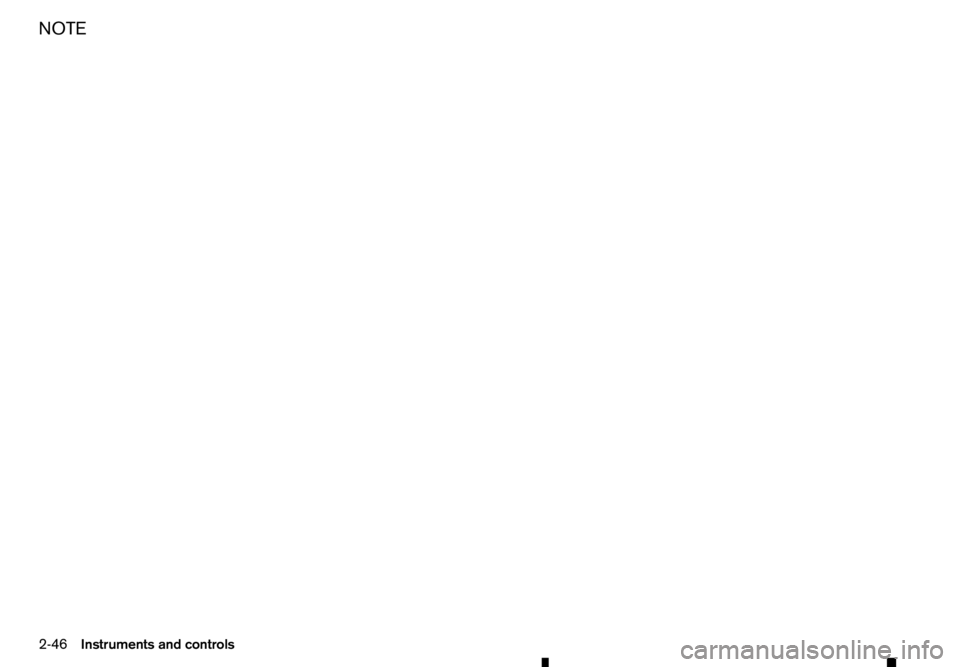

NOTE
2-46
Instruments and controls

3
Pre-driving checks and adjustments
Pre-driving checks and adjustments
Keys ........................................................................V
3-2 Key (where fitted) ............................................... 3-2
Anti-Theft System (ATS*) key (where fitted) ........ 3-2
Remote Control Key (where fitted) ...................... 3-2
Doors ...................................................................... 3-4 Locking with key ................................................. 3-4
Opening with inside door handle ......................... 3-4
Locking with power door lock switch .................. 3-4
Rear access doors (King Cab models)................ 3-5
Child safety rear door locks (Double Cab
models) .............................................................. 3-5
Remote keyless entry system (where fitted) .............. 3-6
Using remote keyless entry system ..................... 3-6
Remote Control Key system (where fitted) ............... 3-7
Remote Control Key operating range .................. 3-9
Using Remote Control Key system ...................... 3-9
Battery saver system........................................... 3-10
Warning and audible reminders .......................... 3-11
Troubleshooting guide ........................................ 3-12
Using remote keyless entry system ..................... 3-14
Hazard indicator and horn operation.................... 3-15
Security system (where fitted) .................................. 3-15
Theft warning system (where fitted)..................... 3-15 Anti-Theft System (ATS) ..................................... 3-16
Bonnet..................................................................V
... 3-17 Opening bonnet.................................................. 3-17
Closing bonnet ................................................... 3-17
Fuel filler lid and cap ................................................ 3-18
Opening fuel filler lid ........................................... 3-18
Fuel filler cap ...................................................... 3-18
AdBlue® filler lid and cap ........................................ 3-19 Opening AdBlue® filler lid .................................. 3-20
Locking AdBlue® filler lid ................................... 3-20
AdBlue® filler cap .............................................. 3-20
Cargo bed (where fitted).......................................... 3-20 Tailgate .............................................................. 3-20
Tie down hooks (where fitted) ............................. 3-21
C-Channel system (where fitted) ......................... 3-21
Steering wheel......................................................... 3-23 Steering wheel adjustment .................................. 3-23
Mirrors..................................................................... 3-23 Inside rearview mirror ......................................... 3-23
Outside rearview mirrors..................................... 3-25
Vanity mirror (where fitted) .................................. 3-26
Parking brake .......................................................... 3-26

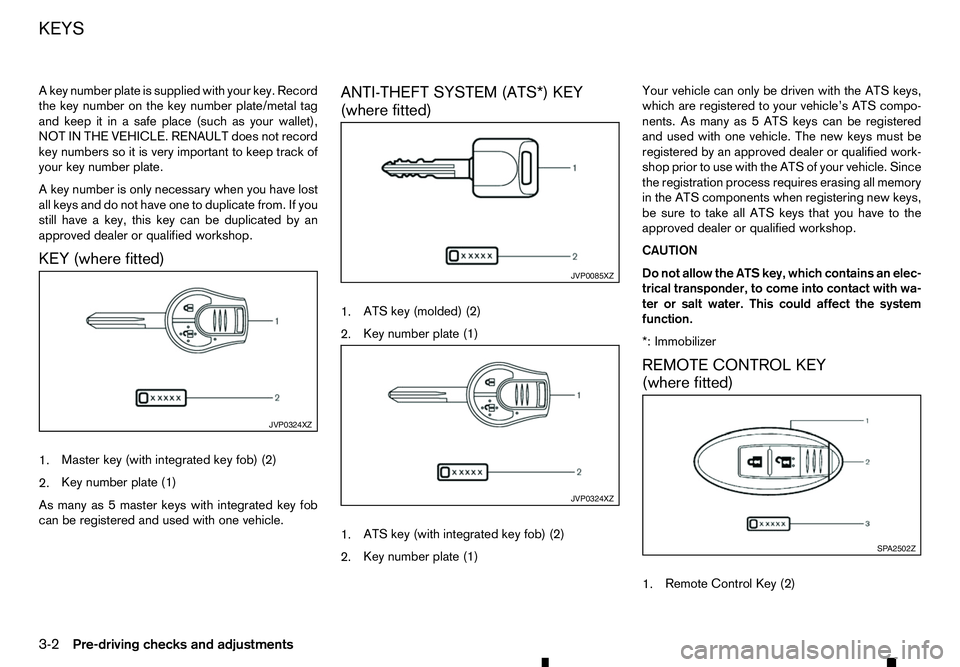

Ak
ey number plate is supplied with your key. Record
the key number on the key number plate/metal tag
and keep it in asafe place (such as your wallet),
NOT IN THE VEHICLE. RENAULT does not record
key numbers so it is very important to keep track of
your key number plate.
Ak ey number is only necessary when you have lost
all keys and do not have one to duplicate from. If you
still have akey, this key can be duplicated by an
approved dealer or qualified workshop.
KEY (where fitted)
1. Master key (with integrated key fob) (2)
2. Key number plate (1)
As many as 5master keys with integrated key fob
can be registered and used with one vehicle. ANTI-THEFT SYSTEM (ATS*) KEY
(where fitted)
1.
ATS key (molded) (2)
2. Key number plate (1)
1. ATS key (with integrated key fob) (2)
2. Key number plate (1) Your vehicle can only be driven with the ATS keys,
which are registered to your vehicle’s ATS compo-
nents. As many as
5ATS keys can be registered
and used with one vehicle. The new keys must be
registered by an approved dealer or qualified work-
shop prior to use with the ATS of your vehicle. Since
the registration process requires erasing all memory
in the ATS components when registering new keys,
be sure to take all ATS keys that you have to the
approved dealer or qualified workshop.
CAUTION
Do not allow the ATS key, which contains an elec-
trical transponder, to come into contact with wa-
ter or salt water. This could affect the system
function.
*: Immobilizer
REMOTE CONTROL KEY
(where fitted)
1. Remote Control Key (2) JVP0324XZ JVP0085XZ
JVP0324XZ
SP A2502Z
KEYS
3-2
Pre-driving checks and adjustments

2.
Mechanical key (inside Remote Control Key)
(2)
3. Key number plate (1) WARNING
• The Remote Control Key transmits radio
waves that can adversely affect medical elec-
tric equipment.
• If you have
apacemaker, you should contact
the medical equipment manufacturer to ask if
it will be affected by the Remote Control Key
signal.
Your vehicle can only be driven with the Remote
Control Keys which are registered to your vehicle’s
Remote Control Key system components and Anti-
Theft System (ATS*) components. As many as 4
Remote Control Keys can be registered and used
with one vehicle. The new keys must be registered
by an approved dealer or qualified workshop prior
to use with the Remote Control Key system and
ATS of your vehicle. Since the registration process
requires erasing all memory in the Remote Control
Key system components when registering new keys,
be sure to take all Remote Control Keys that you
have to an approved dealer or qualified workshop.
*: Immobilizer
CAUTION
• Be sure to carry the Remote Control Key with
you. Do not leave the vehicle with the Remote
Control Key inside. •
Be sure to carry the Remote Control Key with
you when driving. The Remote Control Key is
ap
recision device with abuilt-in transmitter.
To avoid damaging it, please note the follow-
ing.
–T he Remote Control Key is water resistant;
however, wetting may damage the Remote
Control Key. If the Remote Control Key
gets wet, immediately wipe until it is com-
pletely dry.
–D onot bend, drop or strike it against an-
other object.
–I fthe outside temperature is below -10°C
(14°F), the battery of the Remote Control
Key may not function properly.
–D onot place the Remote Control Key for
an extended period in aplace where tem-
peratures exceed 60°C (140°F).
–D onot change or modify the Remote Con-
trol Key.
–D onot use amagnet key holder.
–D onot place the Remote Control Key near
equipment that produces amagnetic field
such as aTV, audio equipment and per-
sonal computers.
–D onot allow the Remote Control Key to
come into contact with water or salt water,
and do not wash it in awashing machine.
This could affect the system function. •
If
aR emote Control Key is lost or stolen,
RENAULT recommends erasing the ID code
of that Remote Control Key. This will prevent
the Remote Control Key from unauthorised
use to unlock the vehicle. For information re-
garding the erasing procedure, please con-
tact an approved dealer or qualified work-
shop.
Mechanical key
To remove the mechanical key, release the lock knob
on the back of the Remote Control Key.
To install the mechanical key, firmly insert it into the
Remote Control Key until the lock knob returns to
the lock position.
Use the mechanical key to lock or unlock the doors
and tailgate (where fitted). (See “Doors” later in this
section and “Tailgate” later in this section.) SP A2033Z
Pre-driving checks and adjustments 3-3

WARNING
• Always look before opening any doors, to
avoid an accident with oncoming traffic.
• To help avoid risk of injury or death through
unintended operation of the vehicle and/or its
systems, do not leave children, people who
require the assistance of others, or pets unat-
tended in your vehicle. Additionally, the tem-
perature inside
aclosed vehicle on awarm
day can quickly become high enough to cause
as ignificant risk of injury or death to people
and pets.
LOCKING WITH KEY
To lock the door, insert the mechanical key to the door key cylinder and turn the key to the front side
of the vehicle ➀.
To unlock the door, turn the key to the rear of the
vehicle ➁. OPENING WITH INSIDE DOOR
HANDLE
To unlock and open the door pull the inside door
handle as illustrated.
For models with Super Lock System:
The doors cannot be opened by using the inside
door handle when the Super Lock System is acti-
vated.
LOCKING WITH POWER DOOR
LOCK SWITCH
Operating the power door lock switch (located on
the driver’s door) will lock or unlock all the doors.
To lock the doors, push the power door lock switch
to the lock position
➀with the driver’s door open,
then close the door. All doors will lock. SP A2588Z SP A2791Z
SP A2803Z
SP A2390Z
DOORS
3-4
Pre-driving checks and adjustments

CAUTION
•
When locking the doors using the power door
lock switch, be sure not to leave the key in the
vehicle.
• When the Remote Control Key (where fitted)
is left in the vehicle, and you try to lock the
door using the power door lock switch after
getting out of the vehicle, all the doors will
unlock automatically after the door is closed.
To unlock, push the power door lock switch to the
unlock position ➁. REAR ACCESS DOORS (King Cab
models)
1. Open the driver’s or passenger’s door.
2. From the inside, pull the door handle
j
At oward
the front of the vehicle. 3. Open the door to the desired position.
CHILD SAFETY REAR DOOR LOCKS
(Double Cab models)
The child safety rear door locks help prevent rear
doors from being opened accidentally, especially
when small children are in the vehicle. JVP0322XZ
JVP0321XZ JVP0323XZ
JVP0279XZ
Pre-driving checks and adjustments
3-5

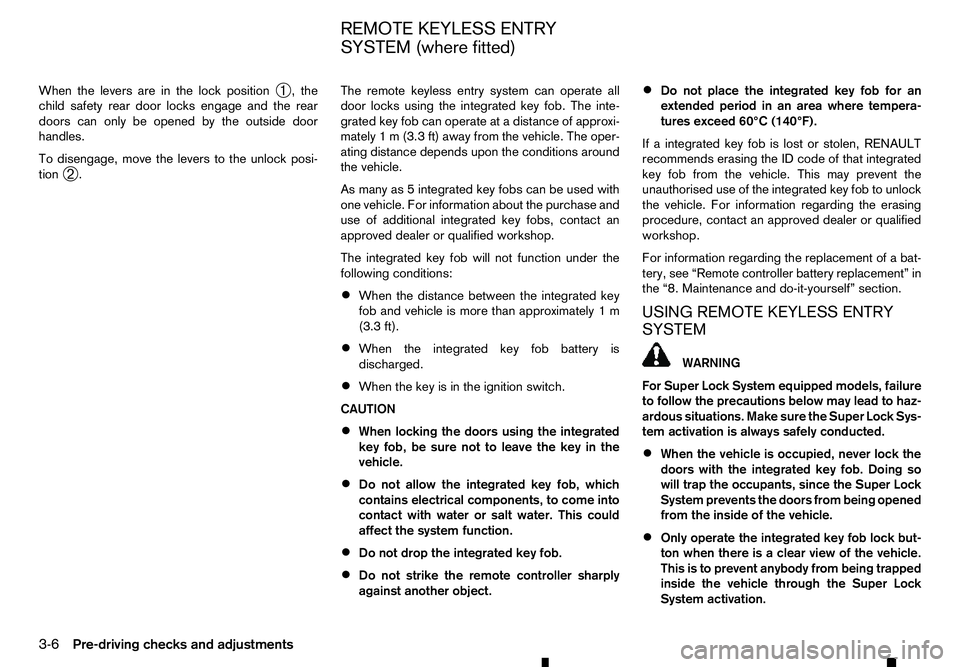

When the levers are in the lock position
➀,t
he
child safety rear door locks engage and the rear
doors can only be opened by the outside door
handles.
To disengage, move the levers to the unlock posi-
tion ➁. The remote keyless entry system can operate all
door locks using the integrated key fob. The inte-
grated key fob can operate at
adistance of approxi-
mately 1m(3.3 ft) away from the vehicle. The oper-
ating distance depends upon the conditions around
the vehicle.
As many as 5integrated key fobs can be used with
one vehicle. For information about the purchase and
use of additional integrated key fobs, contact an
approved dealer or qualified workshop.
The integrated key fob will not function under the
following conditions:
• When the distance between the integrated key
fob and vehicle is more than approximately 1m
(3.3 ft).
• When the integrated key fob battery is
discharged.
• When the key is in the ignition switch.
CAUTION
• When locking the doors using the integrated
key fob, be sure not to leave the key in the
vehicle.
• Do not allow the integrated key fob, which
contains electrical components, to come into
contact with water or salt water. This could
affect the system function.
• Do not drop the integrated key fob.
• Do not strike the remote controller sharply
against another object. •
Do not place the integrated key fob for an
extended period in an area where tempera-
tures exceed 60°C (140°F).
If ai ntegrated key fob is lost or stolen, RENAULT
recommends erasing the ID code of that integrated
key fob from the vehicle. This may prevent the
unauthorised use of the integrated key fob to unlock
the vehicle. For information regarding the erasing
procedure, contact an approved dealer or qualified
workshop.
For information regarding the replacement of abat-
tery, see “Remote controller battery replacement” in
the “8. Maintenance and do-it-yourself” section.
USING REMOTE KEYLESS ENTRY
SYSTEM WARNING
For Super Lock System equipped models, failure
to follow the precautions below may lead to haz-
ardous situations. Make sure the Super Lock Sys-
tem activation is always safely conducted.
• When the vehicle is occupied, never lock the
doors with the integrated key fob. Doing so
will trap the occupants, since the Super Lock
System prevents the doors from being opened
from the inside of the vehicle.
• Only operate the integrated key fob lock but-
ton when there is
aclear view of the vehicle.
This is to prevent anybody from being trapped
inside the vehicle through the Super Lock
System activation.
REMOTE KEYLESS ENTRY
SYSTEM (where fitted)
3-6 Pre-driving checks and adjustments
