RENAULT CLIO SPORT TOURER 2012 X85 / 3.G Owners Manual
Manufacturer: RENAULT, Model Year: 2012, Model line: CLIO SPORT TOURER, Model: RENAULT CLIO SPORT TOURER 2012 X85 / 3.GPages: 264, PDF Size: 7.7 MB
Page 151 of 264
JauneNoirNoir texte
3.21
ENG_UD10576_1
Toit ouvrant à commande électrique (X85 - B85 - C85 - S85 - K85 - \
Renault)
ENG_NU_853-8_BCSK85_Renault_3
sunroof closing operating
fault
In this case, check that there are no ob-
structions, then turn button 2 to posi -
tion 0. Press button 3, until the sunroof
is completely closed.
special note
For your safety your vehicle is fitted
with an anti-pinch function. When a
window encounters resistance whilst
closing (someone’s fingers, an animal’s
paw or the branch of a tree, for exam-
ple), it stops and lowers by several cen-
timetres.
Precautions during use
– check that the sunroof is properly
closed before leaving your vehicle;
– clean the seal every three months
using products recommended by our
Technical Department;
– do not open the sunroof immedi -
ately after the vehicle has been in
the rain or after your car has been
washed.
– vehicle with roof bars
It is not advisable to operate the sun-
roof.
Before using the sunroof, check the
objects and/or accessories (bike
racks, roof boxes, etc.) attached to
the roof bars: they should be prop -
erly arranged and secured and
should not interfere with the opera -
tion of the sunroof.
Contact an approved Dealer for de-
tails of possible conversions.

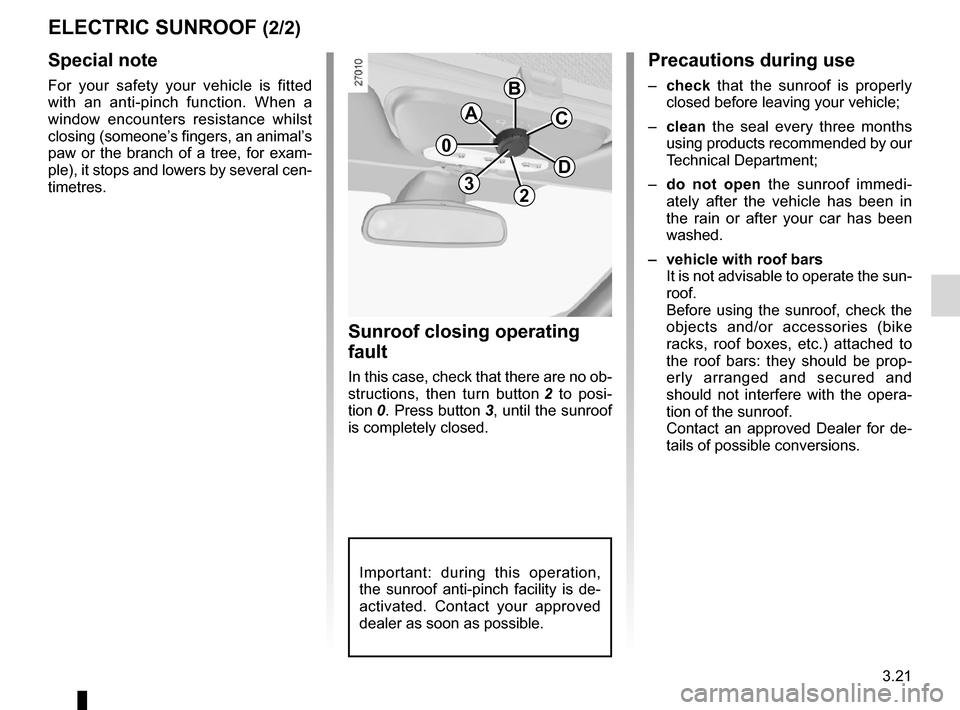

eLeCtriC sUnrOOF (2/2)
a
B
C
D
23
0
Important: during this operation,
the sunroof anti-pinch facility is de-
activated. Contact your approved
dealer as soon as possible.
Page 152 of 264
courtesy mirrors .................................... (up to the end of the DU)
sun visor ............................................... (up to the end of the DU)
3.22
ENG_UD10577_1
Pare-soleil (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_3
Sun visor
Front sun visor
Lower sun visor 1.
Courtesy mirrors
Slide cover 2.
rear sun blind
Pull the sun blind upwards using the tab
until both hooks 3 lock into their hous-
ings (make sure the blind is properly
locked in position).

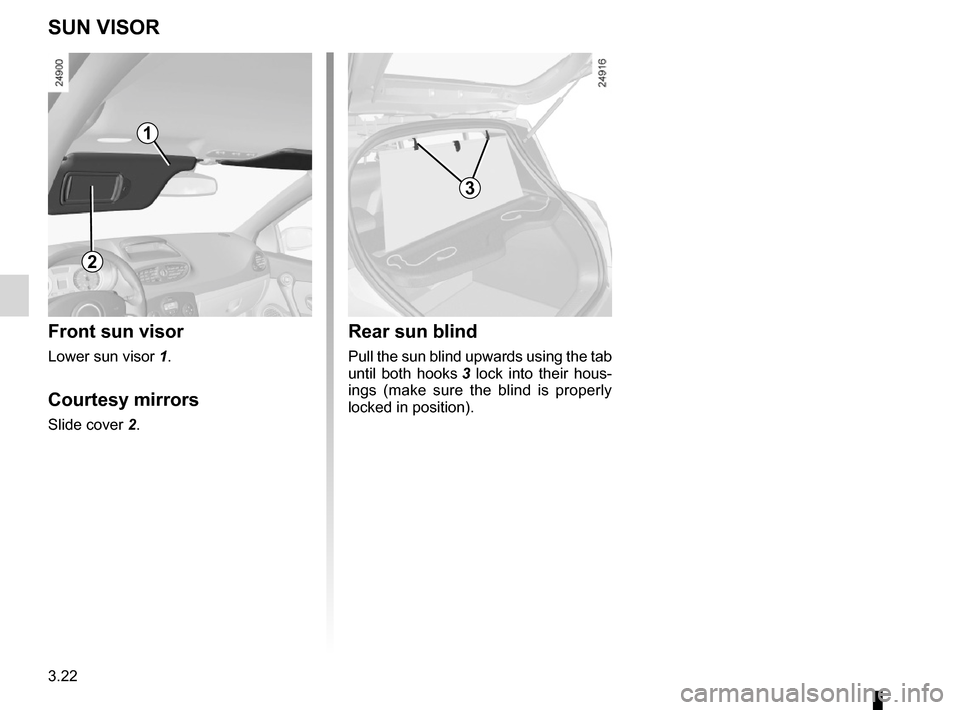

sUn visOr
3
1
2

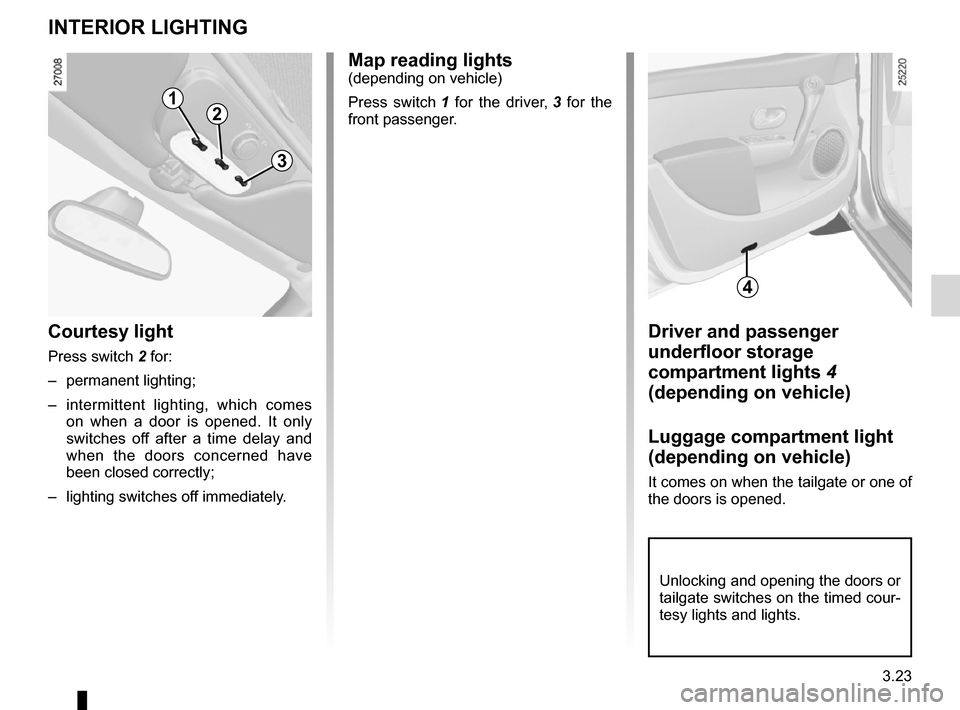

Page 153 of 264
lighting:interior ............................................. (up to the end of the DU)
courtesy light ........................................ (up to the end of the DU)
map reading lights ................................ (up to the end of the DU)
3.23
ENG_UD10578_1
Eclairage intérieur (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_3
Interior lighting
Unlocking and opening the doors or
tailgate switches on the timed cour-
tesy lights and lights.
Driver and passenger
underfloor storage
compartment lights 4
(depending on vehicle)
Luggage compartment light
(depending on vehicle)
It comes on when the tailgate or one of
the doors is opened.
Map reading lights(depending on vehicle)
Press switch 1 for the driver, 3 for the
front passenger.
Courtesy light
Press switch 2 for:
– permanent lighting;
– intermittent lighting, which comes
on when a door is opened. It only
switches off after a time delay and
when the doors concerned have
been closed correctly;
– lighting switches off immediately.
interiOr LiGHtinG
12
3
4
Page 154 of 264
storage compartments .......................... (up to the end of the DU)
storage compartment ............................(up to the end of the DU)
fittings ................................................... (up to the end of the DU)
3.24
ENG_UD19788_2
Rangements / Aménagements habitacle (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_3
Jaune NoirNoir texte
Passenger compartment storage space and fittings
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
sunglasses holder 2
Front door storage pockets 1
They can hold a 1.5 litre bottle.

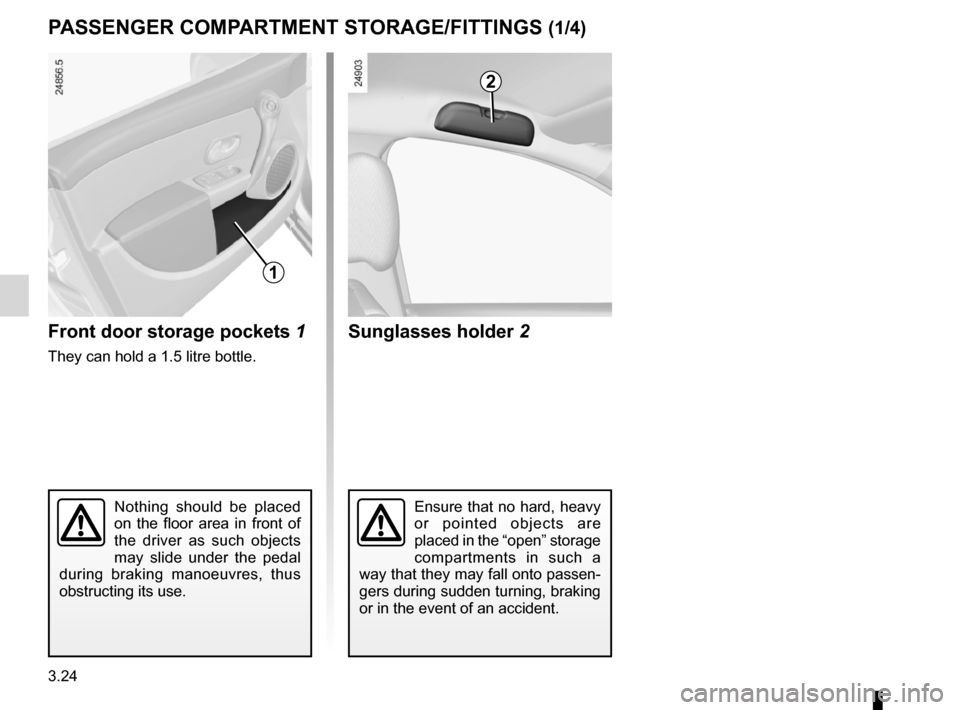

PassenGer COMP artMent stOraGe/FittinGs (1/4)
2
1
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen-
gers during sudden turning, braking
or in the event of an accident.
Page 155 of 264
JauneNoirNoir texte
3.25
ENG_UD19788_2
Rangements / Aménagements habitacle (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_3
Centre console storage
compartment 4 or 5
This can be used for storing a mobile
ashtray, cup holder, etc.
Clip 3
This can be used for storing motorway
tickets, cards, etc.

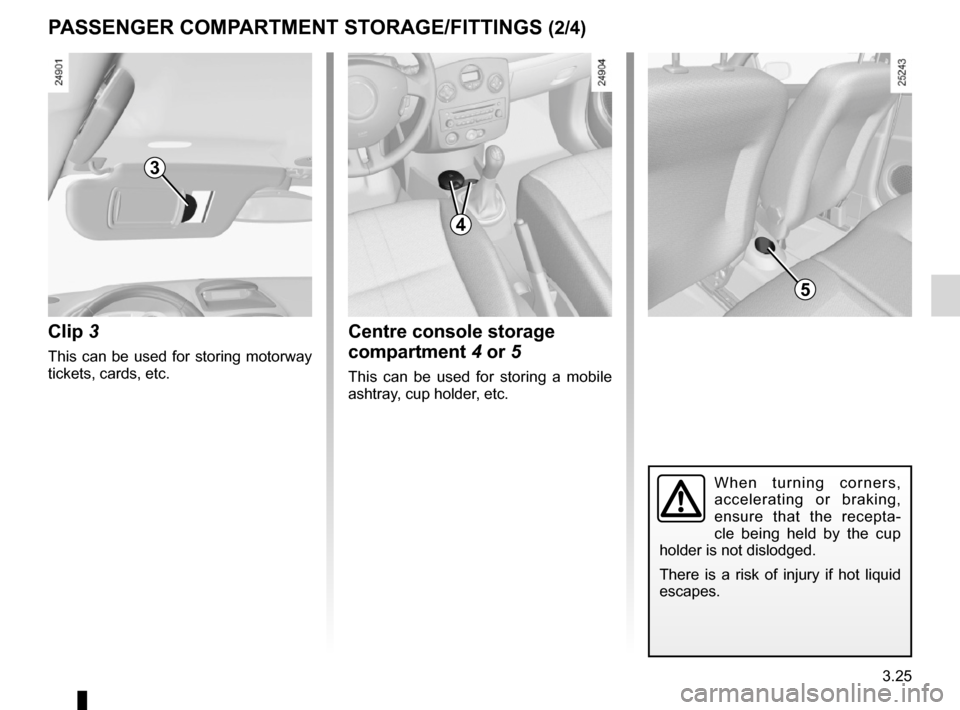

PassenGer COMP artMent stOraGe/FittinGs (2/4)
3
4
5
W h e n t u r n i n g c o r n e r s ,
accelerating or braking,
ensure that the recepta -
cle being held by the cup
holder is not dislodged.
There is a risk of injury if hot liquid
escapes.

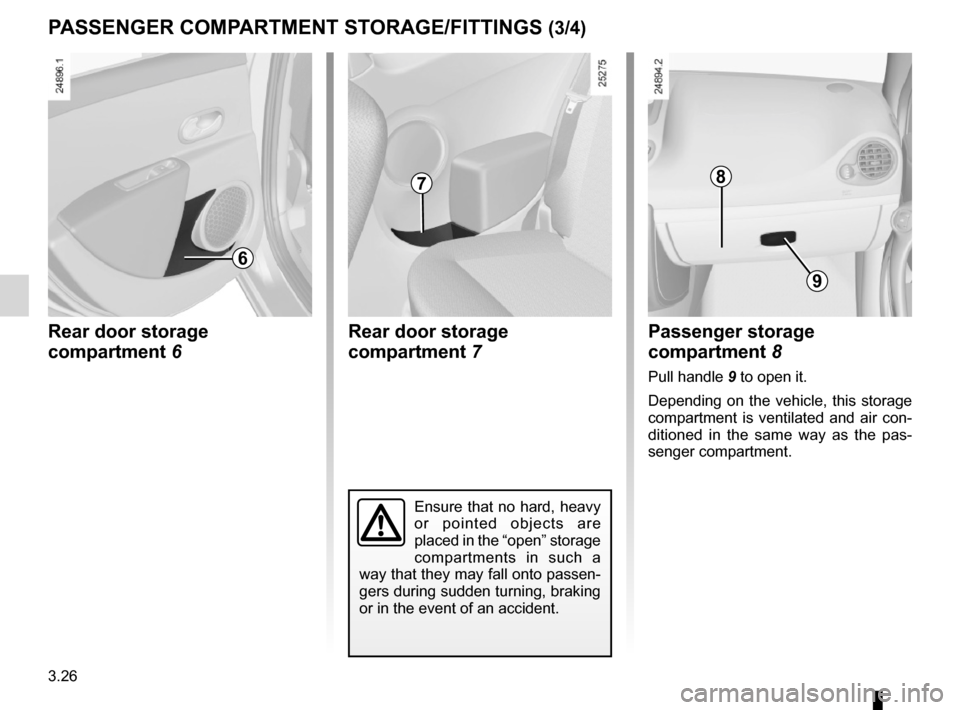

Page 156 of 264
glove box ............................................................... (current page)
3.26
ENG_UD19788_2
Rangements / Aménagements habitacle (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_3
Jaune NoirNoir texte
PassenGer COMP artMent stOraGe/FittinGs (3/4)
Passenger storage
compartment 8
Pull handle 9 to open it.
Depending on the vehicle, this storage
compartment is ventilated and air con-
ditioned in the same way as the pas -
senger compartment.
rear door storage
compartment 7
rear door storage
compartment 6
6
78
9
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen-
gers during sudden turning, braking
or in the event of an accident.
Page 157 of 264
JauneNoirNoir texte
3.27
ENG_UD19788_2
Rangements / Aménagements habitacle (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_3
Grab handle 11
This offers support and can be held
when the vehicle is being driven. Do
not use it for getting into or out of the
vehicle.
Front seat storage
compartments 10

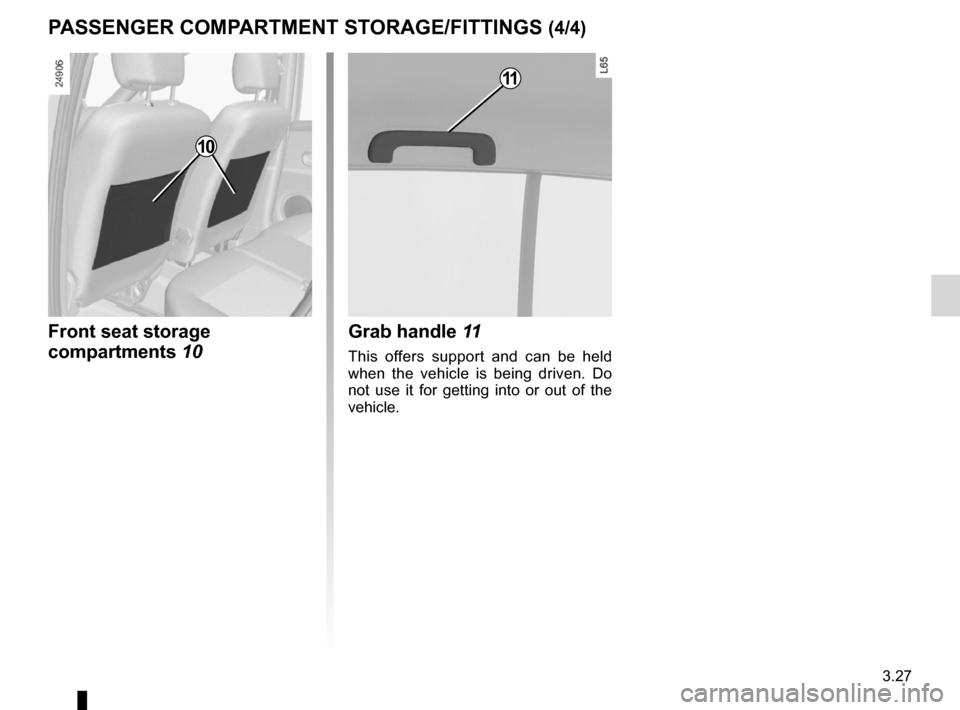

PassenGer COMP artMent stOraGe/FittinGs (4/4)
10
11
Page 158 of 264
cigar lighter ........................................... (up to the end of the DU)
ashtray .................................................. (up to the end of the DU)
accessories socket ............................... (up to the end of the DU)
3.28
ENG_UD12581_2
Cendriers - Allume-cigares (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_3
Ashtray/cigar lighter
Cigar lighter 3
With the ignition on, push in the cigar
lighter 3.
It will spring back with a click when it is
ready. Pull it out to use. After use, re -
place it without pushing it all the way in.
ashtray 1
It can be housed in either position 2
or 4.

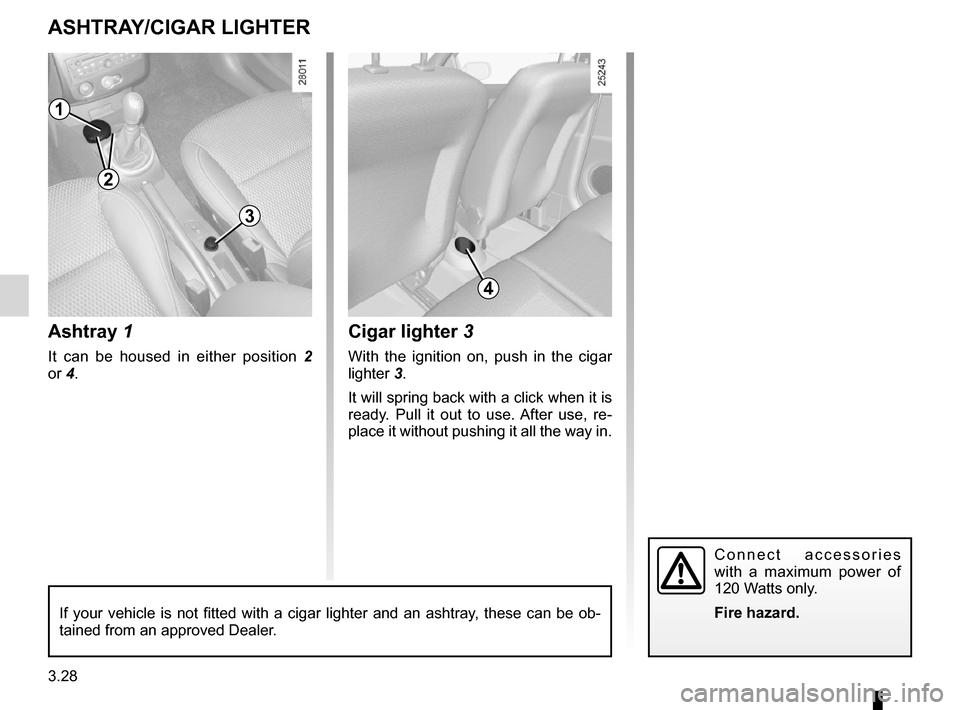

asHtra Y/CiGar LiGHter
1
2
4
3
C o n n e c t a c c e s s o r i e s
with a maximum power of
120 Watts only.
Fire hazard.
If your vehicle is not fitted with a cigar lighter and an ashtray, these can be ob-
tained from an approved Dealer.
Page 159 of 264
headrest................................................ (up to the end of the DU)
adjusting your driving position .............. (up to the end of the DU)
3.29
ENG_UD19815_2
Appuis-tête arrière (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_3
The headrest is a safety
component; check that it is
fitted and in the correct po-
sition. The top of the head -
rest should be as close as possible
to the top of the head.
t o remove the headrest
Press button A of lock 1 and remove
the headrest.
t o refit the headrest
Insert the rods into the holes, press the
tabs on both rods and lower the head -
rest.
Positions for use
While pressing button A of lock 1, lift
the headrest fully to use it in the top po-
sition. Lower it until it locks to use it in
the bottom position.
storage position
Press button A and lower the headrest
completely.
When the headrest is set at the
lowest position, this is for storage
only . It should not be in this position
when a seat is occupied.

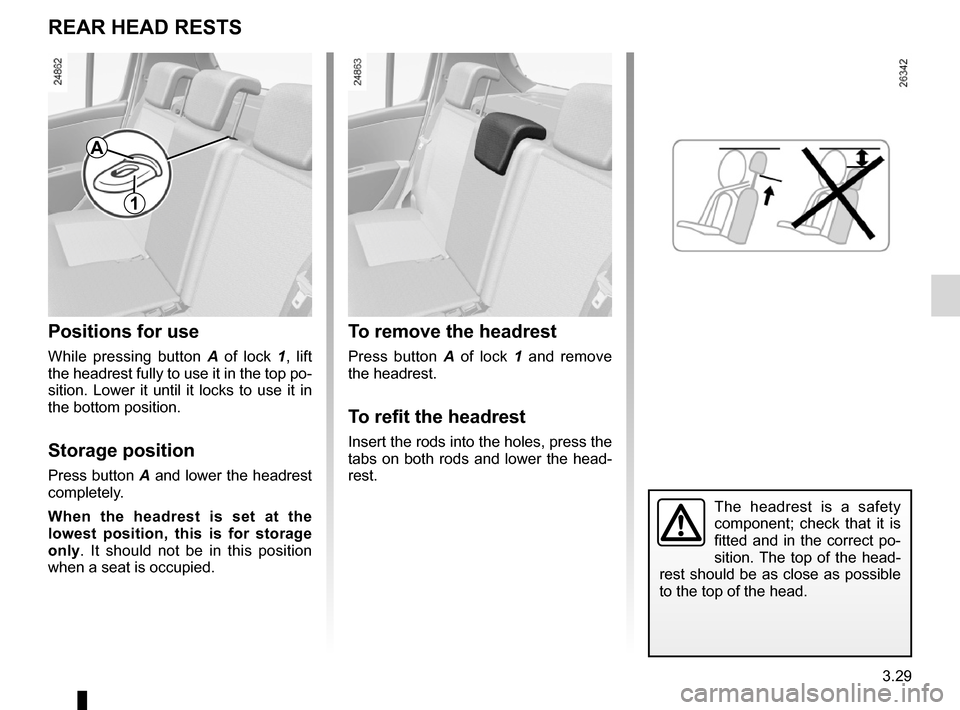

rear HeaD rests
1
a
Page 160 of 264
rear bench seat..................................... (up to the end of the DU)
rear seats functions ......................................... (up to the end of the DU)
3.30
ENG_UD25199_4
Banquette arrière : fonctionnalités (X85 - B85 - C85 - S85 - K85 \
- Renault)
ENG_NU_853-8_BCSK85_Renault_3
Jaune NoirNoir texte
Then lift up the rear section of cushion
1 and tilt the seat base so that it is next
to the front seats. t
o fold down the seatback
remove the rear headrests (if fitted).
Ensure that the front seats are far
enough forward.
Place the seat belts in their guides B.
Press button 2 and lower the seat -
back C.
Rear bench seat: functions
Before moving the seatback, put
the seat belt in belt guide B to avoid
damaging it.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
The configuration of the two seat
bench with the small seatback C
pulled down, does not allow the
central seat to be used as it would
be impossible to buckle the seat belt
(belt buckles inaccessible).
The seat base and the seatback may
be folded down (one or both sections)
to allow bulky objects to be carried.
Start by folding down the seat base,
then the seatback.
t o fold away the seat base (sport
tourer version)
Lift up the front of the seat cushion A
until it reaches the stop.
Where the bench seat is in one section,
check that the two sides of the seat
base are correctly locked.

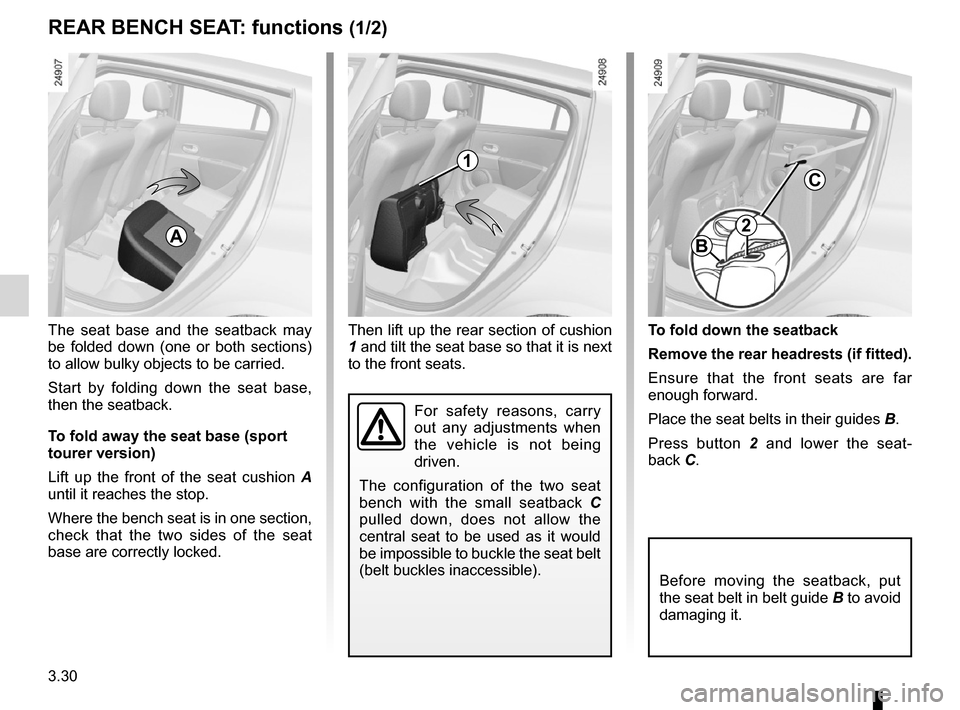

rear BenCH seat : functions (1/2)
a
1
C
B
2
