RENAULT CLIO SPORT TOURER 2012 X85 / 3.G Owners Manual
Manufacturer: RENAULT, Model Year: 2012, Model line: CLIO SPORT TOURER, Model: RENAULT CLIO SPORT TOURER 2012 X85 / 3.GPages: 264, PDF Size: 7.7 MB
Page 161 of 264
JauneNoirNoir texte
3.31
ENG_UD25199_4
Banquette arrière : fonctionnalités (X85 - B85 - C85 - S85 - K85 \
- Renault)
ENG_NU_853-8_BCSK85_Renault_3
t o replace the seat base, proceed in
the reverse order to removal.
Lift up the rear bench seat cushion in
such a way so as to position the rear
section of the seat base 1 under the
seatback.
Then push the front 3 of the cushion A
in order to lock the seat base.
sport tourer version
t
o replace the seatback, proceed in
the reverse order to removal.
Refit the seatback and click it back into
place.

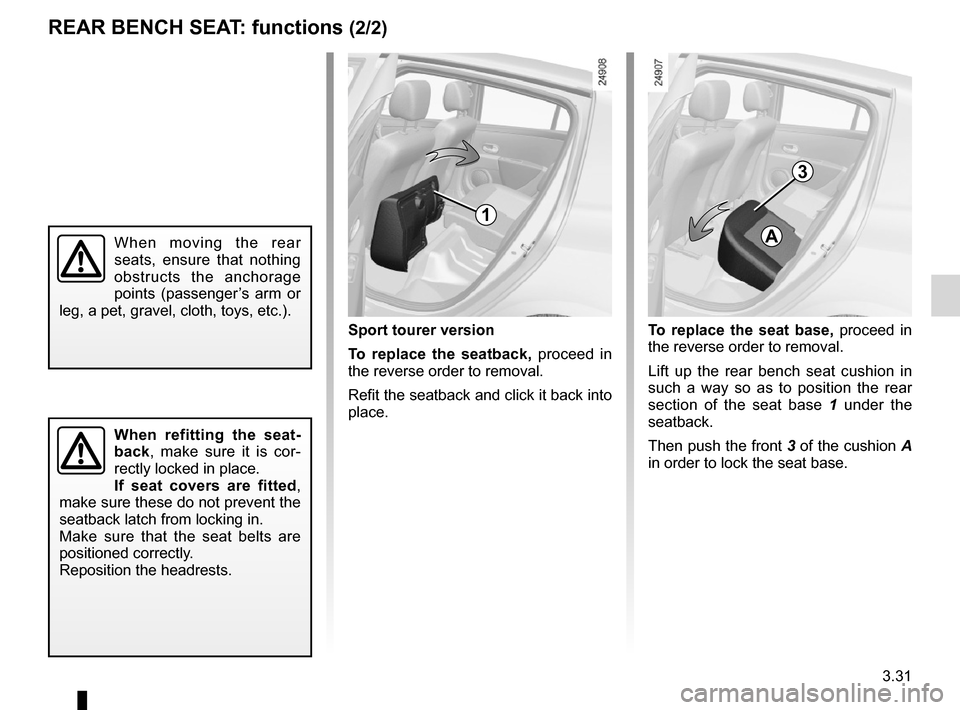

rear BenCH seat : functions (2/2)
1
3
aWhen moving the rear
seats, ensure that nothing
obstructs the anchorage
points (passenger’s arm or
leg, a pet, gravel, cloth, toys, etc.).
When refitting the seat -
back , make sure it is cor -
rectly locked in place.
i f seat covers are fitted ,
make sure these do not prevent the
seatback latch from locking in.
Make sure that the seat belts are
positioned correctly.
Reposition the headrests.
Page 162 of 264
rear parcel shelf .................................... (up to the end of the DU)
rear parcel shelf .................................... (up to the end of the DU)
tailgate .................................................. (up to the end of the DU)
3.32
ENG_UD25585_2
Coffre à bagages / tablette arrière (X85 - B85 - C85 - S85 - K85 - R\
enault)
ENG_NU_853-8_BCSK85_Renault_3

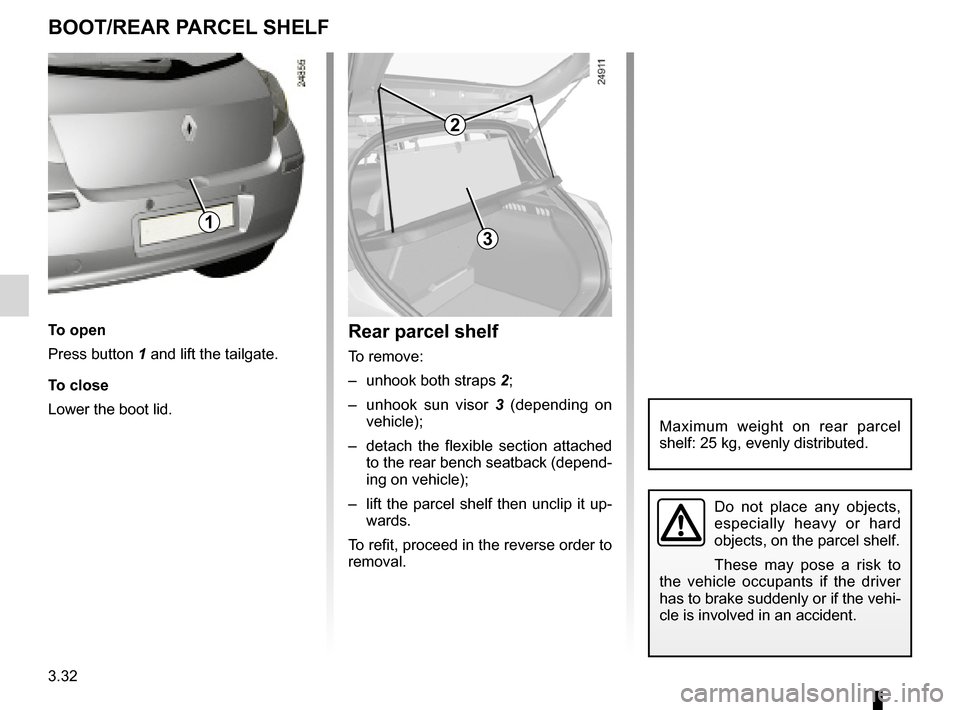

Boot
Rear parcel shelf
Do not place any objects,
especially heavy or hard
objects, on the parcel shelf.
These may pose a risk to
the vehicle occupants if the driver
has to brake suddenly or if the vehi-
cle is involved in an accident.
rear parcel shelf
To remove:
– unhook both straps 2;
– unhook sun visor 3 (depending on
vehicle);
– detach the flexible section attached
to the rear bench seatback (depend-
ing on vehicle);
– lift the parcel shelf then unclip it up-
wards.
To refit, proceed in the reverse order to
removal.
BOOt/rear P arCeL sHeLF
3
Maximum weight on rear parcel
shelf: 25 kg, evenly distributed.
to open
Press button 1 and lift the tailgate.
t o close
Lower the boot lid.
2
1
Page 163 of 264
3.33
ENG_UD12582_2
Cache-bagages (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_3
Luggage cover
LUGGaGe COMP artMent COver: sport tourer versions
removing the luggage
compartment cover 1
Press button 3 and lift the right-hand
side of the roller at the same time.
Then lift the left-hand side of the roller
and remove it.
To refit the luggage cover, carry out this
procedure in reverse.
t o remove the flexible
section A of the luggage
compartment cover 1
Using the handle 2, pull the flexible part
gently A to release the pins from their
mounting points located either side of
the luggage compartment.
Guide the luggage cover onto the roller.
Luggage compartment cover
storage 1
Lift the mobile floor B.
Store the luggage compartment cover
by inserting it, one side at a time.
Replace the mobile floor.
1
a
3
B
Do not place any objects, especially heavy or solid objects on the lug-
gage compartment cover. These may pose a risk to the vehicle occu -
pants if the driver has to brake suddenly or if the vehicle is involved in
an accident.
2
Page 164 of 264
3.34
ENG_UD12582_2
Cache-bagages (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_3

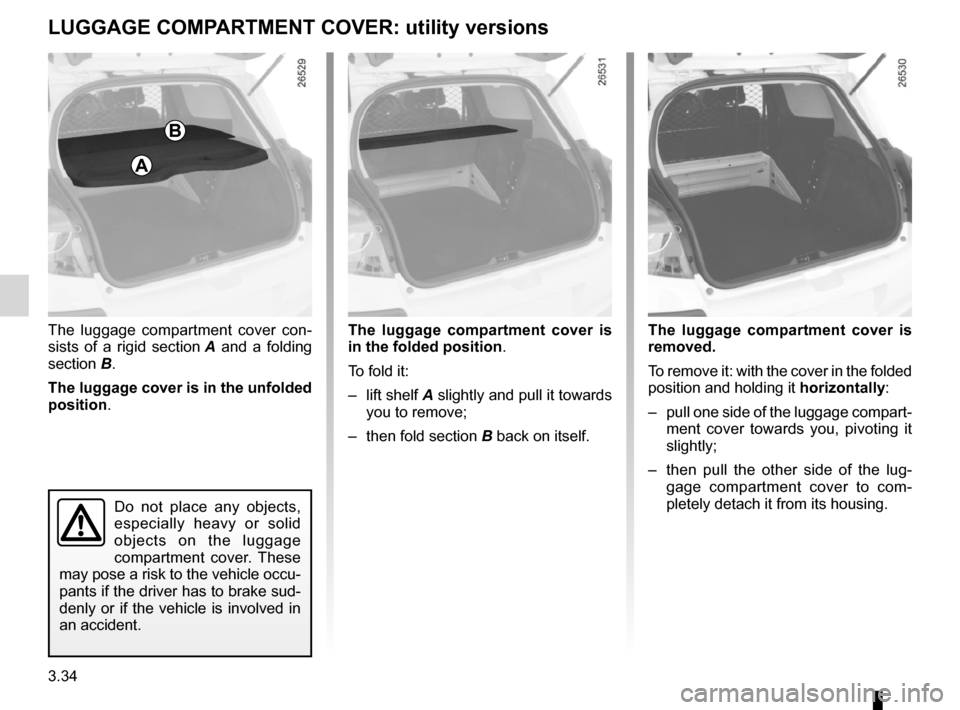

The luggage compartment cover con -
sists of a rigid section A and a folding
section B.
the luggage cover is in the unfolded
position . t
he luggage compartment cover is
removed.
To remove it: with the cover in the folded
position and holding it horizontally:
– pull one side of the luggage compart-
ment cover towards you, pivoting it
slightly;
– then pull the other side of the lug -
gage compartment cover to com -
pletely detach it from its housing.
LUGGaGe COMP artMent COver: utility versions
Do not place any objects,
especially heavy or solid
objects on the luggage
compartment cover. These
may pose a risk to the vehicle occu-
pants if the driver has to brake sud-
denly or if the vehicle is involved in
an accident.
t he luggage compartment cover is
in the folded position .
To fold it:
– lift shelf A slightly and pull it towards
you to remove;
– then fold section B back on itself.
a
B
Page 165 of 264
towing rings .......................................... (up to the end of the DU)
tailgate .................................................. (up to the end of the DU)
3.35
ENG_UD10842_1
Aménagements coffre à bagages (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_3

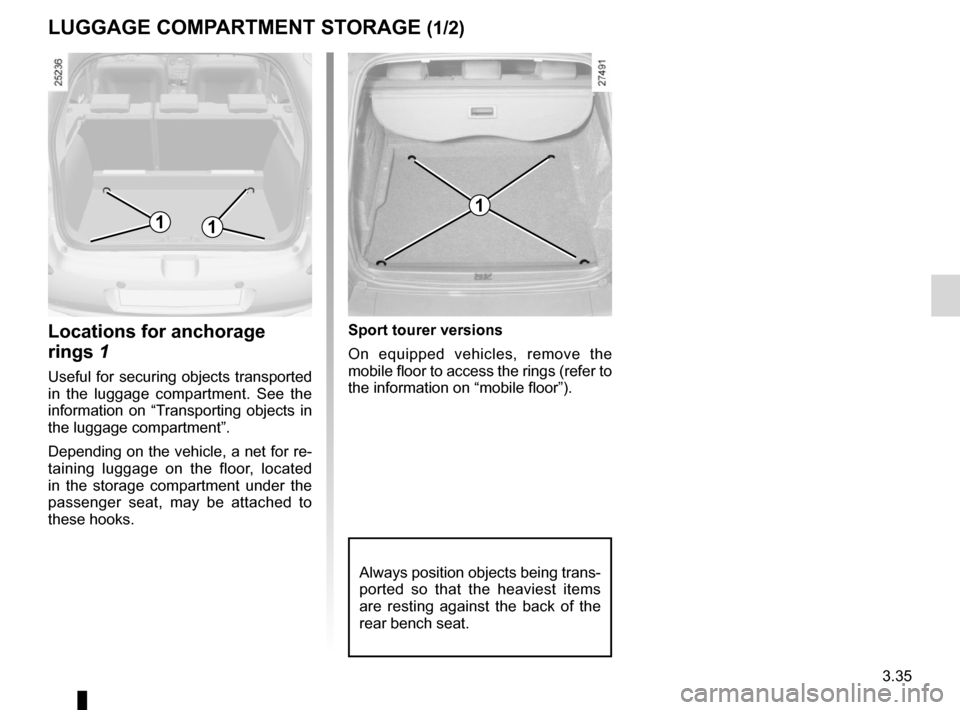

Luggage compartment storage
Locations for anchorage
rings 1
Useful for securing objects transported
in the luggage compartment. See the
information on “Transporting objects in
the luggage compartment”.
Depending on the vehicle, a net for re-
taining luggage on the floor, located
in the storage compartment under the
passenger seat, may be attached to
these hooks.
LUGGaGe COMP artMent stOraGe (1/2)
sport tourer versions
On equipped vehicles, remove the
mobile floor to access the rings (refer to
the information on “mobile floor”).
11
1
Always position objects being trans-
ported so that the heaviest items
are resting against the back of the
rear bench seat.
Page 166 of 264
3.36
ENG_UD10842_1
Aménagements coffre à bagages (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_3

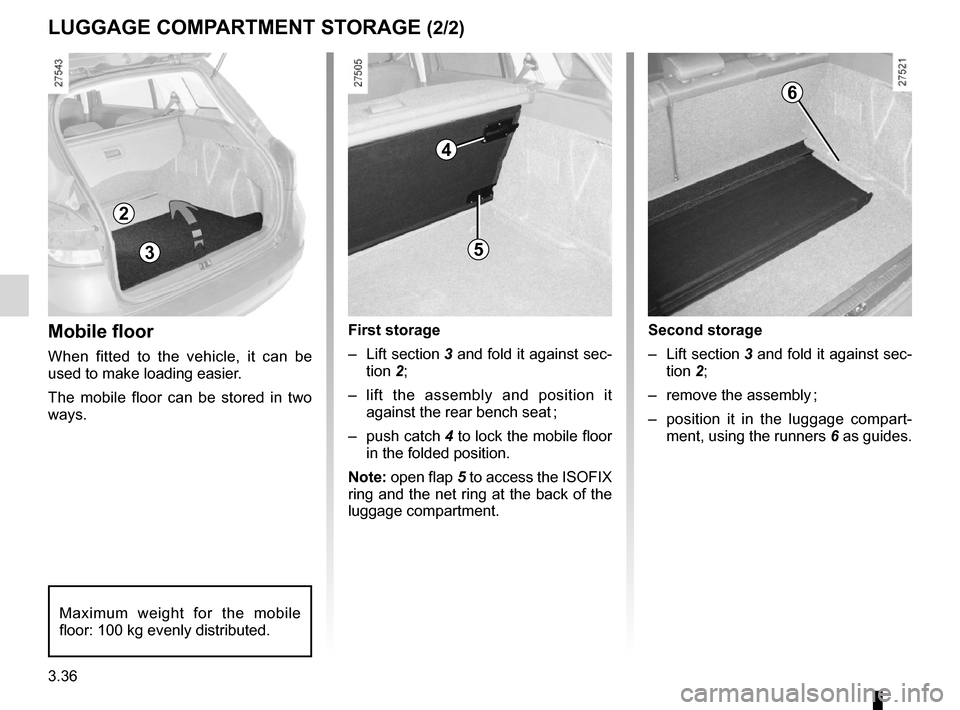

Mobile floor
When fitted to the vehicle, it can be
used to make loading easier.
The mobile floor can be stored in two
ways. First storage
–
Lift section 3 and fold it against sec-
tion 2;
– lift the assembly and position it
against the rear bench seat ;
– push catch 4 to lock the mobile floor
in the folded position.
note: open flap 5 to access the ISOFIX
ring and the net ring at the back of the
luggage compartment. second storage
–
Lift section 3 and fold it against sec-
tion 2;
– remove the assembly ;
– position it in the luggage compart -
ment, using the runners 6 as guides.
3
2
4
6
5
LUGGaGe COMP artMent stOraGe (2/2)
Maximum weight for the mobile
floor: 100 kg evenly distributed.
Page 167 of 264
tailgate .................................................. (up to the end of the DU)
transporting objects in the luggage compartment ........... (up to the end of the DU)
3.37
ENG_UD25200_4
Transports d’objets dans le coffre (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_3

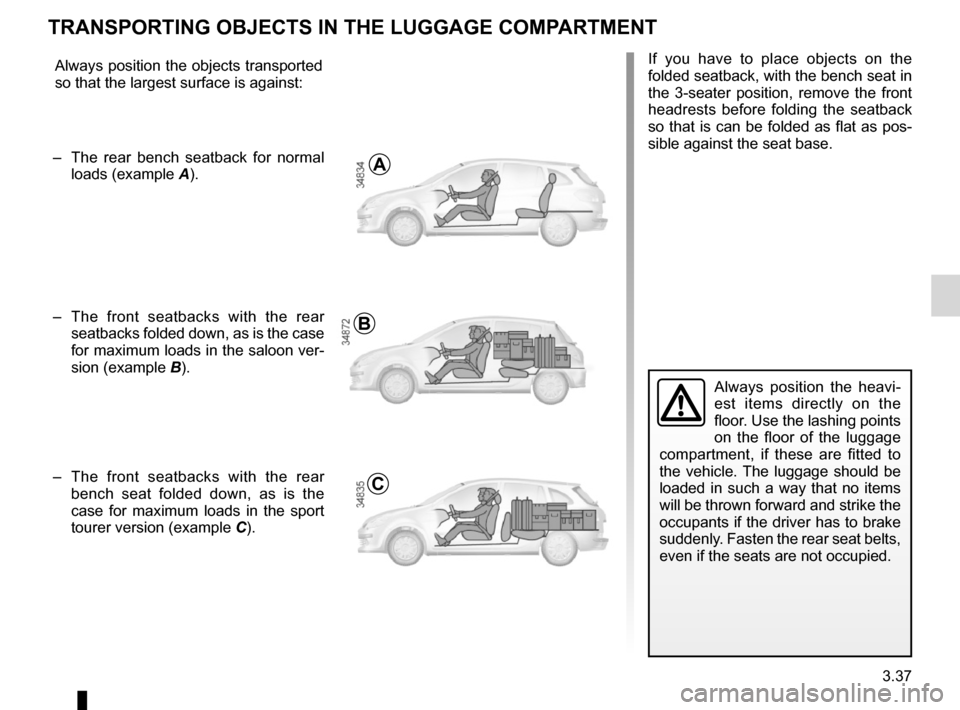

Transporting objects in the boot
Always position the heavi -
est items directly on the
floor. Use the lashing points
on the floor of the luggage
compartment, if these are fitted to
the vehicle. The luggage should be
loaded in such a way that no items
will be thrown forward and strike the
occupants if the driver has to brake
suddenly. Fasten the rear seat belts,
even if the seats are not occupied.
If you have to place objects on the
folded seatback, with the bench seat in
the 3-seater position, remove the front
headrests before folding the seatback
so that is can be folded as flat as pos-
sible against the seat base.
transPOrtinG OBJeCts in tHe LUGGaGe COMP artMent
Always position the objects transported
so that the largest surface is against:
– The rear bench seatback for normal
loads (example A).
– The front seatbacks with the rear
seatbacks folded down, as is the case
for maximum loads in the saloon ver-
sion (example B).
– The front seatbacks with the rear
bench seat folded down, as is the
case for maximum loads in the sport
tourer version (example C).
a
B
C
Page 168 of 264
luggage retaining net ............................ (up to the end of the DU)
transporting objects luggage net ..................................... (up to the end of the DU)
3.38
ENG_UD12583_2
Filet de séparation (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_3
Jaune NoirNoir texte

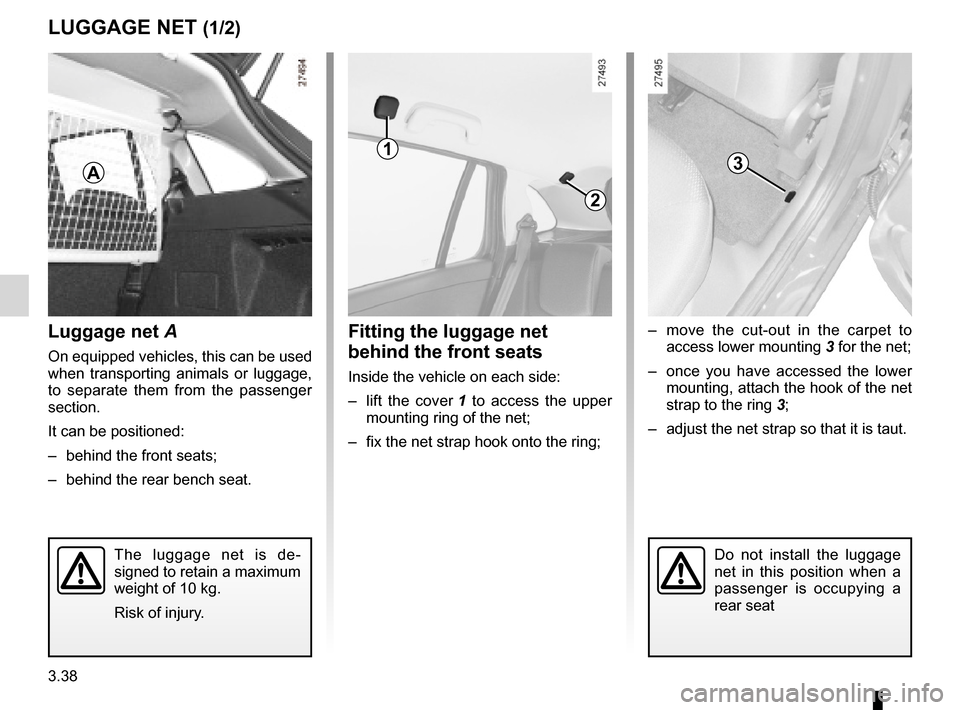

Luggage net
LUGGaGe net (1/2)
Luggage net A
On equipped vehicles, this can be used
when transporting animals or luggage,
to separate them from the passenger
section.
It can be positioned:
– behind the front seats;
– behind the rear bench seat.
Fitting the luggage net
behind the front seats
Inside the vehicle on each side:
– lift the cover 1 to access the upper
mounting ring of the net;
– fix the net strap hook onto the ring; –
move the cut-out in the carpet to
access lower mounting 3 for the net;
– once you have accessed the lower
mounting, attach the hook of the net
strap to the ring 3;
– adjust the net strap so that it is taut.
a
13
2
The luggage net is de -
signed to retain a maximum
weight of 10 kg.
Risk of injury.Do not install the luggage
net in this position when a
passenger is occupying a
rear seat
Page 169 of 264
JauneNoirNoir texte
3.39
ENG_UD12583_2
Filet de séparation (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_3
LUGGaGe net (2/2)
56
Marking
A marking on the luggage retaining trim
indicates the location of the ISOFIX
seat rings 5 and luggage net 6.
A marking on the mobile floor indi -
cates the location of the access flaps of
ISOFIX seat strap 5 and luggage net 6.
Fitting the luggage net A
behind the rear bench seat
Inside the vehicle on each side:
– lift the cover 2 to access the upper
mounting ring of the net;
– fix the net strap hook onto the ring; –
in the luggage compartment, it is
essential to fit the lower mounting
strap hook on the net to the anchor -
ing hook 4 identified by the mark -
ing 6 (depending on vehicle, located
under mobile floor B);
– adjust the net strap so that it is taut.
To remove, loosen the straps, press
hook C , keeping it vertical in the ring
shaft to facilitate removal.
The luggage net is de -
signed to retain a maximum
weight of 10 kg.
Risk of injury.
a
4
B4
C
Page 170 of 264
roof bars ............................................... (up to the end of the DU)
roof rack roof bars .......................................... (up to the end of the DU)
3.40
ENG_UD16851_2
Barres de toit / Becquet (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_3
Jaune NoirNoir texte

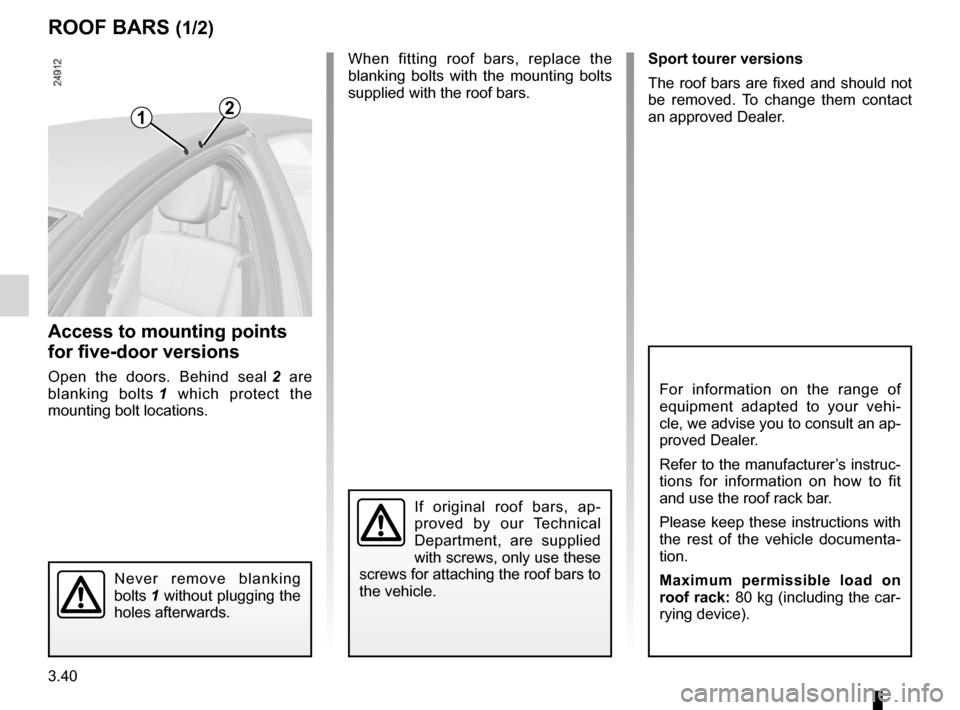

When fitting roof bars, replace the
blanking bolts with the mounting bolts
supplied with the roof bars.
access to mounting points
for five-door versions
Open the doors. Behind seal 2 are
blanking bolts 1 which protect the
mounting bolt locations.
Roof bars/Spoiler
For information on the range of
equipment adapted to your vehi -
cle, we advise you to consult an ap-
proved Dealer.
Refer to the manufacturer’s instruc-
tions for information on how to fit
and use the roof rack bar.
Please keep these instructions with
the rest of the vehicle documenta -
tion.
Maximum permissible load on
roof rack: 80 kg (including the car-
rying device).
Never remove blanking
bolts 1 without plugging the
holes afterwards.
rOOF Bars (1/2)
12
sport tourer versions
The roof bars are fixed and should not
be removed. To change them contact
an approved Dealer.
If original roof bars, ap -
proved by our Technical
Department, are supplied
with screws, only use these
screws for attaching the roof bars to
the vehicle.
