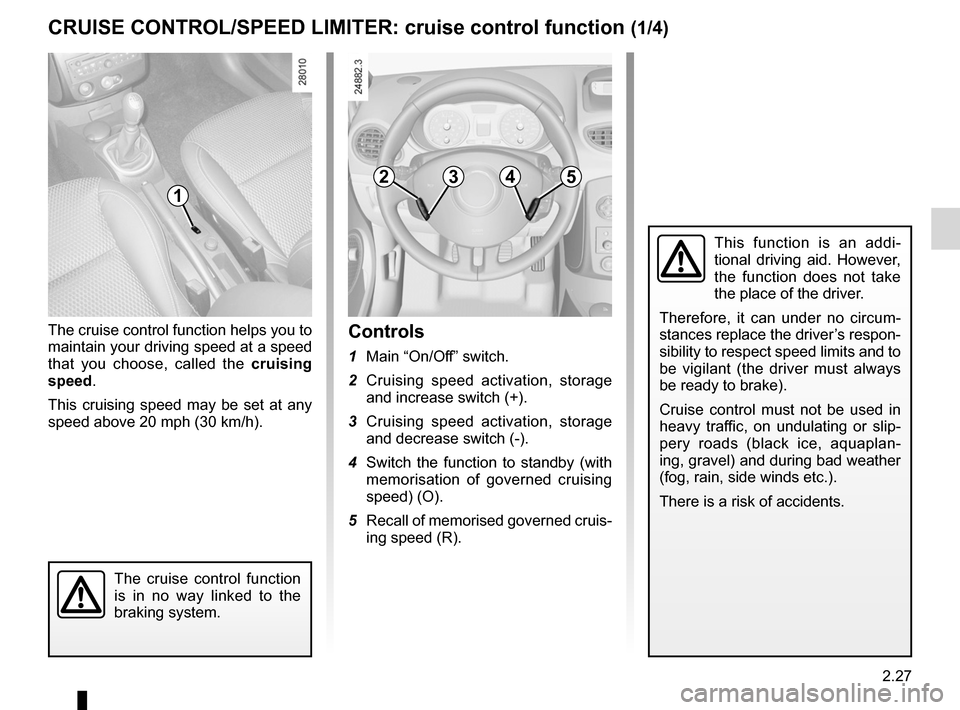

The cruise control function helps you to
maintain your driving speed at a speed
that you choose, called the cruising
speed.
This cruising speed may be set at any
speed above 20 mph (30 km/h).
Cruise control
This function is an addi -
tional driving aid. However,
the function does not take
the place of the driver.
Therefore, it can under no circum -
stances replace the driver’s respon-
sibility to respect speed limits and to
be vigilant (the driver must always
be ready to brake).
Cruise control must not be used in
heavy traffic, on undulating or slip -
pery roads (black ice, aquaplan -
ing, gravel) and during bad weather
(fog, rain, side winds etc.).
There is a risk of accidents.
The cruise control function
is in no way linked to the
braking system.
Controls
1 Main “On/Off” switch.
2 Cruising speed activation, storage
and increase switch (+).
3 Cruising speed activation, storage
and decrease switch (-).
4 Switch the function to standby (with
memorisation of governed cruising
speed) (O).
5 Recall of memorised governed cruis-
ing speed (R).
CRUISE CONTROL/SPEED LIMITER: cruise control function (1/4)
1
2354

2.28
ENG_UD22304_2
Régulateur-limiteur de vitesses : fonction régulateur (X85 - B85 \
- C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_2
Jaune NoirNoir texte
Driving
Once a cruising speed is stored and
the cruise control function is active,
you may lift your foot off the accelera -
tor pedal.
Important: you are never -
theless advised to keep
your feet close to the pedals
in order to react if neces -
sary.The system is designed in such a
way that it is possible to detect a dif-
ference between the stored speed
and the speed shown on the instru-
ment panel.
Activating cruise control
At a steady speed (above 20 mph
( 3 0 k m / h ) a p p r o x i m a t e l y ) p r e s s
switch 2 (+) or 3 (-): the speed is stored.
Cruise control activation is confirmed
when indicator light 6 is lit up in green
in addition to indicator light 7.Switching on
Press switch 1 on the side showing
Ï.
Indicator light 7 on the instrument panel
lights up to indicate that the cruise con-
trol function is in operation.
When the function is activated, the
message ‘Cruise control’ appears on
the instrument panel accompanied by
dashes.
CRUISE CONTROL/SPEED LIMITER: cruise control function (2/4)
1
23
7
6

JauneNoirNoir texte
2.29
ENG_UD22304_2
Régulateur-limiteur de vitesses : fonction régulateur (X85 - B85 \
- C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_2

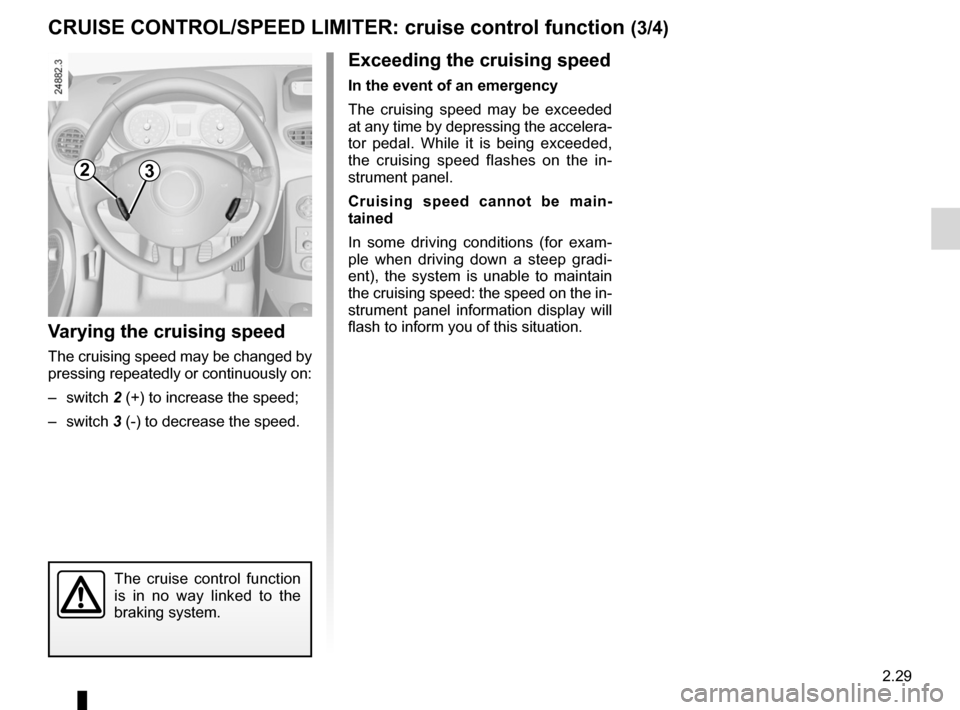

CRUISE CONTROL/SPEED LIMITER: cruise control function (3/4)
Exceeding the cruising speed
In the event of an emergency
The cruising speed may be exceeded
at any time by depressing the accelera -
tor pedal. While it is being exceeded,
the cruising speed flashes on the in -
strument panel.
Cruising speed cannot be main -
tained
In some driving conditions (for exam -
ple when driving down a steep gradi -
ent), the system is unable to maintain
the cruising speed: the speed on the in-
strument panel information display will
flash to inform you of this situation.
Varying the cruising speed
The cruising speed may be changed by
pressing repeatedly or continuously on:
– switch 2 (+) to increase the speed;
– switch 3 (-) to decrease the speed.
The cruise control function
is in no way linked to the
braking system.
23

2.30
ENG_UD22304_2
Régulateur-limiteur de vitesses : fonction régulateur (X85 - B85 \
- C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_2

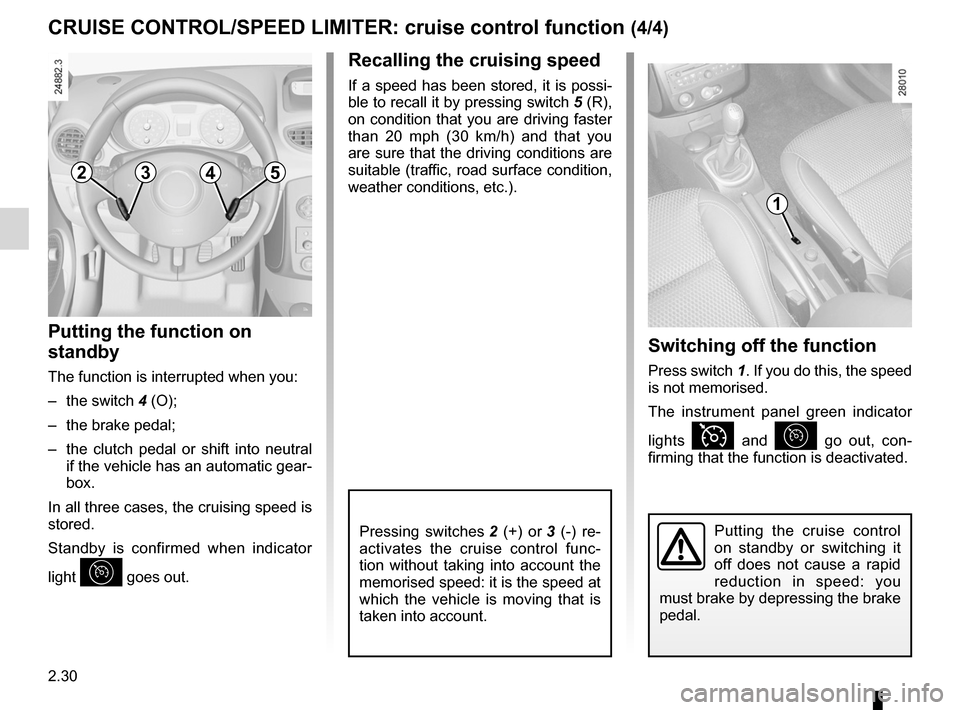

Switching off the function
Press switch 1. If you do this, the speed
is not memorised.
The instrument panel green indicator
lights
Ï and ¦ go out, con -
firming that the function is deactivated.
Recalling the cruising speed
If a speed has been stored, it is possi-
ble to recall it by pressing switch 5 (R),
on condition that you are driving faster
than 20 mph (30 km/h) and that you
are sure that the driving conditions are
suitable (traffic, road surface condition,
weather conditions, etc.).
Pressing switches 2 (+) or 3 (-) re -
activates the cruise control func -
tion without taking into account the
memorised speed: it is the speed at
which the vehicle is moving that is
taken into account.
Putting the function on
standby
The function is interrupted when you:
– the switch 4 (O);
– the brake pedal;
– the clutch pedal or shift into neutral
if the vehicle has an automatic gear-
box.
In all three cases, the cruising speed is
stored.
Standby is confirmed when indicator
light
¦ goes out.
CRUISE CONTROL/SPEED LIMITER: cruise control function (4/4)
Putting the cruise control
on standby or switching it
off does not cause a rapid
reduction in speed: you
must brake by depressing the brake
pedal.
1
2354

automatic gearbox (use) ....................... (up to the end of the DU)
changing gear ....................................... (up to the end of the DU)
driving ................................................... (up to the end of the DU)
automatic gearbox selector lever ..........(up to the end of the DU)
2.31
ENG_UD12577_2
Boîte automatique (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_2

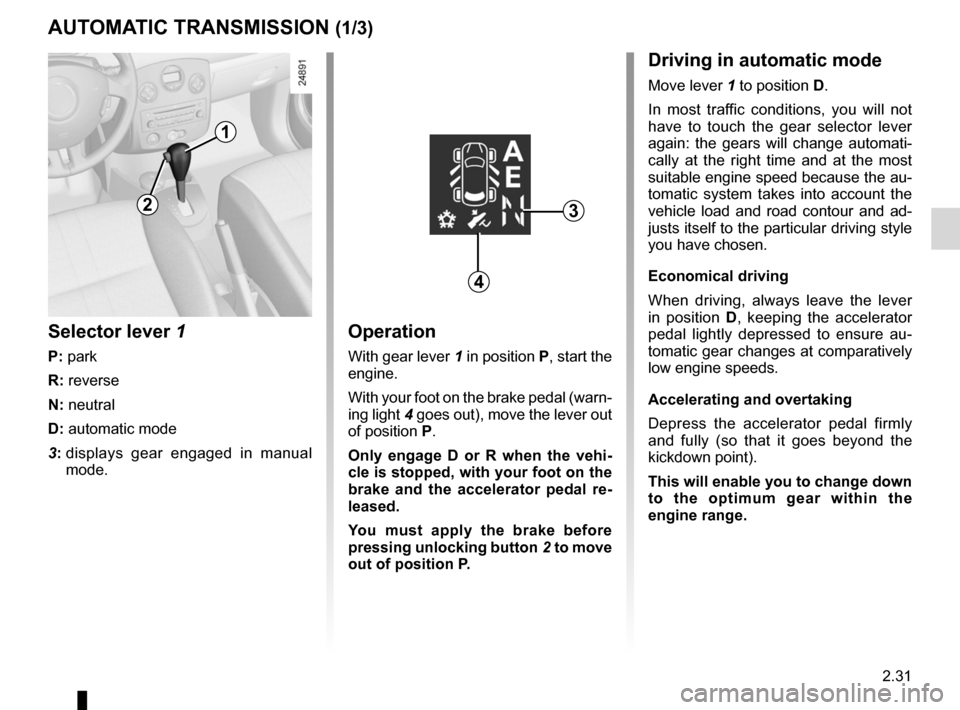

Automatic gearbox
Operation
With gear lever 1 in position P, start the
engine.
With your foot on the brake pedal (warn-
ing light 4 goes out), move the lever out
of position P.
Only engage D or R when the vehi -
cle is stopped, with your foot on the
brake and the accelerator pedal re -
leased.
You must apply the brake before
pressing unlocking button 2 to move
out of position P.
Selector lever 1
P: park
R: reverse
N: neutral
D: automatic mode
3: displays gear engaged in manual
mode.
AUTOMATIC TRANSMISSION (1/3)
1
3
Driving in automatic mode
Move lever 1 to position D.
In most traffic conditions, you will not
have to touch the gear selector lever
again: the gears will change automati -
cally at the right time and at the most
suitable engine speed because the au-
tomatic system takes into account the
vehicle load and road contour and ad-
justs itself to the particular driving style
you have chosen.
Economical driving
When driving, always leave the lever
in position D, keeping the accelerator
pedal lightly depressed to ensure au -
tomatic gear changes at comparatively
low engine speeds.
Accelerating and overtaking
Depress the accelerator pedal firmly
and fully (so that it goes beyond the
kickdown point).
This will enable you to change down
to the optimum gear within the
engine range.
4
2

2.32
ENG_UD12577_2
Boîte automatique (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_2
Jaune NoirNoir texte

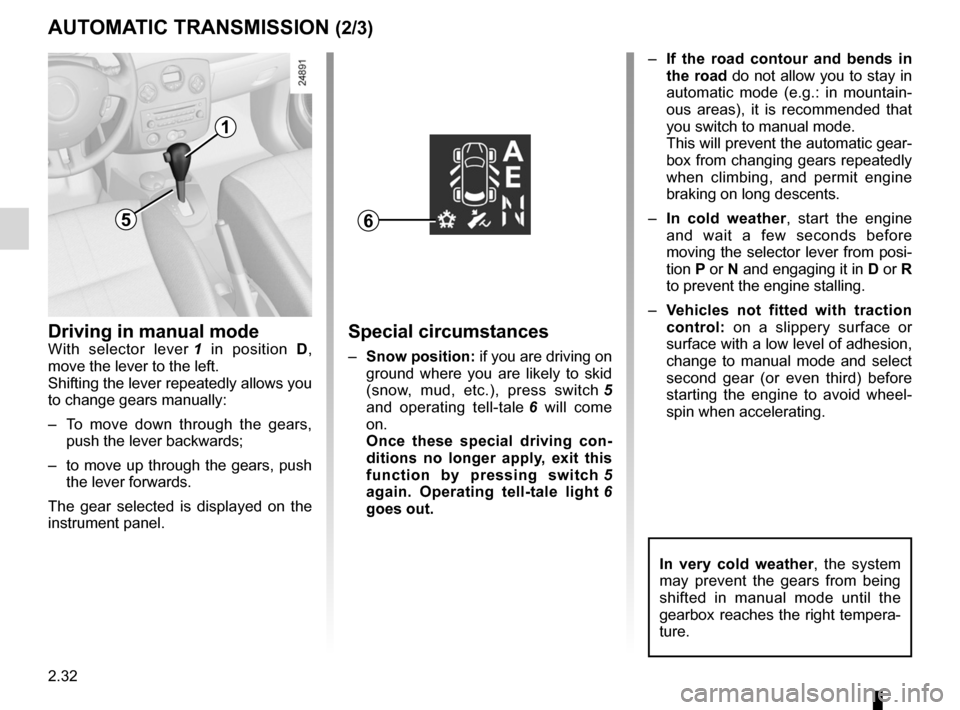

AUTOMATIC TRANSMISSION (2/3)
1
Driving in manual modeWith selector lever 1 in position D,
move the lever to the left.
Shifting the lever repeatedly allows you
to change gears manually:
– To move down through the gears,
push the lever backwards;
– to move up through the gears, push
the lever forwards.
The gear selected is displayed on the
instrument panel.Special circumstances
– Snow position: if you are driving on
ground where you are likely to skid
(snow, mud, etc.), press switch 5
and operating tell-tale 6 will come
on.
Once these special driving con -
ditions no longer apply, exit this
function by pressing switch 5
again. Operating tell-tale light 6
goes out. –
If the road contour and bends in
the road do not allow you to stay in
automatic mode (e.g.: in mountain -
ous areas), it is recommended that
you switch to manual mode.
This will prevent the automatic gear-
box from changing gears repeatedly
when climbing, and permit engine
braking on long descents.
– In cold weather , start the engine
and wait a few seconds before
moving the selector lever from posi-
tion P or N and engaging it in D or R
to prevent the engine stalling.
– Vehicles not fitted with traction
control: on a slippery surface or
surface with a low level of adhesion,
change to manual mode and select
second gear (or even third) before
starting the engine to avoid wheel -
spin when accelerating.
65
In very cold weather , the system
may prevent the gears from being
shifted in manual mode until the
gearbox reaches the right tempera-
ture.

JauneNoirNoir texte
2.33
ENG_UD12577_2
Boîte automatique (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_2

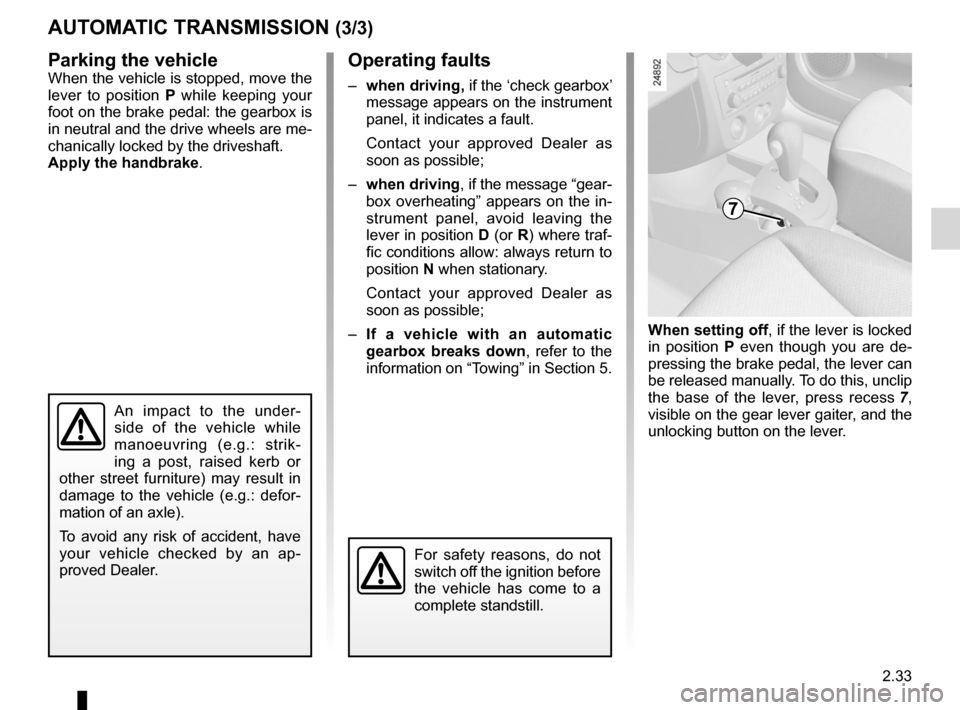

AUTOMATIC TRANSMISSION (3/3)
Parking the vehicle
When the vehicle is stopped, move the
lever to position P while keeping your
foot on the brake pedal: the gearbox is
in neutral and the drive wheels are me-
chanically locked by the driveshaft.
Apply the handbrake.
When setting off, if the lever is locked
in position P even though you are de -
pressing the brake pedal, the lever can
be released manually. To do this, unclip
the base of the lever, press recess 7 ,
visible on the gear lever gaiter, and the
unlocking button on the lever.Operating faults
– when driving, if the ‘check gearbox’
message appears on the instrument
panel, it indicates a fault.
Contact your approved Dealer as
soon as possible;
– when driving , if the message “gear-
box overheating” appears on the in-
strument panel, avoid leaving the
lever in position D (or R) where traf-
fic conditions allow: always return to
position N when stationary.
Contact your approved Dealer as
soon as possible;
– If a vehicle with an automatic
gearbox breaks down , refer to the
information on “Towing” in Section 5.
7
For safety reasons, do not
switch off the ignition before
the vehicle has come to a
complete standstill.
An impact to the under -
side of the vehicle while
manoeuvring (e.g.: strik -
ing a post, raised kerb or
other street furniture) may result in
damage to the vehicle (e.g.: defor -
mation of an axle).
To avoid any risk of accident, have
your vehicle checked by an ap -
proved Dealer.

parking distance control........................(up to the end of the DU)
driving ................................................... (up to the end of the DU)
reversing sensor ................................... (up to the end of the DU)
2.34
ENG_UD10569_1
Aide au parking (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_2
Jaune NoirNoir texte

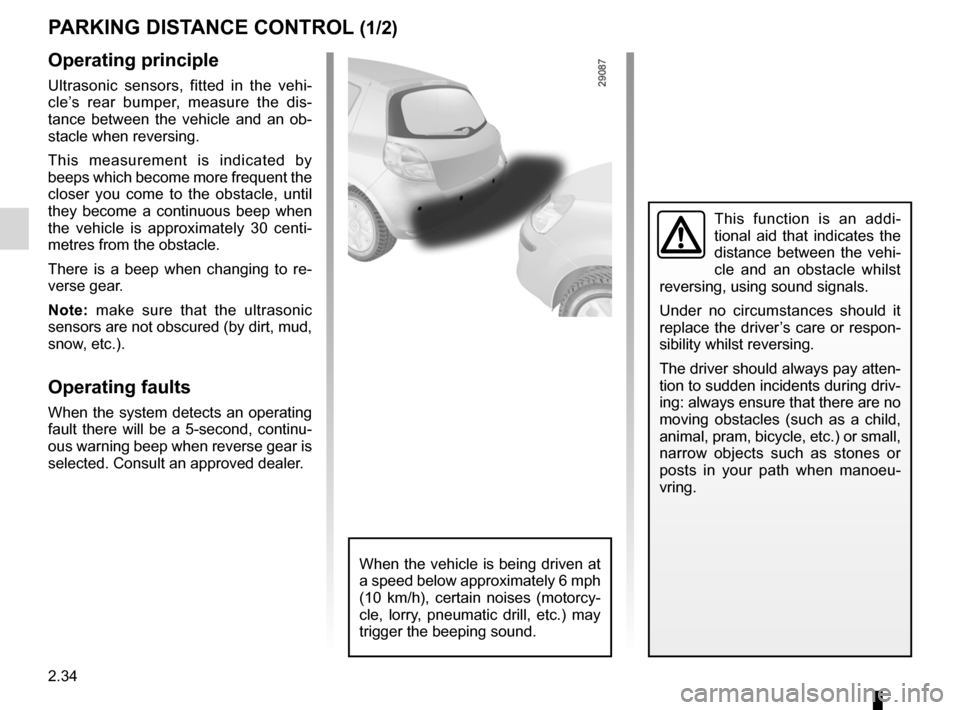

Parking distance control
This function is an addi -
tional aid that indicates the
distance between the vehi -
cle and an obstacle whilst
reversing, using sound signals.
Under no circumstances should it
replace the driver’s care or respon -
sibility whilst reversing.
The driver should always pay atten-
tion to sudden incidents during driv-
ing: always ensure that there are no
moving obstacles (such as a child,
animal, pram, bicycle, etc.) or small,
narrow objects such as stones or
posts in your path when manoeu -
vring.
Operating principle
Ultrasonic sensors, fitted in the vehi -
cle’s rear bumper, measure the dis -
tance between the vehicle and an ob -
stacle when reversing.
This measurement is indicated by
beeps which become more frequent the
closer you come to the obstacle, until
they become a continuous beep when
the vehicle is approximately 30 centi -
metres from the obstacle.
There is a beep when changing to re -
verse gear.
Note: make sure that the ultrasonic
sensors are not obscured (by dirt, mud,
snow, etc.).
Operating faults
When the system detects an operating
fault there will be a 5-second, continu -
ous warning beep when reverse gear is
selected. Consult an approved dealer.
PARkING DISTANCE CONTROL (1/2)
When the vehicle is being driven at
a speed below approximately 6 mph
(10 km/h), certain noises (motorcy -
cle, lorry, pneumatic drill, etc.) may
trigger the beeping sound.

JauneNoirNoir texte
2.35
ENG_UD10569_1
Aide au parking (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_2

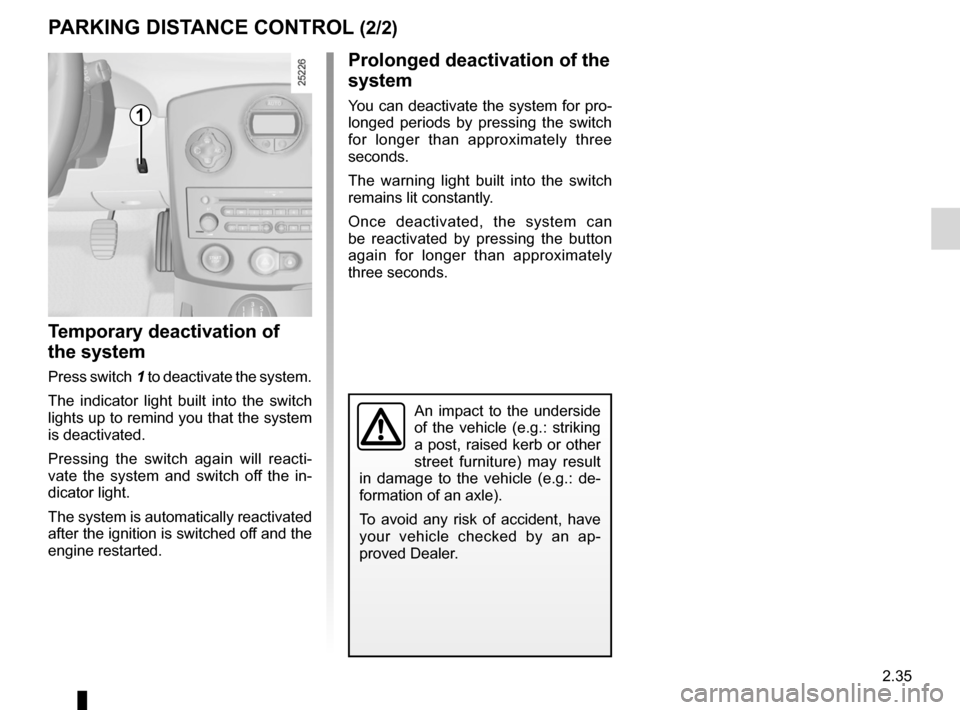

Prolonged deactivation of the
system
You can deactivate the system for pro-
longed periods by pressing the switch
for longer than approximately three
seconds.
The warning light built into the switch
remains lit constantly.
Once deactivated, the system can
be reactivated by pressing the button
again for longer than approximately
three seconds.
Temporary deactivation of
the system
Press switch 1 to deactivate the system.
The indicator light built into the switch
lights up to remind you that the system
is deactivated.
Pressing the switch again will reacti -
vate the system and switch off the in -
dicator light.
The system is automatically reactivated
after the ignition is switched off and the
engine restarted.
PARkING DISTANCE CONTROL (2/2)
1
An impact to the underside
of the vehicle (e.g.: striking
a post, raised kerb or other
street furniture) may result
in damage to the vehicle (e.g.: de -
formation of an axle).
To avoid any risk of accident, have
your vehicle checked by an ap -
proved Dealer.

2.36
ENG_UD20783_6
Filler NU (X06 - C06 - S06 - X35 - L35 - X44 - C44 - G44 - X45 - H45 - X65 - L65 - S65 - X73 - B73 - X74 - B74 - K74 - X77 - J77 - F77 - R77 - X81 - J81 - X84 - B84 - C84
ENG_NU_853-8_BCSK85_Renault_2
