RENAULT CLIO SPORT TOURER 2012 X85 / 3.G Repair Manual

JauneNoirNoir texte
1.55
ENG_UD19782_2
Poste de conduite direction à droite (X85 - B85 - C85 - S85 - K85 - \
Renault)
ENG_NU_853-8_BCSK85_Renault_1
DRIVING POSITION: RIGHT-HAND DRIVE (2/2)
1 Side air vent.
2 Passenger Airbag location.
3 Centre air vents.
4 Warning lights for:
– driver’s seat belt warning light;
– deactivating the front passenger
airbag.
5 Display (depending on the vehicle)
of time, temperature, radio infor -
mation, navigation system infor -
mation, etc.
6 Heating or air conditioning con -
trols.
7 Parking distance control switch.
8 Stalk for:
– direction indicator lights;
– exterior lights;
– front and rear fog lights.
9 Instrument panel.
10 Driver ’s Airbag location, horn,
cruise control/speed limiter con -
trols. 11 – Radio remote control.
– Hands-free telephone inte -
grated control.
12 Stalk for:
– windscreen and rear screen
wash/wipe;
– trip computer and warning
system information readout.
13 Side air vent.
14 Controls for:
– traction control and ESP;
– headlight beam height remote
adjustment;
– instrument panel lighting rheo -
stat.
15 Ignition switch (vehicle with key).
16 Steering column height adjustment
control.
17 Fuse box.
18 Central door locking switch.
19 RENAULT card reader (vehicle
with RENAULT card).
20 Gear lever.
21 Cigar lighter.
22 Handbrake.
23 Cruise control and speed limiter
control.
24 Location for a cup holder, ashtray,
etc.
25 Hazard warning lights switch.
26 Engine start or stop control (vehi -
cle with RENAULT card).
27 Location for radio, navigation
system, etc.
28 Glove box.
29 Bonnet release.
The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.

control instruments ............................... (up to the end of the DU)
indicators: instrument panel ............................. (up to the end of the DU)
fuel level ............................................... (up to the end of the DU)
instrument panel ................................... (up to the end of the DU)
warning lights ........................................ (up to the end of the DU)
driver’s position .................................... (up to the end of the DU)
1.56
ENG_UD26547_3
Tableau de bord : témoins lumineux (X85 - B85 - C85 - S85 - K85 - Ren\
ault)
ENG_NU_853-8_BCSK85_Renault_1
Jaune NoirNoir texte

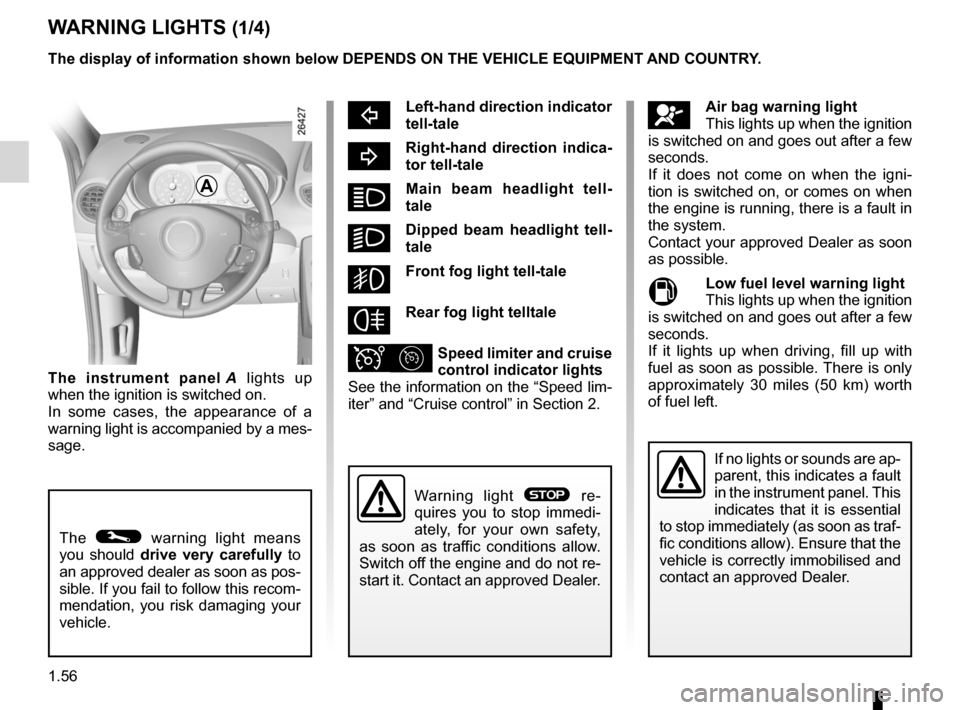

Instrument panel
WARNING LIGHTS (1/4)
cLeft-hand direction indicator
tell-tale
bRight-hand direction indica -
tor tell-tale
áMain beam headlight tell -
tale
kDipped beam headlight tell -
tale
gFront fog light tell-tale
fRear fog light telltale
ΦSpeed limiter and cruise
control indicator lights
See the information on the “Speed lim-
iter” and “Cruise control” in Section 2.
åAir bag warning light
This lights up when the ignition
is switched on and goes out after a few
seconds.
If it does not come on when the igni -
tion is switched on, or comes on when
the engine is running, there is a fault in
the system.
Contact your approved Dealer as soon
as possible.
MLow fuel level warning light
This lights up when the ignition
is switched on and goes out after a few
seconds.
If it lights up when driving, fill up with
fuel as soon as possible. There is only
approximately 30 miles (50 km) worth
of fuel left.
A
If no lights or sounds are ap-
parent, this indicates a fault
in the instrument panel. This
indicates that it is essential
to stop immediately (as soon as traf-
fic conditions allow). Ensure that the
vehicle is correctly immobilised and
contact an approved Dealer.
The instrument panel A lights up
when the ignition is switched on.
In some cases, the appearance of a
warning light is accompanied by a mes-
sage.
The © warning light means
you should drive very carefully to
an approved dealer as soon as pos-
sible. If you fail to follow this recom-
mendation, you risk damaging your
vehicle.
Warning light ® re -
quires you to stop immedi -
ately, for your own safety,
as soon as traffic conditions allow.
Switch off the engine and do not re-
start it. Contact an approved Dealer.
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.

JauneNoirNoir texte
1.57
ENG_UD26547_3
Tableau de bord : témoins lumineux (X85 - B85 - C85 - S85 - K85 - Ren\
ault)
ENG_NU_853-8_BCSK85_Renault_1
WARNING LIGHTS (2/4)
®STOP light
This lights up when the ignition
is switched on and goes out as soon as
the engine is started. It comes on with
other warning lights and/or messages,
and is accompanied by a beep.
It requires you to stop immediately, for
your own safety, as soon as traffic con-
ditions allow. Switch off the engine and
do not restart it.
Contact an approved Dealer.
xAnti-lock braking warning
light
This lights up when the ignition is
switched on and goes out after a few
seconds.
If it lights up when you are driving, it in-
dicates a fault in the anti-lock braking
system.
Braking will then be as normal, without
the ABS. Contact an approved Dealer
as soon as possible.
©Warning light
This lights up when the ignition
is switched on and goes out as soon as
the engine is started. It can light up in
conjunction with other indicator lights
and/or messages on the instrument
panel.
It means you should drive very care-
fully to an approved dealer as soon as
possible. If you fail to follow this recom-
mendation, you risk damaging your ve-
hicle.
êEngine immobiliser system
warning light
Refer to the information on the “Engine
immobiliser” in Section 1.
ÔCoolant temperature warn -
ing light
This lights up when the ignition is
switched on and goes out after a few
seconds.
– If this light flashes, it indicates a fault
in the injection system. Stop as soon
as traffic conditions allow and con -
tact an approved Dealer;
– If it shows a steady light, stop and let
the engine idle for a minute or two.
The temperature should lower and the
warning light should go out. If not, stop
the engine. Let the engine cool down
before checking the coolant.
Contact an approved Dealer.
äæGear change warning
light
This lights up to advise you to change
to a higher gear (up arrow) or lower
gear (down arrow).
A
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.

1.58
ENG_UD26547_3
Tableau de bord : témoins lumineux (X85 - B85 - C85 - S85 - K85 - Ren\
ault)
ENG_NU_853-8_BCSK85_Renault_1
Jaune NoirNoir texte

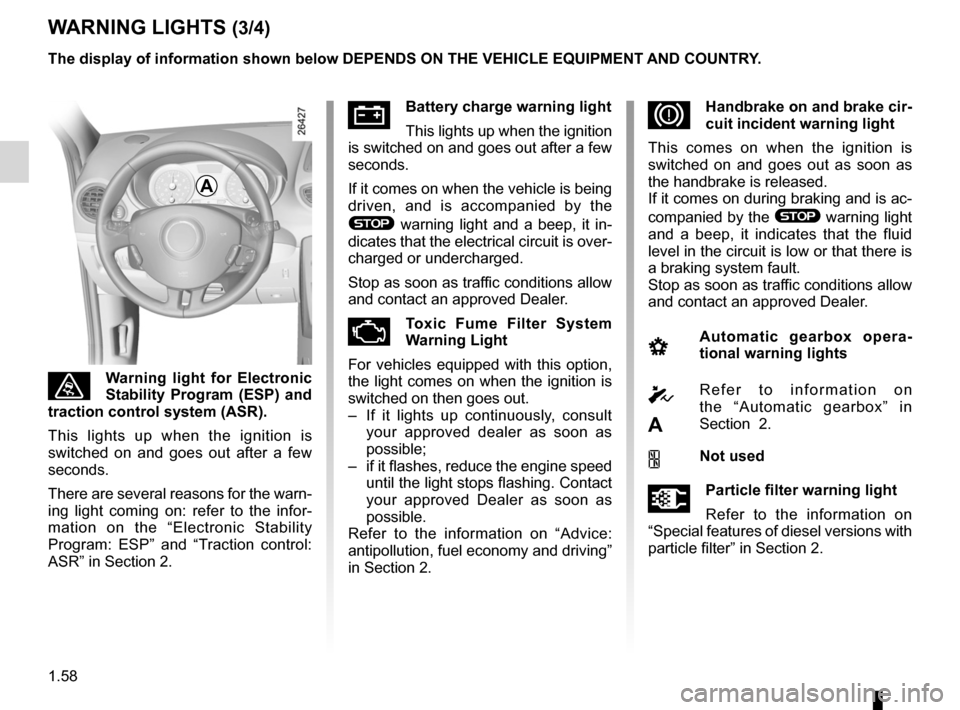

WARNING LIGHTS (3/4)
ùWarning light for Electronic
Stability Program (ESP) and
traction control system (ASR).
This lights up when the ignition is
switched on and goes out after a few
seconds.
There are several reasons for the warn-
ing light coming on: refer to the infor -
mation on the “Electronic Stability
Program: ESP” and “Traction control:
ASR” in Section 2.
ÚBattery charge warning light
This lights up when the ignition
is switched on and goes out after a few
seconds.
If it comes on when the vehicle is being
driven, and is accompanied by the
® warning light and a beep, it in-
dicates that the electrical circuit is over-
charged or undercharged.
Stop as soon as traffic conditions allow
and contact an approved Dealer.
ÄToxic Fume Filter System
Warning Light
For vehicles equipped with this option,
the light comes on when the ignition is
switched on then goes out.
– If it lights up continuously, consult
your approved dealer as soon as
possible;
– if it flashes, reduce the engine speed
until the light stops flashing. Contact
your approved Dealer as soon as
possible.
Refer to the information on “Advice:
antipollution, fuel economy and driving”
in Section 2.
DHandbrake on and brake cir-
cuit incident warning light
This comes on when the ignition is
switched on and goes out as soon as
the handbrake is released.
If it comes on during braking and is ac-
companied by the
® warning light
and a beep, it indicates that the fluid
level in the circuit is low or that there is
a braking system fault.
Stop as soon as traffic conditions allow
and contact an approved Dealer.
èAutomatic gearbox opera -
tional warning lights
cR e f e r t o i n f o r m a t i o n o n
the “Automatic gearbox” in
Section 2.
A
êNot used
ÜParticle filter warning light
Refer to the information on
“Special features of diesel versions with
particle filter” in Section 2.
A
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.

JauneNoirNoir texte
1.59
ENG_UD26547_3
Tableau de bord : témoins lumineux (X85 - B85 - C85 - S85 - K85 - Ren\
ault)
ENG_NU_853-8_BCSK85_Renault_1
WARNING LIGHTS (4/4)
ÀOil pressure warning light
This lights up when the ignition
is switched on and goes out after a few
seconds.
If it comes on when you are driving ac-
companied by the
® warning light
and a beep, it is essential to stop and
switch off the ignition.
Check the oil level. If the level is normal,
the indicator light is being lit by some-
thing else. Contact an approved Dealer.
ÒElectronic fault warning light
This lights up when the ignition
is switched on and goes out after a few
seconds.
If it comes on when driving, it indicates
a fault in the injection computer or the
automatic transmission.
Contact your approved Dealer as soon
as possible.
^Water in the diesel filter
warning light
This lights up when the ignition is
switched on and goes out after a few
seconds.
If it comes on when driving, it indicates
the presence of water in the diesel.
Contact your approved Dealer as soon
as possible.
2
Door status warning light
A
ÉPreheating warning light
(diesel version)
This should come on when the igni -
tion is switched on. It indicates that the
heater plugs are in operation.
It goes out when preheating is com -
plete. The engine can be started.
ÆWarning light for serious in-
jection fault
This lights up when the ignition is
switched on and goes out after a few
seconds.
If this light comes on when you are driv-
ing, it indicates a fault in the injection
system. Stop immediately, switch off
the ignition and contact an approved
Dealer.
UVa r i a b l e p o w e r - a s s i s t e d
steering warning light
This comes on when the ignition is
switched on and goes out after a few
seconds.
If it lights up when you are driving, this
indicates a fault in the system. Consult
an approved Dealer as soon as possi-
ble.
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.

control instruments ............................... (up to the end of the DU)
indicators: instrument panel ............................. (up to the end of the DU)
instrument panel ................................... (up to the end of the DU)
warning lights ........................................ (up to the end of the DU)
fuel level ................................................................ (current page)
1.60
ENG_UD10345_1
Tableau de bord : afficheurs et indicateurs (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1
Jaune NoirNoir texte
INSTRUMENT PANEL: displays and indicators (1/3)
Rev counter 1(graduations x 1000)
Coolant temperature
indicator 2
In normal use, the needle should be
below zone A. Under harsh operating
conditions the needle may approach
this zone.
This is not serious unless the
Ö and
® warning lights come on, accom-
panied by a message on the instrument
panel and a beep.
Coolant temperature
indicator 3
This is not serious unless the Ö and
® warning lights come on, accom-
panied by a message on the instrument
panel and a beep.
Fuel gauge 4
1
1
A
34
24

warning buzzer ...................................................... (current page)
JauneNoirNoir texte
1.61
ENG_UD10345_1
Tableau de bord : afficheurs et indicateurs (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1
INSTRUMENT PANEL: displays and indicators (2/3)
Speedometer 5(km or miles per hour)
Overspeed buzzer
Depending on the vehicle, a buzzer
sounds for approximately 10 seconds
every 40 seconds, as long as the ve-
hicle is travelling in excess of 72 mph
(120 km/h).
Engine oil level low warning 6
The display informs the driver that the
engine oil level is low when the engine
is started. This warning lasts for 30 sec-
onds. Refer to the information on the
Engine oil level in Section 4.
Trip computer and warning
system
After 30 seconds, the display will
switch to the trip computer and warn -
ing system: refer to the information on
the Trip computer and warning system
in the following pages.
5
5
6
6

1.62
ENG_UD10345_1
Tableau de bord : afficheurs et indicateurs (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1

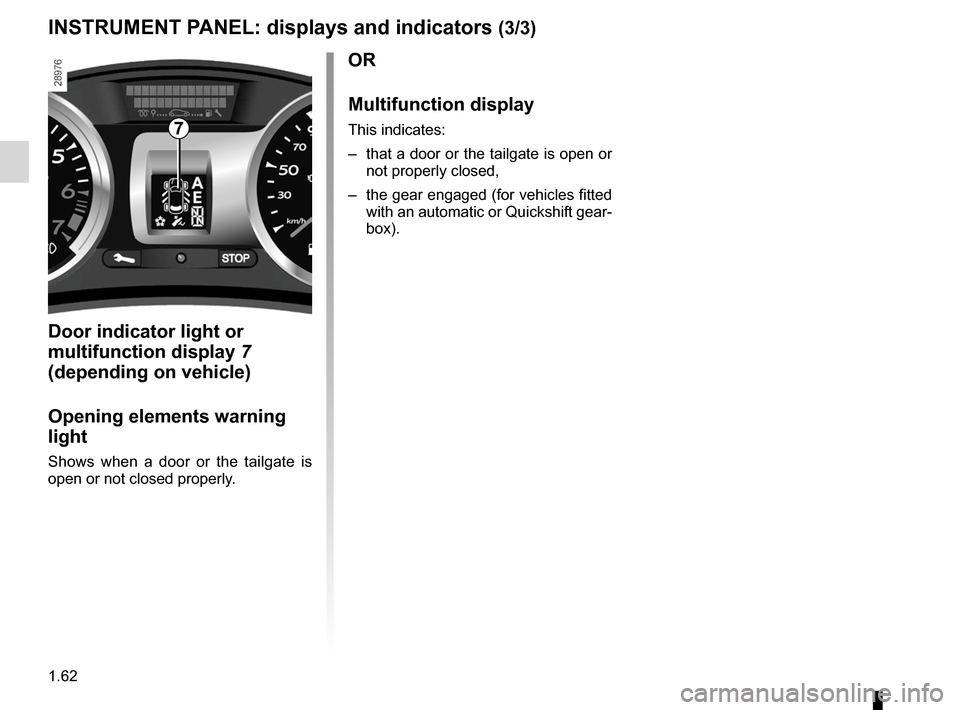

INSTRUMENT PANEL: displays and indicators (3/3)
Door indicator light or
multifunction display 7
(depending on vehicle)
Opening elements warning
light
Shows when a door or the tailgate is
open or not closed properly.
OR
Multifunction display
This indicates:
– that a door or the tailgate is open or
not properly closed,
– the gear engaged (for vehicles fitted
with an automatic or Quickshift gear-
box).7

control instruments ............................... (up to the end of the DU)
indicators: instrument panel ............................. (up to the end of the DU)
trip computer and warning system ........(up to the end of the DU)
instrument panel ................................... (up to the end of the DU)
warning lights ........................................ (up to the end of the DU)
instrument panel messages ..................(up to the end of the DU)
1.63
ENG_UD24928_6
Ordinateur de bord : généralités (X85 - B85 - C85 - S85 - K85 \
- Renault)
ENG_NU_853-8_BCSK85_Renault_1
On-board computer

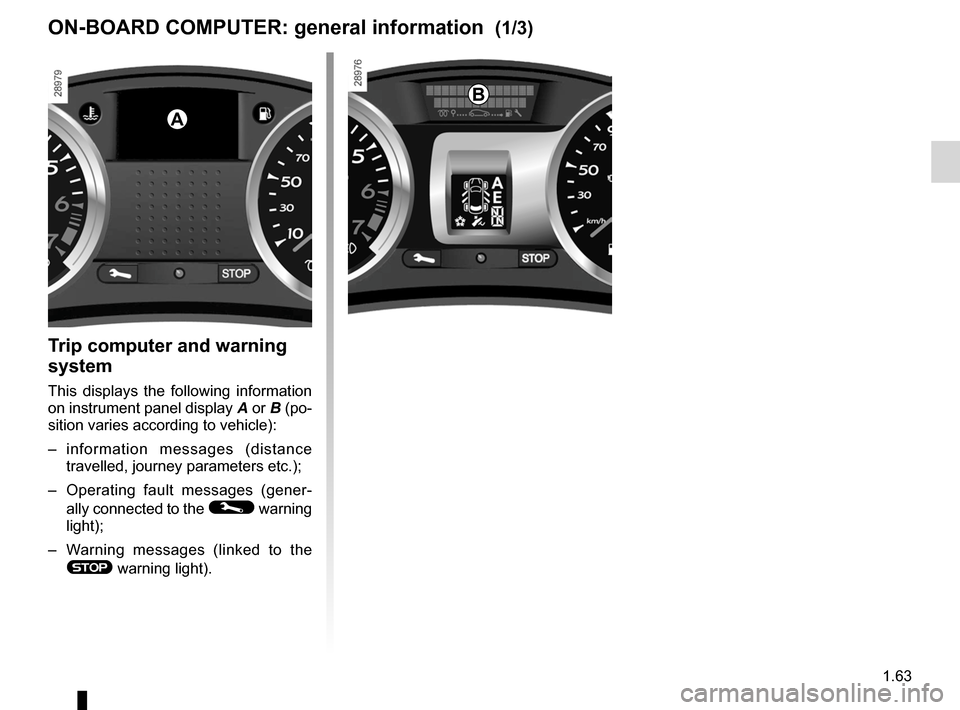

ON-BOARD COMPUTER: general information (1/3)
Trip computer and warning
system
This displays the following information
on instrument panel display A or B (po-
sition varies according to vehicle):
– information messages (distance
travelled, journey parameters etc.);
– Operating fault messages (gener -
ally connected to the
© warning
light);
– Warning messages (linked to the
® warning light).
A
B

1.64
ENG_UD24928_6
Ordinateur de bord : généralités (X85 - B85 - C85 - S85 - K85 \
- Renault)
ENG_NU_853-8_BCSK85_Renault_1
Jaune NoirNoir texte

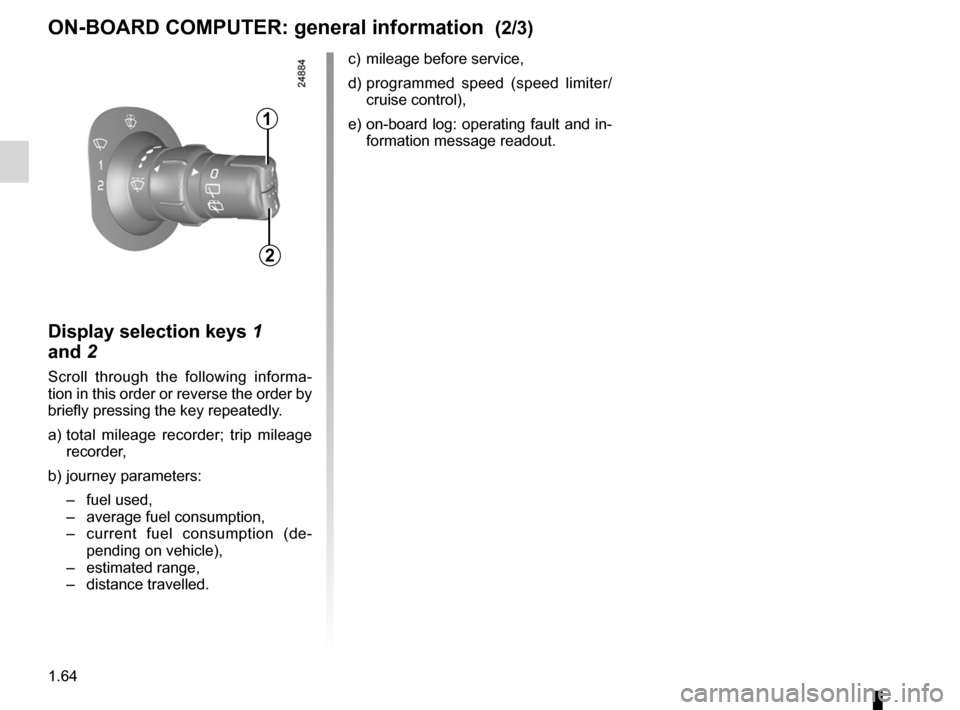

ON-BOARD COMPUTER: general information (2/3)
Display selection keys 1
and 2
Scroll through the following informa-
tion in this order or reverse the order by
briefly pressing the key repeatedly.
a) total mileage recorder; trip mileage
recorder,
b) journey parameters:
– fuel used,
– average fuel consumption,
– current fuel consumption (de -
pending on vehicle),
– estimated range,
– distance travelled. c)
mileage before service,
d) programmed speed (speed limiter/
cruise control),
e) on-board log: operating fault and in-
formation message readout.
1
2
