AUTOMATIc GEARBOX (continued)
Special circumstances
– If the bends and road surface do
not allow you to stay in automatic
mode (e.g. in the mountains), we
recommend that you change to
manual mode.
This will prevent the automatic gear-
box from changing gear repeatedly
when climbing, and permit engine
braking on long descents.
– In cold weather, start the engine
and wait a few seconds before
moving the selector lever from posi-
tion P or N and engaging it in D or R
to prevent the engine stalling.
– v ehicles not fitted with traction
control: on a slippery surface or
surface with a low level of adhesion,
change to manual mode and select
second gear (or even third) before
starting the engine to avoid wheel -
spin when starting.
Parking the vehicle
When the vehicle is stopped, move the
lever to position P while keeping your
foot on the brake pedal: the gearbox is
in neutral and the drive wheels are me-
chanically locked by the driveshaft.
check that the parking brake is prop-
erly applied (refer to the information on
the “Parking brake” in Section 2).

2.40
ENG_UD24090_2
Boîte automatique (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_2
AUTOMATIc GEARBOX (continued)
When setting off, if the lever is locked
in position P even though you are de -
pressing the brake pedal and pressing
unlocking button 2, the lever can be re-
leased manually.
To do this, unclip the upper section of
the gaiter 3.Push unlocking button 2 and button 4
under the gaiter at the same time to
move the lever from position P.
4
2
3

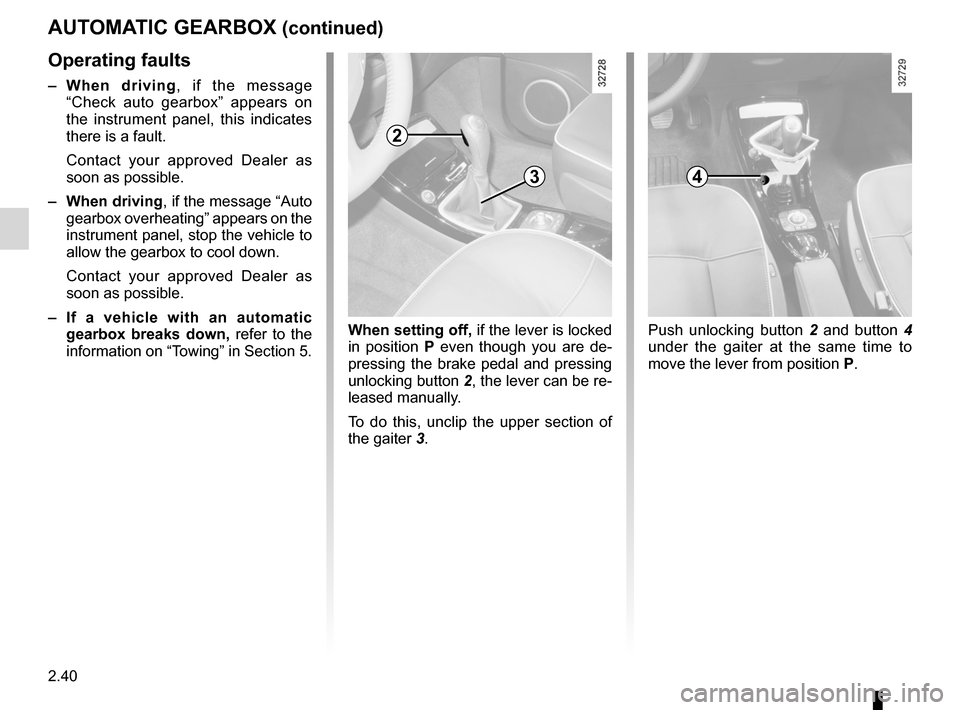

Operating faults
– When driving , if the message
“ Check auto gearbox ” appears on
the instrument panel, this indicates
there is a fault.
Contact your approved Dealer as
soon as possible.
– When driving, if the message “Auto
gearbox overheating” appears on the
instrument panel, stop the vehicle to
allow the gearbox to cool down.
Contact your approved Dealer as
soon as possible.
– If a vehicle with an automatic
gearbox breaks down, refer to the
information on “Towing” in Section 5.

3.1
ENG_UD25602_4
Sommaire 3 (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_3
Section 3: Your comfort
Air vents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.2
Heating and air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.5
Electric windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.26
Windscreen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.30
Fixed glass roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.30
Electric sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.31
Sun visor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.33
Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.35
Passenger compartment storage/fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.37
Ashtrays – Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.41
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.42
Luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . 3.51
Opening rear screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.52
Luggage cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.53
Transporting objects in the boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.55
Luggage net . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.56
Roof bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.57
Hands-free telephone integrated control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.59

air vents ................................................ (up to the end of the DU)
air conditioning ..................................... (up to the end of the DU)
heating system ..................................... (up to the end of the DU)
air conditioning ..................................... (up to the end of the DU)
temperature regulation ......................... (up to the end of the DU)
ventilation ............................................. (up to the end of the DU)
3.2
ENG_UD20380_1
Aérateurs (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_3
Jaune NoirNoir texte
Air vents

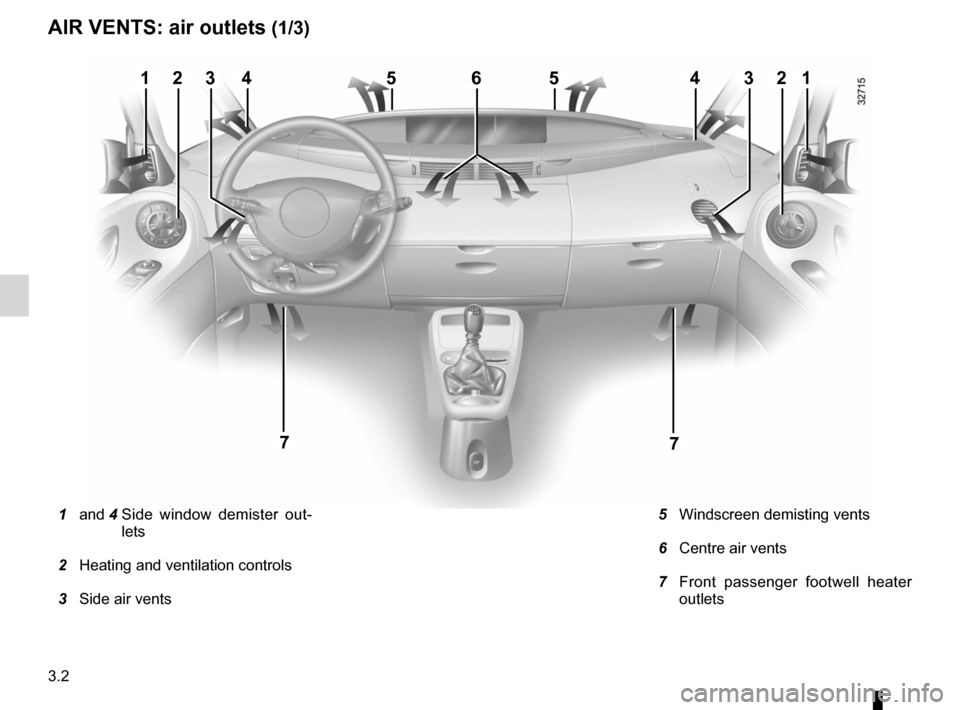

AIR VENTS: air outlets (1/3)
12345654321
77
1 and 4 Side window demister out -
lets
2 Heating and ventilation controls
3 Side air vents
5 Windscreen demisting vents
6 Centre air vents
7 Front passenger footwell heater
outlets

JauneNoirNoir texte
3.3
ENG_UD20380_1
Aérateurs (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_3
AIR VENTS: air outlets (2/3)
Dashboard air vents
Air flow
Move the control knob 1 (beyond the
point of resistance).
Up: maximum air flow.
Down: closed. Direction
Right/left: move tabs 2.
Up/down: lower or raise tabs
2.
1
2
11
2
To remove bad odours from your ve -
hicles, only use the systems designed
for this purpose. Consult an approved
Dealer.
Do not add anything to the
vehicle’s ventilation circuit
(for example, to remove
bad odours).
There is a risk of damage or of
fire.

3.4
ENG_UD20380_1
Aérateurs (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_3
AIR VENTS: air outlets (3/3)
Rear air vents 3
To open, press on the air vent. To direct, take hold of the air vent and
turn it to the required position.
Rear seat air vents
Air vent
4 distributes air to the first row
rear seats. Air vent 5 distributes air to
the second row rear seats.
Avoid blocking these vents when there
are passengers in the rear seats.
3
4
4
4

air conditioning ..................................... (up to the end of the DU)
heating system ..................................... (up to the end of the DU)
air conditioning ..................................... (up to the end of the DU)
demisting windscreen ....................................................... (current page)
demisting rear screen ....................................................... (current page)
rear screen demisting ......................................................... (current page)
temperature regulation ......................... (up to the end of the DU)
ventilation ............................................. (up to the end of the DU)
3.5
ENG_UD20381_1
Chauffage/Air conditionné (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_3
Heating and air conditioning
HEATING/AIR CONDITIONING (1/7)
5 Air temperature adjustment tab
6 Switching the air conditioning on
7 Switching the rear screen de-icing
on
9 Ventilation speed adjustment tab
Information and advice for use:
Refer to the end of the section on
“Heating/air conditioning”.

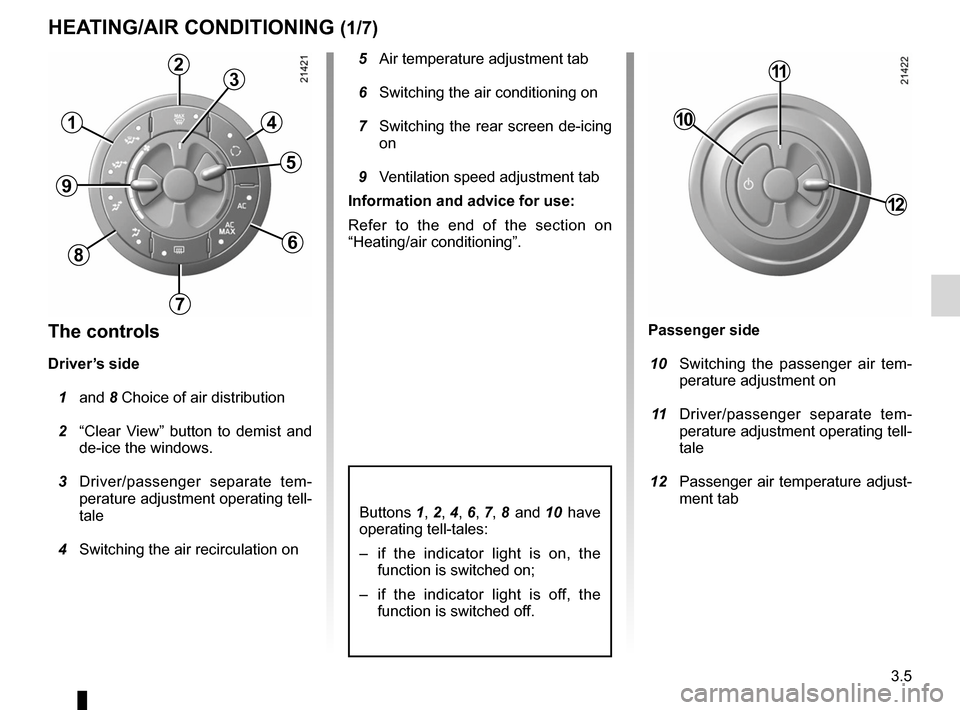

The controls
Driver’s side
1 and 8 Choice of air distribution
2 “Clear View” button to demist and
de-ice the windows.
3 Driver/passenger separate tem -
perature adjustment operating tell-
tale
4 Switching the air recirculation on
Buttons 1 , 2 , 4 , 6 , 7 , 8 and 10 have
operating tell-tales:
– if the indicator light is on, the
function is switched on;
– if the indicator light is off, the
function is switched off.
Passenger side
10 Switching the passenger air tem -
perature adjustment on
11 Driver/passenger separate tem -
perature adjustment operating tell-
tale
12 Passenger air temperature adjust-
ment tab
1
23
4
5
6
7
8
9
10
11
12

3.6
ENG_UD20381_1
Chauffage/Air conditionné (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_3
Jaune NoirNoir texte
HEATING/AIR CONDITIONING (2/7)
If you are the passenger and you wish
to set the air to a different temperature
to the driver, press button 10 : operat -
ing tell-tales 3 and 11 come on and you
can then adjust the temperature with
tab 12.
To return to a single temperature for the
entire passenger compartment, there
are two choices:
– on the driver’s side, press one of air
distribution buttons 1 or 8 for approx-
imately two seconds;
– on the passenger side, press
button 10 again.
Operating tell-tales 3 and 11 go out.
Note:
– Each time the ignition is switched on,
the setting returns to a single tem -
perature for the entire passenger
compartment: lights 3 and 11 are off.
– Tab 12 cannot be used if the “Clear
View” function (button 2 ) is on. In
this case, indicator lights 3 and 11
go out.

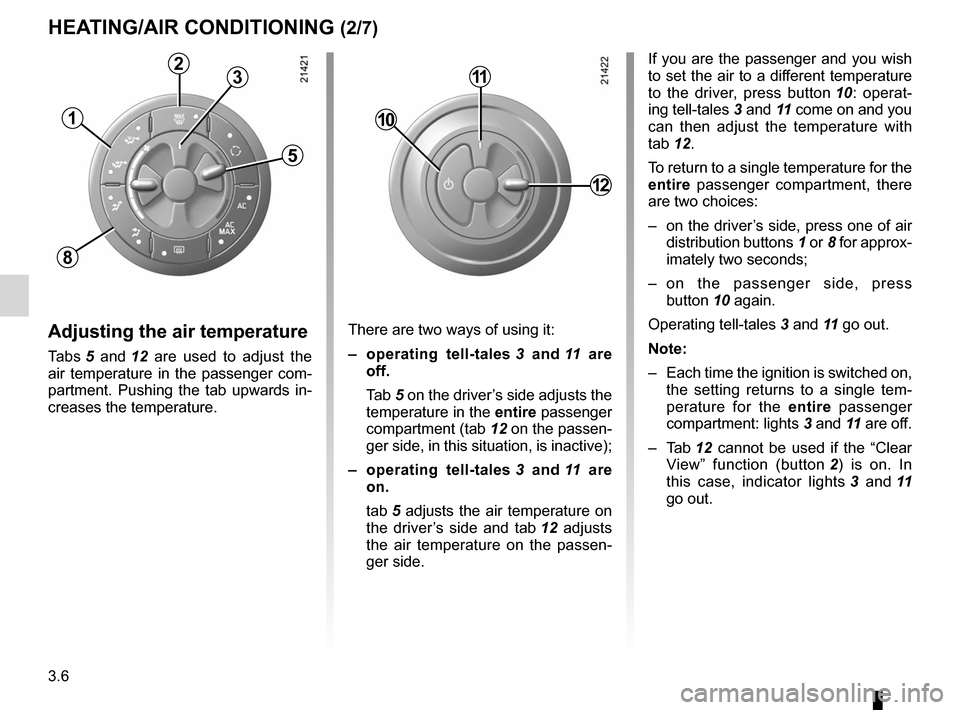

Adjusting the air temperature
Tabs 5 and 12 are used to adjust the
air temperature in the passenger com-
partment. Pushing the tab upwards in-
creases the temperature. There are two ways of using it:
–
operating tell-tales 3 and 11 are
off.
Tab 5 on the driver’s side adjusts the
temperature in the entire passenger
compartment (tab 12 on the passen-
ger side, in this situation, is inactive);
– operating tell-tales 3 and 11 are
on.
tab 5 adjusts the air temperature on
the driver’s side and tab 12 adjusts
the air temperature on the passen -
ger side.
1
23
5
8
10
11
12

demistingwindscreen ....................................................... (current page)
demisting rear screen ....................................................... (current page)
rear screen demisting ......................................................... (current page)
JauneNoirNoir texte
3.7
ENG_UD20381_1
Chauffage/Air conditionné (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_3
HEATING/AIR CONDITIONING (3/7)

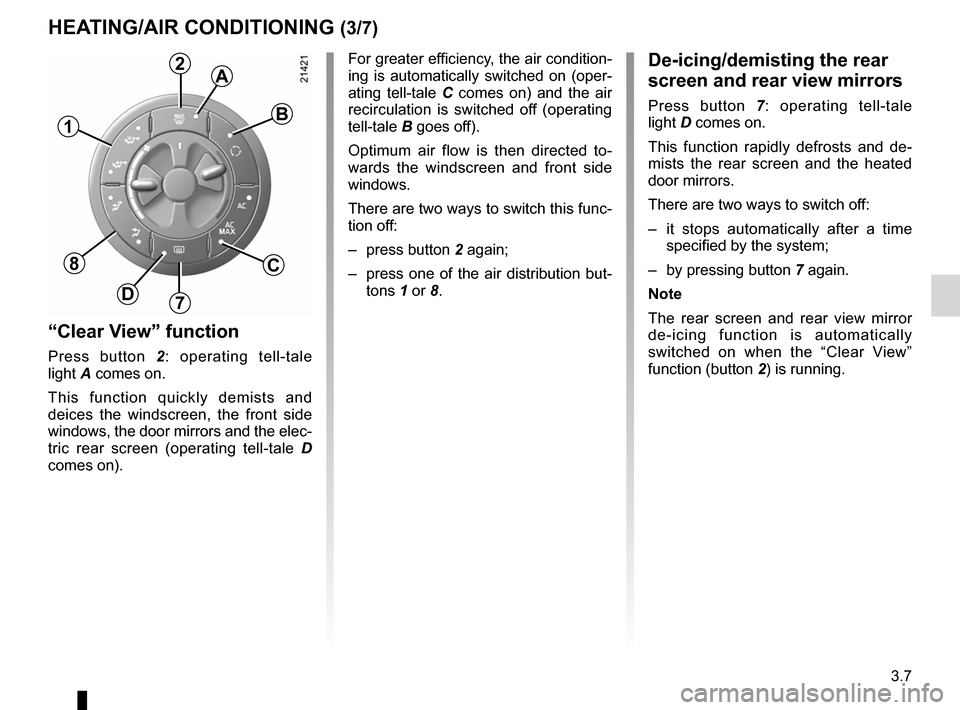

“Clear View” function
Press button 2: operating tell-tale
light A comes on.
This function quickly demists and
deices the windscreen, the front side
windows, the door mirrors and the elec-
tric rear screen (operating tell-tale D
comes on). For greater efficiency, the air condition
-
ing is automatically switched on (oper-
ating tell-tale C comes on) and the air
recirculation is switched off (operating
tell-tale B goes off).
Optimum air flow is then directed to -
wards the windscreen and front side
windows.
There are two ways to switch this func-
tion off:
– press button 2 again;
– press one of the air distribution but-
tons 1 or 8.
De-icing/demisting the rear
screen and rear view mirrors
Press button 7: operating tell-tale
light D comes on.
This function rapidly defrosts and de -
mists the rear screen and the heated
door mirrors.
There are two ways to switch off:
– it stops automatically after a time
specified by the system;
– by pressing button 7 again.
Note
The rear screen and rear view mirror
de-icing function is automatically
switched on when the “Clear View”
function (button 2) is running.
1
2A
B
C
7D
8

3.8
ENG_UD20381_1
Chauffage/Air conditionné (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_3
Jaune NoirNoir texte
HEATING/AIR CONDITIONING (4/7)

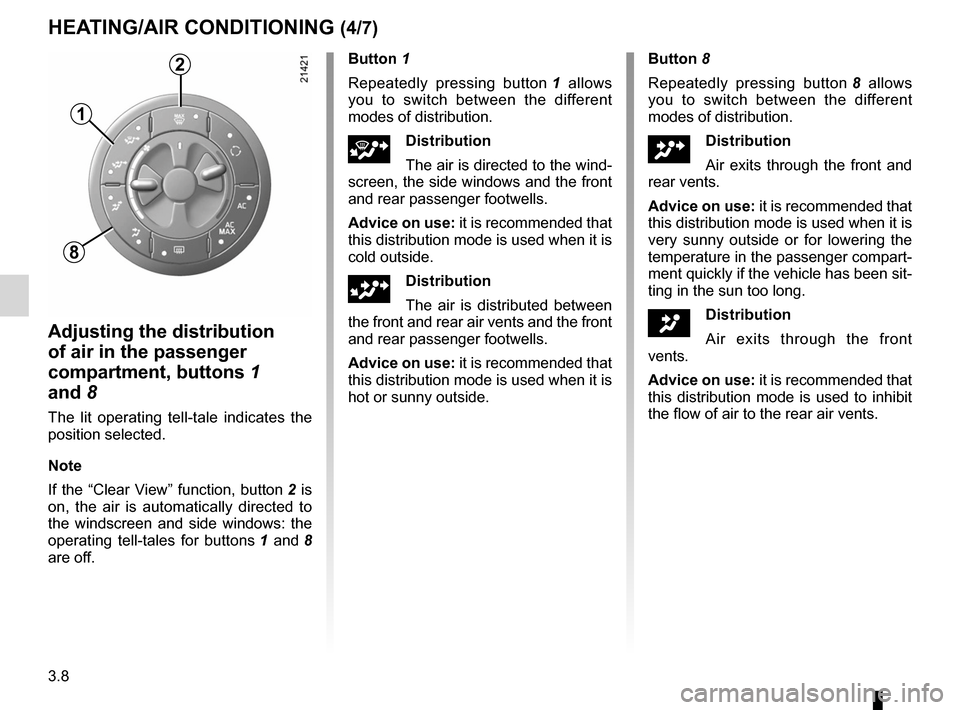

Adjusting the distribution
of air in the passenger
compartment, buttons 1
and 8
The lit operating tell-tale indicates the
position selected.
Note
If the “Clear View” function, button 2 is
on, the air is automatically directed to
the windscreen and side windows: the
operating tell-tales for buttons 1 and 8
are off. Button 1
Repeatedly pressing button
1 allows
you to switch between the different
modes of distribution.
jDistribution
The air is directed to the wind -
screen, the side windows and the front
and rear passenger footwells.
Advice on use: it is recommended that
this distribution mode is used when it is
cold outside.
lDistribution
The air is distributed between
the front and rear air vents and the front
and rear passenger footwells.
Advice on use: it is recommended that
this distribution mode is used when it is
hot or sunny outside.
Button 8
Repeatedly pressing button 8 allows
you to switch between the different
modes of distribution.
ODistribution
Air exits through the front and
rear vents.
Advice on use: it is recommended that
this distribution mode is used when it is
very sunny outside or for lowering the
temperature in the passenger compart-
ment quickly if the vehicle has been sit-
ting in the sun too long.
JDistribution
Air exits through the front
vents.
Advice on use: it is recommended that
this distribution mode is used to inhibit
the flow of air to the rear air vents.
1
2
8
