RENAULT KANGOO 2013 X61 / 2.G Diesel DCM 1.2 Injection Workshop Manual 13B-8V1 MR-376-X76-13B000$020.mif
DIESEL INJECTION
Fault finding – Cleanliness guidelines13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
II - INSTRUCTIONS TO BE FOLLOWED BEFORE CARRYING OUT ANY

Page 10 of 204

RENAULT KANGOO 2013 X61 / 2.G Diesel DCM 1.2 Injection Workshop Manual 13B-10V1 MR-376-X76-13B000$030.mif
13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
System outline
The DCM 1.2 injection system used on the K9K engine is an electronically-managed high pressure inj

Page 11 of 204

RENAULT KANGOO 2013 X61 / 2.G Diesel DCM 1.2 Injection Workshop Manual 13B-11V1 MR-376-X76-13B000$030.mif
DIESEL INJECTION
Fault finding – System operation13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
An accelerometer is used to monitor some of the fuel injection

Page 12 of 204

RENAULT KANGOO 2013 X61 / 2.G Diesel DCM 1.2 Injection Workshop Manual 13B-12V1 MR-376-X76-13B000$030.mif
DIESEL INJECTION
Fault finding – System operation13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
Idling speed regulation
The computer handles the calculation o

Page 13 of 204

RENAULT KANGOO 2013 X61 / 2.G Diesel DCM 1.2 Injection Workshop Manual 13B-13V1 MR-376-X76-13B000$030.mif
DIESEL INJECTION
Fault finding – System operation13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
Function: Air flow management
EGR valve control
The EGR system

Page 14 of 204

RENAULT KANGOO 2013 X61 / 2.G Diesel DCM 1.2 Injection Workshop Manual 13B-14V1 MR-376-X76-13B000$030.mif
DIESEL INJECTION
Fault finding – System operation13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
Functions included
Air conditioning management assistance
On m

Page 23 of 204

RENAULT KANGOO 2013 X61 / 2.G Diesel DCM 1.2 Injection Workshop Manual 13B-23V1 MR-376-X76-13B000$060.mif
DIESEL INJECTION
Fault finding – Fault summary table13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
Tool fault Associated DTC Diagnostic tool name
DF052 0200In

Page 52 of 204

RENAULT KANGOO 2013 X61 / 2.G Diesel DCM 1.2 Injection Workshop Manual 13B-52
AFTER REPAIRDeal with any faults declared by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
V1 MR-376-X76-13B000$071.

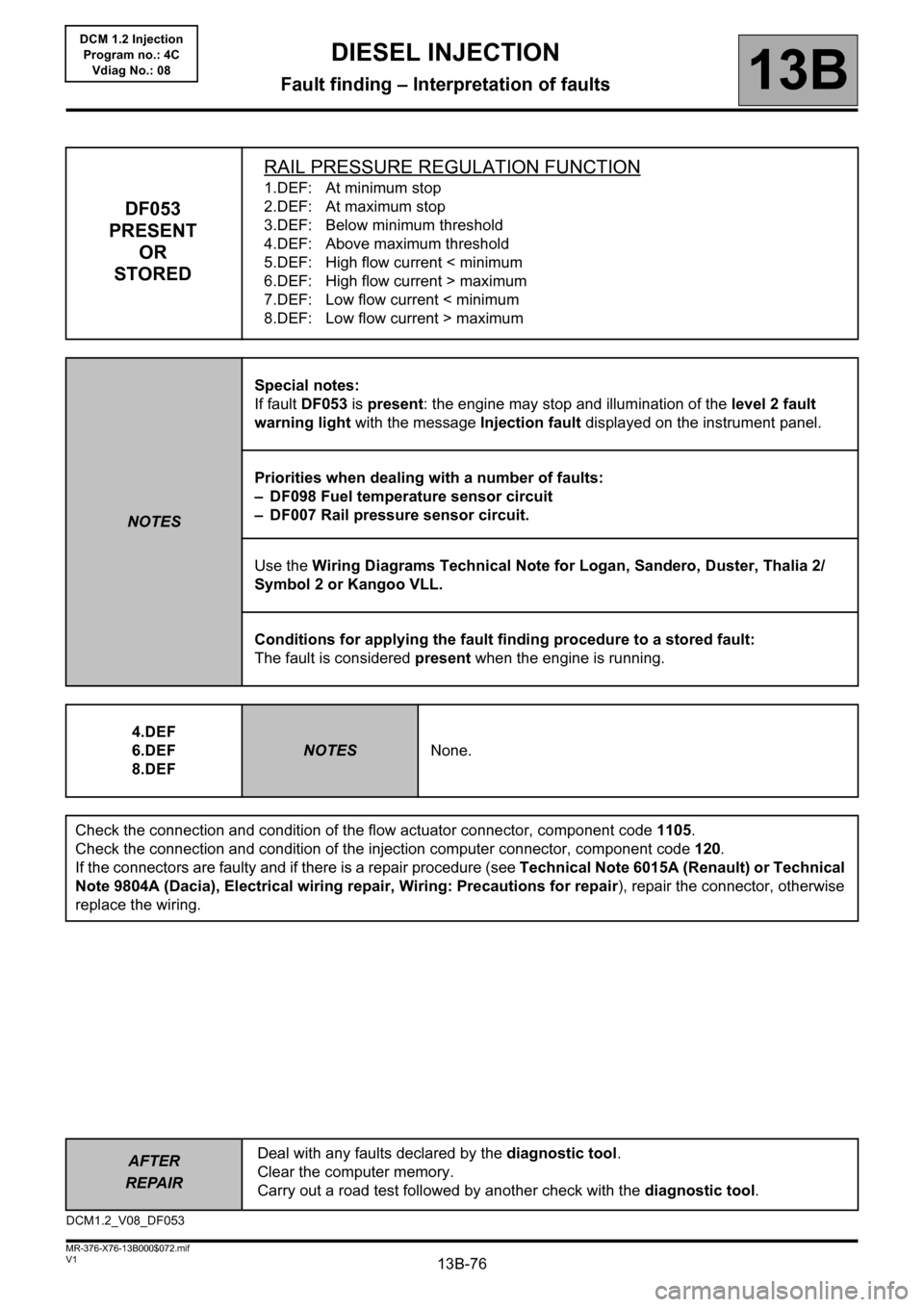

Page 76 of 204

RENAULT KANGOO 2013 X61 / 2.G Diesel DCM 1.2 Injection Workshop Manual 13B-76
AFTER
REPAIRDeal with any faults declared by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
V1 MR-376-X76-13B000$072.

Page 77 of 204

RENAULT KANGOO 2013 X61 / 2.G Diesel DCM 1.2 Injection Workshop Manual 13B-77
AFTER
REPAIRDeal with any faults declared by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
V1 MR-376-X76-13B000$072.
