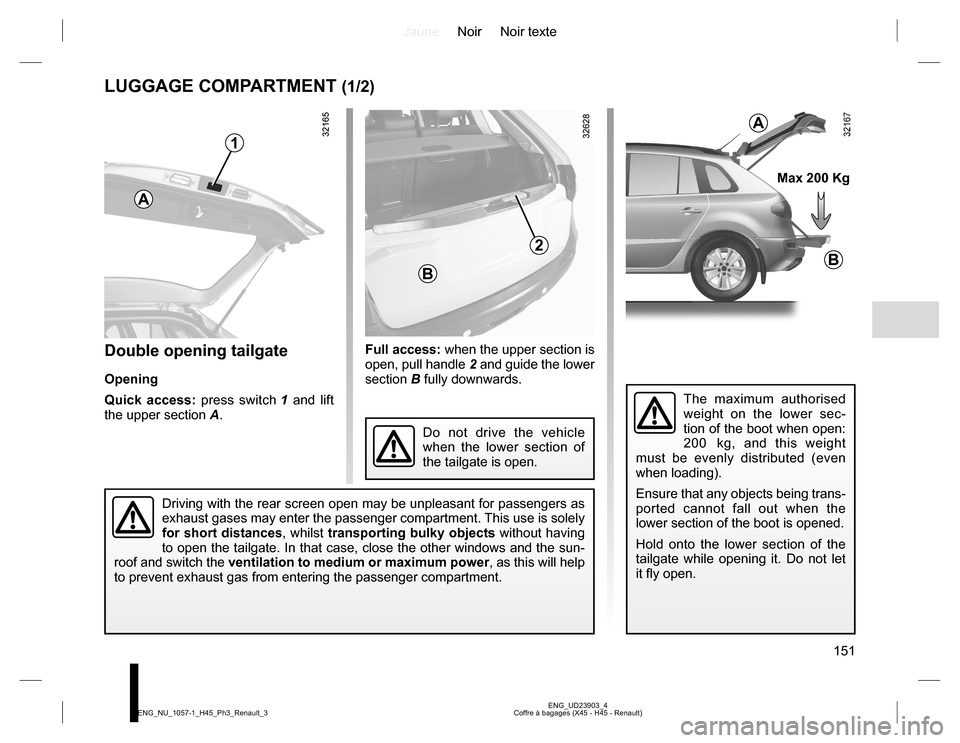

LUGGAGE COMPARTMENT (1/2)
Double opening tailgate
Opening
Quick access: press switch 1 and lift
the upper section A.
1
Max 200 Kg
2
Full access: when the upper section is
open, pull handle 2 and guide the lower
section B fully downwards.
Driving with the rear screen open may be unpleasant for passengers as
exhaust gases may enter the passenger compartment. This use is solely
for short distances, whilst transporting bulky objects without having
to open the tailgate. In that case, close the other windows and the sun-
roof and switch the ventilation to medium or maximum power, as this will help
to prevent exhaust gas from entering the passenger compartment.
Do not drive the vehicle
when the lower section of
the tailgate is open.
The maximum authorised
weight on the lower sec-
tion of the boot when open:
200 kg, and this weight
must be evenly distributed (even
when loading).
Ensure that any objects being trans-
ported cannot fall out when the
lower section of the boot is opened.
Hold onto the lower section of the
tailgate while opening it. Do not let
it fly open.
A
B
A
B

JauneNoir Noir texte
152
ENG_UD23903_4
Coffre à bagages (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_3
LUGGAGE COMPARTMENT (2/2)
To close the tailgate
Lift the lower section B of the tailgate,
then close it.
Opening the tailgate from
inside the vehicle
If the tailgate cannot be opened from
the outside, it can be opened from
inside the vehicle.
– Move the rear seats forwards and
down and climb into the luggage
compartment;
– remove cover 5 using a screwdriver
or suitable tool;
– move control 4;
– push the upper section of the tailgate
to open it.
3
5
4
Next, lower the upper section A and
close it.
For your comfort, use handle 3 on the
tailgate to close it.
Note: always ensure that the lower
section of the tailgate is properly closed
before closing the upper section.
A
B

JauneNoir Noir texte
153
ENG_UD27218_3
Cache-bagages (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_3

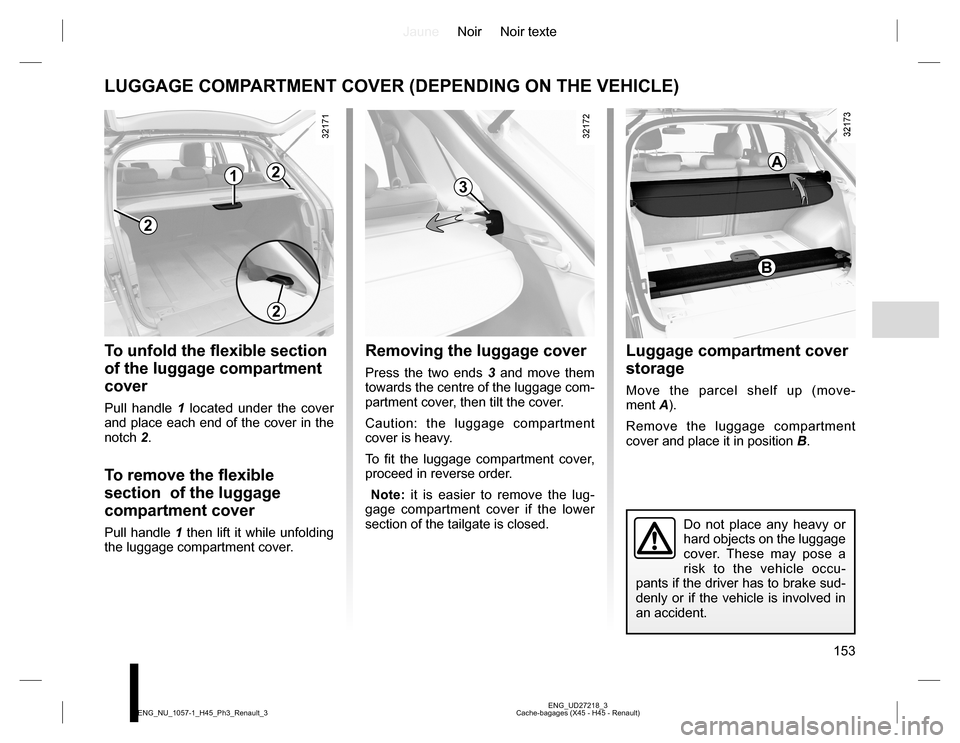

LUGGAGE COMPARTMENT COVER (DEPENDING ON THE VEHICLE)
To unfold the flexible section
of the luggage compartment
cover
Pull handle 1 located under the cover
and place each end of the cover in the
notch 2.
To remove the flexible
section of the luggage
compartment cover
Pull handle 1 then lift it while unfolding
the luggage compartment cover.
Removing the luggage cover
Press the two ends 3 and move them
towards the centre of the luggage com-
partment cover, then tilt the cover.
Caution: the luggage compartment
cover is heavy.
To fit the luggage compartment cover,
proceed in reverse order.
Note: it is easier to remove the lug-
gage compartment cover if the lower
section of the tailgate is closed.
Luggage compartment cover
storage
Move the parcel shelf up (move-
ment A).
Remove the luggage compartment
cover and place it in position B.
Do not place any heavy or
hard objects on the luggage
cover. These may pose a
risk to the vehicle occu-
pants if the driver has to brake sud-
denly or if the vehicle is involved in
an accident.
2
1
2
3
B
A2

JauneNoir Noir texte
154
ENG_UD23502_5 Transport d’objets dans le coffre, remorquage (attelage) (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_3
32323

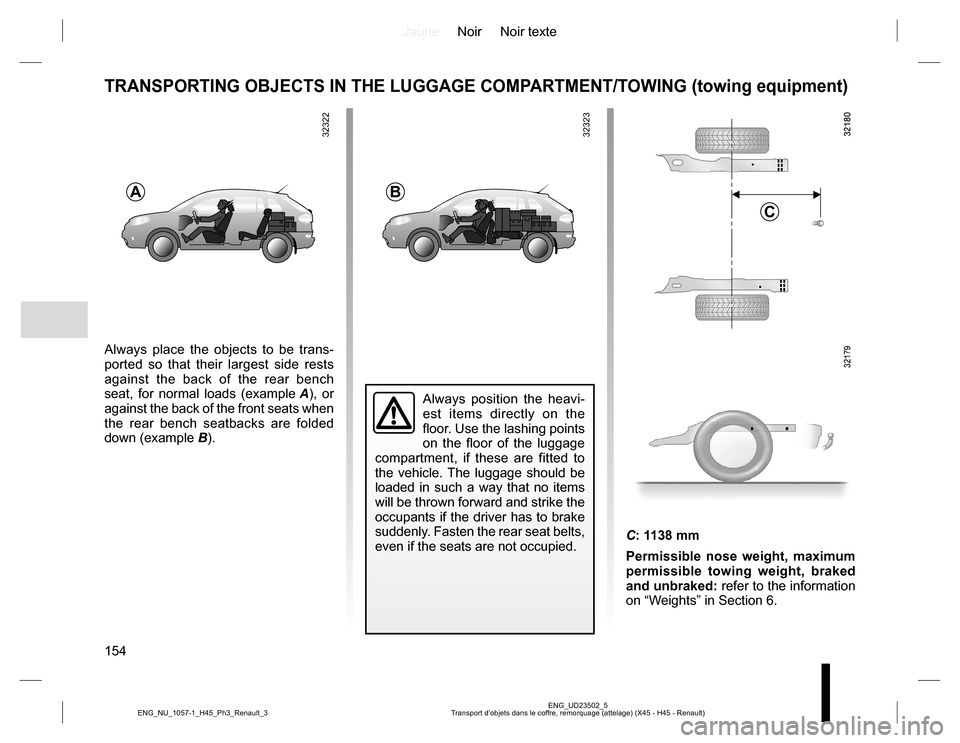

TRANSPORTING OBJECTS IN THE LUGGAGE COMPARTMENT/TOWING (towing equipment)
B
C
Always place the objects to be trans- ported so that their largest side rests against the back of the rear bench seat, for normal loads (example A), or against the back of the front seats when the rear bench seatbacks are folded down (example B).
A
Always position the heavi- est items directly on the floor. Use the lashing points on the floor of the luggage compartment, if these are fitted to the vehicle. The luggage should be loaded in such a way that no items will be thrown forward and strike the occupants if the driver has to brake suddenly. Fasten the rear seat belts, even if the seats are not occupied.C : 1138 mm
Permissible nose weight, maximum permissible towing weight, braked and unbraked: refer to the information on “Weights” in Section 6.
32322

JauneNoir Noir texte
155
ENG_UD28049_4
Crochets d’arrimage/Filet de s paration de bagages (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_3

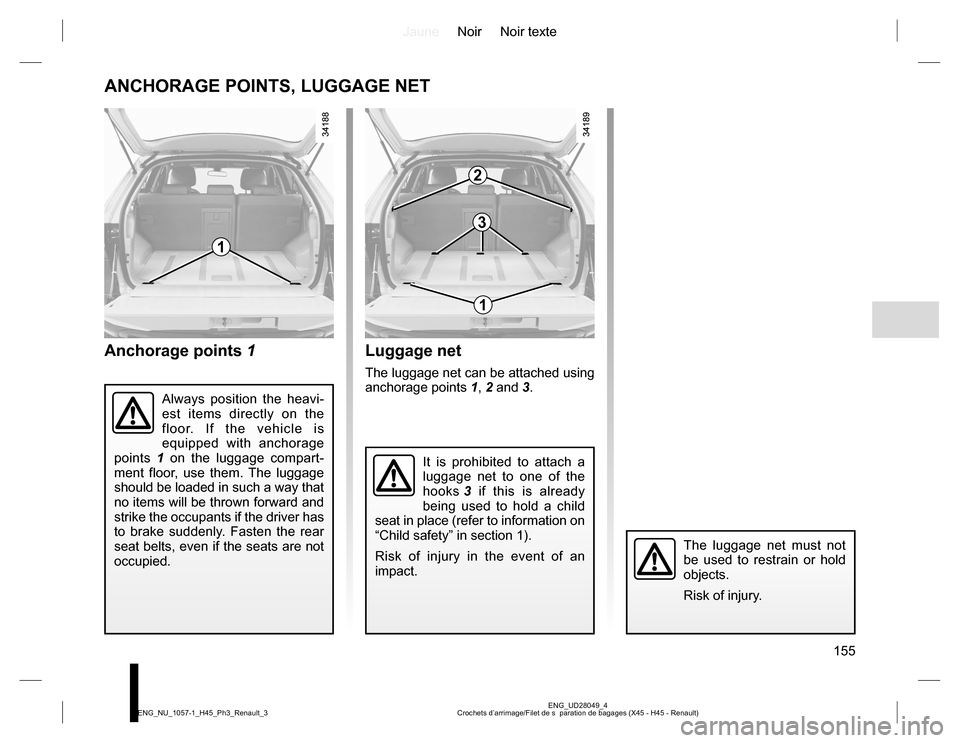

ANCHORAGE POINTS, LUGGAGE NET
Anchorage points 1
It is prohibited to attach a
luggage net to one of the
hooks 3 if this is already
being used to hold a child
seat in place (refer to information on
“Child safety” in section 1).
Risk of injury in the event of an
impact.
Luggage net
The luggage net can be attached using
anchorage points 1, 2 and 3.
2
Always position the heavi-
est items directly on the
floor. If the vehicle is
equipped with anchorage
points 1 on the luggage compart-
ment floor, use them. The luggage
should be loaded in such a way that
no items will be thrown forward and
strike the occupants if the driver has
to brake suddenly. Fasten the rear
seat belts, even if the seats are not
occupied.
3
The luggage net must not
be used to restrain or hold
objects.
Risk of injury.
1
1

JauneNoir Noir texte
156
ENG_UD28707_5
Barres de toit (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_3
ROOF BARS
Roof bars 1(depending on vehicle)
Luggage can be transported on the lug-
gage bars mounted on the roof bars.
Please refer to the manufacturer’s in-
structions on how to fit and use the
bars.
1
Maximum permissible load on
roof rack: refer to the information
on Weights in Section 6.
Please refer to the manufacturer’s
instructions on how to fit and use
the bars.
Please keep these instructions with
the rest of the vehicle documenta-
tion.
It is strictly forbidden to place the
roof bars in the transverse position
(carrying position) when entering a
roller-type car wash.
If original roof bars, ap-
proved by our Technical
Department, are supplied
with screws, only use these
screws for attaching the roof bars to
the vehicle.
If the vehicle is not equipped with
the roof bars 1, the fitting of roof
bars is prohibited on the vehicle.

JauneNoir Noir texte
157
ENG_UD31461_4
Equipement multim dia (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_3

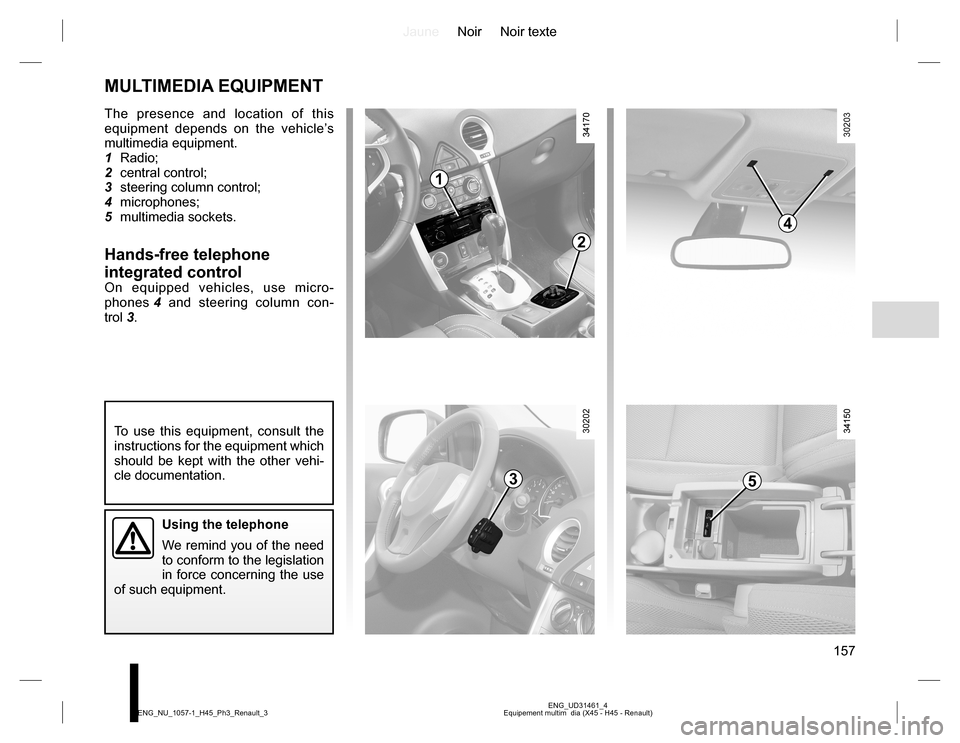

MULTIMEDIA EQUIPMENT
The presence and location of this
equipment depends on the vehicle’s
multimedia equipment.
1 Radio;
2 central control;
3 steering column control;
4 microphones;
5 multimedia sockets.
Hands-free telephone
integrated control
On equipped vehicles, use micro-
phones 4 and steering column con-
trol 3.
To use this equipment, consult the
instructions for the equipment which
should be kept with the other vehi-
cle documentation.
1
3
Using the telephone
We remind you of the need
to conform to the legislation
in force concerning the use
of such equipment.
2
5
4

JauneNoir Noir texte
158
ENG_UD20783_6
Filler NU (X06 - C06 - S06 - X35 - L35 - X44 - C44 - G44 - X45 - H45 - X65 - L65 - S65 - X73 - B73 - X74 - B74 - K74 - X77 - J77 - F77 - R77 - X81 - J81 - X84 - B84 - C84 ENG_NU_1057-1_H45_Ph3_Renault_3

JauneNoir Noir texte
159
ENG_UD31511_3

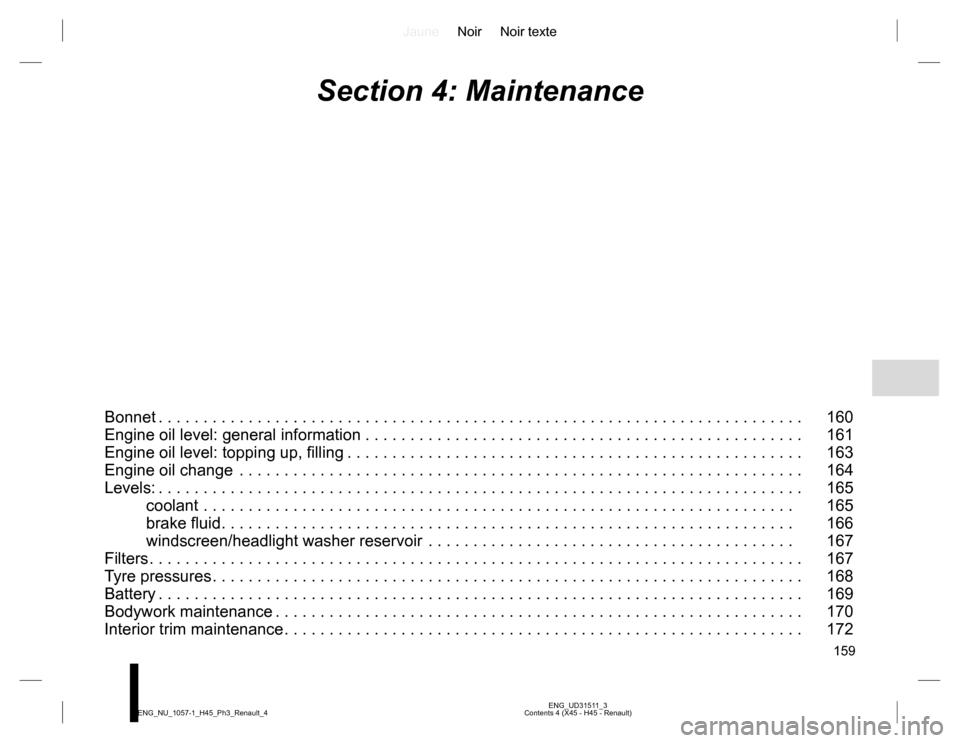

Contents 4 (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_4
Section 4: Maintenance
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Engine oil level: general information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Engine oil level: topping up, filling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Engine oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Levels: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
windscreen/headlight washer reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Bodywork maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Interior trim maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

JauneNoir Noir texte
160
ENG_UD23503_5
Capot moteur (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_4

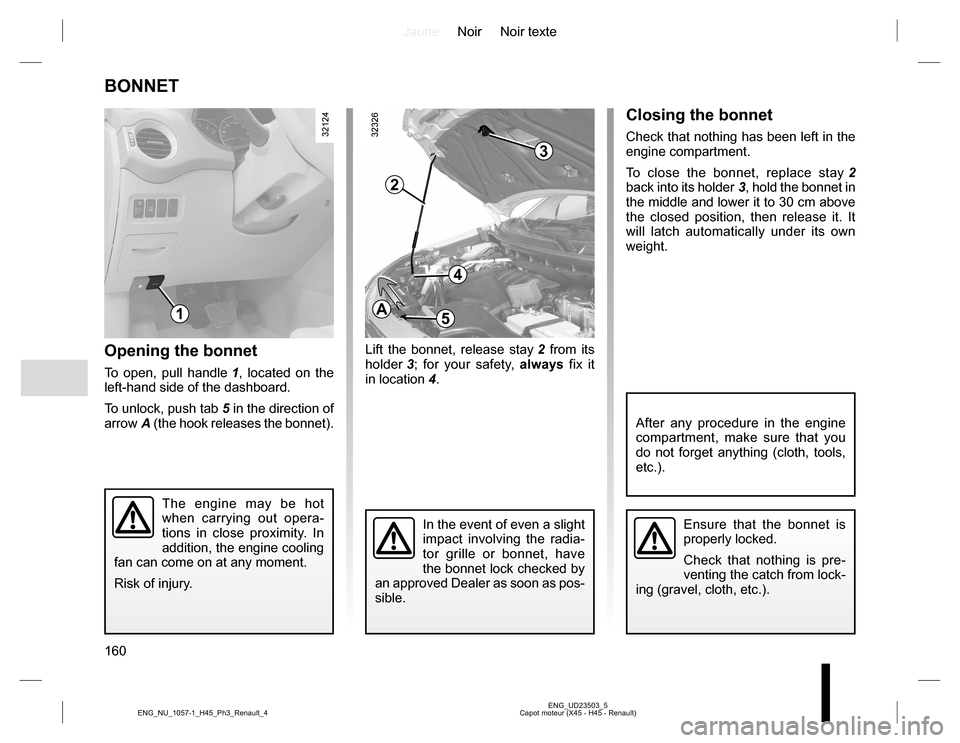

Opening the bonnet
To open, pull handle 1, located on the
left-hand side of the dashboard.
To unlock, push tab 5 in the direction of
arrow A (the hook releases the bonnet).
BONNET
The engine may be hot
when carrying out opera-
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
In the event of even a slight
impact involving the radia-
tor grille or bonnet, have
the bonnet lock checked by
an approved Dealer as soon as pos-
sible.
15A
Closing the bonnet
Check that nothing has been left in the
engine compartment.
To close the bonnet, replace stay 2
back into its holder 3, hold the bonnet in
the middle and lower it to 30 cm above
the closed position, then release it. It
will latch automatically under its own
weight.
Ensure that the bonnet is
properly locked.
Check that nothing is pre-
venting the catch from lock-
ing (gravel, cloth, etc.).
After any procedure in the engine
compartment, make sure that you
do not forget anything (cloth, tools,
etc.).
Lift the bonnet, release stay 2 from its
holder 3; for your safety, always fix it
in location 4.
2
3
4
