AIR VENTS (continued)
Air flow
Move wheel 1(beyond the point of
resistance).
Up: maximum flow.
Down: closed.
Move control knob 4(beyond the
point of resistance).
To the right: maximum flow.
To the left: closed.
Direction
Right/left: move control 2or 3.
Up/down: lower or raise control 2
or 3.
NU761_2_G3-ENG.qxp 1/5/2006 5:28 PM Page 3.03 (Black plate)
Page 142 of 250
Downloaded from www.Manualslib.com manuals search engine
ABC D
FE
NU761_2_G3-FRA.qxd 4/11/05 10:51 Page 3.04
3.04
HEATING/AIR CONDITIONING
The controls
A - Air recirculation control.
B - Air temperature adjustment.
C - Ventilation speed adjustment.
D - Adjusting the passenger
compartment air distribution. E
- Heated rear screen and heated
door mirror control and
indicator light (depending on
vehicle).
F - Air conditioning control and
warning light (depending on
vehicle).
Adjusting the air temperature
Turn control Bto obtain the desired
temperature. The further the slide is
in the red, the more the temperature
will be increased.
When the air conditioning system is
used for long periods, it may begin
to feel cold. This can be corrected by
increasing the quantity of hot air
(turn control Bto the right).
NU761_2_G3-ENG.qxp 1/5/2006 5:28 PM Page 3.04 (Black plate)
Page 143 of 250
Downloaded from www.Manualslib.com manuals search engine
D
NU761_2_G3-FRA.qxd 4/11/05 10:51 Page 3.05
3.05
HEATING/AIR CONDITIONING (continued)
Distribution of air in the
passenger compartment
Move control Dto position the slide
opposite the marked positions.
Position
d
All the air flow is directed to the
demisting vents for the windscreen
and the side windows. Position
j
The air flow is distributed between
the demisting vents for the
windscreen, the side windows and
the front and rear footwells.
This is the recommended position
for the best temperature in cold
weather.Position
h
The air flow is mainly directed
towards the passenger footwells.
Position
The air flow is directed to all the air
vents and the front and rear
passenger footwells.
This is the recommended position
for the best temperature in hot
weather.
Position
The air flow is directed towards all
the air vents.
Note:
for quick demisting, set the
controls to the
dpositions:
- external air,
- maximum temperature,
- demisting.
Using the air conditioning increases
the speed of demisting.
NU761_2_G3-ENG.qxp 1/5/2006 5:28 PM Page 3.05 (Black plate)
Page 144 of 250
Downloaded from www.Manualslib.com manuals search engine
F
C
NU761_2_G3-FRA.qxd 4/11/05 10:51 Page 3.06
3.06
HEATING/AIR CONDITIONING (continued)
Position 0
In this position:
- air conditioning stops automaticallyeven if button Fis activated (the
indicator light remains lit);
- the ventilation speed of air in the passenger compartment is zero;
- there is, however, a slight flow of air when the vehicle is moving.
This position should not normally
be used.
Switching air conditioning
on or off
The air conditioning is switched on
(indicator light on) or off (indicator
light off) using button F.
The air conditioning system can be
used to:
- lower the temperature inside the passenger compartment;
- eliminate condensation more quickly.
The air conditioning does not
operate when the external
temperature is low.
Adjusting the blower speed
Normal use
Turn control Cto one of the four
positions to start the blower and
adjust the power.
Select position 1for minimum
ventilation and position 4for
maximum ventilation.
NU761_2_G3-ENG.qxp 1/5/2006 5:28 PM Page 3.06 (Black plate)
Page 145 of 250
Downloaded from www.Manualslib.com manuals search engine
A
NU761_2_G3-FRA.qxd 4/11/05 10:51 Page 3.07
3.07
HEATING/AIR CONDITIONING (continued)
Air recirculation operation
(isolating the passenger
compartment)
Turn control Atowards the air
recirculation symbol .
In these conditions air is taken from
the passenger compartment and is
recirculated, with no air being taken
from outside the vehicle.
Air recirculation is used to:
- isolate the vehicle from the external atmosphere (driving in
polluted areas, etc.),
- reach the desired temperature in the passenger compartment as
quickly as possible. Prolonged use of this position can
lead to condensation forming on
the side windows and windscreen
and problems due to the use of
non-renewed air in the passenger
compartment.
We therefore advise you to return
to normal mode (external air) as
soon as the recirculated air
function is no longer required, by
turning control
Aagain.
NU761_2_G3-ENG.qxp 1/5/2006 5:28 PM Page 3.07 (Black plate)
Page 146 of 250
Downloaded from www.Manualslib.com manuals search engine
12345 67 813 12 11 10
14 9
NU761_2_G3-FRA.qxd 4/11/05 10:51 Page 3.08
3.08

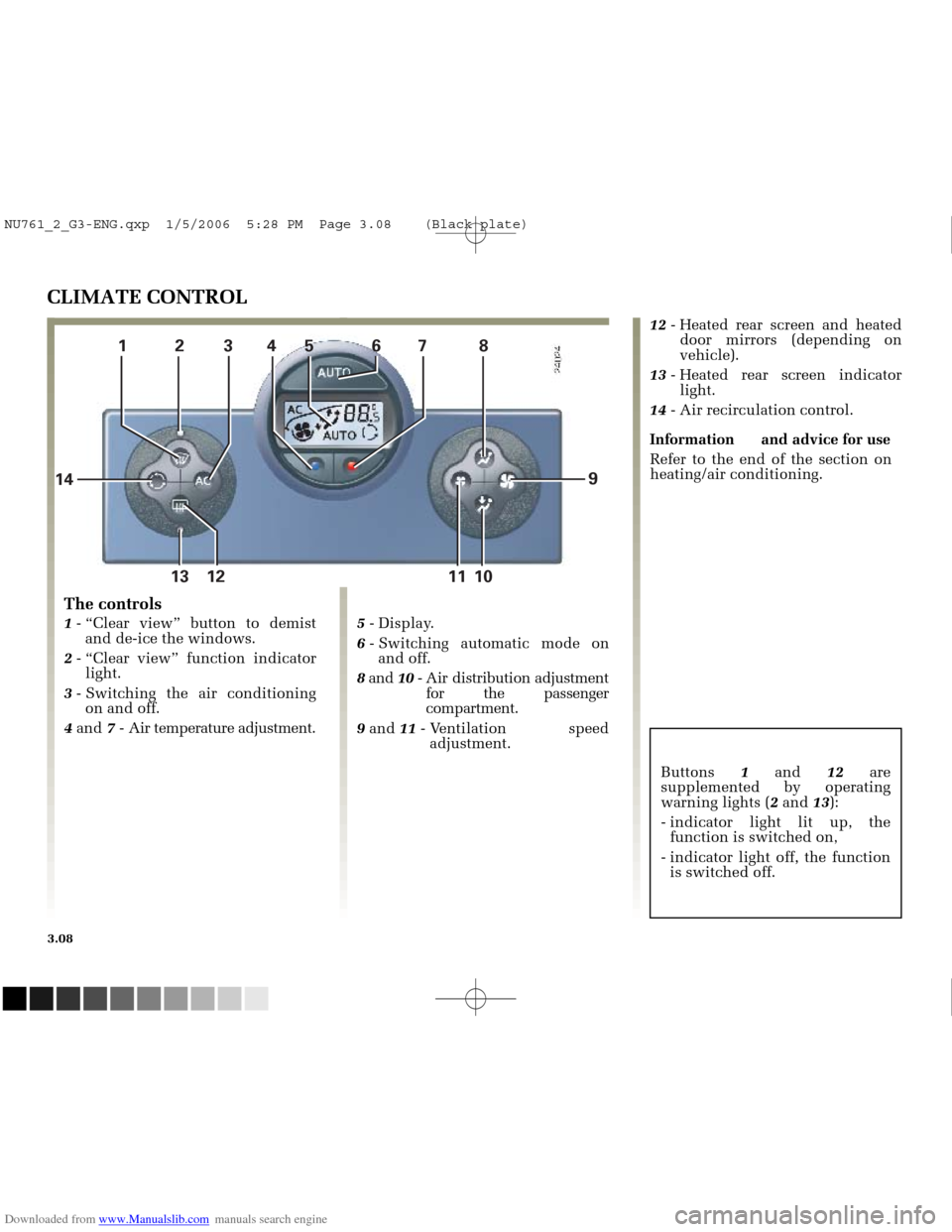

CLIMATE CONTROL
The controls
1
- “Clear view” button to demist
and de-ice the windows.
2 - “Clear view” function indicator
light.
3 - Switching the air conditioning
on and off.
4 and 7- Air temperature adjustment. 5
- Display.
6 - Switching automatic mode on
and off.
8 and 10- Air distribution adjustment
for the passenger
compartment.
9 and 11- Ventilation speed
adjustment. 12
- Heated rear screen and heated
door mirrors (depending on
vehicle).
13 - Heated rear screen indicator
light.
14 - Air recirculation control.
Information and advice for use Refer to the end of the section on
heating/air conditioning.
Buttons 1and 12are
supplemented by operating
warning lights ( 2and 13):
- indicator light lit up, the function is switched on,
- indicator light off, the function is switched off.
NU761_2_G3-ENG.qxp 1/5/2006 5:28 PM Page 3.08 (Black plate)
Page 147 of 250
Downloaded from www.Manualslib.com manuals search engine
7
4
NU761_2_G3-FRA.qxd 4/11/05 10:51 Page 3.09
3.09
CLIMATE CONTROL (continued)
Ambient temperature (automatic
mode)
The climate control system
guarantees comfort in the passenger
compartment and good visibility
(except in the event of extreme
conditions), while optimising
consumption.
This is the recommended mode of
use. Only the temperature and the
AUTO symbol are displayed
Functions managed in automatic
mode are not displayed.- press button
7to increase the
temperature,
- press button 4to decrease the
temperature.
Note: the minimum and maximum
settings “15 °C” and “27 °C” allow
the system to produce a maximum
amount of cold or warm air,
regardless of the ambient
conditions.
In automatic mode (AUTO
indicator light on the display is
lit), all air conditioning functions
are controlled by the system.
When you modify certain
functions the AUTO indicator
light goes out. Only the modified
function is not controlled by the
system.
NU761_2_G3-ENG.qxp 1/5/2006 5:28 PM Page 3.09 (Black plate)
Page 148 of 250
Downloaded from www.Manualslib.com manuals search engine
NU761_2_G3-FRA.qxd 4/11/05 10:51 Page 3.10
3.10
CLIMATE CONTROL (continued)
Ambient temperature: (automatic
mode)
(continued)
Operation
To reach and keep the chosen
comfort level and to maintain good
visibility, the system controls:
- ventilation speed,
- the air distribution,
- the air recirculation management,
- starting and stopping of the air conditioning,
- the air temperature.Adjusting automatic mode
The automatic mode is the normal
operating mode of the system but
you may alter the selections made
by the system (air distribution, etc.).
These options are explained on the
following pages.
The displayed temperature values
show a comfort level.
When the vehicle is started in cold
or hot weather, increasing or
decreasing the values displayed
does not mean that the temperature
is reached more quickly, whatever
the indicated temperature may be,
the system optimises the increase
or decrease in temperature (the
ventilation system does not start
instantly at maximum speed: it
gradually increases until the
engine temperature is sufficient,
which may take from a few seconds
to several minutes).
Generally speaking, unless there is
a particular fault, the dashboard air
vents should remain open.
The automatic mode is the
recommended mode of use: in
this mode the automatic climate
control system guarantees comfort
in the passenger compartment and
good visibility (except in the event
of extreme conditions), while
optimising consumption. The
types of adjustments that can be
made are described on the
following pages.
Return to automatic mode as
soon as possible.
NU761_2_G3-ENG.qxp 1/5/2006 5:28 PM Page 3.10 (Black plate)
Page 149 of 250
Downloaded from www.Manualslib.com manuals search engine
13 12 1110
568
NU761_2_G3-FRA.qxd 4/11/05 10:51 Page 3.11
3.11
CLIMATE CONTROL (continued)
Distribution of air in the
passenger compartment
There are 5 air distribution settings
available, which are obtained by
pressing buttons 8and 10. The
arrows on the display 5inform you
of the setting selected: Position
All the air flow is directed to the
demisting vents for the windscreen
and the side windows.
Position
The air flow is directed to the
windscreen demisting vents, the
side windows and the passenger
footwells.
Positionm
The air flow is directed towards all
the air vents.
Position
The air flow is directed to all the air
vents and the passenger footwells.
Position
The air flow is mainly directed
towards the passenger footwells.
The manual air distribution
option causes the operating
indicator on the display to
switch off
5(automatic mode),
but only air distribution is no
longer controlled automatically
by the system.
Press button 6to return to
automatic mode.
NU761_2_G3-ENG.qxp 1/5/2006 5:28 PM Page 3.11 (Black plate)
Page 150 of 250
Downloaded from www.Manualslib.com manuals search engine
13 12 1111
56
93
NU761_2_G3-FRA.qxd 4/11/05 10:51 Page 3.12
3.12
CLIMATE CONTROL (continued)
Varying the ventilation speed
In automatic mode, the system uses
the most suitable amount of air to
reach and maintain the desired
comfort level.
Exit automatic mode by pressing
buttons 9and 11.
These buttons allow you to increase
or decrease ventilation speed.
Switching air conditioning on
or off
In automatic mode, the system
switches the air conditioning system
on or off, depending on the exterior
weather conditions.
Exit automatic mode by pressing
button 3: the AUTO indicator on
display 5switches off.
Button 3activates (indicator light on
the display lit) or deactivates
(indicator light off) the air
conditioning function. Note:
the “clear view” function
automatically activates the air
conditioning system (indicator light
on). Press button 6to return to
automatic mode.
In automatic mode, in cold
weather, the ventilation will not
start immediately at maximum
power but will increase
progressively until the engine
temperature is warm enough to
heat the passenger compartment
air. This may take from a few
seconds to several minutes.
NU761_2_G3-ENG.qxp 1/5/2006 5:28 PM Page 3.12 (Black plate)
