RENAULT MEGANE HATCHBACK 2016 X95 / 3.G Owners Manual

glove box ............................................................... (current page)
Jaune NoirNoir texte

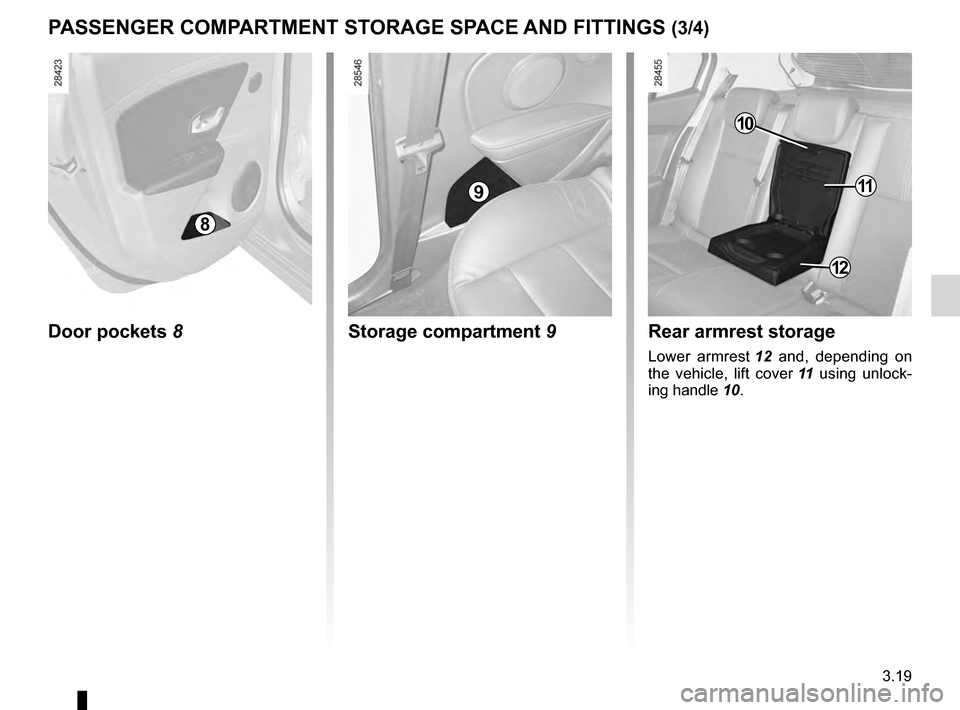

3.19
ENG_UD11880_3
Rangements / aménagements habitacle (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_3
Door pockets 8 Storage compartment 9
PASSENg ER co MPARTMENT STo RA g E SPA c E AND FITTIN g S (3/4)
11
12
Rear armrest storage
Lower armrest 12 and, depending on
the vehicle, lift cover 1 1 using unlock-
ing handle

10
.
8
10
9

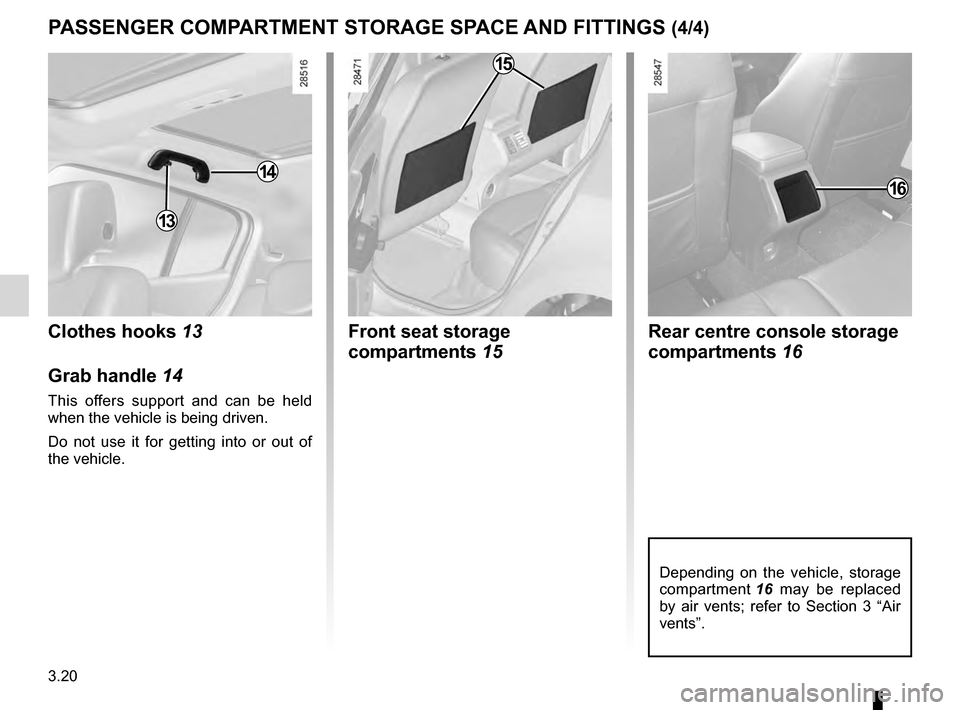

3.20
ENG_UD11880_3
Rangements / aménagements habitacle (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_3
PASSEN g ER co MPARTMENT STo RA g E SPA c E AND FITTIN g S (4/4)
Rear centre console storage
compartments
16
16
Depending on the vehicle, storage
compartment 1 6 may be replaced
by air vents; refer to Section 3 “Air
vents”.
15
Front seat storage
compartments 15
13
14
clothes hooks 13
g

rab handle
14
This offers support and can be held
when the vehicle is being driven.
Do not use it for getting into or out of
the vehicle.

ashtray .................................................. (up to the end of the DU)
cigar lighter ........................................... (up to the end of the DU)
accessories socket ............................... (up to the end of the DU)

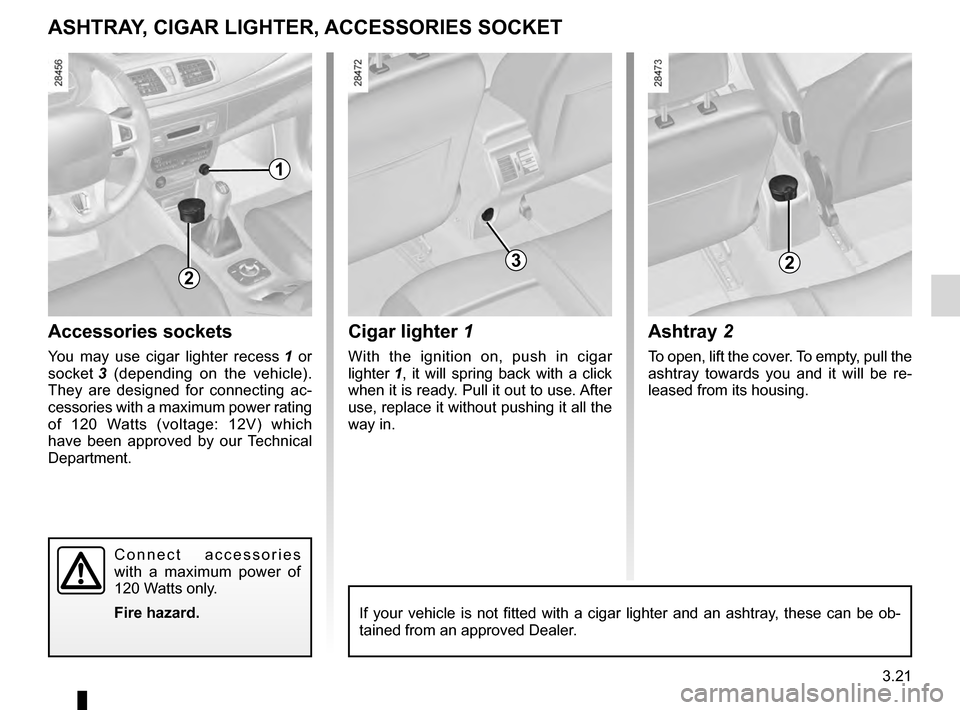

3.21
ENG_UD11881_2
Cendriers-Allume cigares (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_3
Accessories socket
Ashtray/cigar lighter
cigar lighter 1
With the ignition on, push in cigar
lighter
1, it will spring back with a click
when it is ready. Pull it out to use. After
use, replace it without pushing it all the
way in.
AShTRAY, c I g AR l I gh TER , A cc ESS o RIES S ock ET
Accessories sockets
You may use cigar lighter recess 1 or
socket 3
(depending on the vehicle).
They are designed for connecting ac-
cessories with a maximum power rating
of 120 Watts (voltage: 12V) which
have been approved by our Technical
Department.
If your vehicle is not fitted with a cigar lighter and an ashtray, these can be ob-
tained from an approved Dealer.
1
223
Ashtray 2
To open, lift the cover. To empty, pull the
ashtray towards you and it will be re-
leased from its housing.
C o n n e c t a c c e s s o r i e s
with a maximum power of
120
Watts only.
Fire hazard.

rear bench seat..................................... (up to the end of the DU)
rear seatsfunctions ......................................... (up to the end of the DU)
3.22
ENG_UD21546_6
Banquette arrière (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_3
Jaune NoirNoir texte
P r e s s b u t t o n 1 a n d l o w e r t h e
seatback(s) A.
Rear bench seat
To fold down the seatback
Ensure that the front seats are far
enough forward.
Lower the rear headrests (refer to the
information on the “Rear headrests” in
Section 1).
Place the seat belts
2 in their guides
3
.Sport tourer versions
Depending on the vehicle, seatback A
can be folded down on its own to allow
long or bulky objects to be transported.
REAR BENch SEAT functions (1/3)
1A23
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
Before moving the seat-
back, put seat belt 2 in belt
guide
3

to avoid damaging
it.

JauneNoirNoir texte
3.23
ENG_UD21546_6
Banquette arrière (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_3
REAR BENch SEAT functions (2/3)
luggage compartment carpet level
adjustment
T
o adjust the level of the luggage com-
partment carpet in line with the seat-
backs, lift carpet
4

via the rear door;
height adjuster
5

is deployed auto-
matically. Fit the luggage compartment
carpet and unfold blanking covers

6
.
When refitting the bench seat, push the
booster seat in at the same time as fit-
ting the luggage compartment carpet.
when refitting the seat-
back , make sure it is cor-
rectly locked in place.
If seat covers are fitted ,
make sure these do not prevent the
seatback latch from locking in.
Make sure that the seat belts are
positioned correctly.
Reposition the headrests.
4
5
6
6

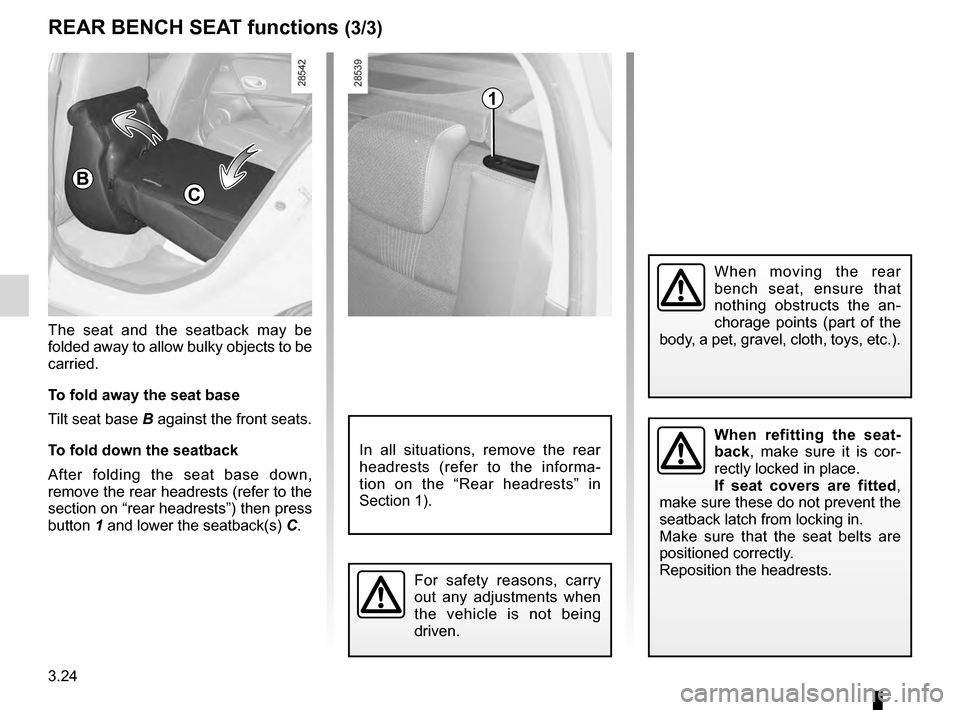

3.24
ENG_UD21546_6
Banquette arrière (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_3
when refitting the seat-
back , make sure it is cor-
rectly locked in place.
If seat covers are fitted ,
make sure these do not prevent the
seatback latch from locking in.
Make sure that the seat belts are
positioned correctly.
Reposition the headrests.
The seat and the seatback may be
folded away to allow bulky objects to be
carried.
To fold away the seat base
Tilt seat base
B against the front seats.
To fold down the seatback
After folding the seat base down,
remove the rear headrests (refer to the
section on “rear headrests”) then press
button
1 and lower the seatback(s)
C
.
In all situations, remove the rear
headrests (refer to the informa-
tion on the “Rear headrests” in
Section 1).
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
1
cB
REAR BENch SEAT functions (3/3)
When moving the rear
bench seat, ensure that
nothing obstructs the an-
chorage points (part of the
body, a pet, gravel, cloth, toys, etc.).

tailgate .................................................. (up to the end of the DU)
tailgate .................................................. (up to the end of the DU)
3.25
ENG_UD21547_2
Coffre à bagages (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_3
Luggage compartment
TAI lg ATE
To open
Press button
1 and lift the tailgate.
To close
Pull down the tailgate using handle
2


inside the tailgate to assist you.
1
opening manually from
inside the vehicle
Special note:
If it is impossible to unlock the tailgate,
it can be done from inside.
–

access
the luggage compartment by
folding forward the seatback(s) of
the rear bench seat,
–

i
nsert a pencil or similar object in
cavity
3 and slide the unit as shown
in the illustration,
–

push the tailgate to open it.
23

rear parcel shelf .................................... (up to the end of the DU)
tailgate .................................................. (up to the end of the DU)
rear parcel shelf .................................... (up to the end of the DU)

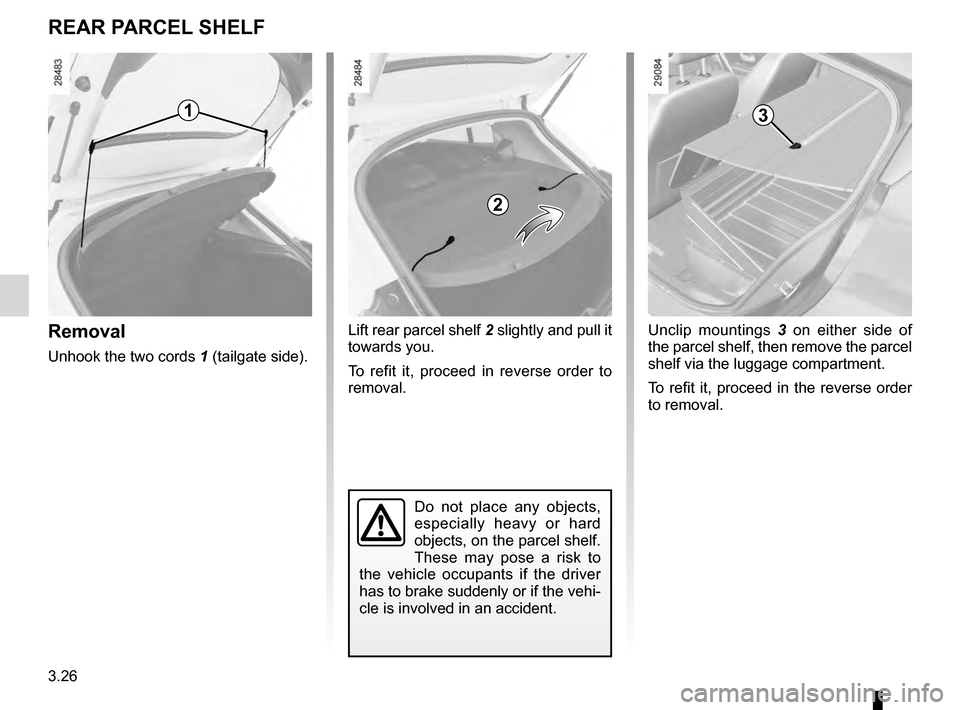

3.26
ENG_UD21549_3
Tablette arrière (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_3
Removal
Unhook the two cords 1 (tailgate side).
Rear parcel shelf
Do not place any objects,
especially heavy or hard
objects, on the parcel shelf.
These may pose a risk to
the vehicle occupants if the driver
has to brake suddenly or if the vehi-
cle is involved in an accident.
Lift rear parcel shelf 2 slightly and pull it
towards you.
T
o refit it, proceed in reverse order to
removal.
REAR PARcEl S h E l F
1
2
Unclip mountings 3 on either side of
the parcel shelf, then remove the parcel
shelf via the luggage compartment.
To refit it, proceed in the reverse order
to removal.
3

luggage compartment cover ................. (up to the end of the DU)
rear parcel shelf .................................... (up to the end of the DU)

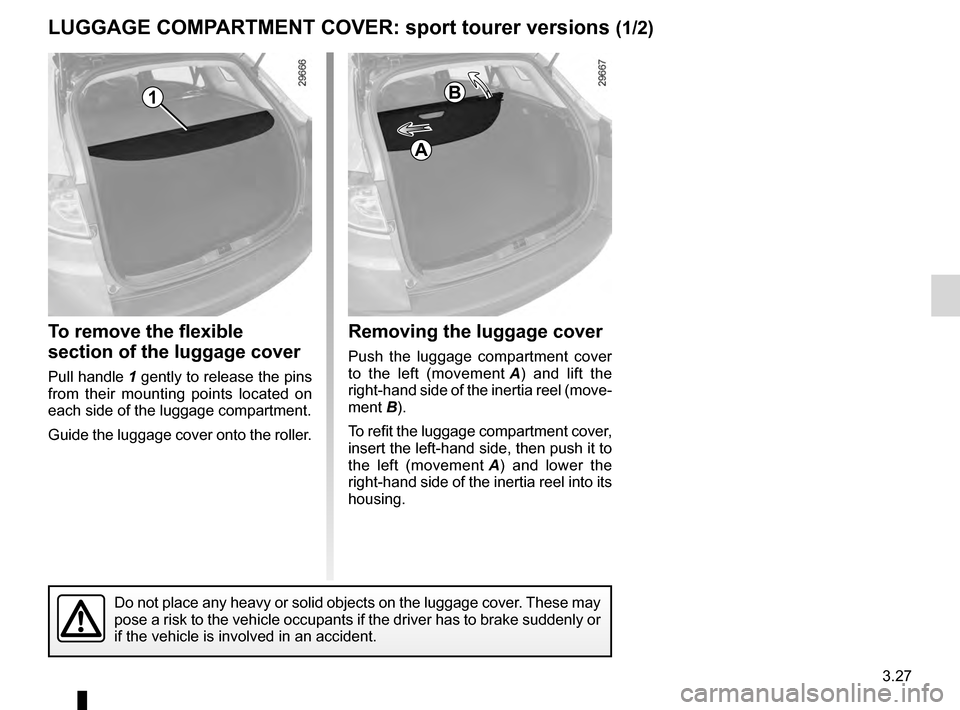

3.27
ENG_UD21548_2
Cache-bagages : versions break (X95 - B95 - D95 - K95 - Renault)
ENG_NU_837-8_BDK95_Renault_3
To remove the flexible
section of the luggage cover
Pull handle 1 gently to release the pins
f rom their mounting points located on
each side of the luggage compartment.
Guide the luggage cover onto the roller.
Luggage compartment cover: sport tourer versions
Removing the luggage cover
Push the luggage compartment cover
to the left (movement A )
and lift the
right-hand side of the inertia reel (move-
ment
B).
To refit the luggage compartment cover,
insert the left-hand side, then push it to
the left (movement
A )

and lower the
right-hand side of the inertia reel into its
housing.
luggAgE coMPARTMENT coVER: sport tourer versions (1/2)
1B
A
Do not place any heavy or solid objects on the luggage cover. These may
pose a risk to the vehicle occupants if the driver has to brake suddenly or
if the vehicle is involved in an accident.

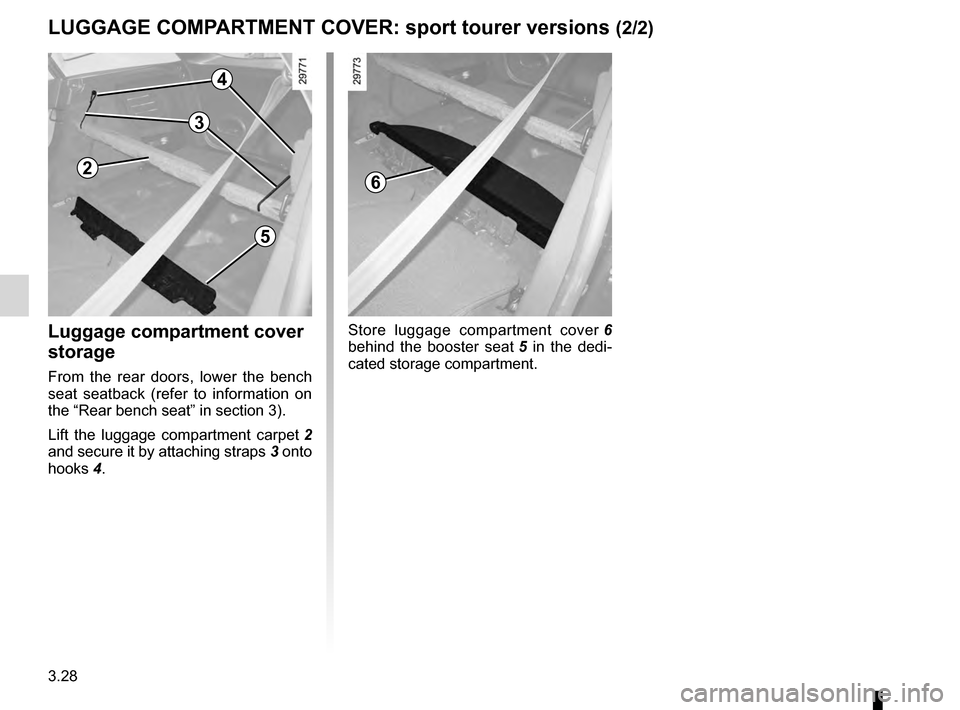

3.28
ENG_UD21548_2
Cache-bagages : versions break (X95 - B95 - D95 - K95 - Renault)
ENG_NU_837-8_BDK95_Renault_3
luggage compartment cover
storage
From the rear doors, lower the bench
seat seatback (refer to information on
the “Rear bench seat” in section 3).
Lift the luggage compartment carpet
2


and secure it by attaching straps
3 onto
hooks
4.
luggAgE coMPARTMENT coVER: sport tourer versions (2/2)
3
4
5
62
Store luggage compartment cover 6
behind the booster seat 5
in the dedi-
cated storage compartment.
