When setting off, if the lever is locked
in position P even though you are de-
pressing the brake pedal and pressing
unlocking button
2, the lever can be re-
leased manually. To do this, press the
button by inserting an object into the
hole
1
0 and simultaneously press un-
locking button
2
located on the lever.
AUTOMATIC TRANSMISSION (3/3)
Operating faults
– When driving , if the message
“Check auto gearbox” appears on
the instrument panel, this indicates
there is a fault.
Contact your approved Dealer as
soon as possible.
–
When
driving, if the message “Auto
gearbox overheating” appears on the
instrument panel, stop the vehicle to
allow the gearbox to cool down.
Contact your approved Dealer as
soon as possible.
–
I
f a vehicle with an automatic
gearbox breaks down, refer to the
information on “Towing” in Section 5.
10
2
Page 122 of 242
2.36
ENG_UD9525_5
Filler NU (X06 - C06 - S06 - X35 - L35 - X44 - C44 - G44 - X45 - H45 - X65 - L65 - S65 - X73 - B73 - X74 - B74 - K74 - X77 - J77 - F77 - R77 - X81 - J81 - X84 - B84 - C84
ENG_NU_837-8_BDK95_Renault_2
Page 123 of 242
3.1
ENG_UD24007_9
Sommaire 3 (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_3

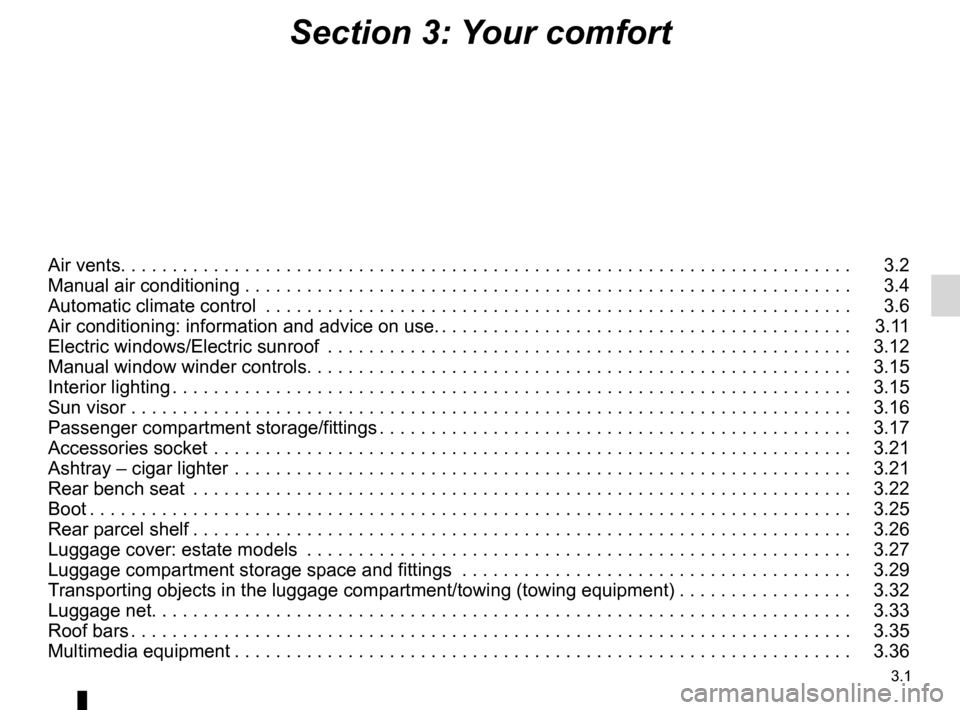

Section 3: Your comfort
Air vents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.2
Manual air conditioning
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.4
Automatic climate control
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.6
Air conditioning: information and advice on use.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1
1
Electric windows/Electric sunroof
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.12
Manual window winder controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
3.15
Interior lighting
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.15
Sun visor
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.16
Passenger compartment storage/fittings
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.17
Accessories socket
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.21
Ashtray – cigar lighter
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.21
Rear bench seat
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.22
Boot
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.25
Rear parcel shelf
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.26
Luggage cover: estate models
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.27
Luggage compartment storage space and fittings
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.29
T
ransporting objects in the luggage compartment/towing (towing equipment\
)
. . . . . . . . . . . . . . . . .
3.32
Luggage net. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.33
Roof bars
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.35
Multimedia equipment
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.36
Page 124 of 242
air vents ................................................ (up to the end of the DU)
3.2
ENG_UD17357_4
Aérateurs (sorties d’air) (X95 - B95 - D95 - Renault)ENG_NU_837-8_BDK95_Renault_3
Jaune NoirNoir texte
Air vents

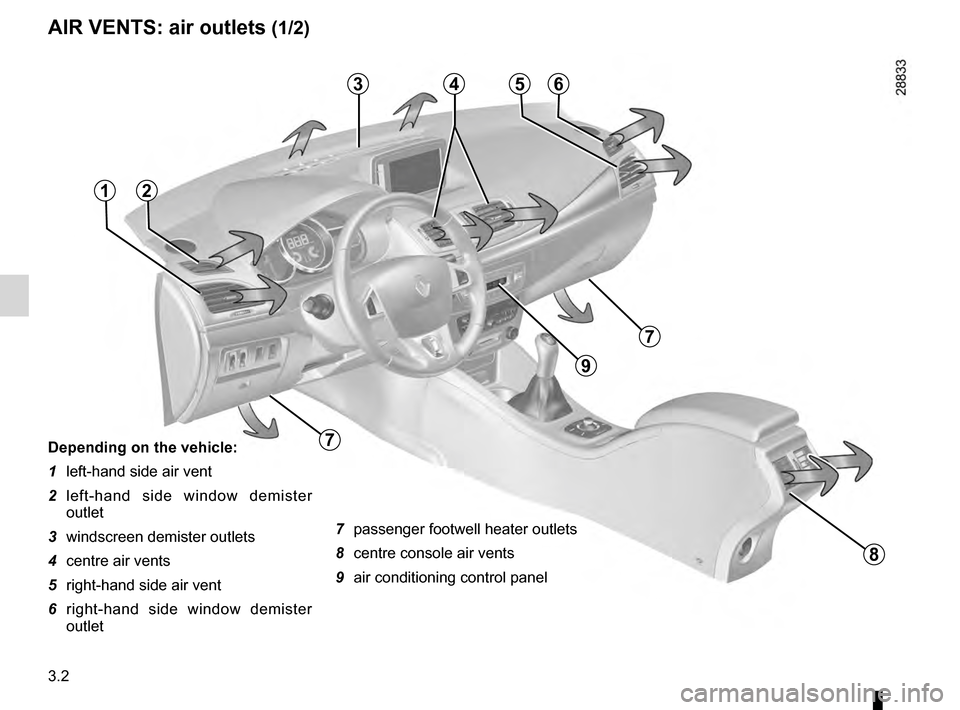

AIR VENTS: air outlets (1/2)
Depending on the vehicle:
1
left-hand side air vent
2
l
eft-hand side window demister
outlet
3
windscreen demister outlets
4
centre air vents
5
right-hand side air vent
6
r
ight-hand side window demister
outlet 7
passenger footwell heater outlets
8
centre console air vents
9
air conditioning control panel
12
356
7
7
9
8
4
Page 125 of 242
JauneNoirNoir texte
3.3
ENG_UD17357_4
Aérateurs (sorties d’air) (X95 - B95 - D95 - Renault)ENG_NU_837-8_BDK95_Renault_3

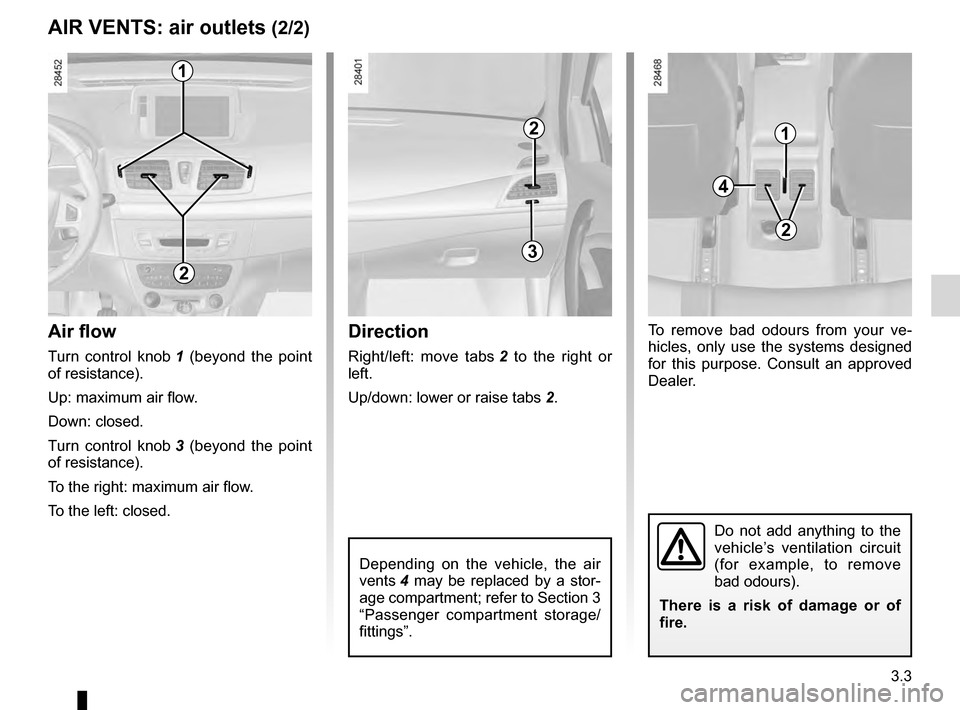

AIR VENTS: air outlets (2/2)
Air flow
Turn control knob 1 (beyond the point
of resistance).
Up: maximum air flow.
Down: closed.
Turn control knob
3
(beyond the point
of resistance).
To the right: maximum air flow.
To the left: closed.
Direction
Right/left: move tabs 2 to the right or
left.
Up/down: lower or raise tabs
2
.
2
3
1
2
1
2
Depending on the vehicle, the air
vents 4 may be replaced by a stor-
age compartment; refer to Section 3
“Passenger compartment storage/
fittings”.
4
To remove bad odours from your ve-
hicles, only use the systems designed
for this purpose. Consult an approved
Dealer.
Do not add anything to the
vehicle’s ventilation circuit
(for example, to remove
bad odours).
There is a risk of damage or of
fire.
Page 126 of 242
heating system ..................................... (up to the end of the DU)
air conditioning ..................................... (up to the end of the DU)
ventilation ............................................. (up to the end of the DU)
air conditioning ..................................... (up to the end of the DU)
3.4
ENG_UD6312_1
Air conditionné (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_3
Jaune NoirNoir texte
Manual air conditioning

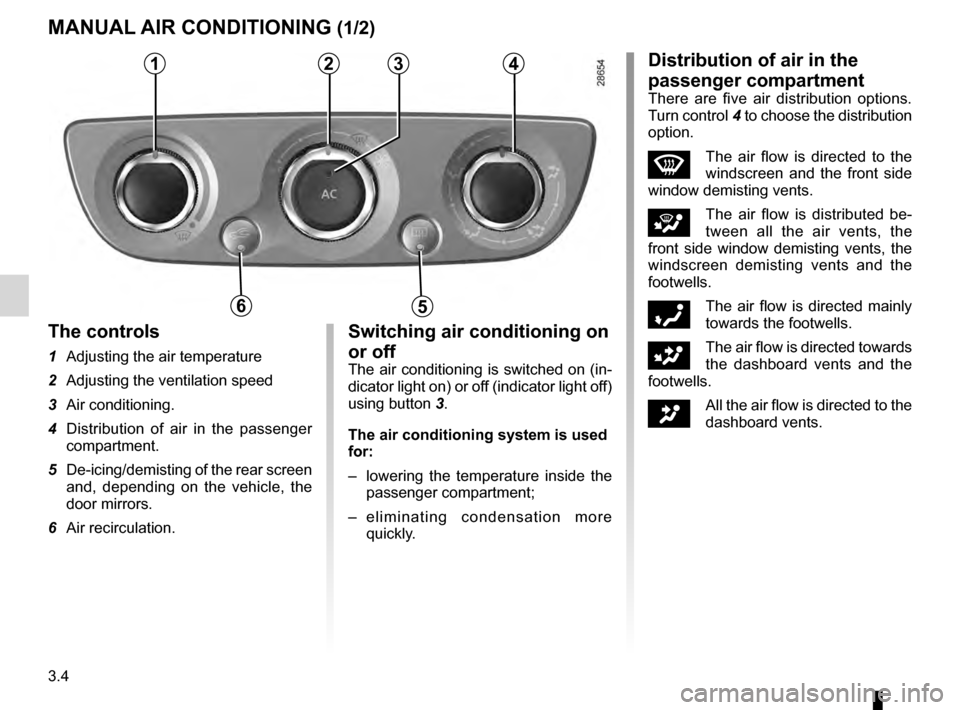

MANuAl AIR co NDITI o NIN g (1/2)
1234
56
The controls
1 Adjusting the air temperature
2
Adjusting the ventilation speed
3
Air conditioning.
4
D
istribution of air in the passenger
compartment.
5
De-icing/demisting
of the rear screen
and, depending on the vehicle, the
door mirrors.
6
Air recirculation.
Switching air conditioning on
or off
The air conditioning is switched on (in-
dicator light on) or off (indicator light off)
using button
3
.
The air conditioning system is used
for:
–
l
owering the temperature inside the
passenger compartment;
–
e
l i m i n a t i n g c o n d e n s a t i o n m o r e
quickly.
Distribution of air in the
passenger compartment
There are five air distribution options.
Turn control 4 to choose the distribution
option.
WThe air flow is directed to the
windscreen and the front side
window demisting vents.
iThe air flow is distributed be-
tween all the air vents, the
front side window demisting vents, the
windscreen demisting vents and the
footwells.
óThe air flow is directed mainly
towards the footwells.
GThe air flow is directed towards
the dashboard vents and the
footwells.
JAll the air flow is directed to the
dashboard vents.
Page 127 of 242
rear screen de-icing/demisting .............................. (current page)
windscreen de-icing/demisting .............................. (current page)
Jaune NoirNoir texte
3.5
ENG_UD6312_1
Air conditionné (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_3
Adjusting the ventilation
speed
Turn control 2 clockwise to increase the
air flow in the passenger compartment.
T
he passenger compartment is ven-
tilated by blown air. The blower deter-
mines how much air enters but vehicle
speed has a slight effect on this.
Switching the air
recirculation on
Press button 6: the integrated indicator
light comes on.
U
nder these conditions, air is taken
from the passenger compartment and
is recirculated, with no air being taken
from outside the vehicle.
Air recirculation is for:
–
i
solating the vehicle from the exter-
nal atmosphere (driving in polluted
areas, etc.);
–
l
owering the passenger compart-
ment temperature as quickly as pos-
sible. “
o FF" position:
the system is deactivated: the ventila-
tion speed for the passenger compart-
ment air is zero (vehicle stationary),
you can however still feel a slight flow
of air when the vehicle is moving.
Recommended demisting option:
Turn controls
1 , 2
and
4
to the
W
position.
This is the quickest option for de-icing
and demisting the side windows and
the windscreen.

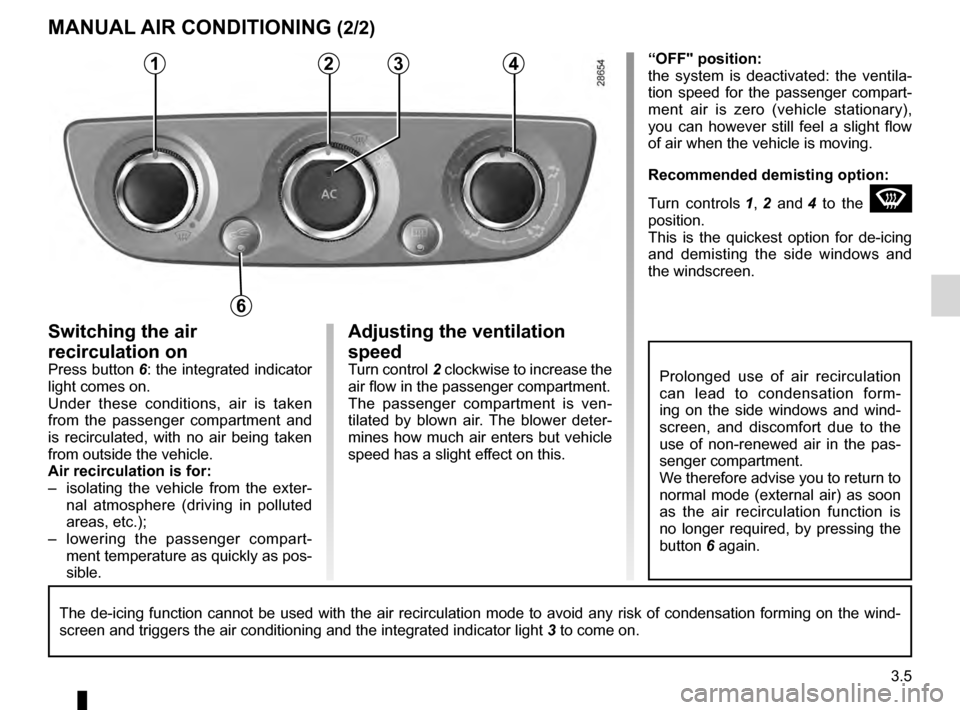

MANuAl AIR co NDITI o NIN g (2/2)
Prolonged use of air recirculation
can lead to condensation form-
ing on the side windows and wind-
screen, and discomfort due to the
use of non-renewed air in the pas-
senger compartment.
We therefore advise you to return to
normal mode (external air) as soon
as the air recirculation function is
no longer required, by pressing the
button
6 again.
The de-icing function cannot be used with the air recirculation mode to avoid any risk of condensation forming on the wind-
screen and triggers the air conditioning and the integrated indicator li\
ght 3 to come on.
1234
6
Page 128 of 242
3.6
ENG_UD14525_3
Air conditionné automatique (X95 - B95 - D95 - L38 - X38 - X32 - B32\
- Renault)
ENG_NU_837-8_BDK95_Renault_3
Jaune NoirNoir texte
Automatic climate control

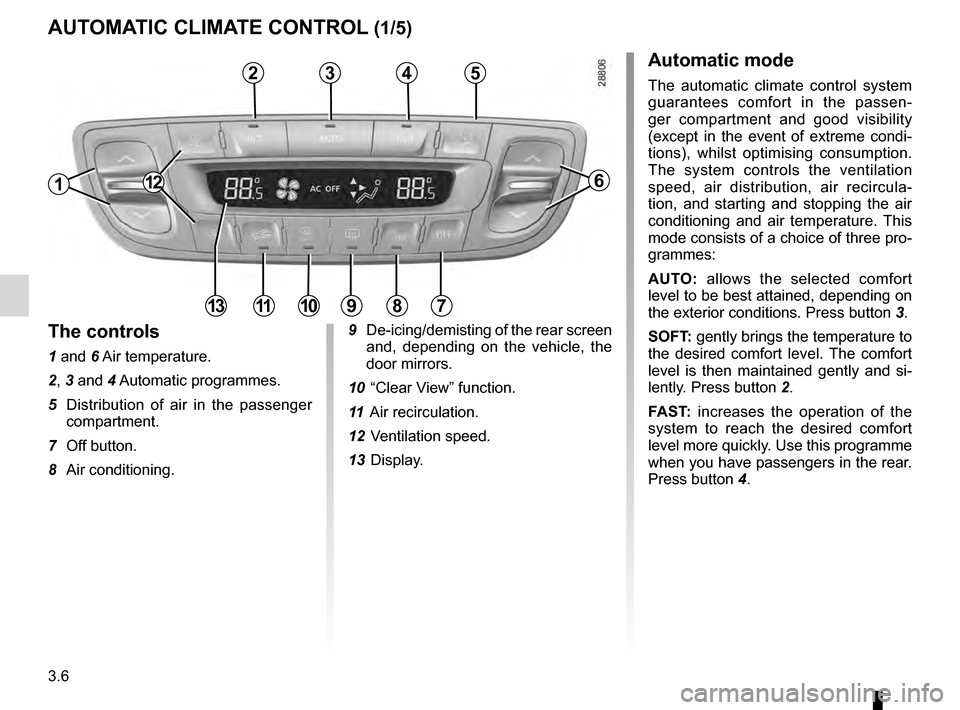

AuToMATI c cl IMATE co NTR ol (1/5)
Automatic mode
The automatic climate control system
guarantees comfort in the passen-
ger compartment and good visibility
(except in the event of extreme condi-
tions), whilst optimising consumption.
The system controls the ventilation
speed, air distribution, air recircula-
tion, and starting and stopping the air
conditioning and air temperature. This
mode consists of a choice of three pro-
grammes:
A
uTo:
allows the selected comfort
level to be best attained, depending on
the exterior conditions. Press button
3
.
S
o FT: gently brings the temperature to
the desired comfort level. The comfort
level is then maintained gently and si-
lently. Press button
2.
FAST: increases the operation of the
system to reach the desired comfort
level more quickly. Use this programme
when you have passengers in the rear.
Press button
4.
12
4
9 De-icing/demisting of the rear screen
and, depending on the vehicle, the
door mirrors.
10
“Clear V
iew” function.
11
Air recirculation.
12
V
entilation speed.
13
Display
.
16
7891011
32
The controls
1 and 6 Air temperature.
2 , 3 and 4 Automatic programmes.
5
D
istribution of air in the passenger
compartment.
7
Of
f button.
8
Air conditioning.
13
5
Page 129 of 242
JauneNoirNoir texte
3.7
ENG_UD14525_3
Air conditionné automatique (X95 - B95 - D95 - L38 - X38 - X32 - B32\
- Renault)
ENG_NU_837-8_BDK95_Renault_3

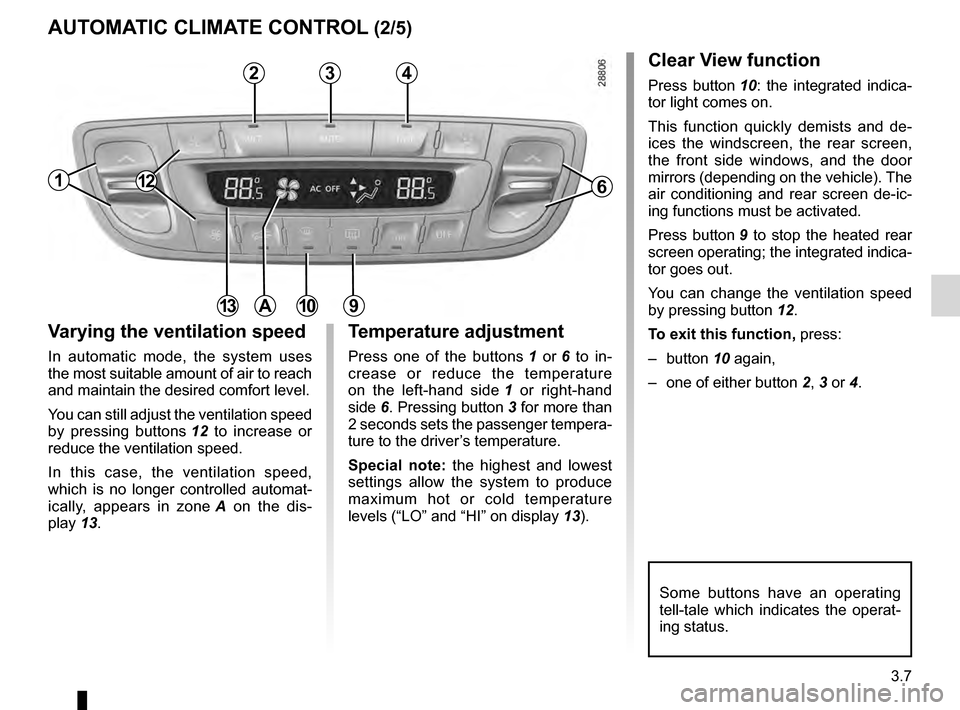

AuTo MATI c cl IMATE co NTR ol (2/5)
Varying the ventilation speed
In automatic mode, the system uses
the most suitable amount of air to reach
and maintain the desired comfort level.
You can still adjust the ventilation speed
by pressing buttons
1
2 to increase or
reduce the ventilation speed.
In this case, the ventilation speed,
which is no longer controlled automat-
ically, appears in zone
A
on the dis-
play
13.
Some buttons have an operating
tell-tale which indicates the operat-
ing status.
121
3
Temperature adjustment
Press one of the buttons 1 or 6 to in-
crease or reduce the temperature
on the left-hand side
1
or right-hand
side
6. Pressing button 3 for more than
2 seconds sets the passenger tempera-
ture to the driver’s temperature.
Special note: the highest and lowest
settings allow the system to produce
maximum hot or cold temperature
levels (“LO” and “HI” on display
13
).
6
A13
clear View function
Press button 10: the integrated indica-
tor light comes on.
This function quickly demists and de-
ices the windscreen, the rear screen,
the front side windows, and the door
mirrors (depending on the vehicle). The
air conditioning and rear screen de-ic-
ing functions must be activated.
Press button
9 to stop the heated rear
screen operating; the integrated indica-
tor goes out.
You can change the ventilation speed
by pressing button
12
.
To exit this function, press:
–
button
10 again,
–
one of either button
2, 3 or 4.
109
24
Page 130 of 242
3.8
ENG_UD14525_3
Air conditionné automatique (X95 - B95 - D95 - L38 - X38 - X32 - B32\
- Renault)
ENG_NU_837-8_BDK95_Renault_3
Jaune NoirNoir texte
The displayed temperature values
show a comfort level.
When starting the engine, increas-
ing or decreasing the value dis-
played will not allow the com-
fort level to be reached any more
quickly. The system will always op-
timise the temperature increase or
decrease (the ventilation system
does not start instantly at maximum
speed: it gradually increases). This
may take several minutes.
Generally speaking, unless there is
a particular reason not to, the dash-
board air vents should remain open.
You are recommended to use automatic mode by selecting one of the auto-
matic programmes A
u To , S o FT or FAST.
In automatic mode (indicator light for button
3 on), all heating and air conditioning
functions are controlled by the system.
You can also change the system selection, in this case, indicator light for button
3
will go out and the changed function, which is no longer controlled by the system,
is shown on display
13
.
To return to automatic mode, press one of the A
u T
o
, S
o FT or FAST programmes .

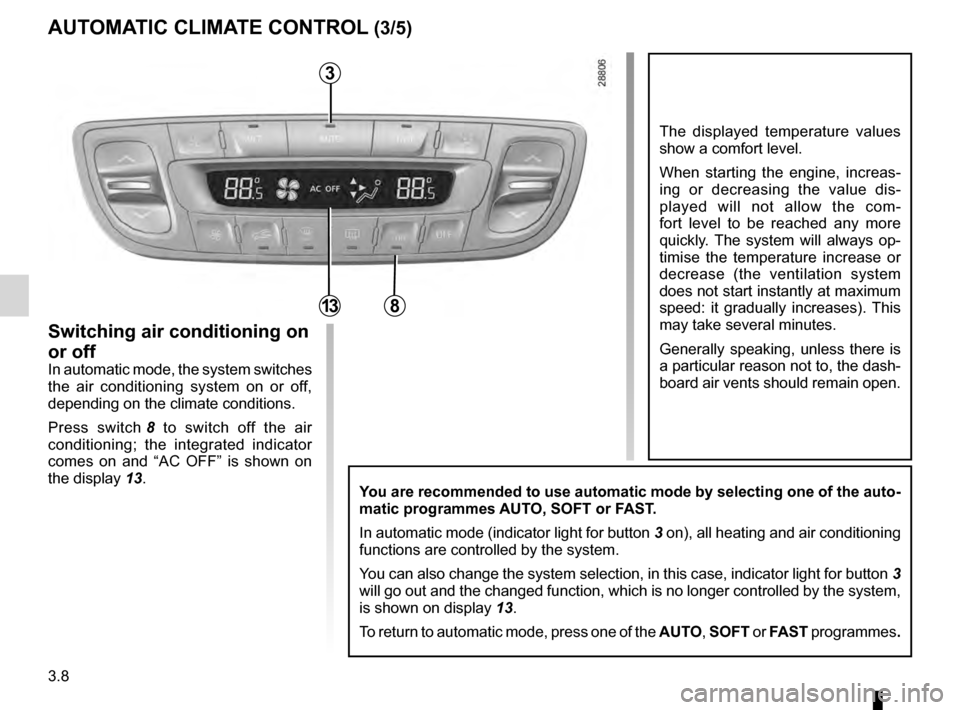

AuToMATI c cl IMATE co NTR ol (3/5)
Switching air conditioning on
or off
In automatic mode, the system switches
the air conditioning system on or off,
depending on the climate conditions.
Press switch
8
to switch off the air
conditioning; the integrated indicator
comes on and “AC OFF” is shown on
the display
13
.
3
813
