RENAULT SCENIC 2007 J84 / 2.G Anti Lock Braking System Bosch 8.0 ESP Owners Manual ANTI-LOCK BRAKING SYSTEM
BOSCH 8.0 ESP Vdiag No.: 08, 0938C
38C - 21V2 MR-372-J84-38C050$434_eng.mif
BOSCH 8.0 ESP
Vdiag No.: 08, 09
DF007
CONTINUED
Vdiag No.: 08 and 09
Also check the insulation bet

Page 22 of 85

RENAULT SCENIC 2007 J84 / 2.G Anti Lock Braking System Bosch 8.0 ESP Owners Manual ANTI-LOCK BRAKING SYSTEM
BOSCH 8.0 ESP Vdiag No.: 0A, 0B, 11, 1238C
38C - 22V2 MR-372-J84-38C050$434_eng.mif
BOSCH 8.0 ESP
Vdiag No.: 0A, 0B, 11,
12
DF007
PRESENT
OR
STOREDREAR LEFT-HAND WHEEL SPEE

Page 23 of 85

RENAULT SCENIC 2007 J84 / 2.G Anti Lock Braking System Bosch 8.0 ESP Owners Manual ANTI-LOCK BRAKING SYSTEM
BOSCH 8.0 ESP Vdiag No.: 0A, 0B, 11, 1238C
38C - 23V2 MR-372-J84-38C050$434_eng.mif
BOSCH 8.0 ESP
Vdiag No.: 0A, 0B, 11,
12
DF007
CONTINUED 1
Vdiag: 0A, 0B, 11, 12
NO
Check

Page 24 of 85

RENAULT SCENIC 2007 J84 / 2.G Anti Lock Braking System Bosch 8.0 ESP Owners Manual ANTI-LOCK BRAKING SYSTEM
BOSCH 8.0 ESP Vdiag No.: 0A, 0B, 11, 1238C
38C - 24V2 MR-372-J84-38C050$434_eng.mif
BOSCH 8.0 ESP
Vdiag No.: 0A, 0B, 11,
12
DF007

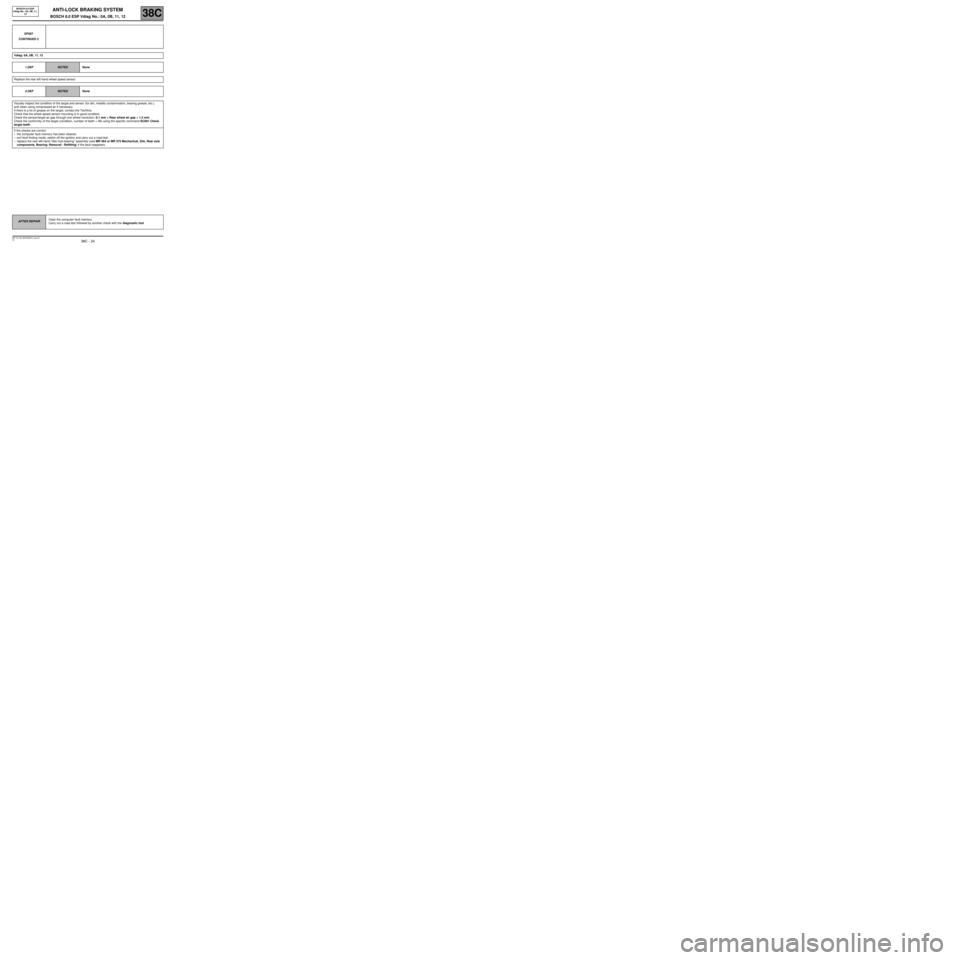

CONTINUED 2
Vdiag: 0A, 0B, 11, 12
1.DEF
NOT

Page 25 of 85

RENAULT SCENIC 2007 J84 / 2.G Anti Lock Braking System Bosch 8.0 ESP Owners Manual ANTI-LOCK BRAKING SYSTEM
BOSCH 8.0 ESP Vdiag No.: 08, 09, 0A, 0B, 11, 1238C
38C - 25V2 MR-372-J84-38C050$434_eng.mif
BOSCH 8.0 ESP
Vdiag No.: 08, 09, 0A,
0B, 11, 12
DF017
PRESENT
OR
STOREDCOMPUTER
1

Page 26 of 85

RENAULT SCENIC 2007 J84 / 2.G Anti Lock Braking System Bosch 8.0 ESP Owners Manual ANTI-LOCK BRAKING SYSTEM
BOSCH 8.0 ESP Vdiag No.: 08, 09, 0A, 0B, 11, 1238C
38C - 26V2 MR-372-J84-38C050$434_eng.mif
BOSCH 8.0 ESP
Vdiag No.: 08, 09, 0A,
0B, 11, 12
DF017
CONTINUED
2.DEF
NOTESSpecia

Page 27 of 85

RENAULT SCENIC 2007 J84 / 2.G Anti Lock Braking System Bosch 8.0 ESP Owners Manual ANTI-LOCK BRAKING SYSTEM
BOSCH 8.0 ESP Vdiag No.: 08, 09, 0A, 0B, 11, 1238C
38C - 27V2 MR-372-J84-38C050$434_eng.mif
BOSCH 8.0 ESP
Vdiag No.: 08, 09, 0A,
0B, 11, 12
DF020
PRESENT

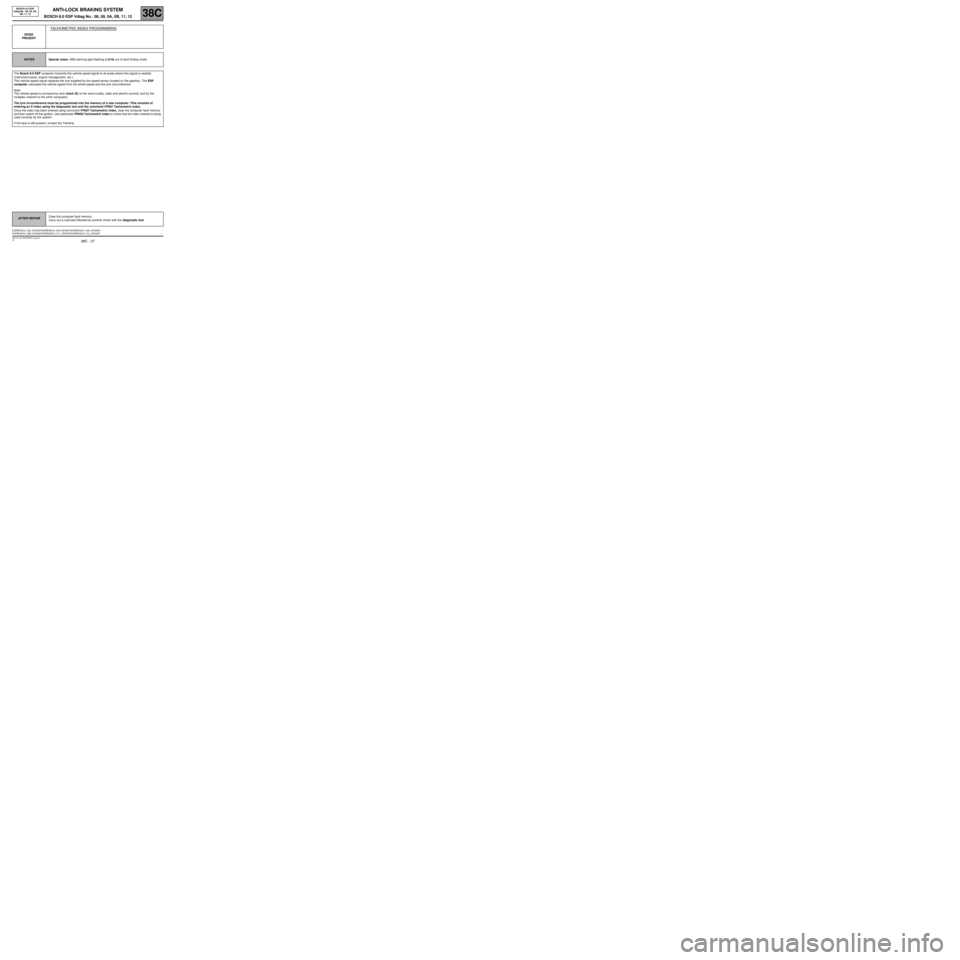

TACHOMETRIC INDEX P

Page 28 of 85

RENAULT SCENIC 2007 J84 / 2.G Anti Lock Braking System Bosch 8.0 ESP Owners Manual ANTI-LOCK BRAKING SYSTEM
BOSCH 8.0 ESP Vdiag No.: 08, 0938C
38C - 28V2 MR-372-J84-38C050$434_eng.mif
BOSCH 8.0 ESP
Vdiag No.: 08, 09
DF026
PRESENT
OR

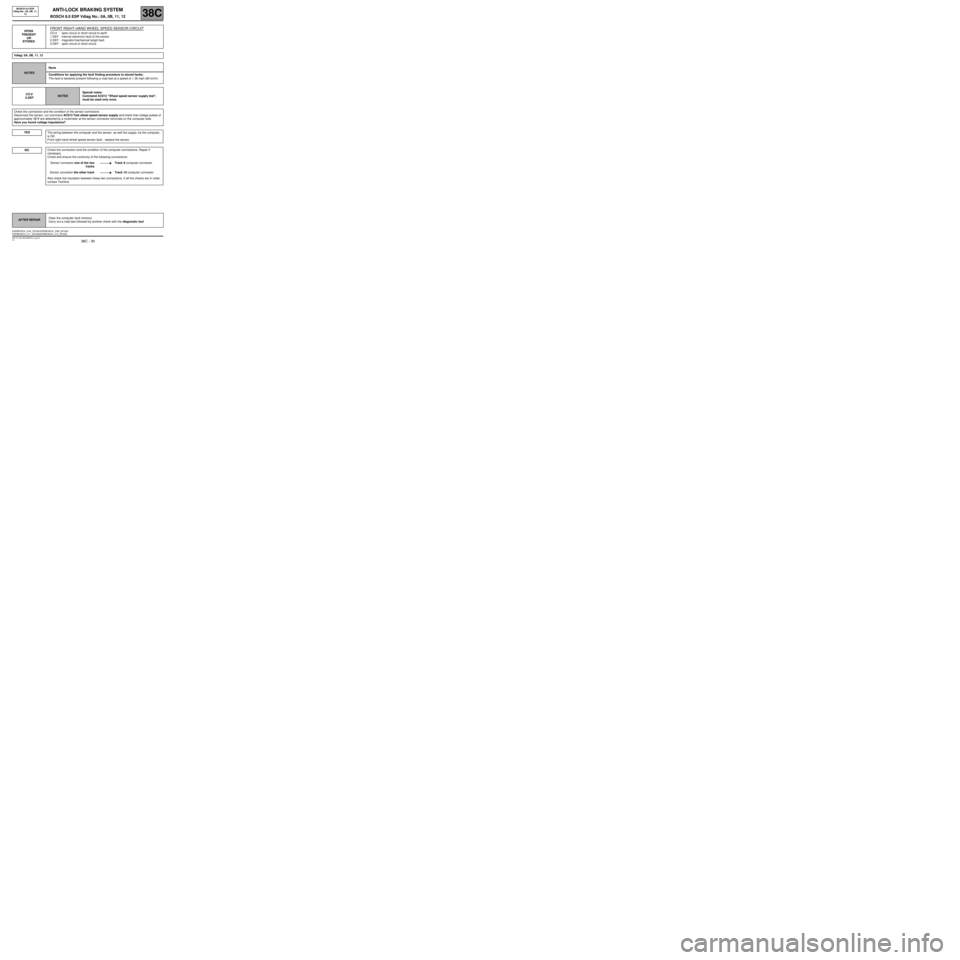

STOREDFRONT RIGHT-HAND WHEEL SPEED SENSOR CIRCUIT

Page 29 of 85

RENAULT SCENIC 2007 J84 / 2.G Anti Lock Braking System Bosch 8.0 ESP Owners Manual ANTI-LOCK BRAKING SYSTEM
BOSCH 8.0 ESP Vdiag No.: 08, 0938C
38C - 29V2 MR-372-J84-38C050$434_eng.mif
BOSCH 8.0 ESP
Vdiag No.: 08, 09
DF026
CONTINUED
Vdiag No.: 08 and 09
1.DEF
NOTESNone
Replace the f

Page 30 of 85

RENAULT SCENIC 2007 J84 / 2.G Anti Lock Braking System Bosch 8.0 ESP Owners Manual ANTI-LOCK BRAKING SYSTEM
BOSCH 8.0 ESP Vdiag No.: 0A, 0B, 11, 1238C
38C - 30V2 MR-372-J84-38C050$434_eng.mif
NO
BOSCH 8.0 ESP
Vdiag No.: 0A, 0B, 11,
12
DF026
PRESENT
OR
STOREDFRONT RIGHT-HAND WHEEL
