Page 21 of 38
80C-21V2 MR-372-J84-80C000$060.mif
XENON BULBS
Fault finding – Interpretation of faults80C
Program No.: V010
Vdiag No.: 05
AFTER REPAIRTurn on the dipped headlights and check that initialisation is performed.
If there is no initialisation, deal with the system faults.
Adjust the headlights manually after each computer calibration.
Carry out a road test followed by a check with the diagnostic tool.
DF009
PRESENT
OR STOREDREAR HEIGHT SENSOR CIRCUIT
CC.0: Short circuit to earth
CC.1: Short circuit to + 12 V
1.DEF: No signal
2.DEF : Signal outside upper limit
3.DEF: Signal outside lower limit.
4.DEF: Signal outside limit on initialisation
5.DEF: Inconsistent signal
NOTESThe fault is declared present after a road test.
CC.0
NOTESNone.
Check the condition of the contacts and connections of the xenon bulb computer and rear height sensor.
Check the continuity and insulation against earth between:
Track 6 of the rear level sensor connectorTrack 3 of the xenon bulb computer connector
Track 5 of the rear level sensor connectorTrack 8 of the xenon bulb computer connector
Then check the insulation of this connection against earth.
If the problem is still present, contact the Techline.
CC.1
NOTESNone.
Check the condition of the contacts and connections of the xenon bulb computer and rear level sensor.
Check the continuity and insulation against + 12 V between:
Track 6 of the rear level sensor connectorTrack 3 of the xenon bulb computer connector
Track 5 of the rear level sensor connectorTrack 8 of the xenon bulb computer connector
Then check the insulation of this connection against earth.
If the problem is still present, contact the Techline.
LAD_V05_DF009

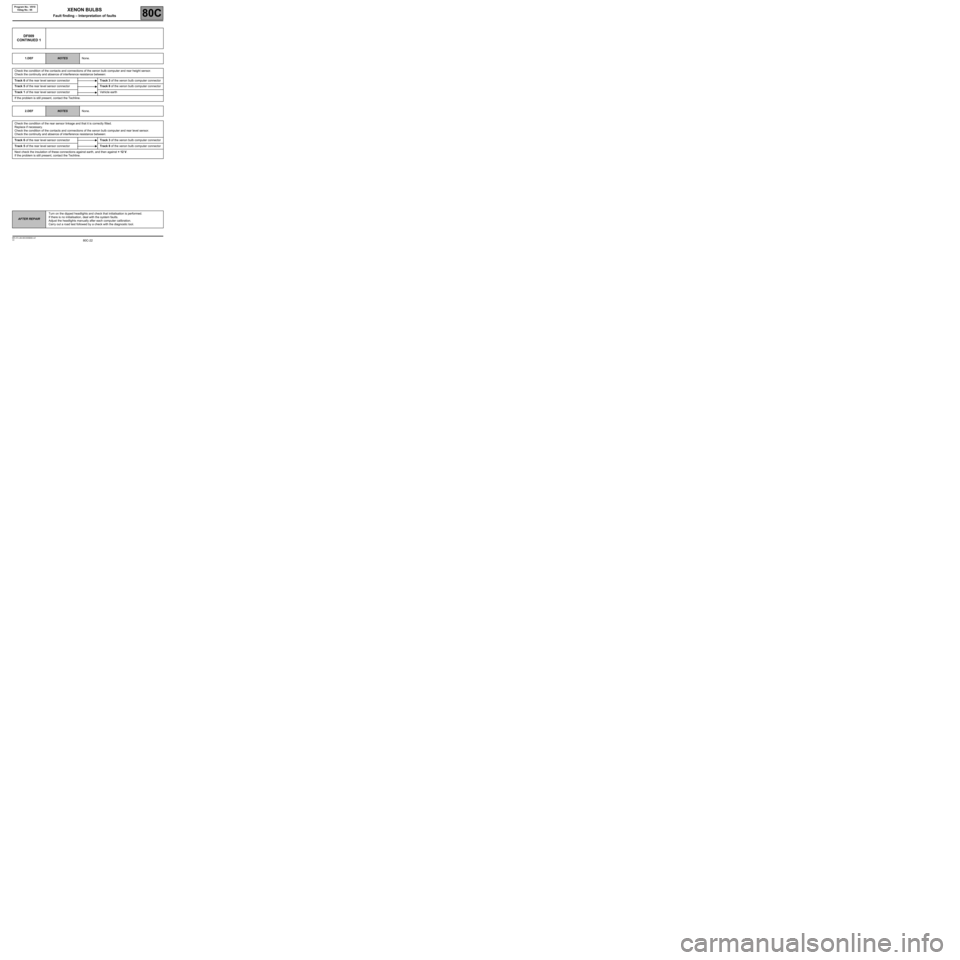

Page 22 of 38
80C-22V2 MR-372-J84-80C000$060.mif
XENON BULBS
Fault finding – Interpretation of faults80C
Program No.: V010
Vdiag No.: 05
AFTER REPAIRTurn on the dipped headlights and check that initialisation is performed.
If there is no initialisation, deal with the system faults.
Adjust the headlights manually after each computer calibration.
Carry out a road test followed by a check with the diagnostic tool.
DF009
CONTINUED 1
1.DEFNOTESNone.
Check the condition of the contacts and connections of the xenon bulb computer and rear height sensor.
Check the continuity and absence of interference resistance between:
Track 6 of the rear level sensor connectorTrack 3 of the xenon bulb computer connector
Track 5 of the rear level sensor connectorTrack 8 of the xenon bulb computer connector
Track 1 of the rear level sensor connector Vehicle earth
If the problem is still present, contact the Techline.
2.DEF
NOTESNone.
Check the condition of the rear sensor linkage and that it is correctly fitted.
Replace if necessary.
Check the condition of the contacts and connections of the xenon bulb computer and rear level sensor.
Check the continuity and absence of interference resistance between:
Track 6 of the rear level sensor connectorTrack 3 of the xenon bulb computer connector
Track 5 of the rear level sensor connectorTrack 8 of the xenon bulb computer connector
Next check the insulation of these connections against earth, and then against + 12 V.
If the problem is still present, contact the Techline.

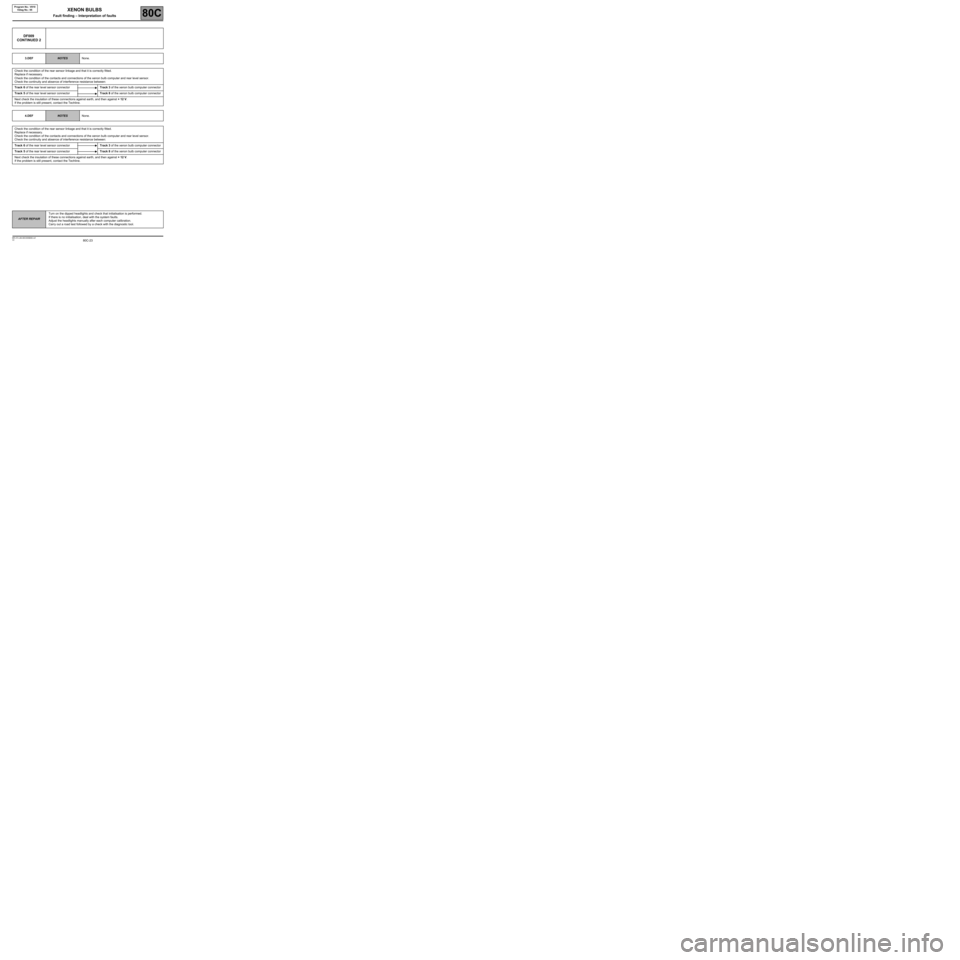

Page 23 of 38
80C-23V2 MR-372-J84-80C000$060.mif
XENON BULBS
Fault finding – Interpretation of faults80C
Program No.: V010
Vdiag No.: 05
AFTER REPAIRTurn on the dipped headlights and check that initialisation is performed.
If there is no initialisation, deal with the system faults.
Adjust the headlights manually after each computer calibration.
Carry out a road test followed by a check with the diagnostic tool.
DF009
CONTINUED 2
3.DEFNOTESNone.
Check the condition of the rear sensor linkage and that it is correctly fitted.
Replace if necessary.
Check the condition of the contacts and connections of the xenon bulb computer and rear level sensor.
Check the continuity and absence of interference resistance between:
Track 6 of the rear level sensor connectorTrack 3 of the xenon bulb computer connector
Track 5 of the rear level sensor connectorTrack 8 of the xenon bulb computer connector
Next check the insulation of these connections against earth, and then against + 12 V.
If the problem is still present, contact the Techline.
4.DEF
NOTESNone.
Check the condition of the rear sensor linkage and that it is correctly fitted.
Replace if necessary.
Check the condition of the contacts and connections of the xenon bulb computer and rear level sensor.
Check the continuity and absence of interference resistance between:
Track 6 of the rear level sensor connectorTrack 3 of the xenon bulb computer connector
Track 5 of the rear level sensor connectorTrack 8 of the xenon bulb computer connector
Next check the insulation of these connections against earth, and then against + 12 V.
If the problem is still present, contact the Techline.

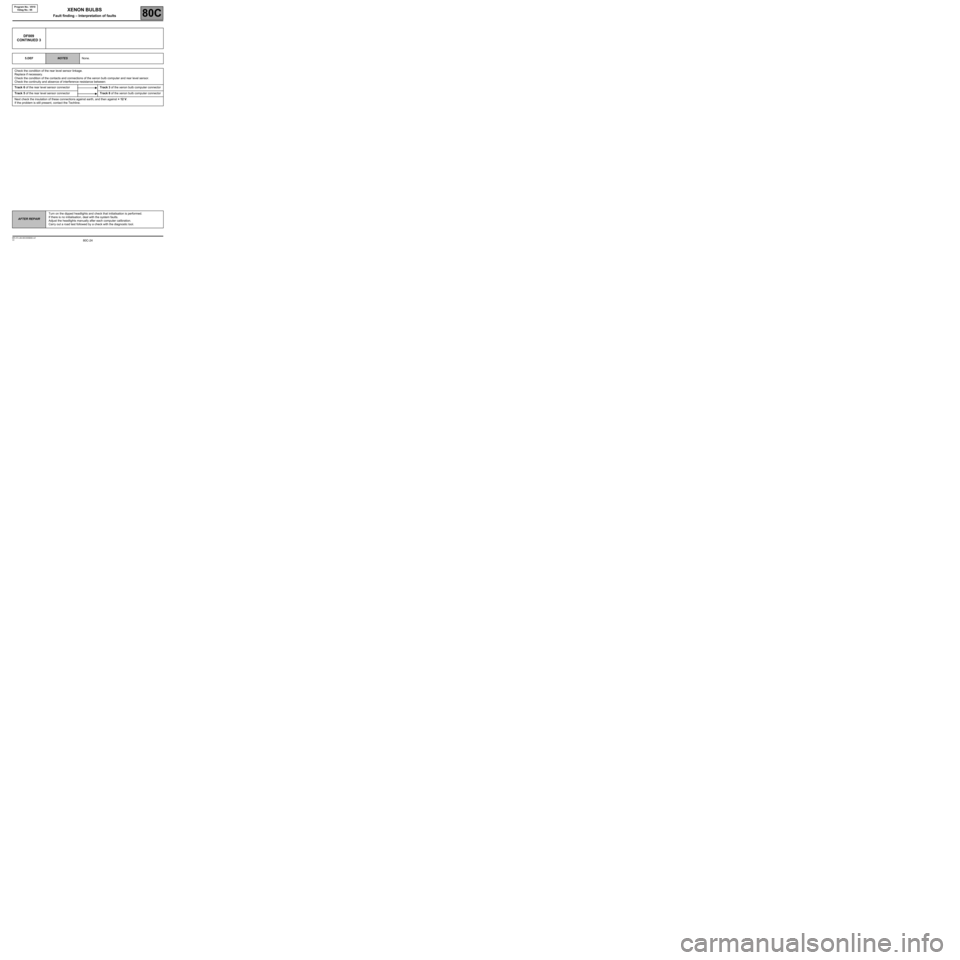

Page 24 of 38
80C-24V2 MR-372-J84-80C000$060.mif
XENON BULBS
Fault finding – Interpretation of faults80C
Program No.: V010
Vdiag No.: 05
AFTER REPAIRTurn on the dipped headlights and check that initialisation is performed.
If there is no initialisation, deal with the system faults.
Adjust the headlights manually after each computer calibration.
Carry out a road test followed by a check with the diagnostic tool.
DF009
CONTINUED 3
5.DEFNOTESNone.
Check the condition of the rear level sensor linkage.
Replace if necessary.
Check the condition of the contacts and connections of the xenon bulb computer and rear level sensor.
Check the continuity and absence of interference resistance between:
Track 6 of the rear level sensor connectorTrack 3 of the xenon bulb computer connector
Track 5 of the rear level sensor connectorTrack 8 of the xenon bulb computer connector
Next check the insulation of these connections against earth, and then against + 12 V.
If the problem is still present, contact the Techline.

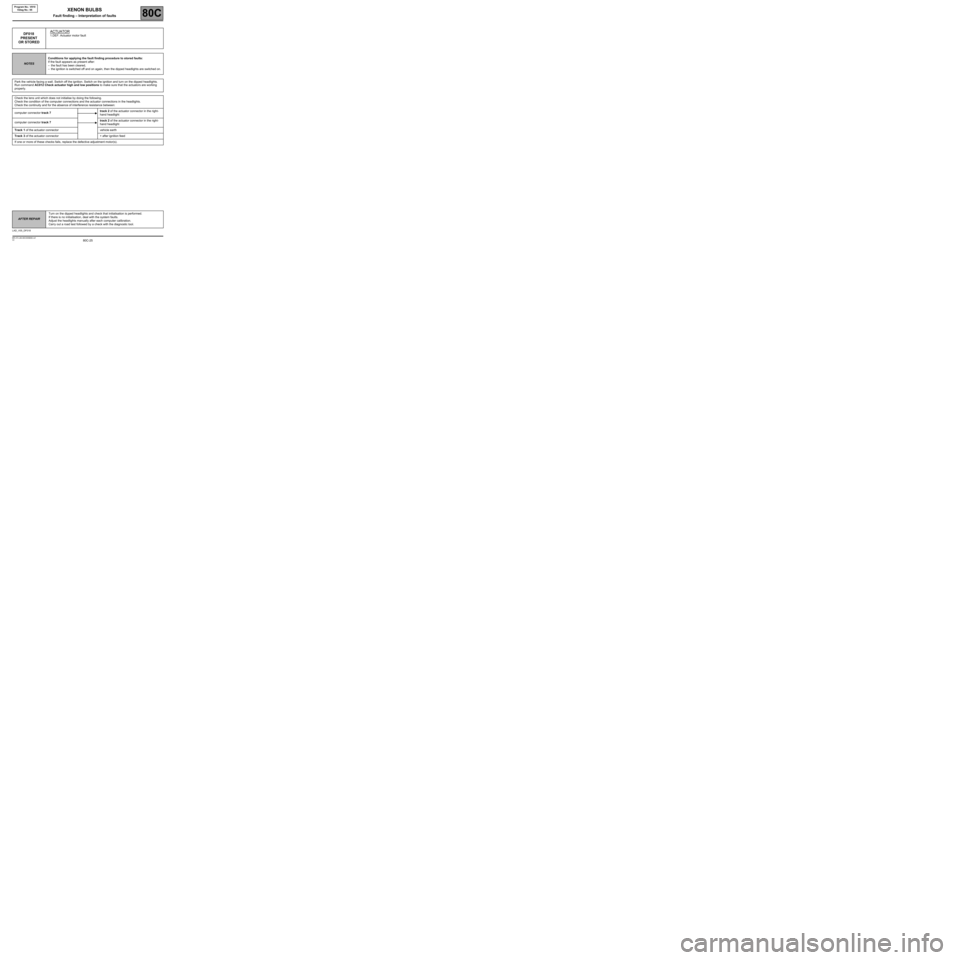

Page 25 of 38
80C-25V2 MR-372-J84-80C000$060.mif
XENON BULBS
Fault finding – Interpretation of faults80C
Program No.: V010
Vdiag No.: 05
AFTER REPAIRTurn on the dipped headlights and check that initialisation is performed.
If there is no initialisation, deal with the system faults.
Adjust the headlights manually after each computer calibration.
Carry out a road test followed by a check with the diagnostic tool.
DF018
PRESENT
OR STOREDACTUATOR1.DEF: Actuator motor fault
NOTESConditions for applying the fault finding procedure to stored faults:
If the fault appears as present after:
–the fault has been cleared,
–the ignition is switched off and on again, then the dipped headlights are switched on.
Park the vehicle facing a wall. Switch off the ignition. Switch on the ignition and turn on the dipped headlights.
Run command AC012 Check actuator high and low positions to make sure that the actuators are working
properly.
Check the lens unit which does not initialise by doing the following.
Check the condition of the computer connections and the actuator connections in the headlights.
Check the continuity and for the absence of interference resistance between:
computer connector track 7track 2 of the actuator connector in the right-
hand headlight
computer connector track 7track 2 of the actuator connector in the right-
hand headlight
Track 1 of the actuator connector vehicle earth
Track 3 of the actuator connector + after ignition feed
If one or more of these checks fails, replace the defective adjustment motor(s).
LAD_V05_DF018

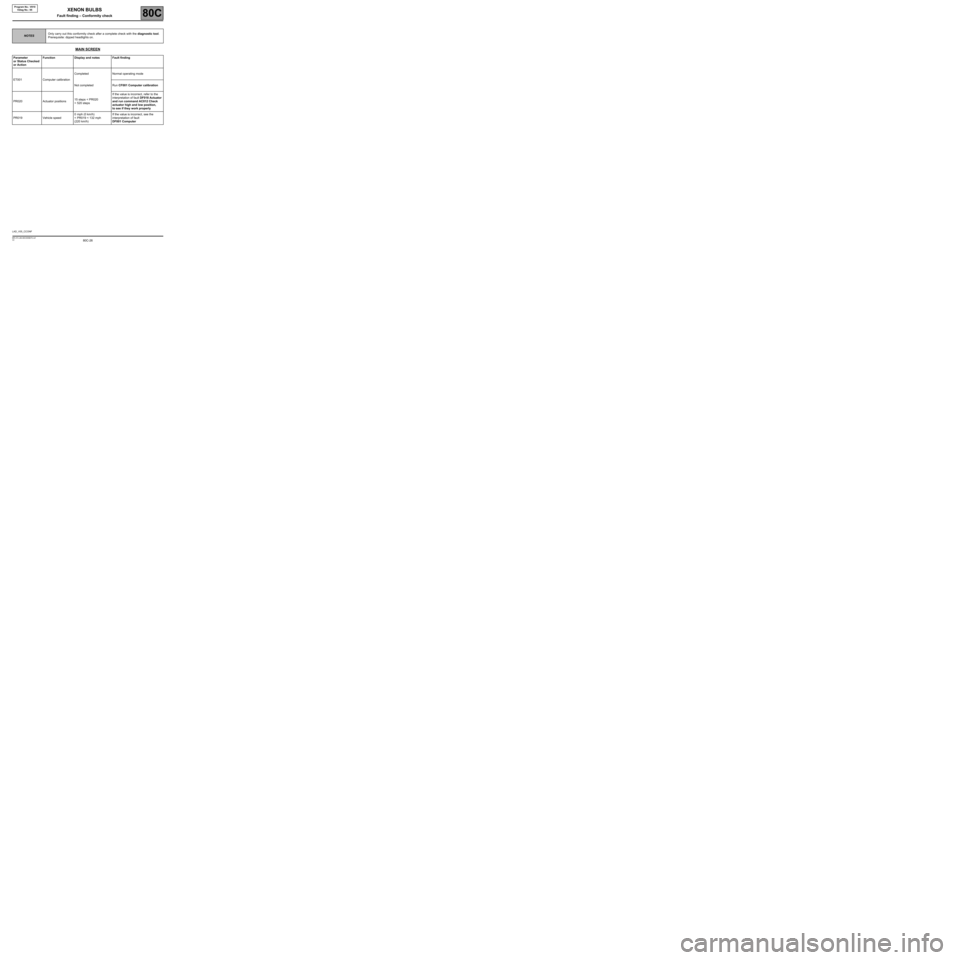

Page 26 of 38
80C-26V2 MR-372-J84-80C000$070.mif
80C
Program No.: V010
Vdiag No.: 05
MAIN SCREEN
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool.
Prerequisite: dipped headlights on.
Parameter
or Status Checked
or ActionFunction Display and notes Fault finding
ET001 Computer calibrationCompleted Normal operating mode
Not completed Run CF001 Computer calibration
PR020 Actuator positions15 steps < PR020
< 520 stepsIf the value is incorrect, refer to the
interpretation of fault DF018 Actuator
and run command AC012 Check
actuator high and low position,
to see if they work properly
PR019 Vehicle speed0 mph (0 km/h)
< PR019 < 132 mph
(220 km/h)If the value is incorrect, see the
interpretation of fault
DF001 Computer
LAD_V05_CCONF
XENON BULBS
Fault finding – Conformity check

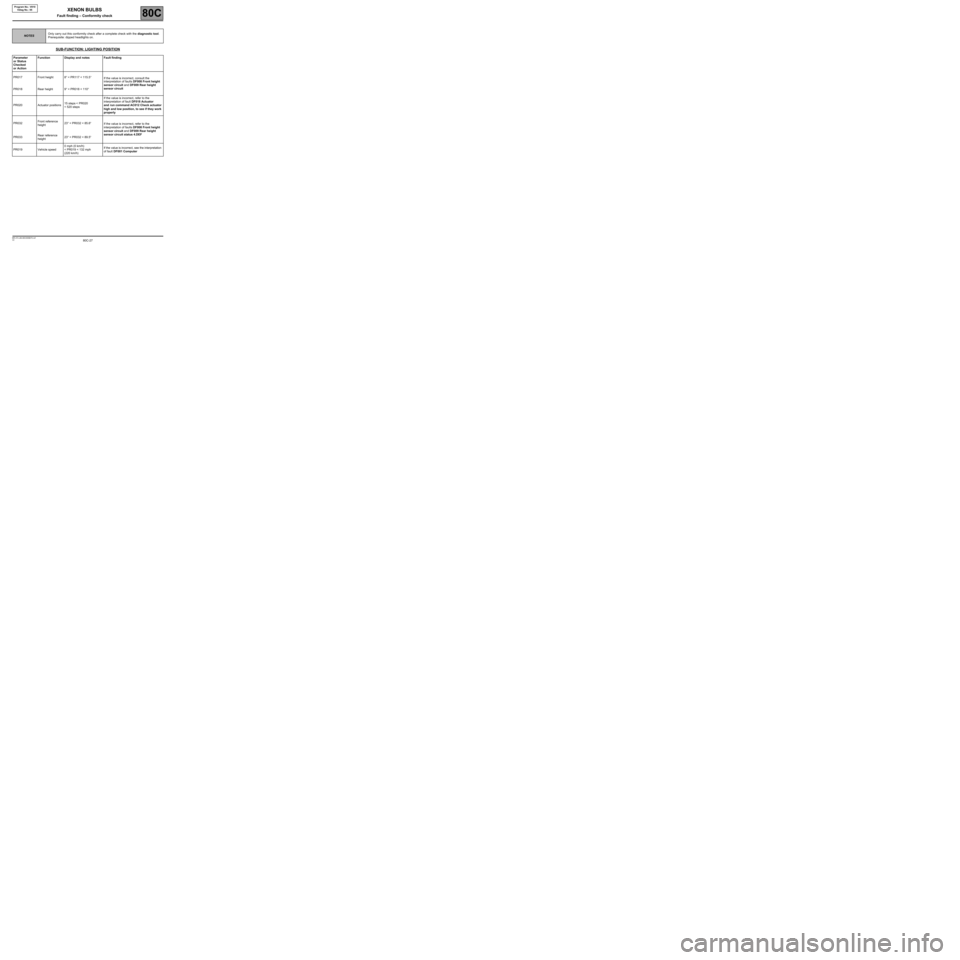

Page 27 of 38
80C-27V2 MR-372-J84-80C000$070.mif
XENON BULBS
Fault finding – Conformity check80C
Program No.: V010
Vdiag No.: 05
SUB-FUNCTION: LIGHTING POSITION
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool.
Prerequisite: dipped headlights on.
Parameter
or Status
Checked
or ActionFunction Display and notes Fault finding
PR017 Front height 8° < PR117 < 115.5°
If the value is incorrect, consult the
interpretation of faults DF008 Front height
sensor circuit and DF009 Rear height
sensor circuit
PR018 Rear height 9° < PR018 < 110°
PR020 Actuator positions15 steps < PR020
< 520 stepsIf the value is incorrect, refer to the
interpretation of fault DF018 Actuator
and run command AC012 Check actuator
high and low position, to see if they work
properly
PR032Front reference
height23° < PR032 < 85.6°
If the value is incorrect, refer to the
interpretation of faults DF008 Front height
sensor circuit and DF009 Rear height
sensor circuit status 4.DEF
PR033Rear reference
height23° < PR032 < 89.5°
PR019 Vehicle speed0 mph (0 km/h)
< PR019 < 132 mph
(220 km/h)If the value is incorrect, see the interpretation
of fault DF001 Computer

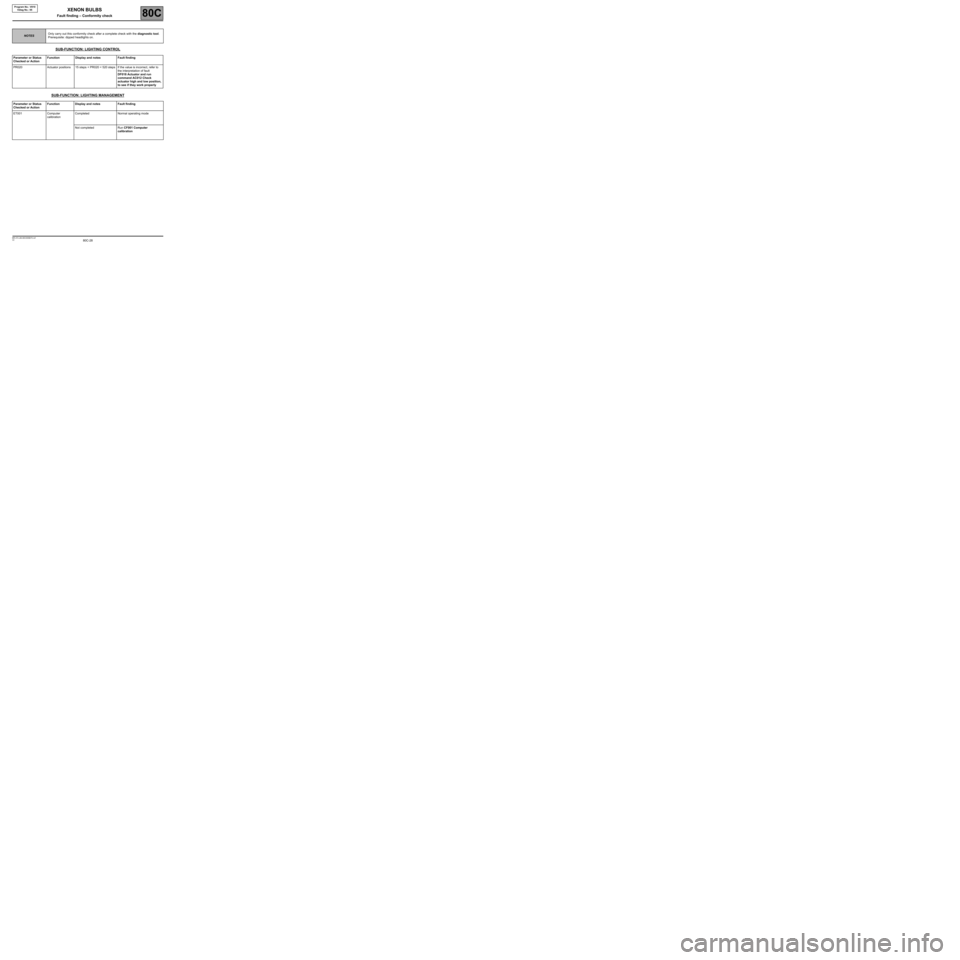

Page 28 of 38
80C-28V2 MR-372-J84-80C000$070.mif
XENON BULBS
Fault finding – Conformity check80C
Program No.: V010
Vdiag No.: 05
SUB-FUNCTION: LIGHTING CONTROL
SUB-FUNCTION: LIGHTING MANAGEMENT
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool.
Prerequisite: dipped headlights on.
Parameter or Status
Checked or ActionFunction Display and notes Fault finding
PR020 Actuator positions 15 steps < PR020 < 520 steps If the value is incorrect, refer to
the interpretation of fault
DF018 Actuator and run
command AC012 Check
actuator high and low position,
to see if they work properly
Parameter or Status
Checked or ActionFunction Display and notes Fault finding
ET001 Computer
calibrationCompleted Normal operating mode
Not completed Run CF001 Computer
calibration

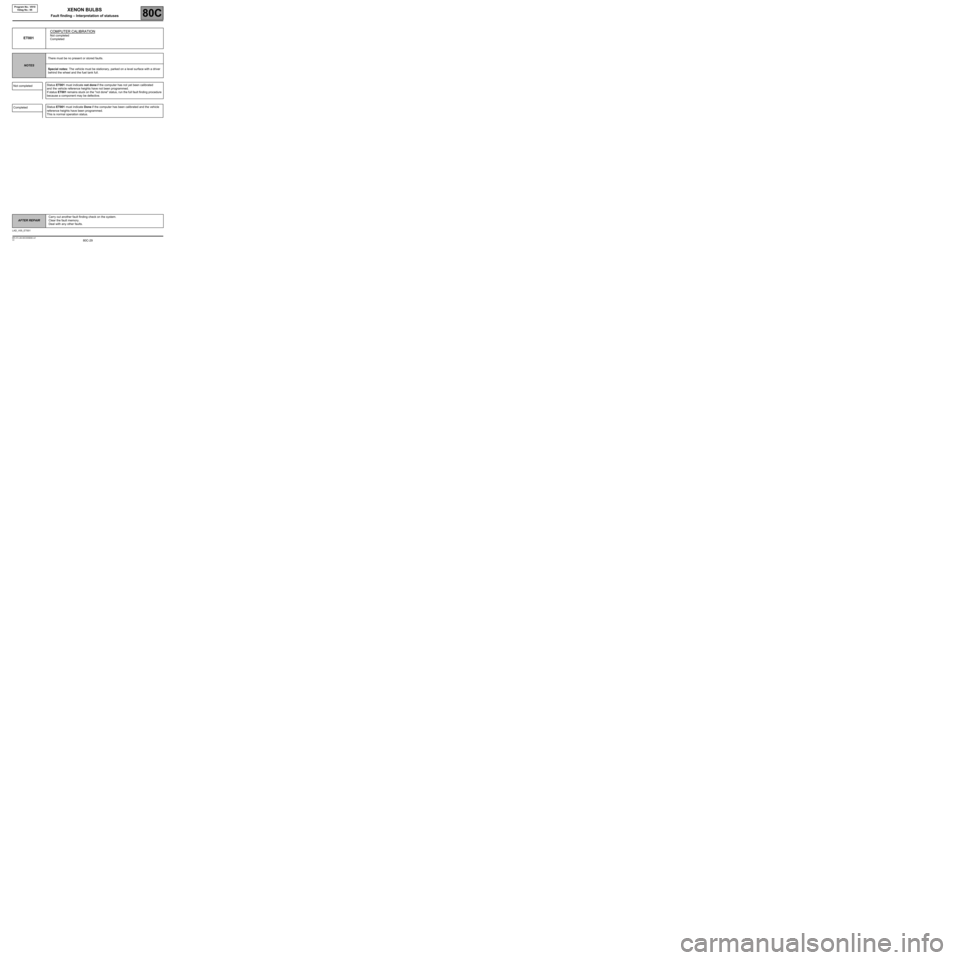

Page 29 of 38
80C-29
AFTER REPAIRCarry out another fault finding check on the system.
Clear the fault memory.
Deal with any other faults.
V2 MR-372-J84-80C000$080.mif
80C
Program No.: V010
Vdiag No.: 05
ET001COMPUTER CALIBRATIONNot completed
Completed
NOTESThere must be no present or stored faults.
Special notes: The vehicle must be stationary, parked on a level surface with a driver
behind the wheel and the fuel tank full.
Not completedStatus ET001 must indicate not done if the computer has not yet been calibrated
and the vehicle reference heights have not been programmed.
If status ET001 remains stuck on the "not done" status, run the full fault finding procedure
because a component may be defective.
CompletedStatus ET001 must indicate Done if the computer has been calibrated and the vehicle
reference heights have been programmed.
This is normal operation status.
LAD_V05_ET001
XENON BULBS
Fault finding – Interpretation of statuses

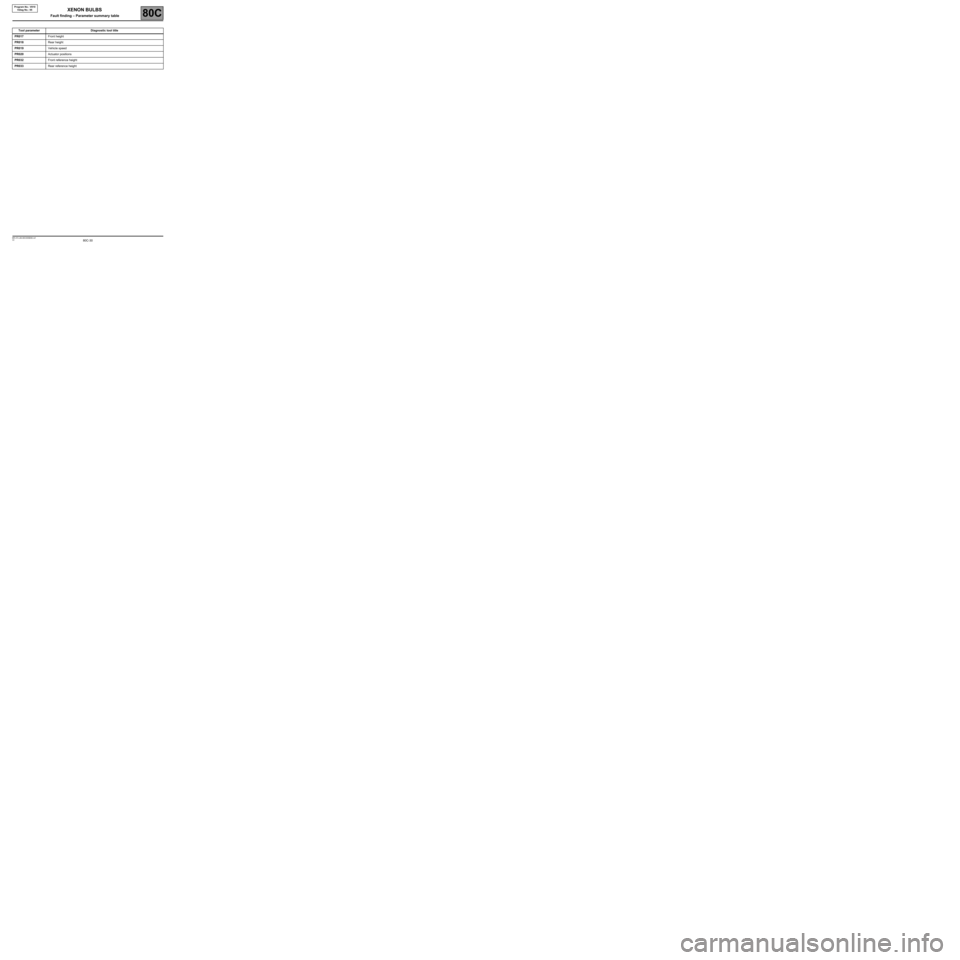

Page 30 of 38
80C-30V2 MR-372-J84-80C000$090.mif
80C
Program No.: V010
Vdiag No.: 05
Tool parameter Diagnostic tool title
PR017Front height
PR018Rear height
PR019Vehicle speed
PR020Actuator positions
PR032Front reference height
PR033Rear reference height
XENON BULBS
Fault finding – Parameter summary table
