Page 31 of 38
80C-31V2 MR-372-J84-80C000$100.mif
80C
Program No.: V010
Vdiag No.: 05
AFTER REPAIRCarry out another fault finding check on the system.
Clear the fault memory.
Deal with any other faults.
PR017
AND
PR018FRONT HEIGHT
REAR HEIGHT
NOTESThere must be no present or stored faults.
Carry out fault finding only if the values of this parameter are inconsistent.
If the values indicated by the vehicle do not match those of the conformity check, see faults DF008 Front height
sensor circuit and DF009 Rear height sensor circuit, and follow the fault finding procedure.
LAD_V05_PR017 / LAD_V05_PR018
XENON BULBS
Fault finding – Interpretation of parameters

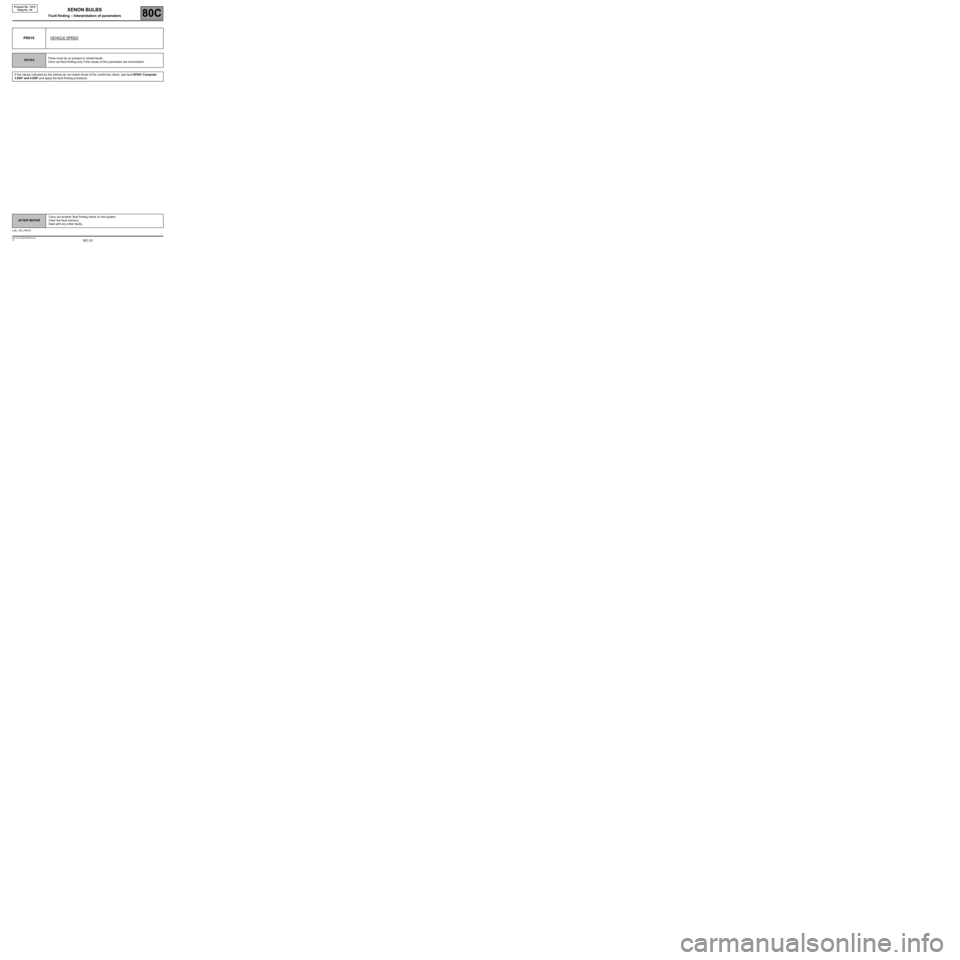

Page 32 of 38
80C-32
AFTER REPAIRCarry out another fault finding check on the system.
Clear the fault memory.
Deal with any other faults.
V2 MR-372-J84-80C000$100.mif
XENON BULBS
Fault finding – Interpretation of parameters80C
Program No.: V010
Vdiag No.: 05
PR019VEHICLE SPEED
NOTESThere must be no present or stored faults.
Carry out fault finding only if the values of this parameter are inconsistent.
If the values indicated by the vehicle do not match those of the conformity check, see fault DF001 Computer
3.DEF and 4.DEF and apply the fault finding procedure.
LAD_V05_PR019
Page 33 of 38
80C-33
AFTER REPAIRCarry out another fault finding check on the system.
Clear the fault memory.
Deal with any other faults.
V2 MR-372-J84-80C000$100.mif
XENON BULBS
Fault finding – Interpretation of parameters80C
Program No.: V010
Vdiag No.: 05
IMPORTANT
Even though a height sensor or actuator is defective, the value of parameter PR020 will always be determined by the
computer.
Parameter PR020 will therefore always be within a range of allowed values even if a component is defective.
PR020ACTUATOR POSITIONS
NOTESThere must be no present or stored faults.
Carry out fault finding only if the values of this parameter are inconsistent.
If the values indicated by the vehicle do not match those of the conformity check, see fault DF018, Actuators,
and follow the fault finding procedure.
To find out if an actuator is malfunctioning, see command AC012 Check actuator high and low position.
LAD_V05_PR020

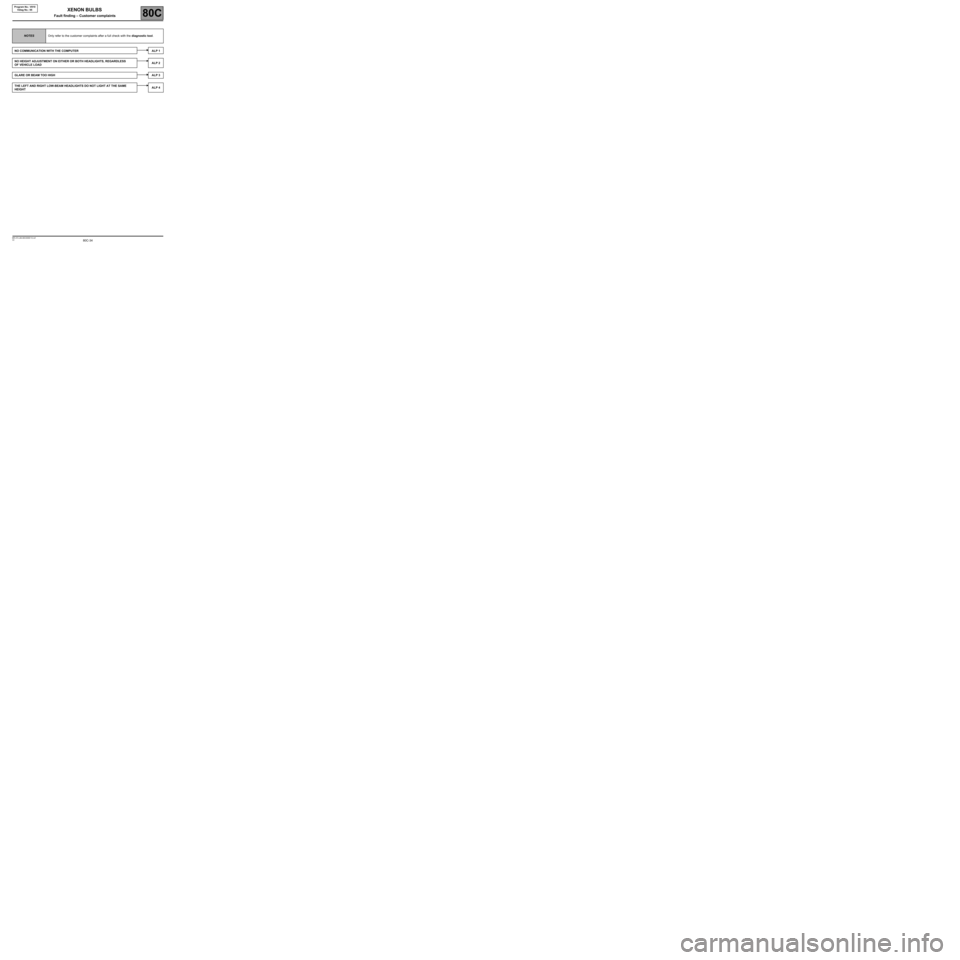

Page 34 of 38
80C-34V2 MR-372-J84-80C000$110.mif
80C
Program No.: V010
Vdiag No.: 05
NOTESOnly refer to the customer complaints after a full check with the diagnostic tool.
NO COMMUNICATION WITH THE COMPUTER ALP 1
NO HEIGHT ADJUSTMENT ON EITHER OR BOTH HEADLIGHTS, REGARDLESS
OF VEHICLE LOADALP 2
GLARE OR BEAM TOO HIGHALP 3
THE LEFT AND RIGHT LOW-BEAM HEADLIGHTS DO NOT LIGHT AT THE SAME
HEIGHTALP 4
XENON BULBS
Fault finding – Customer complaints
Page 35 of 38
80C-35
AFTER REPAIRPerform a check using the diagnostic tool.
Deal with any faults found.
V2 MR-372-J84-80C000$120.mif
80C
Program No.: V010
Vdiag No.: 05
ALP 1No dialogue with the computer
NOTESOnly refer to this customer complaint after a complete check with the diagnostic tool.
Check the 1K (5A) fuse of the passenger compartment relay and fuse box.
Replace it if necessary.
Turn on dipped-beam headlights.
If the bulbs light but the system does not perform initialisation and no communication is possible, perform the
following checks:
Remove the timed power supply 40A relay A located in the passenger compartment fuse and relay box.
Check the condition of the connections and repair if necessary.
Measure the following resistance values:
–Power circuit: Resistance between tracks 85 and 86 of the relay.
If the resistance is not 65 ± 5 ΩΩ Ω Ω
, replace relay A.
–Control circuit: Resistance between tracks 30 and 87A of the relay.
If the resistance is not approximately 1 ΩΩ Ω Ω
, replace relay A.
Check the battery voltage and carry out the operations necessary to obtain a suitable voltage (9.5 V < battery
voltage <14.4 V).
Check for:
a + 12 V supply before ignition on track 16 of the diagnostic socket,
a + 12 V supply after ignition on track 1 of the diagnostic socket,
earth on tracks 4 and 5 of the diagnostic socket.
Repair if necessary.
If the fault is still present, contact the Techline.
LAD_V05_ALP1
XENON BULBS
Fault finding – Fault finding charts
Page 36 of 38
80C-36
AFTER REPAIRPerform a check using the diagnostic tool.
Deal with any faults found.
V2 MR-372-J84-80C000$120.mif
XENON BULBS
Fault finding – Fault finding charts80C
Program No.: V010
Vdiag No.: 05
ALP 2No correction of the height of the one or both headlights
whatever the vehicle load
NOTESOnly refer to this customer complaint after a complete check with the diagnostic tool.
Confirm that initialisation is performed when the dipped headlights are switched on.
If it is not, the actuators or a circuit component may be defective.
Check the condition of fuse F1K (5A) located in the vehicle's glovebox.
Repair if necessary.
Run command AC012 Check actuator high and low position to find out which headlight is faulty.
Check for mechanical blockage of the headlight (ball joint popped out, reflector stuck, actuator seized).
Make sure that the sensors are properly positioned and mounted on the body, and check the condition
of the linkage.
If all the checks described above fail to solve the fault, replace the faulty adjustment motor(s).
LAD_V05_ALP2
Page 37 of 38
80C-37V2 MR-372-J84-80C000$120.mif
XENON BULBS
Fault finding – Fault finding charts80C
Program No.: V010
Vdiag No.: 05
ALP 3Glare, or beam too high
NOTESOnly refer to this customer complaint after a complete check with the diagnostic tool.
Check that headlights are mounted correctly.
Check that the right-hand and left-hand headlights light at the same level.
If the headlights differ in height, adjust the headlights manually.
Check the condition of system mechanical components (sensor mounting, links).
Check whether the initial front and rear heights PR032 Reference front height and PR033 Reference rear
height are similar.
If there is a major difference between these two parameters, perform a computer calibration (CF001 Computer
calibration described in the Configurations and Programming section).
Run actuator command AC012 Check actuator high and low position.
If the light beam moves: adjust the headlights manually.
If the light beam does not move:
Check that the adjustment motors are actuated when the command is run (motor noise + vibration).
If the motors are actuated but the beam does not move, check the condition of the adjustment motor/headlight
coupling rods. Replace the faulty headlight(s).
LAD_V05_ALP3
AFTER REPAIRPerform a check using the diagnostic tool.
Deal with any faults found.
Page 38 of 38
80C-38V2 MR-372-J84-80C000$120.mif
XENON BULBS
Fault finding – Fault finding charts80C
Program No.: V010
Vdiag No.: 05
ALP 4The left-hand and right-hand dipped headlight beams do not light at the same
height
NOTESOnly refer to this customer complaint after a complete check with the diagnostic tool.
Check that headlights are mounted correctly.
Check that the right-hand and left-hand headlights light at the same level.
If the headlights differ in height, adjust the headlights manually.
Check the condition of system mechanical components (sensor mounting, links).
Check whether the initial front and rear heights PR032 Reference front height and PR033 Reference rear
height are similar.
If there is a major difference between these two parameters, perform a computer calibration (CF001 Computer
calibration described in the Configurations and Programming section).
Run actuator command AC012 Check actuator high and low position.
If the light beam moves: adjust the headlights manually.
If the light beam does not move:
Check that the adjustment motors are actuated when the command is run (motor noise + vibration).
If the motors are actuated but the beam does not move, check the condition of the adjustment motor/headlight
coupling rods. Replace the faulty headlight(s).
LAD_V05_ALP4
AFTER REPAIRPerform a check using the diagnostic tool.
Deal with any faults found.
