POWER-ASSISTED STEERING
Fault finding – Fault Finding Chart
36B
36B-49V5 MR-372-J84-36B000$924_fra.mif
EPAS
Vdiag no.: 05, 09,
0D
ALP2 Loss of vehicle assistance without warning
NOTESOnly consult this customer complaint after a complete check with the diagnostic tool.
The vehicle is no longer assisted if the Electric Power Steering fuse is damaged or supply is lost. The steering is
equivalent to manual steering, manoeuvrable when driving even at low speeds, but very difficult to manoeuvre
when stopped.
Since it is no longer being supplied, the EPAS computer is not capable of lighting the warning light, but the
instrument panel lights the STOP warning light + Message 4 seconds after the loss of the feed causing the loss
of assistance.
The driver will only become aware of the fault through noticing the loss of assistance at the steering wheel.
Check the fuses for the electric power-assisted steering:
Power fuse 80A BP81 in the engine fuse box.
5A AP44 + after ignition fuse on the UPC.
Check the condition of the electric power-assisted steering connectors and repair if necessary.
Check that the electrical feeds to the computer are correct:
2-track connector track 2vehicle earth
2-track connector track 1+ battery feed
8-track connector track 8+ after ignition feed
Repair if necessary.
Check the insulation, continuity and the absence of interference resistance on the connections between the electric
power-assisted steering computer and the instrument panel.
8-track connector track 6 track 30 of the instrument panel
8-track connector track 4 track 29 of the instrument panel
Check that the steering column and steering rack are in sound mechanical condition.
Repair if necessary.
Make sure that the front axle components, such as the track rod ends and shock absorber base plates, are in sound
mechanical condition.
Repair if necessary.
If the fault is still present, contact the Techline.
AFTER REPAIRPerform a test using the diagnostic tool.
DAE_V05_ALP2/DAE_V09_ALP2/DAE_V0D_ALP2

POWER-ASSISTED STEERING
Fault finding – Fault Finding Chart
36B
36B-52V5 MR-372-J84-36B000$924_fra.mif
EPAS
Vdiag no.: 05, 09,
0D

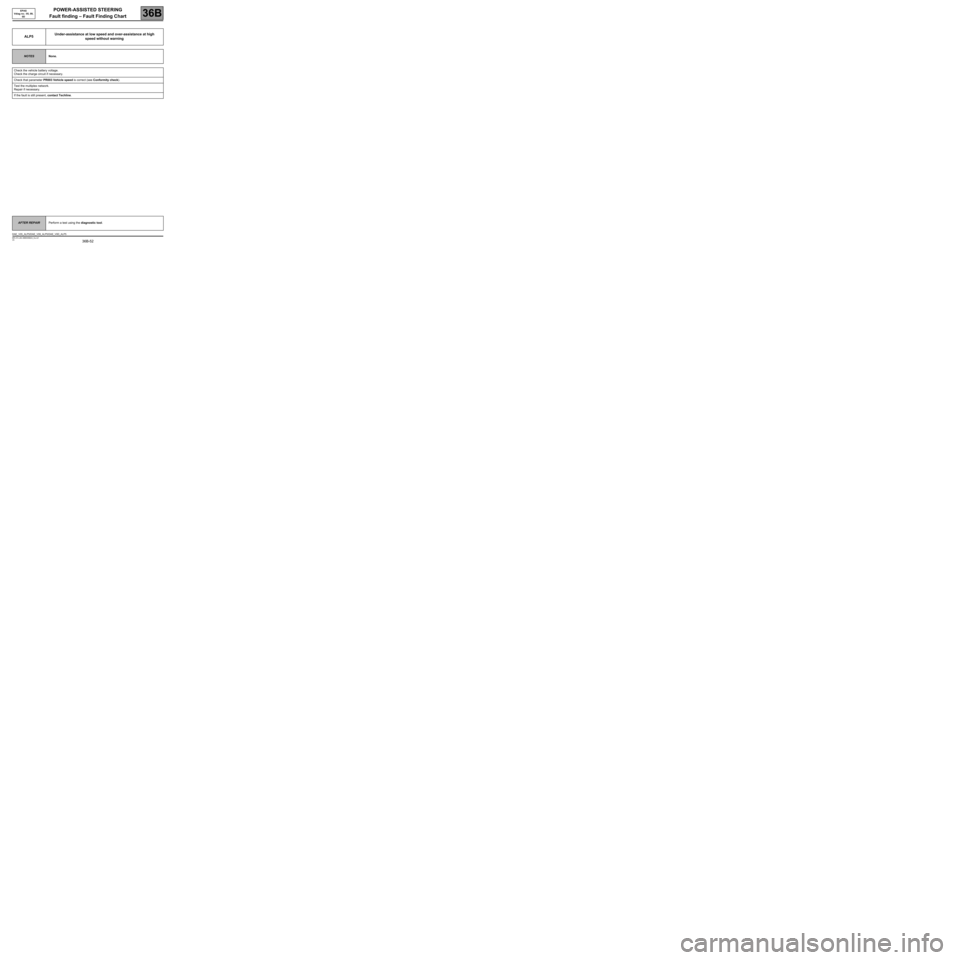

ALP5Under-assistance at low speed and over-assistance at high
speed without warning
NOTESNone.
Check the vehicle battery voltage.
Check the charge circuit if necessary.
Check that parameter PR003 Vehicle speed is correct (see Conformity check).
Test the multiplex network.
Repair if necessary.
If the fault is still present, contact Techline.
AFTER REPAIRPerform a test using the diagnostic tool.
DAE_V05_ALP5/DAE_V09_ALP5/DAE_V0D_ALP5

POWER-ASSISTED STEERING
Fault finding – Fault Finding Chart
36B
36B-55V5 MR-372-J84-36B000$924_fra.mif
EPAS
Vdiag no.: 05, 09,
0D
ALP8Assistance available but Check Steering warning message
displayed and Service indicator light continuously lit
NOTESNone.
Check the vehicle battery voltage and the condition of the electric power-assisted steering connector.
Repair and check the charge circuit if necessary.
Vdiag 05 and 09: Check status ET020 Steering wheel angle programming which should be STATUS 4. If not,
program the steering wheel angle sensor VP004 Steering wheel angle programming (see Configuration and
programming).
If the fault is still present, contact the Techline.
AFTER REPAIRPerform a test using the diagnostic tool.
DAE_V05_ALP8/DAE_V09_ALP8/DAE_V0D_ALP8

POWER-ASSISTED STEERING
Fault finding – Fault Finding Chart
36B
36B-58V5 MR-372-J84-36B000$924_fra.mif
EPAS
Vdiag no.: 05, 09,
0D
ALP11Steering assistance is available with ignition on and engine
stopped, with no warning
NOTESNote :
This fault may arise if the multiplex signal for the operating status of the engine is faulty
or after the ignition is switched off and quickly back on without the engine being started.
Ask the client if he does actually operate the vehicle incorrectly in this way before
applying this fault finding procedure. If necessary, explain correct operation to him.
Disconnect the 8-track connector from the EPAS computer.
Check the condition and conformity of the connector and its clips.
Repair if necessary.
Check the insulation, continuity and the absence of interference resistance on the following connections:
EPAS computer
(8-track connector)UCH
(PE2 40-track connector)Protection and
Switching Unit
(CT1 12-track connector)
track 7 track 8
track 5 track 18
track 6 track 8
track 16 track 1
track 9 Injection
Computer
track 7 Injection
Computer
(see wiring
diagram of the
injection installed
in the vehicle)
Repair if necessary.
Check the consistency of status ET023 Engine operation by comparison with the actual status of the engine.
If the status is not correct, carry out fault finding on the multiplex network (see 88B, Multiplexing) and the injection
(see 13B, Diesel injection and 17B, Petrol injection).
Repair if necessary.
If the fault is still present, contact the Techline.
AFTER REPAIRPerform a test using the diagnostic tool.
DAE_V05_ALP11/DAE_V09_ALP11/DAE_V0D_ALP11
