navigation system RENAULT SCENIC 2008 J84 / 2.G LPN Radio User Guide

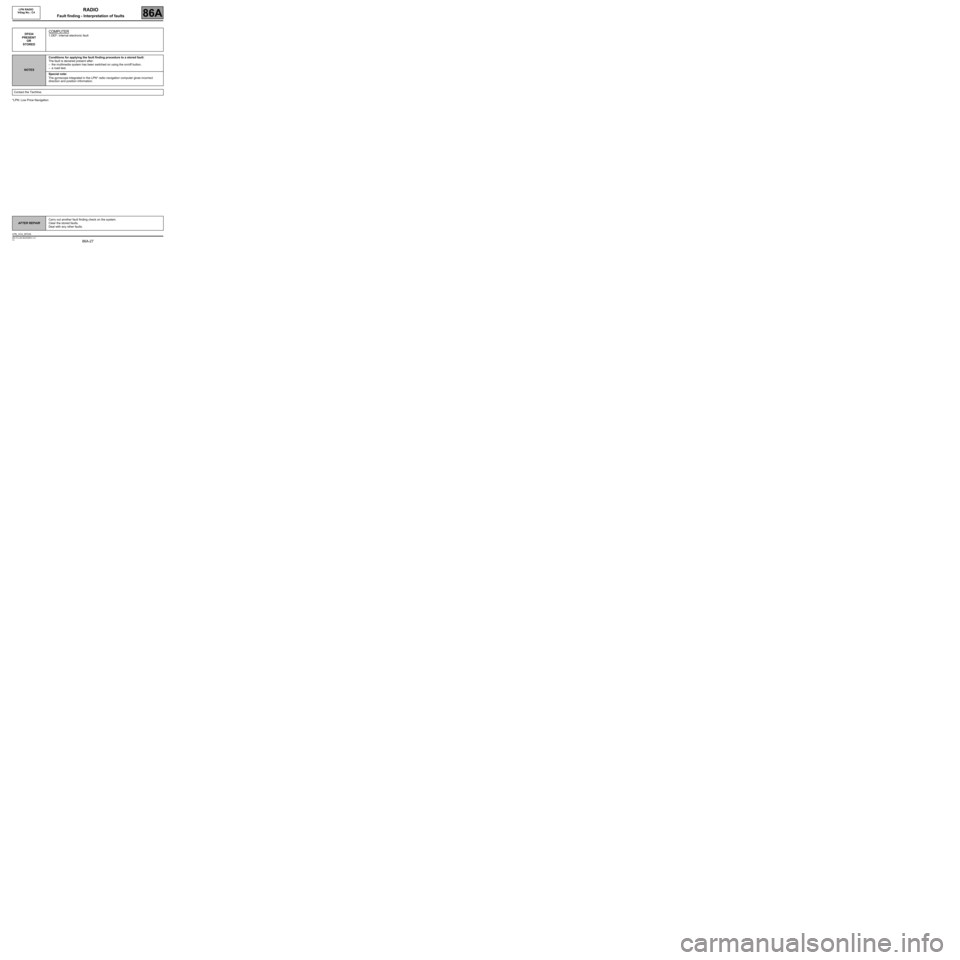

86A-27
MR-372-J84-86A050$531.mif
V3
RADIO
Fault finding - Interpretation of faults
LPN RADIO
Vdiag No.: C4
86A
*LPN: Low Price NavigationDF034
PRESENT
OR
STORED
COMPUTER
1.DEF: Internal electronic fault
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after:
–the multimedia system has been switched on using the on/off button,
–a road test.
Special note:
The gyroscope integrated in the LPN* radio navigation computer gives incorrect
direction and position information.
Contact the Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
LPN_VC4_DF034

86A-32
MR-372-J84-86A050$531.mif
V3
RADIO
Fault finding - Interpretation of faults
LPN RADIO
Vdiag No.: C4
86A
*LPN: Low Price NavigationDF040
PRESENT
OR
STORED
NO AUDIO CD CHANGER SIGNALS
1.DEF: No communication with the CD changer
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after:
–the + after ignition feed is activated,
–the multimedia system has been switched on using the on/off button,
–a CD is played in the CD changer.
Special note:
If the vehicle does not have a CD changer, check the configuration of the LPN* radio
navigation computer (see Configuration and programming).
Use the wiring diagrams Technical Note for Scénic II ph2.
Look for any damage to the wiring harness and check the condition and connection of the connectors for
components 261 and 1272.
Manipulate the wiring harness in order to observe a change in the fault status (present → stored).
If the connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, W iring: Precautions for repair), repair the connector(s), otherwise replace the wiring.
Check the insulation, continuity and the absence of interference resistance on the following connections:
–connection code 34AZ,
–connection code 34BA,
–connection code 34BL,
–connection code 34BC,
–connection code 34BD,
–connection code 34BG,
–connection code 34BH,
between components 261 and 1272.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring. Otherwise replace the wiring.
If the fault is still present, contact the Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
LPN_VC4_DF040

86A-34
MR-372-J84-86A050$531.mif
V3
RADIO
Fault finding - Interpretation of faults
LPN RADIO
Vdiag No.: C4
86A
*LPN: Low Price NavigationDF057
PRESENT
OR
STORED
DISC ERROR
1.DEF: Disc cannot be read
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after:
–the + after ignition feed is activated,
–the multimedia system has been switched on using the on/off button,
–a CD is played in the LPN* radio navigation computer player.
Special notes:
The Error CD message is displayed on the screen.
If the CD is an audio CD, no sound comes from the system.
If the CD is a cartographic map CD, it cannot be loaded.
Insert an original audio CD in good condition. Increase the volume. If the CD cannot be read, replace the radio
(see MR 370 Scénic II, 405 Espace IV ph2, 408 Trafic II ph2 or 417 Kangoo 2 Mechanical, 83C, On-board
telematics system, Navigation computer: Removal - Refitting).
If the original audio CD in good condition is read, clean the customer CD and try to read it again.
Replace the CD if necessary.
If the fault is still present, contact the Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
LPN_VC4_DF057

86A-35
MR-372-J84-86A050$531.mif
V3
RADIO
Fault finding - Interpretation of faults
LPN RADIO
Vdiag No.: C4
86A
*LPN: Low Price NavigationDF059
PRESENT
OR
STORED
SCREEN
1.DEF: Internal electronic fault
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after:
–the + after ignition feed is activated,
–the multimedia system has been switched on using the on/off button.
Replace the LPN* radio navigation screen (see MR 370 Scénic II, 405 Espace IV ph2, 408 Trafic II ph2 or 417
Kangoo 2 Mechanical, 83C, On-board telematics system, Navigation screen: Removal - Refitting).
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
LPN_VC4_DF059

86A-37
MR-372-J84-86A050$531.mif
V3
RADIO
Fault finding - Interpretation of faults
LPN RADIO
Vdiag No.: C4
86A
*LPN: Low Price NavigationDF060
CONTINUED
Check for earth on the following connection:
–Trafic II ph2: connection code MAN of component 1127,
–Kangoo 2: connection code MAN of component 1127,
–Espace IV ph2: connection code NC of component 1127,
–Scénic II ph2: connection code MAN of component 1127.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring. Otherwise replace the wiring.
Check the insulation, continuity and the absence of interference resistance on the following connection:
–Trafic II ph2: connection code BP26 between component 1127 and the component supplying the
display,
–Kangoo 2: connection code BP26 between components 1127 and 260,
–Espace IV ph2: connection code BP3A between components 1127 and 260,
–Scénic II ph2: connection code BCP3 between components 1127 and 260.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring. Otherwise replace the wiring.
Check the insulation, continuity and the absence of interference resistance on the following connections:
–Connection code 34HU between components 261, 1714 and 1127,
–Connection code TB30,
–Connection code 34GZ,
–Connection code 34HA,
between components 261 and 1127.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring. Otherwise replace the wiring.
If the fault is still present, replace the LPN* radio navigation display.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.

86A-38
MR-372-J84-86A050$531.mif
V3
RADIO
Fault finding - Interpretation of faults
LPN RADIO
Vdiag No.: C4
86A
*LPN: Low Price NavigationDF061
PRESENT
OR
STORED
SUPPLY
1.DEF: Undervoltage
2.DEF: Overvoltage
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after:
–the + after ignition feed is activated,
–the multimedia system has been switched on using the on/off button,
Use the wiring diagrams Technical Note for Scénic II ph2, Espace IV ph2, Trafic II
ph2 or Kangoo 2.
Test the battery and run fault finding on the charging circuit (see Technical Note 6014A, Checking the charging
circuit).
Check the conformity of the LPN* radio navigation computer supply fuse.
Replace the fuse if not correct.
Check the conformity of the earth on the following connection:
–Espace IV ph2: connection code MV of component 261.
–Trafic II ph2: connection code MT of component 261.
–Kangoo 2: connection code MT of component 261.
–Scénic II ph2: connection code MT of component 261.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Check for + 12 V on the following connection:
–Espace IV ph2: connection code BCP4 of component 261.
–Trafic II ph2: connection code BP26 of component 261.
–Kangoo 2: connection code BP26 of component 261.
–Scénic II ph2: connection code BCP3 of component 261.
If this is not correct, check the insulation, continuity and the absence of interference resistance on the
following connection:
–Espace IV ph2: connection code BCP4 between components 710 and 261.
–Trafic II ph2: connection code BP26 between component 261 and the component supplying the LPN*
radio navigation computer
–Kangoo 2: connection code BP26 between components 260 and 261.
–Scénic II ph2: connection code BCP3 between components 260 and 261.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring. Otherwise replace the wiring.
If the fault is still present, contact the Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
LPN_VC4_DF061

86A-43
MR-372-J84-86A050$531.mif
V3
RADIO
Fault finding - Interpretation of faults
LPN RADIO
Vdiag No.: C4
86A
*LPN: Low Price NavigationDF067
PRESENT
OR
STORED
COMPUTER
1.DEF: Disc cannot be read
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after:
–the + after ignition feed is activated,
–the multimedia system has been switched on using the on/off button.
–Insert a CD into the LPN* radio navigation computer,
–wait for 1 minute,
–eject the CD by pressing the eject button.
Contact the Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
LPN_VC4_DF067

86A-44
MR-372-J84-86A050$531.mif
V3
RADIO
Fault finding - Interpretation of faults
LPN RADIO
Vdiag No.: C4
86A
*LPN: Low Price NavigationDF068
DF069
PRESENT
OR
STORED
COMPUTER
1.DEF: Internal electronic fault
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after:
–the + after ignition feed is activated,
–the multimedia system has been switched on using the on/off button.
–Insert a CD into the LPN* radio navigation computer,
–wait for 1 minute,
–eject the CD by pressing the eject button.
Contact the Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
LPN_VC4_DF068 / LPN_VC4_DF069

86A-45
MR-372-J84-86A050$531.mif
V3
RADIO
Fault finding - Interpretation of faults
LPN RADIO
Vdiag No.: C4
86A
*LPN: Low Price NavigationDF071
PRESENT
OR
STORED
BUTTON JAMMED
1.DEF: Button on LPN* front panel jammed
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after:
–the + after ignition feed is activated,
–the multimedia system has been switched on using the on/off button.
–move all the buttons on the LPN* radio navigation front panel,
–wait for 2 minutes.
Check the conformity of the LPN* radio navigation front panel buttons by viewing the following statuses:
–ET009 CD eject button,
–ET010 "Radio preselection button 1",
–ET011 "Radio preselection button 2",
–ET012 "Radio preselection button 3",
–ET013 "Radio preselection button 4",
–ET014 "Radio preselection button 5",
–ET015 "Radio preselection button 6",
–ET018 "Audio button",
–ET036 "Wheel press on/off",
–ET037 "Navigation button",
–ET038 "‘MAP’ button",
–ET039 "‘TEL’ button",
–ET040 "‘SET’ button",
–ET041 "‘BACK’ button",
–ET042 "Repeat button",
–ET043 "Wheel left turn",
–ET044 "Wheel right turn".
If one of the statuses is PRESSED, move the corresponding button to change the status to RELEASED.
If the fault is still present, contact the Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
LPN_VC4_DF071

86A-46
MR-372-J84-86A050$531.mif
V3
RADIO
Fault finding - Interpretation of faults
LPN RADIO
Vdiag No.: C4
86A
*LPN: Low Price NavigationDF072
PRESENT
OR
STORED
FM1 AMPLI
1.DEF: Aerial supply short circuit to earth
2.DEF: Short circuit or open circuit to + 12 V
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after:
–the + after ignition feed is activated,
–the multimedia system has been switched on using the on/off button,
Use the wiring diagrams Technical Note for Scénic II ph2 and Espace IV ph2.
If the vehicle does not have an aerial amplifier, check the vehicle configuration for the LPN* radio navigation
system (see Configuration and programming).
Look for any damage to the wiring harness and check the condition and connection of the coaxial radio cable of
component 261.
Manipulate the wiring harness in order to observe a change in the fault status (present → stored).
If the connector is faulty and if there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Disconnect black connector A of component 261.
Check for + 12 V on connection 34AM of component 261.
If the voltage is not correct, contact the Techline.
If the voltage is correct, check the insulation, continuity and the absence of interference resistance on the
following connection:
–connection code 34AM between components 261 and 886.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring. Otherwise replace the wiring.
Disconnect the coaxial radio cable at the rear of the LPN* radio navigation system and measure the resistance
between the coaxial radio cable signal connection and its shielding.
If the resistance is not 50 Ω ± 5 Ω, check the insulation, continuity and the absence of interference
resistance on the following connections:
–connection code TB13,
–connection code 34AN,
between component 261 and the cut-off plate at the rear.
If any connections are defective, replace the coaxial radio cable.
If the fault is still present, replace the aerial amplifier.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
LPN_VC4_DF072
