RENAULT SCENIC 2008 J84 / 2.G Passenger Comparment Connection Unit Workshop Manual

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 211
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 211V9 MR-372-J84-87B000$559.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ET085
HAZARD WARNING LIGHTS BUTTON
NOTESNo faults should be present or stored.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
ET085 is Absent with button pressed.
Check the F16 15A fuse of the passenger compartment fuse and relay box on the left-hand side of the centre
console.
Replace it if necessary.
Check the door/warning switch connector (e.g.: connector properly connected, tabs bent, broken, oxidised).
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the PE2 and PE1 connectors (e.g. connector properly connected, tabs bent, broken, oxidised).
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check for + 12 V on connection LPG of component 1391.
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the insulation and continuity of the following connections:
●Connection code 64F.
●Connection code 64Q between components 645 and 1391.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Check the following connections on component 1391 (button pressed):
●Connection code 64F.
●Connection code 64Q.
If there is insulation, replace the button.
If there is continuity, contact the techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
UCH_V44_ET085/UCH_V48_ET085/ UCH_V4C_ET085/
UCH_V4D_ET085 /UCH_V4F_ET085/UCH_V50_ET085

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 212
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 212V9 MR-372-J84-87B000$559.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ET085
CONTINUED
NOTESNo faults should be present or stored.
ET085 is Present with button pressed.
Check the door/warning switch connector (e.g.: connector properly connected, tabs bent, broken, oxidised).
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the PE2 and PE1 connectors (e.g. connector properly connected, tabs bent, broken, oxidised).
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the insulation and continuity of the following connections:
●Connection code 64F.
●Connection code 64Q between components 645 and 1391.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Check the following connections on component 1391 (button pressed):
●Connection code 64F.
●Connection code 64Q.
If there is insulation, replace the button.
If there is continuity, contact the techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 213
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 213V9 MR-372-J84-87B000$559.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ET087
ONE-TOUCH WINDOW CONTROL/SR.* AUTHORISATION
NOTESNo faults should be present or stored.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
ET087 is Active and one or more one touch windows are not operating.
Check for earth on connection 21K of window winder connector concerned.
Is there an earth?
NO
Check for earth at the output of component 645 on connection 21K.
If there is no earth, contact Techline.
If earth is present, check the continuity and insulation of the following connection:
●Connection code 21K.
Between components 645 and 201.
Between components 645 and 202.
Between components 645 and 203.
Between components 645 and 204.
Between components 645 and 304.
If the connection or connections are faulty and there is a repair procedure (see
Technical Note 6015A, Electrical wiring repair, Wiring: Precautions for repair),
repair the wiring, otherwise replace it.
Run complete fault finding on the electric window motor.
YES
*SR: sunroof.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
UCH_V44_ET087/UCH_V48_ET087/ UCH_V4C_ET087/
UCH_V4D_ET087 /UCH_V4F_ET087/UCH_V50_ET087

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 214
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 214V9 MR-372-J84-87B000$559.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ET087
CONTINUED
ET087 is Inactive and one or more one touch windows are not operating.
Check that configuration LC070 ONE-TOUCH WINDOW(S)/SR.* is WITH.
If LC070 is WITHOUT, configure using CF173 ONE-TOUCH WINDOW(S)/SR.* (can be configured during
configuration of the UCH using the SC008 UCH TYPE command).
Run command AC025 One touch window/SR.* authorisation and check for earth on connection 21K of the
window winder concerned.
Is there an earth?
YES
Operating conditions:
Door open if fault, check the doors.
+ accessories level power supply raised at least once.
Run complete fault finding on the electric window motor.
NO
*SR: sunroof.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 215
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 215V9 MR-372-J84-87B000$559.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
*CPE: Electric central door locking.ET088
ET090
SOURCE OF DEADLOCK ACTIVATION
SOURCE OF DEADLOCK DEACTIVATION
NOTESNo faults should be present or stored.
Enables determination of what component is the source of the last locking or unlocking operation.
ET088.
CARD: upon pressing the card for the second time.
HANDS-FREE: on pressing the door handle button for the second time.
FAULT FINDING: using the diagnostic tool, with the ignition on and running command AC004 Central locking
of doors and boot.
ET090.
CPE*: on pressing the locking/unlocking button.
CARD: press on card button.
HANDS-FREE: placing a hand in the handle.
FAULT FINDING: using the diagnostic tool, with the ignition on and running command AC005 Central door
unlocking.
+ after ignition feed: no deadlocking at this power supply level.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
UCH_V44_ET088/UCH_V48_ET088/ UCH_V4C_ET088/UCH_V4D_ET088/ UCH_V4F_ET088/UCH_V50_ET088/
UCH_V44_ET090/UCH_V48_ET090/ UCH_V4C_ET090/UCH_V4D_ET090/ UCH_V4F_ET090/UCH_V50_ET090

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 216
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 216V9 MR-372-J84-87B000$559.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ET096
WIPER STALK INTERMITTENT SPEED RING POSITION
NOTESNo faults should be present or stored.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
ET096 is Level 1 but with speed level 2 requested.
Check the operation of the following statuses:
ET083 Left-hand direction indicator request: Set the lighting stalk to the left-hand direction indicator.
ET077 Wiper stalk position: Set the windscreen wiper stalk to the low speed position.
Check in the following table and apply the fault finding procedure according to the result obtained.
Result 1 Result 2 Result 3 Result 4
ET083 Left-hand direction
indicator requestPresent Absent Absent Present
ET077 Wiper stalk positionOff Low speed Off Low speed
Change the
steering
column control
Check the continuity and insulation of the following connection:
●Connection code 141K between components 645 and 1519.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise
replace it.
Result 1
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
UCH_V44_ET096/UCH_V48_ET096/ UCH_V4C_ET096/
UCH_V4D_ET096 /UCH_V4F_ET096/UCH_V50_ET096

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 217
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 217V9 MR-372-J84-87B000$559.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50

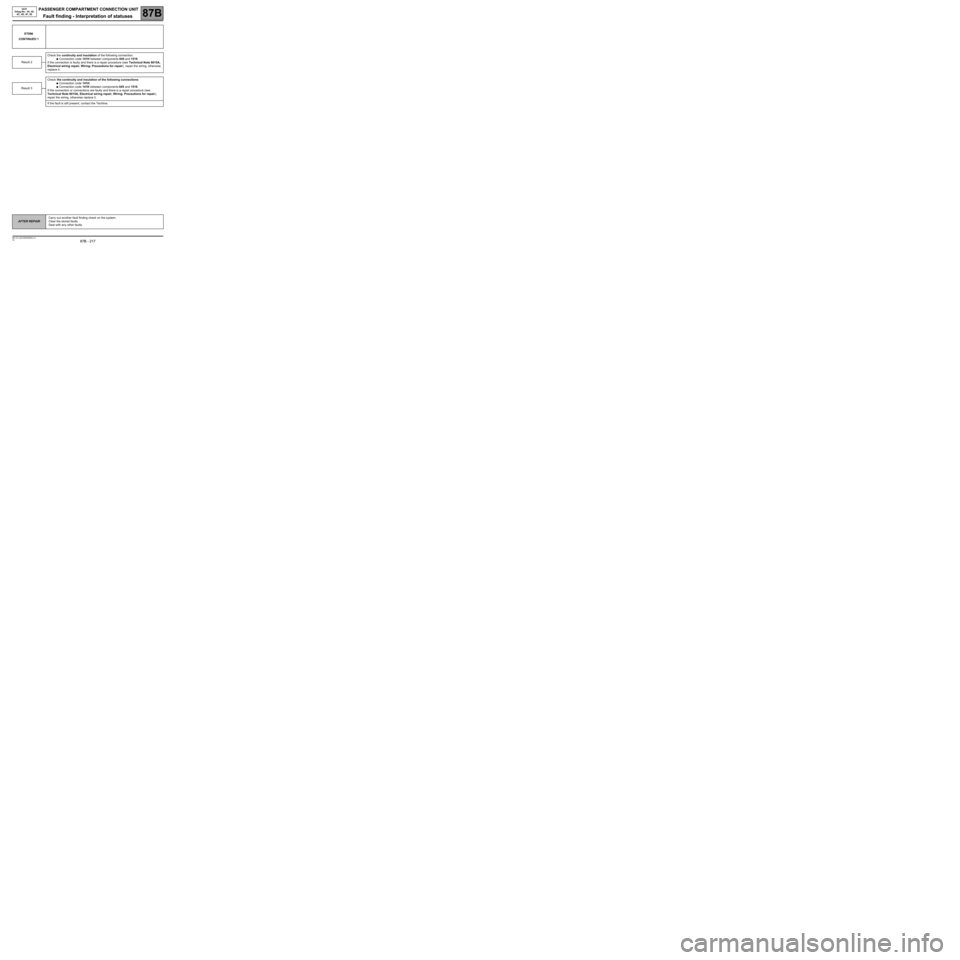

ET096
CONTINUED 1
Check the continuity and insulation of the following connection:
●Connection code 141H between components 645 and 1519.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise
replace it.
Check the continuity and insulation of the following connections:
●Connection code 141H.
●Connection code 141K between components 645 and 1519.
If the connection or connections are faulty and there is a repair procedure (see
Technical Note 6015A, Electrical wiring repair, Wiring: Precautions for repair),
repair the wiring, otherwise replace it.
If the fault is still present, contact the Techline.
Result 2
Result 3
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 218
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 218V9 MR-372-J84-87B000$559.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ET096
CONTINUED 2
ET096 is Level 1 but with speed level 3 requested.
Check the operation of the following statuses:
ET083 Left-hand direction indicator request: Set the lighting stalk to the left-hand direction indicator.
ET077 Wiper stalk position: Set the windscreen wiper stalk to the low speed position.
Check in the following table and apply the fault finding procedure according to the result obtained.
Result 1 Result 2 Result 3 Result 4
ET083 Left-hand direction
indicator requestPresent Absent Absent Present
ET077 Wiper stalk position at
High speedLow speed High speed Low speed High speed
Change the
steering
column control
Check the continuity and insulation of the following connection:
●Connection code 141H between components 645 and 1519.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise
replace it.
Check the continuity and insulation of the following connection:
●Connection code 141L between components 645 and 1519.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise
replace it.
Check the continuity and insulation of the following connections:
●Connection code 141N.
●Connection code 141L between components 645 and 1519.
If the connection or connections are faulty and there is a repair procedure (see
Technical Note 6015A, Electrical wiring repair, Wiring: Precautions for repair),
repair the wiring, otherwise replace it.
If the fault is still present, contact the Techline.
Result 1
Result 2
Result 3
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 219
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 219V9 MR-372-J84-87B000$559.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ET096
CONTINUED 3
NOTESNo faults should be present or stored.
ET096 is Level 1 but with speed level 4 requested.
Check the operation of the following statuses:
ET077 Wiper stalk position: set the windscreen wiper stalk to high speed.
ET081 Lighting stalk position: set the lighting stalk to main beam headlights position.
Check in the following table and apply the fault finding procedure according to the result obtained.
Result 1 Result 2 Result 3 Result 4
ET077 Wiper stalk position at
high speedHigh speed Low speed Low speed High speed
ET081 Lighting stalk in the main
beam headlights position Dipped
headlightsMain beamDipped
headlightsMain beam
Change the
steering
column control
Check the continuity and insulation of the following connection:
●Connection code 141H between components 645 and 1519.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise
replace it.
Result 1
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 220
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 220V9 MR-372-J84-87B000$559.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ET096
CONTINUED 4
Check the continuity and insulation of the following connection:
●Connection code 141K between components 645 and 1519.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise
replace it.
Check the continuity and insulation of the following connections:
●Connection code 141H.
●Connection code 141K between components 645 and 1519.
If the connection or connections are faulty and there is a repair procedure (see
Technical Note 6015A, Electrical wiring repair, Wiring: Precautions for repair),
repair the wiring, otherwise replace it.
If the fault is still present, contact the Techline.
Result 2
Result 3
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
