DIESEL INJECTION
Fault finding – Interpretation of faults
EDC16
Program No.: C1
Vdiag no.: 18, 1C, 20,
50, 58, 5C
13B
DF056
PRESENT
OR
STOREDAIR FLOWMETER CIRCUIT
CC.1: Short circuit to + 12 V
CO.0: Open circuit or short circuit to earth
1.DEF: Offset at maximum threshold
2.DEF: Offset at minimum threshold
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after a road test.
Special notes:
If the fault is present:
– the level 1 warning light is lit,
– the OBD warning light illuminates after three consecutive driving cycles (starting
+ 5 seconds + switch off the ignition and wait 1 minute).
Use bornier Elé.1681 or Elé.1590 for any operation on the injection computer
connectors.
Priorities when dealing with a number of faults:
Deal with fault DF013 Sensor supply voltage no. 3 first, if it is present or stored.
CC.1
NOTESNone
Check the air flowmeter connections.
Check the injection computer connections.
Repair if necessary.
Check the continuity and insulation from + 12 V of the following connections:
– connection code3DW,
– connection code NT (Laguna II),
– connection code 3DU (Mégane II and Scénic II),
– connection code3DV,
– connection code 3KJ.
between components 120 and 799.
If the connection or connections are faulty and there is a repair method (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, replace the air flow sensor.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.
EDC16_V50_DF056/EDC16_V58_DF056/EDC16_V5C_DF056/EDC16_V18_DF056/EDC16_V1C_DF056/EDC16_V20_DF056

13B-92
MR-372-J84-13B200$288.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of faults
EDC16
Program No.: C1
Vdiag no.: 18, 1C, 20,
50, 58, 5C
13B
DF056
CONTINUED 1
CO.0
NOTESNone
Check that there is a + 5 V supply on connection 3KJ of the air flow sensor.
Check the air flowmeter connections.
Check the injection computer connections.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Check the insulation and continuity to earth between the following connections:
connection code3DW,
connection code 3KJ,
connection code3DV,
between components 120 and 799.
connection code 3FB (Mégane II and Laguna II) or 3FB2 (Scénic II) between components 799 and 983
(Laguna II) or 1337 (Mégane II and Scénic II).
If the connection or connections are faulty and there is a repair method (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, replace the air flowmeter.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.

13B-93
MR-372-J84-13B200$288.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of faults
EDC16
Program No.: C1
Vdiag no.: 18, 1C, 20,
50, 58, 5C
13B
DF056
CONTINUED 2
1.DEF
NOTESNone
2.DEFConditions for applying the fault finding procedure to a
stored fault:
The fault is declared present after the ignition has been
switched off for 40 seconds.
Check the air flowmeter connections.
Check the injection computer connections.
Repair if necessary
Check for continuity and the absence of interference resistance of the following connections:
– connection code 3KJ,
– connection code3DV,
– connection code3DW,
– connection code 3DU (Mégane II and Scénic II),
between components 120 and 799.
– connection code 3FB (Laguna II and Mégane II) or 3FB2 (Scénic II) between components 799 and 983
(Laguna II) or 1337 (Mégane II and Scénic II).
– connection code NT (Laguna II) between component 799 and the chassis earth NT.
If the connection or connections are faulty and there is a repair method (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, run test 4 Checking the turbocharged air inlet circuit and test 5 Air flowmeter,
check that the damper valve is open (valve control resting against the air vent unit),
with the flowmeter connected, the vehicle ignition on and engine stopped,
check the voltage between connections 3DW and 3DV of the air flowmeter:
Replace the air flow sensor if its value is not 0.5 V < X < 0.7 V.
Check the EGR valve is not jammed open:
– Deal with any faults,
– Use the conformity check and Emission control/OBD sub-function,
If these checks show that the valve is jammed or irrevocably seized, replace the EGR valve.
If no faults are revealed, but the fault is still present, replace the air flow sensor.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.

13B-94
MR-372-J84-13B200$324.mif
V13
13B
DIESEL INJECTION
Fault finding – Interpretation of faults
DF057
PRESENT
OR
STOREDWATER IN DIESEL FUEL DETECTOR CIRCUIT
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after the engine is started or following a road test.
Check the conformity and quality of the fuel by running test 11 Diesel fuel conformity check.
Check the sealing of the tank and the low pressure circuit by running test 3 Low pressure circuit check.
A. Check that the water in diesel detection sensor is correctly connected.
– If not, clear the fault,
– carry out a road test (speed > 12 mph (20 km/h) and engine speed > 1200 rpm) for more than 30 seconds.
– If the fault does not reappear, end of fault finding procedure.
– If the fault reappears, go to step C.
b) If the water detection sensor is not present:
–Insulate the electrical connector not connected to the vehicle (risk of humidity, oxidation, and erratic
appearance of faults).
Check that the configuration reading LC065 Water in diesel fuel sensor is WITHOUT.
If LC065 Water in diesel fuel sensor is WITH, run command RZ005 Programming to reinitialise the vehicle
configurations.
– Clear the faults.
– Carry out a road test (speed > 12 mph (20 km/h) and engine speed > 1200 rpm) for more than 30 seconds.
– If the fault does not reappear, end of fault finding procedure.
c) If the sensor is correctly connected:
– Bleed the diesel filter unit (see MR 395 (Laguna II), 370 (Scénic II) or 364 (Mégane II), Mechanical, 13A, Fuel
supply).
– Clear the fault.
– Carry out a road test (speed > 12 mph (20 km/h) and engine speed > 1200 rpm) for more than 30 seconds.
–If the fault does not reappear, end the fault finding procedure.
d)If the fault reappears:
– Check the continuity and absence of interference resistance on connection 3WT between components 414
and 120.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.
EDC16_V50_DF057/EDC16_V58_DF057/EDC16_V5C_DF057/EDC16_V18_DF057/EDC16_V1C_DF057/EDC16_V20_DF057EDC16
Program No.: C1
Vdiag no.: 18, 1C, 20,
50, 58, 5C
MR-372-J84-13B200$324.mif

13B-95
MR-372-J84-13B200$324.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of faults
EDC16
Program No.: C1
Vdiag no.: 18, 1C, 20,
50, 58, 5C
13B
DF057
CONTINUED
Check the supply of the water detection sensor between connections 3FB and N.
If the connection or connections are faulty and there is a repair method (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If none of these checks reveal any faults:
– Replace the water detection sensor (see MR 395 (Laguna II), 370 (Scénic II) or 364 (Mégane II), Mechanical,
13A, Fuel supply).
– Clear the fault.
– Carry out a road test (speed > 12 mph (20 km/h) and engine speed > 1200 rpm) for more than 30 seconds
to confirm the repair.
Note:
If the level of water in the fuel filter unit is lower than the sensor electrodes, certain driving conditions (turns, hills)
may cause erratic illumination of the injection fault warning light.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.

13B-96
MR-372-J84-13B200$324.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of faults
EDC16
Program No.: C1
Vdiag no.: 18, 1C, 20,
50, 58, 5C
13B
DF058
PRESENT
OR
STOREDOIL TEMPERATURE SENSOR CIRCUIT
CO.1: Open circuit or short circuit to + 12 V
CC.0 : Short circuit to earth
NOTESConditions for applying the fault finding procedure to stored faults:
The fault is declared present when the ignition is switched on or with the engine
running.
Special notes:
Use bornier Elé. 1681 or Elé. 1590 for all operations on the computer connectors.
This fault only occurs on vehicles with automatic transmission.
Check the oil temperature sensor connections.
Check the injection computer connections.
Repair if necessary.
Measure the resistance of the oil temperature sensor between connections 47Q and 115A.
Replace the oil temperature sensor if the resistance is not approximately:
11 50 Ω at 40°C
308 Ω at 80°C
105 Ω at 120°C
53 Ω at 150°C
Check the insulation, continuity and the absence of interference resistance of the following connections:
– connection code 47Q,
– connection code 115 A.
Between components 120 and 688.
If the connection or connections are faulty and there is a repair method (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, replace the oil temperature sensor.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.
EDC16_V50_DF058/EDC16_V58_DF058/EDC16_V5C_DF058/EDC16_V18_DF058/EDC16_V1C_DF058/EDC16_V20_DF058

13B-97
MR-372-J84-13B200$324.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of faults
EDC16
Program No.: C1
Vdiag no.: 18, 1C, 20,
50, 58, 5C
13B
DF059
PRESENT
OR

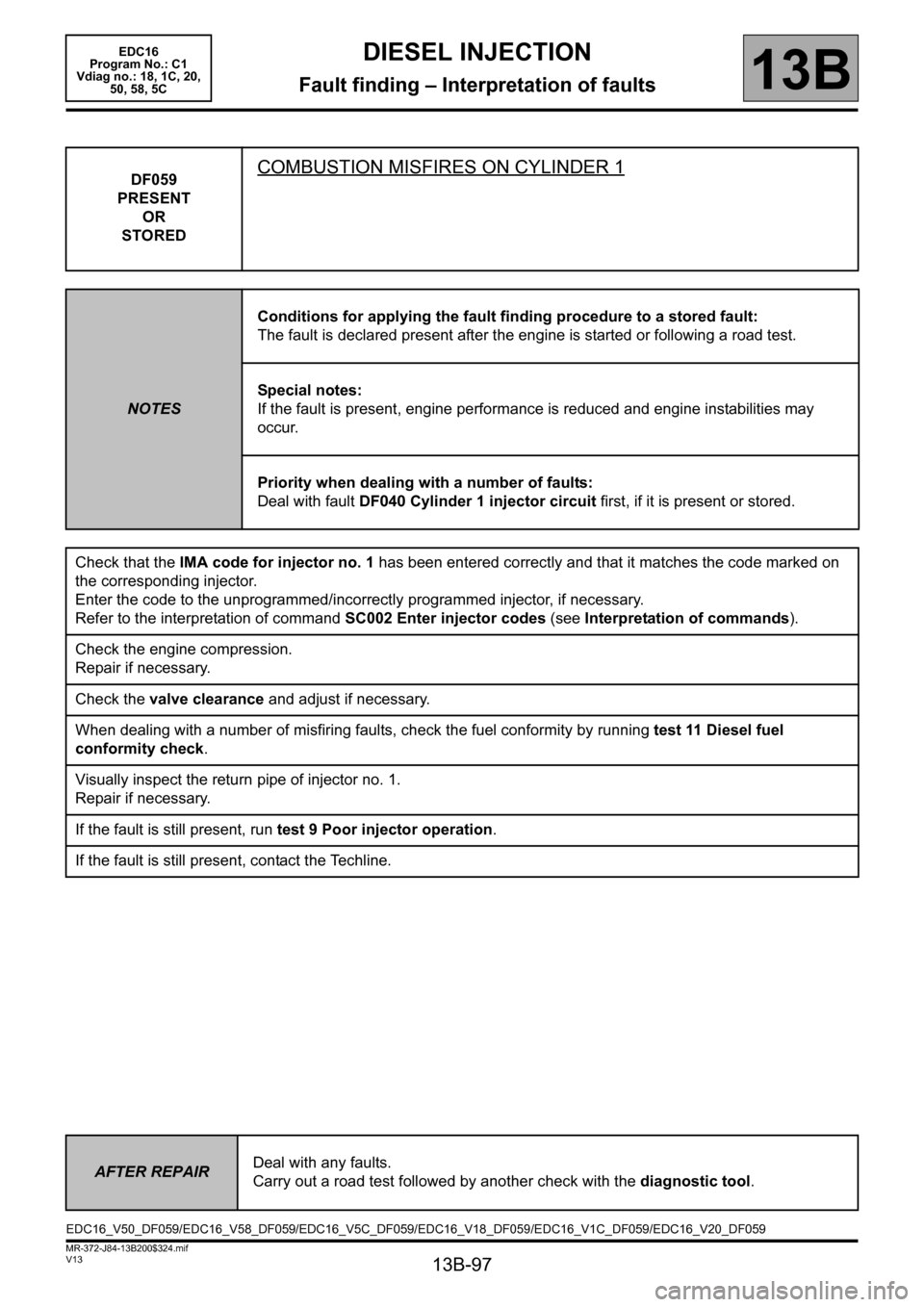

STOREDCOMBUSTION MISFIRES ON CYLINDER 1
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after the engine is started or following a road test.
Special notes:
If the fault is present, engine performance is reduced and engine instabilities may
occur.
Priority when dealing with a number of faults:
Deal with fault DF040 Cylinder 1 injector circuit first, if it is present or stored.
Check that the IMA code for injector no. 1 has been entered correctly and that it matches the code marked on
the corresponding injector.
Enter the code to the unprogrammed/incorrectly programmed injector, if necessary.
Refer to the interpretation of command SC002 Enter injector codes (see Interpretation of commands).
Check the engine compression.
Repair if necessary.
Check the valve clearance and adjust if necessary.
When dealing with a number of misfiring faults, check the fuel conformity by running test 11 Diesel fuel
conformity check.
Visually inspect the return pipe of injector no. 1.
Repair if necessary.
If the fault is still present, run test 9 Poor injector operation.
If the fault is still present, contact the Techline.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.
EDC16_V50_DF059/EDC16_V58_DF059/EDC16_V5C_DF059/EDC16_V18_DF059/EDC16_V1C_DF059/EDC16_V20_DF059

13B-98
MR-372-J84-13B200$324.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of faults
EDC16
Program No.: C1
Vdiag no.: 18, 1C, 20,
50, 58, 5C
13B
DF060
PRESENT
OR
STOREDMISFIRING ON CYLINDER 2
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after the engine is started or following a road test.
Special notes:
If the fault is present, engine performance is reduced and engine instabilities may
occur.
Priority when dealing with a number of faults:
Deal with fault DF041 Cylinder 2 injector circuit first, if it is present or stored.
Check that the IMA code for injector no. 2 has been entered correctly and that it matches the code marked on
the corresponding injector.
Enter the code to the unprogrammed/incorrectly programmed injector, if necessary.
Refer to the interpretation of command SC002 Enter injector codes (see Interpretation of commands).
Check the engine compression.
Repair if necessary.
Check the valve clearance and adjust if necessary.
When dealing with a number of misfiring faults, check the fuel conformity by running test 11 Diesel fuel
conformity check.
Visually inspect the injector no. 2 return pipe.
Repair if necessary.
If the fault is still present, run test 9 Poor injector operation.
If the fault is still present, contact the Techline.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.
EDC16_V50_DF060/EDC16_V58_DF060/EDC16_V5C_DF060/EDC16_V18_DF060/EDC16_V1C_DF060/EDC16_V20_DF060

13B-99
MR-372-J84-13B200$324.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of faults
EDC16
Program No.: C1
Vdiag no.: 18, 1C, 20,
50, 58, 5C
13B
DF061
PRESENT
OR
STOREDMISFIRING ON CYLINDER 3
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after the engine is started or following a road test.
Special notes:
If the fault is present, engine performance is reduced and engine instabilities may
occur.
Priority when dealing with a number of faults:
Deal with fault DF042 Cylinder 3 injector circuit first, if it is present or stored.
Check that the IMA code for injector no. 3 has been entered correctly and that it matches the code marked on
the corresponding injector.
Enter the code to the unprogrammed/incorrectly programmed injector, if necessary.
Refer to the interpretation of command SC002 Enter injector codes (see Interpretation of commands).
Check the engine compression.
Repair if necessary.
Check the valve clearances and adjust them if necessary.
When dealing with a number of misfiring faults, check the fuel conformity by running test 11 Diesel fuel
conformity check.
Visually inspect the injector no. 3 return pipe.
Repair if necessary.
If the fault is still present, run test 9 Poor injector operation.
If the fault is still present, contact the Techline.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.
EDC16_V50_DF061/EDC16_V58_DF061/EDC16_V5C_DF061/EDC16_V18_DF061/EDC16_V1C_DF061/EDC16_V20_DF061

13B-100
MR-372-J84-13B200$324.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of faults
EDC16
Program No.: C1
Vdiag no.: 18, 1C, 20,
50, 58, 5C
13B
DF062
PRESENT
OR
STOREDMISFIRING ON CYLINDER 4
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after the engine is started or following a road test.
Special notes:
If the fault is present, engine performance is reduced and engine instabilities may
occur.
Priority when dealing with a number of faults:
Deal with fault DF043 Cylinder 4 injector circuit first, if it is present or stored.
Check that the IMA code for injector no. 4 has been entered correctly and that it matches the code marked on
the corresponding injector.
Enter the code to the unprogrammed/incorrectly programmed injector, if necessary.
Refer to the interpretation of command SC002 Enter injector codes (see Interpretation of commands).
Check the engine compression.
Repair if necessary.
Check the valve clearance and adjust if necessary.
When dealing with a number of misfiring faults, check the fuel conformity by running test 11 Diesel fuel
conformity check.
Visually inspect the injector no. 4 return pipe.
Repair if necessary.
If the fault is still present, run test 9 Poor injector operation.
If the fault is still present, contact the Techline.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.
EDC16_V50_DF062/EDC16_V58_DF062/EDC16_V5C_DF062/EDC16_V18_DF062/EDC16_V1C_DF062/EDC16_V20_DF062
