13B-228
MR-372-J84-13B200$612.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of parameters
EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5C
13B
PR038
RAIL PRESSURE
PARAMETER
DEFINITIONThis parameter indicates the rail pressure in bar.
NOTESNo faults should be present or stored.
Perform this fault finding procedure:
– after finding an inconsistency in the parameter,
– after a customer complaint (starting faults, poor performance, stalling, etc.).
– after interpretation of command AC225 Rail pressure regulator.
Special notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
Conformity check with engine stopped and ignition on.
The rail pressure value is between:
0 < PR038 < 10 bar
Default value: 250 bar.
In the event of a fault, consult the interpretation of fault DF007 Rail pressure sensor circuit.
Conformity check with engine running, engine coolant temperature > 80°C.
The rail pressure value is (engine at idle speed):
PR038 = ~ 315 bar
Default value: 250 bar.
In the event of a fault, consult the interpretation of fault DF007 Rail pressure sensor circuit.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
EDC16_V50_PR038/EDC16_V58_PR038/EDC16_V5C_PR038/EDC16_V18_PR038/EDC16_V1C_PR038/EDC16_V20_PR038

13B-229
MR-372-J84-13B200$612.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of parameters
EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5C
13B
PR038
CONTINUED
Sensor electrical conformity.
Check the condition of the rail pressure sensor connector (see Wiring Diagram Technical Note, Vehicle,
component code 1032).
Check the condition of the engine management computer connector (see Wiring Diagram Technical Note,
Vehicle, component code 120).
If one of the connectors is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring
repair, wiring: precautions for repair), repair the connector, otherwise replace the wiring.
Check the continuity and absence of interference resistance of the following connections:
– connection code 3LX,
– connection code 3LY,
– connection code 3LZ.
Between components 120 and 1032.
If any of the connections are faulty and there is a repair method (see Technical Note 6015A, Electrical wiring
repair, Wiring: precautions for repairs), repair the wiring; otherwise replace the wiring.
Check that there are no external diesel leaks from the high pressure fuel circuit.
With the ignition on and the engine stopped for over 1 minute:
Display parameter PR038.
– If the pressure is below 90 bar, the sensor is in order.
– If the pressure is above 90 bar, contact the Techline.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

13B-230
MR-372-J84-13B200$612.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of parameters
EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5C
13B
PR041
TURBOCHARGING PRESSURE
PARAMETER
DEFINITIONThis parameter indicates the turbocharging pressure in mbar.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
Conformity check with engine stopped and ignition on, or engine running, and engine coolant temperature
>80 °C.
The turbocharging pressure value is:
PR041 = PR035 “Atmospheric pressure” ± 10 mbar
In the event of a fault, apply the interpretation of DF004 Turbocharging pressure sensor circuit.
Sensor electrical conformity.
Check the continuity and absence of interference resistance on the following connections:
For Mégane II and Scénic II:
– connection code 3LQ,
– connection code 3LP,
– connection code 3LN.
Between components 120 and 1071.
For Laguna II:
– connection code 3LQ,
– connection code 3LP,
– connection code 3LN.
Between components 120 and 1474.
If any of the connections are faulty and there is a repair method (see Technical Note 6015A, Electrical wiring
repair, Wiring: precautions for repairs), repair the wiring; otherwise replace the wiring.
AFTER REPAIRCarry out a road test followed by a check with the diagnostic tool.
EDC16_V50_PR041/EDC16_V58_PR041/EDC16_V5C_PR041/EDC16_V18_PR041/EDC16_V1C_PR041/EDC16_V20_PR041

13B-231
MR-372-J84-13B200$612.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of parameters
EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5C
13B
PR041
CONTINUED
Vehicle with ignition on, and the engine stopped for over 1 minute:
Compare the values of PR041 and PR035 Atmospheric pressure.
If the difference between PR041 and PR035 Atmospheric pressure is greater than 0.1 bar,
check the value of PR035 Atmospheric pressure by comparing it with the reading on a vehicle in the workshop
which is correct.
If the value of PR035 Atmospheric pressure is not correct (difference greater than 0.1 bar between
the 2 vehicles), contact the Techline.
Otherwise (when the value PR035 Atmospheric pressure is correct), change the turbocharging pressure
sensor.
If the difference between PR041 and PR035 Atmospheric pressure is less than 0.1 bar.
Start the engine, with the engine idling:
Compare the values of PR041 and PR035 Atmospheric pressure.
If the difference between PR041 and PR035 Atmospheric pressure is greater than 0.2 bar.
Check the air inlet circuit:
absence of leaks or blockages in the low and high pressure air circuit: ducts, presence and tightness of the
mounting clips, mounting of the turbocharger pressure sensor, intercooler, etc.
Check that the damper valve is not jammed closed.
Repair if necessary.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

13B-233
MR-372-J84-13B200$612.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of parameters
EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5C
13B
*OCR: Opening cyclic ratioPR048
RAIL PRESSURE REGULATION VALVE OCR*
PARAMETER
DEFINITIONThis parameter indicates the turbocharger pressure opening cyclic ratio in %.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
Engine running, engine coolant temperature > 80°C.
The value must be between 35% < PR048 < 45%
In the event of a fault, consult the interpretation of fault DF007 Rail pressure sensor circuit.
Engine stopped, ignition on.
The value must be PR048 = 15%.
In the event of a fault, consult the interpretation of faults DF007 Rail pressure sensor circuit and DF053 Rail
pressure regulation function.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
EDC16_V50_PR048/EDC16_V58_PR048/EDC16_V5C_PR048/EDC16_V18_PR048/EDC16_V1C_PR048/EDC16_V20_PR048

13B-236
MR-372-J84-13B200$612.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of parameters
EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5C
13B
PR055
ENGINE SPEED
PARAMETER
DEFINITIONThis parameter indicates the engine's rotational speed in rpm.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
Conformity check with engine stopped and ignition on.
With the ignition on the value is: PR055 = 0 rpm.
In the event of a fault, refer to the interpretation for fault DF005 Engine speed sensor circuit.
Conformity check with engine running, engine coolant temperature > 80°C.
With the engine idling, the value is approximately 800 rpm.
In the event of a fault, refer to the interpretation for fault DF005 Engine speed sensor circuit.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
EDC16_V50_PR055/EDC16_V58_PR055/EDC16_V5C_PR055/EDC16_V18_PR055/EDC16_V1C_PR055/EDC16_V20_PR055

13B-237
MR-372-J84-13B200$612.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of parameters
EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5C
13B
PR058
PR059
INLET AIR TEMPERATURE
PARAMETER
DEFINITIONThis parameter indicates the inlet air temperature in °C.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
No faults should be present or stored.
Perform this fault finding procedure:
– after finding an inconsistency in the parameter,
– after a customer complaint (e.g. lack of power).
Conformity check with engine stopped and ignition on.
With the ignition on the inlet air temperature varies according to the exterior temperature.
Default value: 20°C
In the event of a fault, refer to the interpretation for DF039 Inlet air temperature circuit sensor
Parameter PR059 ≈ PR064 Coolant temperature cold engine.
Conformity check with engine running, engine coolant temperature > 80°C.
With the engine running at idle speed the inlet air temperature varies according to the engine coolant
temperature.
Default value: 20°C
In the event of a fault, refer to the interpretation for DF039 Inlet air temperature circuit sensor
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
EDC16_V50_PR058/EDC16_V58_PR058/EDC16_V5C_PR058/EDC16_V50_PR059/EDC16_V58_PR059/EDC16_V5C_PR059/
EDC16_V18_PR058/EDC16_V1C_PR058/EDC16_V20_PR058/EDC16_V18_PR059/EDC16_V1C_PR059/EDC16_V20_PR059

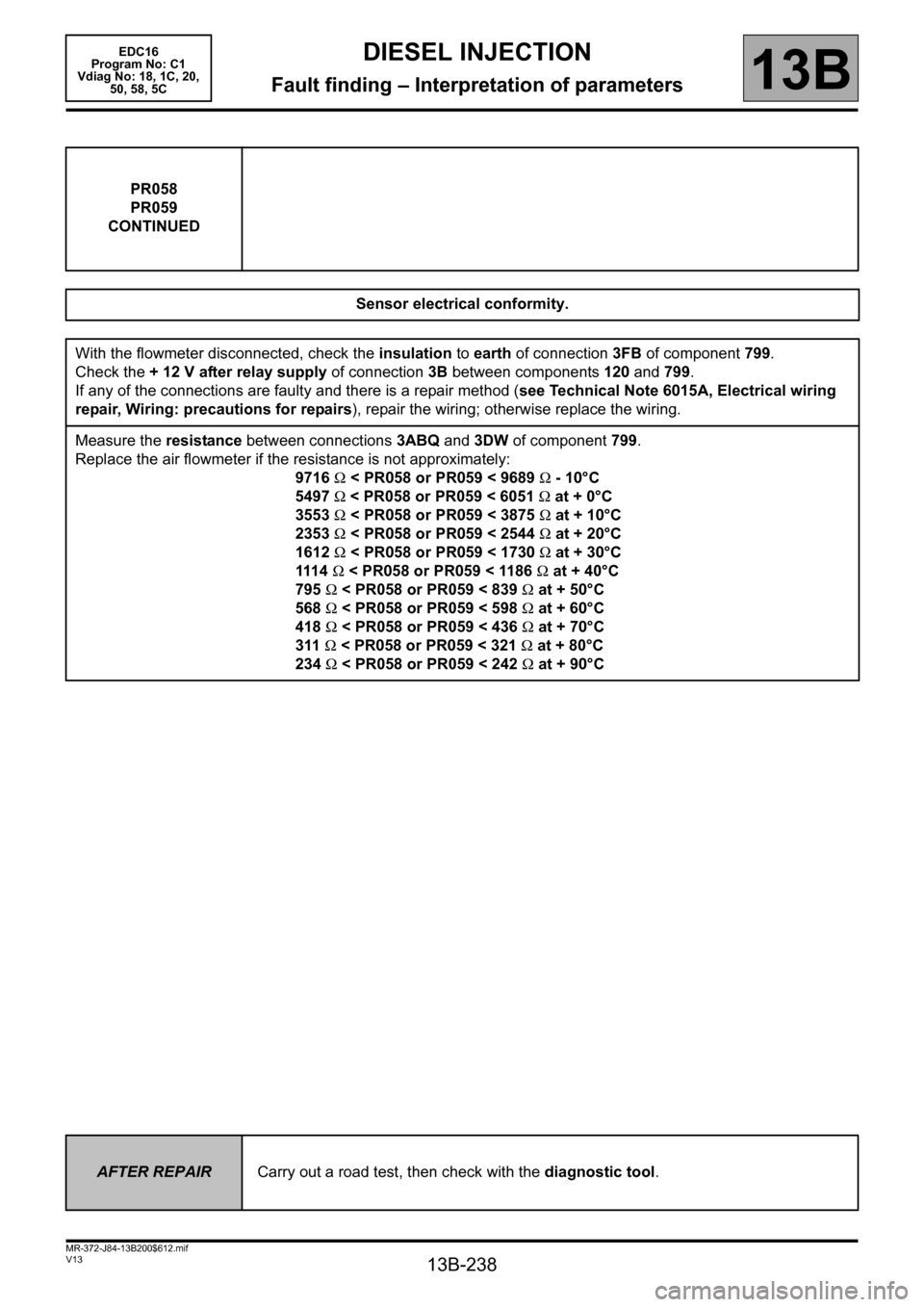

13B-238
MR-372-J84-13B200$612.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of parameters
EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5C
13B
PR058
PR059
CONTINUED
Sensor electrical conformity.
With the flowmeter disconnected, check the insulation to earth of connection 3FB of component 799.
Check the + 12 V after relay supply of connection 3B between components 120 and 799.
If any of the connections are faulty and there is a repair method (see Technical Note 6015A, Electrical wiring
repair, Wiring: precautions for repairs), repair the wiring; otherwise replace the wiring.
Measure the resistance between connections 3ABQ and 3DW of component 799.
Replace the air flowmeter if the resistance is not approximately:
9716 Ω < PR058 or PR059 < 9689 Ω - 10°C
5497 Ω < PR058 or PR059 < 6051 Ω at + 0°C
3553 Ω < PR058 or PR059 < 3875 Ω at + 10°C
2353 Ω < PR058 or PR059 < 2544 Ω at + 20°C
1612 Ω < PR058 or PR059 < 1730 Ω at + 30°C
111 4 Ω < PR058 or PR059 < 1186 Ω at + 40°C
795 Ω < PR058 or PR059 < 839 Ω at + 50°C
568 Ω < PR058 or PR059 < 598 Ω at + 60°C
418 Ω < PR058 or PR059 < 436 Ω at + 70°C
311 Ω < PR058 or PR059 < 321 Ω at + 80°C
234 Ω < PR058 or PR059 < 242 Ω at + 90°C
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

13B-240
MR-372-J84-13B200$612.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of parameters
EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5C
13B
PR064
COOLANT TEMPERATURE
PARAMETER
DEFINITIONThis parameter indicates the engine coolant temperature in °C.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
No faults should be present or stored.
Perform this fault finding procedure:
– after finding an inconsistency in the parameter,
– after a customer complaint (e.g. lack of power).
Conformity check with engine stopped and ignition on.
With the ignition on the coolant temperature varies according to the exterior temperature.
Safe value: 119°C
In the event of a fault, consult the interpretation of fault DF001 Coolant temperature sensor circuit.
Parameter PR059: Inlet air temperature ≈ PR064 cold engine.
Conformity check with engine running, engine coolant temperature > 80°C.
With the engine running at idle speed the coolant temperature varies according to the engine temperature.
Safe value: 119°C
In the event of a fault, refer to the interpretation of DF001 Coolant temperature sensor circuit.
AFTER REPAIRCarry out a road test followed by a check with the diagnostic tool.
EDC16_V50_PR064/EDC16_V58_PR064/EDC16_V5C_PR064/EDC16_V18_PR064/EDC16_V1C_PR064/EDC16_V20_PR064

13B-241
MR-372-J84-13B200$612.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of parameters
EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5C
13B
PR064
CONTINUED
Sensor electrical conformity.
Check the continuity and absence of interference resistance on the following connections:
– connection code3C,
– connection code 3JK.
Between components 120 and 244.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Measure the resistance between connections 3C and 3JK of component 244.
Replace the sensor if the resistance is not:
11332 Ω < PR064 < 13588 Ω at - 10°C
2140 Ω < PR064 < 2364 Ω at + 25°C
772 Ω < PR064 < 850 Ω at + 50°C
275 Ω < PR064 < 291 Ω at + 80°C
112 Ω < PR064 < 118 Ω at + 110°C
AFTER REPAIRCarry out a road test followed by a check with the diagnostic tool.
