Seats and storage

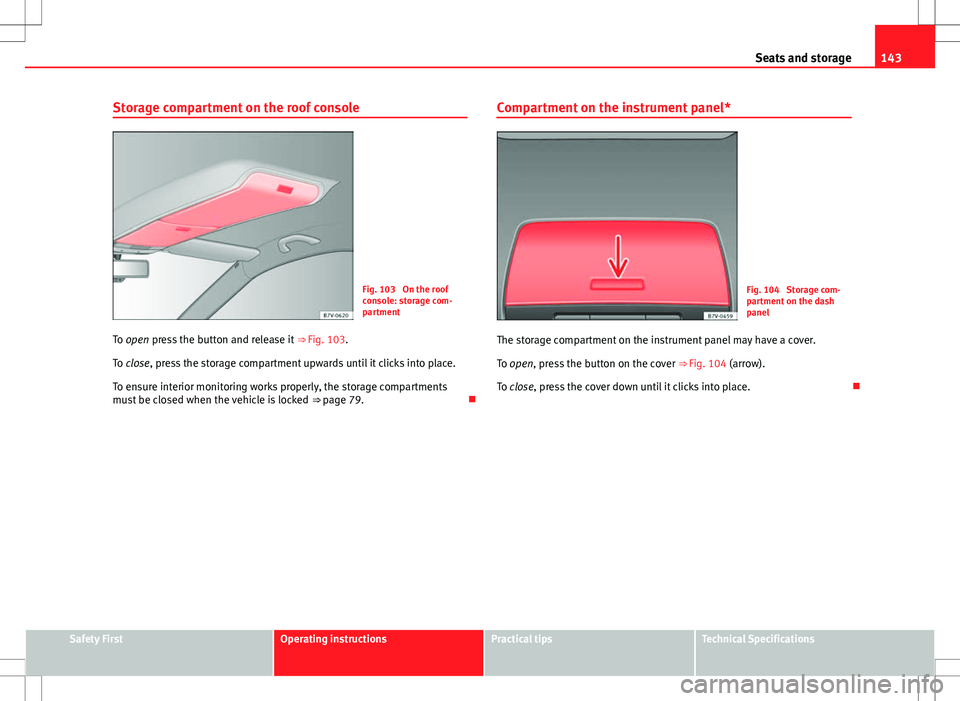

Storage compartment on the roof console
Fig. 103 On the roof
console: storage com-
partment
To open press the button and release it ⇒ Fig. 103.
To close, press the storage compartment upwards until it clicks into place.
To ensure interior monitoring works properly, the storage compartments
must be closed when the vehicle is locked ⇒ page 79.Compartment on the instrument panel*Fig. 104 Storage com-
partment on the dash
panel
The storage compartment on the instrument panel may have a cover.
To open, press the button on the cover ⇒ Fig. 104 (arrow).
To close, press the cover down until it clicks into place. 
Safety FirstOperating instructionsPractical tipsTechnical Specifications

145
Seats and storage

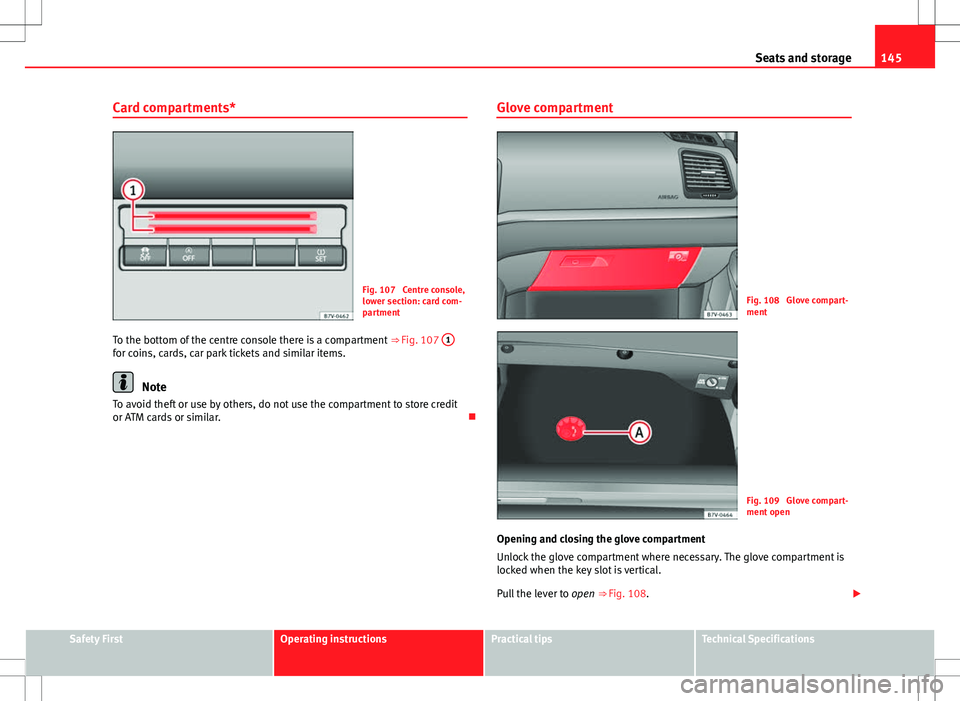

Card compartments*
Fig. 107 Centre console,
lower section: card com-
partment
To the bottom of the centre console there is a compartment ⇒ Fig. 107 1
for coins, cards, car park tickets and similar items.
Note
To avoid theft or use by others, do not use the compartment to store credit
or ATM cards or similar. Glove compartment
Fig. 108 Glove compart-
ment
Fig. 109 Glove compart-
ment open
Opening and closing the glove compartment
Unlock the glove compartment where necessary. The glove compartment is
locked when the key slot is vertical.
Pull the lever to open ⇒ Fig. 108. 
Safety FirstOperating instructionsPractical tipsTechnical Specifications

147
Seats and storage
WARNING (Continued)
secured when using a child seat with a base or foot then the compart-
ment cover could rupture in an accident and the child will be ejected and
suffer serious injury.
● Please read and observe the child seat manufacturer's handling in-
structions.


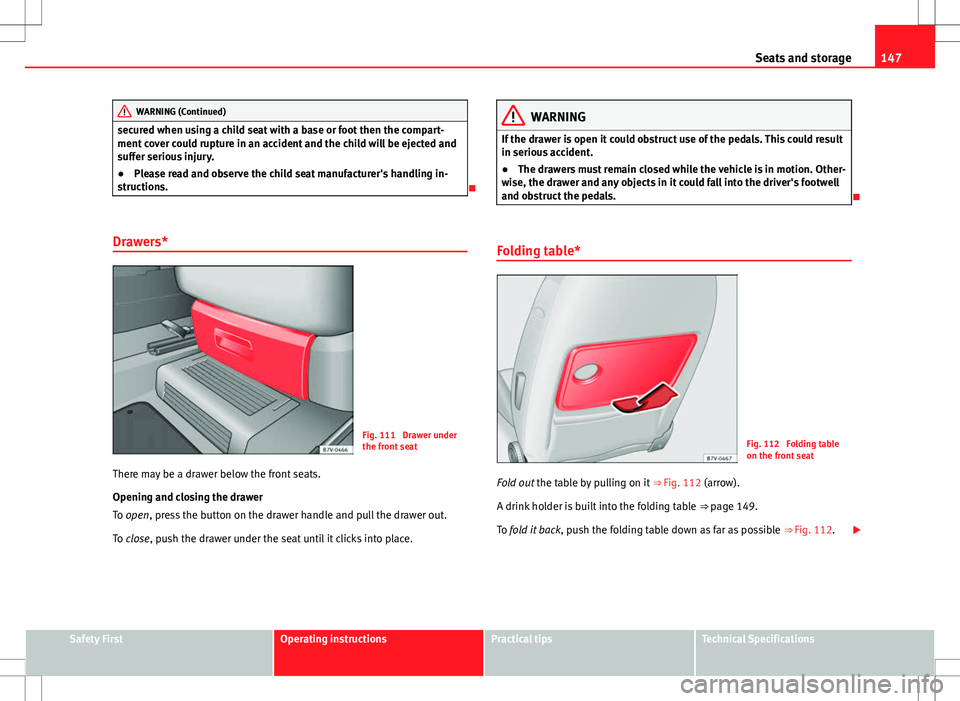

Drawers*
Fig. 111 Drawer under
the front seat
There may be a drawer below the front seats.
Opening and closing the drawer
To open, press the button on the drawer handle and pull the drawer out.
To close, push the drawer under the seat until it clicks into place.
WARNING
If the drawer is open it could obstruct use of the pedals. This could result
in serious accident.
● The drawers must remain closed while the vehicle is in motion. Other-
wise, the drawer and any objects in it could fall into the driver's footwell
and obstruct the pedals.

Folding table*
Fig. 112 Folding table
on the front seat
Fold out the table by pulling on it ⇒ Fig. 112 (arrow).
A drink holder is built into the folding table ⇒ page 149.
To fold it back , push the folding table down as far as possible ⇒ Fig. 112.
Safety FirstOperating instructionsPractical tipsTechnical Specifications

149
Seats and storage

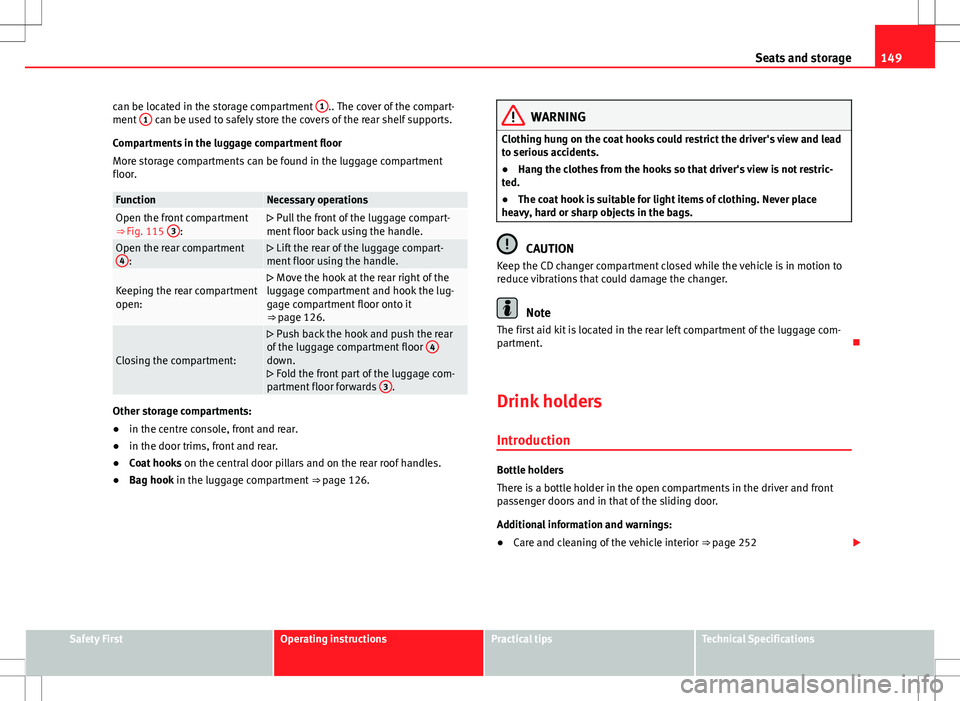

can be located in the storage compartment 1
.. The cover of the compart-
ment 1 can be used to safely store the covers of the rear shelf supports.
Compartments in the luggage compartment floor
More storage compartments can be found in the luggage compartment
floor.
FunctionNecessary operationsOpen the front compartment
⇒ Fig. 115 3:
Pull the front of the luggage compart-
ment floor back using the handle.
Open the rear compartment 4: Lift the rear of the luggage compart-
ment floor using the handle.
Keeping the rear compartment
open: Move the hook at the rear right of the
luggage compartment and hook the lug-
gage compartment floor onto it
⇒ page 126.
Closing the compartment:
 Push back the hook and push the rear
of the luggage compartment floor 4
down.

Fold the front part of the luggage com-
partment floor forwards 3
.
Other storage compartments:
●
in the centre console, front and rear.
● in the door trims, front and rear.
● Coat hooks on the central door pillars and on the rear roof handles.
● Bag hook in the luggage compartment ⇒ page 126.
WARNING
Clothing hung on the coat hooks could restrict the driver's view and lead
to serious accidents.
● Hang the clothes from the hooks so that driver's view is not restric-
ted.
● The coat hook is suitable for light items of clothing. Never place
heavy, hard or sharp objects in the bags.
CAUTION
Keep the CD changer compartment closed while the vehicle is in motion to
reduce vibrations that could damage the changer.
Note
The first aid kit is located in the rear left compartment of the luggage com-
partment. 
Drink holders Introduction
Bottle holders
There is a bottle holder in the open compartments in the driver and front
passenger doors and in that of the sliding door.
Additional information and warnings:
● Care and cleaning of the vehicle interior ⇒ page 252
Safety FirstOperating instructionsPractical tipsTechnical Specifications

151
Seats and storage

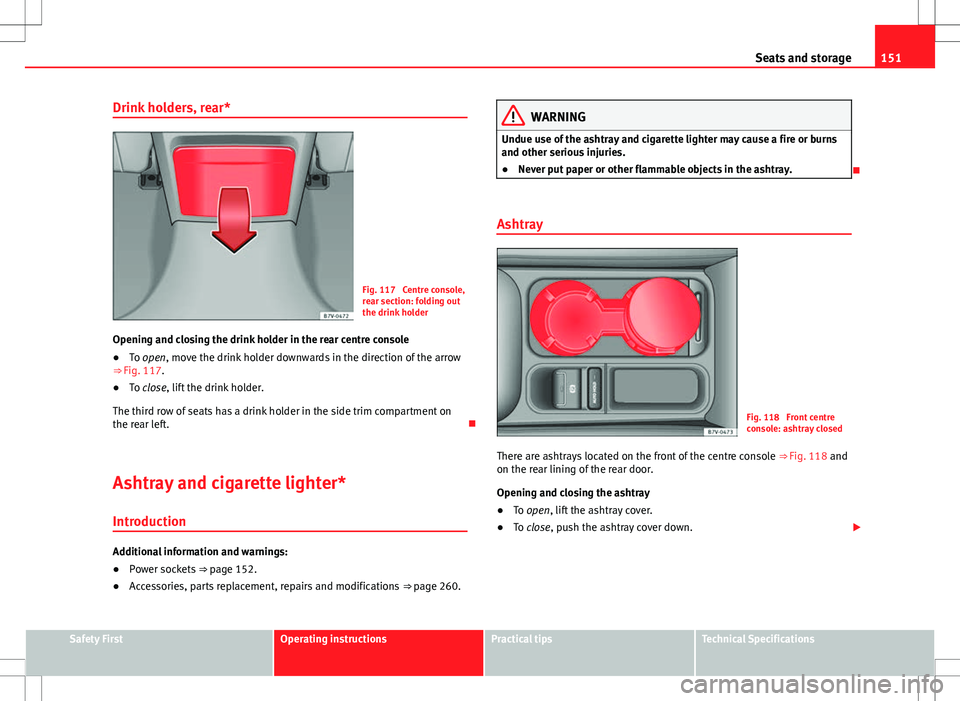

Drink holders, rear*
Fig. 117 Centre console,
rear section: folding out
the drink holder
Opening and closing the drink holder in the rear centre console
● To open, move the drink holder downwards in the direction of the arrow
⇒  Fig. 117.
● To close, lift the drink holder.
The third row of seats has a drink holder in the side trim compartment on
the rear left. 
Ashtray and cigarette lighter*
Introduction
Additional information and warnings:
● Power sockets
⇒ page 152.
● Accessories, parts replacement, repairs and modifications
⇒ page 260.
WARNING
Undue use of the ashtray and cigarette lighter may cause a fire or burns
and other serious injuries.
● Never put paper or other flammable objects in the ashtray.

Ashtray
Fig. 118 Front centre
console: ashtray closed
There are ashtrays located on the front of the centre console ⇒ Fig. 118 and
on the rear lining of the rear door.
Opening and closing the ashtray
● To open, lift the ashtray cover.
● To close, push the ashtray cover down. 
Safety FirstOperating instructionsPractical tipsTechnical Specifications

153
Seats and storage

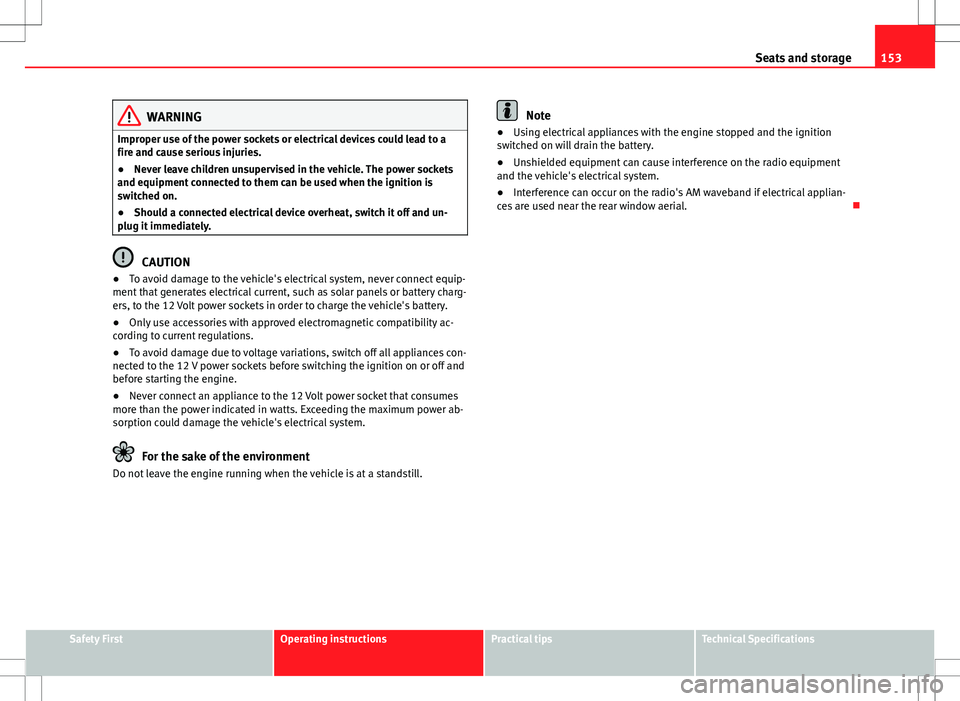

WARNING
Improper use of the power sockets or electrical devices could lead to a
fire and cause serious injuries.
● Never leave children unsupervised in the vehicle. The power sockets
and equipment connected to them can be used when the ignition is
switched on.
● Should a connected electrical device overheat, switch it off and un-
plug it immediately.
CAUTION
● To avoid damage to the vehicle's electrical system, never connect equip-
ment that generates electrical current, such as solar panels or battery charg-
ers, to the 12 Volt power sockets in order to charge the vehicle's battery.
● Only use accessories with approved electromagnetic compatibility ac-
cording to current regulations.
● To avoid damage due to voltage variations, switch off all appliances con-
nected to the 12 V power sockets before switching the ignition on or off and
before starting the engine.
● Never connect an appliance to the 12 Volt power socket that consumes
more than the power indicated in watts. Exceeding the maximum power ab-
sorption could damage the vehicle's electrical system.
For the sake of the environment
Do not leave the engine running when the vehicle is at a standstill.
Note
● Using electrical appliances with the engine stopped and the ignition
switched on will drain the battery.
● Unshielded equipment can cause interference on the radio equipment
and the vehicle's electrical system.
● Interference can occur on the radio's AM waveband if electrical applian-
ces are used near the rear window aerial. 
Safety FirstOperating instructionsPractical tipsTechnical Specifications

155
Seats and storage

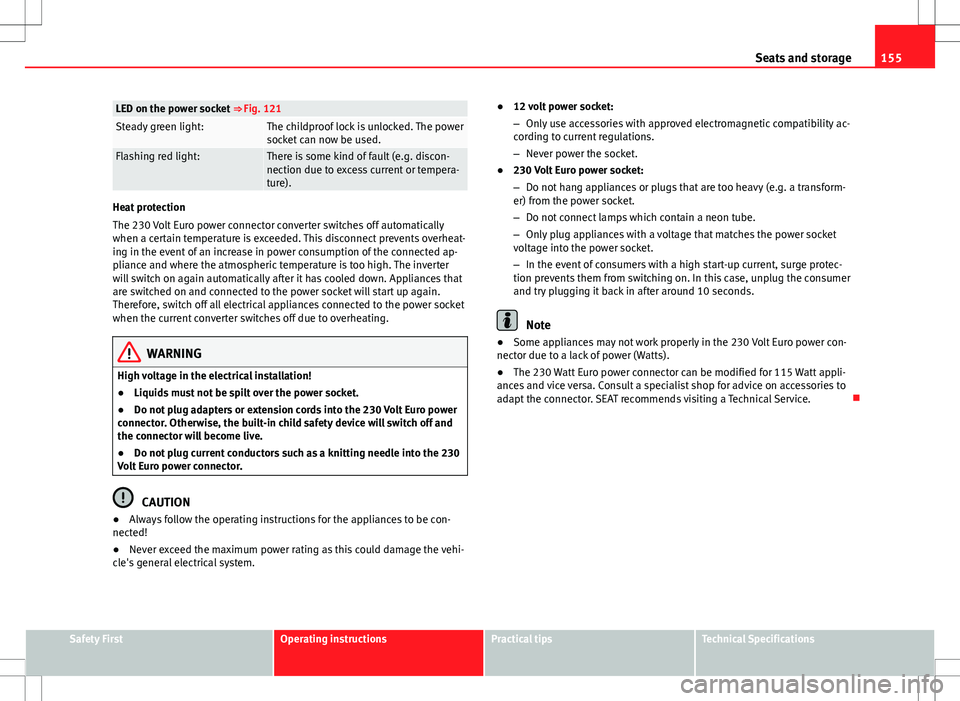

LED on the power socket ⇒ Fig. 121Steady green light:The childproof lock is unlocked. The power
socket can now be used.
Flashing red light:There is some kind of fault (e.g. discon-
nection due to excess current or tempera-
ture).
Heat protection
The 230 Volt Euro power connector converter switches off automatically
when a certain temperature is exceeded. This disconnect prevents overheat-
ing in the event of an increase in power consumption of the connected ap-
pliance and where the atmospheric temperature is too high. The inverter
will switch on again automatically after it has cooled down. Appliances that
are switched on and connected to the power socket will start up again.
Therefore, switch off all electrical appliances connected to the power socket
when the current converter switches off due to overheating.
WARNING
High voltage in the electrical installation!
● Liquids must not be spilt over the power socket.
● Do not plug adapters or extension cords into the 230 Volt Euro power
connector. Otherwise, the built-in child safety device will switch off and
the connector will become live.
● Do not plug current conductors such as a knitting needle into the 230
Volt Euro power connector.
CAUTION
● Always follow the operating instructions for the appliances to be con-
nected!
● Never exceed the maximum power rating as this could damage the vehi-
cle's general electrical system. ●
12 volt power socket:
– Only use accessories with approved electromagnetic compatibility ac-
cording to current regulations.
– Never power the socket.
● 230 Volt Euro power socket:
– Do not hang appliances or plugs that are too heavy (e.g. a transform-
er) from the power socket.
– Do not connect lamps which contain a neon tube.
– Only plug appliances with a voltage that matches the power socket
voltage into the power socket.
– In the event of consumers with a high start-up current, surge protec-
tion prevents them from switching on. In this case, unplug the consumer
and try plugging it back in after around 10 seconds.
Note
● Some appliances may not work properly in the 230 Volt Euro power con-
nector due to a lack of power (Watts).
● The 230 Watt Euro power connector can be modified for 115 Watt appli-
ances and vice versa. Consult a specialist shop for advice on accessories to
adapt the connector. SEAT recommends visiting a Technical Service. 
Safety FirstOperating instructionsPractical tipsTechnical Specifications

157
Air conditioning

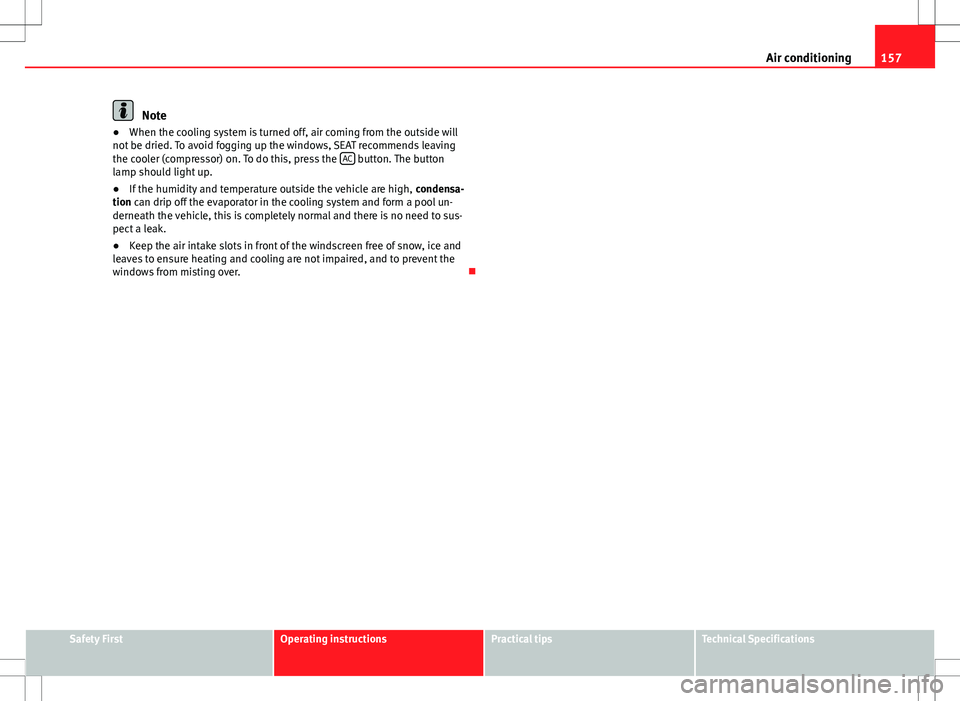

Note
● When the cooling system is turned off, air coming from the outside will
not be dried. To avoid fogging up the windows, SEAT recommends leaving
the cooler (compressor) on. To do this, press the AC
button. The button
lamp should light up.
● If the humidity and temperature outside the vehicle are high, condensa-
tion can drip off the evaporator in the cooling system and form a pool un-
derneath the vehicle, this is completely normal and there is no need to sus-
pect a leak.
● Keep the air intake slots in front of the windscreen free of snow, ice and
leaves to ensure heating and cooling are not impaired, and to prevent the
windows from misting over. 
Safety FirstOperating instructionsPractical tipsTechnical Specifications

159
Air conditioning

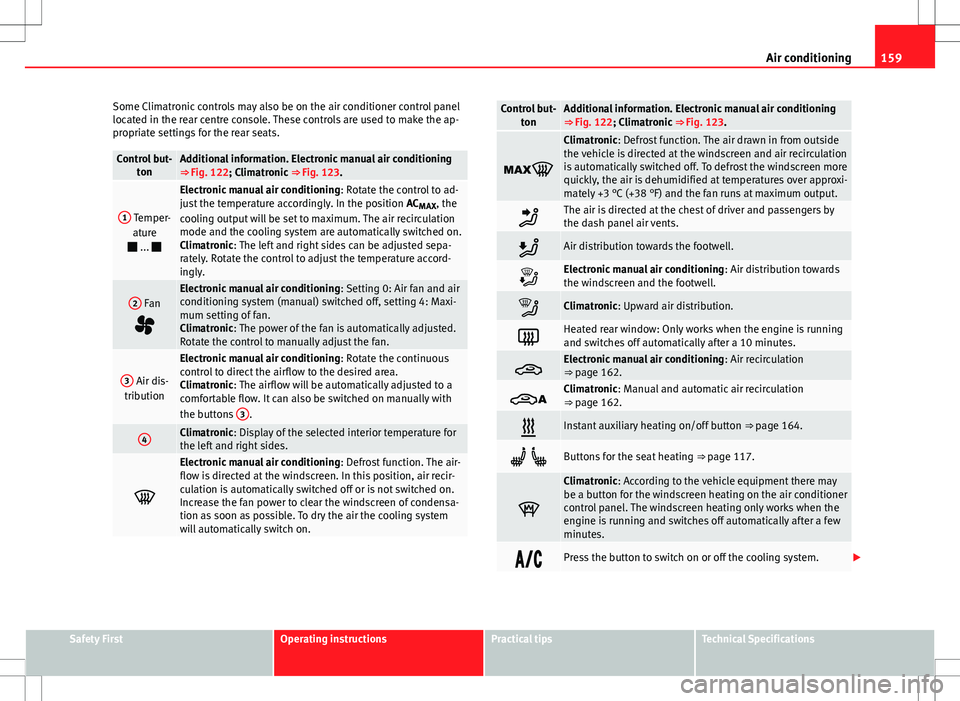

Some Climatronic controls may also be on the air conditioner control panel
located in the rear centre console. These controls are used to make the ap-
propriate settings for the rear seats.
Control but- tonAdditional information. Electronic manual air conditioning
⇒ Fig. 122; Climatronic ⇒ Fig. 123.
1 Temper-
ature
 ... 
Electronic manual air conditioning : Rotate the control to ad-
just the temperature accordingly. In the position AC
MAX , the
cooling output will be set to maximum. The air recirculation
mode and the cooling system are automatically switched on.
Climatronic: The left and right sides can be adjusted sepa-
rately. Rotate the control to adjust the temperature accord-
ingly.
2 Fan
Electronic manual air conditioning : Setting 0: Air fan and air
conditioning system (manual) switched off, setting 4: Maxi-
mum setting of fan.
Climatronic: The power of the fan is automatically adjusted.
Rotate the control to manually adjust the fan.
3 Air dis-
tribution
Electronic manual air conditioning : Rotate the continuous
control to direct the airflow to the desired area.
Climatronic: The airflow will be automatically adjusted to a
comfortable flow. It can also be switched on manually with
the buttons 3
.
4Climatronic: Display of the selected interior temperature for
the left and right sides.

Electronic manual air conditioning
: Defrost function. The air-
flow is directed at the windscreen. In this position, air recir-
culation is automatically switched off or is not switched on.
Increase the fan power to clear the windscreen of condensa-
tion as soon as possible. To dry the air the cooling system
will automatically switch on.
Control but- tonAdditional information. Electronic manual air conditioning
⇒ Fig. 122; Climatronic ⇒ Fig. 123.

Climatronic: Defrost function. The air drawn in from outside
the vehicle is directed at the windscreen and air recirculation
is automatically switched off. To defrost the windscreen more
quickly, the air is dehumidified at temperatures over approxi-
mately +3 °C (+38 °F) and the fan runs at maximum output.
The air is directed at the chest of driver and passengers by
the dash panel air vents.
Air distribution towards the footwell.
Electronic manual air conditioning : Air distribution towards
the windscreen and the footwell.
Climatronic: Upward air distribution.
Heated rear window: Only works when the engine is running
and switches off automatically after a 10 minutes.
Electronic manual air conditioning : Air recirculation
⇒ page 162.
Climatronic: Manual and automatic air recirculation
⇒ page 162.
Instant auxiliary heating on/off button ⇒ page 164.
 Buttons for the seat heating ⇒ page 117.

Climatronic: According to the vehicle equipment there may
be a button for the windscreen heating on the air conditioner
control panel. The windscreen heating only works when the
engine is running and switches off automatically after a few
minutes.
Press the button to switch on or off the cooling system. 
Safety FirstOperating instructionsPractical tipsTechnical Specifications

161
Air conditioning
Air conditioner user instructions
The interior cooling system only works when the engine is running and fan
is switched on.
The air conditioner operates most effectively with the windows and the elec-
tric sliding panoramic roof closed. However, if the vehicle has heated up af-
ter standing in the sun for some time, the air inside can be cooled more
quickly by opening the windows and the sliding electric panoramic sunroof
briefly.
Setting for conditions of optimal visibility
When the air conditioning is switched on, the temperature and the air hu-
midity in the vehicle interior drop. Hence, when the outside air humidity is
high, the windows do not mist over and comfort for the vehicle occupants is
improved:
Electronic manual air conditioning
● Switch off the air recirculation ⇒ page 162.
● Set the fan to the required setting.
● Turn the temperature control to the centre position.
● Open and direct all the air outlets in the dash panel ⇒ page 162.
● Turn the air distribution control to the required position.
With Climatronic
● Press the AUTO
button.
● Set the temperature to +22 °C (+72 °F).
● Open and direct all the air outlets in the dash panel ⇒ page 162.
Climatronic: Switching the measuring units for temperature on the radio
display or the navigation system installed with the default settings
Switching the temperature indication from Celsius to Fahrenheit on the ra-
dio display or the navigation system is carried out in the menu on the in-
strument panel ⇒ page 67. The cooling system does not switch on
If the air conditioning system cannot be switched on, this may be caused by
the following:
●
The engine is not running.
● The fan is switched off.
● The air conditioning fuse is blown.
● The outside temperature is lower than approximately +3 °C (+38 °F).
● The air conditioner compressor has been temporarily switched off be-
cause the engine coolant temperature is too high.
● Another fault in the vehicle. Have the air conditioner checked by a speci-
alised workshop.
Things to note
If the humidity and temperature outside the vehicle are high, condensation
can drip off the vaporiser in the cooling system and form a pool underneath
the vehicle. This is normal and does not indicate a leak!
Note
After starting the engine, any residual humidity in the air conditioner could
mist over the windscreen. Switch on the defrost function as soon as possi-
ble to clear the windscreen of condensation. 
Safety FirstOperating instructionsPractical tipsTechnical Specifications
