Seat Alhambra 2014 Manual Online

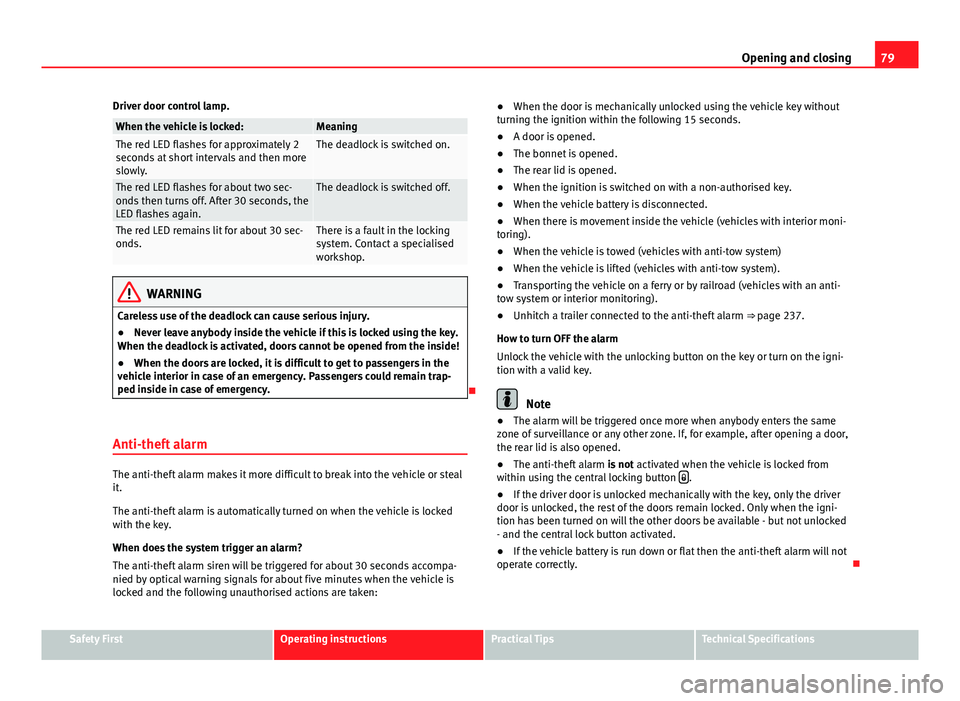

79
Opening and closing
Driver door control lamp.
When the vehicle is locked:MeaningThe red LED flashes for approximately 2
seconds at short intervals and then more
slowly.The deadlock is switched on.
The red LED flashes for about two sec-
onds then turns off. After 30 seconds, the
LED flashes again.The deadlock is switched off.
The red LED remains lit for about 30 sec-
onds.There is a fault in the locking
system. Contact a specialised
workshop.
WARNING
Careless use of the deadlock can cause serious injury.
● Never leave anybody inside the vehicle if this is locked using the key.
When the deadlock is activated, doors cannot be opened from the inside!
● When the doors are locked, it is difficult to get to passengers in the
vehicle interior in case of an emergency. Passengers could remain trap-
ped inside in case of emergency.

Anti-theft alarm
The anti-theft alarm makes it more difficult to break into the vehicle or steal
it.
The anti-theft alarm is automatically turned on when the vehicle is locked
with the key.
When does the system trigger an alarm?
The anti-theft alarm siren will be triggered for about 30 seconds accompa-
nied by optical warning signals for about five minutes when the vehicle is
locked and the following unauthorised actions are taken: ●
When the door is mechanically unlocked using the vehicle key without
turning the ignition within the following 15 seconds.
● A door is opened.
● The bonnet is opened.
● The rear lid is opened.
● When the ignition is switched on with a non-authorised key.
● When the vehicle battery is disconnected.
● When there is movement inside the vehicle (vehicles with interior moni-
toring).
● When the vehicle is towed (vehicles with anti-tow system)
● When the vehicle is lifted (vehicles with anti-tow system).
● Transporting the vehicle on a ferry or by railroad (vehicles with an anti-
tow system or interior monitoring).
● Unhitch a trailer connected to the anti-theft alarm ⇒ page 237.
How to turn OFF the alarm
Unlock the vehicle with the unlocking button on the key or turn on the igni-
tion with a valid key.
Note
● The alarm will be triggered once more when anybody enters the same
zone of surveillance or any other zone. If, for example, after opening a door,
the rear lid is also opened.
● The anti-theft alarm is not activated when the vehicle is locked from
within using the central locking button 
.
● If the driver door is unlocked mechanically with the key, only the driver
door is unlocked, the rest of the doors remain locked. Only when the igni-
tion has been turned on will the other doors be available - but not unlocked
- and the central lock button activated.
● If the vehicle battery is run down or flat then the anti-theft alarm will not
operate correctly. 
Safety FirstOperating instructionsPractical TipsTechnical Specifications

80Opening and closing
Interior monitoring system and anti-tow system*
Fig. 49 On the roof con-
sole: interior monitoring
sensors
The interior monitoring system triggers the alarm if the vehicle is locked and
movement is detected inside the vehicle. The anti-tow system triggers the
alarm if the vehicle is locked when the system detects the vehicle is being
raised.
Switching on the interior monitoring and the anti-tow systems
Close the storage compartment ⇒ Fig. 49 1
on the roof console otherwise
the interior monitoring function (arrow) may not work without restrictions.
Use the key to lock the vehicle. If the anti-theft alarm is turned on, the interi-
or monitoring and the anti-tow systems are also activated.
Switching off the interior monitoring and the anti-tow systems
The interior monitoring is switched off by pressing the remote control lock
button 
twice.
● Lock all doors and rear lid.
● Use the key to lock the vehicle. The interior monitoring and / or anti-tow-
ing alarm are switched off until the next time the vehicle is locked. To turn off the interior monitoring and anti-tow systems before unlocking
the vehicle, for example in the following situations:
●
When leaving animals inside the vehicle  ⇒ page 75.
● When the vehicle must be loaded.
● When the vehicle is being transported, for example, by ferry.
● When the vehicle must be towed with the axle raised.
Risk of false alarms
The interior monitoring system only operates correctly if the vehicle is com-
pletely closed. Observe legal requirements. The alarm may be accidentally
triggered in the following cases:
● When a window is completely or partially open.
● If the sunglasses storage compartment in the roof console is open.
● When the panoramic sliding sunroof is completely or partially open.
● When suspended objects are hung from the interior mirror (air freshen-
er) or there are loose papers in the vehicle.
● If the separation net is fitted and moves (due to heating).
● Due to a vibrating mobile telephone inside the vehicle.
Note
Upon activating the alarm, if any door or the rear lid is open, only the anti-
theft alarm will be activated. The interior monitoring and anti-tow systems
will only be activated when the doors and rear lid are fully closed. 

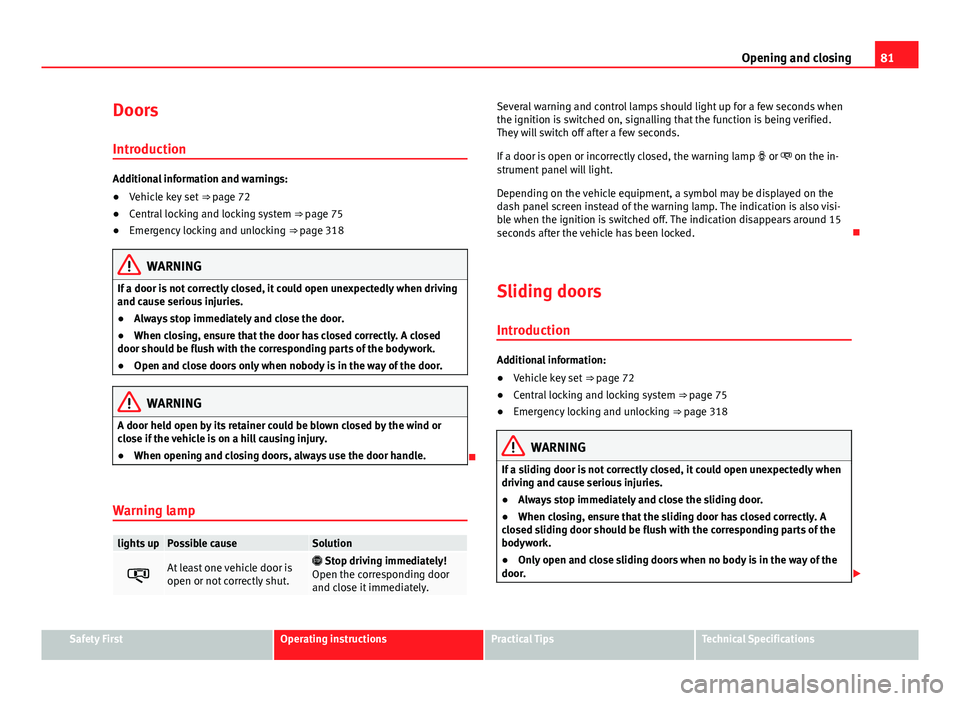

81
Opening and closing
Doors Introduction
Additional information and warnings:
● Vehicle key set ⇒ page 72
● Central locking and locking system ⇒ page 75
● Emergency locking and unlocking ⇒ page 318
WARNING
If a door is not correctly closed, it could open unexpectedly when driving
and cause serious injuries.
● Always stop immediately and close the door.
● When closing, ensure that the door has closed correctly. A closed
door should be flush with the corresponding parts of the bodywork.
● Open and close doors only when nobody is in the way of the door.
WARNING
A door held open by its retainer could be blown closed by the wind or
close if the vehicle is on a hill causing injury.
● When opening and closing doors, always use the door handle.

Warning lamp
lights upPossible causeSolution
At least one vehicle door is
open or not correctly shut. Stop driving immediately!
Open the corresponding door
and close it immediately.
Several warning and control lamps should light up for a few seconds when
the ignition is switched on, signalling that the function is being verified.
They will switch off after a few seconds.
If a door is open or incorrectly closed, the warning lamp  or  on the in-
strument panel will light.
Depending on the vehicle equipment, a symbol may be displayed on the
dash panel screen instead of the warning lamp. The indication is also visi-
ble when the ignition is switched off. The indication disappears around 15
seconds after the vehicle has been locked. 
Sliding doors Introduction
Additional information:
● Vehicle key set ⇒ page 72
● Central locking and locking system ⇒ page 75
● Emergency locking and unlocking ⇒ page 318
WARNING
If a sliding door is not correctly closed, it could open unexpectedly when
driving and cause serious injuries.
● Always stop immediately and close the sliding door.
● When closing, ensure that the sliding door has closed correctly. A
closed sliding door should be flush with the corresponding parts of the
bodywork.
● Only open and close sliding doors when no body is in the way of the
door. 
Safety FirstOperating instructionsPractical TipsTechnical Specifications

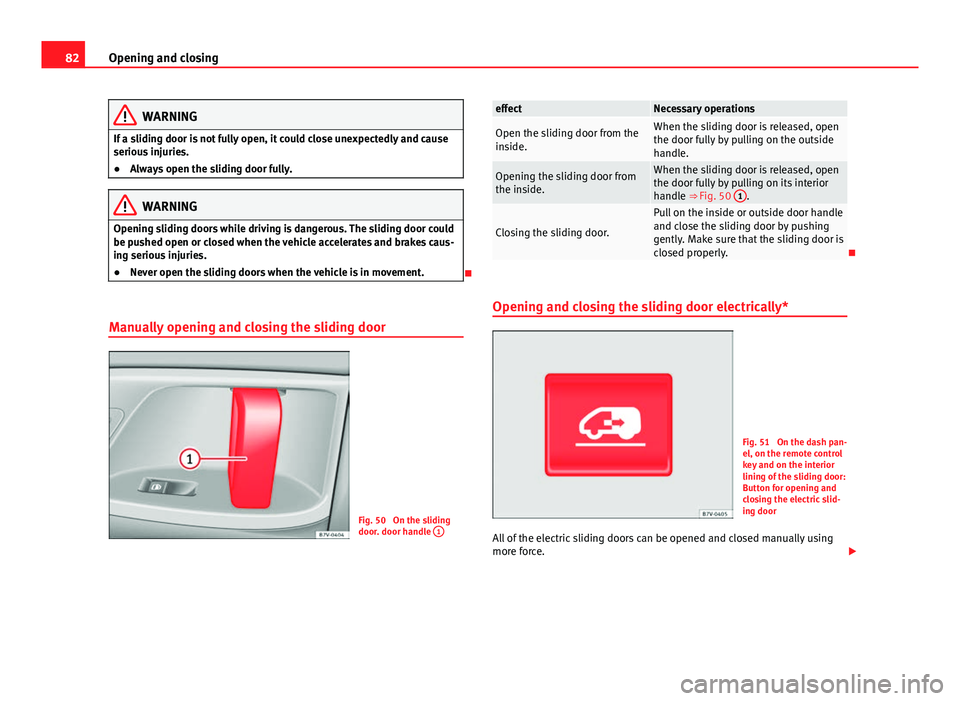

82Opening and closing
WARNING
If a sliding door is not fully open, it could close unexpectedly and cause
serious injuries.
● Always open the sliding door fully.
WARNING
Opening sliding doors while driving is dangerous. The sliding door could
be pushed open or closed when the vehicle accelerates and brakes caus-
ing serious injuries.
● Never open the sliding doors when the vehicle is in movement.

Manually opening and closing the sliding door
Fig. 50 On the sliding
door. door handle 1
effectNecessary operations
Open the sliding door from the
inside.When the sliding door is released, open
the door fully by pulling on the outside
handle.
Opening the sliding door from
the inside.When the sliding door is released, open
the door fully by pulling on its interior
handle ⇒ Fig. 50 1
.
Closing the sliding door.
Pull on the inside or outside door handle
and close the sliding door by pushing
gently. Make sure that the sliding door is
closed properly.

Opening and closing the sliding door electrically*
Fig. 51 On the dash pan-
el, on the remote control
key and on the interior
lining of the sliding door:
Button for opening and
closing the electric slid-
ing door
All of the electric sliding doors can be opened and closed manually using
more force. 

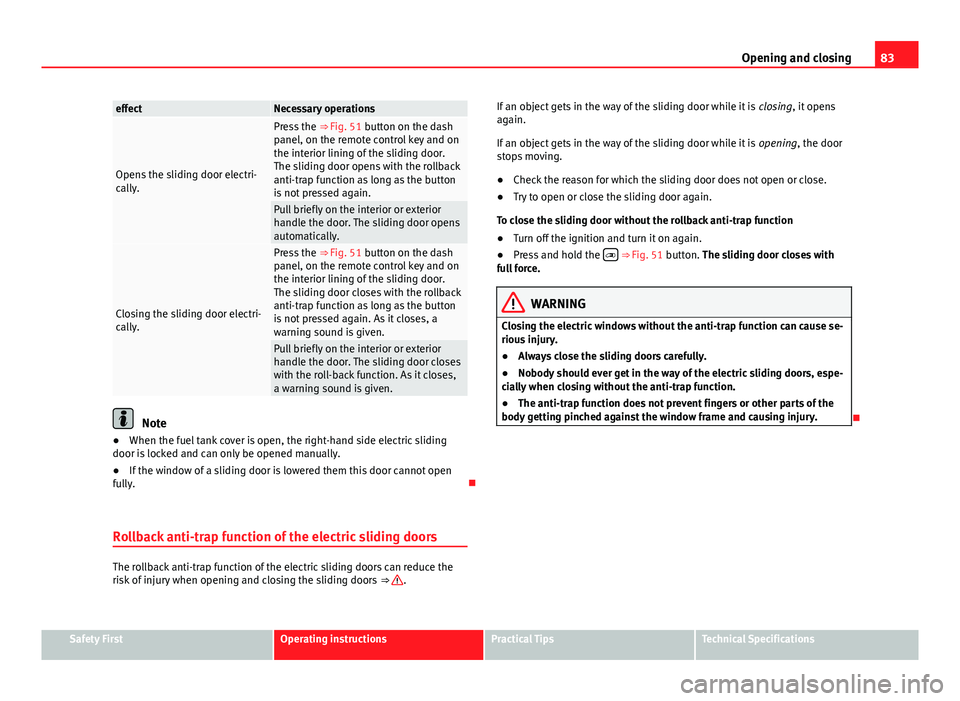

83
Opening and closing
effectNecessary operations
Opens the sliding door electri-
cally.
Press the ⇒ Fig. 51 button on the dash
panel, on the remote control key and on
the interior lining of the sliding door.
The sliding door opens with the rollback
anti-trap function as long as the button
is not pressed again.
Pull briefly on the interior or exterior
handle the door. The sliding door opens
automatically.
Closing the sliding door electri-
cally.
Press the ⇒ Fig. 51 button on the dash
panel, on the remote control key and on
the interior lining of the sliding door.
The sliding door closes with the rollback
anti-trap function as long as the button
is not pressed again. As it closes, a
warning sound is given.
Pull briefly on the interior or exterior
handle the door. The sliding door closes
with the roll-back function. As it closes,
a warning sound is given.
Note
● When the fuel tank cover is open, the right-hand side electric sliding
door is locked and can only be opened manually.
● If the window of a sliding door is lowered them this door cannot open
fully. 
Rollback anti-trap function of the electric sliding doors
The rollback anti-trap function of the electric sliding doors can reduce the
risk of injury when opening and closing the sliding doors ⇒ .If an object gets in the way of the sliding door while it is
closing, it opens
again.
If an object gets in the way of the sliding door while it is opening, the door
stops moving.
● Check the reason for which the sliding door does not open or close.
● Try to open or close the sliding door again.
To close the sliding door without the rollback anti-trap function
● Turn off the ignition and turn it on again.
● Press and hold the 
⇒ Fig. 51 button. The sliding door closes with
full force.
WARNING
Closing the electric windows without the anti-trap function can cause se-
rious injury.
● Always close the sliding doors carefully.
● Nobody should ever get in the way of the electric sliding doors, espe-
cially when closing without the anti-trap function.
● The anti-trap function does not prevent fingers or other parts of the
body getting pinched against the window frame and causing injury.

Safety FirstOperating instructionsPractical TipsTechnical Specifications

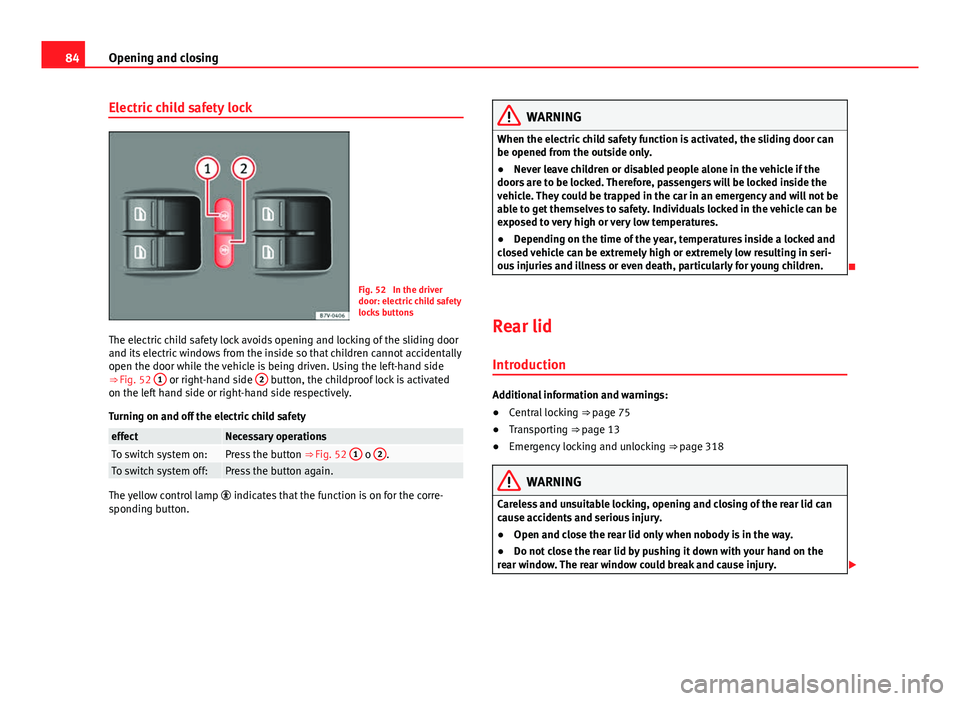

84Opening and closing
Electric child safety lock
Fig. 52 In the driver
door: electric child safety
locks buttons
The electric child safety lock avoids opening and locking of the sliding door
and its electric windows from the inside so that children cannot accidentally
open the door while the vehicle is being driven. Using the left-hand side
⇒  Fig. 52 1
or right-hand side 2 button, the childproof lock is activated
on the left hand side or right-hand side respectively.
Turning on and off the electric child safety
effectNecessary operationsTo switch system on:Press the button ⇒ Fig. 52 1 o 2.To switch system off:Press the button again.
The yellow control lamp
 indicates that the function is on for the corre-
sponding button.
WARNING
When the electric child safety function is activated, the sliding door can
be opened from the outside only.
● Never leave children or disabled people alone in the vehicle if the
doors are to be locked. Therefore, passengers will be locked inside the
vehicle. They could be trapped in the car in an emergency and will not be
able to get themselves to safety. Individuals locked in the vehicle can be
exposed to very high or very low temperatures.
● Depending on the time of the year, temperatures inside a locked and
closed vehicle can be extremely high or extremely low resulting in seri-
ous injuries and illness or even death, particularly for young children.

Rear lid
Introduction
Additional information and warnings:
● Central locking ⇒ page 75
● Transporting ⇒ page 13
● Emergency locking and unlocking ⇒ page 318
WARNING
Careless and unsuitable locking, opening and closing of the rear lid can
cause accidents and serious injury.
● Open and close the rear lid only when nobody is in the way.
● Do not close the rear lid by pushing it down with your hand on the
rear window. The rear window could break and cause injury. 

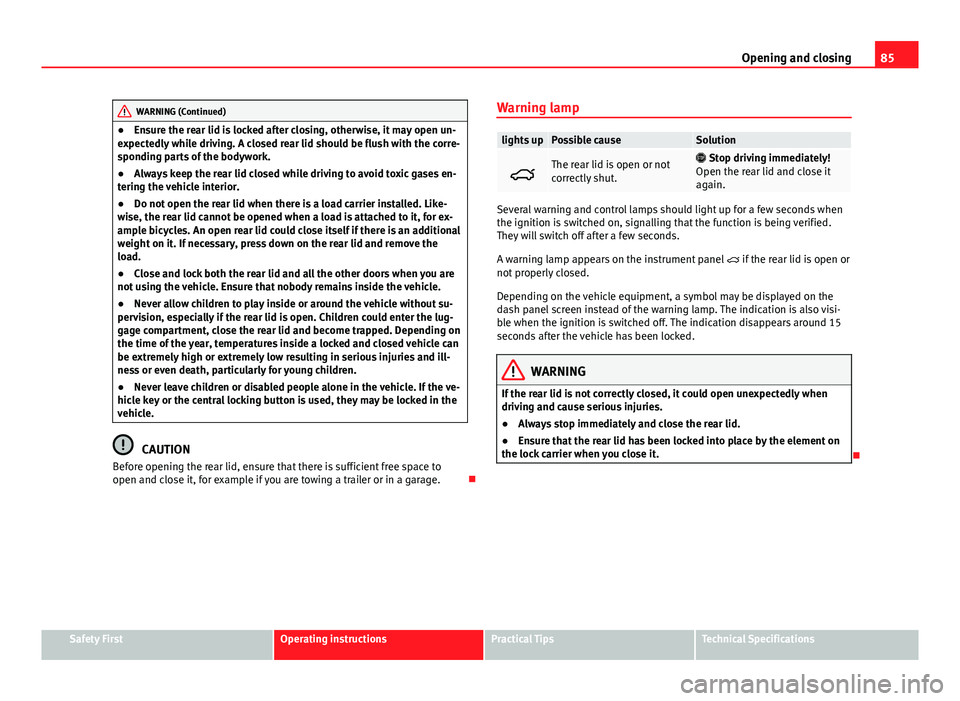

85
Opening and closing
WARNING (Continued)
● Ensure the rear lid is locked after closing, otherwise, it may open un-
expectedly while driving. A closed rear lid should be flush with the corre-
sponding parts of the bodywork.
● Always keep the rear lid closed while driving to avoid toxic gases en-
tering the vehicle interior.
● Do not open the rear lid when there is a load carrier installed. Like-
wise, the rear lid cannot be opened when a load is attached to it, for ex-
ample bicycles. An open rear lid could close itself if there is an additional
weight on it. If necessary, press down on the rear lid and remove the
load.
● Close and lock both the rear lid and all the other doors when you are
not using the vehicle. Ensure that nobody remains inside the vehicle.
● Never allow children to play inside or around the vehicle without su-
pervision, especially if the rear lid is open. Children could enter the lug-
gage compartment, close the rear lid and become trapped. Depending on
the time of the year, temperatures inside a locked and closed vehicle can
be extremely high or extremely low resulting in serious injuries and ill-
ness or even death, particularly for young children.
● Never leave children or disabled people alone in the vehicle. If the ve-
hicle key or the central locking button is used, they may be locked in the
vehicle.
CAUTION
Before opening the rear lid, ensure that there is sufficient free space to
open and close it, for example if you are towing a trailer or in a garage. Warning lamp
lights upPossible causeSolution
The rear lid is open or not
correctly shut.
Stop driving immediately!
Open the rear lid and close it
again.
Several warning and control lamps should light up for a few seconds when
the ignition is switched on, signalling that the function is being verified.
They will switch off after a few seconds.
A warning lamp appears on the instrument panel  if the rear lid is open or
not properly closed.
Depending on the vehicle equipment, a symbol may be displayed on the
dash panel screen instead of the warning lamp. The indication is also visi-
ble when the ignition is switched off. The indication disappears around 15
seconds after the vehicle has been locked.
WARNING
If the rear lid is not correctly closed, it could open unexpectedly when
driving and cause serious injuries.
● Always stop immediately and close the rear lid.
● Ensure that the rear lid has been locked into place by the element on
the lock carrier when you close it.

Safety FirstOperating instructionsPractical TipsTechnical Specifications

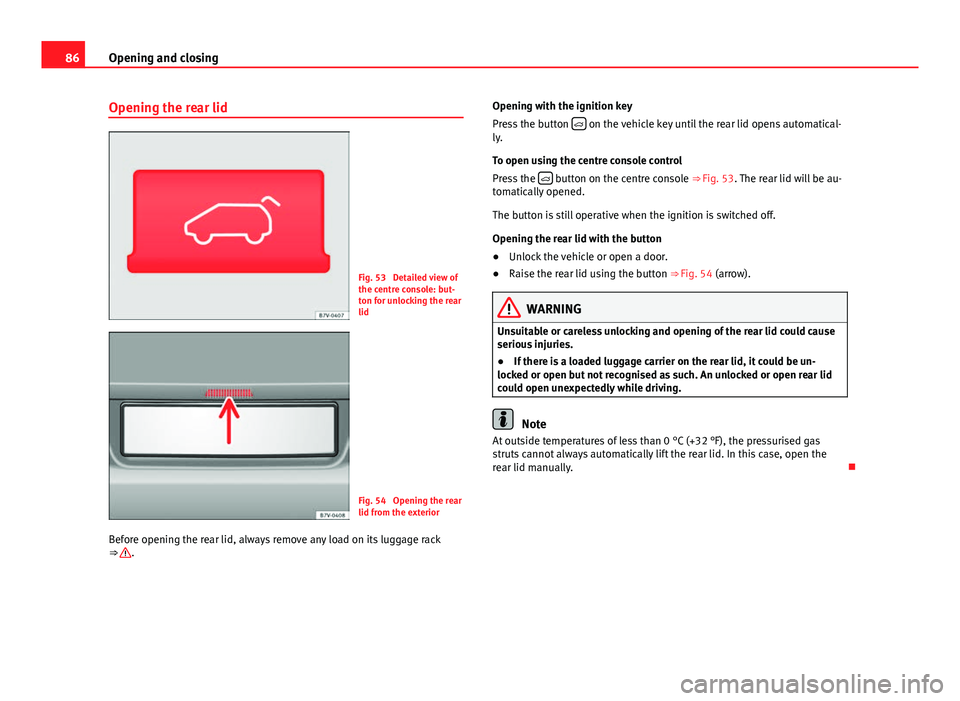

86Opening and closing
Opening the rear lid
Fig. 53 Detailed view of
the centre console: but-
ton for unlocking the rear
lid
Fig. 54 Opening the rear
lid from the exterior
Before opening the rear lid, always remove any load on its luggage rack
⇒ 
. Opening with the ignition key
Press the button

on the vehicle key until the rear lid opens automatical-
ly.
To open using the centre console control
Press the 
button on the centre console ⇒ Fig. 53. The rear lid will be au-
tomatically opened.
The button is still operative when the ignition is switched off.
Opening the rear lid with the button
● Unlock the vehicle or open a door.
● Raise the rear lid using the button ⇒  Fig. 54 (arrow).
WARNING
Unsuitable or careless unlocking and opening of the rear lid could cause
serious injuries.
● If there is a loaded luggage carrier on the rear lid, it could be un-
locked or open but not recognised as such. An unlocked or open rear lid
could open unexpectedly while driving.
Note
At outside temperatures of less than 0 °C (+32 °F), the pressurised gas
struts cannot always automatically lift the rear lid. In this case, open the
rear lid manually. 

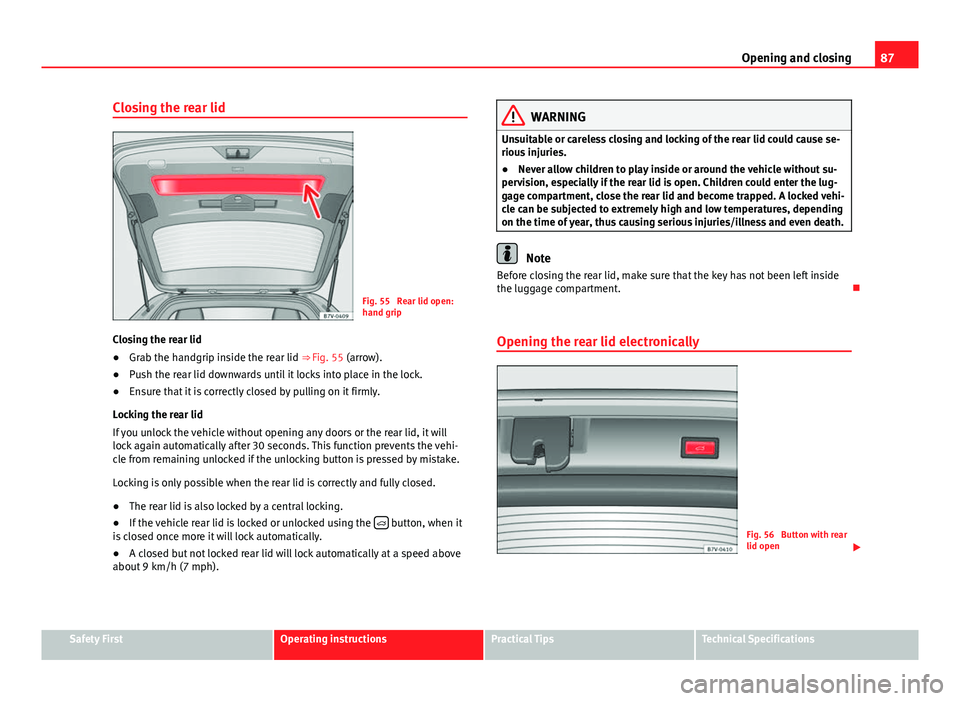

87
Opening and closing
Closing the rear lid
Fig. 55 Rear lid open:
hand grip
Closing the rear lid
● Grab the handgrip inside the rear lid
⇒ Fig. 55 (arrow).
● Push the rear lid downwards until it locks into place in the lock.
● Ensure that it is correctly closed by pulling on it firmly.
Locking the rear lid
If you unlock the vehicle without opening any doors or the rear lid, it will
lock again automatically after 30 seconds. This function prevents the vehi-
cle from remaining unlocked if the unlocking button is pressed by mistake.
Locking is only possible when the rear lid is correctly and fully closed.
● The rear lid is also locked by a central locking.
● If the vehicle rear lid is locked or unlocked using the 
button, when it
is closed once more it will lock automatically.
● A closed but not locked rear lid will lock automatically at a speed above
about 9 km/h (7 mph).
WARNING
Unsuitable or careless closing and locking of the rear lid could cause se-
rious injuries.
● Never allow children to play inside or around the vehicle without su-
pervision, especially if the rear lid is open. Children could enter the lug-
gage compartment, close the rear lid and become trapped. A locked vehi-
cle can be subjected to extremely high and low temperatures, depending
on the time of year, thus causing serious injuries/illness and even death.
Note
Before closing the rear lid, make sure that the key has not been left inside
the luggage compartment. 
Opening the rear lid electronically
Fig. 56 Button with rear
lid open 
Safety FirstOperating instructionsPractical TipsTechnical Specifications

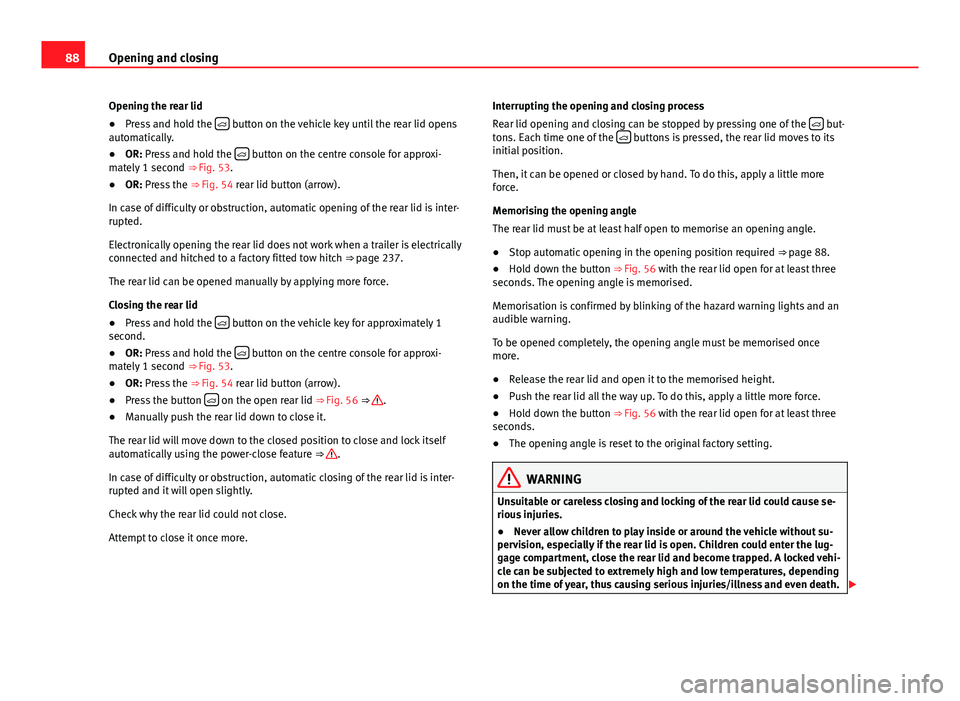

88Opening and closing
Opening the rear lid
● Press and hold the 
button on the vehicle key until the rear lid opens
automatically.
● OR: Press and hold the 
button on the centre console for approxi-
mately 1 second ⇒ Fig. 53.
● OR: Press the ⇒ Fig. 54 rear lid button (arrow).
In case of difficulty or obstruction, automatic opening of the rear lid is inter-
rupted.
Electronically opening the rear lid does not work when a trailer is electrically
connected and hitched to a factory fitted tow hitch ⇒ page 237.
The rear lid can be opened manually by applying more force.
Closing the rear lid
● Press and hold the 
button on the vehicle key for approximately 1
second.
● OR: Press and hold the 
button on the centre console for approxi-
mately 1 second ⇒ Fig. 53.
● OR: Press the ⇒ Fig. 54 rear lid button (arrow).
● Press the button 
on the open rear lid ⇒ Fig. 56 ⇒ .
● Manually push the rear lid down to close it.
The rear lid will move down to the closed position to close and lock itself
automatically using the power-close feature ⇒ 
.
In case of difficulty or obstruction, automatic closing of the rear lid is inter-
rupted and it will open slightly.
Check why the rear lid could not close.
Attempt to close it once more. Interrupting the opening and closing process
Rear lid opening and closing can be stopped by pressing one of the

but-
tons. Each time one of the  buttons is pressed, the rear lid moves to its
initial position.
Then, it can be opened or closed by hand. To do this, apply a little more
force.
Memorising the opening angle
The rear lid must be at least half open to memorise an opening angle.
● Stop automatic opening in the opening position required ⇒ page 88.
● Hold down the button ⇒ Fig. 56 with the rear lid open for at least three
seconds. The opening angle is memorised.
Memorisation is confirmed by blinking of the hazard warning lights and an
audible warning.
To be opened completely, the opening angle must be memorised once
more.
● Release the rear lid and open it to the memorised height.
● Push the rear lid all the way up. To do this, apply a little more force.
● Hold down the button ⇒ Fig. 56 with the rear lid open for at least three
seconds.
● The opening angle is reset to the original factory setting.
WARNING
Unsuitable or careless closing and locking of the rear lid could cause se-
rious injuries.
● Never allow children to play inside or around the vehicle without su-
pervision, especially if the rear lid is open. Children could enter the lug-
gage compartment, close the rear lid and become trapped. A locked vehi-
cle can be subjected to extremely high and low temperatures, depending
on the time of year, thus causing serious injuries/illness and even death. 
