Page 182 of 249
181
Checking and refilling levels
Brake fluid Checking brake fluid level
Fig. 120 Engine com-
partment: Brake fluid res-
ervoir
The brake fluid reservoir is located in the engine compartment of
the vehicle.
– Switch the ignition off.
– Open the bonnet ⇒ page 173.
– Check the brake fluid level in the reservoir ⇒ Fig. 120. It should
be between the “MIN” and “MAX” marks.
The fluid level drops slightly after a period of time due to automatic com-
pensation for brake pad wear. This is quite normal.
However, if the level goes down noticeably in a short time, or drops below
the “MIN” mark, there may be a leak in the brake system. If the brake fluid
level in the reservoir is too low, this will be indicated by the warning lamp in
the instrument panel
⇒ page 66, Brake system .
WARNING
If the fluid level has dropped below the MIN mark, do not drive on.
Risk of accident! Seek professional help.
Changing brake fluid
Brake fluid absorbs moisture. Therefore, it gradually absorbs moisture from
the atmosphere. If the water content in the brake fluid is too high, the brake
system could corrode. The water content also reduces the boiling point of
the brake fluid.
The brake fluid must comply with one of the following standards or specifi-
cations:
● VW 50114
● FMVSS 116 DOT4
WARNING
Heavy use of the brakes may cause a vapour lock if the brake fluid is left
in the brake system for too long. This would seriously affect the efficien-
cy of the brakes and the safety of the vehicle.
CAUTION
Brake fluid damages the vehicle paintwork.
Safety FirstOperating instructionsPractical TipsTechnical specifications
Page 184 of 249
183
Checking and refilling levels
Incorrect handling of the vehicle battery could lead to damage. We therefore
recommend all work on the vehicle battery be performed by an authorised
SEAT dealer.
Always be aware of the danger of injury and scalding as well as the risk of
accident or fire when working on the battery and the electrical system.
Therefore, always observe the warnings and follow all general safety pre-
cautions.
WARNING
● Battery acid is very corrosive, therefore, the battery must be handled
with the utmost care. Wear protective gloves and protect your eyes and
skin when handling batteries. The corrosive fumes in the air irritate and
inflame the respiratory tract and cause conjunctivitis. It corrodes tooth
enamel and causes deep, difficult-to-heal wounds when in contact with
the skin. Repeated contact with diluted acids causes skin disease (in-
flammation, ulcers and fissures). When in contact with water, acids dilute
and develop a great deal of heat.
● Do not tilt the battery, as acid could leak out of the vapour vents. Pro-
tect your eyes with glasses or a protective helmet! Risk of blindness! If
acid should splash into the eyes, rinse the affected eye immediately for
several minutes using clean water. Then seek medical care immediately.
● Neutralize any acid splashes on the skin or clothing with soap solu-
tion as quickly as possible and rinse off with plenty of water. If acid is
swallowed by mistake, consult a doctor immediately.
● Keep children away from the battery.
● Hydrogen is released and a highly explosive mixture of gases is gen-
erated when the battery is under charge. Sparks when disconnecting or
releasing cable terminals with the ignition switched on could also cause
an explosion.
● A short circuit is produced if the battery terminals are bridged, e.g.
using metal objects, cables, etc. Possible consequences of a short cir-
cuit: melting of lead plates, battery explosion and fire, splashing acid.
WARNING (Continued)
● The following is forbidden while working on the battery: fire and open
flames, smoking and activities that could produce sparks. Avoid causing
sparks when handling cables or electrical apparatus. Risk of injury in the
event of large sparks.
● Before working on the electrical system, you must switch off the en-
gine, the ignition and all electrical components and disconnect the cable
from the negative terminal (-) of the battery. To change a bulb, simply
switch off the corresponding light.
● Never charge a frozen or thawed out battery. Risk of explosion and
acid burns! Replace a frozen battery.
● Never use the jump leads on batteries in which the electrolyte level is
too low. Risk of explosion and acid burns.
● Never use a damaged battery. Risk of explosion! Replace a damaged
battery immediately.
CAUTION
● Never disconnect the battery when the ignition is switched on, as the
electrical system (electronic components) of the vehicle could be damaged.
When disconnecting the battery from the vehicle electrical system, discon-
nect its negative terminal (-) first. Only then may the positive terminal (+) be
disconnected.
● When connecting the battery, connect the positive terminal (+) first. On-
ly then may the negative terminal (-) be connected. The battery cables must
never be connected to the wrong battery terminals. Risk of burning the elec-
trical installation.
● Make sure the battery acid does not come into contact with the body-
work. Risk of paintwork damage.
● Do not expose the battery to direct sunlight to protect it from ultraviolet
radiation.
Safety FirstOperating instructionsPractical TipsTechnical specifications
Page 186 of 249
185
Checking and refilling levels
Note
● The battery acid level is also regularly checked during servicing at au-
thorised SEAT dealers.
● The acid level on “AGM” vehicle batteries cannot be checked for techni-
cal reasons.
● Vehicles equipped with the “START-STOP” system include a battery con-
trol unit to control the battery level for repeat engine starting.
Winter service
At low temperatures the battery provides only a fraction of the starting pow-
er it has at normal temperatures.
A flat battery can also freeze at temperatures slightly below to 0 °C (32 °F).
We therefore recommend you have the battery checked and, if necessary,
charged at an official SEAT technical service before the start of winter.
Charging the battery
A fully-charged battery is essential for reliable starting.
– Switch off the ignition and all electrical equipment.
– For “fast-charging” only: disconnect both battery connection ca-
bles (first the “negative” terminal and then the “positive”).
– Connect the charger cables to the battery terminals (red = “pos-
itive”, black = “negative”).
– Plug in the battery charger and switch on. –
After charging the battery: Switch off the battery charger and
disconnect the cable.
– Remove the charger cables.
– If necessary, reconnect both battery cables to the battery (first
the “positive” cable, then the “negative” cable).
When charging with a low current (e.g. with a small battery charger), the
battery does not have to be disconnected. The instructions of the battery
charger manufacturer must be followed.
Use a current equivalent to or lower than 0.1 of the battery capacity to fully
charge the battery.
Before “fast-charging” the battery however, both battery cables must be
disconnected.
“Fast-charging” a battery is dangerous and requires a battery charger and
special knowledge. Fast charges should be performed by an official techni-
cal service.
The battery caps should not be opened while the battery is being charged.
CAUTION
In vehicles fitted with the “START-STOP” system, the charger cable cannot
be directly connected to the negative terminal of the vehicle battery but
must be attached to the engine earthing point ⇒ page 207.
Disconnecting and connecting the battery
The following functions will either be inoperative or will not work properly
after disconnecting and reconnecting the battery:
Safety FirstOperating instructionsPractical TipsTechnical specifications
Page 188 of 249
187
Wheels and tyres
Wheels and tyres
Wheels
Introduction
WARNING
● During the first 500 km (300 miles), new tyres do not give maximum
grip, therefore you should drive carefully. Risk of accident!
● Never drive with damaged tyres. Risk of accident!
● Only use wheels and tyres that been authorised by SEAT or your vehi-
cle model. Failure to do so could impair road safety. Risk of accident!
● Never exceed the maximum speed permitted for your tyres. Risk of ac-
cident due to tyre damage and loss of vehicle control.
● Under-inflated tyres are submitted to greater rolling resistance. This
means that they can overheat at high speeds. This can cause tread sepa-
ration and even tyre blow-out.
● For driving safety, tyres should be replaced at least in pairs according
to the axle and not individually. The tyres with the deepest tread should
always be used on the front wheels.
● Never fit used tyres of an unknown age or prior use.
● Tyres must be immediately changed at the very latest when they have
worn down to the tread wear indicators.
● Worn tyres reduce the necessary grip at high speeds on damp surfa-
ces. This could lead to “aquaplaning” (uncontrolled vehicle movement –
“skidding” on damp surfaces).
● Damaged wheels and tyres must be replaced immediately.
WARNING (Continued)
● Do not use summer or winter tyres that are more than 6 or 4 years old
respectively.
● Wheel bolts should be clean and screw easily. However, they must
never be treated with grease or oil.
● If the tightening torque of the wheel bolts is too low, they could loos-
en while the vehicle is moving. Risk of accident! If the tightening torque
of the wheel bolts is too high, the bolts and threads could be damaged,
leading to the permanent deforming of the rim support surfaces.
● Incorrectly handled wheel bolts could lead to a wheel coming loose
while the vehicle is moving. Risk of accident!
● The local regulations in force must be taken into account when using
child seats.
CAUTION
● Where a spare wheel that is not compatible with the wheels fitted is
used, follow the instructions ⇒ page 190.
● The prescribed tightening torque for wheel bolts on steel and alloy
wheels is 120 Nm.
● Protect your tyres from coming into contact with oil, grease and fuel.
● Replace any lost valve caps immediately.
For the sake of the environment
Under-inflated tyres increases fuel consumption.
Safety FirstOperating instructionsPractical TipsTechnical specifications
Page 190 of 249
189
Wheels and tyres
Unusual vibration or the car pulling to one side may indicate that one of the
tyres is damaged. Reduce speed immediately and stop if you suspect that
damage may have occurred! Check the tyres for damage (blisters, cracks,
etc.). If no external damage is visible, drive slowly and carefully to the near-
est Official Service and have the vehicle inspected.
Handling wheels and tyres
Fig. 125 Changing
wheels around
Changing wheels around
If the wear is visibly greater on the front tyres, they should be exchanged for
the rear tyres as shown in the diagram ⇒ Fig. 125. All the tyres will then last
for about the same time.
To ensure that the wear is equal on all tyres and maintain their optimum
useful life, they should be changed around every 10 000 km (6000 miles).
Storing tyres
Mark tyres when you remove them to indicate the direction of rotation. This
ensures you will be able to install them correctly when you replace them.
When removed, the wheels and/or tyres should be stored in a cool, dry and
preferably dark location. Store tyres in a vertical position if they are not fit-
ted on wheel rims. Replacing tyres and wheels
All four wheels must be fitted only with tyres of the same type, size and the
same tread pattern.
The correct tyre/wheel combinations specified for your vehicle are listed in
its registration documentation.
Understanding the tyre designations makes it easier to choose the correct
tyres. The tyre designation is marked on the sidewall. For example.
195/55 R 15 85 H
This contains the following information:
195Tyre width in mm55Height/width ratio in %RTyre construction – Radial15Rim diameter in inches85Load rating codeHSpeed rating code letter
The tyres are subject to the following maximum speed limits:
Speed rating code letterMaximum speed limitQ160 km/h (168 mph)R170 km/h (168 mph)S180 km/h (168 mph)T190 km/h (168 mph)U200 km/h (168 mph)H210 km/h (168 mph)V240 km/h (168 mph)W270 km/h (168 mph)
Safety FirstOperating instructionsPractical TipsTechnical specifications
Page 192 of 249
191
Wheels and tyres
Follow the instructions below when driving with this wheel fitted.
● After fitting the wheel, the warning sign must not be covered.
● Do not drive faster than 80 km/h (50 mph) with a spare wheel and take
great care during the trip. Avoid heavy acceleration, hard braking and fast
cornering.
● The tyre pressure is the same as that of the standard tyres.
● Only use this spare wheel to reach the nearest Official Service, as it is
not designed for permanent use.
WARNING
● Under no circumstances must damaged spare wheels be used.
● If the spare wheel is different in size or design to the tyres currently
fitted, never drive faster than 80 km/h (50 mph). Avoid heavy accelera-
tion, hard braking and fast cornering.
CAUTION
Follow the instructions given on the temporary spare wheel label.
Note
The tyre pressure of the spare wheel must always correspond to the highest
pressure prescribed for the model of vehicle in question.
Wheel trim
Removing
– Place the hook from the vehicle tool kit on the reinforced edge
of the wheel trim. –
Insert the box spanner through the hook, supporting it on the
tyre and remove the wheel trim.
Fitting
– First press the wheel trim onto the wheel at the cut out de-
signed for the valve. Then press the wheel trim on both sides in
the direction of the valve so that it fits correctly in place around
all the perimeter.
CAUTION
● Press down by hand, do not hit the wheel trim! Knocking it sharply, par-
ticularly at points where the wheel trim has not yet been inserted, could re-
sult in damage to the wheel trim guiding and centring elements.
● Before fitting the trim on a steel alloy wheel attached with an anti-theft
wheel bolt, make sure the bolt is in the hole in the valve area ⇒ page 202,
Anti-theft wheel bolts.
● Where trim is fitted at a later date, ensure enough air inflow is guaran-
teed in order to cool the brake system.
Wheel bolt caps
Fig. 127 Pull off the
wheel bolt cap
Safety FirstOperating instructionsPractical TipsTechnical specifications

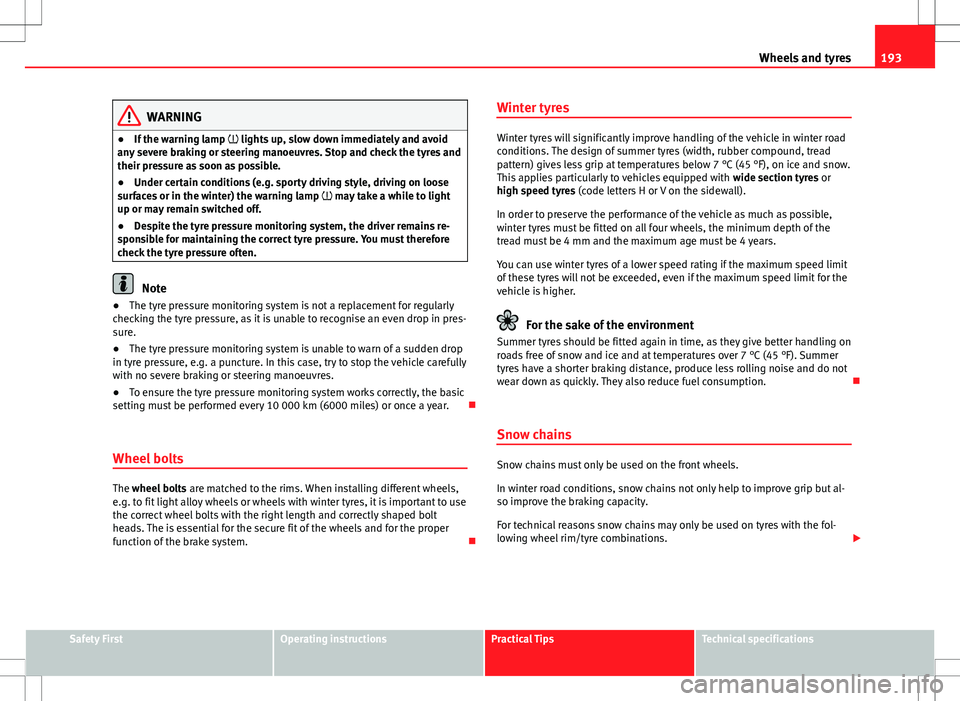

Page 194 of 249
193
Wheels and tyres
WARNING
● If the warning lamp lights up, slow down immediately and avoid
any severe braking or steering manoeuvres. Stop and check the tyres and
their pressure as soon as possible.
● Under certain conditions (e.g. sporty driving style, driving on loose
surfaces or in the winter) the warning lamp may take a while to light
up or may remain switched off.
● Despite the tyre pressure monitoring system, the driver remains re-
sponsible for maintaining the correct tyre pressure. You must therefore
check the tyre pressure often.
Note
● The tyre pressure monitoring system is not a replacement for regularly
checking the tyre pressure, as it is unable to recognise an even drop in pres-
sure.
● The tyre pressure monitoring system is unable to warn of a sudden drop
in tyre pressure, e.g. a puncture. In this case, try to stop the vehicle carefully
with no severe braking or steering manoeuvres.
● To ensure the tyre pressure monitoring system works correctly, the basic
setting must be performed every 10 000 km (6000 miles) or once a year.
Wheel bolts
The wheel bolts are matched to the rims. When installing different wheels,
e.g. to fit light alloy wheels or wheels with winter tyres, it is important to use
the correct wheel bolts with the right length and correctly shaped bolt
heads. The is essential for the secure fit of the wheels and for the proper
function of the brake system. Winter tyres
Winter tyres will significantly improve handling of the vehicle in winter road
conditions. The design of summer tyres (width, rubber compound, tread
pattern) gives less grip at temperatures below 7 °C (45 °F), on ice and snow.
This applies particularly to vehicles equipped with
wide section tyres or
high speed tyres (code letters H or V on the sidewall).
In order to preserve the performance of the vehicle as much as possible,
winter tyres must be fitted on all four wheels, the minimum depth of the
tread must be 4 mm and the maximum age must be 4 years.
You can use winter tyres of a lower speed rating if the maximum speed limit
of these tyres will not be exceeded, even if the maximum speed limit for the
vehicle is higher.
For the sake of the environment
Summer tyres should be fitted again in time, as they give better handling on
roads free of snow and ice and at temperatures over 7 °C (45 °F). Summer
tyres have a shorter braking distance, produce less rolling noise and do not
wear down as quickly. They also reduce fuel consumption.
Snow chains
Snow chains must only be used on the front wheels.
In winter road conditions, snow chains not only help to improve grip but al-
so improve the braking capacity.
For technical reasons snow chains may only be used on tyres with the fol-
lowing wheel rim/tyre combinations.
Safety FirstOperating instructionsPractical TipsTechnical specifications
Page 196 of 249
195
Accessories, modifications and spare parts
Accessories, modifications and spare parts
General notes
If you wish to retrofit accessories in the vehicle, or if a part of the vehicle
has been replaced by a new part or technical modifications are required, the
following instructions must be taken into account.
● Before purchasing accessories or spare parts and before making techni-
cal modifications, always request advice from an Authorised SEAT dealer
⇒
.
● In the event that technical modifications are carried out on the vehicle,
the instructions and regulations specified by the company, SEAT, must be
observed.
No damage will be caused to the vehicle if the established procedures are
respected, which guarantees safe driving and operation. After the modifica-
tions are carried out, the vehicle will comply with the restrictions and regu-
lations of the highway code. More information can be obtained at an Au-
thorised SEAT dealer, where all jobs required can be carried out appropriate-
ly.
Vehicle improvements and refurbishment
The owner must store the technical documents regarding the modifications
carried out on the vehicle to be handed over to those responsible for the
processing of the end-of-life vehicle. This ensures end-of-life processing of
the vehicle, while protecting the environment.
Work done on the electrical components and software can cause disruption
in operations. Due to the interconnection of electronic components, this
disruption can also negatively influence systems that are not directly affec-
ted. This can adversely affect reliability of the vehicle, and can produce ex-
cessive wear of the parts.
Damage caused by technical modifications that are not made with the con-
sent of SEAT will be excluded from the warranty – see warranty certificate.
WARNING
● Jobs or modifications unduly carried out on your vehicle can cause
disruption to operations - Risk of accident!
● We recommend that you use only expressly authorised SEAT Original
Accessories and ® SEAT Original Spare Parts for your vehicle. The relia-
bility, safety and compatibility with your vehicle of SEAT Original Acces-
sories and ® SEAT Original Spare Parts has been checked.
● Despite the continuous observation of the market, we cannot judge
nor guarantee the suitability of other products for your vehicle, be they
authorised products or products approved by a state testing facility.
Note
SEAT Original Accessories and ® SEAT Original Spare Parts can be pur-
chased at authorised SEAT dealers where the purchased parts can also be
fitted.
Safety FirstOperating instructionsPractical TipsTechnical specifications
Page 198 of 249
197
Self-help
Self-help
First-aid kit and warning triangle
Fig. 129 Location of
warning triangle
The warning triangle, measuring max. 436 x 45 x 32 mm, can be secured to
the lining on the rear of the luggage compartment with rubber straps
⇒ Fig. 129.
WARNING
The first-aid kit and fire extinguisher must be properly secured so that
they are not catapulted through the vehicle during driving and braking
manoeuvres or in the event of an accident. Risk of injury.
Note
● Observe the expiry date of the contents of the first aid kit.
● We recommend you use the first-aid kit and the warning triangle from
the SEAT Original Accessories programme available in authorised SEAT deal-
ers. Fire extinguisher
Read the instructions given on the fire extinguisher carefully.
The fire extinguisher must be checked once a year by an authorised person
(take the applicable legal regulations into account).
WARNING
The fire extinguisher must be properly secured so that it is not catapul-
ted through the vehicle, causing injuries, during driving and braking ma-
noeuvres or in the event of an accident.
Note
● The fire extinguisher must comply with local legal requirements.
● Observe the expiry date of the fire extinguisher. The fire extinguisher
may not work properly if used after the expiry date.
Safety FirstOperating instructionsPractical TipsTechnical specifications
Page 200 of 249
199
Self-help
WARNING (Continued)
● Always raise the vehicle with the doors closed.
● Never place parts of your body, e.g. arms and legs, underneath the
vehicle when supported only by the jack.
● Secure the base of the jack with suitable supports so that it cannot
slip. The jack could slide if the ground below it is soft and slippery and
the vehicle could slip off it. Therefore, place the jack on a firm surface or
use a large, stable base. On a slippery surface, e.g. tiles, use a non-slip
base such as a rubber mat.
● Never start the engine when the vehicle is raised. Risk of injury.
● The jack should only be used in the correct jacking points.
CAUTION
● The prescribed tightening torque for wheel bolts on steel and alloy
wheels is 120 Nm.
● If the anti-theft wheel bolt is overly tightened, this could damage the
bolt and the adapter
Note
● The set of anti-theft wheel bolts or the adapter are available from au-
thorised SEAT dealers.
● Please observe the relevant local legal regulations when changing the
wheel.
Preparation work
Some preparation is required before changing a wheel:
– If you have a flat tyre, stop the vehicle as far away as possible
from moving traffic. The surface must be horizontal.–
All vehicle occupants should leave the vehicle . Vehicle occu-
pants should waiting in a safe place, e.g. behind the roadside
crash barrier) while the wheel is being changed.
– Switch off the ignition and engage neutral or move the selector
lever on the automatic gearbox to position P.
– Apply the handbrake firmly.
– If towing a trailer, unhitch it.
– Take the vehicle tool kit ⇒ page 198 and the spare wheel
⇒ page 198 out of the luggage compartment.
Changing a wheel
If possible, change the wheel on a level surface.
– Pull off the hub cap ⇒ page 191 or the wheel bolt covers
⇒ page 191.
– First loosen the anti-theft wheel bolts and then the other wheel
bolts ⇒ page 200.
– Raise the vehicle until the wheel to be changed is no longer
touching the ground ⇒ page 201.
– Remove the wheel bolts and place them on a clean surface
(cloth, paper, etc.).
– Take off the wheel.
– Lift the spare wheel into position and tighten the wheel bolts
lightly.
Safety FirstOperating instructionsPractical TipsTechnical specifications
