SKODA YETI 2013 1.G / 5L Manual Online
Manufacturer: SKODA, Model Year: 2013, Model line: YETI, Model: SKODA YETI 2013 1.G / 5LPages: 266, PDF Size: 26.71 MB

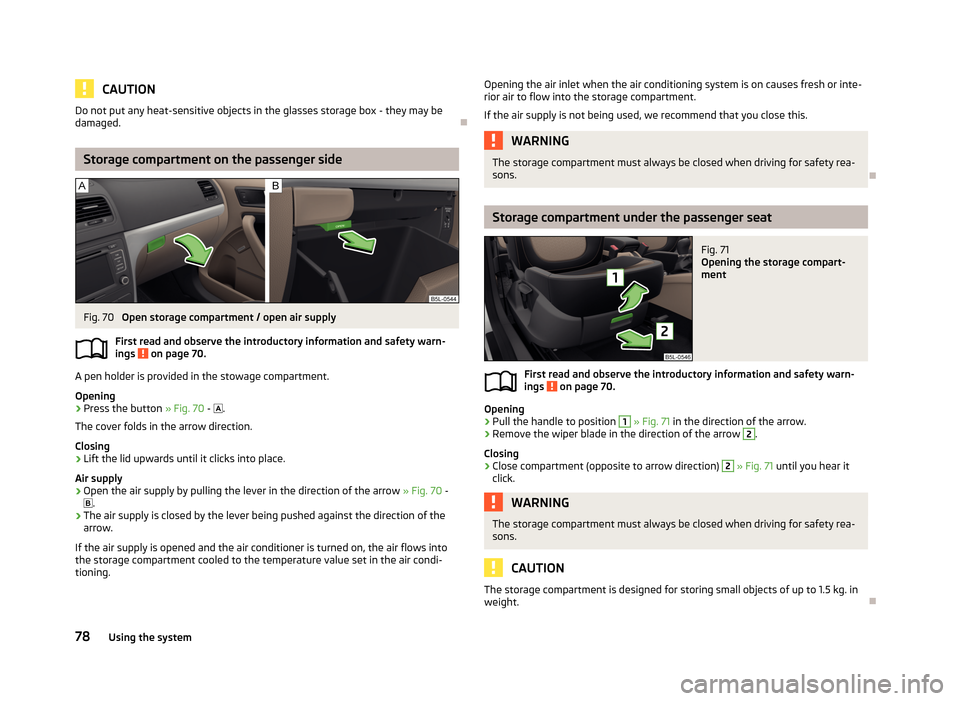

Page 81 of 266
CAUTIONDo not put any heat-sensitive objects in the glasses storage box - they may be
damaged.
Storage compartment on the passenger side
Fig. 70
Open storage compartment / open air supply
First read and observe the introductory information and safety warn-
ings
on page 70.
A pen holder is provided in the stowage compartment.
Opening
›
Press the button » Fig. 70 -
.
The cover folds in the arrow direction.
Closing
›
Lift the lid upwards until it clicks into place.
Air supply
›
Open the air supply by pulling the lever in the direction of the arrow » Fig. 70 -
.
›
The air supply is closed by the lever being pushed against the direction of the
arrow.
If the air supply is opened and the air conditioner is turned on, the air flows into
the storage compartment cooled to the temperature value set in the air condi-
tioning.
Opening the air inlet when the air conditioning system is on causes fresh or inte-
rior air to flow into the storage compartment.
If the air supply is not being used, we recommend that you close this.WARNINGThe storage compartment must always be closed when driving for safety rea- sons.
Storage compartment under the passenger seat
Fig. 71
Opening the storage compart-
ment
First read and observe the introductory information and safety warn- ings on page 70.
Opening
›
Pull the handle to position
1
» Fig. 71 in the direction of the arrow.
›
Remove the wiper blade in the direction of the arrow
2
.
Closing
›
Close compartment (opposite to arrow direction)
2
» Fig. 71 until you hear it
click.
WARNINGThe storage compartment must always be closed when driving for safety rea-
sons.
CAUTION
The storage compartment is designed for storing small objects of up to 1.5 kg. in weight.
78Using the system

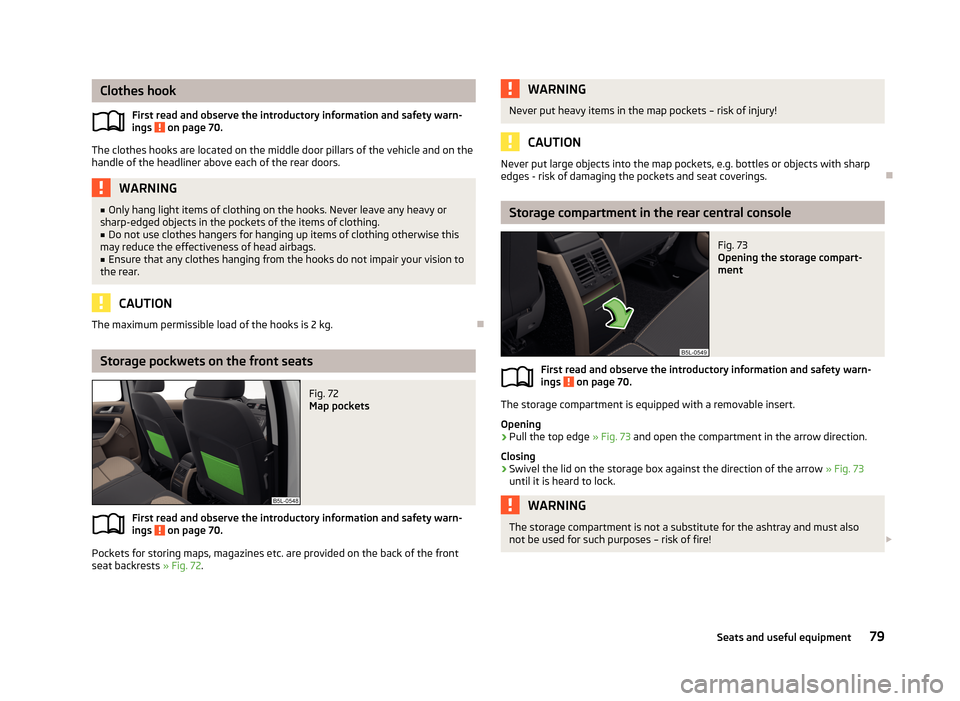

Page 82 of 266
Clothes hookFirst read and observe the introductory information and safety warn-ings
on page 70.
The clothes hooks are located on the middle door pillars of the vehicle and on the
handle of the headliner above each of the rear doors.
WARNING■ Only hang light items of clothing on the hooks. Never leave any heavy or
sharp-edged objects in the pockets of the items of clothing.■
Do not use clothes hangers for hanging up items of clothing otherwise this
may reduce the effectiveness of head airbags.
■
Ensure that any clothes hanging from the hooks do not impair your vision to
the rear.
CAUTION
The maximum permissible load of the hooks is 2 kg.
Storage pockwets on the front seats
Fig. 72
Map pockets
First read and observe the introductory information and safety warn-
ings on page 70.
Pockets for storing maps, magazines etc. are provided on the back of the front seat backrests » Fig. 72.
WARNINGNever put heavy items in the map pockets – risk of injury!
CAUTION
Never put large objects into the map pockets, e.g. bottles or objects with sharp
edges - risk of damaging the pockets and seat coverings.
Storage compartment in the rear central console
Fig. 73
Opening the storage compart-
ment
First read and observe the introductory information and safety warn-
ings on page 70.
The storage compartment is equipped with a removable insert.
Opening
›
Pull the top edge » Fig. 73 and open the compartment in the arrow direction.
Closing
›
Swivel the lid on the storage box against the direction of the arrow » Fig. 73
until it is heard to lock.
WARNINGThe storage compartment is not a substitute for the ashtray and must also
not be used for such purposes – risk of fire! 79Seats and useful equipment

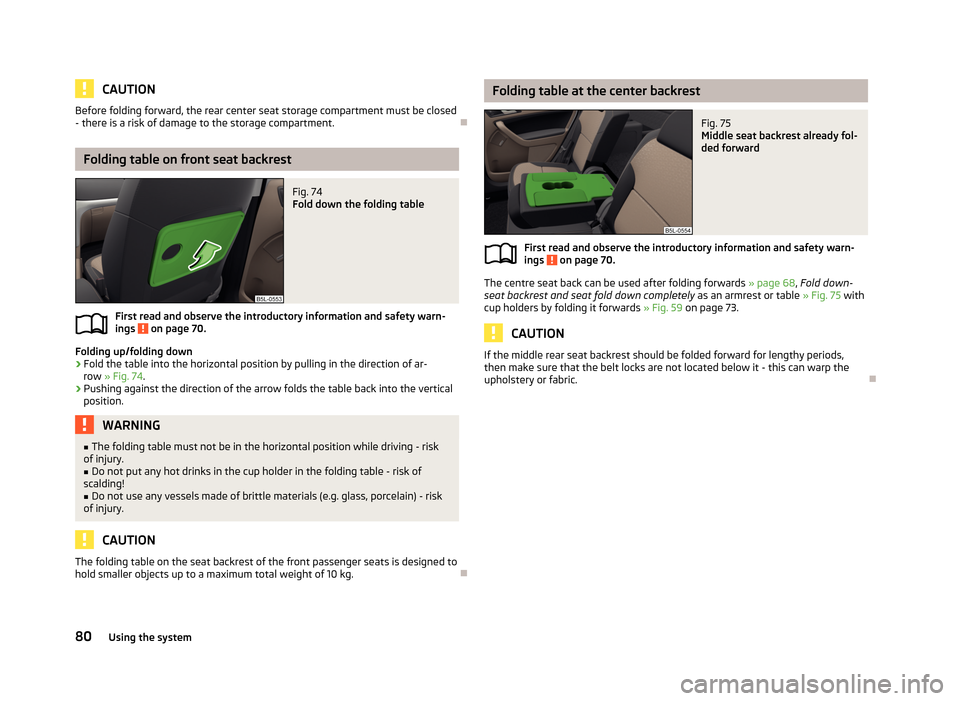

Page 83 of 266
CAUTIONBefore folding forward, the rear center seat storage compartment must be closed- there is a risk of damage to the storage compartment.
Folding table on front seat backrest
Fig. 74
Fold down the folding table
First read and observe the introductory information and safety warn-
ings on page 70.
Folding up/folding down
›
Fold the table into the horizontal position by pulling in the direction of ar- row » Fig. 74 .
›
Pushing against the direction of the arrow folds the table back into the vertical
position.
WARNING■ The folding table must not be in the horizontal position while driving - risk
of injury.■
Do not put any hot drinks in the cup holder in the folding table - risk of
scalding!
■
Do not use any vessels made of brittle materials (e.g. glass, porcelain) - risk
of injury.
CAUTION
The folding table on the seat backrest of the front passenger seats is designed to
hold smaller objects up to a maximum total weight of 10 kg.
Folding table at the center backrestFig. 75
Middle seat backrest already fol-
ded forward
First read and observe the introductory information and safety warn-
ings on page 70.
The centre seat back can be used after folding forwards » page 68, Fold down-
seat backrest and seat fold down completely as an armrest or table » Fig. 75 with
cup holders by folding it forwards » Fig. 59 on page 73.
CAUTION
If the middle rear seat backrest should be folded forward for lengthy periods,
then make sure that the belt locks are not located below it - this can warp the
upholstery or fabric.
80Using the system

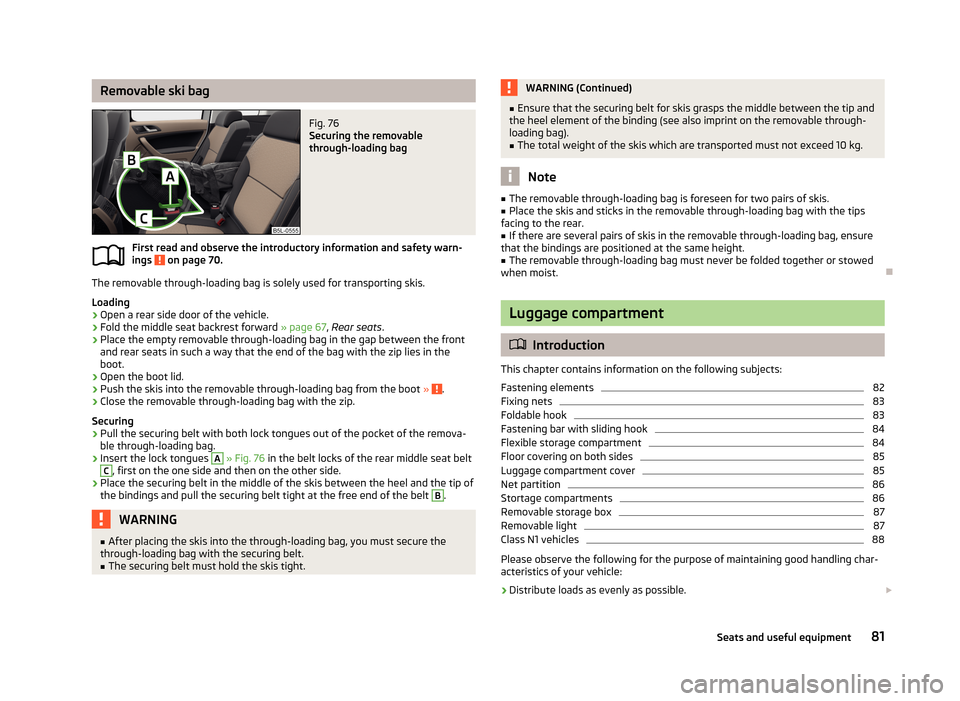

Page 84 of 266
Removable ski bagFig. 76
Securing the removable
through-loading bag
First read and observe the introductory information and safety warn-
ings on page 70.
The removable through-loading bag is solely used for transporting skis.
Loading
›
Open a rear side door of the vehicle.
›
Fold the middle seat backrest forward » page 67, Rear seats .
›
Place the empty removable through-loading bag in the gap between the front
and rear seats in such a way that the end of the bag with the zip lies in the
boot.
›
Open the boot lid.
›
Push the skis into the removable through-loading bag from the boot » .
›
Close the removable through-loading bag with the zip.
Securing
›
Pull the securing belt with both lock tongues out of the pocket of the remova- ble through-loading bag.
›
Insert the lock tongues
A
» Fig. 76 in the belt locks of the rear middle seat belt
C
, first on the one side and then on the other side.
›
Place the securing belt in the middle of the skis between the heel and the tip of
the bindings and pull the securing belt tight at the free end of the belt
B
.
WARNING■ After placing the skis into the through-loading bag, you must secure the
through-loading bag with the securing belt.■
The securing belt must hold the skis tight.WARNING (Continued)■ Ensure that the securing belt for skis grasps the middle between the tip and
the heel element of the binding (see also imprint on the removable through-
loading bag).■
The total weight of the skis which are transported must not exceed 10 kg.
Note
■ The removable through-loading bag is foreseen for two pairs of skis.■Place the skis and sticks in the removable through-loading bag with the tips
facing to the rear.■
If there are several pairs of skis in the removable through-loading bag, ensure
that the bindings are positioned at the same height.
■
The removable through-loading bag must never be folded together or stowed
when moist.
Luggage compartment
Introduction
This chapter contains information on the following subjects:
Fastening elements
82
Fixing nets
83
Foldable hook
83
Fastening bar with sliding hook
84
Flexible storage compartment
84
Floor covering on both sides
85
Luggage compartment cover
85
Net partition
86
Stortage compartments
86
Removable storage box
87
Removable light
87
Class N1 vehicles
88
Please observe the following for the purpose of maintaining good handling char-
acteristics of your vehicle:
›
Distribute loads as evenly as possible.
81Seats and useful equipment
Page 85 of 266
›Place heavy objects as far forward as possible.›Attach the items of luggage to the lashing eyes or using the nets
» page 82.
In the event of an accident, even small and light objects gain so much kinetic en-
ergy that they can cause severe injuries.
The magnitude of the kinetic energy is dependent on the speed at which the ve-
hicle is travelling and the weight of the object.
Example: In the event of a frontal collision at a speed of 50 km/h, an object with a
weight of 4.5 kg produces an energy, which corresponds to 20 times its own
weight. This means that it results in a weight of approx. 90 kg “ ”.WARNING■ Store the objects in the boot and attach them to the lashing eyes.■Loose objects can be thrown forward during a sudden manoeuvre or in case
of an accident and can injure the occupants or other road users.■
Loose objects could hit a deployed airbag and injure occupants – danger of
death!
■
Please note that transporting heavy objects alters the handling properties
of the vehicle due to the displacement of the centre of gravity – risk of acci-
dent! The speed and style of driving must be adjusted accordingly.
■
If the items of luggage or objects are attached to the lashing eyes with un-
suitable or damaged lashing straps, injuries can occur in the event of braking manoeuvres or accidents. To prevent items of luggage from moving around,
always use suitable lashing straps which must be firmly attached to the lash-
ing eyes.
■
The transported items must be stowed in such a way that no objects are
able to slip forward on sudden driving or braking manoeuvres – risk of injury!
■
When transporting objects in the luggage compartment that has been en-
larged by folding the rear seats forward, ensure the safety of the passengers transported on the other rear seats » page 162, Correct seated position for
the passengers in the rear seats .
■
If the rear seat next to the folded forward seat is occupied, ensure maxi-
mum safety, e.g. by placing the goods to be transported in such a way that the
seat is prevented from folding back in case of a rear collision.
■
Do not drive with the luggage compartment lid fully opened or slightly ajar
otherwise exhaust gases may get into the interior of the vehicle – risk of poi-
soning!
■
Do not exceed the permissible axle loads and permissible gross weight of
the vehicle – risk of accident!
■
Do not transport people in the boot!
CAUTIONPlease ensure that the heating elements for the rear window heater are not dam-
aged as a result of abrasive objects.
Note
Tyre pressure must be adjusted to the load » page 213, Service life of tyres .
Fastening elements
Fig. 77
Fasteners: Version 1/version 2
First read and observe the introductory information and safety warn- ings
on page 81.
In the luggage compartment are some of the following fasteners » Fig. 77 .
Lashing eyes for fastening items of luggage and fixing nets.
Fastening elements for fastening fixing nets.
Mounting bar with integrated hooks only for fixing mounting networks.
CAUTION
The maximum permissible static load of the individual lashing eyes A is 3.5 kN
(350 kg).
ABC82Using the system

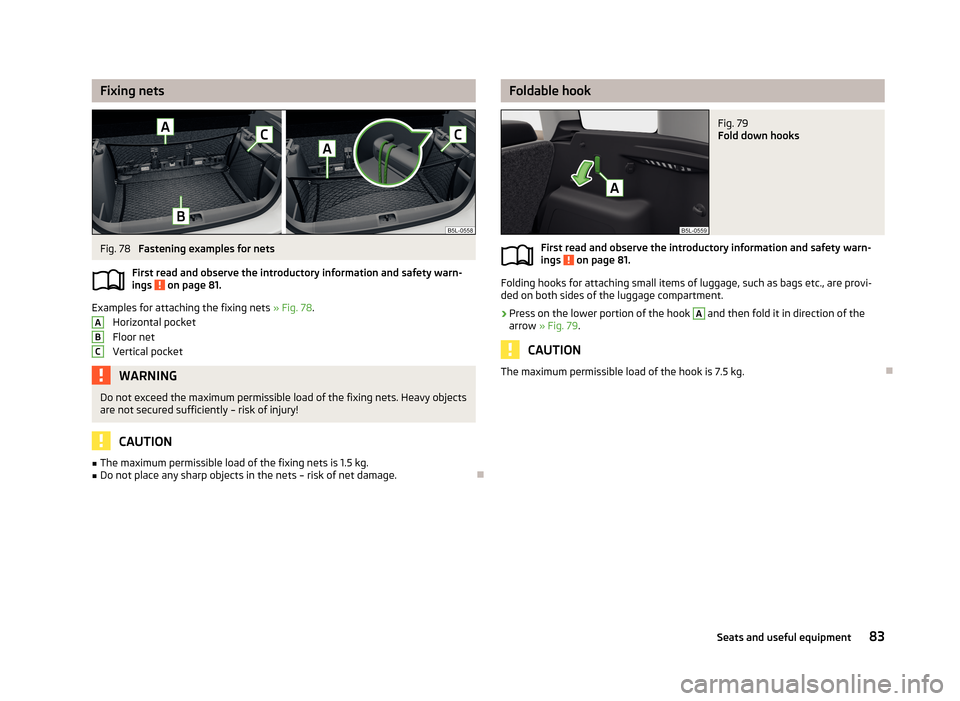

Page 86 of 266
Fixing netsFig. 78
Fastening examples for nets
First read and observe the introductory information and safety warn-
ings
on page 81.
Examples for attaching the fixing nets » Fig. 78.
Horizontal pocket
Floor net
Vertical pocket
WARNINGDo not exceed the maximum permissible load of the fixing nets. Heavy objects are not secured sufficiently – risk of injury!
CAUTION
■ The maximum permissible load of the fixing nets is 1.5 kg.■Do not place any sharp objects in the nets – risk of net damage.
ABCFoldable hookFig. 79
Fold down hooks
First read and observe the introductory information and safety warn-
ings on page 81.
Folding hooks for attaching small items of luggage, such as bags etc., are provi-
ded on both sides of the luggage compartment.
›
Press on the lower portion of the hook
A
and then fold it in direction of the
arrow » Fig. 79 .
CAUTION
The maximum permissible load of the hook is 7.5 kg.
83Seats and useful equipment

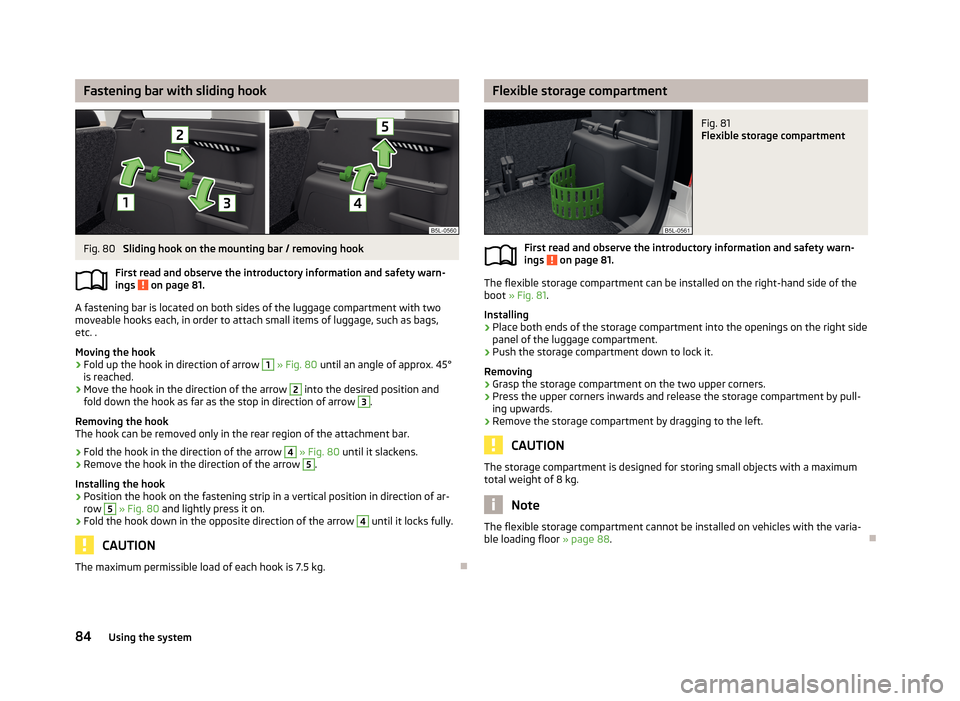

Page 87 of 266
Fastening bar with sliding hookFig. 80
Sliding hook on the mounting bar / removing hook
First read and observe the introductory information and safety warn-
ings
on page 81.
A fastening bar is located on both sides of the luggage compartment with two
moveable hooks each, in order to attach small items of luggage, such as bags,
etc. .
Moving the hook
›
Fold up the hook in direction of arrow
1
» Fig. 80 until an angle of approx. 45°
is reached.
›
Move the hook in the direction of the arrow
2
into the desired position and
fold down the hook as far as the stop in direction of arrow
3
.
Removing the hook
The hook can be removed only in the rear region of the attachment bar.
›
Fold the hook in the direction of the arrow
4
» Fig. 80 until it slackens.
›
Remove the hook in the direction of the arrow
5
.
Installing the hook
›
Position the hook on the fastening strip in a vertical position in direction of ar- row
5
» Fig. 80 and lightly press it on.
›
Fold the hook down in the opposite direction of the arrow
4
until it locks fully.
CAUTION
The maximum permissible load of each hook is 7.5 kg.
Flexible storage compartmentFig. 81
Flexible storage compartment
First read and observe the introductory information and safety warn-
ings on page 81.
The flexible storage compartment can be installed on the right-hand side of the
boot » Fig. 81 .
Installing
›
Place both ends of the storage compartment into the openings on the right side
panel of the luggage compartment.
›
Push the storage compartment down to lock it.
Removing
›
Grasp the storage compartment on the two upper corners.
›
Press the upper corners inwards and release the storage compartment by pull-
ing upwards.
›
Remove the storage compartment by dragging to the left.
CAUTION
The storage compartment is designed for storing small objects with a maximum
total weight of 8 kg.
Note
The flexible storage compartment cannot be installed on vehicles with the varia-
ble loading floor » page 88.
84Using the system
Page 88 of 266

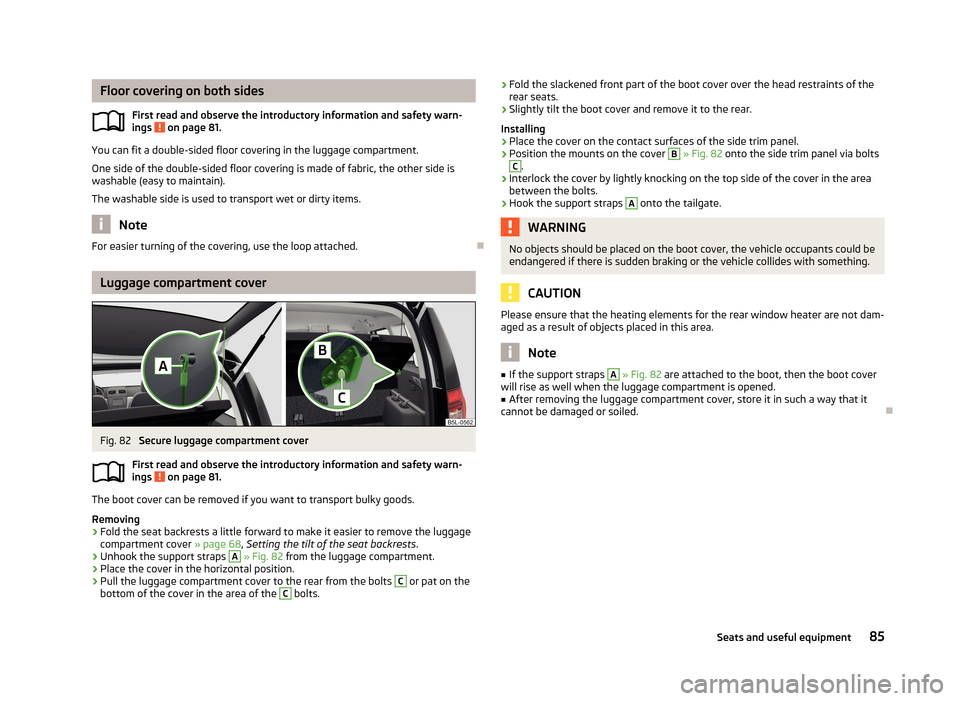

Floor covering on both sidesFirst read and observe the introductory information and safety warn-
ings
on page 81.
You can fit a double-sided floor covering in the luggage compartment.
One side of the double-sided floor covering is made of fabric, the other side is
washable (easy to maintain).
The washable side is used to transport wet or dirty items.
Note
For easier turning of the covering, use the loop attached.
Luggage compartment cover
Fig. 82
Secure luggage compartment cover
First read and observe the introductory information and safety warn- ings
on page 81.
The boot cover can be removed if you want to transport bulky goods.
Removing
›
Fold the seat backrests a little forward to make it easier to remove the luggage
compartment cover » page 68, Setting the tilt of the seat backrests .
›
Unhook the support straps
A
» Fig. 82 from the luggage compartment.
›
Place the cover in the horizontal position.
›
Pull the luggage compartment cover to the rear from the bolts
C
or pat on the
bottom of the cover in the area of the
C
bolts.
› Fold the slackened front part of the boot cover over the head restraints of the
rear seats.›
Slightly tilt the boot cover and remove it to the rear.
Installing
›
Place the cover on the contact surfaces of the side trim panel.
›
Position the mounts on the cover
B
» Fig. 82 onto the side trim panel via bolts
C
.
›
Interlock the cover by lightly knocking on the top side of the cover in the area
between the bolts.
›
Hook the support straps
A
onto the tailgate.
WARNINGNo objects should be placed on the boot cover, the vehicle occupants could be
endangered if there is sudden braking or the vehicle collides with something.
CAUTION
Please ensure that the heating elements for the rear window heater are not dam-
aged as a result of objects placed in this area.
Note
■ If the support straps A » Fig. 82 are attached to the boot, then the boot cover
will rise as well when the luggage compartment is opened.■
After removing the luggage compartment cover, store it in such a way that it
cannot be damaged or soiled.
85Seats and useful equipment
Page 89 of 266

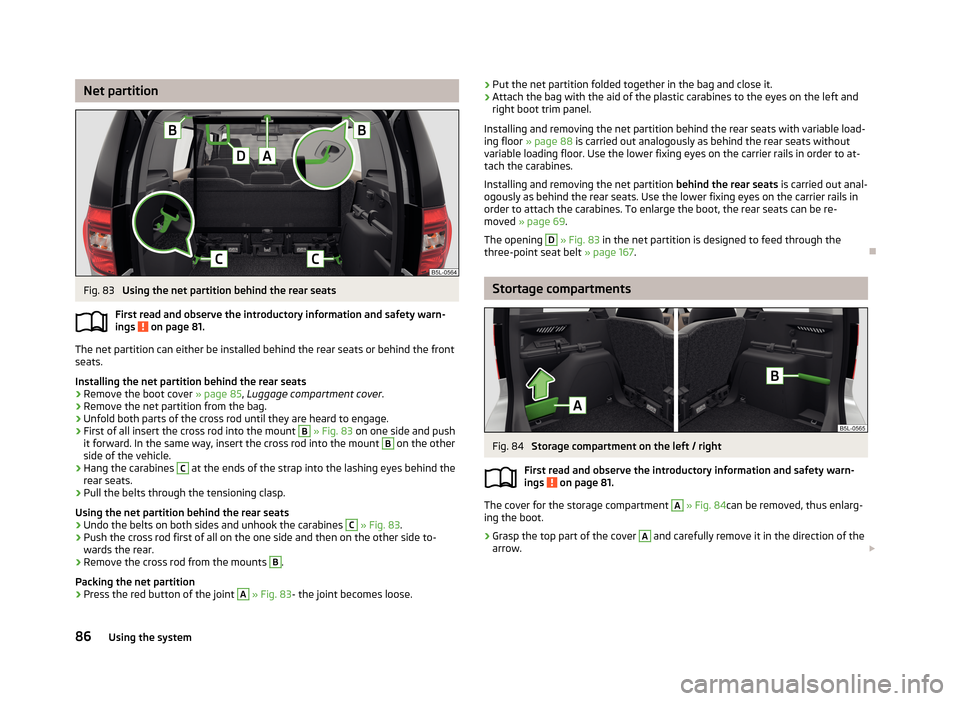

Net partitionFig. 83
Using the net partition behind the rear seats
First read and observe the introductory information and safety warn-
ings
on page 81.
The net partition can either be installed behind the rear seats or behind the front
seats.
Installing the net partition behind the rear seats
›
Remove the boot cover » page 85, Luggage compartment cover .
›
Remove the net partition from the bag.
›
Unfold both parts of the cross rod until they are heard to engage.
›
First of all insert the cross rod into the mount
B
» Fig. 83 on one side and push
it forward. In the same way, insert the cross rod into the mount
B
on the other
side of the vehicle.
›
Hang the carabines
C
at the ends of the strap into the lashing eyes behind the
rear seats.
›
Pull the belts through the tensioning clasp.
Using the net partition behind the rear seats
›
Undo the belts on both sides and unhook the carabines
C
» Fig. 83 .
›
Push the cross rod first of all on the one side and then on the other side to-
wards the rear.
›
Remove the cross rod from the mounts
B
.
Packing the net partition
›
Press the red button of the joint
A
» Fig. 83 - the joint becomes loose.
›Put the net partition folded together in the bag and close it.›Attach the bag with the aid of the plastic carabines to the eyes on the left and
right boot trim panel.
Installing and removing the net partition behind the rear seats with variable load- ing floor » page 88 is carried out analogously as behind the rear seats without
variable loading floor. Use the lower fixing eyes on the carrier rails in order to at-
tach the carabines.
Installing and removing the net partition behind the rear seats is carried out anal-
ogously as behind the rear seats. Use the lower fixing eyes on the carrier rails in
order to attach the carabines. To enlarge the boot, the rear seats can be re-
moved » page 69 .
The opening D
» Fig. 83 in the net partition is designed to feed through the
three-point seat belt » page 167.
Stortage compartments
Fig. 84
Storage compartment on the left / right
First read and observe the introductory information and safety warn-
ings
on page 81.
The cover for the storage compartment
A
» Fig. 84 can be removed, thus enlarg-
ing the boot.
›
Grasp the top part of the cover
A
and carefully remove it in the direction of the
arrow.
86Using the system
Page 90 of 266

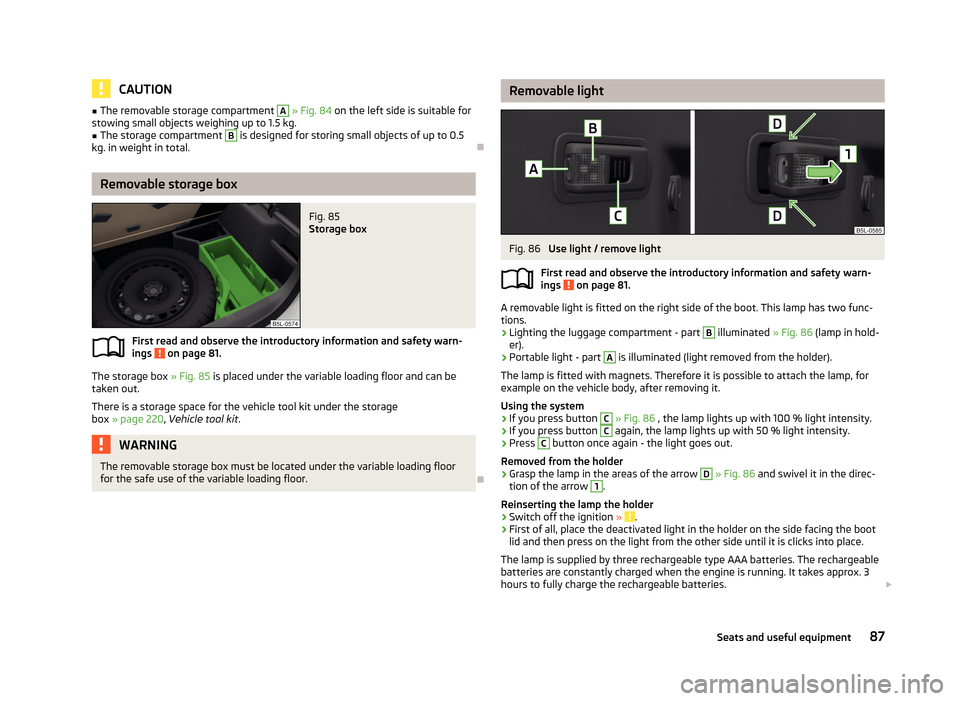

CAUTION■The removable storage compartment A » Fig. 84 on the left side is suitable for
stowing small objects weighing up to 1.5 kg.■
The storage compartment
B
is designed for storing small objects of up to 0.5
kg. in weight in total.
Removable storage box
Fig. 85
Storage box
First read and observe the introductory information and safety warn-
ings on page 81.
The storage box » Fig. 85 is placed under the variable loading floor and can be
taken out.
There is a storage space for the vehicle tool kit under the storage box » page 220 , Vehicle tool kit .
WARNINGThe removable storage box must be located under the variable loading floor
for the safe use of the variable loading floor.
Removable lightFig. 86
Use light / remove light
First read and observe the introductory information and safety warn-
ings
on page 81.
A removable light is fitted on the right side of the boot. This lamp has two func-
tions.
› Lighting the luggage compartment - part
B
illuminated
» Fig. 86 (lamp in hold-
er).
› Portable light - part
A
is illuminated (light removed from the holder).
The lamp is fitted with magnets. Therefore it is possible to attach the lamp, for
example on the vehicle body, after removing it.
Using the system
› If you press button
C
» Fig. 86 , the lamp lights up with 100 % light intensity.
› If you press button
C
again, the lamp lights up with 50 % light intensity.
› Press
C
button once again - the light goes out.
Removed from the holder
› Grasp the lamp in the areas of the arrow
D
» Fig. 86 and swivel it in the direc-
tion of the arrow
1
.
Reinserting the lamp the holder › Switch off the ignition
»
.
› First of all, place the deactivated light in the holder on the side facing the boot
lid and then press on the light from the other side until it is clicks into place.
The lamp is supplied by three rechargeable type AAA batteries. The rechargeable
batteries are constantly charged when the engine is running. It takes approx. 3
hours to fully charge the rechargeable batteries.
87Seats and useful equipment
