OM600 ENGINE CONTROLS 1F3 -- 41
D AEW OO M Y_2000

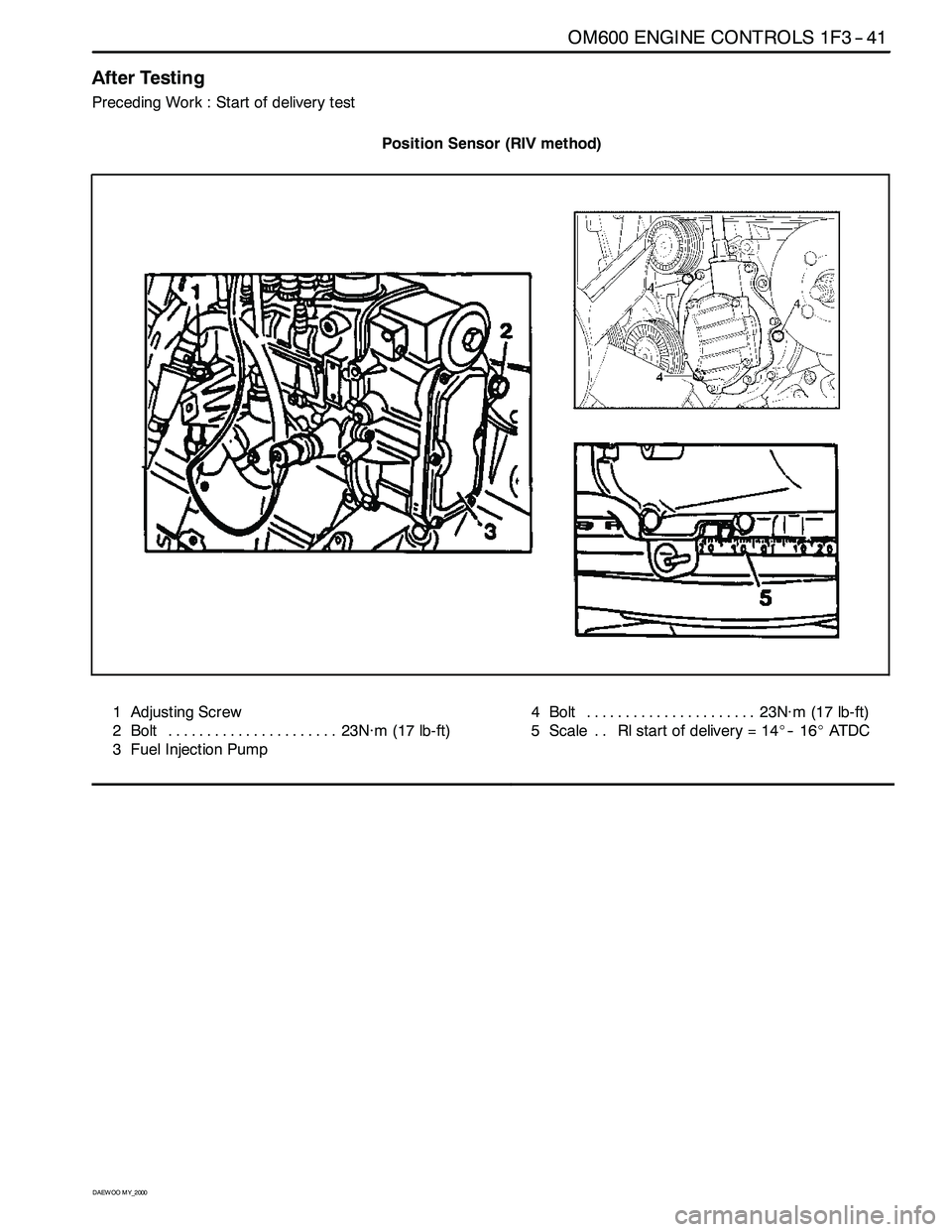

After Testing
Preceding Work : Start of delivery test
Position Sensor (RIV method)
1 Adjusting Screw
2 Bolt 23N∙m (17 lb-ft) ......................
3 Fuel Injection Pump4 Bolt 23N∙m (17 lb-ft) ......................
5 Scale Rl start of delivery = 14_-- 1 6_AT DC ..

1F3 -- 42 OM600 ENGINE CONTROLS
D AEW OO M Y_2000
Tools Required
617 589 08 21 00 Position Sensor
Adjustment Procedure
1. Position the No. 1 cylinder at ATDC 15_
Notice
Do not rotate the engine in opposite direction of en-
gine rotation.
2. Remove the bolt (2) at the supporting bracket.
3. Remove the bolt (4).
4. Turn the adjusting screw (1) until both lamps ’A’ + ’B’
on the position sensor light up.
To t h e r i g h tStart of delivery retarded
To t h e l e f tStart of delivery advanced
Notice
If the adjustment range is not adequate, remove the
injection pump and reinstall.
Position Sensor 617 589 08 21 00
5. After adjusting, retighten all the bolt to the specified
torque.

OM600 ENGINE CONTROLS 1F3 -- 43
D AEW OO M Y_2000
Digital tester (RIV Method)
1 Bolt 23N∙m (17 lb-ft) ......................
2 Adjusting
Screw To the right : start of delivery retarded
To the left : start of delivery advanced3 Bolt 23N∙m (17 lb-ft) ......................
Service Data
Start of Delivery (RIV)AT DC 1 4_-- 1 6_
Ldling SpeedOM661LA : 720 -- 820 rpm, OM662LA : 750 -- 850 rpm
Tools Required
617 589 09 21 00 Rl Sensor
617 589 10 21 00 Timing Tester
667 589 00 21 00 TDC Pulse Generator
Commercial Tools
ItemTools
Digital TesterWith Pulse GeneratorBosch, MOT 001.03g
Hartmann & Braun, EOMT3
Without Pulse GeneratorBosch, ETD 019.00
Sun, DIT 9000
ALV, Diesel -- Tester 875

FRONT SUSPENSION 2C-11
SSANGYONG MY2002
KNUCKLE ASSEMBLY
Tools Required
661589 13 33 00 BallJointRemover
Removal and Installation Procedure
1. Raise and suitably support the vehicle.
2. Remove the front wheels. Refer to Section 2E,
Tires and Wheels.
3. Remove the caliper assembly. Refer to Section
4D, Front Disc Brakes.
4. Remove the front hub bearing assembly. Refer to
“ Front hub bearing assembl y ” in this section.
KAA2C060
KAA2C210
KAA2C220
5. Remove the splash shield mounting bolts.
Installation Notice
6. Remove the front wheel speed sensor.
Installation Notice
KAA2C230
7. Remove the outer tie rod nuts and disconnect the
tie rod ends from the knuckle using the ball joint
remover 661 589 13 33 00.
Installation Notice
Tightening Torque 6 Nm (53 lb-in)
Tightening Torque 5 Nm (33 lb-in)
Tightening Torque 40 Nm (30 lb-ft)

SSANGYONG MY2002
2C-16 FRONT SUSPENSION
58
87
52
28
52
96
-
41
11
26
85
52
89
30
-
14
37/52
85
96 Crossmember Mounting Bolts
Front Axle Housing Mounting Nuts
Front Stabilizer-to-Stabilizer Link Nuts
Front Stabilizer Mounting Bolts
Front Shock Absorber Lower Mounting Nut
Fulcrum Pin Mounting Bolts and Nuts
Front Wheel Speed Sensor Bolt
Hub Flange Bolts
Hub Adjusting Nut
Lower Cover Bolts
Lower Ball Joint Nut
Lower Ball Joint Mounting Bolts
Lower Control Arm Mounting Bolts
Outer Tie Rod Nuts
Splash shield Mounting Bolts
Stabilizer Link-to-Lower Control Arm Nuts
Torsion Bar Fixing Nuts
Upper Ball Joint Nut and Bolts
Upper Ball Joint Mounting BoltsN

m ApplicationLb-In
SPECIFICATIONS
FASTENER TIGHTENING SPECIFICATIONS
Lb-Ft
78
118
70
38
70
130
5
55
15
35
150
70
120
40
6
19
50/70
115
130-
-
-
-
-
-
35
-
-
-
-
-
-
-
53
-
-
-
-

SSAMGYONG MY2002
3A-2 FRONT AXLE
M/T
A/T
M/T
A/T
M/T
A/T
M/T
A/T
SPECIFICATIONS
GENERAL SPECIFICATIONS
Application
Drive Shaft Type
Axle Housing Type
Differential Type
Differential GearCV Joint
Build - up
Conventional
Hypoid Gear
4.56
5.38
4.27
4.89
4.55
5.86
3.73
4.89
1.3 L
SEA 80W/90, API GL - 5Description
661LA
662LA
E23
E32 Reduction Ratio
Oil Capacity
Oil Specification
FASTENER TIGHTENING SPECIFICATIONS
Steering Knuckle and Drive Shaft
36.8 - 44.2
18.4 - 25.8
51.6 - 66.3
11.0
-
62.7 - 77.4 Drive Shaft Cover Bolt
Drive Shaft to Front Axle Inner Shaft
Hub Flange Bolt
Hub Nut
Locking Hub Washer Screw
Wheel Speed SensorN
z zz z
zm ApplicationLb-InLb-Ft
50 - 60
25 - 35
70 - 90
15
2 - 4
85 - 105-
-
-
-
17.7 - 35.4
-

SSAMGYONG MY2002
3A-8 FRONT AXLE
Removal & Installation Procedure
1. Remove the tire.
Installation Notice
2. Remove the autolocking hub vacuum hose.
3. With ABS
Remove the wheel speed sensor from the steering
knuckle.
Installation Notice
4. Remove the mounting bolts and pull off the caliper
assembly.
Installation Notice
Notice: Be careful not to damage the brake hose.
KAA3A070
KAA3A080
KAA3A090
KAA3A100
Tightening
Torque80 - 120 Nm
(59 - 89 lb-ft)
110 - 130 Nm
(81 - 96 lb-ft)Steel Wheel
Aluminum
Wheel
Tightening Torque6 - 8 Nm
(53 - 71 lb-in)
Tightening
Torque25 - 35 Nm
(18 - 26 lb-ft)
85 - 105 Nm
(63 - 77 lb-ft)Hose Bolt
Mounting
Bolt

REAR AXLE 3D-5
SSANGYONG MY2002
CROSS SECTIONAL VIEW
KAA3D020
1 Rear Axle Shaft Assembly
2 Bracket Assembly
3 Hub Oil Seal
4 Bolt
5 Axle Shaft Tube6 Coil Spring Seat (Lower)
7 Caliper Assembly
8 Input Shaft/Flange
9 Rod Mounting Bracket
10 Wheel Speed Sensor

HYDRAULIC BRAKES 4A-9
SSANGYONG MY2002
Inspection
When it occurs the malfunction in the LCRV, the sensor
spring, valve body assembly, rear axle or rear spring
may be replaced. For these replacement, the following
inspection should perform;
Symptom
Poor Braking Performance
Rear Wheels Lock EarlyPossible Cause
Air in Brake System
Poor Adjustment of Sensor Spring
Damaged Sensor Spring
Fluid Leaking from LCRV
Poor Adjustment of Sensor Spring
Internal Fluid Leaking of LCRVAction
Bleeding
Adjust
Replace
Replace
Adjust
Replace
Notice:
Fluid leaking from LCRV results from poor valve
open/close or sealing wear caused by the foreign
materials in the LCRV.
When you change or repair the LCRV, it may affect
the braking performance. Thus, ensure to use the
approved part.

SECTION 4F
ANTILOCK BRAKE SYSTEM AND
TRACTION CONTROL SYSTEM
TABLE OF CONTENTS
General Description and System Opertion..........4F-3
Basic Knowledge Required...................................4F-3
ABS System Components...................................4F-3
Traction Control System (TCS) Description...........4F-3
EBD System........................................................4F-5
EBD Failure Matrix...............................................4F-6
Tires and ABS/TCS..............................................4F-7
Hydraulic Circuit...................................................4F-8
ABS 5.3...............................................................4F-8
ABS/TCS 5.3.....................................................4F-11
Component Locator...........................................4F-14
ABS, ABS/TCS 5.3............................................4F-14
Diagnosis............................................................4F-15
Diagnostic Circuit Check....................................4F-15
ABS Indicator Lamp Inoperative.........................4F-18
Traction Control System (TCS) Indicator Lamp
Inoperative.....................................................4F-22
EBD Indicator Lamp Inoperative.........................4F-26
Power Supply to Control Module,
No DTCs Stored..............................................4F-30
ABS Indicator Lamp Illuminated Continuously,
No DTCs Stored..............................................4F-34
Self-Diagnostics................................................4F-36
Displaying DTCs................................................4F-36
Clearing DTCs...................................................4F-36
Intermittents and Poor Connections....................4F-36
DTC 03 - Left Front Wheel Speed Sensor Fault ...4F-38
DTC 07 - Left Front Wheel Speed Sensor
Continuity Fault...............................................4F-40
DTC 04 - Right Front Wheel Speed Sensor
Fault...............................................................4F-42DTC 08 - Right Front Wheel Speed Sensor
Continuity Fault...............................................4F-44
DTC 05 - Left Rear Wheel Speed Sensor Fault....4F-46
DTC 09 - Left Rear Wheel Speed Sensor
Continuity Fault...............................................4F-48
DTC 06 - Right Rear Wheel Speed Sensor Fault .4F-50
DTC 10 - Right Rear Wheel Speed Sensor
Continuity Fault...............................................4F-52
DTC 11 - Wheel Speed Sensor Frequency Error ..4F-54
DTC 42 - Acceleration Sensor Fault....................4F-58
DTC 43 - Acceleration Sensor Continuity Fault.....4F-60
DTC 13/14 - Left Front Inlet and Outlet Valve
Solenoid Fault.................................................4F-62
DTC 15/16 - Right Front Inlet and Outlet Valve
Solenoid Fault.................................................4F-64
DTC 17/18 - Left Rear Inlet and Outlet Valve
Solenoid Fault.................................................4F-66
DTC 19/20 - Right Rear Inlet and Outlet Valve
Solenoid Fault.................................................4F-68
DTC 21/22 - Left Rear Prime Line and Traction
Control System (TCS) Pilot Valve Fault............4F-70
DTC 23/24 - Right Rear Prime Line and Traction
Control System (TCS) Pilot Valve Fault............4F-72
DTC 12 - Valve Relay Circuit Fault......................4F-74
DTC 24 - Pump Motor or Pump Motor
Relay Fault.....................................................4E-76
DTC 27 - Stoplamp Switch Fault.........................4E-80
DTC 28 - Low Voltage Fault................................4E-84
DTC 02 - ABS Control Module Internal Fault........4E-88
Scheatic and Routing Diagrams........................4E-90
ABS Circuit (Without TCS): Gasoline...................4E-90
ABS/TCS Circuit: Gasoline.................................4E-91
ABS/ABD (Automatic Brake
Differential Lock): Diesel.................................4E-93
