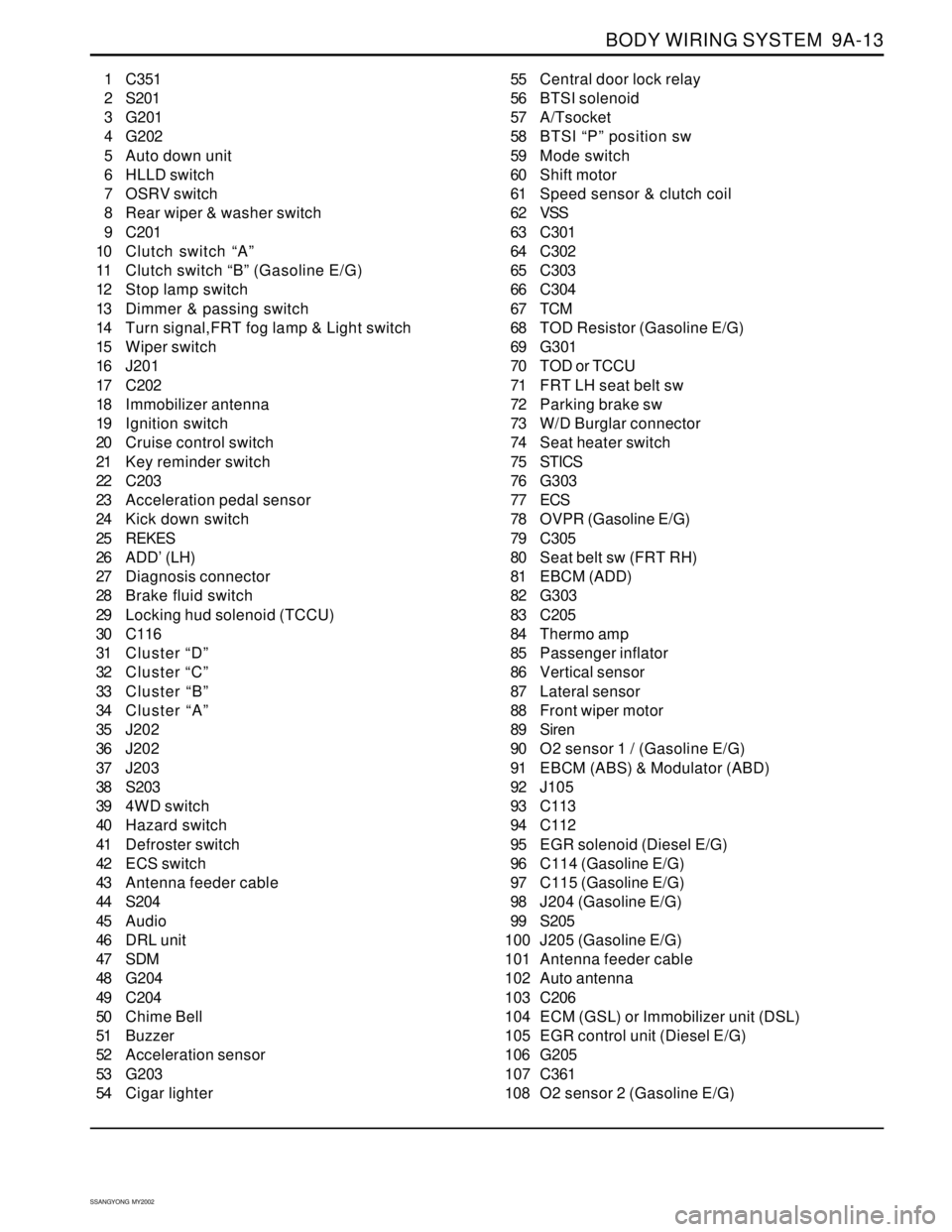

BODY WIRING SYSTEM 9A-13
SSANGYONG MY2002
1 C351
2 S201
3 G201
4 G202
5 Auto down unit
6 HLLD switch
7 OSRV switch
8 Rear wiper & washer switch
9 C201
10 Clutch switch “A”
11 Clutch switch “B” (Gasoline E/G)
12 Stop lamp switch
13 Dimmer & passing switch
14 Turn signal,FRT fog lamp & Light switch
15 Wiper switch
16 J201
17 C202
18 Immobilizer antenna
19 Ignition switch
20 Cruise control switch
21 Key reminder switch
22 C203
23 Acceleration pedal sensor
24 Kick down switch
25 REKES
26 ADD’ (LH)
27 Diagnosis connector
28 Brake fluid switch
29 Locking hud solenoid (TCCU)
30 C116
31 Cluster “D”
32 Cluster “C”
33 Cluster “B”
34 Cluster “A”
35 J202
36 J202
37 J203
38 S203
39 4WD switch
40 Hazard switch
41 Defroster switch
42 ECS switch
43 Antenna feeder cable
44 S204
45 Audio
46 DRL unit
47 SDM
48 G204
49 C204
50 Chime Bell
51 Buzzer
52 Acceleration sensor
53 G203
54 Cigar lighter55 Central door lock relay
56 BTSI solenoid
57 A/Tsocket
58 BTSI “P” position sw
59 Mode switch
60 Shift motor
61 Speed sensor & clutch coil
62 VSS
63 C301
64 C302
65 C303
66 C304
67 TCM
68 TOD Resistor (Gasoline E/G)
69 G301
70 TOD or TCCU
71 FRT LH seat belt sw
72 Parking brake sw
73 W/D Burglar connector
74 Seat heater switch
75 STICS
76 G303
77 ECS
78 OVPR (Gasoline E/G)
79 C305
80 Seat belt sw (FRT RH)
81 EBCM (ADD)
82 G303
83 C205
84 Thermo amp
85 Passenger inflator
86 Vertical sensor
87 Lateral sensor
88 Front wiper motor
89 Siren
90 O2 sensor 1 / (Gasoline E/G)
91 EBCM (ABS) & Modulator (ABD)
92 J105
93 C113
94 C112
95 EGR solenoid (Diesel E/G)
96 C114 (Gasoline E/G)
97 C115 (Gasoline E/G)
98 J204 (Gasoline E/G)
99 S205
100 J205 (Gasoline E/G)
101 Antenna feeder cable
102 Auto antenna
103 C206
104 ECM (GSL) or Immobilizer unit (DSL)
105 EGR control unit (Diesel E/G)
106 G205
107 C361
108 O2 sensor 2 (Gasoline E/G)

SSANGYONG MY2002
9A-14 BODY WIRING SYSTEM
W/H MAIN (FLOOR)
1 Rear combination lamp (RH)
2 Tail gate contact sw
3 Rear speaker (RH)
4 Door contact sw (FRT RH)
5 Damper solenoid (RR RH)
6 Passenger pretensioner
7 Wheel speed sensor (RR RH)
8 J304
9 J303
10 J302
11 J301
12 Wheel speed sensor (RR RH)
13 Damper solenoid (RR LH)14 Driver tension reducer
15 Door contact sw (FRT LH)
16 Rear speaker (LH)
17 G401
18 Luggage lamp
19 J401
20 C401
21 C402
22 Rear combination lamp (LH)
23 C403
24 License lamp (RH)
25 License lamp (LH)
KAA9A090

SSANGYONG MY2002
9A-20 BODY WIRING SYSTEM
W/H ENGINE CONTROL (GASOLINE)
6 Crankshaft position sensor
7 Oil pressure switch
8 Knock sensor 2
9 Air flow sensor
10 Ignition coil 3
11 Ignition coil 2
12 Ignition coil 1
13 Injector 6
14 Injector 5
15 Injector 416 Injector 3
17 Injector 2
18 Injector 1
19 Camshaft actuator
20 Camshaft position sensor
21 Engine coolant temperature sensor (Gauge)
22 Engine temperature sensor
23 Throttle motor & sensor
24 Knock sensor 1
25 Intake manifold resonance flap
KAA9A150

BODY WIRING SYSTEM 9A-21
SSANGYONG MY2002
W/H PRE - HEATING (DIESEL)
1 Preheating time control relay
3 Glow plug 1
4 Glow plug 2
5 Glow plug 36 Glow plug 4
7 Glow plug 5 (662 LA only)
8 Engine coolant temperature sensor (Gauge)
KAA9A160

SSANGYONG MY2002

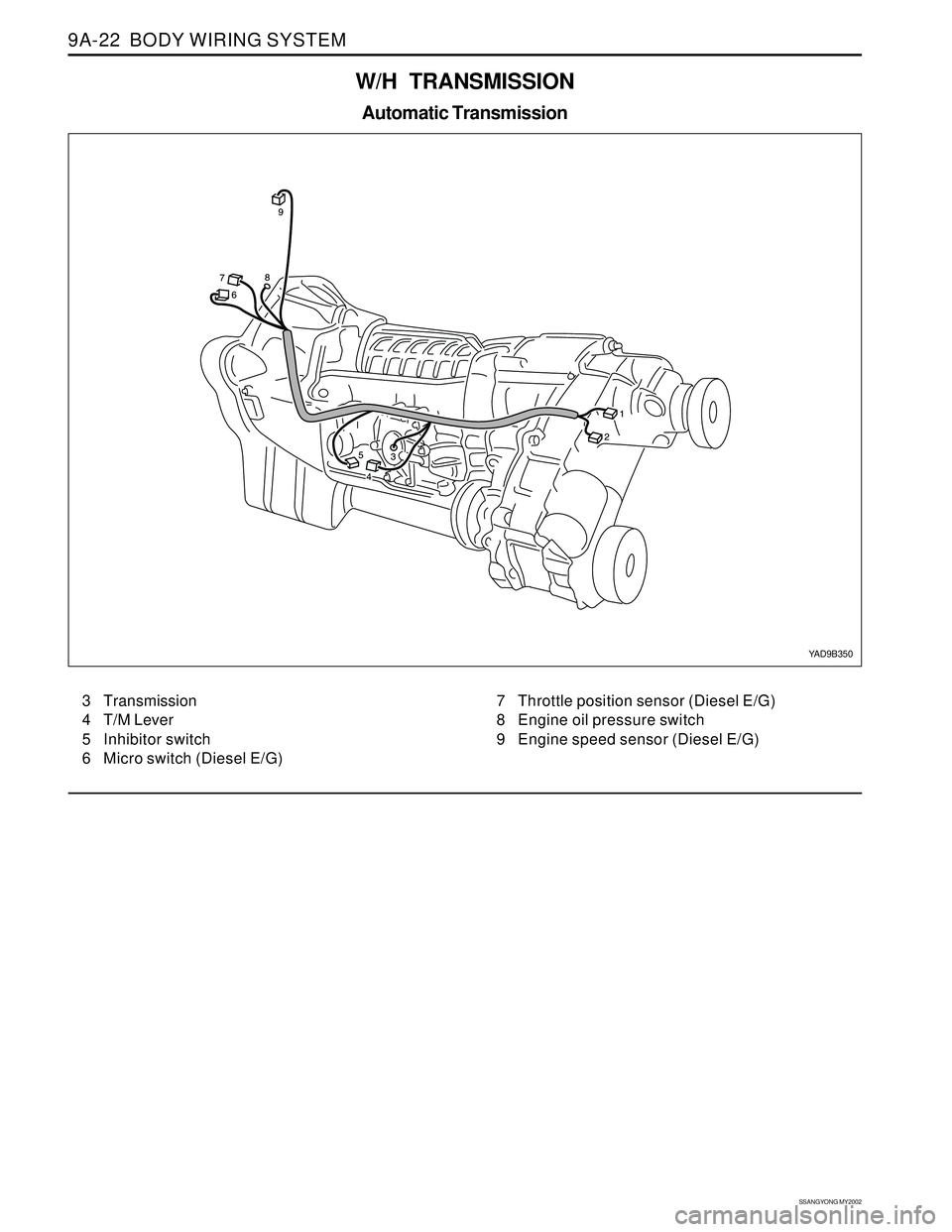

9A-22 BODY WIRING SYSTEM
W/H TRANSMISSION
Automatic Transmission
3 Transmission
4 T/M Lever
5 Inhibitor switch
6 Micro switch (Diesel E/G)7 Throttle position sensor (Diesel E/G)
8 Engine oil pressure switch
9 Engine speed sensor (Diesel E/G)
YAD9B350

BODY WIRING SYSTEM 9A-23
SSANGYONG MY2002
Manual Transmission
1 C302
2 Back up switch
3 Micro switch4 Engine oil pressure switch
5 Engine speed sensor
YAD9B350

SSANGYONG MY2002
9E-2 INSTRUMENTATION, DRIVER INFORMATION
DESCRIPTION AND OPERATION
CIGAR LIGHTER
The cigar lighter is located in the front portion of the
floor console. To use the lighter, push it in completely.
When the lighter is hot, it will release itsef from contact
with the heating element. The lighter and the heating
element can be damaged if the lighter does not fully
release itsef from the heating element.
ASHTRAY
The ashtray is located in the console. To access the
ashtray, pullit out of the ashtray housing. The ashtray
lamp will go on when the parking lamps or headlamps
are turned on.
INSTRUMENT PANEL VENTS
The center and the side vents in the instrument panel
can be adjusted up and down and from side to side.
The side vents can also be aimed toward the side
windows to defog them.
GLOVE BOX
The glove box can be opened by pulling upon the latch
handle.
DIGITAL CLOCK
The digital clock is located in the instrument cluster.
INSTRUMENT CLUSTER
The instrument cluster is located above the steering
column and in the instrument cluster trim panel. The
instrument cluster contains the instruments that
provide the driver with vehicle performance information.
The instrument cluster contains a speedometer, a
tachometer, an odometer, a trip odometer, a
temperature gauge, a fuel gauge, and several indicator
lamps. For replacement of the indicator lamp bulbs
contained in the instrument cluster, refer to “Instrument
Cluster Indicator Lamps Specifications” in the section.
SPEEDOMETER AND
TACHOMETER
The speedometer measures the speed of the vehicle
in km/h (with mph) or mph (with km/h). It consists of
an instrument cluster gauge connected to the vehicle
speed sensor on the transaxle output shaft. The
tachometer measures the engine’s speed in terms of
thousands of revolutions per minute. It consists of an
instrument cluster gauge connected to a sending unit
in the engine con-trol module. Do not operate the
engine in the red zone. Engine damage may occur.
TRIP ODOMETER
The trip odometer measures the distance the vehicle
has traveled since it was last reset. It consists of an
instrument cluster gauge connected to the sending unit
on the tasnsaxle output shaft. The trip oddometer can
be record the distance traveled from any starting point.
FUEL GAUGE
The fuel gauge consists of an instrument cluster gauge
connected to a sending unit in the fuel tank. The fuel
gauge indicates the quantity of fuel in the tank only
when the ignition is turned to ON or ACC. When the
ignition is turned to LOCK or START, the pointer may
come to rest at any position.
TEMPERATURE GAUGE
The temperature gauge consists of an instrument
cluster gauge connected to a temperature sensor that
is in con-tact with the circulating engine coolant. The
temperature gauge indicates the temperature of the
coolant. Prolonged driving or idling in very hot weather
may cause the pointer to move beyond the center of
the gauge. The engine is overheating if the pointer
moves into the red zone at the upper limit of the gauge.
INSTRUMENT CLUSTER
INDICATOR LAMPS
The instrument cluster contains indicator lamps that
indicatethe functioning of certain systems or the
existenceof potential problems with the operation of
the vehicle. The indicator lamps are replaceable. For
replacement of the indicator lamps contained in the
instrument cluster, refer to “instrument cluster indicator
lamps specifications” in this section.
CHIME MODULE
The chime module will sound to bring attention to one
or more of the following conditions:
The lights are on and the ignition not in ACC, ON,
or START.
The ignition key is in the ignition switch when the
driver’s side door is open.
The seat belt is unbuckled when the ignition is in
ACC, ON, or START.
Voltage is supplied at all times through the fuse block
to power the chime module.

SSANGYONG MY2002
9E-4 INSTRUMENTATION, DRIVER INFORMATION
1 Crash Pad Complete
2 Cover A-Def Nozzle
3 Cover A-Def Nozzle
4 Blacking Cover-Sun Sensor
5 Louver A-CTR A/Vent
6 Louver A-Side A/Vent
7 PNL A-Side Facia
8 Striker A-Glove Box
9 Shroud-Gloved Box Behind
10 Cover-C/Pad Main MTG
11 PNL A-CTR Facia
12 PNL A-Cluster Facia
13 PNL A-C/Pad LWR Main
14 PNL A-C/Pad LWR Main
15 PNL A-Shroud UPR
16 PNL A-Shroud LWR
17 Tray A-C/Pad CTR
18 Glove Box A19 BRKT-Glove Box Hinge #1
20 BRKT-Glove Box Hinge #2
21 PNL-Glove Box Hinge
22 Stopper-G/Box Housing
23 Holder-Cup
24 Ash Tray-FRT
25 Cigar Lighter A
26 Screw-Truss
27 T/Screw-Oval
28 T/Screw-Oval
29 T/Screw
30 T/Screw-Truss SEMS
31 Cover-Black Out SW
32 Handel A-C/Pad
33 Lock A-Glove Box
34 Grommet-Shroud
35 Member A-Cowl Cross

SSANGYONG MY2002
9E-6 INSTRUMENTATION, DRIVER INFORMATION
Digital Clock Inoperative (Cont’d)
Step
1
2
3
4
5
6
7
8Action
Repair the open power supply circuit for the fuse.
Is the repair complete?
1. Turn the ignition ON.
2. Use a voltmeter to check the battery voltage
available at the clock connector terminal D1.
Does the voltmeter indicate the value specified?
Repair the open circuit between the clock connector
terminal D1 and the fuse F4.
Is the repair complete?
Turn the ignition ON.
Is battery voltage available at the clock connector
terminal C13?
Repair the open circuit between the clock connector
terminal C13 and the fuse F4.
Is the repair complete?
Check continuity between the clock connector
terminal C13 and ground.
Does the multimeter indicate the value specified?
Replace the clock.
Is the repair complete?
Repair the open ground circuit between the clock
connector terminal C13 and the ground G201.
Is the repair complete?Yes
System OK
Go to Step 7
System Ok
Go to Step 9
System OK
Go to Step 10
System OK
System OKNo
−
Go to Step 6
-
Go to Step 8
-
Go to Step 11
-
- Value(s)
−
11 - 14 v
-
-
-
0 Ω
-
-
SPEEDO METER
Speedometer Is Inoperative
Step
1
2
5
6
7
8Action
Check fuse F28, and F30.
Is fuse F28 and F30 blown?
1. Check for a short circuit and repair if necessary.
2. Replace the fuse F28, and F30.
Is the repair complete?
1. Turn the ignition ON.
2. Check the voltage at fuse F28 and F30.
Is the voltage equal to the specified value?
1. connect a scan tool.
2. Check for engine control diagnostic trouble codes
(DTCs).
Is a vehicle speed sensor DTC set?
1. Remove the instrument cluster.
2. Turn the ignition ON.
3. Check the voltage at instrument cluster connector
terminal A1.
Is the voltage equal to the specified value?
Repair the open circuit between fuse F30 and the
instrument cluster.
Is the repair complete?Yes
Go to Step 7
System OK
Go to Step 5
Go to Section
2F, Engine
Controls
Go to Step 8
System OKNo
Go to Step 3
-
Go to Step 4
Go to Step 6
Go to Step 7
- Value(s)
-
-
11 - 14 v
-
11 - 14 v
-

INSTRUMENTATION, DRIVER INFORMATION 9E-7
SSANGYONG MY2002
FUEL GAUGE
Fuel Gauge Inoperative
Step
1
2
3
4
5
6
7
8Action
Turn the ignition ON.
Does the fuel gauge always indicate a full fuel tank
with the ignition ON?
Disconnect the fuel tank sending unit.
Does the fuel gauge change to empty?
Replace the fuel tank sending unit.
Is the repair complete?
Check the wiring harness for a short to ground
between the fuel tank sending unit and the fuel
gauge.
Is there a short to ground?
Repair the short to ground.
Is the repair complete?
Replace the fuel gauge.
Is the repair complete?
1. Disconnect the fuel tank sending unit electrical
connector.
2. Turn the Ignition ON.
3. Check the voltage at the fuel tank sending unit
connector C303 terminal 1.
Does the boltmeter indicate the specified value?
Repair the open circuit between the fuel gauge and
the fuel tank sending unit.
Is the repair complete?Yes
Go to Step 2
Go to Step 3
System OK
Go to Step 5
System OK
System OK
Go to Step 9
System OKNo
Go to Step 7
Go to Step 4
-
Go to Step 6
-
-
-
- Value(s)
-
-
-
-
-
-
11 - 14 v
-
Speedometer Is Inoperative (Cont’d)
Step
8
9
10
11
12Action
Use an ohmmeter to check the resistance between
ground and instrument cluster connector terminal B3.
Does the ohmmeter indicate the specified value?
Repair the open circuit between ground and instru-
ment cluster connector terminal B3.
Is the repair complete?
Use an ohmmeter to check continuity of the DK GRN/
WHT wire between the vehicle speed sensor terminal
1 and instrument cluster connector terminal C10.
Does the ohmmeter indicate the specified value?
Repair the open circuit between the vehicle speed
sensor and the instrument cluster.
Is the repair complete?
Replace the speedometer.
Is the repair complete?Yes
Go to Step 10
System OK
Go to Step 12
System OK
System OKNo
Go to Step 9
-
Go to Step 11
-
- Value(s)
0 Ω
-
0 Ω
-
-
